Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#40258) — 197 parça

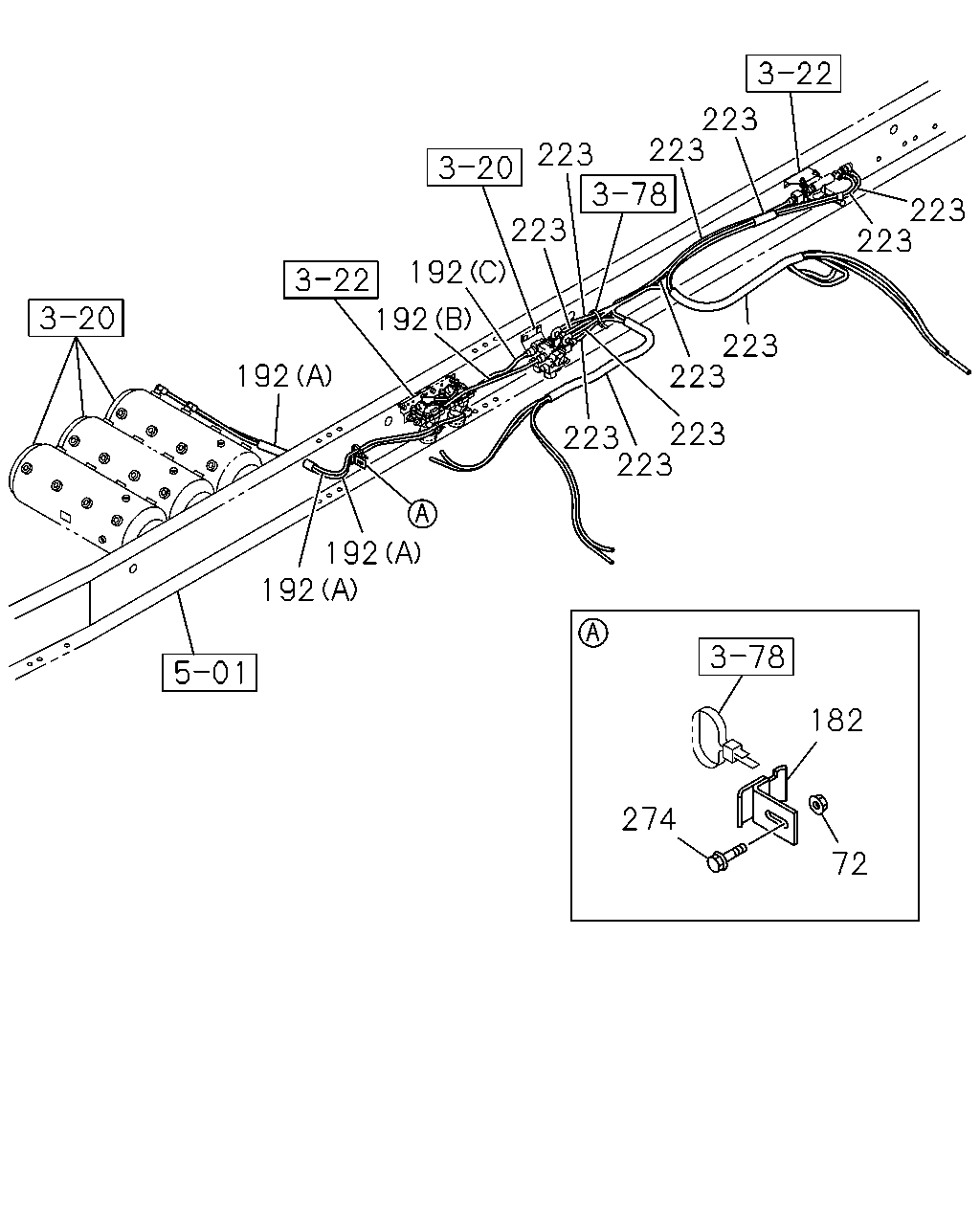

223 223 223 223 223 223 192 192 223 223 192 223 223 223 192 192 182 274 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	NUT; BRKT WHEEL BASE 4900MM(49W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91180-108-0	02	1	0803-0805	●
72	NUT; BRKT WHEEL BASE 4900MM(49W) REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	02	1	0801-0802	●
72	NUT; BRKT WHEEL BASE 7100MM(71W) REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	03	1	0801-0802	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0802		●
72	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	01	1	0801-0802	●
72	NUT; BRKT WHEEL BASE 7100MM(71W) REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0801-0802	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM>,REAR AXLE RT210<C2A> M8 FLANGE	0-91180-108-0	01	1	0801-0802	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-0803	●	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
72	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-0803	●	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
72	NUT; BRKT WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
72	NUT; BRKT WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0804-0805	●	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0804-0805	●
72	NUT; BRKT WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	0804-0805	●
72	NUT; BRKT WHEEL BASE 5200MM(52W),WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0804-0805	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0806-0807	●	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0806-0807	●
72	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5200MM(52W), WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0806-0807	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0808-0808	●	●
72	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5200MM(52W), WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0808-0808	●
72	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) REAR AXLE RT210<C2A> M8 FLANGE	0-91180-108-0	01	1	0808-0808	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0808-0808	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0809-	●	●
72	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) REAR AXLE RT210<C2A> M8 FLANGE	0-91180-108-0	01	1	0809-	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0809-	●
72	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5200MM(52W), WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0809-	●
72	NUT; BRKT WHEEL BASE 6600MM(66W) REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0809-	●
182	BRACKET; TUBE CLIP WHEEL BASE 6600MM(66W)	1-47479-693-0	01	1	0801-0802	●
192	TUBE; NYLON REAR AXLE RT210<C2A> (B)	8-98109-852-0	01	1	0801-0803	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) REAR AXLE RT210<C2A> (B)	8-98109-852-0	01	1	0804-	●
192	TUBE; NYLON REAR AXLE MERITOR RT40-145P<BFM> (B)	8-98105-916-0	01	1	0801-	●
192	TUBE; NYLON (C)	8-98099-675-0	01	1	0801-0803	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (C)	8-98099-675-0	01	1	0804-0805	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (C)	8-98122-535-0	01	1	0806-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0804-	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0801-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0801-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0809-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=15	1-87411-026-0	AR	1	0804-	●	●
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=19	1-87411-028-0	AR	1	0801-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0801-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0801-	●	●
274	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	01	1	0801-0802	●

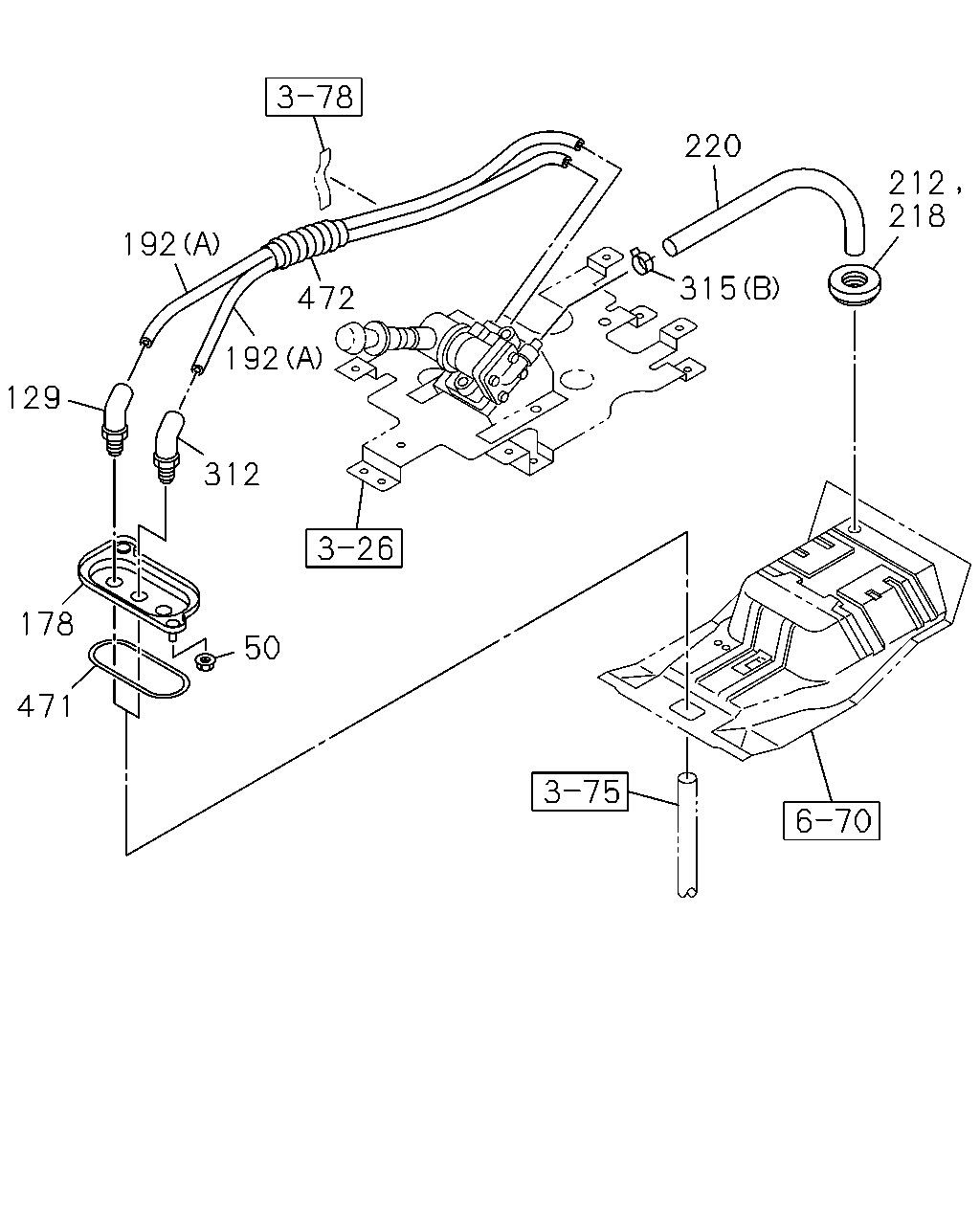

220 212 218 192 315 472 192 129 312 178 50 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	0801-	●	●
129	CONNECTOR; NYLON TUBE DIN13 & M18 ELBOW	8-97611-963-1	01	1	0801-1101	●	●
129	CONNECTOR; NYLON TUBE DIN13 & M18 ELBOW	8-97611-963-1	02	1	1102-	●	●
178	BRACKET; UNION	8-98017-054-1	01	1	0801-	●	●
192	TUBE; NYLON REAR AXLE RT210<C2A> (B)	8-98109-852-0	01	1	0801-0803	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) REAR AXLE RT210<C2A> (B)	8-98109-852-0	01	1	0804-	●
192	TUBE; NYLON REAR AXLE MERITOR RT40-145P<BFM> (B)	8-98105-916-0	01	1	0801-	●
192	TUBE; NYLON (C)	8-98099-675-0	01	1	0801-0803	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (C)	8-98099-675-0	01	1	0804-0805	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (C)	8-98122-535-0	01	1	0806-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0804-	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0801-	●	●
212	GROMMET; AIR PIPE OD=24	9-61166-007-0	01	1	1102-1102	●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1103-	●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1004-1101	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1004-	●	●
312	CONNECTOR; SUPPLY DIN13 & M18 ELBOW	8-97611-963-1	01	1	0801-1101	●	●
315	CLIP (B) ID=14	8-94238-572-0	01	1	1004-	●	●
315	CLIP REAR AXLE RT210<C2A> (A) L=350	1-09707-183-0	01	1	0801-0803	●
315	CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) REAR AXLE RT210<C2A> (A) L=350	1-09707-183-0	01	1	0804-	●
471	SEAL; BRKT	1-79738-832-0	01	1	0801-	●	●
472	TUBE; SPUTTER	8-98108-051-0	01	1	0801-	●	●

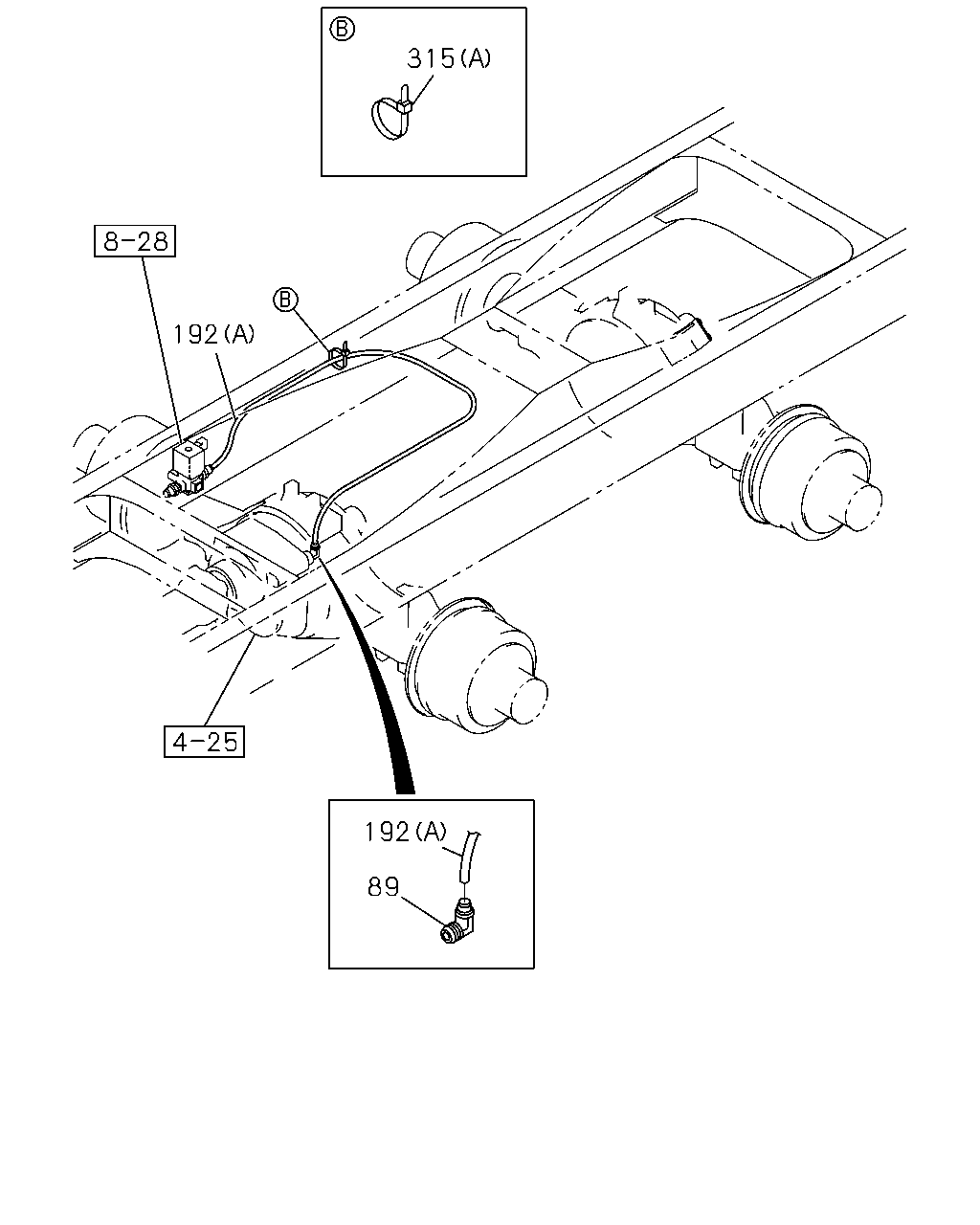

315 192 192 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	CONNECTOR; NYLON TUBE WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) REAR AXLE MERITOR RT40-145P<BFM> DIFF LOCK<C3N> DIN8 & R1/4 ELBOW	1-09661-209-0	03	1	0809-0901	●
89	CONNECTOR; NYLON TUBE WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> DIN8 & R1/4 ELBOW	1-09661-209-0	03	1	0902-		●
89	CONNECTOR; NYLON TUBE WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) REAR AXLE MERITOR RT40-145P<BFM> DIFF LOCK<C3N> DIN8 & R1/4 ELBOW	1-09661-209-0	03	1	0902-	●
89	CONNECTOR; NYLON TUBE DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0803-0808		●
89	CONNECTOR; NYLON TUBE REAR AXLE MERITOR RT40-145P<BFM> DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0803-0808	●
89	CONNECTOR; NYLON TUBE DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0809-0901		●
89	CONNECTOR; NYLON TUBE REAR AXLE MERITOR RT40-145P<BFM> EXC. DIFF LOCK<C3N> DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0809-0901	●
89	CONNECTOR; NYLON TUBE EXC. DIFF LOCK<C3N> DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0902-		●
89	CONNECTOR; NYLON TUBE REAR AXLE MERITOR RT40-145P<BFM> EXC. DIFF LOCK<C3N> DIN8 & R1/4 ELBOW	1-09661-209-0	01	1	0902-	●
89	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0801-0802		●
89	CONNECTOR; NYLON TUBE REAR AXLE RT210<C2A> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0801-0802	●
89	CONNECTOR; NYLON TUBE REAR AXLE RT210<C2A> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0803-	●
192	TUBE; NYLON REAR AXLE RT210<C2A> (B)	8-98109-852-0	01	1	0801-0803	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) REAR AXLE RT210<C2A> (B)	8-98109-852-0	01	1	0804-	●
192	TUBE; NYLON REAR AXLE MERITOR RT40-145P<BFM> (B)	8-98105-916-0	01	1	0801-	●
192	TUBE; NYLON (C)	8-98099-675-0	01	1	0801-0803	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (C)	8-98099-675-0	01	1	0804-0805	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (C)	8-98122-535-0	01	1	0806-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0804-	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0801-	●	●
315	CLIP (B) ID=14	8-94238-572-0	01	1	1004-	●	●
315	CLIP REAR AXLE RT210<C2A> (A) L=350	1-09707-183-0	01	1	0801-0803	●
315	CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) REAR AXLE RT210<C2A> (A) L=350	1-09707-183-0	01	1	0804-	●

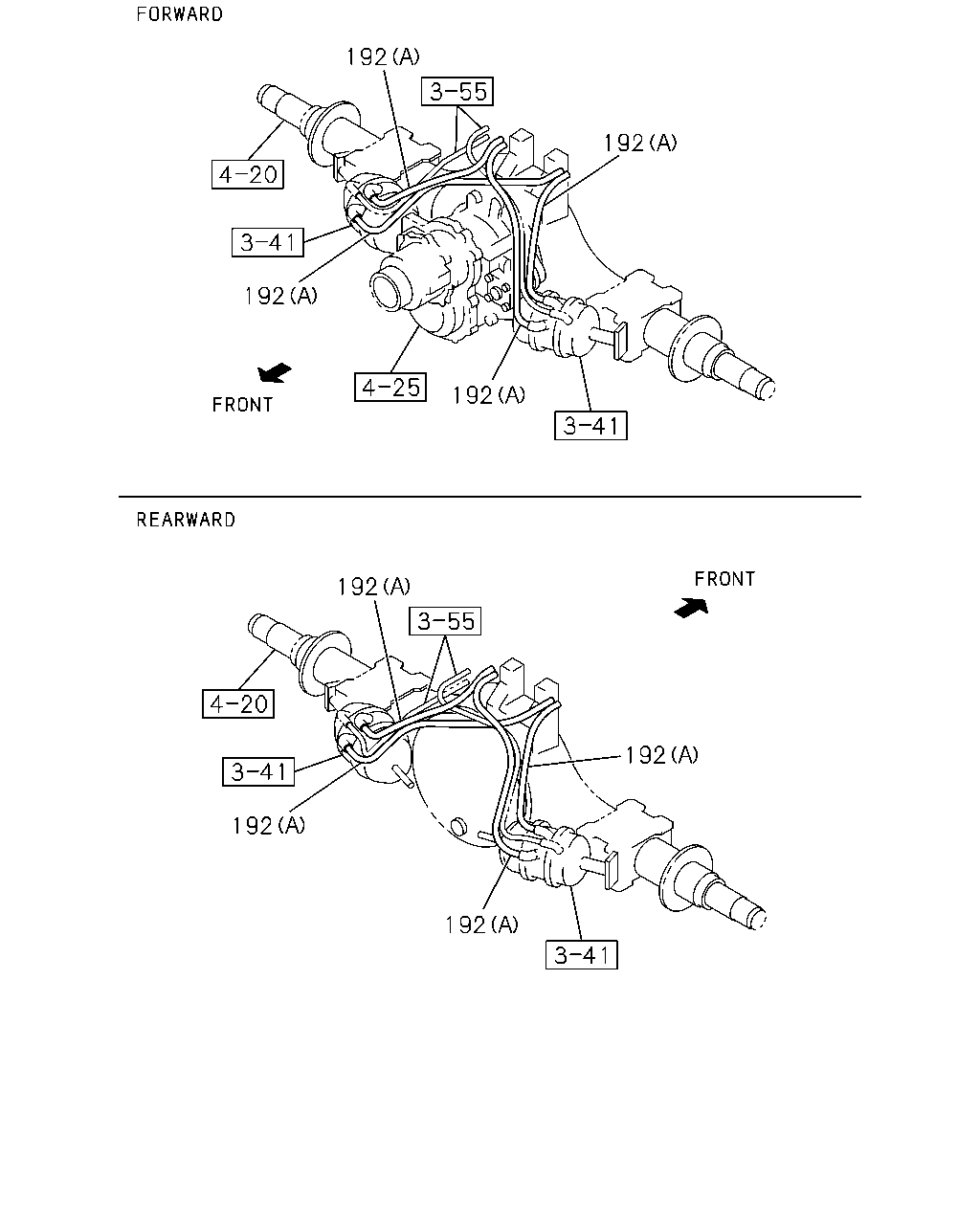

192 192 192 192 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
192	TUBE; NYLON REAR AXLE RT210<C2A> (B)	8-98109-852-0	01	1	0801-0803	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) REAR AXLE RT210<C2A> (B)	8-98109-852-0	01	1	0804-	●
192	TUBE; NYLON REAR AXLE MERITOR RT40-145P<BFM> (B)	8-98105-916-0	01	1	0801-	●
192	TUBE; NYLON (C)	8-98099-675-0	01	1	0801-0803	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (C)	8-98099-675-0	01	1	0804-0805	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (C)	8-98122-535-0	01	1	0806-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0804-	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0801-	●	●

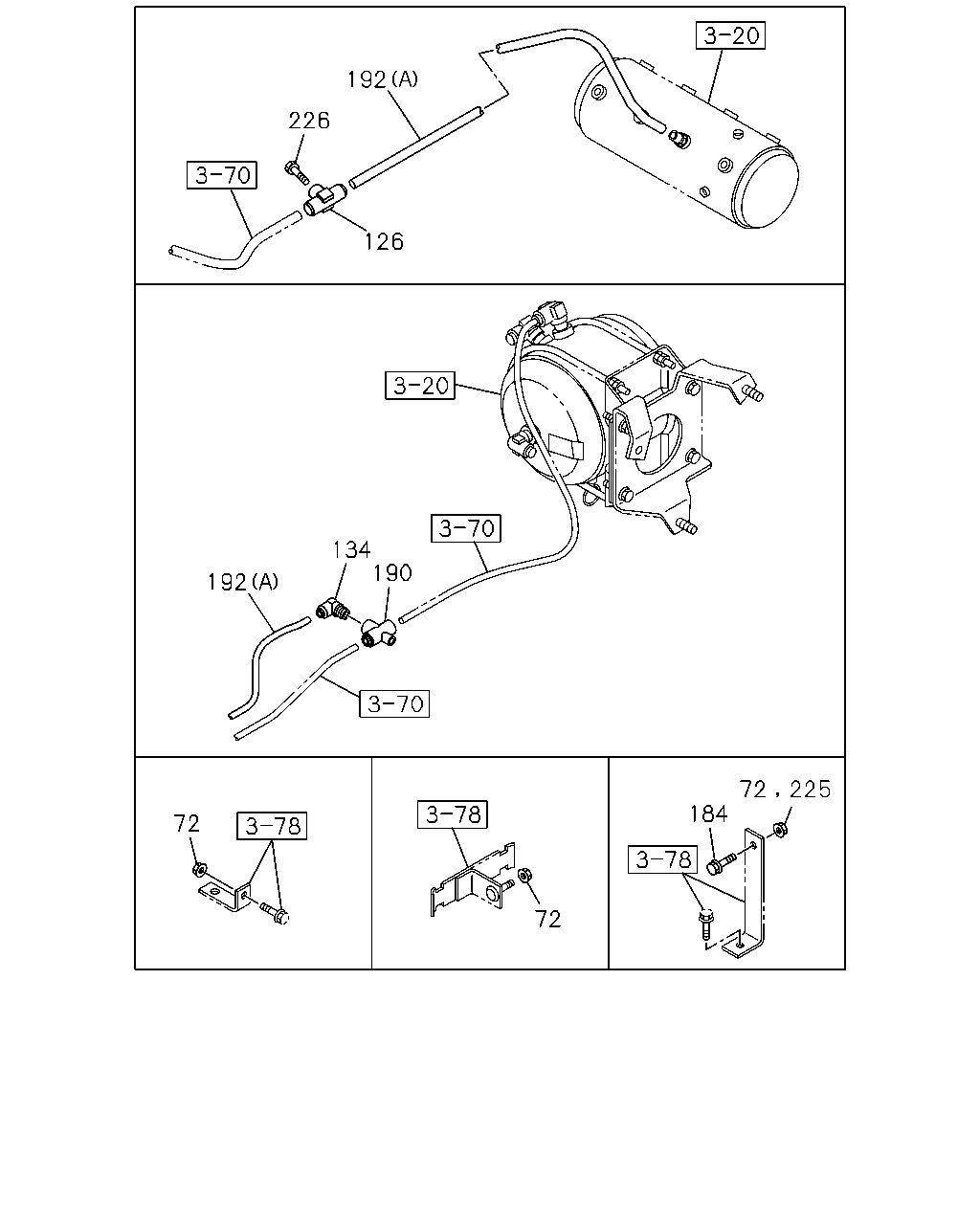

192 226 126 134 190 192 72 184 72 72 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	NUT; BRKT WHEEL BASE 4900MM(49W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91180-108-0	02	1	0803-0805	●
72	NUT; BRKT WHEEL BASE 4900MM(49W) REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	02	1	0801-0802	●
72	NUT; BRKT WHEEL BASE 7100MM(71W) REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	03	1	0801-0802	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0802		●
72	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	01	1	0801-0802	●
72	NUT; BRKT WHEEL BASE 7100MM(71W) REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0801-0802	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM>,REAR AXLE RT210<C2A> M8 FLANGE	0-91180-108-0	01	1	0801-0802	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-0803	●	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
72	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0803-0803	●	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
72	NUT; BRKT WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
72	NUT; BRKT WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0804-0805	●	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0804-0805	●
72	NUT; BRKT WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	0804-0805	●
72	NUT; BRKT WHEEL BASE 5200MM(52W),WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0804-0805	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0806-0807	●	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0806-0807	●
72	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5200MM(52W), WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0806-0807	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0808-0808	●	●
72	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5200MM(52W), WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0808-0808	●
72	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) REAR AXLE RT210<C2A> M8 FLANGE	0-91180-108-0	01	1	0808-0808	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0808-0808	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0809-	●	●
72	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) REAR AXLE RT210<C2A> M8 FLANGE	0-91180-108-0	01	1	0809-	●
72	NUT; BRKT REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0809-	●
72	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5200MM(52W), WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0809-	●
72	NUT; BRKT WHEEL BASE 6600MM(66W) REAR AXLE MERITOR RT40-145P<BFM> M8 FLANGE	0-91180-108-0	01	1	0809-	●
126	UNION; NYLON TUBE	1-09661-128-0	01	1	0801-0803	●	●
126	UNION; NYLON TUBE	1-09661-128-0	01	1	0804-		●
126	UNION; NYLON TUBE BRAKE REGULATION ADR<TDU>	1-09661-128-0	01	1	0804-	●
134	CONNECTOR DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0801-0803	●	●
134	CONNECTOR DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0804-		●
134	CONNECTOR BRAKE REGULATION ADR<TDU> DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0804-	●
184	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	02	1	0803-	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0801-0802	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0801-0803	●	●
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-		●
190	UNION; 3 WAY BRAKE REGULATION ADR<TDU> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-	●
192	TUBE; NYLON REAR AXLE RT210<C2A> (B)	8-98109-852-0	01	1	0801-0803	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) REAR AXLE RT210<C2A> (B)	8-98109-852-0	01	1	0804-	●
192	TUBE; NYLON REAR AXLE MERITOR RT40-145P<BFM> (B)	8-98105-916-0	01	1	0801-	●
192	TUBE; NYLON (C)	8-98099-675-0	01	1	0801-0803	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (C)	8-98099-675-0	01	1	0804-0805	●
192	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (C)	8-98122-535-0	01	1	0806-	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0804-	●	●
192	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0801-	●	●
192	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0801-	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	0801-	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0801-0803	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0801-0803	●	●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0804-		●
226	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	0804-		●
226	BOLT; UNION BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28650-820-0	01	1	0804-	●
226	BOLT; UNION BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28650-820-0	01	1	0804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
