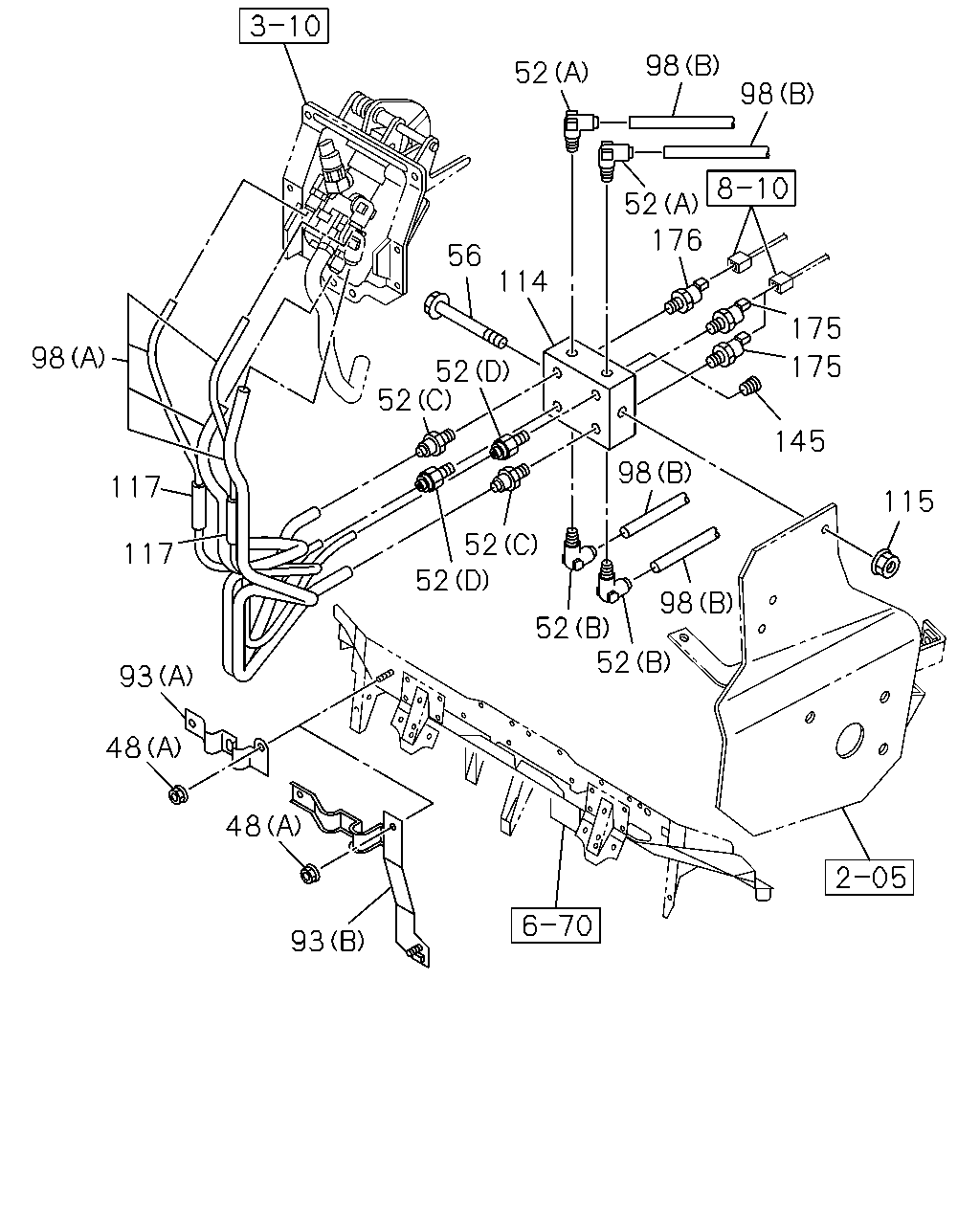

3-75 — BRAKE PIPING; AIR,FRONT (#40257) — 146 parça

98 52 98 52 176 56 114 175 98 175 52 52 145 98 117 115 52 52 117 98 52 52 93 48 48 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	NUT; UNION BRKT (B) M20	0-91111-520-0	01	1	0801-	●	●
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	0801-	●	●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0801-	●	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	0801-	●	●
52	CONNECTOR; NYLON TUBE (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0801-	●	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0801-	●	●
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	0801-	●	●
93	BRACKET; UNION,TUBE (A)	8-98044-013-0	01	1	0801-1201	●	●
93	BRACKET; UNION,TUBE (B)	8-98186-924-0	01	1	1202-	●	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98086-217-0	01	1	0804-		●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98106-552-0	01	1	0804-		●
98	TUBE; NYLON (B) L=240 OD=12	8-98096-505-0	02	1	0801-	●
98	TUBE; NYLON FRONT AXLE MERITOR FG941(BFL) (B) L=240 OD=12	8-98096-505-0	02	1	0801-		●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	0801-	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) L=170 OD=12	1-49222-063-0	01	1	0801-1504		●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) L=170 OD=12	1-49222-063-0	01	1	0801-1504		●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98302-565-0	01	1	1505-		●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98302-565-0	01	1	1505-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0804-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
98	TUBE; NYLON (D) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0801-	●	●
114	UNION; NYLON TUBE	8-98057-394-1	01	1	0801-	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	02	1	0801-0802	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0801-	●	●
145	PLUG PT1/4	9-99204-513-0	01	1	0801-	●	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	0801-	●	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	0801-	●	●

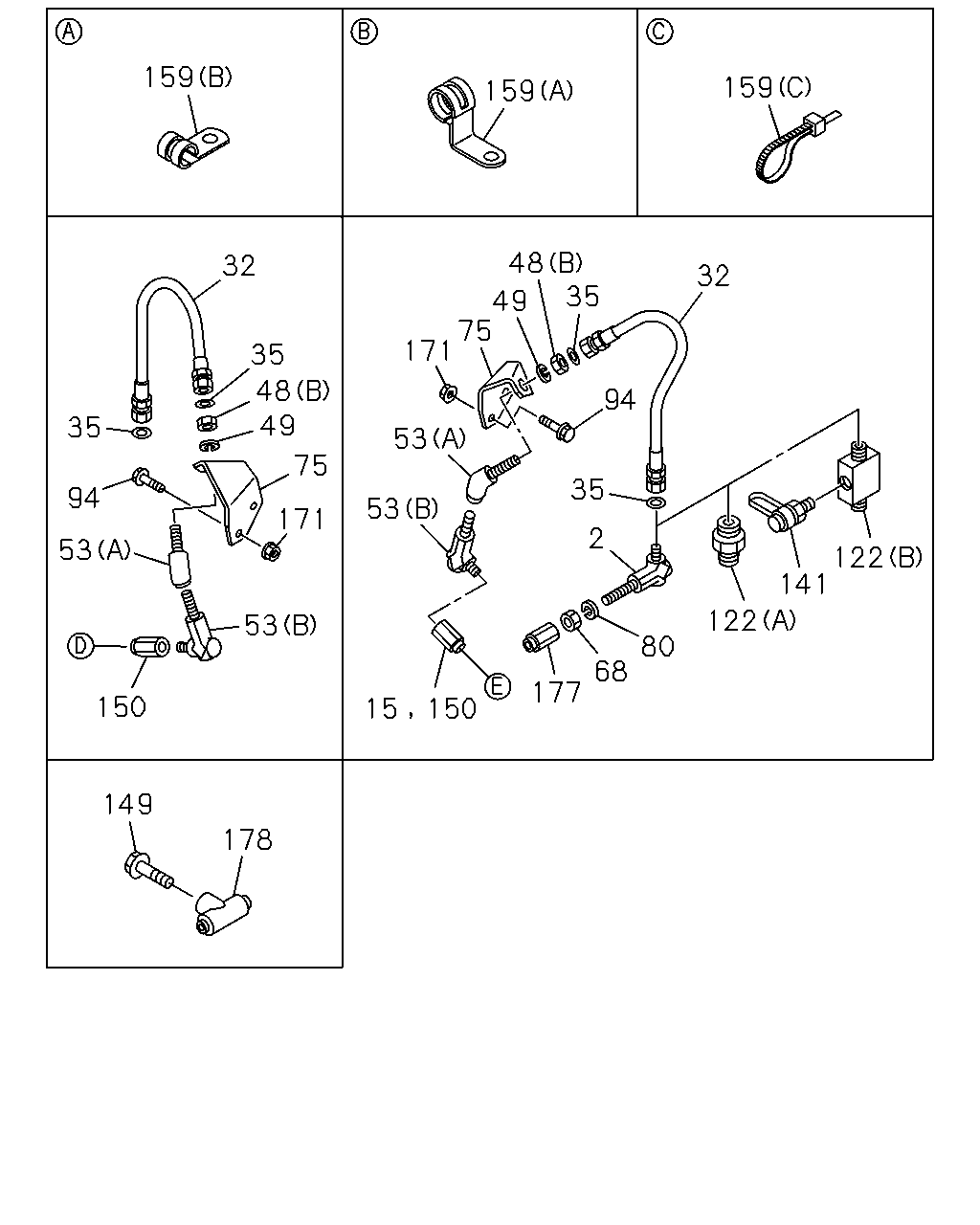

159 159 159 48 35 32 32 49 75 171 35 48 49 94 35 53 75 35 94 53 171 2 53 122 141 122 53 80 68 177 150 15 150 149 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE M20 & M20 ELBOW	1-09654-128-1	02	1	0801-	●
2	UNION; AIR PIPE FRONT AXLE MERITOR FG941(BFL) M20 & M20 ELBOW	1-09654-128-1	02	1	0801-		●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-0805	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0806-1201	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1202-	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1202-	●	●
32	HOSE; FLEX,FRT	0-87847-470-1	02	1	0801-	●
32	HOSE; FLEX,FRT FRONT AXLE MERITOR FG941(BFL)	0-87847-470-1	02	1	0801-		●
32	HOSE; FLEX,FRT FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	0-87847-430-1	02	1	0801-		●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0801-	●	●
48	NUT; UNION BRKT (B) M20	0-91111-520-0	01	1	0801-	●	●
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	0801-	●	●
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	0801-	●	●
53	UNION; ELBOW (A) M20	1-09654-199-2	02	1	0801-	●
53	UNION; ELBOW FRONT AXLE MERITOR FG941(BFL) (A) M20	1-09654-199-2	02	1	0801-		●
53	UNION; ELBOW FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) M20 & M20 ELBOW	1-09654-128-1	02	1	0801-		●
68	NUT; UNION M20	0-91111-520-0	01	1	0801-	●	●
68	NUT; UNION M20	0-91111-520-0	02	1	0801-	●
68	NUT; UNION FRONT AXLE MERITOR FG941(BFL) M20	0-91111-520-0	02	1	0801-		●
75	BRACKET; UNION	8-98111-429-0	01	1	0801-	●
75	BRACKET; UNION FRONT AXLE MERITOR FG941(BFL)	8-98111-429-0	01	1	0801-		●
75	BRACKET; UNION	8-98111-430-0	01	1	0801-	●
75	BRACKET; UNION FRONT AXLE MERITOR FG941(BFL)	8-98111-430-0	01	1	0801-		●
75	BRACKET; UNION FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98094-074-0	01	1	0801-		●
75	BRACKET; UNION FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98094-075-0	01	1	0801-		●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0801-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	0801-	●
80	WASHER; LK,UNION FRONT AXLE MERITOR FG941(BFL) ID=20.2	0-91510-520-0	02	1	0801-		●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	0801-1201	●	●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1202-	●	●
122	CONNECTOR; FLEX HOSE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) M20 & PT3/8	1-09660-731-0	01	1	0801-0803		●
122	CONNECTOR; FLEX HOSE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M20 & PT3/8	1-09660-731-0	01	1	0801-0803		●
122	CONNECTOR; FLEX HOSE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) M20 & PT3/8	1-09660-731-1	01	1	0804-		●
122	CONNECTOR; FLEX HOSE FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) M20 & PT3/8	1-09660-731-1	01	1	0804-		●
122	CONNECTOR; FLEX HOSE ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	0801-		●
141	CONNECTOR; TEST ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-		●
149	BOLT; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	01	1	0804-		●
149	BOLT; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	01	1	0804-		●
150	ADAPTER; CONT,NEUTRAL BUS STOP DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-0805	●	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	15	1	0902-0910	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	16	1	0911-	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) REAR AXLE MERITOR RT40-145P<BFM> (C) L=350	1-09707-183-0	16	1	0911-		●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	19	1	0805-0809		●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) REAR AXLE RT210<C2A> (C) L=350	1-09707-183-0	18	1	0810-		●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	18	1	0810-		●
159	CLIP; NYLON TUBE WHEEL BASE 5200MM(52W) (C) L=350	1-09707-183-0	21	1	0804-		●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	18	1	0804-0808		●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) REAR AXLE RT210<C2A> (C) L=350	1-09707-183-0	18	1	0809-0809		●
159	CLIP; NYLON TUBE (B) ID=29 L=35	5-09700-293-1	01	1	0801-	●	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	16	1	0801-0802		●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	16	1	0803-0803		●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) AUSTRALIA EQUIPMENT(RR3) (C) L=350	1-09707-183-0	16	1	0803-0803		●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) AUSTRALIA EQUIPMENT(RR3) (C) L=350	1-09707-183-0	16	1	0804-0804		●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) AUSTRALIA EQUIPMENT(RR3) (C) L=350	1-09707-183-0	14	1	0805-		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	0801-0802	●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W),WHEEL BASE 5200MM(52W), WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	15	1	0801-0802		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	0803-0803	●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	15	1	0803-0803		●
159	CLIP; NYLON TUBE WHEEL BASE 5200MM(52W),WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	15	1	0803-0803		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	0804-0804	●
159	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	15	1	0804-0804		●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	15	1	0804-0804		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	0805-0808	●
159	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	15	1	0805-0808		●
159	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	15	1	0809-0901	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) REAR AXLE MERITOR RT40-145P<BFM> (C) L=350	1-09707-183-0	15	1	0809-0901		●
159	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	16	1	0902-0910	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) REAR AXLE MERITOR RT40-145P<BFM> (C) L=350	1-09707-183-0	16	1	0902-0910		●
159	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	17	1	0911-	●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	0801-0801	●	●
159	CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	0802-	●	●
159	CLIP; NYLON TUBE (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0801-0802	●	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	02	1	0801-	●	●
159	CLIP; NYLON TUBE (B) ID=26 L=26	1-09701-236-0	01	1	0801-	●	●
171	NUT; BRACKET WEST MALAYSIA EQUIPMENT(SEQ) M8 FLANGE	0-91180-108-0	04	1	1202-		●
177	CONNECTOR DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0801-	●
177	CONNECTOR FRONT AXLE MERITOR FG941(BFL) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0801-		●
178	UNION EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-09661-128-0	02	1	0804-		●

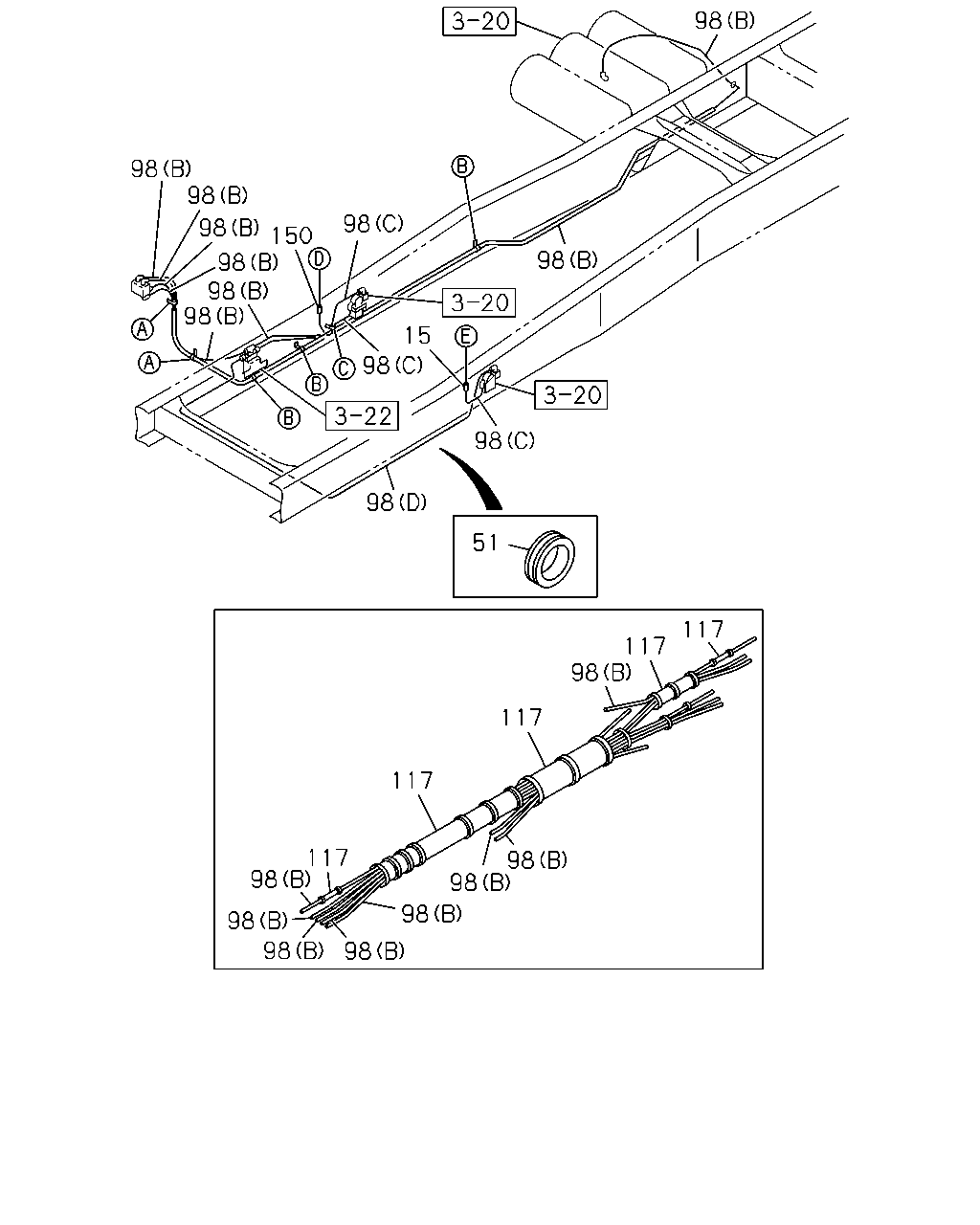

98 98 98 98 98 150 98 98 98 98 15 98 98 98 51 117 117 98 117 117 117 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-0805	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0806-1201	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1202-	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1202-	●	●
51	GROMMET; NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=28 OD=35 T=25	1-09332-011-1	01	1	0804-		●
51	GROMMET; NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=28 OD=35 T=17	9-09956-256-2	01	1	0804-		●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98086-217-0	01	1	0804-		●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98106-552-0	01	1	0804-		●
98	TUBE; NYLON (B) L=240 OD=12	8-98096-505-0	02	1	0801-	●
98	TUBE; NYLON FRONT AXLE MERITOR FG941(BFL) (B) L=240 OD=12	8-98096-505-0	02	1	0801-		●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	0801-	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) L=170 OD=12	1-49222-063-0	01	1	0801-1504		●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) L=170 OD=12	1-49222-063-0	01	1	0801-1504		●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98302-565-0	01	1	1505-		●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98302-565-0	01	1	1505-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0804-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
98	TUBE; NYLON (D) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0801-	●	●
150	ADAPTER; CONT,NEUTRAL BUS STOP DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-0805	●	●
