Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#40256) — 183 parça

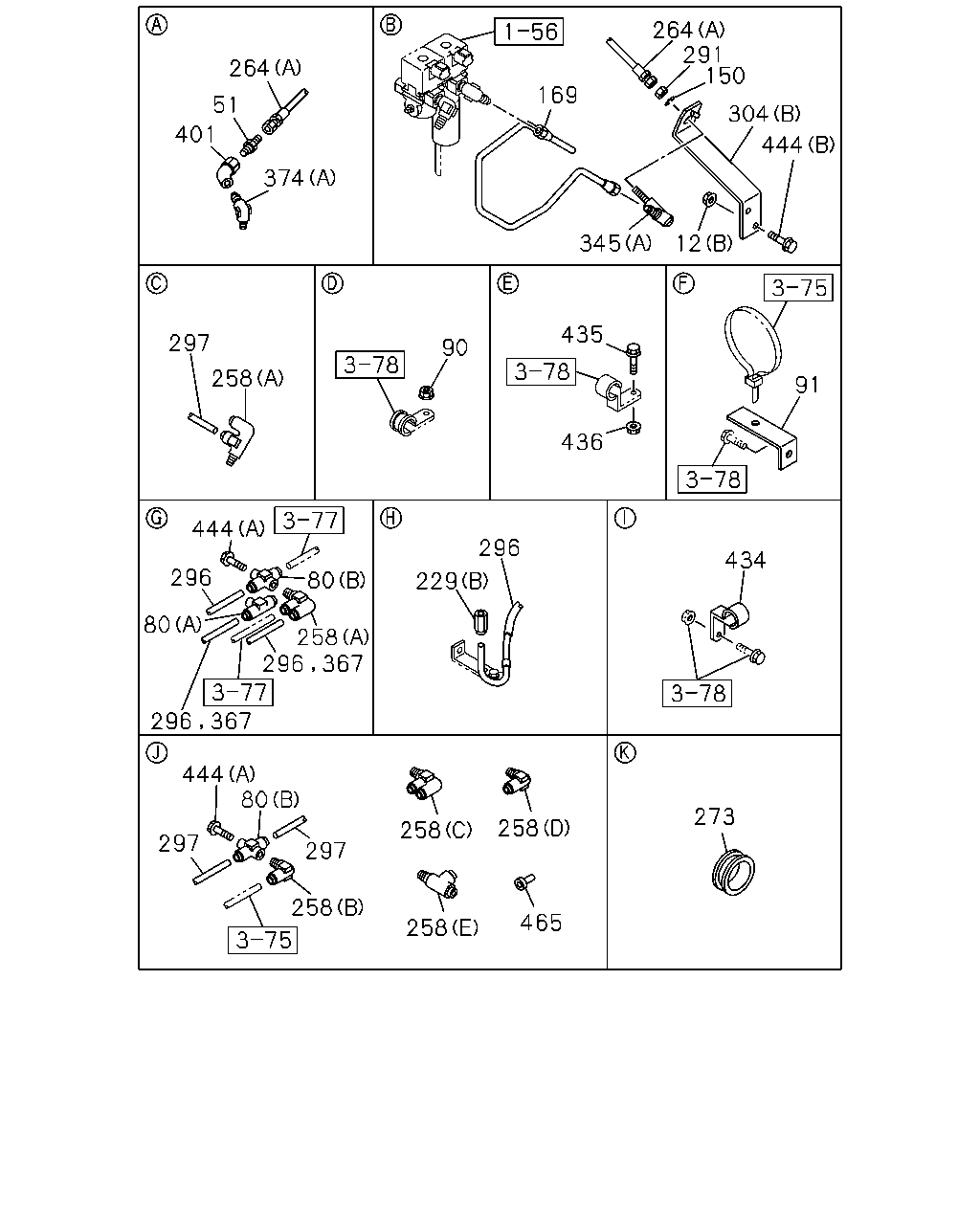

264 291 150 264 169 51 304 401 444 374 345 12 435 297 90 258 91 436 444 296 434 80 296 229 80 258 444 80 273 258 258 297 297 258 465 258 296 367 296 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NUT; UNION (B) M8 FLANGE	0-91180-108-0	02	1	0801-	●
12	NUT; UNION EMISSION REGULATION NEW LONG TERM<JBG> (B) M8 FLANGE	0-91180-108-0	02	1	0801-		●
12	NUT; UNION (A) M22	0-91111-522-0	01	1	0801-	●	●
51	UNION M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0801-	●
51	UNION EMISSION REGULATION NEW LONG TERM<JBG> M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0801-		●
80	UNION; 3 WAY (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0801-	●
80	UNION; 3 WAY (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0801-0901	●
80	UNION; 3 WAY ZF9S1310 M/T(Y5K) (B) DIN8 & RC3/8 3WAY	1-09661-129-0	02	1	0801-0803	●	●
80	UNION; 3 WAY ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-1205	●	●
80	UNION; 3 WAY ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-1205	●
80	UNION; 3 WAY ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-1205		●
80	UNION; 3 WAY ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY>,SHIFT PATTERN DOUBLE-H<EDZ> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0804-1205		●
80	UNION; 3 WAY ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1206-	●	●
80	UNION; 3 WAY ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1206-	●	●
80	UNION; 3 WAY TRANSMISSION-FULLER RTO11908(Y5L) (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1206-		●
80	UNION; 3 WAY ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1206-		●
80	UNION; 3 WAY TRANSMISSION-FULLER RTO11908(Y5L) (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0801-0803	●	●
80	UNION; 3 WAY (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0801-0803		●
80	UNION; 3 WAY MAL6R M/T(Y2J) (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	02	1	0804-		●
90	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0801-	●	●
91	BRACKET; TUBE CLIP L=60 H=30	1-47477-716-1	02	1	0801-	●
91	BRACKET; TUBE CLIP WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) L=60 H=30	1-47477-716-1	02	1	0801-		●
150	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0801-	●
150	WASHER; LK,UNION EMISSION REGULATION NEW LONG TERM<JBG> ID=12.2	0-91510-512-0	01	1	0801-		●
169	PIPE; AIR,UNION TO FLEX HOSE L=630 SERVICED BY L=650	1-47428-810-0	01	1	0801-	●
169	PIPE; AIR,UNION TO FLEX HOSE EMISSION REGULATION NEW LONG TERM<JBG> L=630 SERVICED BY L=650	1-47428-810-0	01	1	0801-		●
229	ADAPTER; NYLON TUBE MAL6R M/T(Y2J) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0804-		●
229	ADAPTER; NYLON TUBE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0801-	●	●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0801-	●	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (E)	1-09660-969-0	01	1	0804-1006		●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (E) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1007-1205		●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) WEST MALAYSIA EQUIPMENT(SEQ) (E)	1-09660-969-0	01	1	1206-		●
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-0901	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0801-0803	●	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0804-	●	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0801-0803	●	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0804-1205	●
258	CONNECTOR; NYLON TUBE (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0804-1205		●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1206-	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1206-		●
258	CONNECTOR; NYLON TUBE MAL6R M/T(Y2J),TRANSMISSION-FULLER RTO11908(Y5L) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1206-		●
258	CONNECTOR; NYLON TUBE (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0801-	●	●
264	HOSE; FLEX ENGINE REAR PTO(SV1) (B) L=1000	1-09363-794-0	01	1	0801-		●
264	HOSE; FLEX (A) L=360	1-09363-637-0	01	1	0801-	●
264	HOSE; FLEX EMISSION REGULATION NEW LONG TERM<JBG> (A) L=360	1-09363-637-0	01	1	0801-		●
264	HOSE; FLEX EXC. ENGINE REAR PTO(SV1) (B) L=1150	1-09363-791-0	01	1	0801-1101	●	●
264	HOSE; FLEX (B) L=1150	1-09363-791-0	01	1	1102-	●
264	HOSE; FLEX EXC. ENGINE REAR PTO(SV1) (B) L=1150	1-09363-791-0	01	1	1102-		●
273	GROMMET ID=32 OD=40 T=18	1-09891-003-0	01	1	0801-	●	●
291	NUT; UNION M12	9-09840-280-0	01	1	0801-	●
291	NUT; UNION EMISSION REGULATION NEW LONG TERM<JBG> M12	9-09840-280-0	01	1	0801-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-	●
296	TUBE; NYLON ZF9S1310 M/T(Y5K) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-	●
296	TUBE; NYLON ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-		●
296	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0801-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0802-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
304	BRACKET; UNION (B)	8-97615-626-3	01	1	0801-	●
304	BRACKET; UNION EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97615-626-3	01	1	0801-		●
304	BRACKET; UNION (A)	8-97610-362-1	01	1	0801-	●	●
345	UNION; AIR PIPE (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0902-	●
345	UNION; AIR PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0801-	●
345	UNION; AIR PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M12 ELBOW	0-92125-206-0	01	1	0801-		●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0801-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0801-	●	●
374	CONNECTOR (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0902-	●
374	CONNECTOR (A) PT1/4 2WAY	1-09660-693-0	01	1	0801-	●
374	CONNECTOR EMISSION REGULATION NEW LONG TERM<JBG> (A) PT1/4 2WAY	1-09660-693-0	01	1	0801-		●
401	CONNECTOR; FLEX HOSE R1/4 & RC1/4	1-09664-211-0	01	1	0801-	●
401	CONNECTOR; FLEX HOSE EMISSION REGULATION NEW LONG TERM<JBG> R1/4 & RC1/4	1-09664-211-0	01	1	0801-		●
434	CLIP ID=8 H=20 L=20	1-09700-604-0	01	1	0801-	●	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0801-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0801-	●	●
444	BOLT; UNION WHEEL BASE 5200MM(52W) (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-		●
444	BOLT; UNION ZF9S1310 M/T(Y5K) (A) M8X20 FLANGE	0-28650-820-0	02	1	0801-1205	●	●
444	BOLT; UNION ZF9S1310 M/T(Y5K) (A) M8X20 FLANGE	0-28650-820-0	02	1	1206-	●
444	BOLT; UNION ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M8X20 FLANGE	0-28650-820-0	02	1	1206-		●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	0801-0803	●	●
444	BOLT; UNION TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0801-0803	●	●
444	BOLT; UNION TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0808	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0808	●
444	BOLT; UNION WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0808		●
444	BOLT; UNION MAL6R M/T(Y2J),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0808		●
444	BOLT; UNION TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-	●
444	BOLT; UNION WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-		●
444	BOLT; UNION MAL6R M/T(Y2J),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-		●
444	BOLT; UNION (B) M8X25 FLANGE	0-28650-825-0	02	1	0801-	●
444	BOLT; UNION EMISSION REGULATION NEW LONG TERM<JBG> (B) M8X25 FLANGE	0-28650-825-0	02	1	0801-		●
465	PLUG ZF9S1310 M/T(Y5K) OD=8	1-09661-616-0	01	1	0801-1205	●	●
465	PLUG ZF9S1310 M/T(Y5K) OD=8	1-09661-616-0	01	1	1206-	●
465	PLUG ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=8	1-09661-616-0	01	1	1206-		●

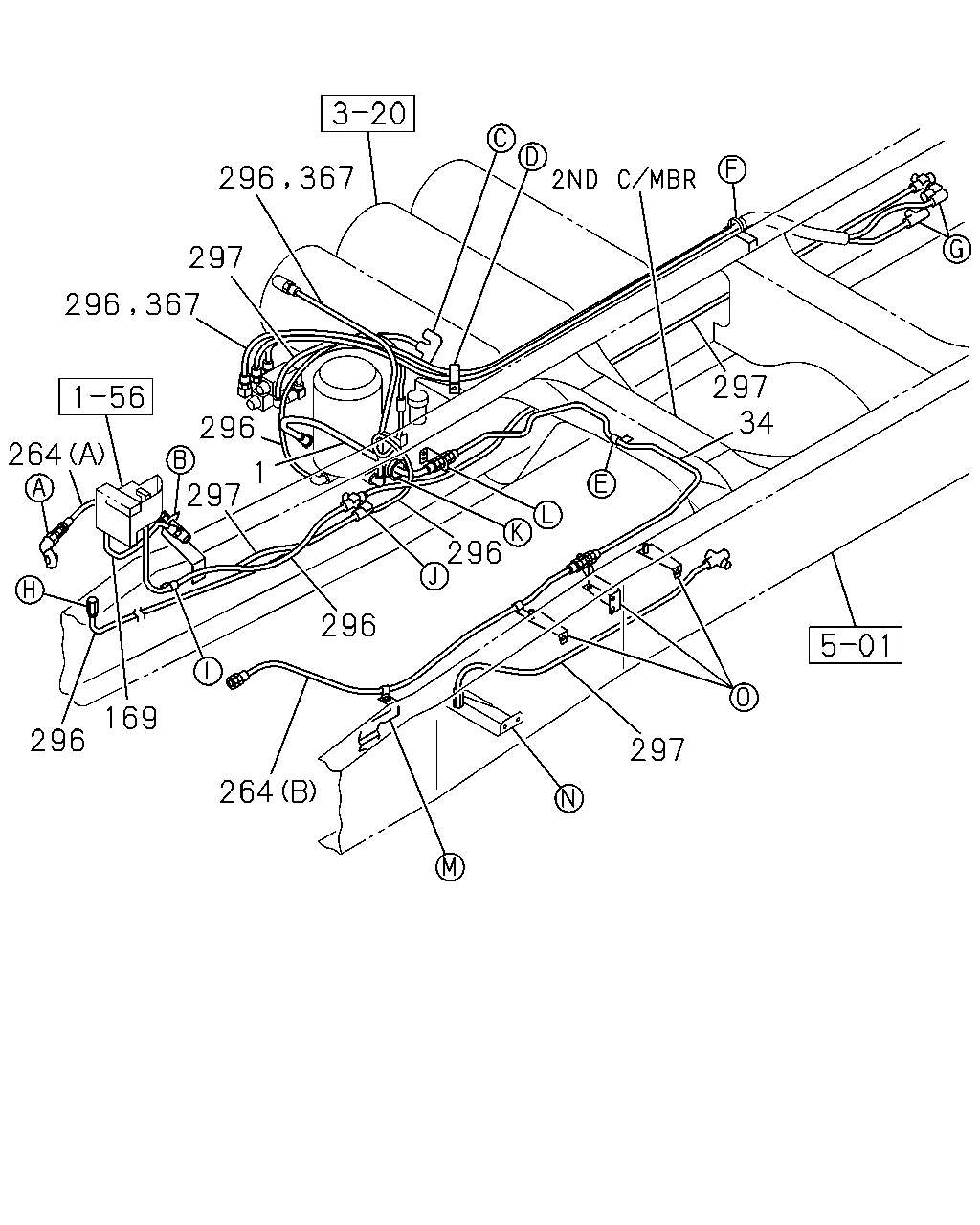

296 297 296 297 34 296 297 264 1 296 296 169 296 297 264 367 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK	8-98100-332-0	01	1	0801-	●	●
34	PIPE; AIR L=1258	8-97618-580-0	01	1	0801-	●
34	PIPE; AIR EXC. FRAME EQUIPMENT HEAVY DUTY<F01> L=1258	8-97618-580-0	01	1	0801-		●
34	PIPE; AIR FRAME EQUIPMENT HEAVY DUTY<F01> L=1287	8-97620-985-0	01	1	0801-		●
169	PIPE; AIR,UNION TO FLEX HOSE L=630 SERVICED BY L=650	1-47428-810-0	01	1	0801-	●
169	PIPE; AIR,UNION TO FLEX HOSE EMISSION REGULATION NEW LONG TERM<JBG> L=630 SERVICED BY L=650	1-47428-810-0	01	1	0801-		●
264	HOSE; FLEX ENGINE REAR PTO(SV1) (B) L=1000	1-09363-794-0	01	1	0801-		●
264	HOSE; FLEX (A) L=360	1-09363-637-0	01	1	0801-	●
264	HOSE; FLEX EMISSION REGULATION NEW LONG TERM<JBG> (A) L=360	1-09363-637-0	01	1	0801-		●
264	HOSE; FLEX EXC. ENGINE REAR PTO(SV1) (B) L=1150	1-09363-791-0	01	1	0801-1101	●	●
264	HOSE; FLEX (B) L=1150	1-09363-791-0	01	1	1102-	●
264	HOSE; FLEX EXC. ENGINE REAR PTO(SV1) (B) L=1150	1-09363-791-0	01	1	1102-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-	●
296	TUBE; NYLON ZF9S1310 M/T(Y5K) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-	●
296	TUBE; NYLON ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-		●
296	TUBE; NYLON WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1206-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0801-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0802-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0801-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0801-	●	●

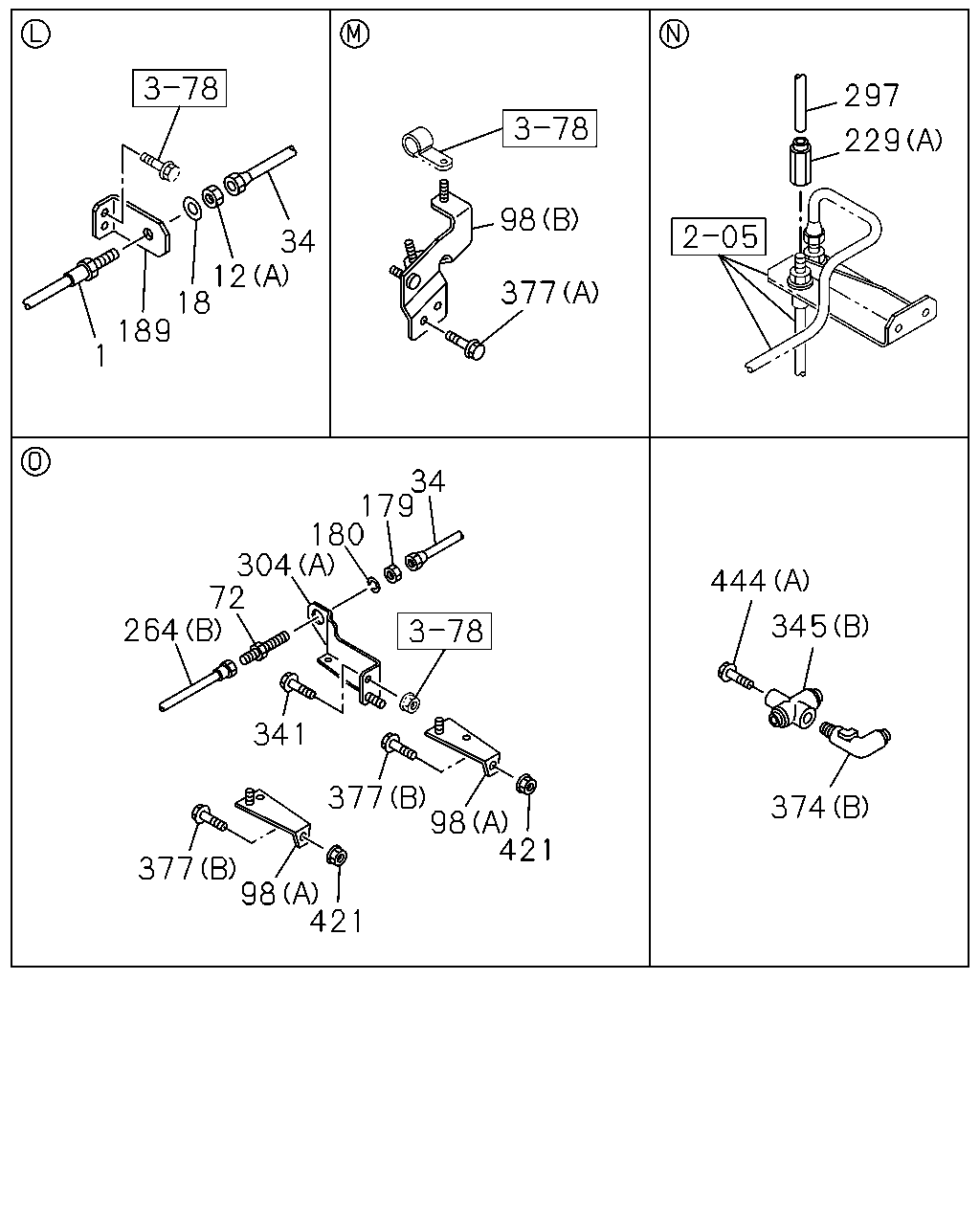

297 229 98 34 12 18 189 377 1 34 179 180 304 72 264 444 345 341 377 98 374 421 377 98 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK	8-98100-332-0	01	1	0801-	●	●
12	NUT; UNION (B) M8 FLANGE	0-91180-108-0	02	1	0801-	●
12	NUT; UNION EMISSION REGULATION NEW LONG TERM<JBG> (B) M8 FLANGE	0-91180-108-0	02	1	0801-		●
12	NUT; UNION (A) M22	0-91111-522-0	01	1	0801-	●	●
18	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0801-	●	●
34	PIPE; AIR L=1258	8-97618-580-0	01	1	0801-	●
34	PIPE; AIR EXC. FRAME EQUIPMENT HEAVY DUTY<F01> L=1258	8-97618-580-0	01	1	0801-		●
34	PIPE; AIR FRAME EQUIPMENT HEAVY DUTY<F01> L=1287	8-97620-985-0	01	1	0801-		●
72	UNION; AIR PIPE M22	0-92123-315-0	01	1	0801-	●	●
98	BRACKET; AIR PIPE (A)	8-97609-096-0	02	1	0801-	●	●
98	BRACKET; AIR PIPE (B)	8-97610-999-0	01	1	0801-	●	●
179	NUT; UNION M22	0-91111-522-0	01	1	0801-	●	●
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0801-	●	●
189	BRACKET; FLEX HOSE	1-47479-473-0	01	1	0801-	●	●
229	ADAPTER; NYLON TUBE MAL6R M/T(Y2J) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0804-		●
229	ADAPTER; NYLON TUBE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0801-	●	●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0801-	●	●
264	HOSE; FLEX ENGINE REAR PTO(SV1) (B) L=1000	1-09363-794-0	01	1	0801-		●
264	HOSE; FLEX (A) L=360	1-09363-637-0	01	1	0801-	●
264	HOSE; FLEX EMISSION REGULATION NEW LONG TERM<JBG> (A) L=360	1-09363-637-0	01	1	0801-		●
264	HOSE; FLEX EXC. ENGINE REAR PTO(SV1) (B) L=1150	1-09363-791-0	01	1	0801-1101	●	●
264	HOSE; FLEX (B) L=1150	1-09363-791-0	01	1	1102-	●
264	HOSE; FLEX EXC. ENGINE REAR PTO(SV1) (B) L=1150	1-09363-791-0	01	1	1102-		●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0801-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
304	BRACKET; UNION (B)	8-97615-626-3	01	1	0801-	●
304	BRACKET; UNION EMISSION REGULATION NEW LONG TERM<JBG> (B)	8-97615-626-3	01	1	0801-		●
304	BRACKET; UNION (A)	8-97610-362-1	01	1	0801-	●	●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
345	UNION; AIR PIPE (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0902-	●
345	UNION; AIR PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0801-	●
345	UNION; AIR PIPE EMISSION REGULATION NEW LONG TERM<JBG> (A) M12 ELBOW	0-92125-206-0	01	1	0801-		●
374	CONNECTOR (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0902-	●
374	CONNECTOR (A) PT1/4 2WAY	1-09660-693-0	01	1	0801-	●
374	CONNECTOR EMISSION REGULATION NEW LONG TERM<JBG> (A) PT1/4 2WAY	1-09660-693-0	01	1	0801-		●
377	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●
377	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0801-	●	●
444	BOLT; UNION WHEEL BASE 5200MM(52W) (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-		●
444	BOLT; UNION ZF9S1310 M/T(Y5K) (A) M8X20 FLANGE	0-28650-820-0	02	1	0801-1205	●	●
444	BOLT; UNION ZF9S1310 M/T(Y5K) (A) M8X20 FLANGE	0-28650-820-0	02	1	1206-	●
444	BOLT; UNION ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) M8X20 FLANGE	0-28650-820-0	02	1	1206-		●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	0801-0803	●	●
444	BOLT; UNION TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0801-0803	●	●
444	BOLT; UNION TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0808	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0808	●
444	BOLT; UNION WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0808		●
444	BOLT; UNION MAL6R M/T(Y2J),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0808		●
444	BOLT; UNION TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-	●
444	BOLT; UNION (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-	●
444	BOLT; UNION WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W), WHEEL BASE 7100MM(71W) (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-		●
444	BOLT; UNION MAL6R M/T(Y2J),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-		●
444	BOLT; UNION (B) M8X25 FLANGE	0-28650-825-0	02	1	0801-	●
444	BOLT; UNION EMISSION REGULATION NEW LONG TERM<JBG> (B) M8X25 FLANGE	0-28650-825-0	02	1	0801-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
