Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11145 - FXZ EXC.EURO5
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#40255) — 17 parça
Tümü
A - FGY5MX
B - FGZ5MX
◀

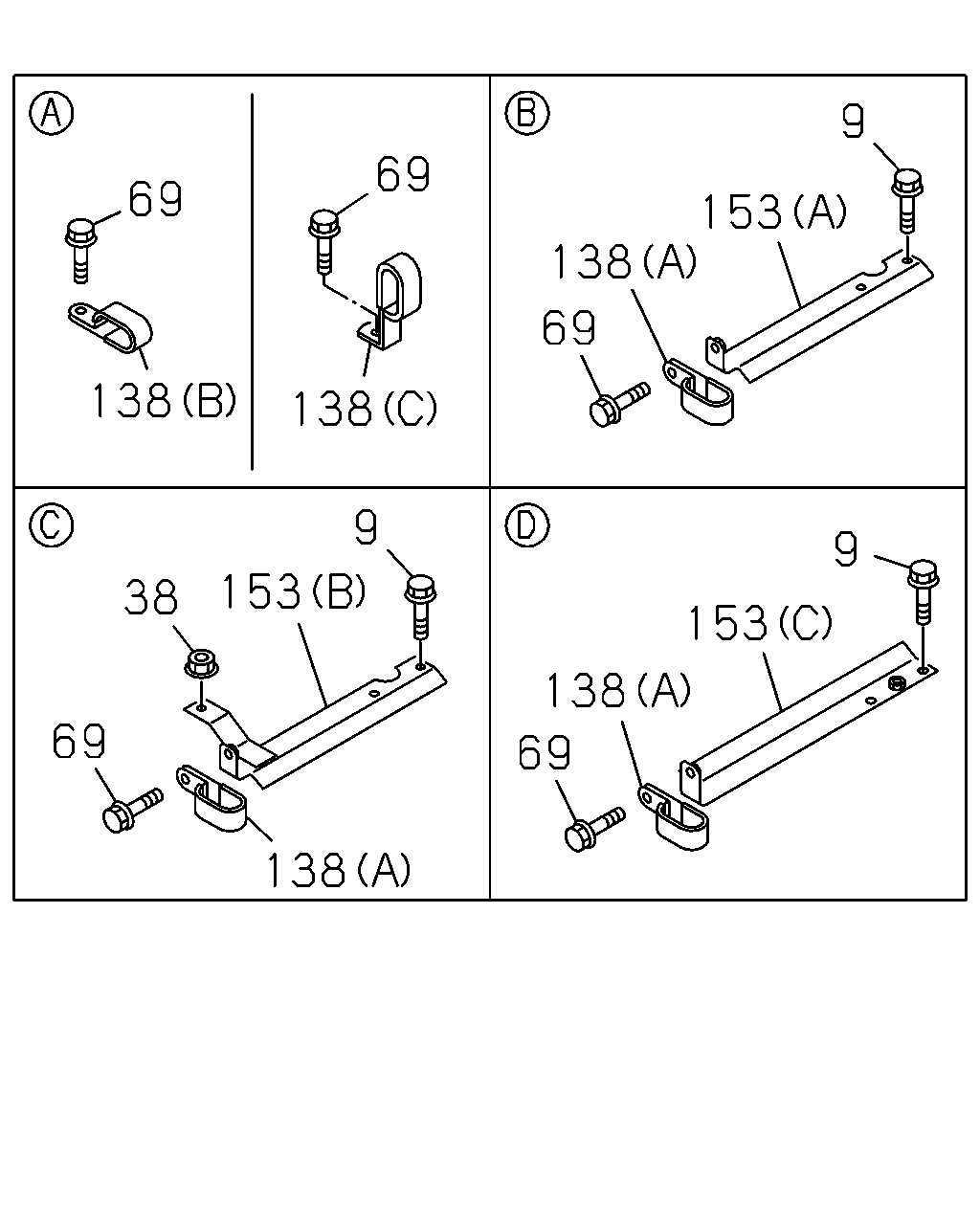

[358A] NO.2 (14 parça)
[358A] NO.1 (3 parça)
▶
9
69
69
153
138
69
138
138
9
9
153
38
153
138
69
69
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0801-
●
9
BOLT; BRKT
EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE
0-28050-816-0
08
1
0801-
●
38
NUT; CLIP FIX
EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE
0-91180-108-0
01
1
0801-
●
69
BOLT; CLIP
M8X20 FLANGE
0-28050-820-0
01
1
0801-
●
69
BOLT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE
0-28650-820-0
05
1
0801-
●
138
CLIP; TUBE
(C) ID=28 H=45 L=30
1-09700-948-0
01
1
0801-
●
138
CLIP; TUBE
REAR AXLE RT210<C2A> (B) ID=11X2 L=20
0-95325-035-0
01
1
0801-
●
138
CLIP; TUBE
REAR AXLE RT210<C2A> (C) ID=11X2 H=35 L=20
1-09700-847-0
01
1
0801-
●
138
CLIP; TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=35 L=33
1-09700-945-0
05
1
0801-
●
153
BRACKET; NYLON TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (C)
1-42129-486-1
02
1
0801-1101
●
153
BRACKET; NYLON TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (C)
1-42129-486-1
01
1
1102-
●
153
BRACKET; NYLON TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (C)
1-42129-486-1
01
1
1102-
●
153
BRACKET; NYLON TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (A)
1-42129-487-1
01
1
0801-
●
153
BRACKET; NYLON TUBE
EXC. AUSTRALIA EQUIPMENT(RR3) (B)
1-42129-500-0
01
1
0801-
●
53
53
53
53
53
53
53
53
53
53
53
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
CLIP; UNION
L=250
1-09707-126-0
05
1
0801-
●
53
CLIP; UNION
AUSTRALIA EQUIPMENT(RR3) L=250
1-09707-126-0
03
1
0801-
●
53
CLIP; UNION
EXC. AUSTRALIA EQUIPMENT(RR3) L=250
1-09707-126-0
12
1
0801-
●
