3-40 — FRONT BRAKE POWER CHAMBER (#40251) — 56 parça

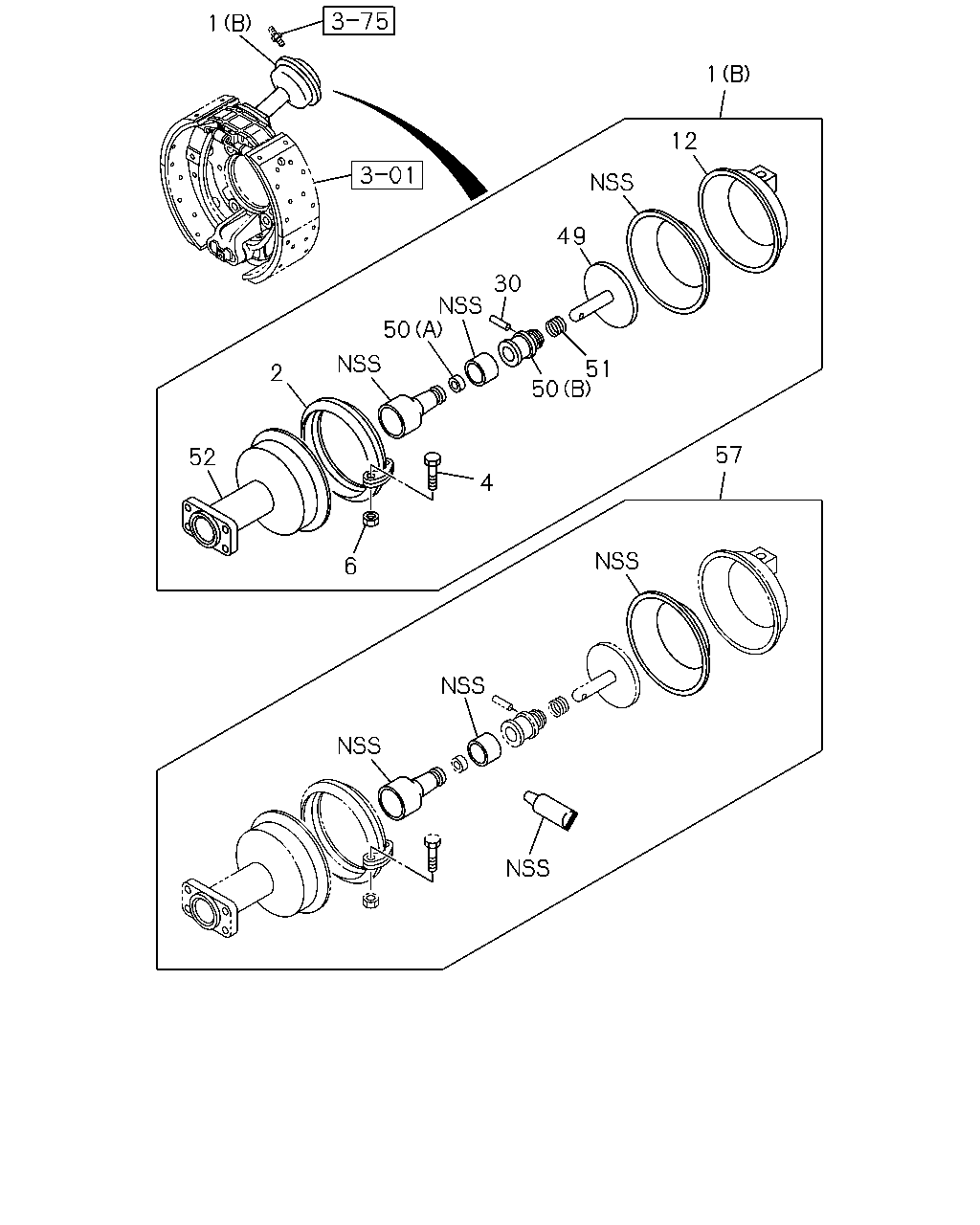

1 1 12 49 30 50 51 50 2 57 52 4 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-938-0	02	1	0801-	●
1	CHAMBER ASM; POWER,FRT BRK FRONT AXLE MERITOR FG941(BFL) (A)	1-48250-938-0	02	1	0801-		●
1	CHAMBER ASM; POWER,FRT BRK FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-48250-837-0	02	1	0801-0910		●
1	CHAMBER ASM; POWER,FRT BRK FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98145-680-1	02	1	0911-		●
2	RING; CLAMP,SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-149-0	02	1	0801-0910		●
2	RING; CLAMP,SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-256-0	02	1	0911-		●
4	BOLT; CLAMP RING FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-146-0	04	1	0801-0910		●
4	BOLT; CLAMP RING FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-257-0	02	1	0911-		●
6	NUT; CLAMP RING FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-147-0	04	1	0801-0910		●
6	NUT; CLAMP RING FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-147-0	02	1	0911-		●
12	COVER ASM; LWR,SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48251-103-0	02	1	0801-		●
30	PIN; STRAIGHT,SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-153-0	02	1	0801-0910		●
49	ROD; PUSH,SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48263-020-0	02	1	0801-0910		●
49	ROD; PUSH,SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98146-969-1	02	1	0911-		●
50	GUIDE; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A)	1-48269-152-0	02	1	0801-0910		●
50	GUIDE; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98146-963-1	02	1	0911-		●
50	GUIDE; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-48269-154-0	02	1	0801-0910		●
51	RING; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-155-0	02	1	0801-0910		●
51	RING; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98146-966-0	02	1	0911-		●
52	HOUSING; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48251-153-0	02	1	0801-0910		●
52	HOUSING; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48251-195-1	02	1	0911-1403		●
52	HOUSING; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98248-793-0	02	1	1404-		●
57	REPAIR KIT; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-85576-326-0	02	1	0801-0910		●
57	REPAIR KIT; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98146-978-0	02	1	0911-		●

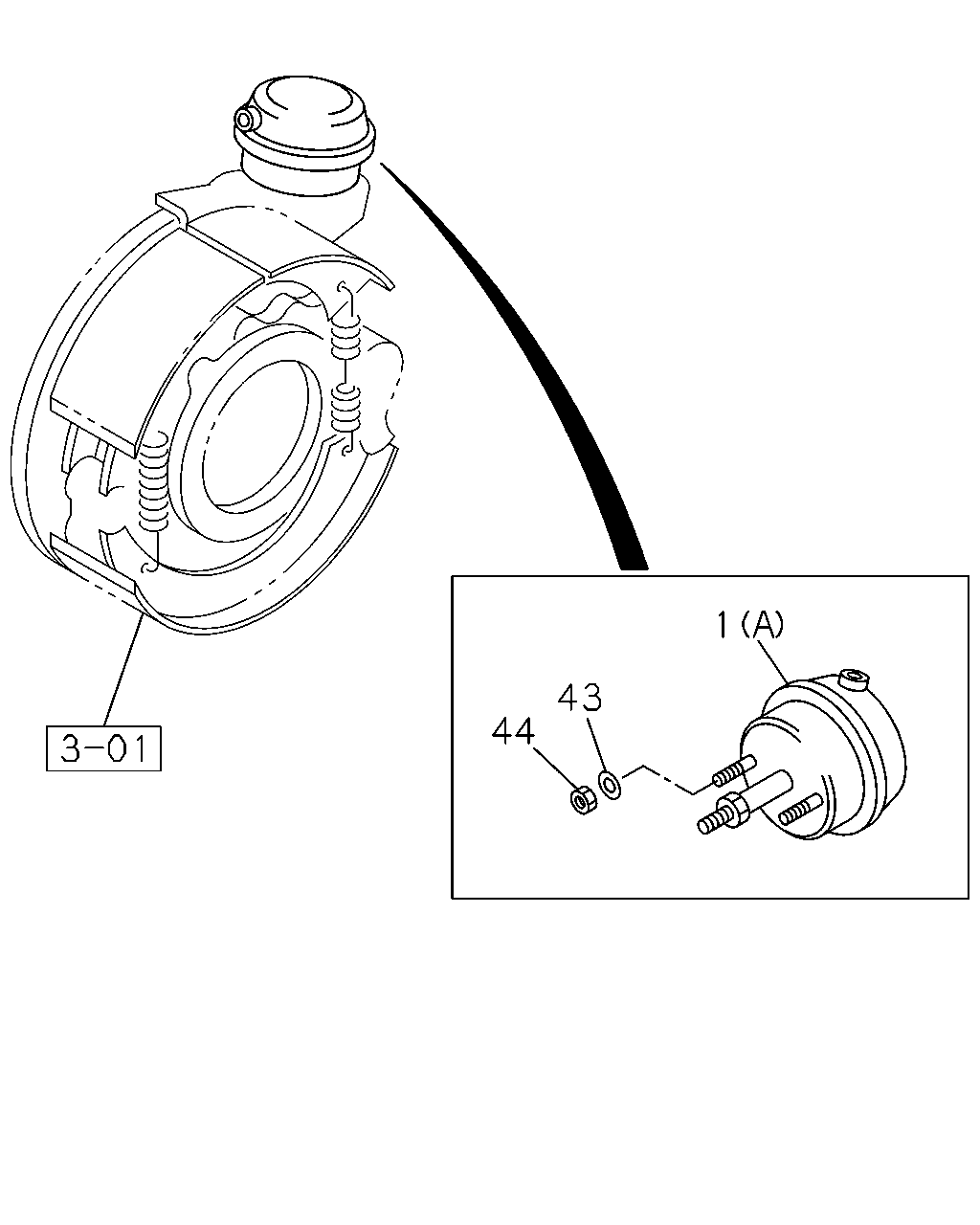

1 43 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-938-0	02	1	0801-	●
1	CHAMBER ASM; POWER,FRT BRK FRONT AXLE MERITOR FG941(BFL) (A)	1-48250-938-0	02	1	0801-		●
1	CHAMBER ASM; POWER,FRT BRK FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-48250-837-0	02	1	0801-0910		●
1	CHAMBER ASM; POWER,FRT BRK FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98145-680-1	02	1	0911-		●
43	WASHER; LK,POWER CHAMBER	1-41519-038-0	04	1	0801-	●
43	WASHER; LK,POWER CHAMBER FRONT AXLE MERITOR FG941(BFL)	1-41519-038-0	04	1	0801-		●
44	NUT; POWER CHAMBER	1-87050-052-0	04	1	0801-	●
44	NUT; POWER CHAMBER FRONT AXLE MERITOR FG941(BFL)	1-87050-052-0	04	1	0801-		●

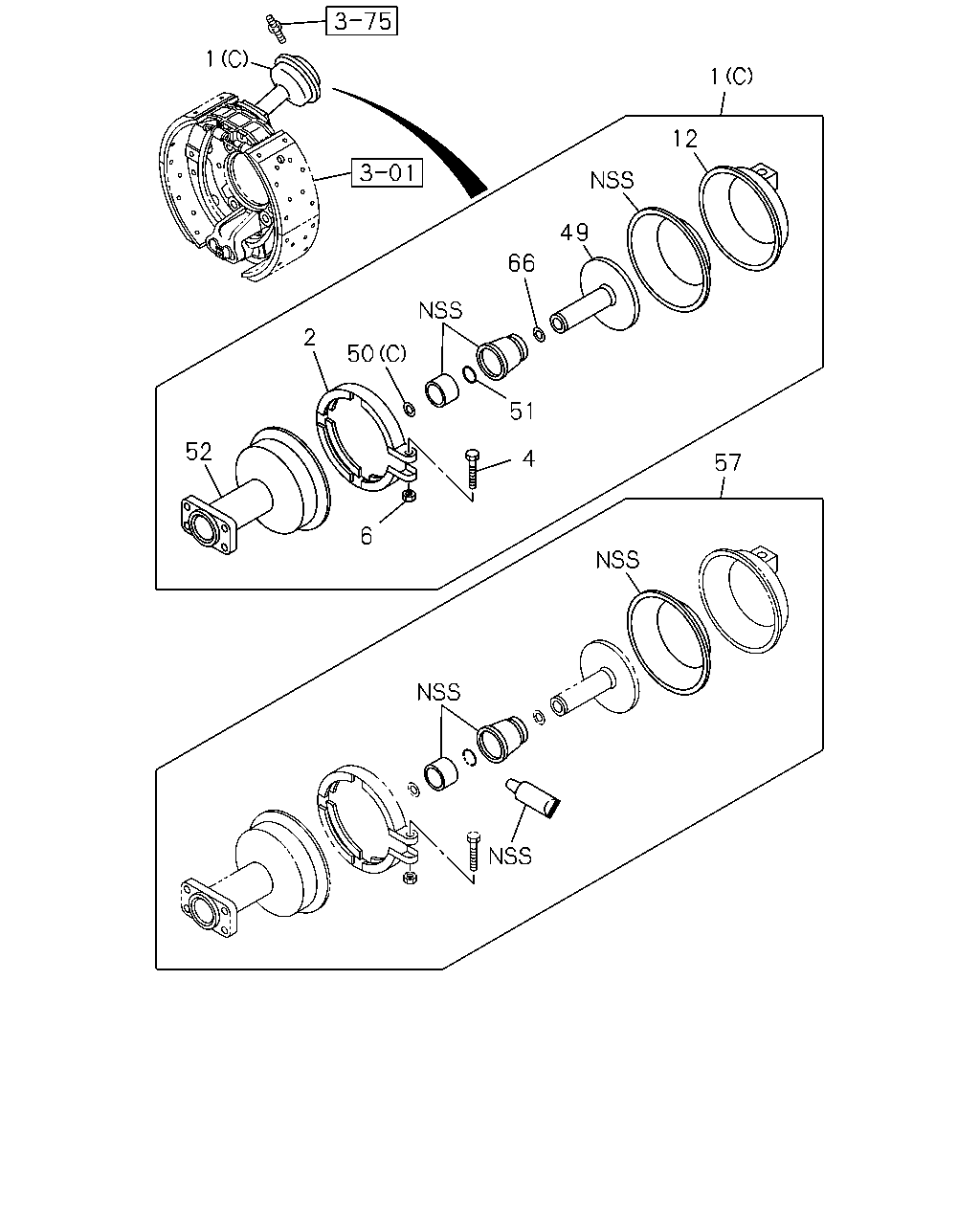

1 1 12 49 66 2 50 51 52 4 57 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; POWER,FRT BRK (A)	1-48250-938-0	02	1	0801-	●
1	CHAMBER ASM; POWER,FRT BRK FRONT AXLE MERITOR FG941(BFL) (A)	1-48250-938-0	02	1	0801-		●
1	CHAMBER ASM; POWER,FRT BRK FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-48250-837-0	02	1	0801-0910		●
1	CHAMBER ASM; POWER,FRT BRK FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98145-680-1	02	1	0911-		●
2	RING; CLAMP,SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-149-0	02	1	0801-0910		●
2	RING; CLAMP,SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-256-0	02	1	0911-		●
4	BOLT; CLAMP RING FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-146-0	04	1	0801-0910		●
4	BOLT; CLAMP RING FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-257-0	02	1	0911-		●
6	NUT; CLAMP RING FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-147-0	04	1	0801-0910		●
6	NUT; CLAMP RING FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-147-0	02	1	0911-		●
12	COVER ASM; LWR,SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48251-103-0	02	1	0801-		●
49	ROD; PUSH,SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48263-020-0	02	1	0801-0910		●
49	ROD; PUSH,SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98146-969-1	02	1	0911-		●
50	GUIDE; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A)	1-48269-152-0	02	1	0801-0910		●
50	GUIDE; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98146-963-1	02	1	0911-		●
50	GUIDE; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B)	1-48269-154-0	02	1	0801-0910		●
51	RING; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48269-155-0	02	1	0801-0910		●
51	RING; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98146-966-0	02	1	0911-		●
52	HOUSING; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48251-153-0	02	1	0801-0910		●
52	HOUSING; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-48251-195-1	02	1	0911-1403		●
52	HOUSING; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98248-793-0	02	1	1404-		●
57	REPAIR KIT; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	1-85576-326-0	02	1	0801-0910		●
57	REPAIR KIT; SPR CHAMBER FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98146-978-0	02	1	0911-		●
66	SHIM FRONT AXLE F066(FAU),FRONT AXLE F075(FH5)	8-98146-965-0	AR	1	0911-		●
