◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#4025) — 36 parça

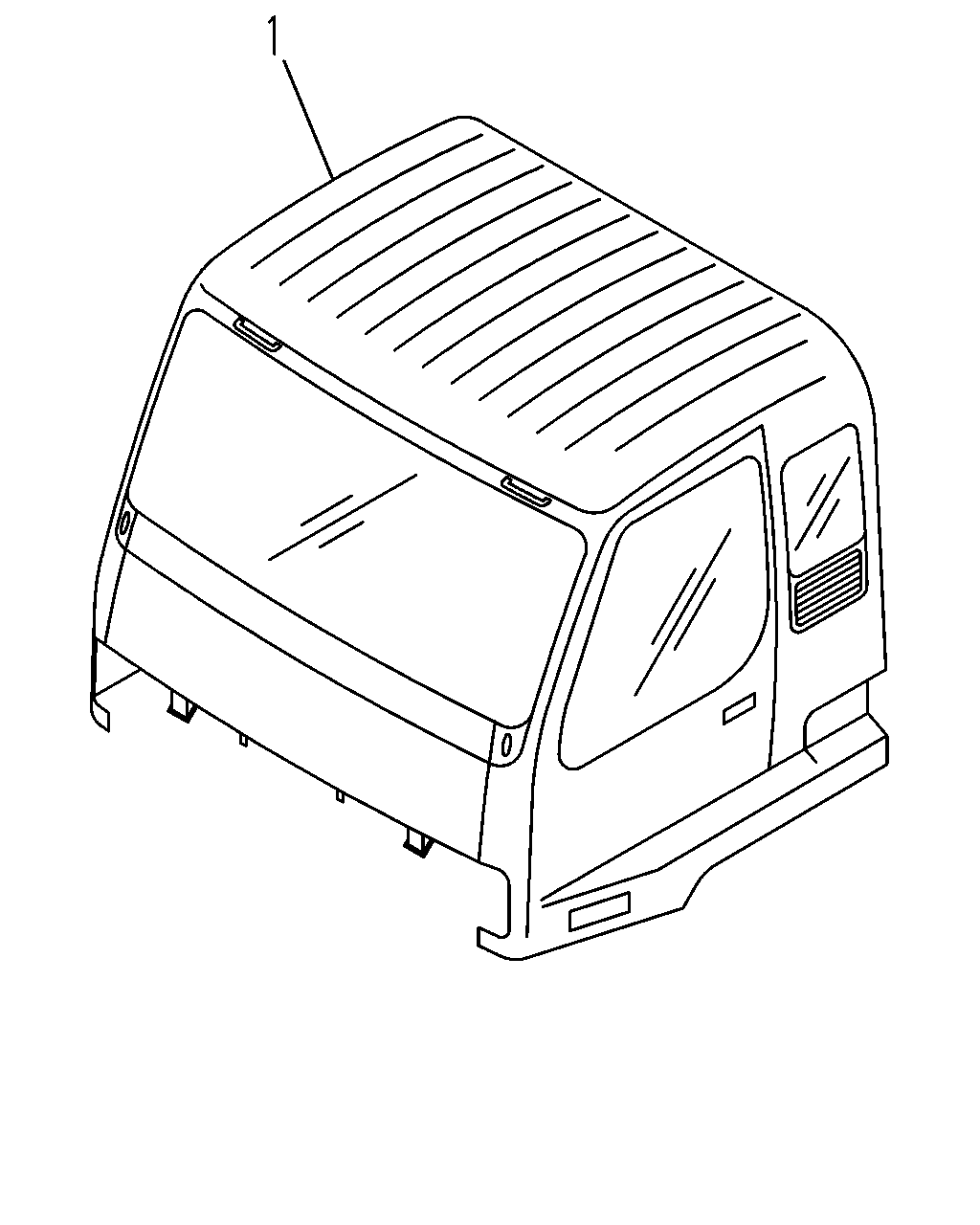

çizim 115740
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> POWER WINDOW<A30> CAB SUSPENSION SEMI FLOATING<SDK> LAMPS TWO ROOF MARKER<TEC> EXC. CHEV BRAND PACKAGE<PS2> 		1-61083-851-0 01 1 9803-0004 ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION SEMI FLOATING<SDK> LAMPS TWO ROOF MARKER<TEC> EXC. CHEV BRAND PACKAGE<PS2> 		1-61083-853-0 01 1 9803-0004 ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHEV BRAND PACKAGE<PS2>,LAMPS TWO ROOF MARKER<TEC> 		1-61083-860-0 01 1 9803-0004 ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> POWER WINDOW<A30> CAB SUSPENSION SEMI FLOATING<SDK> CHEV BRAND PACKAGE<PS2> EXC. LAMPS TWO ROOF MARKER<TEC> 		1-61084-716-0 01 1 9803-0004 ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION RIGID<W71> EXC. CHEV BRAND PACKAGE<PS2>,LAMPS TWO ROOF MARKER<TEC> 		1-61083-857-0 01 1 9803-0004 ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION SEMI FLOATING<SDK> EXC. CHEV BRAND PACKAGE<PS2>,LAMPS TWO ROOF MARKER<TEC> 		1-61083-858-0 01 1 9803-0004 ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW WIDE<WU4> DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION RIGID<W71> EXC. CHEV BRAND PACKAGE<PS2>,LAMPS TWO ROOF MARKER<TEC> 		1-61083-862-0 01 1 9803-0004 ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW WIDE<WU4> DOOR WINDOW MANUAL CONT<SKF> CAB SUSPENSION RIGID<W71> CHEV BRAND PACKAGE<PS2> EXC. LAMPS TWO ROOF MARKER<TEC> 		1-61083-864-0 01 1 9803-0004 ● ●
1 CAB ASM; SERVICE,WO/ELEC
HIGH ROOF<S2F> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61083-474-0 01 1 9510-9802 ● ●
1 CAB ASM; SERVICE,WO/ELEC
LOW ROOF<6XQ> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61083-476-0 01 1 9510-9802 ● ●
1 CAB ASM; SERVICE,WO/ELEC
SAUDI ARABIA EQUIPMENT(WH1) HIGH ROOF<S2F> 		1-61083-480-0 01 1 9510-9802 ● ●
1 CAB ASM; SERVICE,WO/ELEC
SAUDI ARABIA EQUIPMENT(WH1) LOW ROOF<6XQ> 		1-61083-472-0 01 1 9510-9802 ● ●
1 CAB ASM; SERVICE,WO/ELEC
CHINA EQUIPMENT(YT2) 		1-61083-468-0 01 1 9510-9802 ●
1 CAB ASM; SERVICE,WO/ELEC
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) 		1-61083-466-0 01 1 9510-9802 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> CAB SUSPENSION SEMI FLOATING<SDK> PROVISIONAL PACKAGE<NLY> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> ,CHEV BRAND PACKAGE<PS2> 		1-61086-898-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> CAB SUSPENSION SEMI FLOATING<SDK> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> ,PROVISIONAL PACKAGE<NLY>,CHEV BRAND PACKAGE<PS2> 		1-61086-900-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> CAB SUSPENSION RIGID<W71> PROVISIONAL PACKAGE<NLY> CHEV BRAND PACKAGE<PS2> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> 		1-61086-894-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> CAB SUSPENSION RIGID<W71> PROVISIONAL PACKAGE<NLY> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> ,CHEV BRAND PACKAGE<PS2> 		1-61086-892-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> CAB SUSPENSION RIGID<W71> CHEV BRAND PACKAGE<PS2> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> ,PROVISIONAL PACKAGE<NLY>,LAMPS TWO ROOF MARKER<TEC> 		1-61085-783-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> CAB SUSPENSION RIGID<W71> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> ,PROVISIONAL PACKAGE<NLY>,CHEV BRAND PACKAGE<PS2> 		1-61084-500-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW WIDE<WU4> CAB SUSPENSION SEMI FLOATING<SDK> PROVISIONAL PACKAGE<NLY> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> ,CHEV BRAND PACKAGE<PS2> 		1-61086-902-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW WIDE<WU4> CAB SUSPENSION SEMI FLOATING<SDK> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> ,PROVISIONAL PACKAGE<NLY>,CHEV BRAND PACKAGE<PS2> 		1-61086-901-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW WIDE<WU4> CAB SUSPENSION RIGID<W71> PROVISIONAL PACKAGE<NLY> CHEV BRAND PACKAGE<PS2> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> 		1-61086-895-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW WIDE<WU4> CAB SUSPENSION RIGID<W71> PROVISIONAL PACKAGE<NLY> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> ,CHEV BRAND PACKAGE<PS2> 		1-61086-893-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW WIDE<WU4> CAB SUSPENSION RIGID<W71> CHEV BRAND PACKAGE<PS2> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> ,PROVISIONAL PACKAGE<NLY> 		1-61084-499-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW WIDE<WU4> CAB SUSPENSION RIGID<W71> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> ,PROVISIONAL PACKAGE<NLY>,CHEV BRAND PACKAGE<PS2> 		1-61084-501-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> CAB SUSPENSION SEMI FLOATING<SDK> PROVISIONAL PACKAGE<NLY> POWER WINDOW<A30> EXC. FRONT PANEL CARGO FACE<NGD>,CHEV BRAND PACKAGE<PS2> 		1-61086-896-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> CAB SUSPENSION SEMI FLOATING<SDK> PROVISIONAL PACKAGE<NLY> POWER WINDOW<A30> CHEV BRAND PACKAGE<PS2> EXC. FRONT PANEL CARGO FACE<NGD> 		1-61086-897-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> CAB SUSPENSION SEMI FLOATING<SDK> POWER WINDOW<A30> EXC. FRONT PANEL CARGO FACE<NGD>,PROVISIONAL PACKAGE<NLY>,CHEV BRAND PACKAGE<PS2>,LAMPS TWO ROOF MARKER<TEC> 		1-61085-791-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> CAB SUSPENSION SEMI FLOATING<SDK> POWER WINDOW<A30> EXC. FRONT PANEL CARGO FACE<NGD>,PROVISIONAL PACKAGE<NLY>,CHEV BRAND PACKAGE<PS2> 		1-61086-013-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> CAB SUSPENSION SEMI FLOATING<SDK> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> ,PROVISIONAL PACKAGE<NLY>,CHEV BRAND PACKAGE<PS2> 		1-61086-014-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> CAB SUSPENSION SEMI FLOATING<SDK> EXC. POWER WINDOW<A30>,FRONT PANEL CARGO FACE<NGD> ,PROVISIONAL PACKAGE<NLY>,CHEV BRAND PACKAGE<PS2>, LAMPS TWO ROOF MARKER<TEC> 		1-61085-787-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> POWER WINDOW<A30> CAB SUSPENSION SEMI FLOATING<SDK> CHEV BRAND PACKAGE<PS2> EXC. FRONT PANEL CARGO FACE<NGD>,PROVISIONAL PACKAGE<NLY>,LAMPS TWO ROOF MARKER<TEC> 		1-61084-848-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> POWER WINDOW<A30> CAB SUSPENSION SEMI FLOATING<SDK> LAMPS TWO ROOF MARKER<TEC> FRONT PANEL CARGO FACE<NGD> EXC. PROVISIONAL PACKAGE<NLY>,CHEV BRAND PACKAGE<PS2> 		1-61084-496-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> POWER WINDOW<A30> CAB SUSPENSION SEMI FLOATING<SDK> EXC. FRONT PANEL CARGO FACE<NGD>,PROVISIONAL PACKAGE<NLY>,CHEV BRAND PACKAGE<PS2>,LAMPS TWO ROOF MARKER<TEC> 		1-61085-530-0 01 1 0005- ● ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> CAB SUSPENSION SEMI FLOATING<SDK> CHEV BRAND PACKAGE<PS2> LAMPS TWO ROOF MARKER<TEC> FRONT PANEL CARGO FACE<NGD> EXC. POWER WINDOW<A30>,PROVISIONAL PACKAGE<NLY> 		1-61085-786-0 01 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
