Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11145 - FXZ EXC.EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶

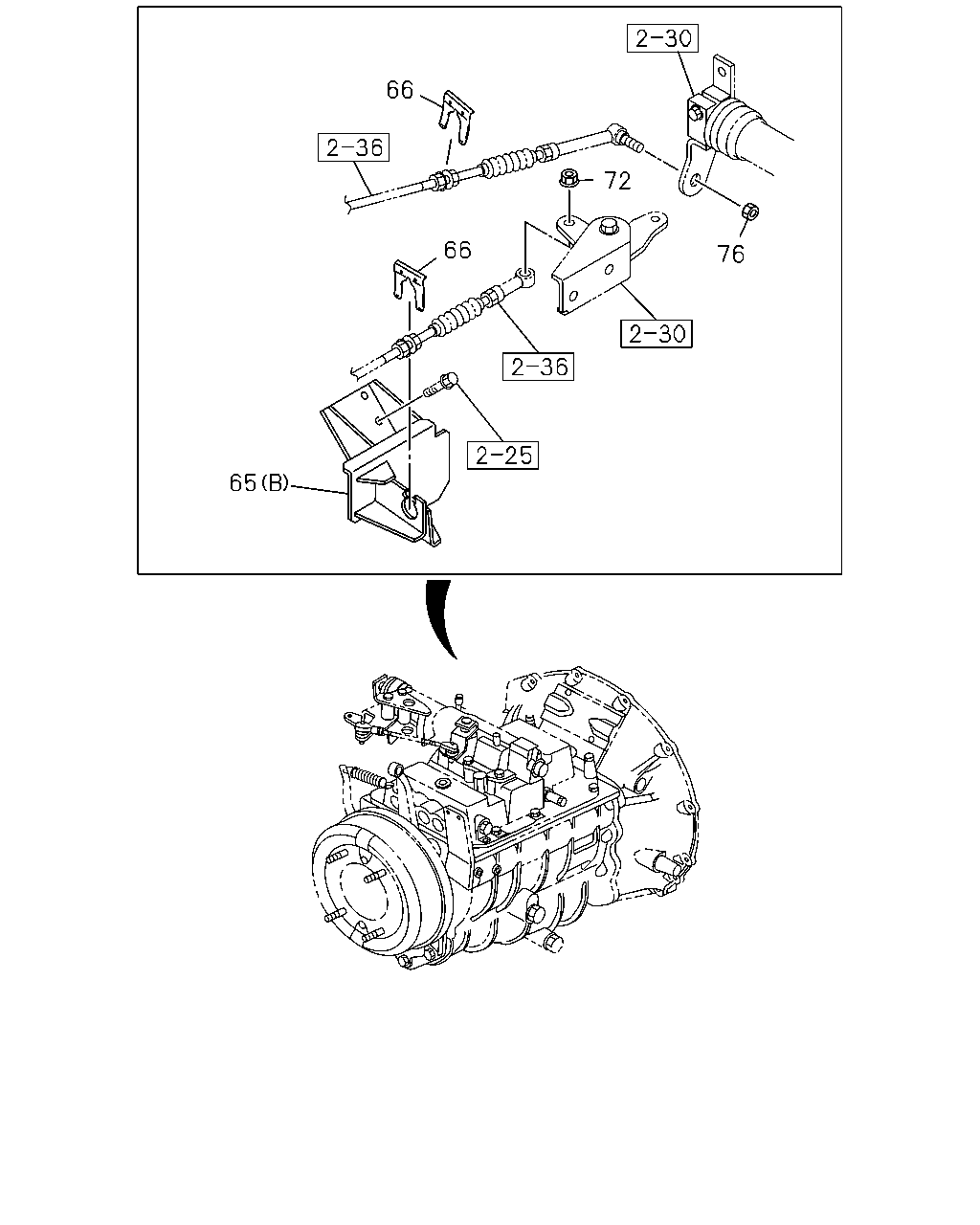

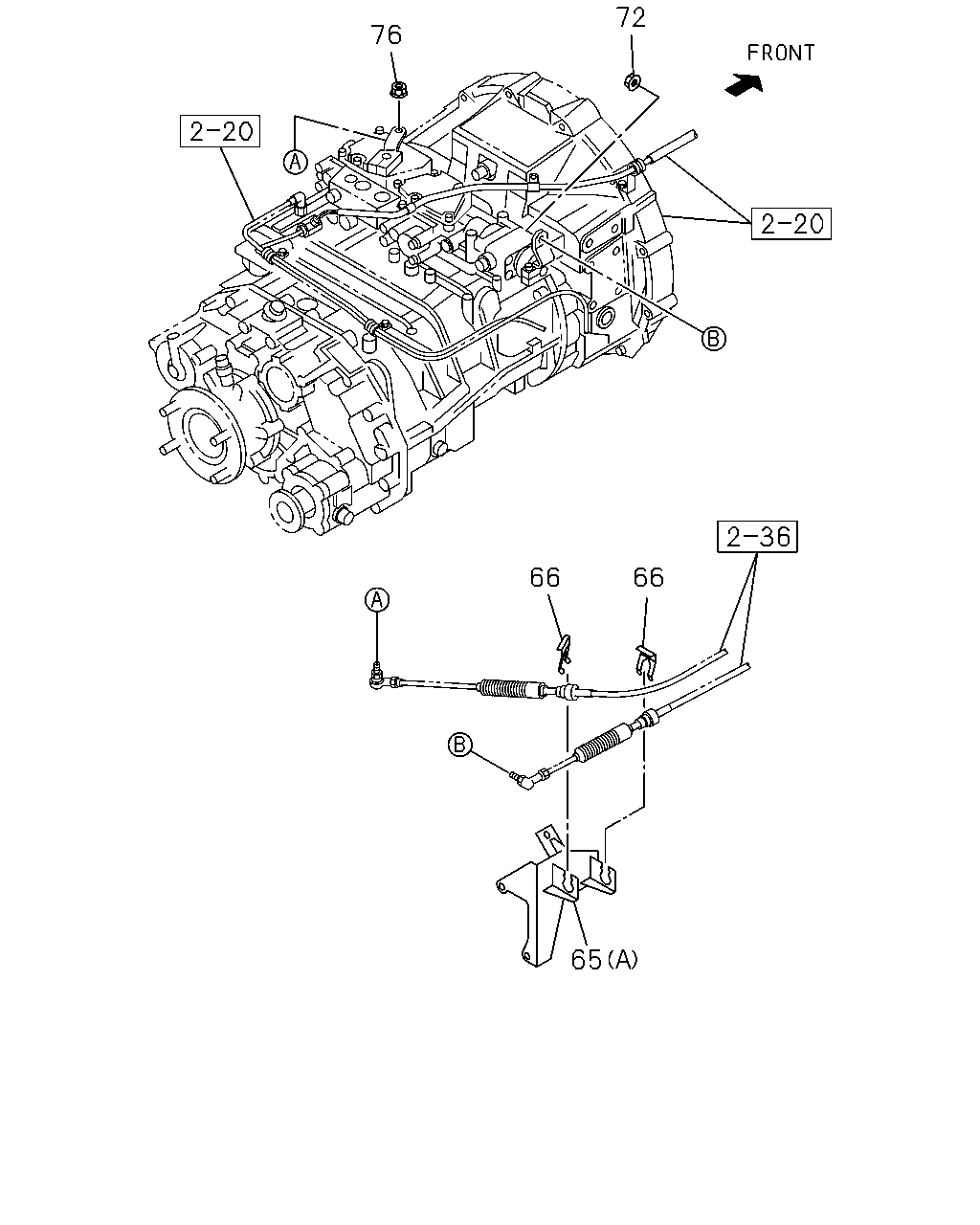

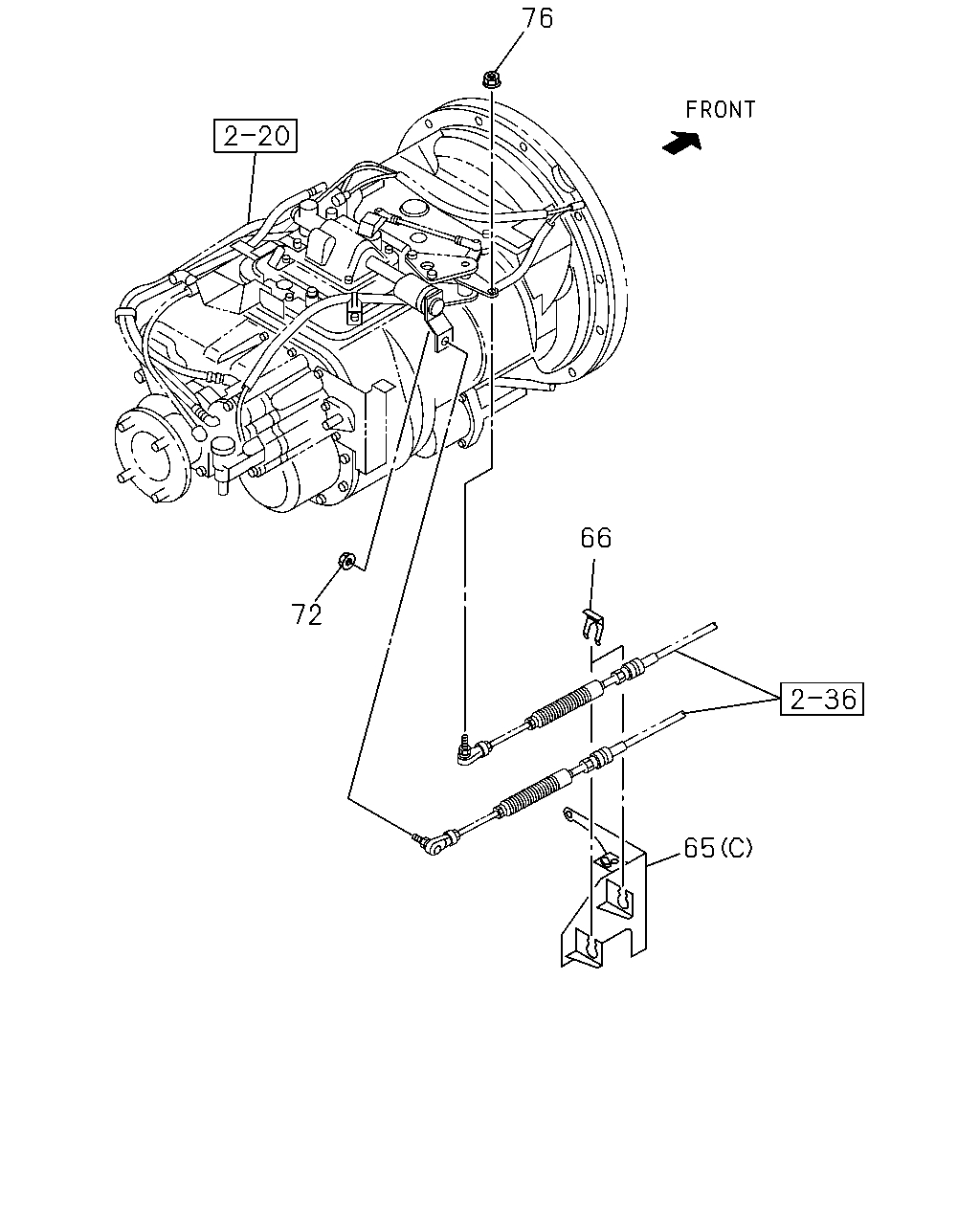

2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#40239) — 27 parça
Tümü
A - FGZ5MX
B - FGY5MX
◀
[237A] ZF (9 parça)
[237A] FULLER (9 parça)
[237A] MAL (9 parça)
▶
76
72
66
66
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> ENGINE REAR PTO(SV1) (A)
8-98169-624-1
01
1
1102-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A)
8-98079-344-1
01
1
0801-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) (C)
8-98055-457-2
01
1
0801-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
MAL6R M/T(Y2J) (B)
8-98055-459-0
01
1
0801-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (A)
8-98055-454-1
01
1
0801-1101
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> EXC. ENGINE REAR PTO(SV1) (A)
8-98055-454-1
01
1
1102-
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
0801-
●
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-062-1
01
1
0801-
●
●
76
NUT; BALL JOINT,SELECT WIRE
M10 FLANGE
1-09440-061-0
01
1
0801-
●
●
76
66
72
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> ENGINE REAR PTO(SV1) (A)
8-98169-624-1
01
1
1102-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A)
8-98079-344-1
01
1
0801-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) (C)
8-98055-457-2
01
1
0801-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
MAL6R M/T(Y2J) (B)
8-98055-459-0
01
1
0801-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (A)
8-98055-454-1
01
1
0801-1101
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> EXC. ENGINE REAR PTO(SV1) (A)
8-98055-454-1
01
1
1102-
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
0801-
●
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-062-1
01
1
0801-
●
●
76
NUT; BALL JOINT,SELECT WIRE
M10 FLANGE
1-09440-061-0
01
1
0801-
●
●
66
66
72
76
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> ENGINE REAR PTO(SV1) (A)
8-98169-624-1
01
1
1102-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A)
8-98079-344-1
01
1
0801-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) (C)
8-98055-457-2
01
1
0801-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
MAL6R M/T(Y2J) (B)
8-98055-459-0
01
1
0801-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (A)
8-98055-454-1
01
1
0801-1101
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> EXC. ENGINE REAR PTO(SV1) (A)
8-98055-454-1
01
1
1102-
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
0801-
●
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-062-1
01
1
0801-
●
●
76
NUT; BALL JOINT,SELECT WIRE
M10 FLANGE
1-09440-061-0
01
1
0801-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
