Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

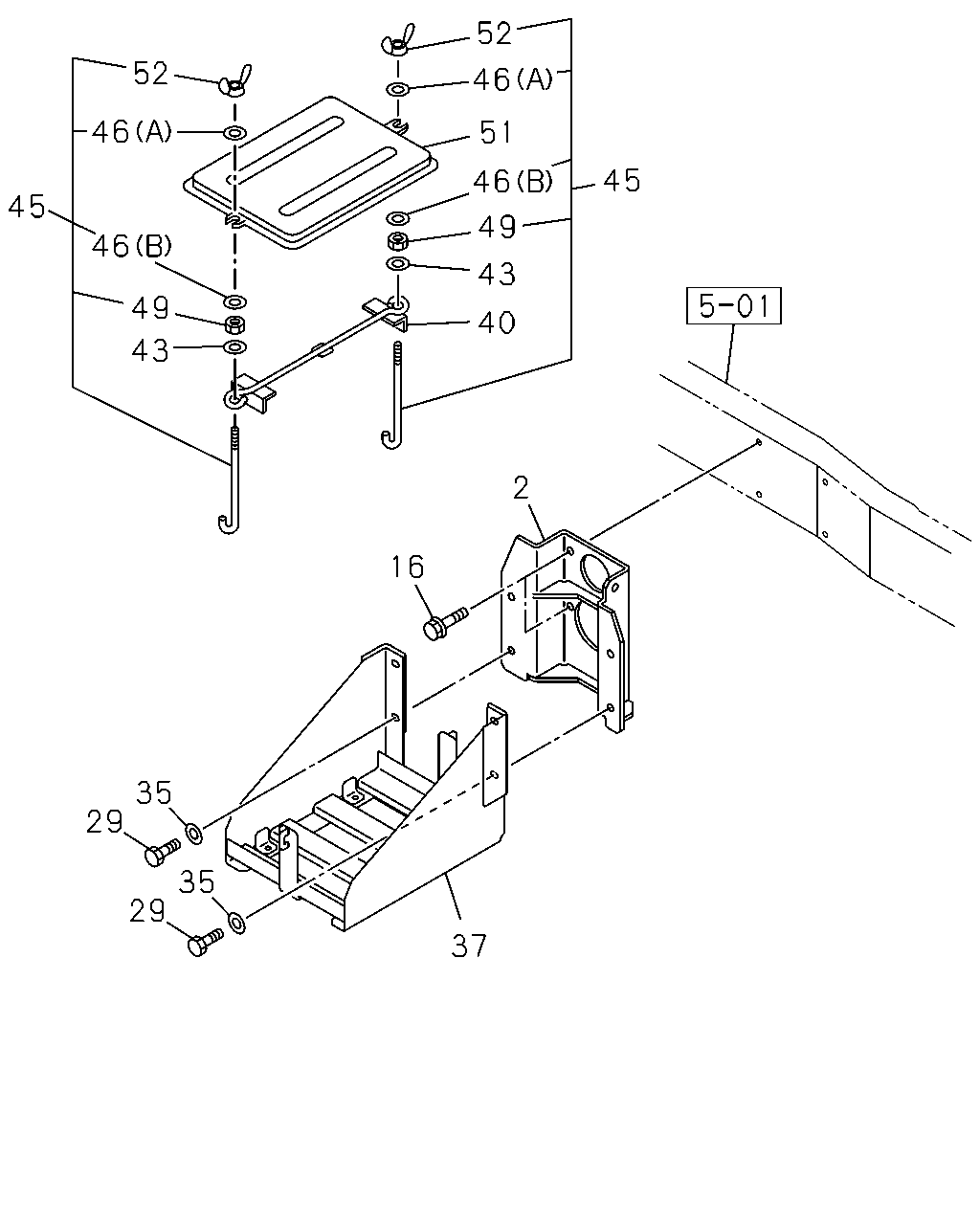

5-20 — BATTERY CARRIER
(#40231) — 17 parça
52
52
46
46
51
45
46
45
49
46
43
49
40
43
2
16
35
29
35
29
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BRACKET; BATTERY
THA
8-98114-322-1
01
1
0901-0906
2
BRACKET; BATTERY
THA
8-97925-182-0
01
1
0907-
16
BOLT; BRKT TO FRAME
M10X35 FLANGE THA
0-28651-035-0
04
1
0901-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE THA
0-28661-035-0
04
1
1208-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE THA
0-28661-035-0
04
1
0901-1207
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0901-
37
BRACKET; BATTERY
8-97373-022-0
01
1
0901-
40
CLAMP; BATTERY
THA
8-97910-232-0
01
1
0901-
43
WASHER; PL,CLAMP
ID=8.4 OD=22 THA
0-91614-708-0
02
1
0901-
45
ROD; TENSION,BATTERY
THA
8-97915-640-1
02
1
0901-1304
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1305-
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 THA
0-91610-608-0
02
1
0901-1304
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 THA
0-91614-608-0
02
1
1305-
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
0901-
49
NUT; ROD,BATTERY
M8 THA
0-91110-508-0
02
1
0901-
51
COVER; BATTERY
THA
8-97924-868-0
01
1
0901-
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
0901-
