Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#4023) — 276 parça

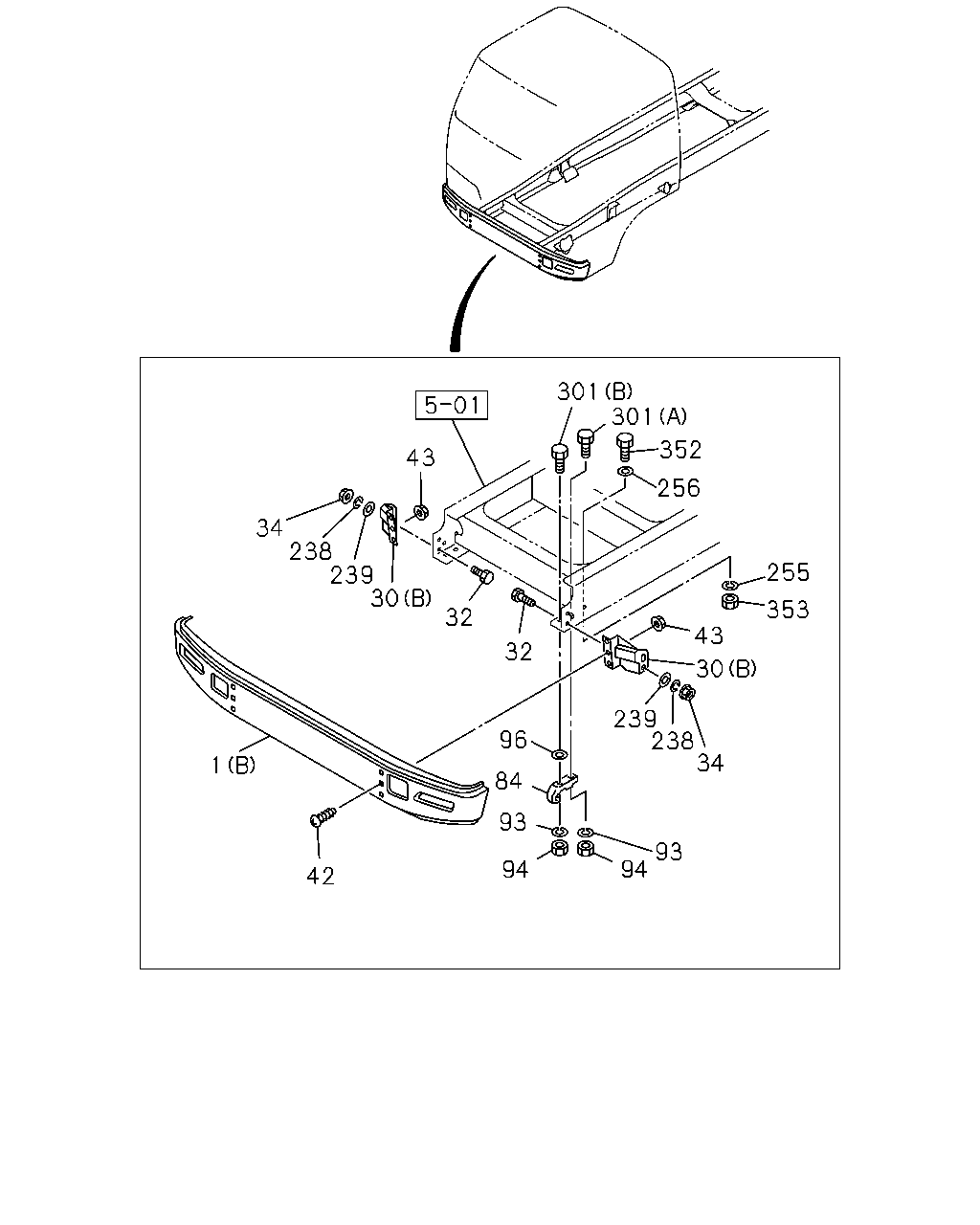

301 301 352 43 256 34 238 239 30 255 353 32 43 32 30 239 238 34 96 1 84 93 93 94 94 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	9510-0004	●	●
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	0005-0106	●
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A) WHITE	1-71210-583-3	01	1	0005-0106		●
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-4	01	1	0107-	●
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,FRONT SPOILER<VP1> (A) WHITE	1-71210-583-4	01	1	0107-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-918-2	01	1	0005-		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. REINFORCEMENT BUMPER<VG7> (C) WHITE	1-71210-661-2	01	1	0107-		●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	9510-0004	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	0005-		●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	9510-0004	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-207-3	01	1	0005-0111		●
30	BRACKET; FRT BUMPER (A)	1-71230-568-1	01	1	0112-	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0112-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-138-0	01	1	0005-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-130-0	01	1	0005-		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28081-030-0	06	1	9510-9606	●	●
32	BOLT; BRKT,BUMPER M10X35 FLANGE	0-28681-035-0	06	1	9607-9608	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	9609-0004	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0512	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28681-030-0	06	1	0005-0512		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0601-	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0601-		●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20801-650-0	04	1	0005-0512		●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20851-650-0	04	1	0601-		●
34	NUT; BRKT,BUMPER M10	9-09110-510-0	06	1	9510-9606	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	9607-0004	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0602	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	0005-0602		●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-		●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	04	1	0005-0512		●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	0-91110-516-0	04	1	0601-		●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	1-09060-010-1	06	1	0005-		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-110-0	04	1	9510-9606	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	9607-0004	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	04	1	0005-0602		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	04	1	0603-	●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	04	1	0603-		●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	0005-		●
84	HOOK	1-57181-027-1	01	1	9510-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9510-0603	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9510-0206	●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0207-0512	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	0601-	●	●
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	9-09857-022-0	01	1	0007-		●
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	04	1	0005-0603		●
238	WASHER; LK,BUMPER BRKT REINFORCEMENT BUMPER<VG7> ID=16.2	0-91510-516-0	04	1	0604-		●
239	WASHER; PL,BRKT REINFORCEMENT BUMPER<VG7>	9-09160-716-0	04	1	0005-0612		●
239	WASHER; PL,BRKT REINFORCEMENT BUMPER<VG7> ID=17 OD=30	0-91610-516-0	04	1	0701-		●
255	WASHER; LK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-616-0	01	1	0008-0107		●
255	WASHER; LK REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-616-0	01	1	0108-0206		●
255	WASHER; LK FRONT SPOILER<VP1> ID=16.2	9-09150-616-0	01	1	0108-0206		●
255	WASHER; LK REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0207-0603		●
255	WASHER; LK FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0207-0603		●
255	WASHER; LK REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	0-91510-516-0	01	1	0604-0609		●
255	WASHER; LK FRONT SPOILER<VP1> ID=16.2	0-91510-516-0	01	1	0604-0609		●
255	WASHER; LK REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>,CAB UP +50MM<W60> ID=16.2	0-91510-516-0	01	1	0610-		●
255	WASHER; LK FRONT SPOILER<VP1> EXC. CAB UP +50MM<W60> ID=16.2	0-91510-516-0	01	1	0610-		●
256	WASHER; PL REINFORCEMENT BUMPER<VG7> ID=16.2	1-09503-223-0	01	1	0008-0107		●
256	WASHER; PL REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	1-09503-223-0	01	1	0108-0609		●
256	WASHER; PL FRONT SPOILER<VP1> ID=16.2	1-09503-223-0	01	1	0108-0609		●
256	WASHER; PL REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>,CAB UP +50MM<W60> ID=16.2	1-09503-223-0	01	1	0610-		●
256	WASHER; PL FRONT SPOILER<VP1> EXC. CAB UP +50MM<W60> ID=16.2	1-09503-223-0	01	1	0610-		●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10811-660-0	01	1	9510-0512	●	●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10861-660-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10811-670-0	01	1	9510-0512	●	●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10861-670-0	01	1	0601-	●	●
352	BOLT; FRAME REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	01	1	0008-0107		●
352	BOLT; FRAME REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X40	0-20801-640-0	01	1	0108-0512		●
352	BOLT; FRAME FRONT SPOILER<VP1> M16X40	0-20801-640-0	01	1	0108-0512		●
352	BOLT; FRAME REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X40	0-20851-640-0	01	1	0601-0609		●
352	BOLT; FRAME FRONT SPOILER<VP1> M16X40	0-20851-640-0	01	1	0601-0609		●
352	BOLT; FRAME REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>,CAB UP +50MM<W60> M16X40	0-20851-640-0	01	1	0610-		●
352	BOLT; FRAME FRONT SPOILER<VP1> EXC. CAB UP +50MM<W60> M16X40	0-20851-640-0	01	1	0610-		●
353	NUT; FRAME REINFORCEMENT BUMPER<VG7> M16	9-99110-516-0	01	1	0008-0107		●
353	NUT; FRAME REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16	9-99110-516-0	01	1	0108-0512		●
353	NUT; FRAME FRONT SPOILER<VP1> M16	9-99110-516-0	01	1	0108-0512		●
353	NUT; FRAME REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16	0-91110-516-0	01	1	0601-0609		●
353	NUT; FRAME FRONT SPOILER<VP1> M16	0-91110-516-0	01	1	0601-0609		●
353	NUT; FRAME REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>,CAB UP +50MM<W60> M16	0-91110-516-0	01	1	0610-		●
353	NUT; FRAME FRONT SPOILER<VP1> EXC. CAB UP +50MM<W60> M16	0-91110-516-0	01	1	0610-		●

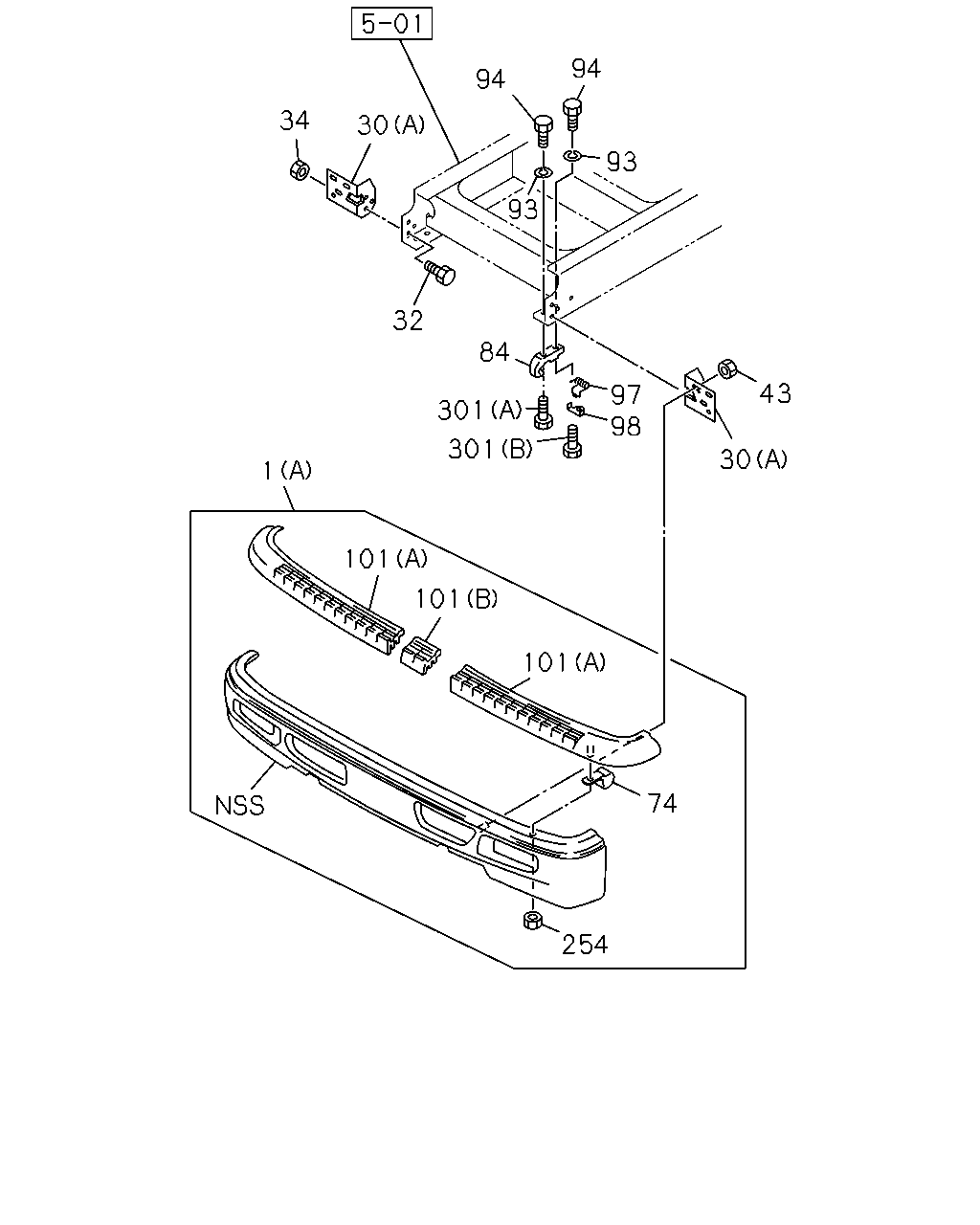

94 94 34 30 93 93 32 84 43 97 98 301 301 30 1 101 101 101 74 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	9510-0004	●	●
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	0005-0106	●
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A) WHITE	1-71210-583-3	01	1	0005-0106		●
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-4	01	1	0107-	●
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,FRONT SPOILER<VP1> (A) WHITE	1-71210-583-4	01	1	0107-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-918-2	01	1	0005-		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. REINFORCEMENT BUMPER<VG7> (C) WHITE	1-71210-661-2	01	1	0107-		●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	9510-0004	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	0005-		●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	9510-0004	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-207-3	01	1	0005-0111		●
30	BRACKET; FRT BUMPER (A)	1-71230-568-1	01	1	0112-	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0112-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-138-0	01	1	0005-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-130-0	01	1	0005-		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28081-030-0	06	1	9510-9606	●	●
32	BOLT; BRKT,BUMPER M10X35 FLANGE	0-28681-035-0	06	1	9607-9608	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	9609-0004	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0512	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28681-030-0	06	1	0005-0512		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0601-	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0601-		●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20801-650-0	04	1	0005-0512		●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20851-650-0	04	1	0601-		●
34	NUT; BRKT,BUMPER M10	9-09110-510-0	06	1	9510-9606	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	9607-0004	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0602	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	0005-0602		●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-		●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	04	1	0005-0512		●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	0-91110-516-0	04	1	0601-		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-110-0	04	1	9510-9606	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	9607-0004	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	04	1	0005-0602		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	04	1	0603-	●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	04	1	0603-		●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	0005-		●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	9510-0004	●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0005-	●
74	CLIP; FOG LAMP HARNESS EXC. REINFORCEMENT BUMPER<VG7>	1-09701-203-0	05	1	0005-		●
84	HOOK	1-57181-027-1	01	1	9510-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9510-0603	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9510-0206	●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0207-0512	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	0601-	●	●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	9510-0004	●	●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0005-0006	●	●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0007-0106	●
97	SPRING; FRT HOOK EXC. REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	0007-0106		●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0107-	●
97	SPRING; FRT HOOK EXC. REINFORCEMENT BUMPER<VG7>,FRONT SPOILER<VP1>	9-53519-003-0	01	1	0107-		●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	9510-0004	●	●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0005-0006	●	●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0007-0106	●
98	STOPPER; SPR,FRT HOOK EXC. REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	0007-0106		●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0107-	●
98	STOPPER; SPR,FRT HOOK EXC. REINFORCEMENT BUMPER<VG7>,FRONT SPOILER<VP1>	9-53519-006-0	01	1	0107-		●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	9510-0004	●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0005-	●
101	STEP; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-082-1	01	1	0005-		●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	9510-0004	●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0005-	●
101	STEP; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-081-1	01	1	0005-		●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	9510-0004	●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0005-	●
101	STEP; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-080-1	01	1	0005-		●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	9510-0004	●	●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0005-0602	●
254	NUT; STEP EXC. REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	11	1	0005-0602		●
254	NUT; STEP M8 FLANGE	0-91180-108-0	11	1	0603-	●
254	NUT; STEP EXC. REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91180-108-0	11	1	0603-		●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10811-660-0	01	1	9510-0512	●	●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10861-660-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10811-670-0	01	1	9510-0512	●	●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10861-670-0	01	1	0601-	●	●

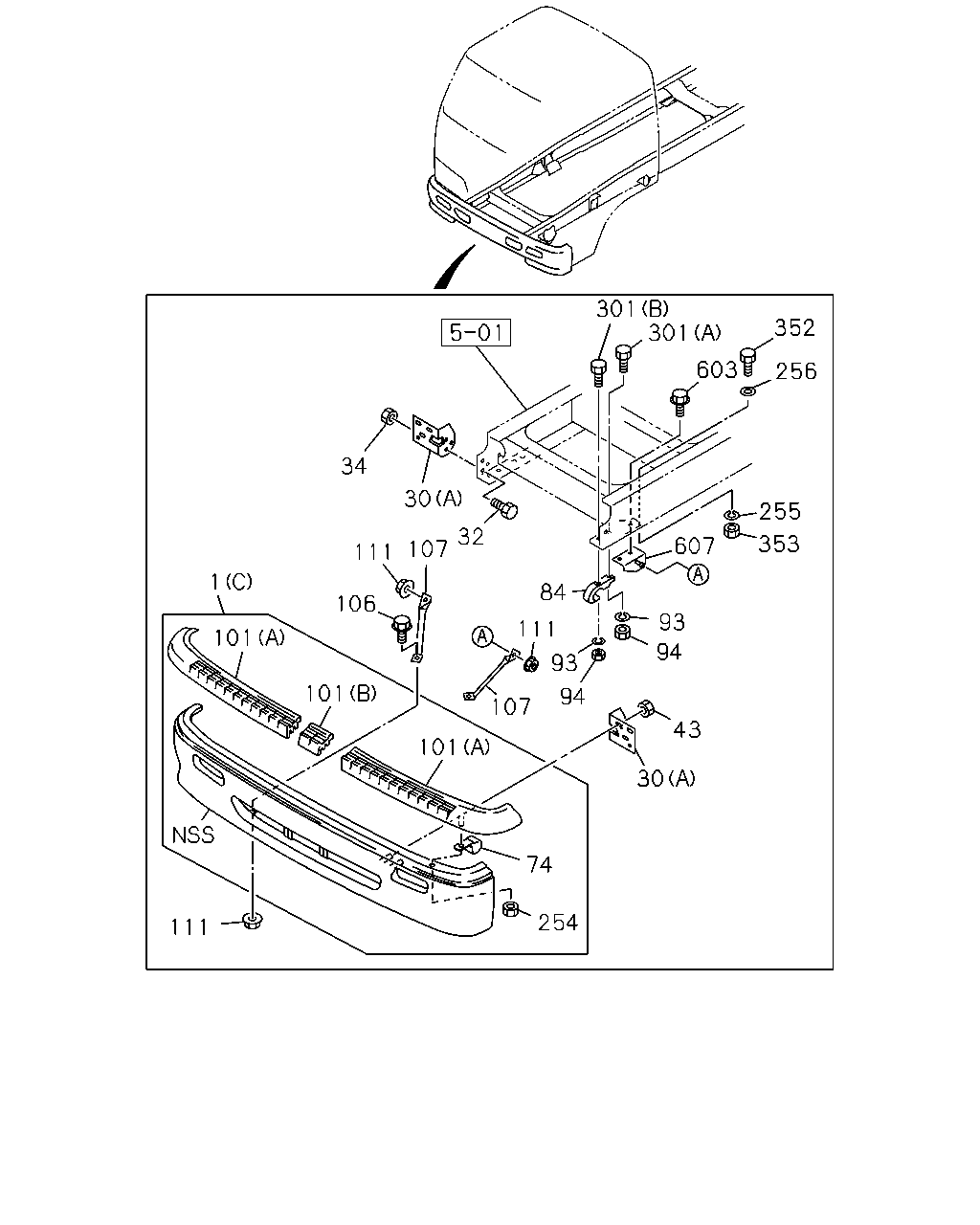

301 301 352 603 256 34 30 255 32 107 353 607 111 1 84 106 93 111 101 94 93 101 94 107 43 101 30 74 254 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	9510-0004	●	●
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-3	01	1	0005-0106	●
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A) WHITE	1-71210-583-3	01	1	0005-0106		●
1	BUMPER ASM; FRT (A) WHITE	1-71210-583-4	01	1	0107-	●
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,FRONT SPOILER<VP1> (A) WHITE	1-71210-583-4	01	1	0107-		●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-918-2	01	1	0005-		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> EXC. REINFORCEMENT BUMPER<VG7> (C) WHITE	1-71210-661-2	01	1	0107-		●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	9510-0004	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-208-3	01	1	0005-	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-208-3	01	1	0005-		●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	9510-0004	●	●
30	BRACKET; FRT BUMPER (A)	1-71230-207-3	01	1	0005-0111	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-207-3	01	1	0005-0111		●
30	BRACKET; FRT BUMPER (A)	1-71230-568-1	01	1	0112-	●
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-568-1	01	1	0112-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-138-0	01	1	0005-		●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-130-0	01	1	0005-		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28081-030-0	06	1	9510-9606	●	●
32	BOLT; BRKT,BUMPER M10X35 FLANGE	0-28681-035-0	06	1	9607-9608	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	9609-0004	●	●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28681-030-0	06	1	0005-0512	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28681-030-0	06	1	0005-0512		●
32	BOLT; BRKT,BUMPER M10X30 FLANGE	0-28651-030-0	06	1	0601-	●
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28651-030-0	06	1	0601-		●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20801-650-0	04	1	0005-0512		●
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16X50	0-20851-650-0	04	1	0601-		●
34	NUT; BRKT,BUMPER M10	9-09110-510-0	06	1	9510-9606	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	9607-0004	●	●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91150-210-0	06	1	0005-0602	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	06	1	0005-0602		●
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	06	1	0603-	●
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	06	1	0603-		●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	9-99110-416-0	04	1	0005-0512		●
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> M16	0-91110-516-0	04	1	0601-		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-110-0	04	1	9510-9606	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	9607-0004	●	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	04	1	0005-0602	●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91150-210-0	04	1	0005-0602		●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	04	1	0603-	●
43	NUT; BRKT TO BUMPER EXC. REINFORCEMENT BUMPER<VG7> M10 FLANGE	0-91180-210-0	04	1	0603-		●
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10 FLANGE	5-09440-006-0	06	1	0005-		●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	9510-0004	●	●
74	CLIP; FOG LAMP HARNESS	1-09701-203-0	05	1	0005-	●
74	CLIP; FOG LAMP HARNESS EXC. REINFORCEMENT BUMPER<VG7>	1-09701-203-0	05	1	0005-		●
84	HOOK	1-57181-027-1	01	1	9510-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9510-0603	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-	●	●
94	NUT; HOOK M16	9-99110-416-0	02	1	9510-0206	●	●
94	NUT; HOOK M16	9-99110-516-0	02	1	0207-0512	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	0601-	●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	9510-0004	●	●
101	STEP; BUMPER (B)	1-71260-082-1	01	1	0005-	●
101	STEP; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-082-1	01	1	0005-		●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	9510-0004	●	●
101	STEP; BUMPER (A)	1-71260-081-1	01	1	0005-	●
101	STEP; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-081-1	01	1	0005-		●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	9510-0004	●	●
101	STEP; BUMPER (A)	1-71260-080-1	01	1	0005-	●
101	STEP; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-080-1	01	1	0005-		●
106	BOLT; AIR DAM FRONT SPOILER<VP1> M10X25 FLANGE	0-28681-025-0	02	1	0107-0512		●
106	BOLT; AIR DAM FRONT SPOILER<VP1> M10X25 FLANGE	0-28651-025-0	02	1	0601-		●
107	STAY; AIR DAM FRONT SPOILER<VP1> CAB UP +50MM<W60>	1-71260-131-1	01	1	0608-		●
107	STAY; AIR DAM FRONT SPOILER<VP1> CAB UP +50MM<W60>	1-71260-132-1	01	1	0608-		●
107	STAY; AIR DAM FRONT SPOILER<VP1>	1-71260-130-1	01	1	0107-0607		●
107	STAY; AIR DAM FRONT SPOILER<VP1> EXC. CAB UP +50MM<W60>	1-71260-130-1	01	1	0608-		●
107	STAY; AIR DAM FRONT SPOILER<VP1>	1-71260-129-1	01	1	0107-0607		●
107	STAY; AIR DAM FRONT SPOILER<VP1> EXC. CAB UP +50MM<W60>	1-71260-129-1	01	1	0608-		●
111	NUT; STAY FRONT SPOILER<VP1> M10 FLANGE	0-91150-210-0	04	1	0107-0602		●
111	NUT; STAY FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	04	1	0603-		●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	9510-0004	●	●
254	NUT; STEP M8 FLANGE	0-91150-108-0	11	1	0005-0602	●
254	NUT; STEP EXC. REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	11	1	0005-0602		●
254	NUT; STEP M8 FLANGE	0-91180-108-0	11	1	0603-	●
254	NUT; STEP EXC. REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91180-108-0	11	1	0603-		●
255	WASHER; LK REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-616-0	01	1	0008-0107		●
255	WASHER; LK REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-616-0	01	1	0108-0206		●
255	WASHER; LK FRONT SPOILER<VP1> ID=16.2	9-09150-616-0	01	1	0108-0206		●
255	WASHER; LK REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0207-0603		●
255	WASHER; LK FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0207-0603		●
255	WASHER; LK REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	0-91510-516-0	01	1	0604-0609		●
255	WASHER; LK FRONT SPOILER<VP1> ID=16.2	0-91510-516-0	01	1	0604-0609		●
255	WASHER; LK REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>,CAB UP +50MM<W60> ID=16.2	0-91510-516-0	01	1	0610-		●
255	WASHER; LK FRONT SPOILER<VP1> EXC. CAB UP +50MM<W60> ID=16.2	0-91510-516-0	01	1	0610-		●
256	WASHER; PL REINFORCEMENT BUMPER<VG7> ID=16.2	1-09503-223-0	01	1	0008-0107		●
256	WASHER; PL REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	1-09503-223-0	01	1	0108-0609		●
256	WASHER; PL FRONT SPOILER<VP1> ID=16.2	1-09503-223-0	01	1	0108-0609		●
256	WASHER; PL REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>,CAB UP +50MM<W60> ID=16.2	1-09503-223-0	01	1	0610-		●
256	WASHER; PL FRONT SPOILER<VP1> EXC. CAB UP +50MM<W60> ID=16.2	1-09503-223-0	01	1	0610-		●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10811-660-0	01	1	9510-0512	●	●
301	BOLT; HOOK TO FRAME (A) M16X60	0-10861-660-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10811-670-0	01	1	9510-0512	●	●
301	BOLT; HOOK TO FRAME (B) M16X70	0-10861-670-0	01	1	0601-	●	●
352	BOLT; FRAME REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	01	1	0008-0107		●
352	BOLT; FRAME REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X40	0-20801-640-0	01	1	0108-0512		●
352	BOLT; FRAME FRONT SPOILER<VP1> M16X40	0-20801-640-0	01	1	0108-0512		●
352	BOLT; FRAME REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X40	0-20851-640-0	01	1	0601-0609		●
352	BOLT; FRAME FRONT SPOILER<VP1> M16X40	0-20851-640-0	01	1	0601-0609		●
352	BOLT; FRAME REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>,CAB UP +50MM<W60> M16X40	0-20851-640-0	01	1	0610-		●
352	BOLT; FRAME FRONT SPOILER<VP1> EXC. CAB UP +50MM<W60> M16X40	0-20851-640-0	01	1	0610-		●
353	NUT; FRAME REINFORCEMENT BUMPER<VG7> M16	9-99110-516-0	01	1	0008-0107		●
353	NUT; FRAME REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16	9-99110-516-0	01	1	0108-0512		●
353	NUT; FRAME FRONT SPOILER<VP1> M16	9-99110-516-0	01	1	0108-0512		●
353	NUT; FRAME REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16	0-91110-516-0	01	1	0601-0609		●
353	NUT; FRAME FRONT SPOILER<VP1> M16	0-91110-516-0	01	1	0601-0609		●
353	NUT; FRAME REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>,CAB UP +50MM<W60> M16	0-91110-516-0	01	1	0610-		●
353	NUT; FRAME FRONT SPOILER<VP1> EXC. CAB UP +50MM<W60> M16	0-91110-516-0	01	1	0610-		●
603	BOLT; BRKT FRONT SPOILER<VP1> EXC. AUXILIARY STEPS<E29> M12X35 FLANGE	0-28681-235-0	04	1	0108-0512		●
603	BOLT; BRKT FRONT SPOILER<VP1> EXC. AUXILIARY STEPS<E29> M12X35 FLANGE	0-28651-235-0	04	1	0601-0905		●
603	BOLT; BRKT FRONT SPOILER<VP1> EXC. AUXILIARY STEPS<E29> M12X30 FLANGE	0-28051-230-0	04	1	0906-		●
607	BRACKET FRONT SPOILER<VP1> EXC. AUXILIARY STEPS<E29>	1-47477-689-0	01	1	0108-		●
607	BRACKET FRONT SPOILER<VP1> EXC. AUXILIARY STEPS<E29>	1-47477-690-0	01	1	0108-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
