8-50 — AIR CONDITIONING SYSTEM; FRONT (#40221) — 27 parça

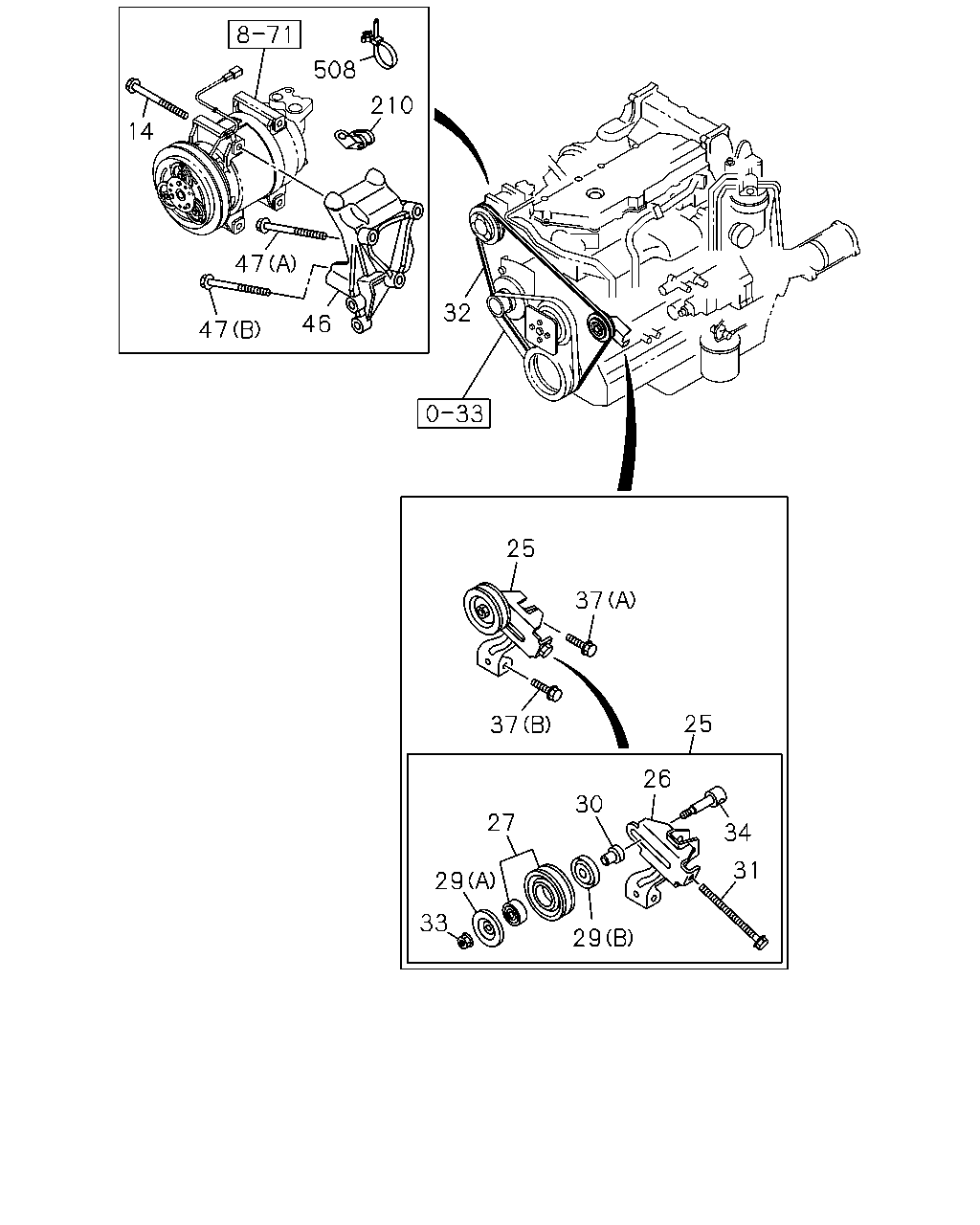

çizim 120833
14 508 210 47 47 46 32 25 37 37 25 26 30 27 34 31 29 29 33
BalonParca AdiParca NoAdetTipApplied Date
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 0804-
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 0804-
26 09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 0804-
27 09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 0804-
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0804-
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0804-
30 09.181 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 0804-
31 09.181 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0804-
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1674 		8-98010-841-1 01 1 0804-
33 09.181 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0804-
34 09.181 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 0804-
37 09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 0804-
37 09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0804-
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-98006-515-3 01 1 0804-
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M10X90 FLANGE 		0-28151-090-0 02 1 0804-
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 0804-
210 09.242 CLIP; HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0907-
508 09.181 CLIP; HARNESS
02.559 L=170.3 		1-09987-182-0 01 1 0804-

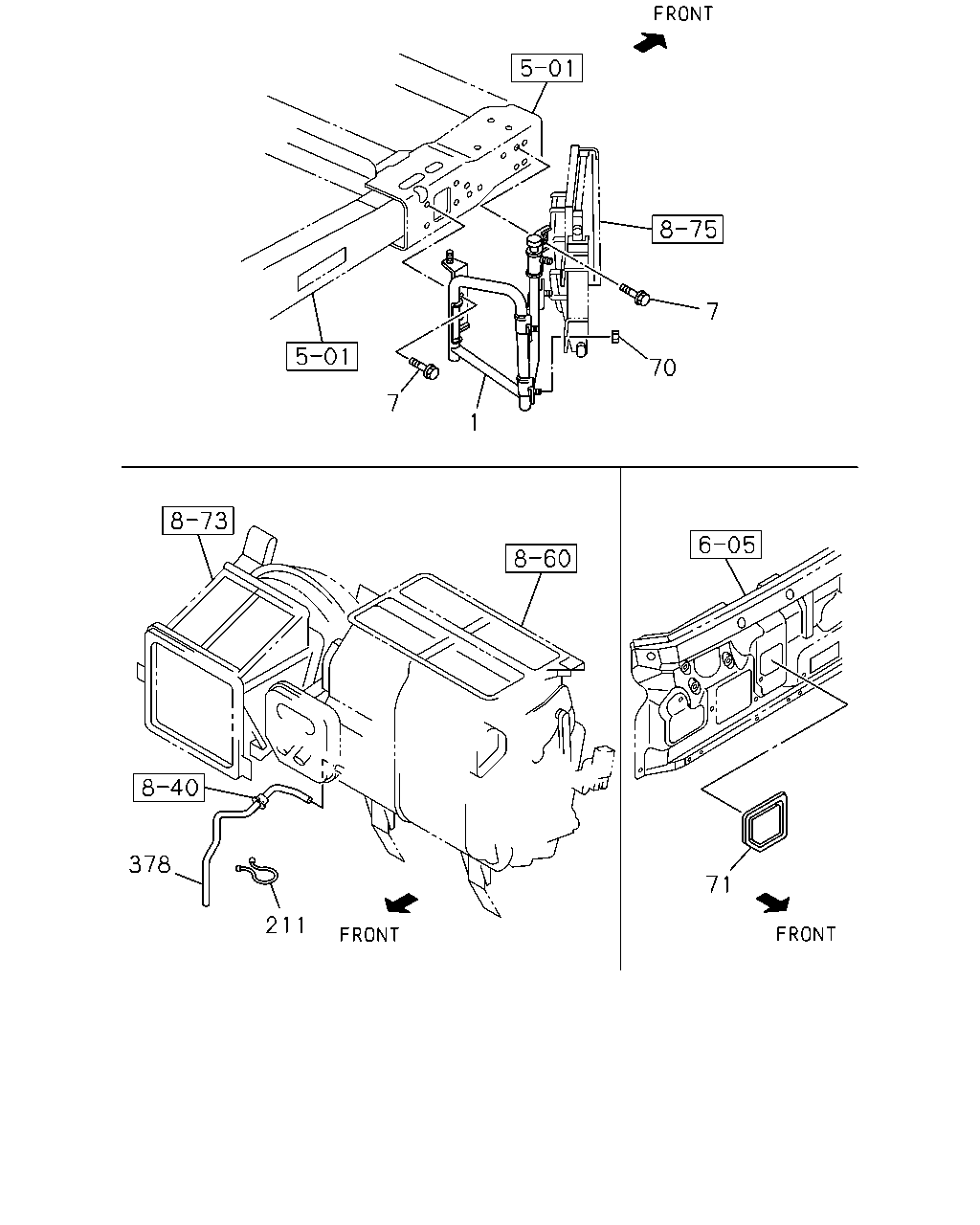

çizim 120835
7 70 7 1 378 71 211
BalonParca AdiParca NoAdetTipApplied Date
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98006-339-0 01 1 0804-1303
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98214-412-0 01 1 1304-
7 09.242 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 07.395 M12X30 FLANGE 		0-28651-230-0 04 1 0804-
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804-
71 09.190 COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-235-1 01 1 0804-1301
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-235-1 01 1 1302-
211 09.190 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.278 		8-94463-508-0 01 1 0804-0804
211 09.190 CLIP; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 		8-94463-508-0 01 1 0804-
378 09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98006-239-3 01 1 0804-
