8-15 — FIXING PARTS; WIRING HARNESS (#40214) — 155 parça

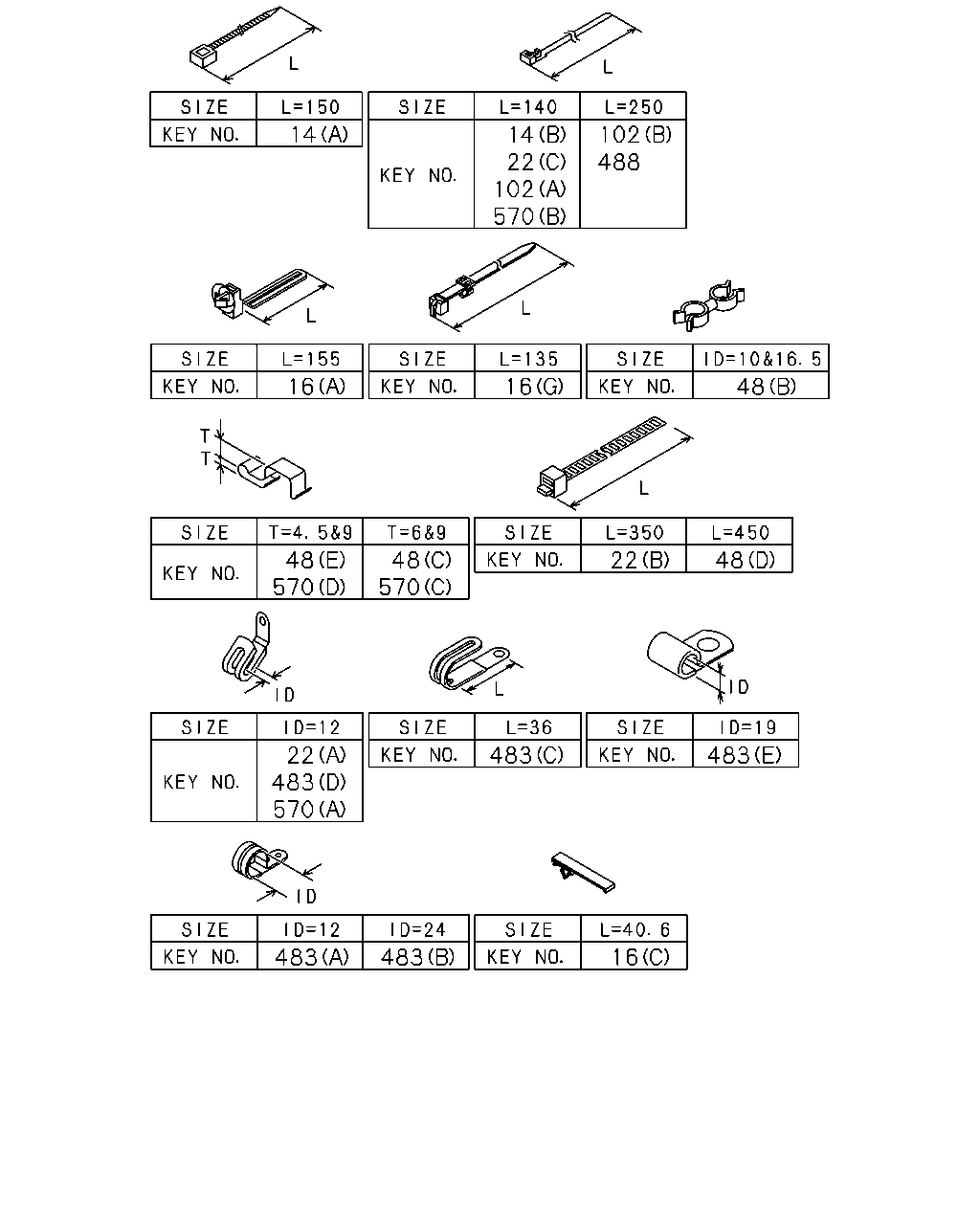

14 14 22 102 102 570 488 48 16 16 48 570 48 570 22 48 483 483 22 483 570 16 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.162 (B) L=140	5-09707-031-1	01	1	1502-
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	01	1	0804-0810
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	02	1	0811-0906
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	01	1	0907-
16	02.559 CLIP; HARNESS (G) L=135	1-09987-143-1	01	1	0804-1106
16	02.559 CLIP; HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) L=135	1-09987-143-1	01	1	1107-
16	02.559 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	0804-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0804-
16	02.559 CLIP; HARNESS 03.483 (H)	8-97101-436-0	01	1	0804-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0804-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0804-
16	02.559 CLIP; HARNESS 16.578 (E) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0804-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0804-
22	02.559 CLIP; ENG HARNESS 03.162 (C) L=140	5-09707-031-1	02	1	0804-0809
22	02.559 CLIP; ENG HARNESS 08.852 (B) L=350	8-94152-256-1	02	1	0804-0902
22	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-
22	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-
48	02.559 CLIP; FRAME HARNESS 03.483 (D) L=450	1-09707-142-1	01	1	0804-
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	06	1	0804-0805
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	0806-
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	0804-
48	02.559 CLIP; FRAME HARNESS 03.430 (B) ID=10 & 16.5	8-94424-440-0	01	1	0804-
48	02.559 CLIP; FRAME HARNESS (C) T=6.0	5-09709-024-0	01	1	0804-0804
48	02.559 CLIP; FRAME HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	0805-
102	02.559 CLIP; BAND (B) L=250	5-09707-030-1	01	1	0804-
102	02.559 CLIP; BAND 03.162 (A) L=140	5-09707-031-1	04	1	0804-1202
102	02.559 CLIP; BAND 03.162 (A) L=140	5-09707-031-1	02	1	1203-
483	02.559 CLIP; ENG HARNESS (E) ID=19 L=60	0-95235-896-0	01	1	0907-
483	02.559 CLIP; ENG HARNESS 03.671 (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-
483	02.559 CLIP; ENG HARNESS 04.785 (A) ID=12 L=70	1-09700-097-1	01	1	0804-
483	02.559 CLIP; ENG HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	0804-
483	02.559 CLIP; ENG HARNESS 01.152 (C) L=36	8-94224-891-1	04	1	0804-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0804-
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (B) L=140	5-09707-031-1	02	1	0804-
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=6.0	8-97371-948-0	01	1	0804-0804
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=4.5 & 9	8-97371-947-0	01	1	0805-
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-

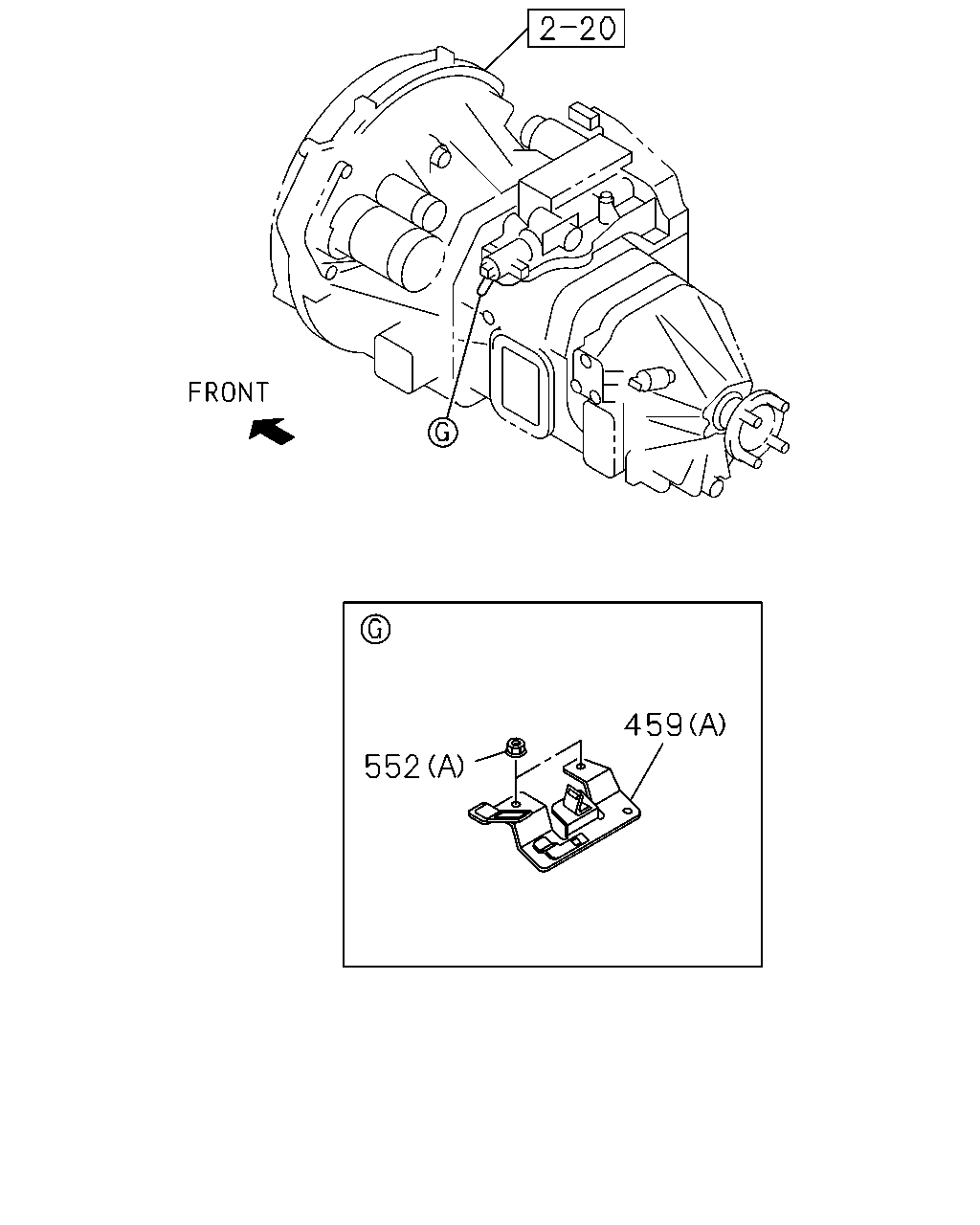

459 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
459	02.483 BRACKET; SUPPORT,HARNESS 02.559 (B)	8-97379-633-0	01	1	0804-
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	0804-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0804-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-

516 150 139 313 38 139 139 150 480 529 480 377 377 377 386 377 386 386 377 386 24 515 577 219 294 515 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-1409
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
24	02.559 NUT; HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-
38	02.559 BOLT; CLIP,HARNESS PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D)SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D)SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D)SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-
139	02.559 BOLT; BRKT 00.206 (C) M6X12 FLANGE	0-28450-612-0	01	1	0804-0809
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	0810-
150	02.343 BOLT; CLIP 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	0907-
150	02.343 BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	0804-0906
150	02.343 BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0907-
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-
294	02.559 NUT 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0804-0904
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0804-1004
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0804-1004
377	02.559 BOLT; CAB EARTH (E) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0804-1004
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0804-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0804-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0804-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0804-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0804-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0804-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0804-

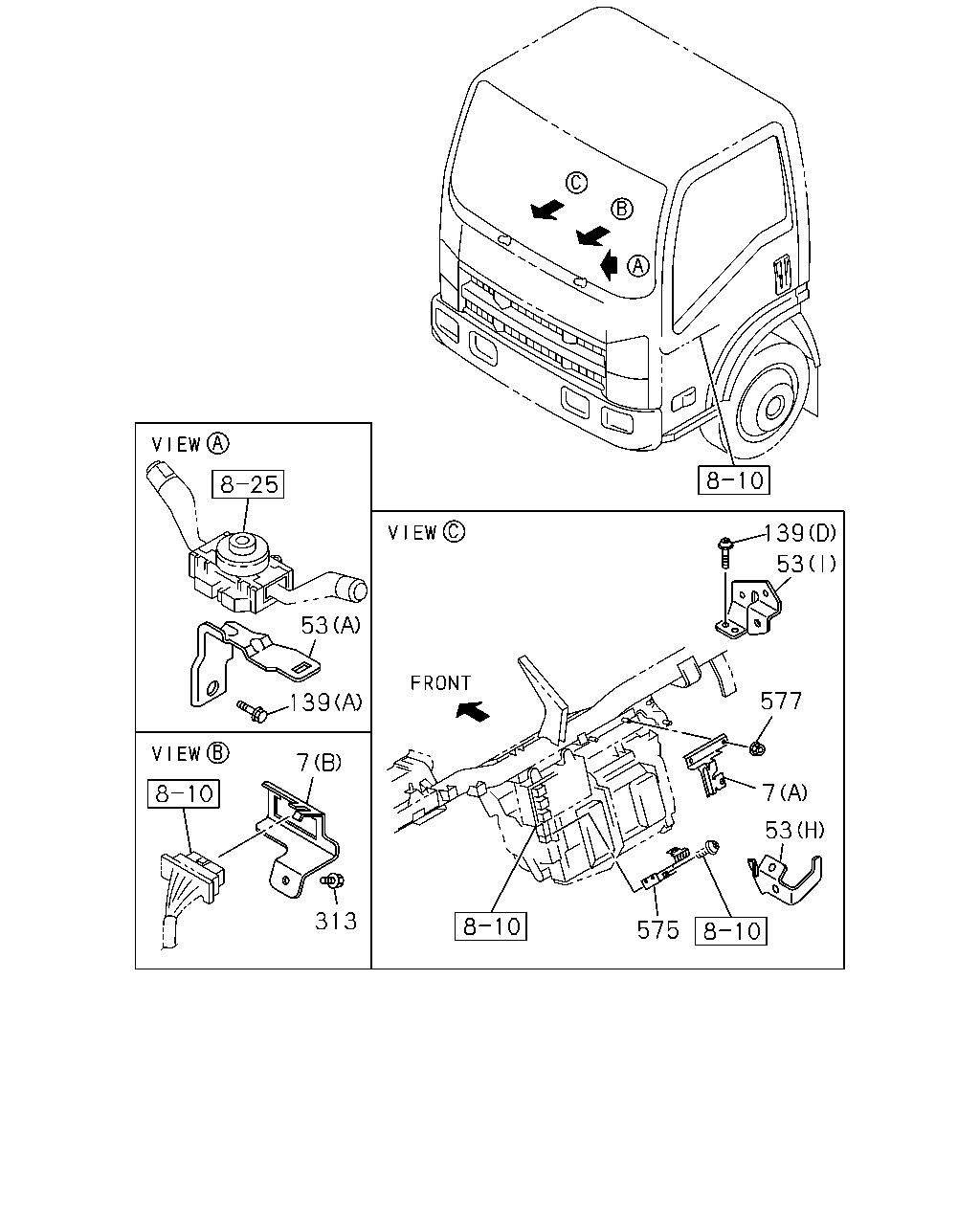

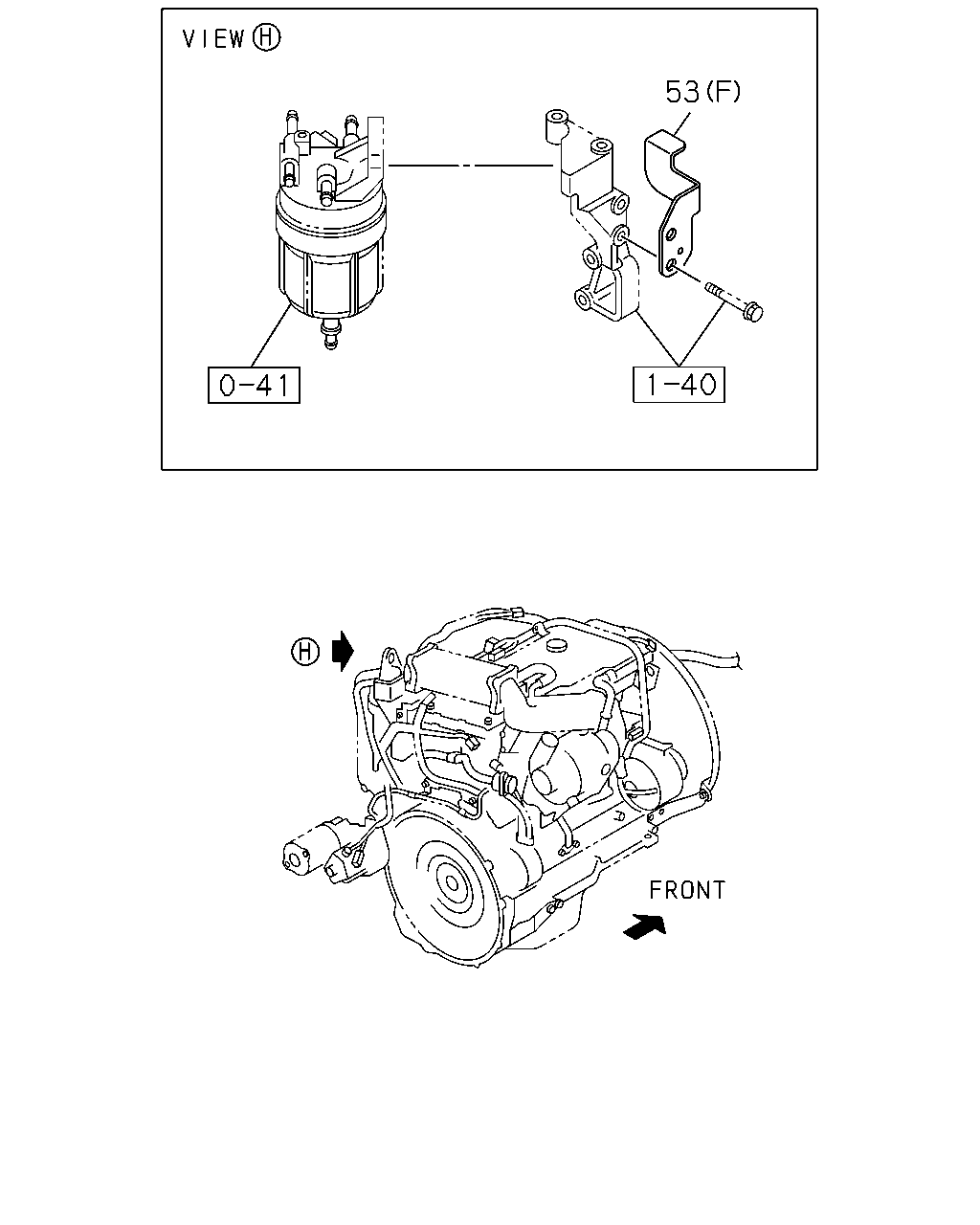

139 53 53 577 139 7 7 53 313 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	0804-
7	02.559 BRACKET; CONNECTOR (A)	8-98056-073-3	01	1	0804-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I)	8-98084-699-0	01	1	0812-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0804-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0804-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	0804-
53	02.483 BRACKET; HARNESS (H)	8-98074-502-0	01	1	0804-
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	0804-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0804-
53	02.483 BRACKET; HARNESS (E)	8-98094-629-0	01	1	0804-1303
53	02.483 BRACKET; HARNESS (E)	8-98130-669-1	01	1	1304-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D)SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D)SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D)SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-
139	02.559 BOLT; BRKT 00.206 (C) M6X12 FLANGE	0-28450-612-0	01	1	0804-0809
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	0810-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-
575	02.559 BRACKET; FUSE BOX EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	0809-
575	02.559 BRACKET; FUSE BOX	8-98054-320-1	01	1	0804-0808
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	0809-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0804-

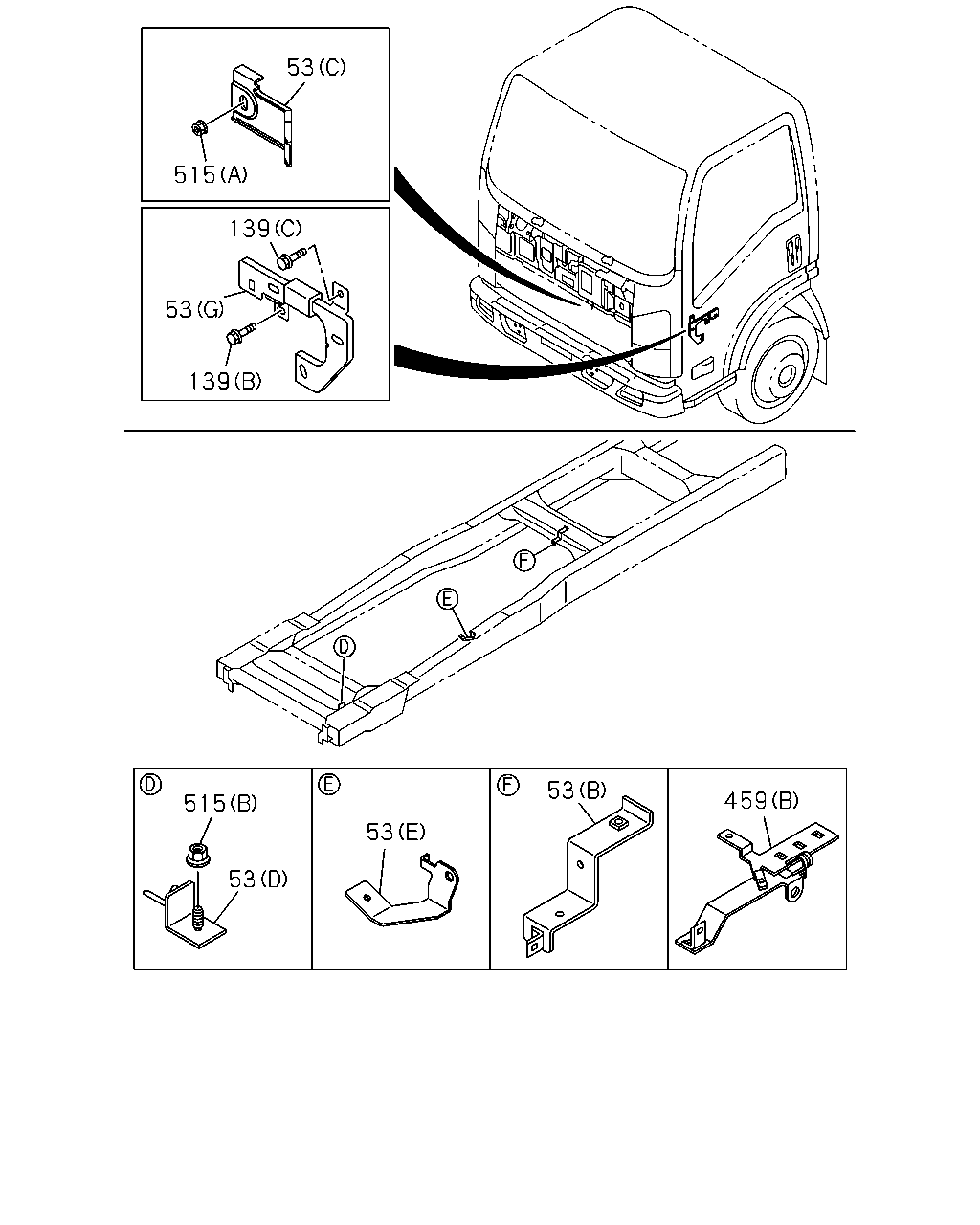

53 515 139 53 139 53 459 515 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I)	8-98084-699-0	01	1	0812-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0804-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0804-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	0804-
53	02.483 BRACKET; HARNESS (H)	8-98074-502-0	01	1	0804-
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	0804-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0804-
53	02.483 BRACKET; HARNESS (E)	8-98094-629-0	01	1	0804-1303
53	02.483 BRACKET; HARNESS (E)	8-98130-669-1	01	1	1304-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D)SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D)SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (D)SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-
139	02.559 BOLT; BRKT 00.206 (C) M6X12 FLANGE	0-28450-612-0	01	1	0804-0809
139	02.559 BOLT; BRKT 03.604 (C) M6X12 FLANGE	8-97108-669-0	01	1	0810-
459	02.483 BRACKET; SUPPORT,HARNESS 02.559 (B)	8-97379-633-0	01	1	0804-
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	0804-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (I)	8-98084-699-0	01	1	0812-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0804-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0804-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	0804-
53	02.483 BRACKET; HARNESS (H)	8-98074-502-0	01	1	0804-
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	0804-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0804-
53	02.483 BRACKET; HARNESS (E)	8-98094-629-0	01	1	0804-1303
53	02.483 BRACKET; HARNESS (E)	8-98130-669-1	01	1	1304-

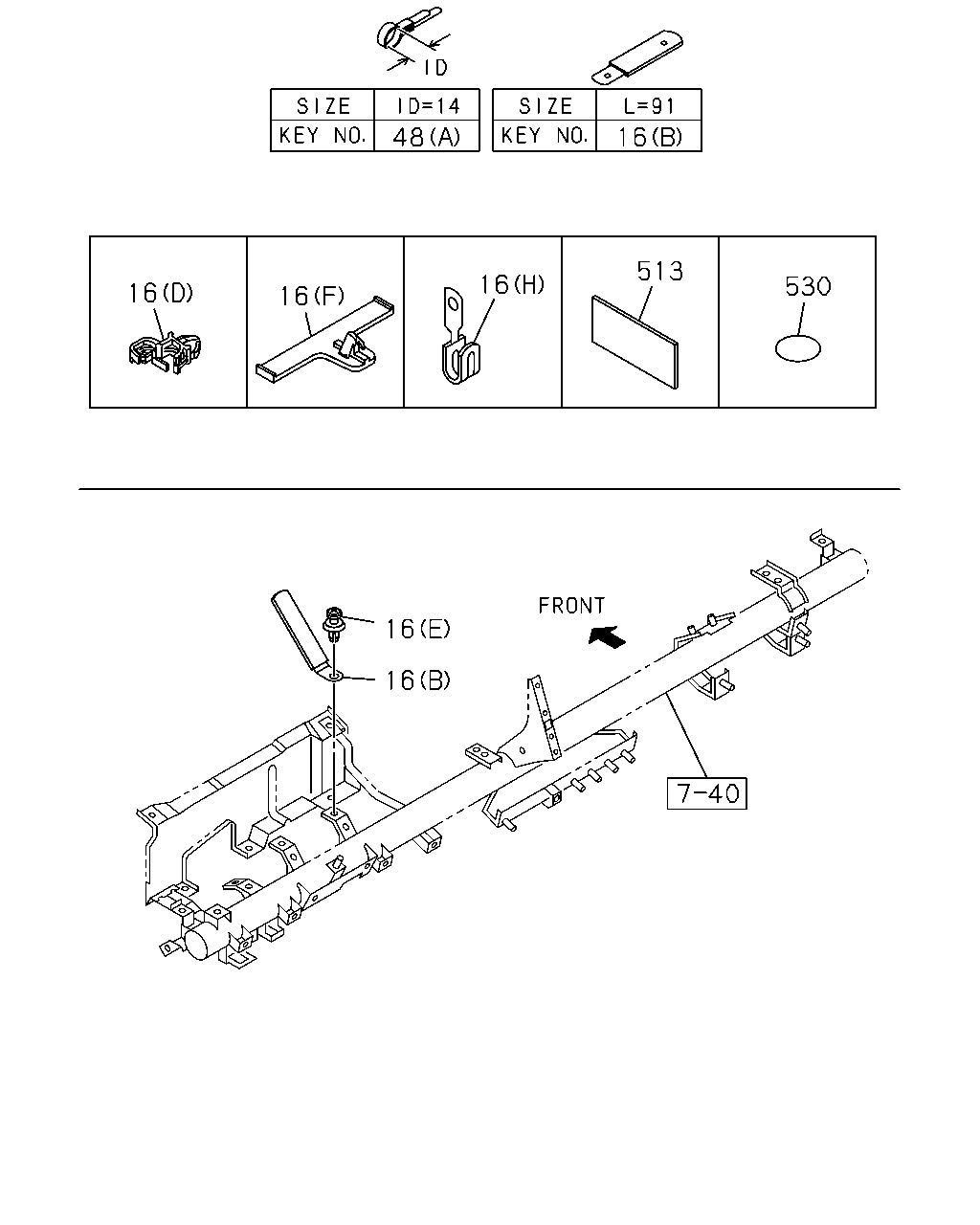

48 16 513 16 530 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS (G) L=135	1-09987-143-1	01	1	0804-1106
16	02.559 CLIP; HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) (G) L=135	1-09987-143-1	01	1	1107-
16	02.559 CLIP; HARNESS 04.930 (B) L=91 ID=8.5	8-94329-956-0	01	1	0804-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0804-
16	02.559 CLIP; HARNESS 03.483 (H)	8-97101-436-0	01	1	0804-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0804-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0804-
16	02.559 CLIP; HARNESS 16.578 (E) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0804-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0804-
48	02.559 CLIP; FRAME HARNESS 03.483 (D) L=450	1-09707-142-1	01	1	0804-
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	06	1	0804-0805
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	0806-
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	01	1	0804-
48	02.559 CLIP; FRAME HARNESS 03.430 (B) ID=10 & 16.5	8-94424-440-0	01	1	0804-
48	02.559 CLIP; FRAME HARNESS (C) T=6.0	5-09709-024-0	01	1	0804-0804
48	02.559 CLIP; FRAME HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	0805-
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	0808-
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0804-
