7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

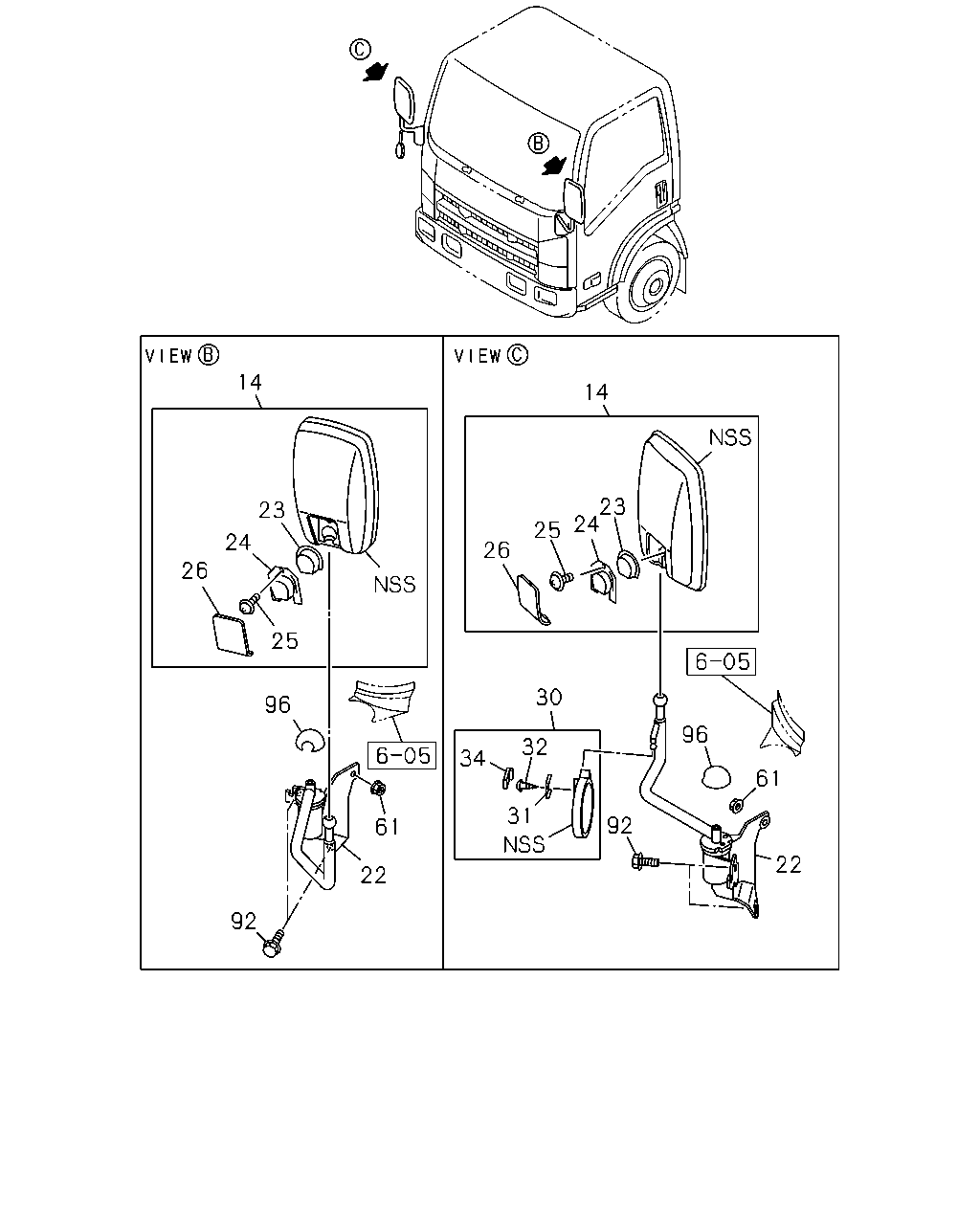

7-20 — MIRROR AND MIRROR STAY
(#40202) — 25 parça
◀
[720A] OUTSIDE MIRROR (19 parça)
[720A] ROOM MIRROR (6 parça)
▶
14
14
23
24
23
25
24
26
26
25
30
96
96
32
34
61
31
92
61
22
22
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
16.068 MIRROR ASM; OUTSIDE
8-94262-542-3
02
1
0804-
22
16.069 STAY; OUTSIDE MIRROR
8-98070-503-0
01
1
0804-
22
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
8-98070-510-0
01
1
0804-
22
16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9>
8-98070-508-0
01
1
0804-
23
16.069 WASHER; OUTSIDE MIRROR
T=2.0
8-94262-545-0
02
1
0804-
24
16.069 HOLDER; OUTSIDE MIRROR
T=1.6
8-94262-546-1
02
1
0804-
25
16.069 SCREW; OUTSIDE MIRROR
M6X30
8-94279-365-0
02
1
0804-
26
16.069 COVER; OUTSIDE MIRROR
T=2.3
8-94262-547-2
02
1
0804-
30
16.068 MIRROR; UNDER
8-94262-625-2
01
1
0804-0903
30
16.068 MIRROR; UNDER
UNDER MIRROR<RR9>
8-94262-625-2
01
1
0904-
31
16.069 PLATE; MIRROR
8-94262-631-0
01
1
0804-0903
31
16.069 PLATE; MIRROR
UNDER MIRROR<RR9>
8-94262-631-0
01
1
0904-
32
16.069 SCREW; UNDER MIRROR
M5X18
8-94279-372-0
02
1
0804-0903
32
16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18
8-94279-372-0
02
1
0904-
34
16.069 CAP; MIRROR
8-94262-629-0
01
1
0804-0903
34
16.069 CAP; MIRROR
UNDER MIRROR<RR9>
8-94262-629-0
01
1
0904-
61
16.069 NUT; STAY,OUTSIDE MIRROR
01.062 M8 FLANGE
0-91180-108-0
02
1
0804-
92
16.069 BOLT; STAY BRKT,MIRROR
06.216 M8X25 FLANGE
0-28650-825-0
04
1
0804-
96
16.069 CAP; MIRROR STAY
8-98027-552-2
02
1
0804-
2
64
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY
8-98097-534-1
01
1
0804-
2
16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26
8-98033-674-0
02
1
0804-
64
16.069 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 OD=20 T=0.05 WHITE
8-98059-421-0
02
1
0804-0903
64
16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) EXC. WINDOW RR<8LF> 16.570 OD=20 T=0.05 WHITE
8-98059-421-0
02
1
0904-
64
16.069 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 OD=20 T=0.05 BLACK
5-76777-036-0
02
1
0804-0903
64
16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BO DY COLOR WOODLAND GREEN(807),BODY COLOR FRENCH VANILLA(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLO R HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 OD=20 T=0.05 BLACK
5-76777-036-0
02
1
0904-
