◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#4020) — 94 parça

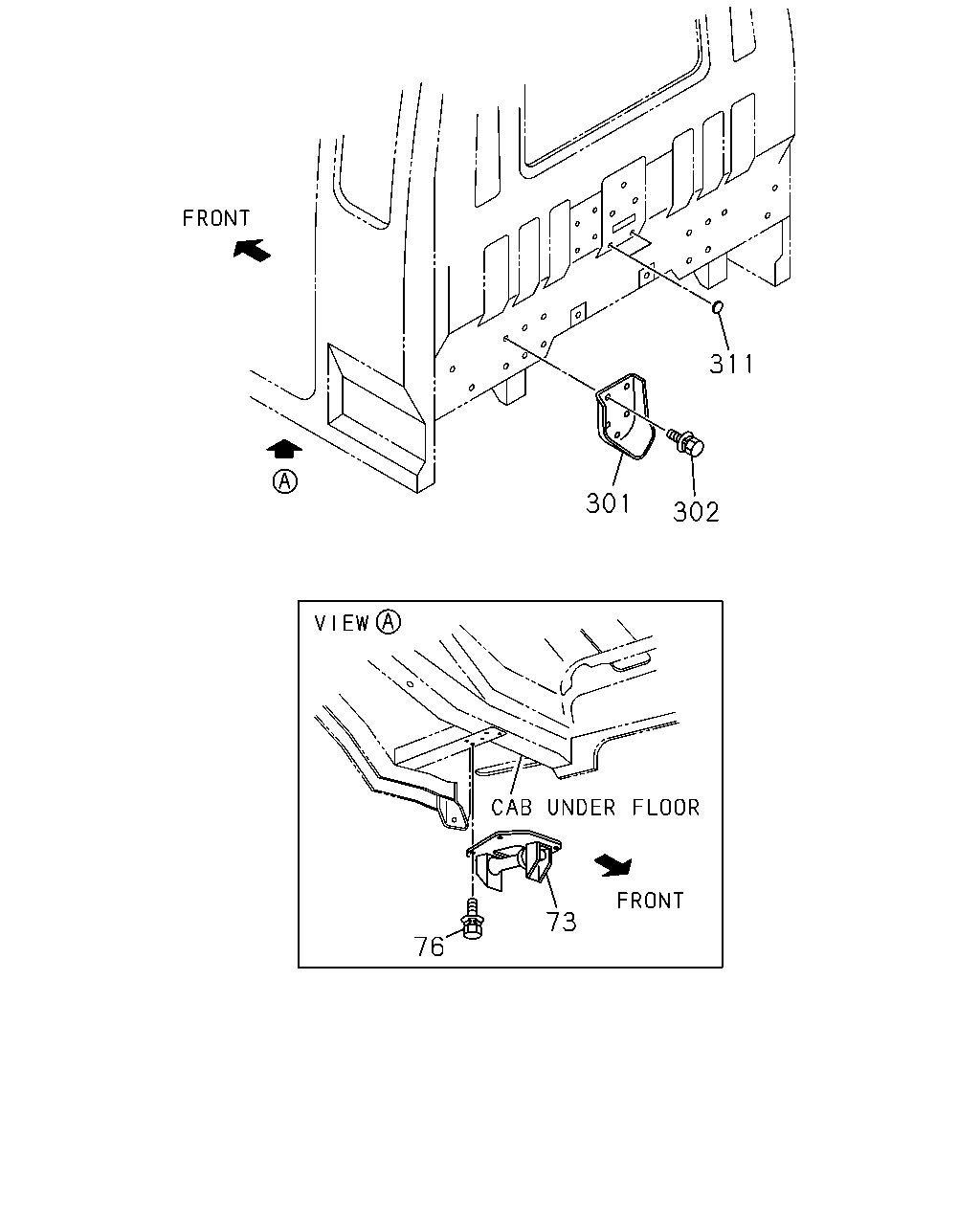

çizim 115737
311 301 302 73 76
BalonParca AdiParca NoAdetTipApplied Date A B
73 PAD; TORSION BAR 1-53459-790-1 02 1 9510- ● ●
76 BOLT; PAD
M10X30 W/LK&PL WASHER 		8-94279-213-0 06 1 9510- ● ●
301 BRACKET; RR MTG,CAB
CAB SUSPENSION RIGID<W71> 		1-62580-236-1 01 1 9510- ● ●
301 BRACKET; RR MTG,CAB
CAB SUSPENSION RIGID<W71> 		1-62580-235-1 01 1 9510- ● ●
301 BRACKET; RR MTG,CAB
EXC. CAB SUSPENSION RIGID<W71> 		1-62580-283-3 01 1 9510- ● ●
301 BRACKET; RR MTG,CAB
EXC. CAB SUSPENSION RIGID<W71> 		1-62580-282-3 01 1 9510- ● ●
302 BOLT; BRKT,CAB
CAB SUSPENSION RIGID<W71> M8X25 W/LK&PL WASHER 		1-09980-526-0 12 1 9510- ● ●
302 BOLT; BRKT,CAB
EXC. CAB SUSPENSION RIGID<W71> M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 9510- ● ●
302 BOLT; BRKT,CAB
EXC. CAB SUSPENSION RIGID<W71> M8X25 W/LK&PL WASHER 		1-09980-526-0 08 1 9510- ● ●
311 SEAL; CAB LOCK
OD=30 BLACK 		1-76798-035-0 02 1 9510- ● ●

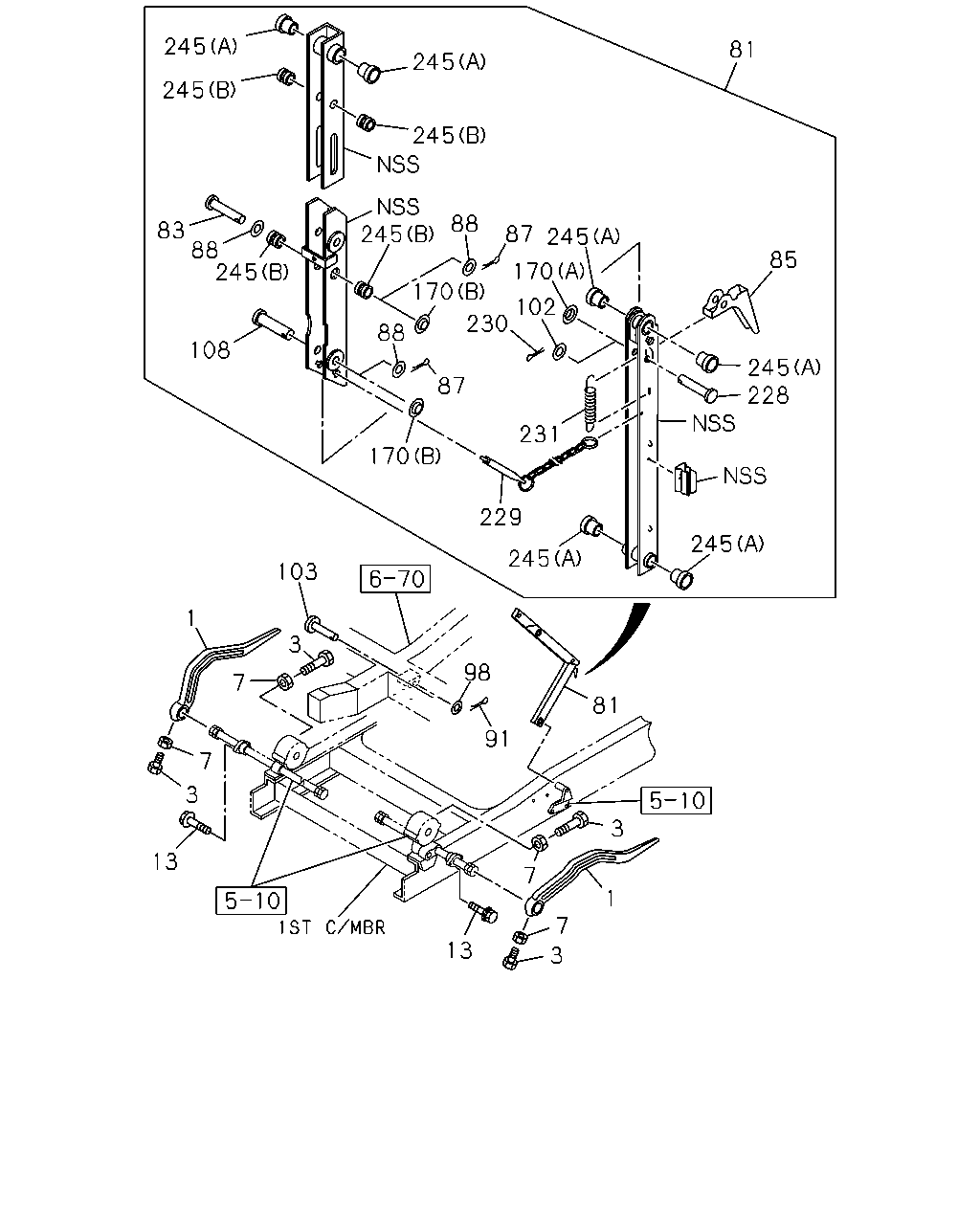

çizim 115744
245 81 245 245 245 245 88 83 88 245 87 245 85 170 170 102 230 88 108 245 228 87 231 170 229 245 245 103 1 3 98 7 81 91 7 3 3 13 7 1 7 13 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; TORSION BAR 1-53458-618-0 01 1 9510-9604 ● ●
1 LEVER; TORSION BAR 1-53458-750-1 01 1 9605- ● ●
1 LEVER; TORSION BAR 1-53458-617-1 01 1 9510- ● ●
3 BOLT; LEVER
M10X32 		1-09000-435-0 04 1 9510- ● ●
7 NUT; LK,LEVER
M10 		9-09110-510-0 04 1 9510-0512 ● ●
7 NUT; LK,LEVER
M10 		0-91110-510-0 04 1 0601- ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9510-9709 ● ●
13 BOLT; BUSHING,TORSION BAR
M6X12 FLANGE 		0-28080-612-0 02 1 9710-0512 ● ●
13 BOLT; BUSHING,TORSION BAR
M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ●
81 STAY ASM; CAB TILT 1-62500-646-2 01 1 9510-9811 ● ●
81 STAY ASM; CAB TILT 1-62500-720-1 01 1 9812-0405 ● ●
81 STAY ASM; CAB TILT 1-62500-761-0 01 1 0406-1406 ● ●
81 STAY ASM; CAB TILT 8-98278-116-0 01 1 1407- ● ●
83 PIN; JOINT,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 9510- ● ●
85 LEVER; LOCK,CAB STAY 1-62500-503-0 01 1 9510- ● ●
87 PIN; SPLIT,CAB STAY PIN 1-09746-021-0 02 1 9510-9708 ● ●
88 WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0 		1-09985-183-0 03 1 9510-9708 ● ●
88 WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0 		1-09985-183-0 01 1 9709- ● ●
91 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 9510- ● ●
98 WASHER; CAB STAY
ID=10.5 T=2.0 		1-09985-183-0 01 1 9510- ● ●
102 WASHER; PL,CAB STAY
ID=8.4 OD=16 		1-09985-174-0 01 1 9510-9708 ● ●
103 PIN; JOINT,CAB STAY 1-09744-108-1 01 1 9510- ● ●
108 PIN; ADJ,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 9510- ● ●
170 NUT
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9709- ● ●
170 NUT
(B) ID=9.9 PUSH NUT 		8-97022-566-0 02 1 9709- ● ●
228 PIN; SAFETY LOCK SPRING,CAB STAY
OD=8 L=27 		1-09744-086-2 01 1 9510- ● ●
229 PIN ASM; SAFETY 1-62500-517-1 01 1 9812- ● ●
230 PIN; SPLIT CAB STAY 1-09746-019-0 01 1 9510-9708 ● ●
231 SPRING; RETURN,LOCK LEVER,CAB STAY 1-09583-244-0 01 1 9510- ● ●
245 BUSHING; CAB STAY
(A) 		1-62500-587-0 06 1 9510- ● ●
245 BUSHING; CAB STAY
(B) 		1-62500-588-0 04 1 9510- ● ●

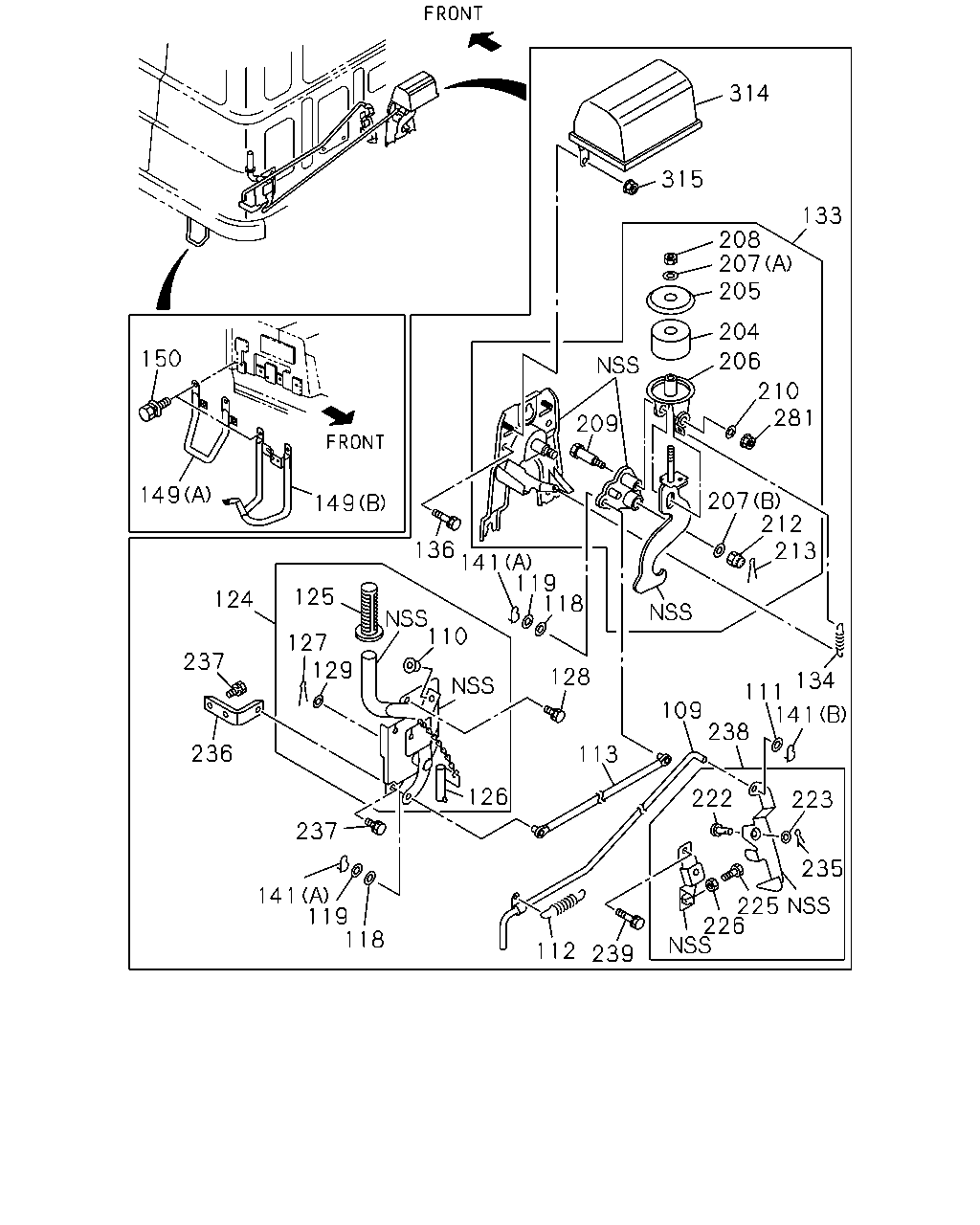

çizim 115797
314 315 133 208 207 205 204 206 210 281 213 212 207 209 136 141 119 118 128 113 109 238 111 134 141 223 222 235 225 226 239 112 118 119 141 237 126 110 125 127 129 124 237 236 149 149 150
BalonParca AdiParca NoAdetTipApplied Date A B
109 ROD; SAFETY,CAB LK 1-79718-496-2 01 1 9510-9512 ● ●
109 ROD; SAFETY,CAB LK 1-79718-606-0 01 1 9601-9709 ● ●
109 ROD; SAFETY,CAB LK 1-79718-642-1 01 1 9710- ● ●
110 BUSHING; SAFETY ROD,CAB LOCK 1-79718-319-1 01 1 9510- ● ●
111 WASHER; PL,SAFETY ROD 1-09985-137-0 01 1 9510- ● ●
112 SPRING; RETURN,SAFETY ROD 1-79718-539-0 01 1 9510-9901 ● ●
112 SPRING; RETURN,SAFETY ROD 1-79718-655-0 01 1 9902- ● ●
113 ROD; CONN,CAB LK 1-79718-583-0 01 1 9510- ● ●
118 WASHER; PL,CONNROD
ID=10.5 		1-09985-107-0 02 1 9510- ● ●
119 WASHER; WAVE,CAB LOCK ROD 1-09985-045-0 02 1 9510- ● ●
124 LEVER ASM; HAND,CAB LK 1-79718-585-4 01 1 9510-1403 ● ●
124 LEVER ASM; HAND,CAB LK 8-98268-403-0 01 1 1404- ● ●
125 GRIP; HAND LEVER,CAB LOCK 1-79718-303-2 01 1 9510- ● ●
126 PIN; LK,HAND LEVER 1-79718-594-1 01 1 9510-1403 ● ●
126 PIN; LK,HAND LEVER 8-98268-412-0 01 1 1404- ● ●
127 PIN; SPLIT,BRKT
L=30 		1-09987-080-0 01 1 1404- ● ●
128 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-0904 ● ●
128 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
129 WASHER; PL,BRKT
ID=17 		1-09985-109-0 01 1 9510- ● ●
133 LOCK ASM; CAB 1-79718-553-4 01 1 9510-9905 ● ●
133 LOCK ASM; CAB 1-79718-656-0 01 1 9906- ● ●
134 SPRING; CAB LK LEVER 1-79718-538-1 01 1 9510- ● ●
136 BOLT; CAB LK
M10X25 W/LK&PL WASHER 		1-09980-488-0 05 1 9510- ● ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=27.7 		1-09987-141-0 01 1 9510- ● ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=32.6 		1-09987-142-0 02 1 9510- ● ●
149 HANDLE; TILT
(A) 		1-71996-047-0 01 1 9510-9510 ● ●
149 HANDLE; TILT
(B) 		1-71996-146-1 01 1 9511- ● ●
150 BOLT; TILT HANDLE
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9510- ● ●
204 RUBBER; REBOUND,CAB LK 1-79718-429-1 01 1 9510- ● ●
205 PLATE; SUPPORT,REBOUND RUBBER 1-79718-129-1 01 1 9510- ● ●
206 SUPPORT; REBOUND RUBBER 1-79718-434-0 01 1 9510- ● ●
207 WASHER; PL,SUPPORT PLATE
(A) ID=15 OD=36 		1-09985-112-0 01 1 9510-9510 ● ●
207 WASHER; PL,SUPPORT PLATE
(B) ID=19 OD=44 		1-09985-113-0 01 1 9510- ● ●
208 NUT; SUPPORT PLATE
M14 LOCK NUT W/FLANGE 		1-79718-526-0 01 1 9510- ● ●
209 PIN; JOINT,SUPPORT 1-79718-523-0 01 1 9510- ● ●
210 WASHER; PL,SUPPORT 1-79718-525-0 01 1 9510-9510 ● ●
212 NUT; BRKT,CAB LOCK
M18 SLOTTED 		1-09984-079-0 01 1 9510- ● ●
213 PIN; SPLIT,BRKT,CAB LK
OD=3.7 L=30 		9-08114-030-0 01 1 9510- ● ●
222 PIN; JOINT,SAFETY LK 1-09987-159-0 01 1 9510- ● ●
223 WASHER; PL,SAFETY LK
ID=12.5 OD=22 T=1.6 		1-09985-108-0 01 1 9510- ● ●
225 BOLT; SAFETY LK
M8X30 		1-09980-277-0 01 1 9510- ● ●
226 NUT; SAFETY LK
M8 		1-09984-065-0 01 1 9510- ● ●
235 PIN; SNAP 1-09987-158-1 01 1 9510- ● ●
236 SUPPORT ASM; HAND LEVER,CAB LOCK 1-79718-493-0 01 1 9510- ● ●
237 BOLT; HAND LEVER SUPPORT,CAB LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9510- ● ●
238 LOCK ASM; SAFETY,CAB TILT 1-79718-602-0 01 1 9511-9512 ● ●
238 LOCK ASM; SAFETY,CAB TILT 1-79718-612-1 01 1 9601- ● ●
239 BOLT; SAFETY LK
M8X25 W/PL WASHER 		8-94279-166-0 02 1 9510-0304 ● ●
239 BOLT; SAFETY LK
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0305- ● ●
281 NUT; SUPPORT
M12 LOCK NUT W/FLANGE 		1-79718-524-1 01 1 9510- ● ●
314 COVER; CAB LOCK 1-79718-575-1 01 1 9510- ● ●
315 NUT; COVER
M8 FLANGE 		8-94279-517-0 02 1 9510-9611 ● ●
315 NUT; COVER
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9612- ● ●
