◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#4018) — 732 parça

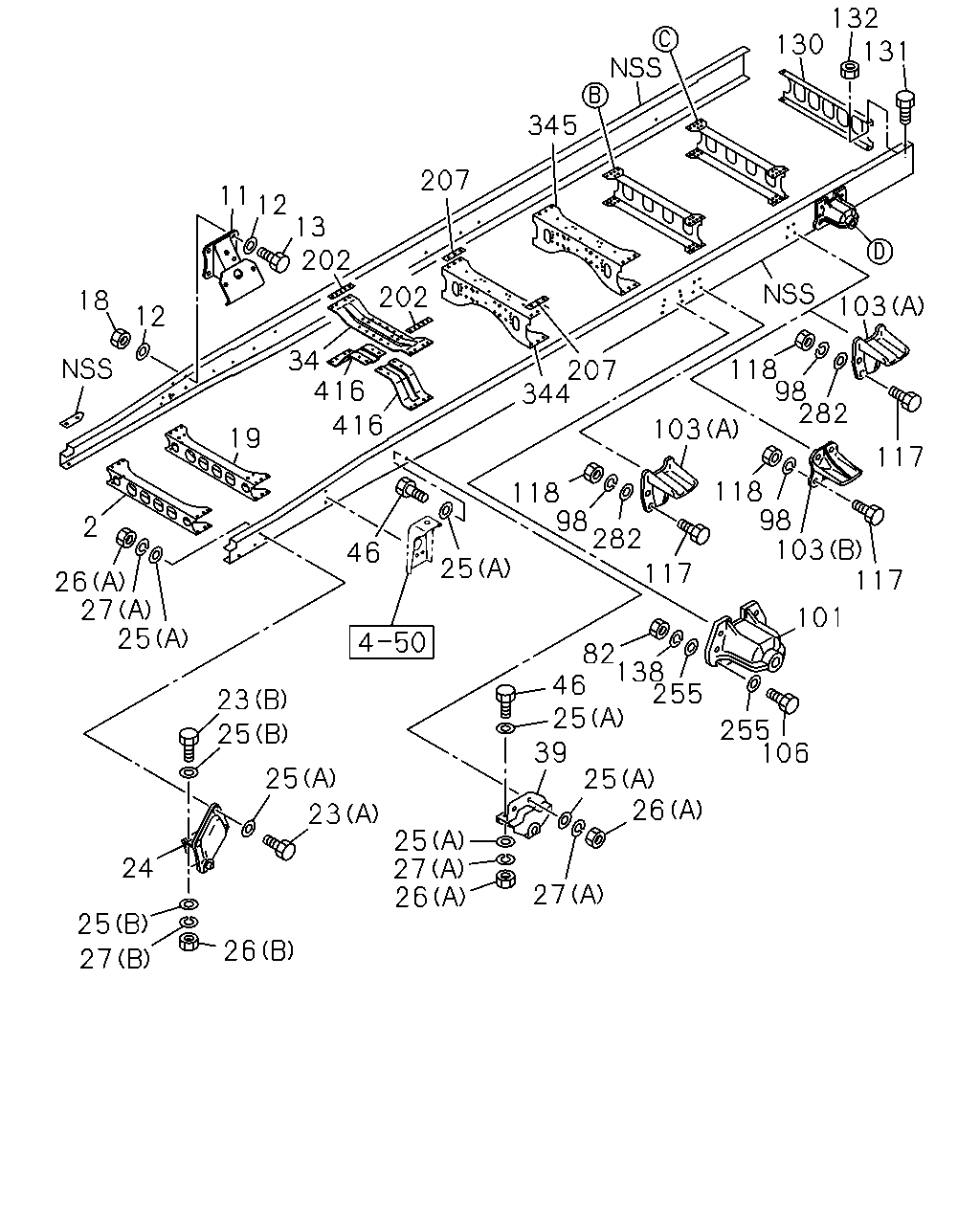

çizim 115747
132 130 131 345 207 11 12 13 202 202 34 416 416 18 103 12 118 98 282 207 344 103 19 117 118 98 103 117 118 98 282 2 46 25 117 26 27 25 101 82 138 46 255 25 39 23 25 255 106 25 25 26 23 25 27 26 24 27 25 26 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MEMBER; CROSS,1ST
6HK1 TCC ENG(81L) 		1-53181-939-2 01 1 0608- ●
2 MEMBER; CROSS,1ST 1-53181-696-4 01 1 9510-0004 ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-696-7 01 1 0005-0607 ● ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-696-7 01 1 0608- ● ● ● ● ●
2 MEMBER; CROSS,1ST
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L),6HE1 TCC ENG(76L) 		1-53181-696-7 01 1 0608- ●
11 BRACKET; ENG MTG 1-53211-196-0 02 1 9510-0004 ● ● ● ● ●
11 BRACKET; ENG MTG 1-53211-196-0 02 1 0005- ● ● ● ● ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 16 1 9510-9802 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 		9-92061-235-0 08 1 9510-9802 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 9803-0004 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0005-0512 ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0601- ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 		9-99110-512-0 08 1 9510-9802 ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 9803-0004 ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0005-0602 ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND
6HK1 TCC ENG(81L) 		8-97606-306-0 01 1 0608- ●
19 MEMBER; CROSS,2ND 1-53181-714-6 01 1 9510-0004 ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-714-8 01 1 0005-0607 ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-714-8 01 1 0608- ● ● ● ● ●
19 MEMBER; CROSS,2ND
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L),6HE1 TCC ENG(76L) 		1-53181-714-8 01 1 0608- ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 9510-0004 ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0005- ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 9510-0004 ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0005-0512 ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 9510-0004 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 0005- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 9510-0004 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 0005- ● ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 9510-0004 ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0005- ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 9510-0004 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0005-1201 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202- ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 9510-0004 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0005-0512 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601- ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 9510-0004 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0005-0512 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
(A) ID=14.2 		9-09150-614-0 14 1 9510-9802 ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
(B) ID=16.2 		9-09150-616-0 04 1 9510-9802 ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 9510-0004 ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-2 01 1 0005- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 9510-0004 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0005- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 9510-0004 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0005- ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 9510-9802 ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 9803-0004 ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0005-0106 ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0107-0302 ● ●
46 BOLT; BRKT FIX
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X40 		9-92061-440-0 08 1 0107-0302 ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 08 1 0107-0302 ● ● ●
46 BOLT; BRKT FIX
FRAME EQUIPMENT HEAVY DUTY(F03) M14X40 		9-92061-440-0 04 1 0303-0512 ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 04 1 0303-0512 ● ● ●
46 BOLT; BRKT FIX
FRAME EQUIPMENT HEAVY DUTY(F03) M14X40 		0-20951-440-0 04 1 0601- ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		0-20951-440-0 04 1 0601- ● ● ●
46 BOLT; BRKT FIX
FRAME EQUIPMENT HEAVY DUTY(F03) M14X40 		9-92061-440-0 04 1 0107-0302 ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 04 1 0107-0302 ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0303-0512 ● ●
46 BOLT; BRKT FIX
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X40 		9-92061-440-0 08 1 0303-0512 ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 08 1 0303-0512 ● ● ●
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 08 1 0601- ● ●
46 BOLT; BRKT FIX
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X40 		0-20951-440-0 08 1 0601- ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		0-20951-440-0 08 1 0601- ● ● ●
46 BOLT; BRKT FIX
FRAME EQUIPMENT HEAVY DUTY(F03) M14X45 		9-92061-445-0 04 1 0107- ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 04 1 0107- ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 9510-9802 ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 9510-9802 ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 9803-0004 ● ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 9803-0004 ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 0005-0302 ● ● ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0303-0512 ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		0-91110-514-0 24 1 0601- ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 9510-9810 ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 9811-9909 ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 9910-0004 ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0005-0106 ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0107-0302 ● ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 0303-0512 ● ● ● ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		0-91110-514-0 20 1 0601- ● ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9510-9802 ● ● ● ● ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 16 1 9803-0004 ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9803-0004 ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 16 1 0005-0603 ● ● ● ● ● ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		0-91510-614-0 16 1 0604- ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 9510-9802 ● ● ●
101 BRACKET; RR SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 9510-9802 ● ●
101 BRACKET; RR SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 9803-0004 ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 9803-0004 ●
101 BRACKET; RR SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 0005- ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 9510-9802 ● ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 9803-9810 ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 9811-0004 ● ● ● ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 0005-0106 ● ● ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 0107- ● ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 9510-9802 ● ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-038-1 02 1 9510-9802 ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-038-1 02 1 9803-0004 ● ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 9803-0004 ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-038-1 02 1 0005- ● ● ● ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 9510-9802 ● ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53357-029-1 02 1 9510-9802 ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53357-029-1 02 1 9803-0004 ● ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 9803-0004 ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53357-029-1 02 1 0005- ● ● ● ● ● ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 9510-9802 ● ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 9803-9909 ● ● ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 9910-0004 ● ● ● ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 0005-0106 ● ● ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 0107- ● ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 9510-9802 ● ● ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 20 1 9510-9802 ● ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 20 1 9803-0004 ● ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 9803-0004 ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 20 1 0005- ● ● ● ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 9510-0106 ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50 		9-92061-450-0 24 1 0107-0302 ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 0107-0302 ●
106 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 0107-0302 ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 0303-0512 ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-20951-450-0 24 1 0601- ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 24 1 9811-9909 ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 24 1 9910-0004 ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 24 1 0005-0106 ●
106 BOLT; BRKT
FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 24 1 0107- ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 16 1 0306-0512 ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-20951-450-0 16 1 0601- ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9510-9802 ● ● ●
117 BOLT; STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 16 1 9510-9802 ● ●
117 BOLT; STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 16 1 9803-0004 ● ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9803-0004 ●
117 BOLT; STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 16 1 0005- ● ● ● ● ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-91066-450-0 16 1 9510-0106 ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50 		9-91066-450-0 16 1 0107-0302 ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-91066-450-0 16 1 0107-0302 ●
117 BOLT; STOPPER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-91066-450-0 16 1 0107-0302 ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-91066-450-0 16 1 0303-0305 ● ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-91066-450-0 16 1 0306-0512 ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-10956-450-0 16 1 0601- ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 16 1 9811-9909 ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 16 1 9910-0004 ● ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 16 1 0005-0106 ●
117 BOLT; STOPPER
FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 16 1 0107- ● ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 9510-0004 ● ● ● ● ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0005-0512 ● ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601- ● ● ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 9510-0004 ● ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0005- ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9510-9802 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 9803-0004 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0005-0512 ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		9-99110-412-0 04 1 9510-9802 ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 9803-0004 ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0005-0602 ● ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0603- ● ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9510-9802 ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 9510-9802 ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 9803-0004 ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9803-0004 ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 0005-0603 ● ● ● ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		0-91510-614-0 20 1 0604- ● ● ● ● ● ●
138 WASHER; LK,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 24 1 9510-9802 ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 9510-0004 ● ● ● ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0005- ● ● ● ● ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 9510-0004 ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 0005- ● ● ●
207 SPACER; 4TH C/MBR 1-53168-162-2 02 1 9510- ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 48 1 9510-0106 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 48 1 0107-0302 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 48 1 0107-0302 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 48 1 0303-1201 ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 48 1 0303-1201 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		8-98010-627-1 48 1 1202- ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 48 1 1202- ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 9510-9802 ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 9803-9810 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 9811-9909 ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 64 1 9910-0004 ● ● ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 0005-0106 ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 0107-1201 ● ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		8-98010-627-1 64 1 1202- ● ● ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 16 1 9510-0106 ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 16 1 0107-0302 ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 16 1 0107-0302 ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 16 1 0303-1201 ●
282 WASHER; PL,STOPPER
ID=15 		9-09651-069-0 16 1 0303-1201 ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		8-98010-627-1 16 1 1202- ●
282 WASHER; PL,STOPPER
ID=15 		8-98010-627-1 16 1 1202- ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 9510-9802 ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-953-2 01 1 9510-9802 ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-953-2 01 1 9803-0004 ● ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 9803-0004 ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0005-0106 ● ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-953-2 01 1 0005-0106 ●
344 MEMBER; CROSS,4TH
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53171-953-2 01 1 0107-0302 ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0107-0302 ● ●
344 MEMBER; CROSS,4TH
EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-953-2 01 1 0107-0302 ●
344 MEMBER; CROSS,4TH
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53171-953-2 01 1 0303- ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0303- ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-953-2 01 1 0303- ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 9510-9802 ● ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 9803-9909 ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 9803-9909 ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 9910-0004 ● ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 9910-0004 ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 0005-0106 ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 0005-0106 ●
344 MEMBER; CROSS,4TH
FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53171-738-7 01 1 0107-0302 ●
344 MEMBER; CROSS,4TH
FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 0107-0302 ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 0107-0302 ●
344 MEMBER; CROSS,4TH
FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 0303- ● ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 0303- ●
345 MEMBER; CROSS,5TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 9706-9802 ●
345 MEMBER; CROSS,5TH 1-53171-738-7 01 1 9803- ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 9510-0004 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-1 01 1 0005- ● ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 9510-0004 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-1 01 1 0005- ● ● ● ● ● ●

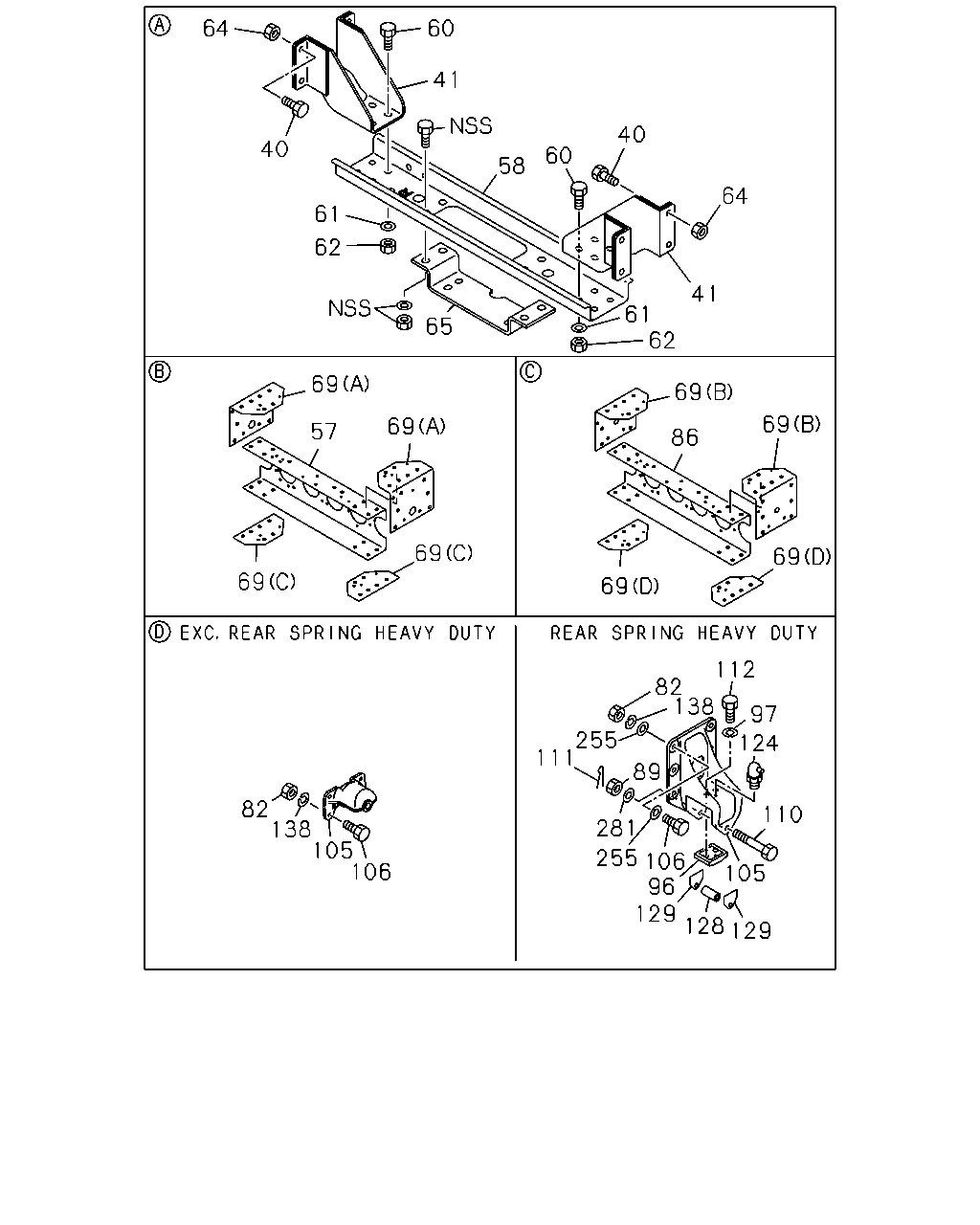

çizim 115755
64 60 41 40 40 60 58 64 61 62 41 61 62 65 69 69 69 69 57 86 69 69 69 69 112 82 138 97 255 111 124 89 281 255 106 105 96 129 82 138 105 106 110 128 129
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
40 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50041-030-0 08 1 9510-9802 ●
40 BOLT; BRKT TO FRAME
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X30 W/LK WASHER 		0-50041-030-0 08 1 9510-9802 ●
40 BOLT; BRKT TO FRAME
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X35 FLANGE 		0-28681-035-0 08 1 9803-0004 ●
40 BOLT; BRKT TO FRAME
6HE1 TC ENG(57L),6HH1 STD ENG(65L) MLD7Q M/T(X5K) M10X35 FLANGE 		0-28681-035-0 08 1 9803-0004 ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 08 1 0005-0009 ● ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 08 1 0010-0512 ●
40 BOLT; BRKT TO FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L) M10X35 FLANGE 		0-28681-035-0 08 1 0010-0512 ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 08 1 0601- ●
40 BOLT; BRKT TO FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L) M10X35 FLANGE 		0-28651-035-0 08 1 0601- ●
40 BOLT; BRKT TO FRAME
HEAVY DUTY PACKAGE TRUCK<RD2> M10X40 FLANGE 		0-28681-040-0 08 1 9910-0004 ●
40 BOLT; BRKT TO FRAME
HEAVY DUTY PACKAGE TRUCK<RD2> M10X35 W/LK WASHER 		0-50041-035-0 08 1 9510-9802 ●
41 BRACKET; CENTER BRG,FRAME SIDE 1-37515-085-0 02 1 9510-9802 ● ●
41 BRACKET; CENTER BRG,FRAME SIDE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37515-085-0 02 1 9803-9909 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) MLD7Q M/T(X5K) 		1-37515-085-0 02 1 9803-9909 ●
41 BRACKET; CENTER BRG,FRAME SIDE 1-37515-085-0 02 1 9910-0004 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) MLD7Q M/T(X5K) 		1-37515-085-0 02 1 9910-0004 ●
41 BRACKET; CENTER BRG,FRAME SIDE 1-37515-085-0 02 1 0005-0009 ● ●
41 BRACKET; CENTER BRG,FRAME SIDE 1-37515-085-0 02 1 0010- ●
41 BRACKET; CENTER BRG,FRAME SIDE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L) 		1-37515-085-0 02 1 0010- ●
57 MEMBER; CROSS,RR SUSP FRT
6HK1 TCC ENG(81L) 		1-53181-815-1 01 1 0608- ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-692-4 01 1 9511-9909 ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-692-4 01 1 9910-0004 ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-692-4 01 1 0005- ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-0 01 1 9510-9510 ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-3 01 1 9511-9909 ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 9910-0004 ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 9910-0004 ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 0005-0607 ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 0608- ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L),6HE1 TCC ENG(76L) 		1-53181-691-4 01 1 0608- ●
58 MEMBER; CENTER BRG
FRAME EQUIPMENT HEAVY DUTY(F03) 		1-37529-100-1 01 1 0411- ●
58 MEMBER; CENTER BRG 1-37529-088-0 01 1 9510-9909 ●
58 MEMBER; CENTER BRG
EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-088-0 01 1 9910-0004 ●
58 MEMBER; CENTER BRG 1-37529-088-1 01 1 0005-0410 ●
58 MEMBER; CENTER BRG
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-37529-088-1 01 1 0411- ●
58 MEMBER; CENTER BRG
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-100-0 01 1 9910-0004 ●
58 MEMBER; CENTER BRG
6HH1 STD 4VALVE ENG(1A6) FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-052-2 01 1 0005-0106 ●
58 MEMBER; CENTER BRG
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-052-2 01 1 0107-0302 ●
58 MEMBER; CENTER BRG
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. EURO2 SPECIFICATION<THN> 		1-37529-052-2 01 1 0303-0410 ●
58 MEMBER; CENTER BRG
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. EURO2 SPECIFICATION<THN> 		1-37529-052-2 01 1 0411- ●
58 MEMBER; CENTER BRG
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-052-2 01 1 0411- ●
58 MEMBER; CENTER BRG
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-052-2 01 1 9510-9802 ●
58 MEMBER; CENTER BRG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-072-0 01 1 9510-9802 ●
58 MEMBER; CENTER BRG
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-072-0 01 1 9803-0004 ●
58 MEMBER; CENTER BRG
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-072-0 01 1 0005-0009 ●
58 MEMBER; CENTER BRG
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-072-0 01 1 0010-0106 ●
58 MEMBER; CENTER BRG
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-072-0 01 1 0010-0106 ●
58 MEMBER; CENTER BRG
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-072-1 01 1 0107-0302 ●
58 MEMBER; CENTER BRG
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-072-1 01 1 0303- ●
60 BOLT; MBR
M10X25 W/LK WASHER 		0-50041-025-0 08 1 9510-9802 ● ●
60 BOLT; MBR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X25 FLANGE 		0-28681-025-0 08 1 9803-9909 ●
60 BOLT; MBR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) MLD7Q M/T(X5K) M10X25 FLANGE 		0-28681-025-0 08 1 9803-9909 ●
60 BOLT; MBR
M10X25 FLANGE 		0-28681-025-0 08 1 9910-0004 ●
60 BOLT; MBR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) MLD7Q M/T(X5K) M10X25 FLANGE 		0-28681-025-0 08 1 9910-0004 ●
60 BOLT; MBR
M10X25 FLANGE 		0-28681-025-0 08 1 0005-0009 ● ●
60 BOLT; MBR
M10X25 FLANGE 		0-28681-025-0 08 1 0010-0512 ●
60 BOLT; MBR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L) M10X25 FLANGE 		0-28681-025-0 08 1 0010-0512 ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0601- ●
60 BOLT; MBR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L) M10X25 FLANGE 		0-28651-025-0 08 1 0601- ●
61 WASHER; PL,MBR
HEAVY DUTY PACKAGE TRUCK<RD2> ID=10.5 OD=22 		9-09164-610-0 08 1 9910-0004 ●
61 WASHER; PL,MBR
ID=10.5 OD=22 		9-09164-610-0 08 1 9510-9802 ● ●
62 NUT; MBR
M10 		9-09110-410-0 08 1 9510-9802 ● ●
62 NUT; MBR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10 FLANGE 		0-91150-110-0 08 1 9803-9909 ●
62 NUT; MBR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) MLD7Q M/T(X5K) M10 FLANGE 		0-91150-110-0 08 1 9803-9909 ●
62 NUT; MBR
M10 FLANGE 		0-91150-110-0 08 1 9910-0004 ●
62 NUT; MBR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) MLD7Q M/T(X5K) M10 FLANGE 		0-91150-110-0 08 1 9910-0004 ●
62 NUT; MBR
M10 FLANGE 		0-91150-110-0 08 1 0005-0009 ● ●
62 NUT; MBR
M10 FLANGE 		0-91150-110-0 08 1 0010-0602 ●
62 NUT; MBR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L) M10 FLANGE 		0-91150-110-0 08 1 0010-0602 ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0603- ●
62 NUT; MBR
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L) M10 FLANGE 		0-91180-110-0 08 1 0603- ●
64 NUT; BRKT TO FRAME
M10 		9-09110-410-0 08 1 9510-9802 ● ●
64 NUT; BRKT TO FRAME
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10 FLANGE 		0-91150-110-0 08 1 9803-9909 ●
64 NUT; BRKT TO FRAME
6HE1 TC ENG(57L),6HH1 STD ENG(65L) MLD7Q M/T(X5K) M10 FLANGE 		0-91150-110-0 08 1 9803-9909 ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 08 1 9910-0004 ●
64 NUT; BRKT TO FRAME
6HE1 TC ENG(57L),6HH1 STD ENG(65L) MLD7Q M/T(X5K) M10 FLANGE 		0-91150-110-0 08 1 9910-0004 ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 08 1 0005-0009 ● ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 08 1 0010-0602 ●
64 NUT; BRKT TO FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L) M10 FLANGE 		0-91150-110-0 08 1 0010-0602 ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0603- ●
64 NUT; BRKT TO FRAME
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L) M10 FLANGE 		0-91180-110-0 08 1 0603- ●
65 BRACKET; CENTER BRG 1-53271-334-1 01 1 9510- ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-099-4 02 1 9510-0004 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-099-4 02 1 0005- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-100-3 02 1 9510-0004 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-100-3 02 1 0005- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-248-1 01 1 9510-9802 ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53167-248-1 01 1 9510-9802 ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53167-248-1 01 1 9803-0004 ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-248-1 01 1 9803-0004 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53167-248-1 01 1 0005- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-309-0 01 1 9510-9802 ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53167-309-0 01 1 9510-9802 ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53167-309-0 01 1 9803-0004 ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-309-0 01 1 9803-0004 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53167-309-0 01 1 0005- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-247-1 01 1 9510-9802 ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53167-247-1 01 1 9510-9802 ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53167-247-1 01 1 9803-0004 ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-247-1 01 1 9803-0004 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53167-247-1 01 1 0005- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-310-0 01 1 9510-9802 ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53167-310-0 01 1 9510-9802 ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53167-310-0 01 1 9803-0004 ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-310-0 01 1 9803-0004 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53167-310-0 01 1 0005- ● ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE 		1-53167-095-4 01 1 9510-9802 ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE 		1-53167-095-4 01 1 9803-9909 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE 		1-53167-095-4 01 1 9910-0004 ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE 		1-53167-095-4 01 1 0005-0106 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE 		1-53167-095-5 01 1 0107- ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE 		1-53167-098-5 01 1 9510-9802 ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE 		1-53167-098-5 01 1 9803-9909 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE 		1-53167-098-5 01 1 9910-0004 ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE 		1-53167-098-5 01 1 0005-0106 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE 		1-53167-098-5 01 1 0107- ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE 		1-53167-096-4 01 1 9510-9802 ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE 		1-53167-096-4 01 1 9803-9909 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE 		1-53167-096-4 01 1 9910-0004 ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE 		1-53167-096-4 01 1 0005-0106 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE 		1-53167-096-4 01 1 0107- ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE 		1-53167-097-5 01 1 9510-9802 ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE 		1-53167-097-5 01 1 9803-9909 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE 		1-53167-097-5 01 1 9910-0004 ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE 		1-53167-097-5 01 1 0005-0106 ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE 		1-53167-097-5 01 1 0107- ● ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 9510-9802 ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 9510-9802 ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 9803-0004 ● ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 9803-0004 ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 0005-0302 ● ● ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0303-0512 ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		0-91110-514-0 24 1 0601- ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 9510-9810 ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 9811-9909 ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 9910-0004 ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0005-0106 ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0107-0302 ● ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 0303-0512 ● ● ● ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		0-91110-514-0 20 1 0601- ● ● ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
6HH1 STD 4VALVE ENG(1A6) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53182-068-1 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2>,EURO2 SPECIFICATION<THN> 		1-53182-068-1 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53182-068-1 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53182-068-1 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
6HH1 STD 4VALVE ENG(1A6) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53182-068-1 01 1 0411- ●
86 MEMBER; CROSS,RR SUSP RR
EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2>,EURO2 SPECIFICATION<THN> 		1-53182-068-1 01 1 0411- ●
86 MEMBER; CROSS,RR SUSP RR
6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53182-068-1 01 1 0411- ●
86 MEMBER; CROSS,RR SUSP RR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53182-068-1 01 1 0411- ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-692-3 01 1 9511-9909 ●
86 MEMBER; CROSS,RR SUSP RR
EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-692-3 01 1 9910-9912 ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-692-4 01 1 0001- ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-0 01 1 9510-9510 ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-3 01 1 9511-9909 ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-3 01 1 9910-9912 ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-3 01 1 9910-9912 ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-4 01 1 0001-0004 ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-53181-691-4 01 1 0005-0308 ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),EURO2 SPECIFICATION<THN> 		1-53181-691-4 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-53181-691-4 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2>,EURO2 SPECIFICATION<THN> 		1-53181-691-4 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. EURO2 SPECIFICATION<THN> 		1-53181-691-4 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53181-691-4 01 1 0309-0410 ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 0411-0607 ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),EURO2 SPECIFICATION<THN> 		1-53181-691-4 01 1 0411-0607 ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-53181-691-4 01 1 0411-0607 ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 0411-0607 ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 0411-0607 ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,EURO2 SPECIFICATION<THN> 		1-53181-691-4 01 1 0411-0607 ●
86 MEMBER; CROSS,RR SUSP RR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. EURO2 SPECIFICATION<THN> 		1-53181-691-4 01 1 0411-0607 ●
86 MEMBER; CROSS,RR SUSP RR
6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 0411-0607 ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53181-691-4 01 1 0411-0607 ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 0608- ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),EURO2 SPECIFICATION<THN> 		1-53181-691-4 01 1 0608- ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-53181-691-4 01 1 0608- ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 0608- ●
86 MEMBER; CROSS,RR SUSP RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 0608- ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,EURO2 SPECIFICATION<THN> 		1-53181-691-4 01 1 0608- ●
86 MEMBER; CROSS,RR SUSP RR
6HE1 TCC ENG(76L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-691-4 01 1 0608- ●
86 MEMBER; CROSS,RR SUSP RR
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. EURO2 SPECIFICATION<THN> 		1-53181-691-4 01 1 0608- ●
86 MEMBER; CROSS,RR SUSP RR
6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-53181-691-4 01 1 0608- ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53181-691-4 01 1 0608- ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-53181-815-1 01 1 0005-0607 ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-815-1 01 1 0608-0612 ● ●
86 MEMBER; CROSS,RR SUSP RR
6HK1 TCC ENG(81L) EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-815-1 01 1 0608-0612 ●
86 MEMBER; CROSS,RR SUSP RR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-815-1 01 1 0608-0612 ●
86 MEMBER; CROSS,RR SUSP RR
EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-815-1 01 1 0608-0612 ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-815-1 01 1 0701- ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> REINFORCEMENT BUMPER<VG7> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-815-1 01 1 0701- ●
86 MEMBER; CROSS,RR SUSP RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2>,REINFORCEMENT BUMPER<VG7> ,FRONT SPOILER<VP1> 		1-53181-815-1 01 1 0701- ●
86 MEMBER; CROSS,RR SUSP RR
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-815-1 01 1 0701- ●
86 MEMBER; CROSS,RR SUSP RR
6HK1 TCC ENG(81L) EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-815-1 01 1 0701- ●
86 MEMBER; CROSS,RR SUSP RR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REINFORCEMENT BUMPER<VG7> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-815-1 01 1 0701- ●
86 MEMBER; CROSS,RR SUSP RR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2>,REINFORCEMENT BUMPER<VG7> ,FRONT SPOILER<VP1> 		1-53181-815-1 01 1 0701- ●
86 MEMBER; CROSS,RR SUSP RR
REINFORCEMENT BUMPER<VG7> EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-815-1 01 1 0701- ●
86 MEMBER; CROSS,RR SUSP RR
EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2>,REINFORCEMENT BUMPER<VG7> ,FRONT SPOILER<VP1> 		1-53181-815-1 01 1 0701- ●
89 NUT; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) M14 		9-99116-414-0 02 1 9510-9909 ● ● ● ● ●
89 NUT; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) M14 		9-99116-414-0 02 1 9910-0106 ● ● ● ● ● ●
89 NUT; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) M14 		9-99116-414-0 02 1 0107-0604 ● ● ● ● ●
89 NUT; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) M14 SLOTTED 		0-91116-514-0 02 1 0605- ● ● ● ● ●
96 PAD; RR SPR
REAR SPRING HEAVY DUTY(G51) 		1-53359-047-0 02 1 9510-9909 ● ● ● ● ●
96 PAD; RR SPR
REAR SPRING HEAVY DUTY(G51) 		1-53359-047-0 02 1 9910-0106 ● ● ● ● ● ●
96 PAD; RR SPR
REAR SPRING HEAVY DUTY(G51) 		1-53359-047-0 02 1 0107- ● ● ● ● ●
97 WASHER; LK,PAD
REAR SPRING HEAVY DUTY(G51) ID=14.2 		9-09150-514-0 04 1 9510-9909 ● ● ● ● ●
97 WASHER; LK,PAD
REAR SPRING HEAVY DUTY(G51) ID=14.2 		9-09150-514-0 04 1 9910-0106 ● ● ● ● ● ●
97 WASHER; LK,PAD
REAR SPRING HEAVY DUTY(G51) ID=14.2 		9-09150-514-0 04 1 0107-0603 ● ● ● ● ●
97 WASHER; LK,PAD
REAR SPRING HEAVY DUTY(G51) ID=14.2 		0-91510-514-0 04 1 0604- ● ● ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 9510-9802 ● ● ●
105 BRACKET; RR SPR,RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 9510-9802 ● ●
105 BRACKET; RR SPR,RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 9803-0004 ● ● ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 9803-0004 ●
105 BRACKET; RR SPR,RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 0005- ● ● ● ● ● ●
105 BRACKET; RR SPR,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53354-064-1 02 1 9510-9802 ● ●
105 BRACKET; RR SPR,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53354-064-1 02 1 9803-9909 ● ● ●
105 BRACKET; RR SPR,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53354-064-1 02 1 9910-0004 ● ● ● ●
105 BRACKET; RR SPR,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53354-064-1 02 1 0005-0106 ● ● ●
105 BRACKET; RR SPR,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53354-064-1 02 1 0107- ● ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 9510-9802 ● ● ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 20 1 9510-9802 ● ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 20 1 9803-0004 ● ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 9803-0004 ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 20 1 0005- ● ● ● ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 9510-0106 ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50 		9-92061-450-0 24 1 0107-0302 ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 0107-0302 ●
106 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 0107-0302 ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 0303-0512 ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-20951-450-0 24 1 0601- ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 24 1 9811-9909 ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 24 1 9910-0004 ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 24 1 0005-0106 ●
106 BOLT; BRKT
FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 24 1 0107- ● ●
110 BOLT; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) 		1-09000-007-0 02 1 9510-9909 ● ● ● ● ●
110 BOLT; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) 		1-09000-007-0 02 1 9910-0106 ● ● ● ● ● ●
110 BOLT; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) 		1-09000-007-0 02 1 0107- ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) OD=2.8 L=28 		9-08113-028-0 02 1 9510-9909 ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) OD=2.8 L=28 		9-08113-028-0 02 1 9910-0106 ● ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) OD=2.8 L=28 		9-08113-028-0 02 1 0107-0606 ● ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) OD=2.8 L=28 		0-81123-028-0 02 1 0607- ● ● ● ● ●
112 BOLT; PAD
REAR SPRING HEAVY DUTY(G51) M14X35 		0-20801-435-0 04 1 9510-9909 ● ● ● ● ●
112 BOLT; PAD
REAR SPRING HEAVY DUTY(G51) M14X35 		0-20801-435-0 04 1 9910-0106 ● ● ● ● ● ●
112 BOLT; PAD
REAR SPRING HEAVY DUTY(G51) M14X35 		0-20801-435-0 04 1 0107-0512 ● ● ● ● ●
112 BOLT; PAD
REAR SPRING HEAVY DUTY(G51) M14X35 		0-20851-435-0 04 1 0601- ● ● ● ● ●
124 NIPPLE; GREASE
REAR SPRING HEAVY DUTY(G51) PT1/8 ELBOW 		9-09031-210-0 02 1 9510-9802 ● ● ● ● ●
124 NIPPLE; GREASE
REAR SPRING HEAVY DUTY(G51) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9803-9909 ● ● ● ● ●
124 NIPPLE; GREASE
REAR SPRING HEAVY DUTY(G51) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 9910-0106 ● ● ● ● ● ●
124 NIPPLE; GREASE
REAR SPRING HEAVY DUTY(G51) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0107-0512 ● ● ● ● ●
124 NIPPLE; GREASE
REAR SPRING HEAVY DUTY(G51) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ● ● ● ●
128 COLLAR; RUBBER
REAR SPRING HEAVY DUTY(G51) 		1-53359-004-0 02 1 9510-9909 ● ● ● ● ●
128 COLLAR; RUBBER
REAR SPRING HEAVY DUTY(G51) 		1-53359-004-0 02 1 9910-0106 ● ● ● ● ● ●
128 COLLAR; RUBBER
REAR SPRING HEAVY DUTY(G51) 		1-53359-004-0 02 1 0107- ● ● ● ● ●
129 SHIM; SIDE
REAR SPRING HEAVY DUTY(G51) T=4.5 		1-53359-061-1 02 1 9510-9909 ● ● ● ● ●
129 SHIM; SIDE
REAR SPRING HEAVY DUTY(G51) T=4.5 		1-53359-061-1 02 1 9910-0106 ● ● ● ● ● ●
129 SHIM; SIDE
REAR SPRING HEAVY DUTY(G51) T=4.5 		1-53359-061-1 02 1 0107- ● ● ● ● ●
129 SHIM; SIDE
REAR SPRING HEAVY DUTY(G51) T=3.2 		1-53359-062-1 02 1 9510-9909 ● ● ● ● ●
129 SHIM; SIDE
REAR SPRING HEAVY DUTY(G51) T=3.2 		1-53359-062-1 02 1 9910-0106 ● ● ● ● ● ●
129 SHIM; SIDE
REAR SPRING HEAVY DUTY(G51) T=3.2 		1-53359-062-1 02 1 0107- ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9510-9802 ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 9510-9802 ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 9803-0004 ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9803-0004 ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 0005-0603 ● ● ● ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		0-91510-614-0 20 1 0604- ● ● ● ● ● ●
138 WASHER; LK,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 24 1 9510-9802 ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 48 1 9510-0106 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 48 1 0107-0302 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 48 1 0107-0302 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 48 1 0303-1201 ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 48 1 0303-1201 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		8-98010-627-1 48 1 1202- ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 48 1 1202- ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 9510-9802 ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 9803-9810 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 9811-9909 ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 64 1 9910-0004 ● ● ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 0005-0106 ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 0107-1201 ● ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		8-98010-627-1 64 1 1202- ● ● ●
281 WASHER; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) ID=15 OD=30 		9-09160-614-0 04 1 9510-9909 ● ● ● ● ●
281 WASHER; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) ID=15 OD=30 		9-09160-614-0 04 1 9910-0106 ● ● ● ● ● ●
281 WASHER; LEAF SPR STOPPER
REAR SPRING HEAVY DUTY(G51) ID=15 OD=30 		9-09160-614-0 04 1 0107- ● ● ● ● ●

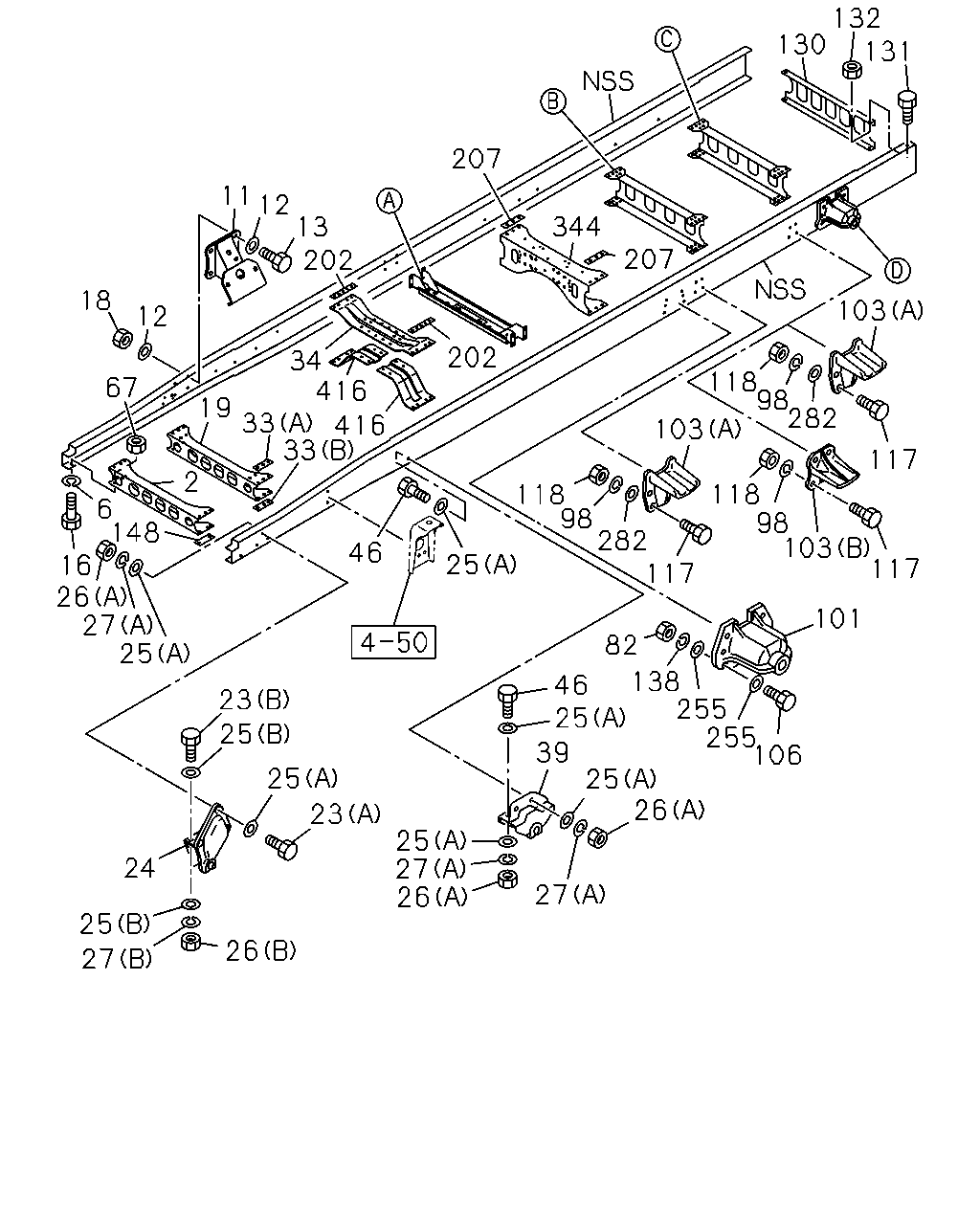

çizim 115762
132 130 131 207 11 12 13 202 344 207 34 416 19 33 18 103 12 202 118 98 282 67 103 2 117 6 148 118 98 103 117 118 98 282 117 46 25 16 26 27 25 101 82 138 255 255 106 46 25 23 25 39 25 25 26 23 25 27 26 24 27 25 26 27 33 416
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MEMBER; CROSS,1ST
6HK1 TCC ENG(81L) 		1-53181-939-2 01 1 0608- ●
2 MEMBER; CROSS,1ST 1-53181-696-4 01 1 9510-0004 ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-696-7 01 1 0005-0607 ● ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-696-7 01 1 0608- ● ● ● ● ●
2 MEMBER; CROSS,1ST
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L),6HE1 TCC ENG(76L) 		1-53181-696-7 01 1 0608- ●
6 WASHER; LK,1ST C/MBR
6HK1 TCC ENG(81L) ID=16.2 		0-91510-616-0 02 1 0608- ●
11 BRACKET; ENG MTG 1-53211-196-0 02 1 9510-0004 ● ● ● ● ●
11 BRACKET; ENG MTG 1-53211-196-0 02 1 0005- ● ● ● ● ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 16 1 9510-9802 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 		9-92061-235-0 08 1 9510-9802 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 9803-0004 ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0005-0512 ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0601- ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
6HK1 TCC ENG(81L) M16X40 		0-20851-640-0 02 1 0608- ●
18 NUT; BRKT,ENG MTG
M12 		9-99110-512-0 08 1 9510-9802 ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 9803-0004 ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0005-0602 ● ● ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND
6HK1 TCC ENG(81L) 		8-97606-306-0 01 1 0608- ●
19 MEMBER; CROSS,2ND 1-53181-714-6 01 1 9510-0004 ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-714-8 01 1 0005-0607 ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-714-8 01 1 0608- ● ● ● ● ●
19 MEMBER; CROSS,2ND
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L), 6HH1STD ENG(65L),6HE1 TCC ENG(76L) 		1-53181-714-8 01 1 0608- ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 9510-0004 ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0005- ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 9510-0004 ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0005-0512 ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 9510-0004 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 0005- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 9510-0004 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 0005- ● ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 9510-0004 ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0005- ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 9510-0004 ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0005-1201 ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202- ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 9510-0004 ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0005-0512 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601- ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 9510-0004 ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0005-0512 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
(A) ID=14.2 		9-09150-614-0 14 1 9510-9802 ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
(B) ID=16.2 		9-09150-616-0 04 1 9510-9802 ● ● ● ● ●
33 SPACER; 2ND C/MBR,UPR
6HK1 TCC ENG(81L) (A) 		1-53168-276-0 02 1 0608- ●
33 SPACER; 2ND C/MBR,UPR
6HK1 TCC ENG(81L) (B) 		1-53168-287-0 02 1 0608- ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 9510-0004 ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-2 01 1 0005- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 9510-0004 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0005- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 9510-0004 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0005- ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 9510-9802 ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 9803-0004 ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0005-0106 ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0107-0302 ● ●
46 BOLT; BRKT FIX
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X40 		9-92061-440-0 08 1 0107-0302 ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 08 1 0107-0302 ● ● ●
46 BOLT; BRKT FIX
FRAME EQUIPMENT HEAVY DUTY(F03) M14X40 		9-92061-440-0 04 1 0303-0512 ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 04 1 0303-0512 ● ● ●
46 BOLT; BRKT FIX
FRAME EQUIPMENT HEAVY DUTY(F03) M14X40 		0-20951-440-0 04 1 0601- ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		0-20951-440-0 04 1 0601- ● ● ●
46 BOLT; BRKT FIX
FRAME EQUIPMENT HEAVY DUTY(F03) M14X40 		9-92061-440-0 04 1 0107-0302 ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 04 1 0107-0302 ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0303-0512 ● ●
46 BOLT; BRKT FIX
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X40 		9-92061-440-0 08 1 0303-0512 ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		9-92061-440-0 08 1 0303-0512 ● ● ●
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 08 1 0601- ● ●
46 BOLT; BRKT FIX
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X40 		0-20951-440-0 08 1 0601- ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		0-20951-440-0 08 1 0601- ● ● ●
46 BOLT; BRKT FIX
FRAME EQUIPMENT HEAVY DUTY(F03) M14X45 		9-92061-445-0 04 1 0107- ●
46 BOLT; BRKT FIX
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 04 1 0107- ● ● ●
67 NUT; C/MBR
6HK1 TCC ENG(81L) M16 		0-91110-516-0 02 1 0608- ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 9510-9802 ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 9510-9802 ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 9803-0004 ● ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 20 1 9803-0004 ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 0005-0302 ● ● ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0303-0512 ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		0-91110-514-0 24 1 0601- ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 9510-9810 ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 9811-9909 ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 9910-0004 ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0005-0106 ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 0107-0302 ● ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 0303-0512 ● ● ● ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		0-91110-514-0 20 1 0601- ● ● ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9510-9802 ● ● ● ● ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 16 1 9803-0004 ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9803-0004 ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 16 1 0005-0603 ● ● ● ● ● ●
98 WASHER; LK,STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		0-91510-614-0 16 1 0604- ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 9510-9802 ● ● ●
101 BRACKET; RR SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 9510-9802 ● ●
101 BRACKET; RR SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 9803-0004 ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 9803-0004 ●
101 BRACKET; RR SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 0005- ● ● ● ● ● ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 9510-9802 ● ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 9803-9810 ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 9811-0004 ● ● ● ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 0005-0106 ● ● ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 0107- ● ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 9510-9802 ● ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-038-1 02 1 9510-9802 ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-038-1 02 1 9803-0004 ● ● ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 9803-0004 ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-038-1 02 1 0005- ● ● ● ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 9510-9802 ● ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53357-029-1 02 1 9510-9802 ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53357-029-1 02 1 9803-0004 ● ● ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 9803-0004 ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53357-029-1 02 1 0005- ● ● ● ● ● ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 9510-9802 ● ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 9803-9909 ● ● ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 9910-0004 ● ● ● ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 0005-0106 ● ● ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-057-0 04 1 0107- ● ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 9510-9802 ● ● ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 20 1 9510-9802 ● ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 20 1 9803-0004 ● ● ● ●
106 BOLT; BRKT
M14X45 		0-20801-445-0 20 1 9803-0004 ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 20 1 0005- ● ● ● ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 9510-0106 ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50 		9-92061-450-0 24 1 0107-0302 ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 0107-0302 ●
106 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 0107-0302 ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 0303-0512 ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-20951-450-0 24 1 0601- ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 24 1 9811-9909 ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 24 1 9910-0004 ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 24 1 0005-0106 ●
106 BOLT; BRKT
FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 24 1 0107- ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 16 1 0306-0512 ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-20951-450-0 16 1 0601- ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9510-9802 ● ● ●
117 BOLT; STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 16 1 9510-9802 ● ●
117 BOLT; STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 16 1 9803-0004 ● ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 9803-0004 ●
117 BOLT; STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		0-20801-445-0 16 1 0005- ● ● ● ● ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-91066-450-0 16 1 9510-0106 ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50 		9-91066-450-0 16 1 0107-0302 ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-91066-450-0 16 1 0107-0302 ●
117 BOLT; STOPPER
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-91066-450-0 16 1 0107-0302 ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-91066-450-0 16 1 0303-0305 ● ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-91066-450-0 16 1 0306-0512 ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-10956-450-0 16 1 0601- ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 16 1 9811-9909 ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 16 1 9910-0004 ● ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 16 1 0005-0106 ●
117 BOLT; STOPPER
FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> M14X45 		9-92061-445-0 16 1 0107- ● ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 9510-0004 ● ● ● ● ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0005-0512 ● ● ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601- ● ● ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 9510-0004 ● ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0005- ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9510-9802 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 9803-0004 ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0005-0512 ● ● ● ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ● ● ● ● ●
132 NUT; END C/MBR
M12 		9-99110-412-0 04 1 9510-9802 ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 9803-0004 ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0005-0602 ● ● ● ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0603- ● ● ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9510-9802 ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 9510-9802 ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 9803-0004 ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 20 1 9803-0004 ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 0005-0603 ● ● ● ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		0-91510-614-0 20 1 0604- ● ● ● ● ● ●
138 WASHER; LK,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 24 1 9510-9802 ● ●
148 SPACER; C/MBR
6HK1 TCC ENG(81L) 		1-53168-341-0 02 1 0608- ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 9510-0004 ● ● ● ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0005- ● ● ● ● ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 9510-0004 ● ●
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 0005- ● ● ●
207 SPACER; 4TH C/MBR 1-53168-162-2 02 1 9510- ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 48 1 9510-0106 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 48 1 0107-0302 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 48 1 0107-0302 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 48 1 0303-1201 ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 48 1 0303-1201 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		8-98010-627-1 48 1 1202- ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 48 1 1202- ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 9510-9802 ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 9803-9810 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 9811-9909 ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 64 1 9910-0004 ● ● ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 0005-0106 ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 64 1 0107-1201 ● ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		8-98010-627-1 64 1 1202- ● ● ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 16 1 9510-0106 ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 16 1 0107-0302 ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 16 1 0107-0302 ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		9-09651-069-0 16 1 0303-1201 ●
282 WASHER; PL,STOPPER
ID=15 		9-09651-069-0 16 1 0303-1201 ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FRAME EQUIPMENT HEAVY DUTY(F03) ID=15 		8-98010-627-1 16 1 1202- ●
282 WASHER; PL,STOPPER
ID=15 		8-98010-627-1 16 1 1202- ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 9510-9802 ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-953-2 01 1 9510-9802 ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-953-2 01 1 9803-0004 ● ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 9803-0004 ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0005-0106 ● ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-953-2 01 1 0005-0106 ●
344 MEMBER; CROSS,4TH
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53171-953-2 01 1 0107-0302 ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0107-0302 ● ●
344 MEMBER; CROSS,4TH
EXC. FRAME EQUIPMENT HEAVY DUTY(F03),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-953-2 01 1 0107-0302 ●
344 MEMBER; CROSS,4TH
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53171-953-2 01 1 0303- ●
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0303- ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-953-2 01 1 0303- ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 9510-9802 ● ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 9803-9909 ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 9803-9909 ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 9910-0004 ● ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 9910-0004 ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 0005-0106 ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 0005-0106 ●
344 MEMBER; CROSS,4TH
FRAME EQUIPMENT HEAVY DUTY(F03) 		1-53171-738-7 01 1 0107-0302 ●
344 MEMBER; CROSS,4TH
FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 0107-0302 ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 0107-0302 ●
344 MEMBER; CROSS,4TH
FRAME EQUIPMENT HEAVY DUTY(F03) HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-738-7 01 1 0303- ● ●
344 MEMBER; CROSS,4TH 1-53171-738-7 01 1 0303- ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 9510-0004 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-1 01 1 0005- ● ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 9510-0004 ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-1 01 1 0005- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
