Isuzu WW
▶
TRUCKS
▶
NPS
▶
51163 - NPS-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

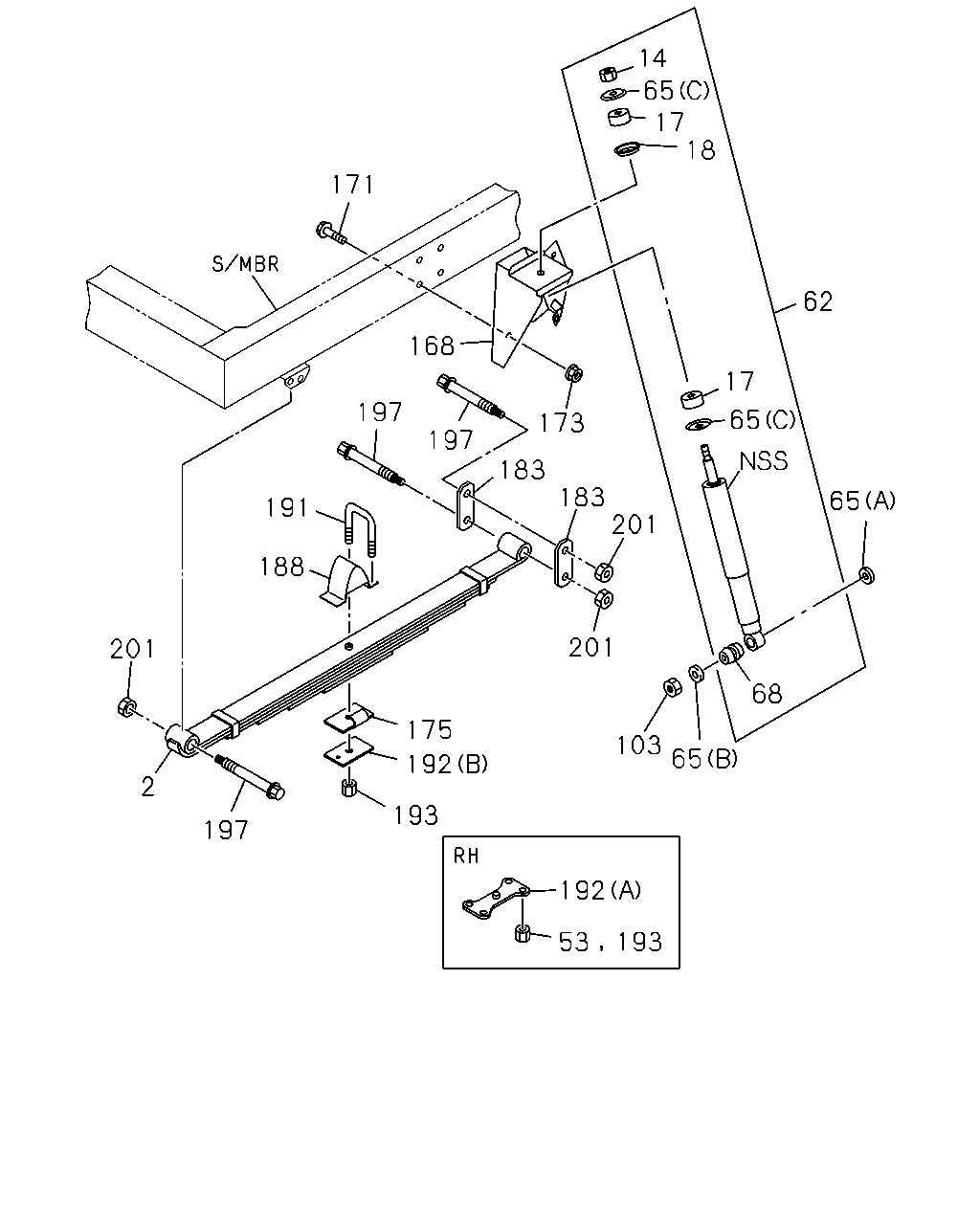

4-50 — FRONT SUSPENSION
(#40167) — 26 parça
14
65
17
18
171
62
168
17
197
65
173
197
183
183
201
65
191
188
201
201
68
175
103
65
192
2
193
197
192
53
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF
8-98090-402-0
01
1
0804-
2
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF
8-98090-401-0
01
1
0804-
14
07.389 NUT; S/ABS,UPR
M10 T=8
9-09640-020-0
02
1
0804-
17
07.388 BUSHING; RUBBER,S/ABS
TOKICO
9-51631-603-0
04
1
0804-
18
07.347 WASHER; CENTERING,S/ABS
TOKICO
8-94412-791-0
02
1
0804-
53
06.174 NUT; LWR LINK
M14 FLANGE
8-97360-124-0
02
1
0804-
62
07.345 ABSORBER ASM; SHOCK,FRT
8-97367-351-1
02
1
0804-
65
07.347 WASHER; S/ABS
(A) ID=21 OD=40
0-91614-620-0
02
1
0804-
65
07.347 WASHER; S/ABS
(B) ID=15
8-97360-056-0
02
1
0804-
65
07.347 WASHER; S/ABS
(C) OD=40
9-51631-614-0
04
1
0804-
68
07.388 BUSHING; S/ABS
TOKICO
8-94382-149-0
02
1
0804-
103
07.347 NUT; S/ABS TO LWR LINK
07.833 M14
0-91110-514-0
02
1
0804-
168
07.380 BRACKET; S/ABS,FRT SUSP
8-98049-995-4
01
1
0804-
171
07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE
0-28651-235-0
08
1
0804-0804
171
07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE
0-28651-235-0
04
1
0805-
173
07.395 NUT; S/ABS
M12
8-97360-126-0
03
1
0804-
175
06.170 SPACER; BRKT,S/ABS
07.518
8-94311-841-2
02
1
0804-
183
07.436 SHACKLE; FRT SUSP
8-94110-399-3
04
1
0804-
188
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
8-98090-443-0
02
1
0804-
191
07.417 U-BOLT; FRT SPR
L=185
8-94461-227-4
02
1
0804-
191
07.417 U-BOLT; FRT SPR
L=275
8-94461-228-2
02
1
0804-
192
07.436 PIECE; DIST
(B)
8-98049-991-0
02
1
0804-
192
07.436 PIECE; DIST
(A)
8-94462-218-2
01
1
0804-
193
07.417 NUT; U BOLT
06.174 M14 FLANGE
8-97360-124-0
08
1
0804-
197
07.427 PIN; FRT SPR,FRT
M16X122 FLANGE
8-97360-110-0
06
1
0804-
201
07.427 NUT; PIN LK
M16 FLANGE
8-97360-125-0
06
1
0804-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
