3-60 — BRAKE PIPING; VACUUM (#40151) — 150 parça

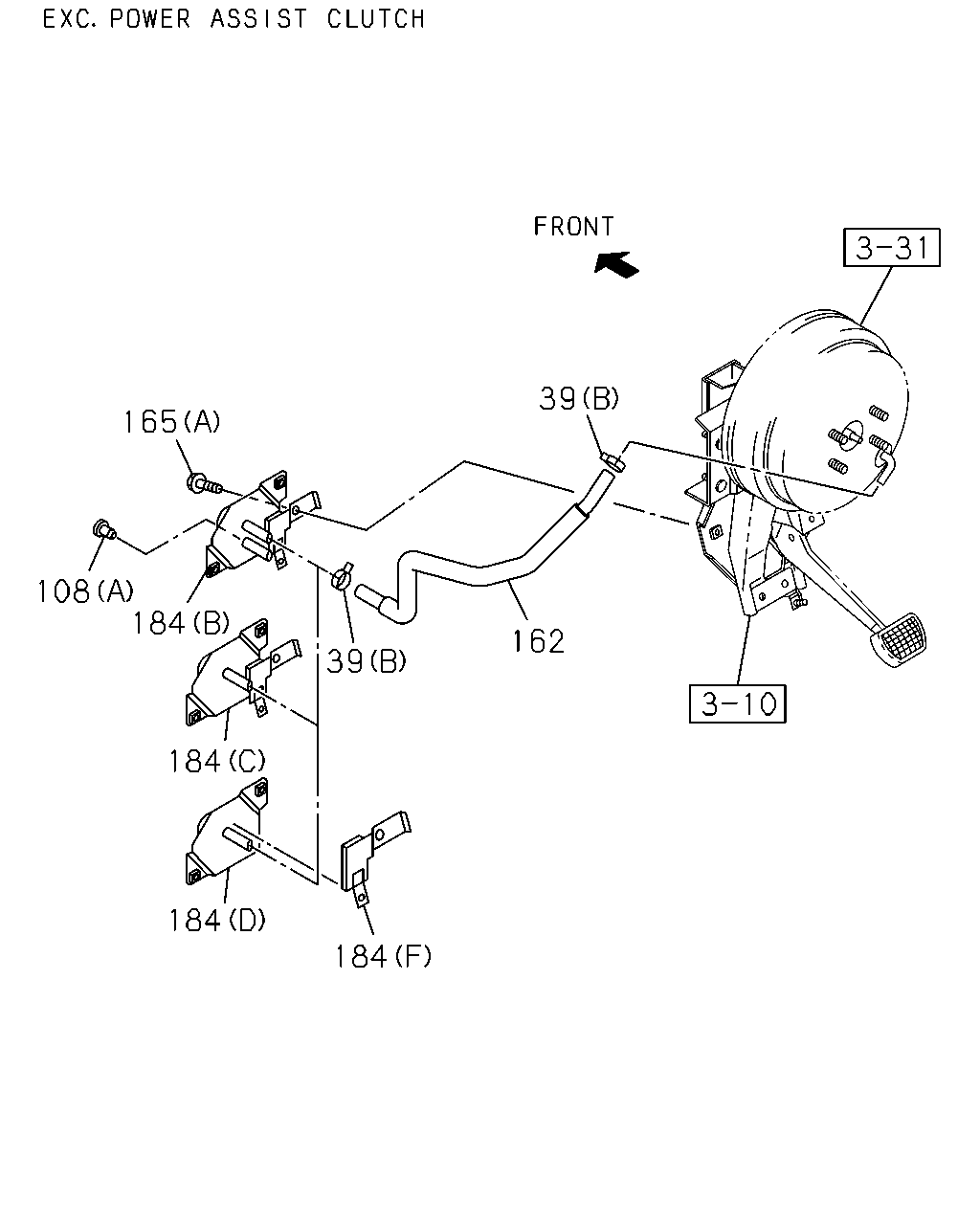

39 162 39 184 165 108 184 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0804-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0804-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0804-0908
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98034-154-2	01	1	0804-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-
184	04.685 BRACKET; UNION FIX (F)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98255-537-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	0804-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0804-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (E)	8-98255-536-0	01	1	1312-

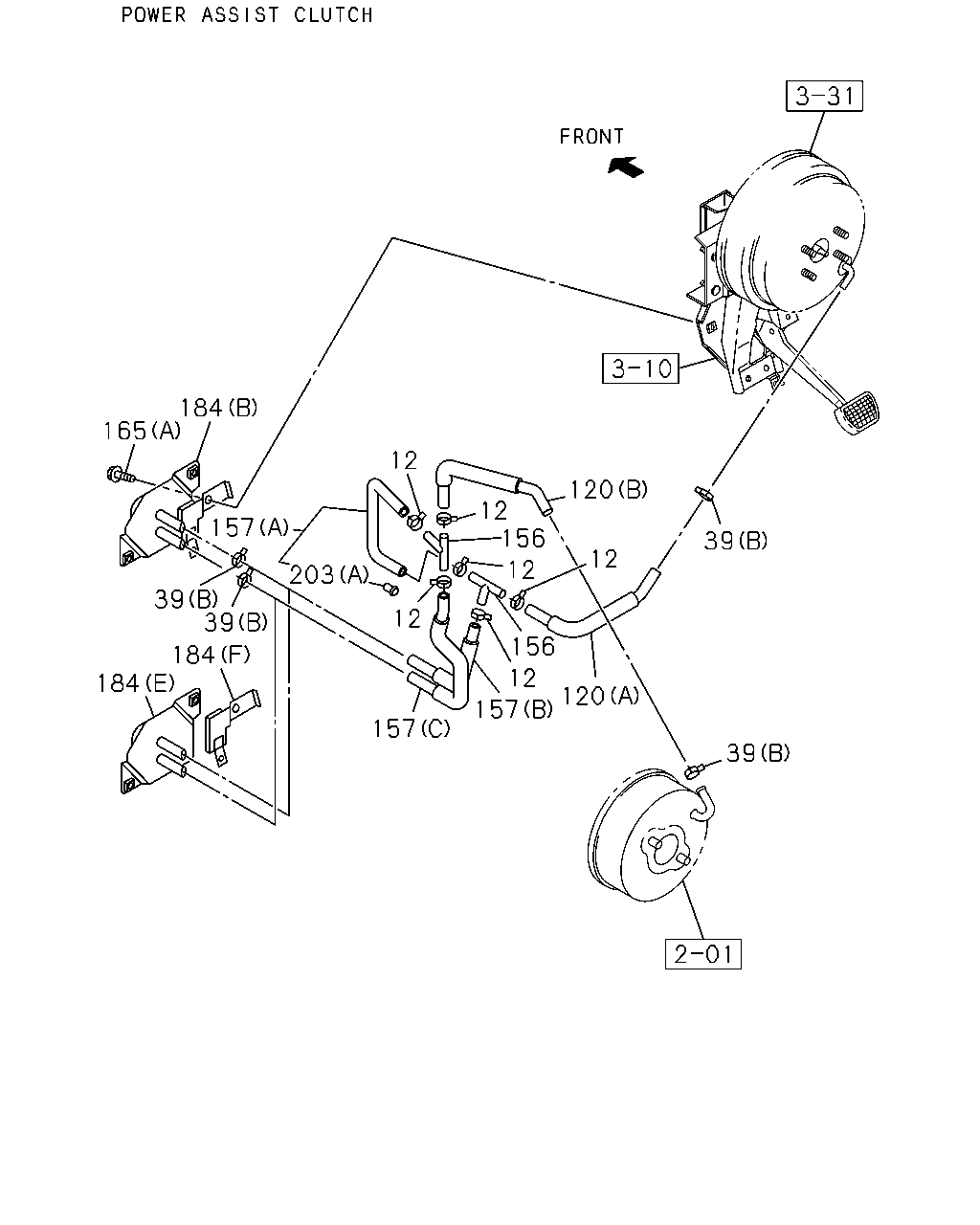

120 39 39 120 157 157 156 12 12 12 12 12 203 157 39 165 184 39 184 184 12 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	0804-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	0804-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0804-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	0804-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	0804-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	0804-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	0804-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-
184	04.685 BRACKET; UNION FIX (F)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98255-537-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	0804-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0804-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (E)	8-98255-536-0	01	1	1312-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0804-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0804-

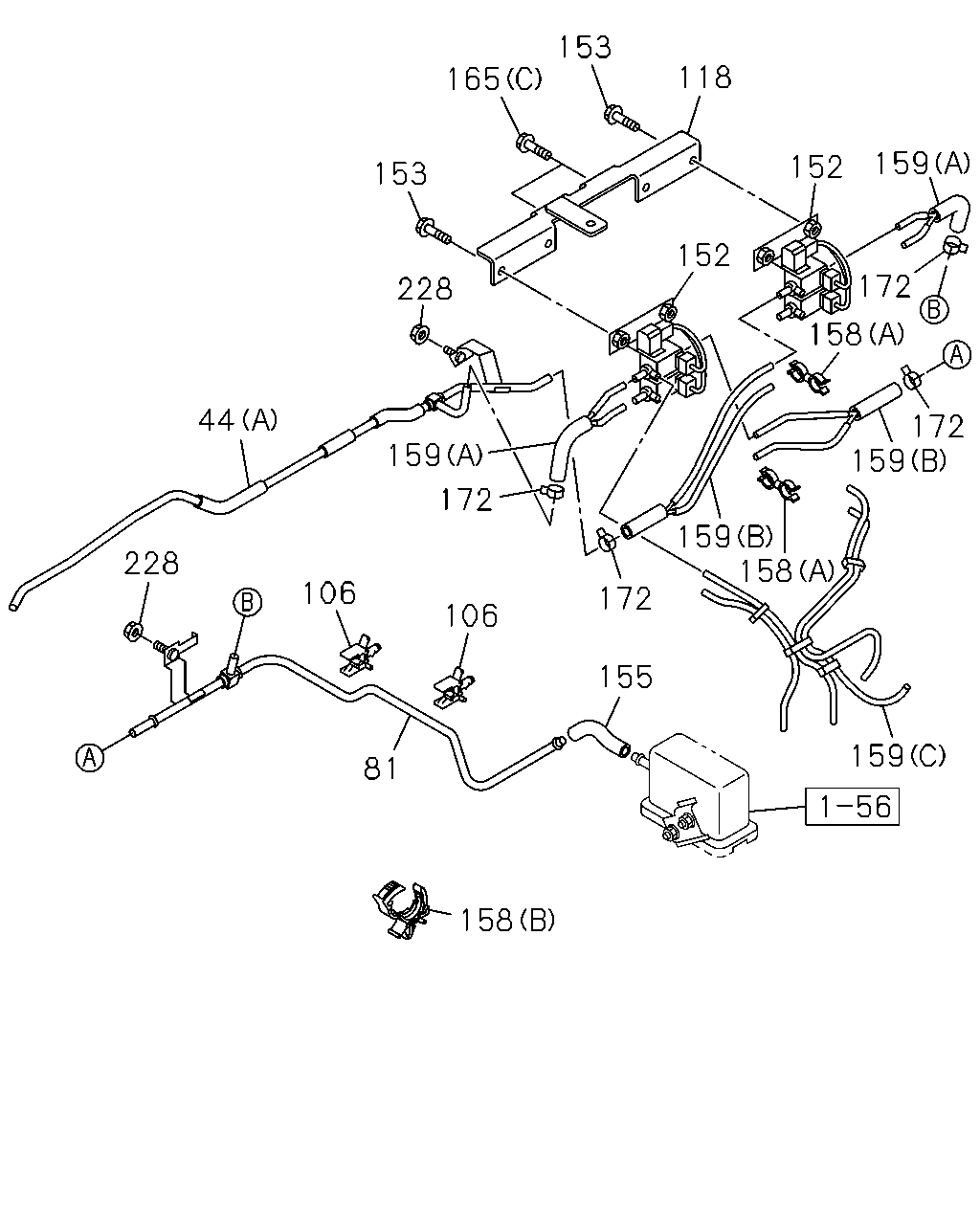

153 118 165 159 152 153 152 172 228 158 44 172 159 159 172 159 158 228 106 172 106 155 159 81 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV (B)	8-98070-194-0	01	1	0804-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98103-009-0	01	1	0804-
81	04.930 PIPE; VAC,VSV	8-98060-407-3	01	1	0804-
106	04.930 CLIP; PIPE ID=10 H=40	8-94462-219-0	02	1	0804-
118	04.930 BRACKET; VSV	8-98069-541-3	01	1	0804-
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO	8-94481-999-4	02	1	0804-1302
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO 09.755	8-98222-432-0	02	1	1303-
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE	0-28651-025-0	04	1	0804-
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0804-
158	04.681 CLIP; HOSE 02.559 (A) ID=16.5 & 16.5	8-94468-380-0	01	1	0804-
158	04.681 CLIP; HOSE 02.559 (B) ID=14-20	8-97061-603-0	01	1	0804-
159	04.931 HOSE ASM; VAC (B)	8-98070-137-2	02	1	0804-
159	04.931 HOSE ASM; VAC (A)	8-98070-138-1	02	1	0804-
159	04.931 HOSE ASM; VAC (C)	8-98093-010-0	01	1	0804-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-
172	04.930 CLIP; VAC HOSE ID=16	8-94238-568-0	04	1	0804-0911
172	04.930 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	04	1	0912-
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-
228	04.930 NUT; PIPE 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-

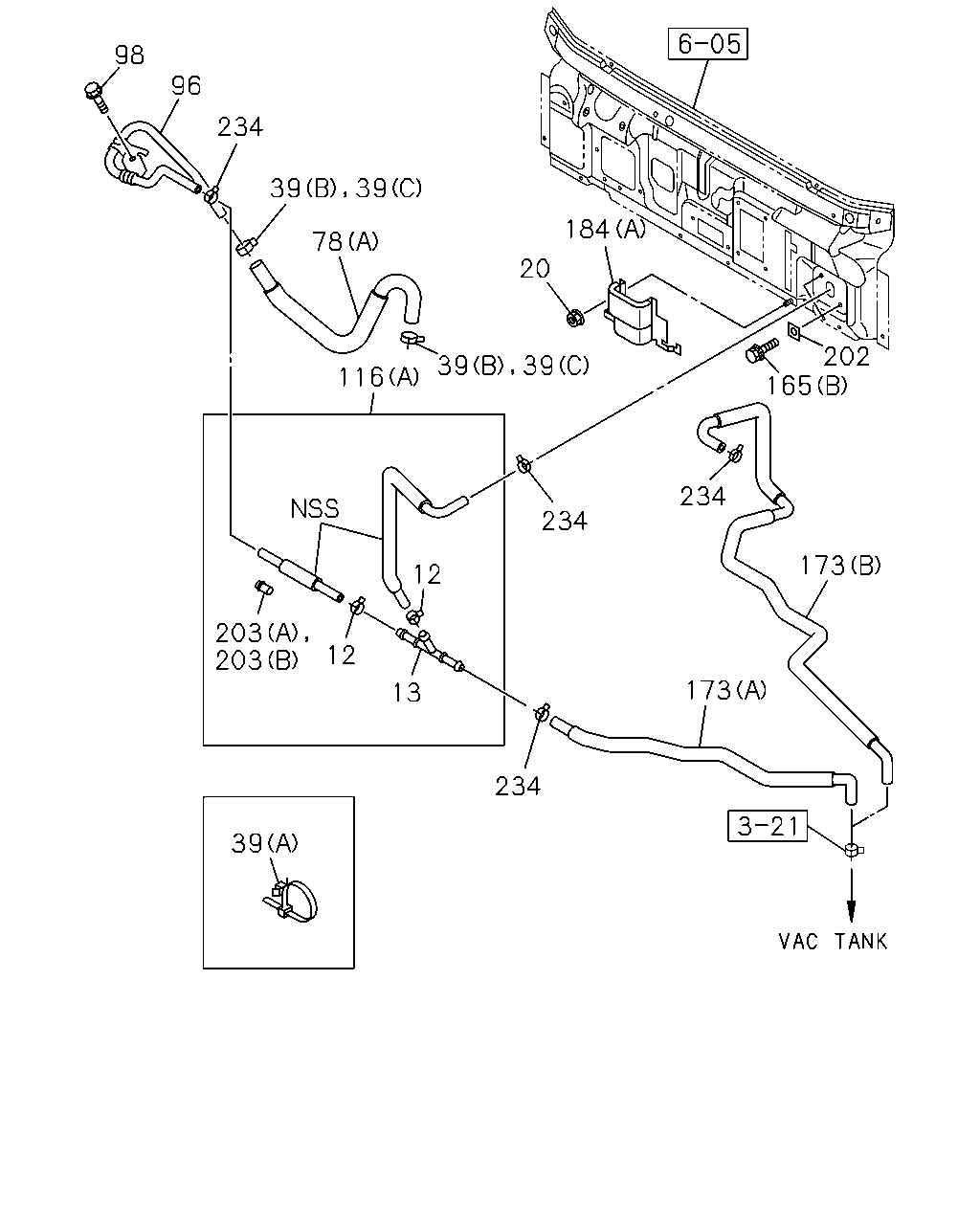

98 96 234 184 78 20 202 165 116 234 234 173 12 203 203 12 173 13 234 39 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	0804-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	0804-
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	0804-
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0804-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98063-819-2	01	1	0804-1008
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1009-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	0804-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98082-322-0	01	1	0804-
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-
116	04.931 HOSE; VAC,M/VAC 03.630 (D) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (B)	8-98034-276-2	01	1	0804-0911
116	04.931 HOSE; VAC,M/VAC (B)	8-98158-378-0	01	1	0912-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	0804-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	0804-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	0804-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	0804-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	0804-
184	04.685 BRACKET; UNION FIX (F)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98183-466-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98255-537-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-98039-684-3	01	1	0804-1204
184	04.685 BRACKET; UNION FIX (A)	8-98211-373-0	01	1	1205-
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0804-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	0909-1012
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98183-465-1	01	1	1101-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (E)	8-98255-536-0	01	1	1312-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0804-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0804-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0804-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0804-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0804-

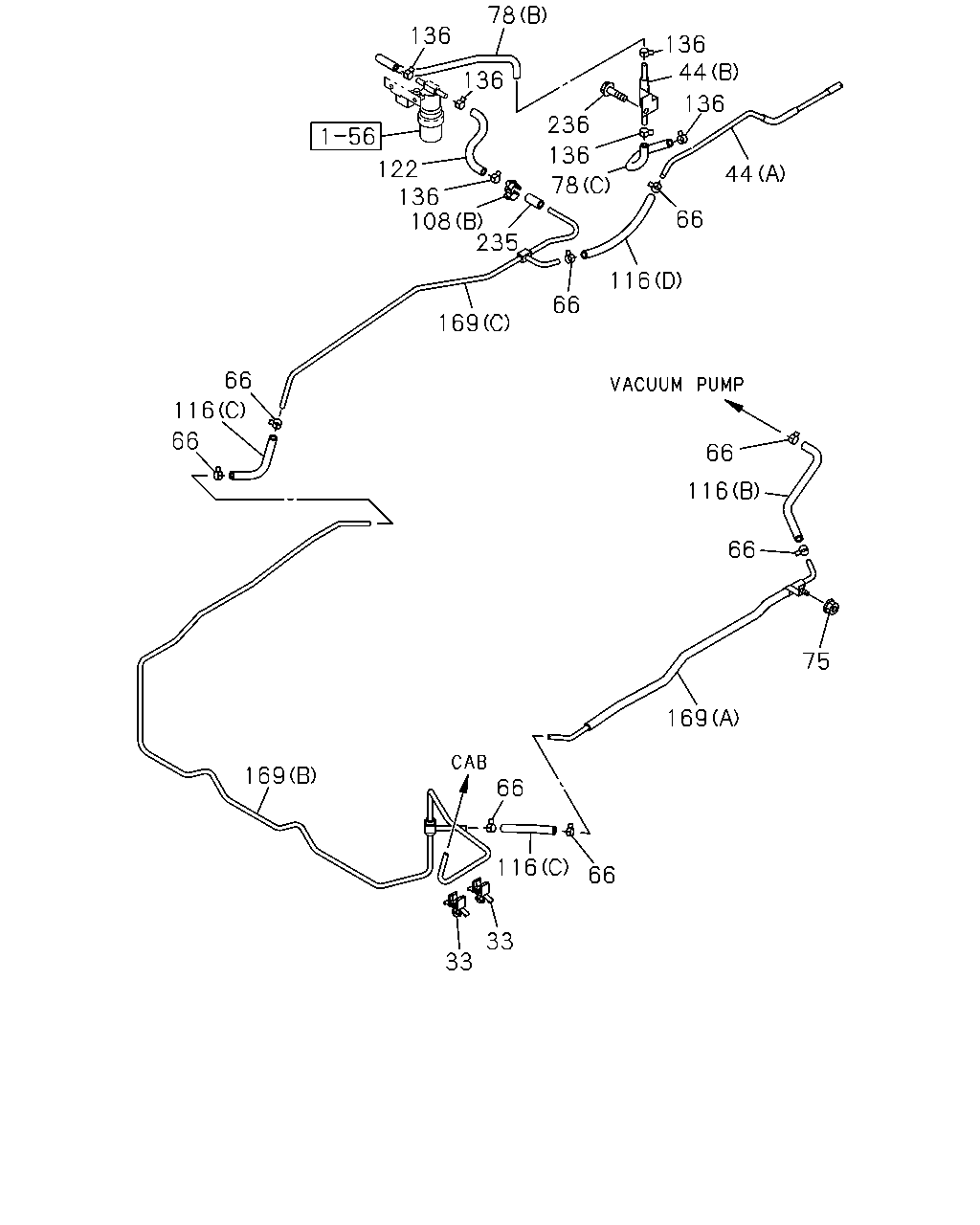

78 136 136 44 136 136 236 136 122 136 108 235 44 78 66 116 66 169 66 116 66 66 116 66 75 169 169 66 116 66 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	0804-
44	04.930 PIPE; VAC,MAG VLV (B)	8-98070-194-0	01	1	0804-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98103-009-0	01	1	0804-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0804-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	06	1	0804-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	06	1	0912-
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0804-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98063-819-2	01	1	0804-1008
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1009-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98081-681-2	01	1	0804-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0804-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0804-0908
116	04.931 HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	02	1	0804-
116	04.931 HOSE; VAC,M/VAC 03.630 (D) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0804-
116	04.931 HOSE; VAC,M/VAC (B)	8-98034-276-2	01	1	0804-0911
116	04.931 HOSE; VAC,M/VAC (B)	8-98158-378-0	01	1	0912-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-000-1	01	1	0804-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-001-0	01	1	0804-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98034-103-2	01	1	0804-1103
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1104-
136	04.681 CLIP; VAC HOSE 04.930 ID=16	8-94238-568-0	06	1	0804-0911
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	0912-
169	04.930 PIPE; VAC,BOOSTER SIDE (C)	8-98040-479-3	01	1	0804-
169	04.930 PIPE; VAC,BOOSTER SIDE (A)	8-98041-052-2	01	1	0804-
169	04.930 PIPE; VAC,BOOSTER SIDE (B)	8-98092-067-0	01	1	0804-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0804-
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-
