Sayfa 2-25 - Isuzu EPC

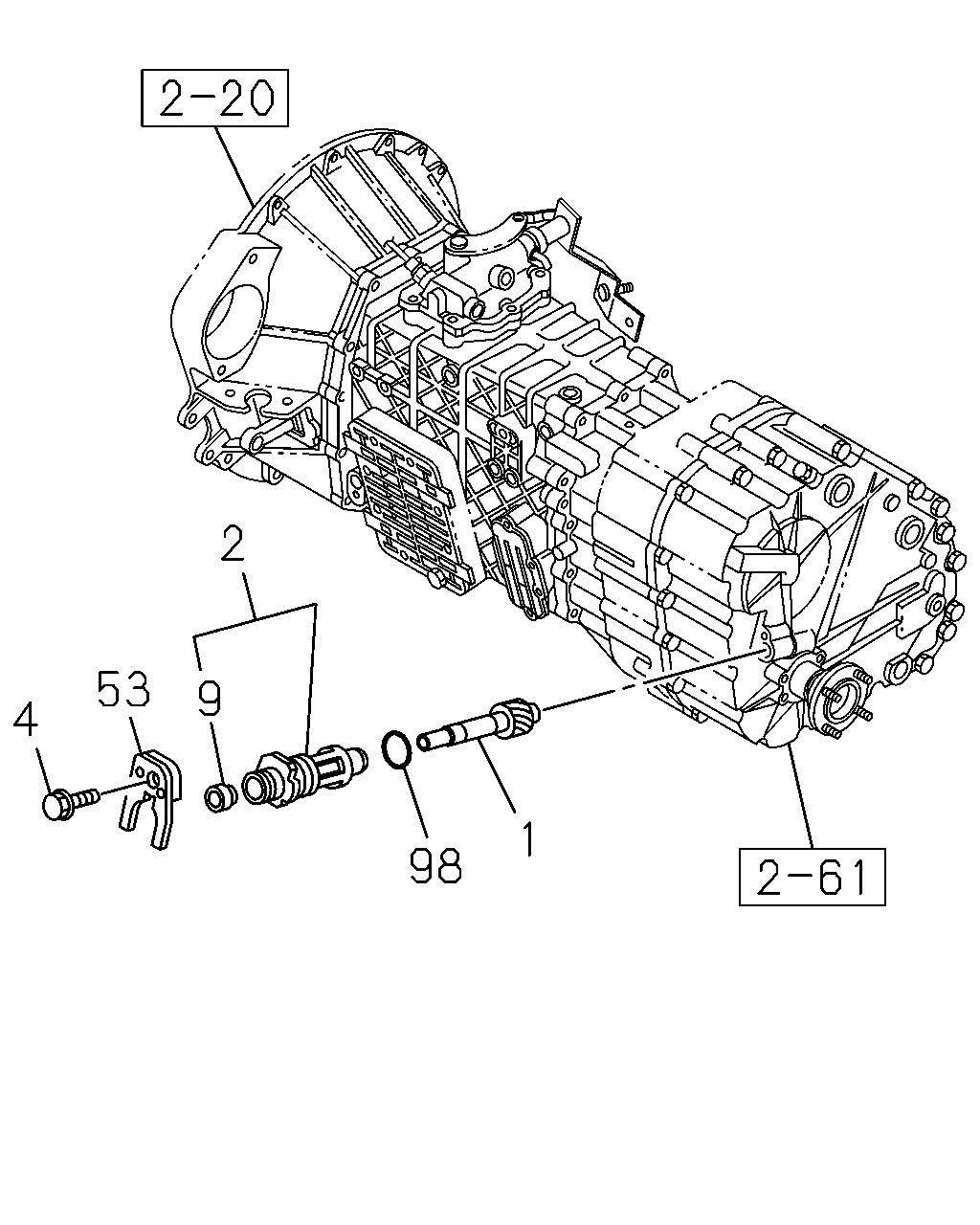

2-25 — SPEEDOMETER DRIVEN GEAR (#40117) — 8 parça

2 53 9 4 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) Z=14	8-97253-561-1	01	1	0612-
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) Z=13	8-97253-562-1	01	1	0612-
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) Z=15	8-97253-560-1	01	1	0612-
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "12,13,14,15"	8-97253-125-0	01	1	0612-
4	04.338 BOLT; RET,DRIVEN GEAR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0612-
9	04.338 SEAL; OIL,DRIVEN GEAR NOK	8-97131-328-1	01	1	0612-
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	0612-
98	04.338 SEAL; OIL,BUSH 04.439	9-09561-324-0	01	1	0612-
