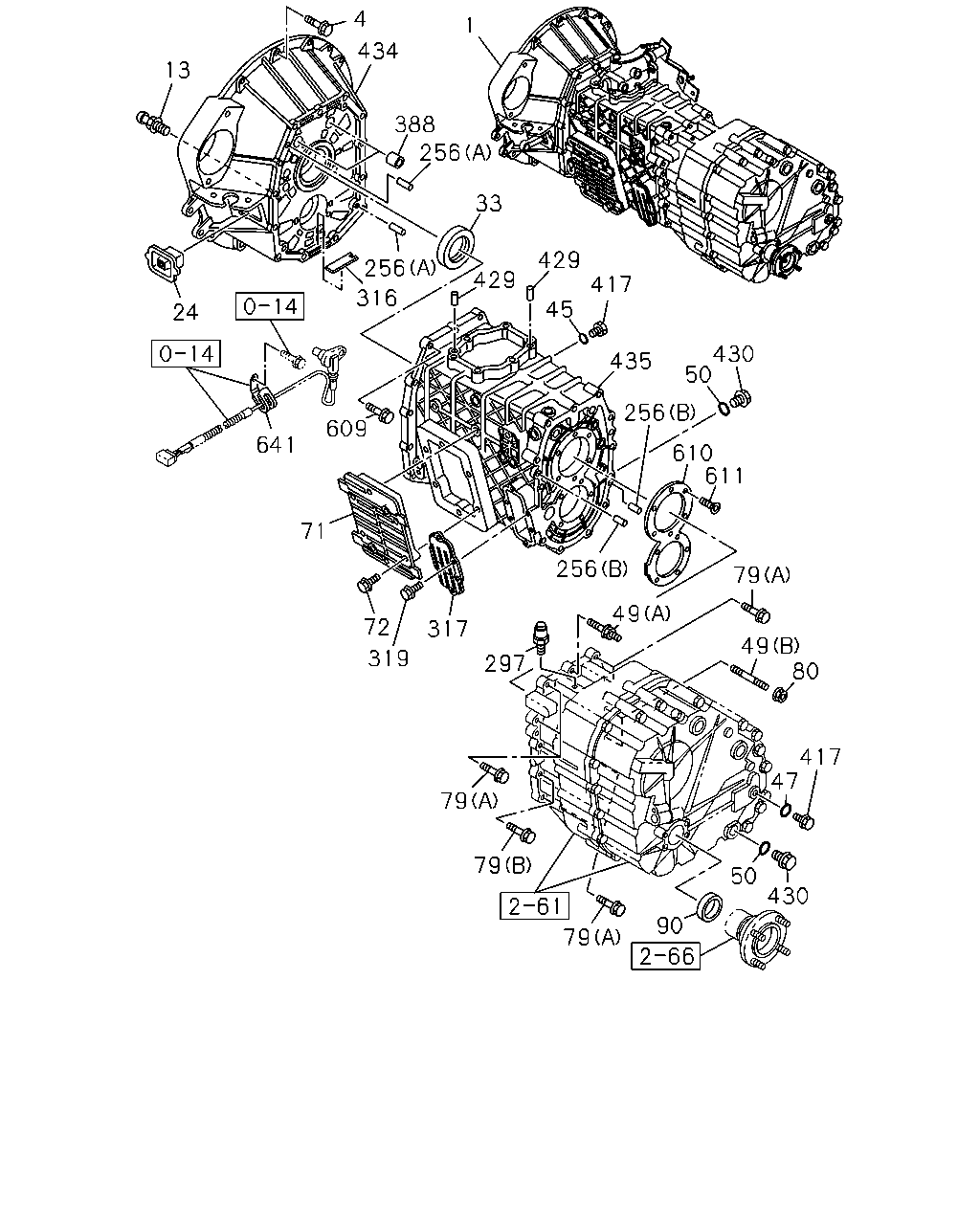

2-20 — MANUAL TRANSMISSION ASM AND CASE (#40116) — 76 parça

4 1 434 13 388 256 33 429 256 429 417 316 45 24 430 50 435 256 610 611 609 641 256 71 79 49 72 317 49 80 319 297 417 47 79 79 50 430 90 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH)	8-97374-848-0	01	1	0612-0801
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97374-848-0	01	1	0802-
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ)	8-98001-193-0	01	1	0612-
4	00.683 BOLT; FLYWHEEL HSG 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0612-
4	00.683 BOLT; FLYWHEEL HSG 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0612-
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0612-0802
4	00.683 BOLT; FLYWHEEL HSG 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0803-
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0612-0802
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) 00.029 M10X35 L=65	8-97178-725-0	02	1	0612-0802
4	00.683 BOLT; FLYWHEEL HSG 00.029 M10X35 L=65	8-97178-725-0	02	1	0803-
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0612-
13	04.302 SUPPORT; SHIFT FORK 4HG1 ENG(RJH)	8-97255-384-1	01	1	0612-0801
13	04.302 SUPPORT; SHIFT FORK 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97255-384-1	01	1	0802-
13	04.302 SUPPORT; SHIFT FORK 4HK1-TCN ENG(RDQ)	8-97255-385-1	01	1	0612-
24	00.797 COVER; CHECK HOLE,DUST 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97255-201-0	01	1	0612-0801
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	0802-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-550-0	01	1	0612-0801
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0802-
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	01	1	0612-0801
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0802-
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.105 ID=17	8-97115-712-0	01	1	0612-0801
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 04.105 ID=17	8-97115-712-0	01	1	0802-
49	04.510 STUD; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.275 (B) M10X35 L=50	0-44011-035-0	02	1	0612-0801
49	04.510 STUD; TRANSFER CASE 03.275 (B) M10X35 L=50	0-44011-035-0	02	1	0802-
49	04.510 STUD; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M10X15,M10X40 L=65	8-97365-379-0	01	1	0612-0801
49	04.510 STUD; TRANSFER CASE (A) M10X15,M10X40 L=65	8-97365-379-0	01	1	0802-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	01	1	0612-0801
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0802-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	02	1	0612-0801
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	0802-
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-625-0	01	1	0612-0801
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	0802-
72	04.439 BOLT; SIDE COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0612-
79	04.510 BOLT; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.171 (A) M10X40 FLANGE	0-28151-040-0	08	1	0612-0801
79	04.510 BOLT; TRANSFER CASE 09.171 (A) M10X40 FLANGE	0-28151-040-0	08	1	0802-
79	04.510 BOLT; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B) M10X40 FLANGE	8-97365-377-0	02	1	0612-0801
79	04.510 BOLT; TRANSFER CASE (B) M10X40 FLANGE	8-97365-377-0	02	1	0802-
80	04.510 NUT; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.085 M10 FLANGE	0-91180-210-0	02	1	0612-0801
80	04.510 NUT; TRANSFER CASE 04.085 M10 FLANGE	0-91180-210-0	02	1	0802-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NOK	8-97253-552-1	01	1	0612-0801
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0802-
256	04.317 PIN; KNOCK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0612-0801
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0802-
256	04.317 PIN; KNOCK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0612-0801
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0802-
297	04.104 BREATHER; AIR,TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98031-520-0	01	1	0612-0801
297	04.104 BREATHER; AIR,TRANSFER CASE	8-98031-520-0	01	1	0802-
316	04.105 MAGNET; TRANS CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94249-524-2	01	1	0612-0801
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0802-
317	04.109 COVER; CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-626-0	01	1	0612-0801
317	04.109 COVER; CASE	8-97252-626-0	01	1	0802-
319	04.109 BOLT; COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0612-0801
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0802-
388	00.683 BUSHING; CLU HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-326-2	02	1	0612-0801
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0802-
417	04.105 PLUG; OIL FILLER,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97365-373-0	01	1	0612-0801
417	04.105 PLUG; OIL FILLER,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97365-373-0	01	1	0612-0801
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0802-
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0802-
429	04.105 PIN; STRAIGHT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.510 OD=10 L=20	8-97135-423-0	02	1	0612-0801
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0802-
430	04.105 PLUG; OIL DRAIN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97365-374-0	01	1	0612-0801
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0802-
430	04.105 PLUG; OIL DRAIN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97365-374-0	02	1	0612-0801
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	0802-
434	00.683 HOUSING; CLU 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97310-346-2	01	1	0612-0801
434	00.683 HOUSING; CLU	8-97310-346-2	01	1	0802-
435	04.103 CASE; TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97379-374-0	01	1	0612-0801
435	04.103 CASE; TRANS	8-97379-374-0	01	1	0802-
609	04.104 BOLT; HSG TO CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0612-0801
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0802-
610	04.412 RETAINER; BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-315-1	01	1	0612-0801
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0802-
611	04.104 SCREW 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M10X27 TORQUES	8-97365-354-0	11	1	0612-0801
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	0802-
641	04.710 CLIP; CAM SENSOR 4HK1-TCN ENG(RDQ) 02.698 ID=8	8-94107-659-0	01	1	0612-
