2-05 — CLUTCH PIPING (#40111) — 26 parça

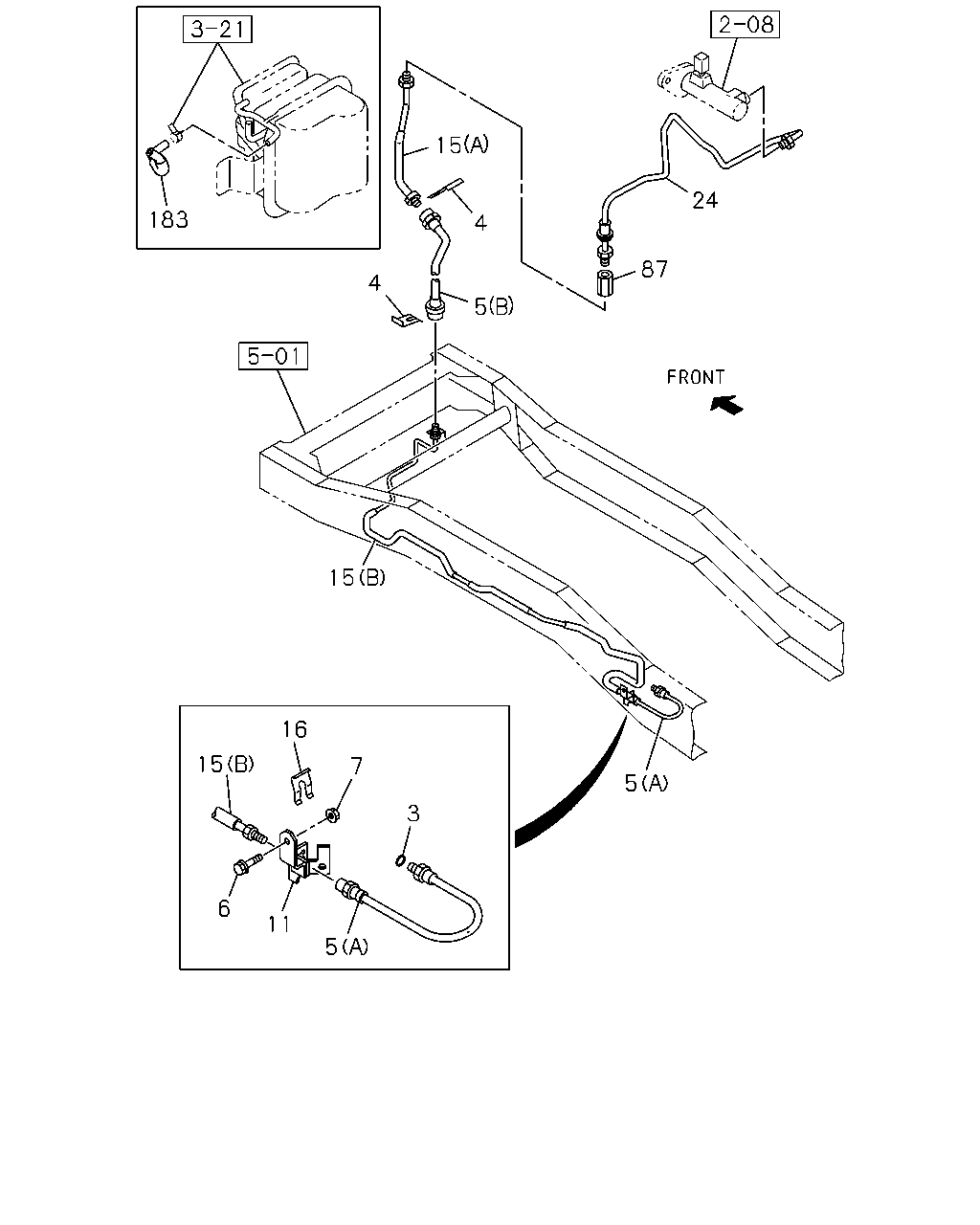

çizim 56344
15 24 183 4 87 4 5 15 16 15 7 5 3 6 11 5
BalonParca AdiParca NoAdetTipApplied Date
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		9-09920-873-1 01 1 0612-
3 00.785 GASKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 		9-09920-873-1 01 1 0612-
4 00.785 CLIP; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.681 		8-97365-304-0 02 1 0612-
4 00.785 CLIP; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 04.681 		8-97365-304-0 02 1 0612-
5 00.785 HOSE; FLEX,CLU PIPE
CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94108-360-2 01 1 0612-
5 00.785 HOSE; FLEX,CLU PIPE
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 0612-
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) 		8-98004-775-0 01 1 0612-0706
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> (B) 		8-98004-775-0 01 1 0612-0706
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) 		8-98090-655-0 01 1 0707-
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> (B) 		8-98090-655-0 01 1 0707-
6 00.785 BOLT; BRKT,FLEX HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0612-
6 00.785 BOLT; BRKT,FLEX HOSE
4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0612-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612-
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612-
11 00.785 BRACKET; FLEX HOSE,CLU 8-97114-778-1 01 1 0612-
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0612-
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97374-197-0 01 1 0612-
16 00.785 CLIP; FLEX HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.681 		8-97365-304-0 01 1 0612-
16 00.785 CLIP; FLEX HOSE
4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> 04.681 		8-97365-304-0 01 1 0612-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HG1-T ENG(RDP),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0612-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0612-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) 		8-97207-635-0 01 1 0612-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98011-703-0 01 1 0612-
87 00.785 UNION; OIL PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) M12 STRAIGHT 		0-92107-006-0 01 1 0612-
87 00.785 UNION; OIL PIPE
4HK1-TCN ENG(RDQ) EXC. KD PREPARATORY PACK<6HF> M12 STRAIGHT 		0-92107-006-0 01 1 0612-
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97129-873-0 01 1 0612-
