◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51136 - NPS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#40110) — 26 parça

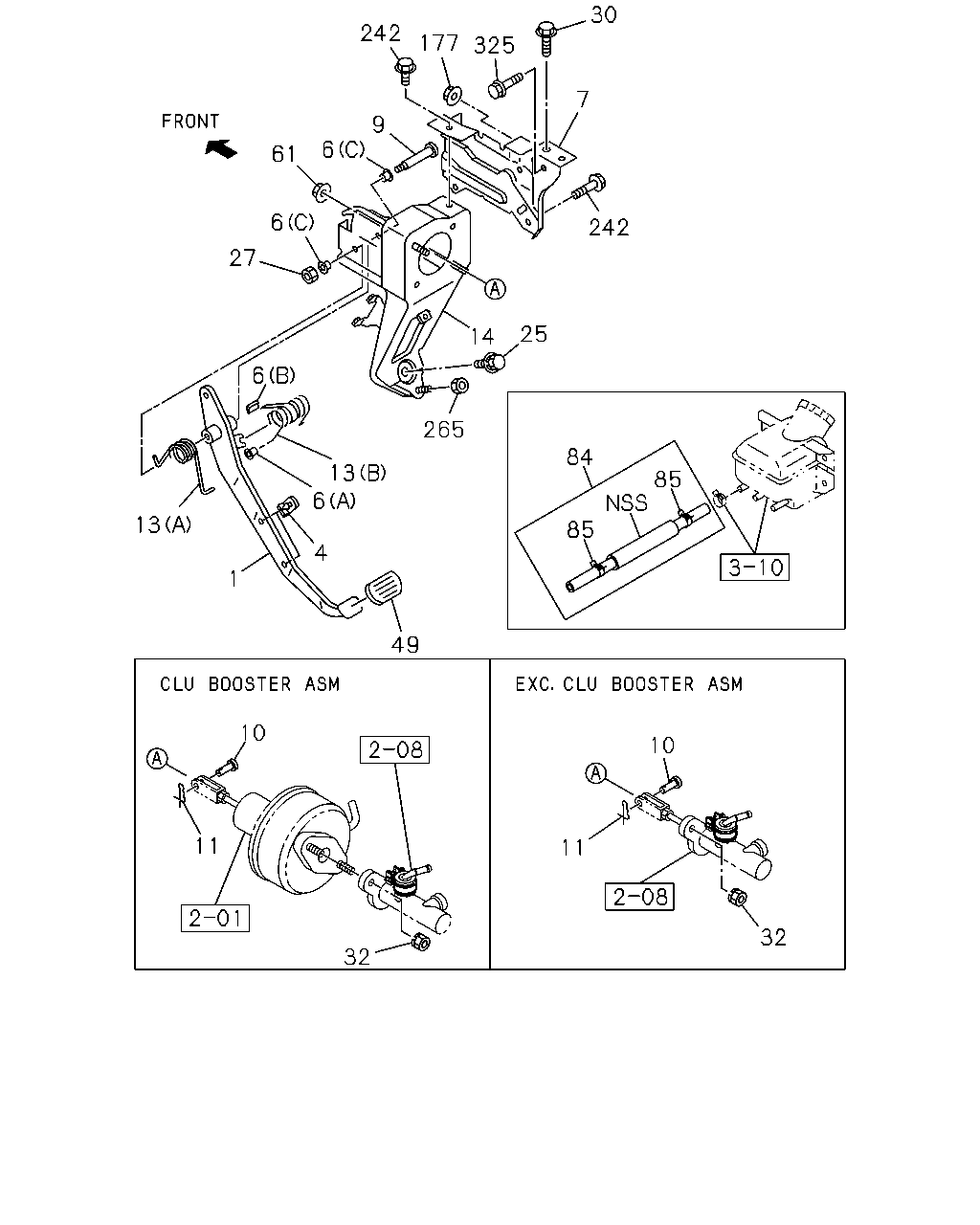

çizim 57078
30 242 177 325 7 9 6 61 6 242 27 25 14 6 265 84 13 6 85 13 85 4 1 49 10 10 11 11 32 32
BalonParca AdiParca NoAdetTipApplied Date
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0612-
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0612-
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0612-
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 0612-
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0612-
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0612-
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 0612-
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 0612-
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0612-
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0612-
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0612-
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0612-
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 0612-
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0612-
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0612-
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 0612-
30 00.829 BOLT; CLU MTG BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 01 1 0612-
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0612-
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0612-
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 0612-
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-025-0 01 1 0612-
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 0612-
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0612-
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0612-
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0612-
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0612-
