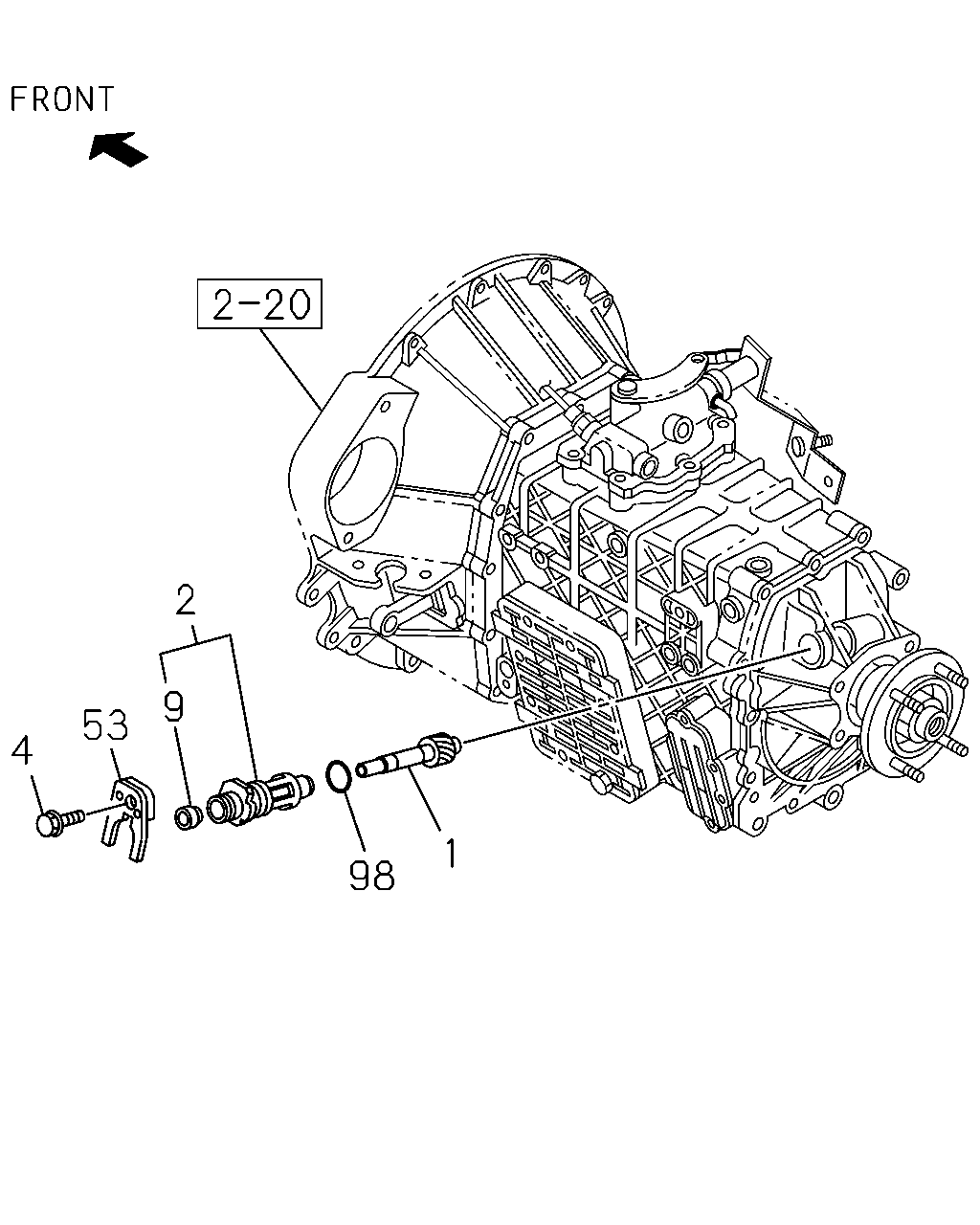

2-25 — SPEEDOMETER DRIVEN GEAR (#40103) — 11 parça

2 9 53 4 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.337 GEAR; DRIVEN,SPD FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H), FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15- 25(25H) Z=12	8-97253-563-1	01	1	0609-	●
1	04.337 GEAR; DRIVEN,SPD FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H) Z=14	8-97253-561-1	01	1	0609-		●
1	04.337 GEAR; DRIVEN,SPD FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10 L 5.5FX16-115 T/VLV TR177A(98H) Z=13	8-97253-562-1	01	1	0609-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H), FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15- 25(25H) MARK "12,13,14,15"	8-97253-125-0	01	1	0609-	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT &RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7- 16-10L 5.5FX16-115 T/VLV TR177A(98H) MARK "12,13,14,15"	8-97253-125-0	01	1	0609-		●
4	04.338 BOLT; RET,DRIVEN GEAR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0609-	●	●
9	04.338 SEAL; OIL,DRIVEN GEAR FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H), FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15- 25(25H) NOK	8-97131-328-1	01	1	0609-	●
9	04.338 SEAL; OIL,DRIVEN GEAR FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT &RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7- 16-10L 5.5FX16-115 T/VLV TR177A(98H) NOK	8-97131-328-1	01	1	0609-		●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	0609-	●	●
98	04.338 SEAL; OIL,BUSH FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-8 RR 7.5-15-10 FRT&RR 5.5FX15-25(22H), FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15- 25(25H) 04.439	9-09561-324-0	01	1	0609-	●
98	04.338 SEAL; OIL,BUSH FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT &RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7- 16-10L 5.5FX16-115 T/VLV TR177A(98H) 04.439	9-09561-324-0	01	1	0609-		●
