◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#4010) — 142 parça
çizim 116114
14 10 28
BalonParca AdiParca NoAdetTipApplied Date A B
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L) L=900 		1-09365-251-0 01 1 0608- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=840 		1-09364-809-2 01 1 9510-9706 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=840 		1-09364-978-1 01 1 9707-9802 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
FRONT AXLE F049(FS4) L=840 		1-09364-978-2 01 1 9803- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
FRONT AXLE F063(FS7) L=770 		1-09364-987-1 01 1 9803-0004 ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
FRONT AXLE F063(FS7) L=770 		1-09364-987-1 01 1 0005- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) FRONT AXLE F063(FS7) L=770 		1-09364-987-1 01 1 0005- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) FRONT AXLE F063(FS7) EXC. EURO2 SPECIFICATION<THN> L=770 		1-09364-987-1 01 1 0005- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) FRONT AXLE F063(FS7) EURO2 SPECIFICATION<THN> L=1025 		1-09365-107-0 01 1 0005- ●
14 UNION; FLEX HOSE,P/S 1-47470-394-2 01 1 9510-9802 ● ●
14 UNION; FLEX HOSE,P/S 1-47470-394-3 01 1 9803- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28680-820-0 02 1 9802-9802 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28680-820-0 02 1 9803-0512 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
çizim 116184
7 24 23 1 7 15 15 1 7 24 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) 		1-19500-530-0 01 1 9803-0202 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) 		1-19500-595-1 01 1 0203-1112 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) 		8-98202-668-0 01 1 1201- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		1-19500-530-0 01 1 9510-9705 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-530-0 01 1 9706-9802 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. FRONT AXLE F063(FS7) (A) 		1-19500-530-0 01 1 9706-9802 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. FRONT AXLE F063(FS7) (A) 		1-19500-466-0 01 1 9706-9802 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-19500-548-0 01 1 9803-0010 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-19500-548-0 01 1 0011-0607 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-19500-548-0 01 1 0011-0607 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) 		1-19500-548-0 01 1 0011-0607 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-19500-548-1 01 1 0608- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-19500-548-1 01 1 0608- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) 		1-19500-548-1 01 1 0608- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) 		1-19500-580-2 01 1 0011- ●
7 BOLT; OIL PUMP,P/S
(A) M10X55 FLANGE 		8-94399-863-1 02 1 9510-9802 ● ●
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-94399-863-1 01 1 9803-0010 ● ●
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-94399-863-1 01 1 0011-0607 ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-94399-863-1 01 1 0011-0607 ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M10X55 FLANGE 		8-94399-863-1 01 1 0011-0607 ●
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-94399-863-1 01 1 0608-0805 ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-94399-863-1 01 1 0608-0805 ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M10X55 FLANGE 		8-94399-863-1 01 1 0608-0805 ●
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ●
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (B) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 9803-0010 ● ●
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (B) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0011-0607 ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEAVY DUTY P/S OIL PUMP<E1N> (B) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0011-0607 ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0011-0607 ●
7 BOLT; OIL PUMP,P/S
HEAVY DUTY P/S OIL PUMP<E1N> (B) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0608- ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) HEAVY DUTY P/S OIL PUMP<E1N> (B) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0608- ●
7 BOLT; OIL PUMP,P/S
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0608- ●
7 BOLT; OIL PUMP,P/S
EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-94399-863-1 02 1 9803-0805 ● ●
7 BOLT; OIL PUMP,P/S
EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) M10X55 FLANGE 		8-97365-449-0 02 1 0806- ● ●
15 CLIP; OIL PIPE SUCTION
(A) ID=32 		1-09704-085-0 02 1 9510-0607 ●
15 CLIP; OIL PIPE SUCTION
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) ID=32 		1-09704-085-0 02 1 9510-0607 ●
15 CLIP; OIL PIPE SUCTION
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) ID=32 		1-09704-085-0 02 1 9510-0607 ●
15 CLIP; OIL PIPE SUCTION
(A) ID=32 		1-09704-085-0 02 1 0608- ●
15 CLIP; OIL PIPE SUCTION
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) ID=32 		1-09704-085-0 02 1 0608- ●
15 CLIP; OIL PIPE SUCTION
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (A) ID=32 		1-09704-085-0 02 1 0608- ●
15 CLIP; OIL PIPE SUCTION
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) 		1-09701-210-0 02 1 0011- ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 9510-0010 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0011-0106 ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) HEAVY DUTY P/S OIL PUMP<E1N> EURO2 SPECIFICATION<THN> Z=30 		8-94396-957-3 01 1 0011-0106 ●
23 GEAR; OIL PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) Z=30 		8-94396-957-3 01 1 0011-0106 ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0107-0607 ●
23 GEAR; OIL PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) Z=30 		8-94396-957-3 01 1 0107-0607 ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> Z=30 		8-94396-957-3 01 1 0107-0607 ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0608- ●
23 GEAR; OIL PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) Z=30 		8-94396-957-3 01 1 0608- ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> Z=30 		8-94396-957-3 01 1 0608- ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> Z=30 		8-94390-842-1 01 1 0011- ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 9510-0010 ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0011-0106 ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) HEAVY DUTY P/S OIL PUMP<E1N> EURO2 SPECIFICATION<THN> M14 FLANGE 		0-91150-114-0 01 1 0011-0106 ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) M14 FLANGE 		0-91150-114-0 01 1 0011-0106 ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0107-0607 ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) M14 FLANGE 		0-91150-114-0 01 1 0107-0607 ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M14 FLANGE 		0-91150-114-0 01 1 0107-0607 ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0608-0712 ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) M14 FLANGE 		0-91150-114-0 01 1 0608-0712 ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M14 FLANGE 		0-91150-114-0 01 1 0608-0712 ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0801- ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) M14 FLANGE 		0-91180-114-0 01 1 0801- ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M14 FLANGE 		0-91180-114-0 01 1 0801- ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M12 FLANGE 		0-91150-112-0 01 1 0011-0602 ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M12 FLANGE 		0-91180-112-0 01 1 0603- ●

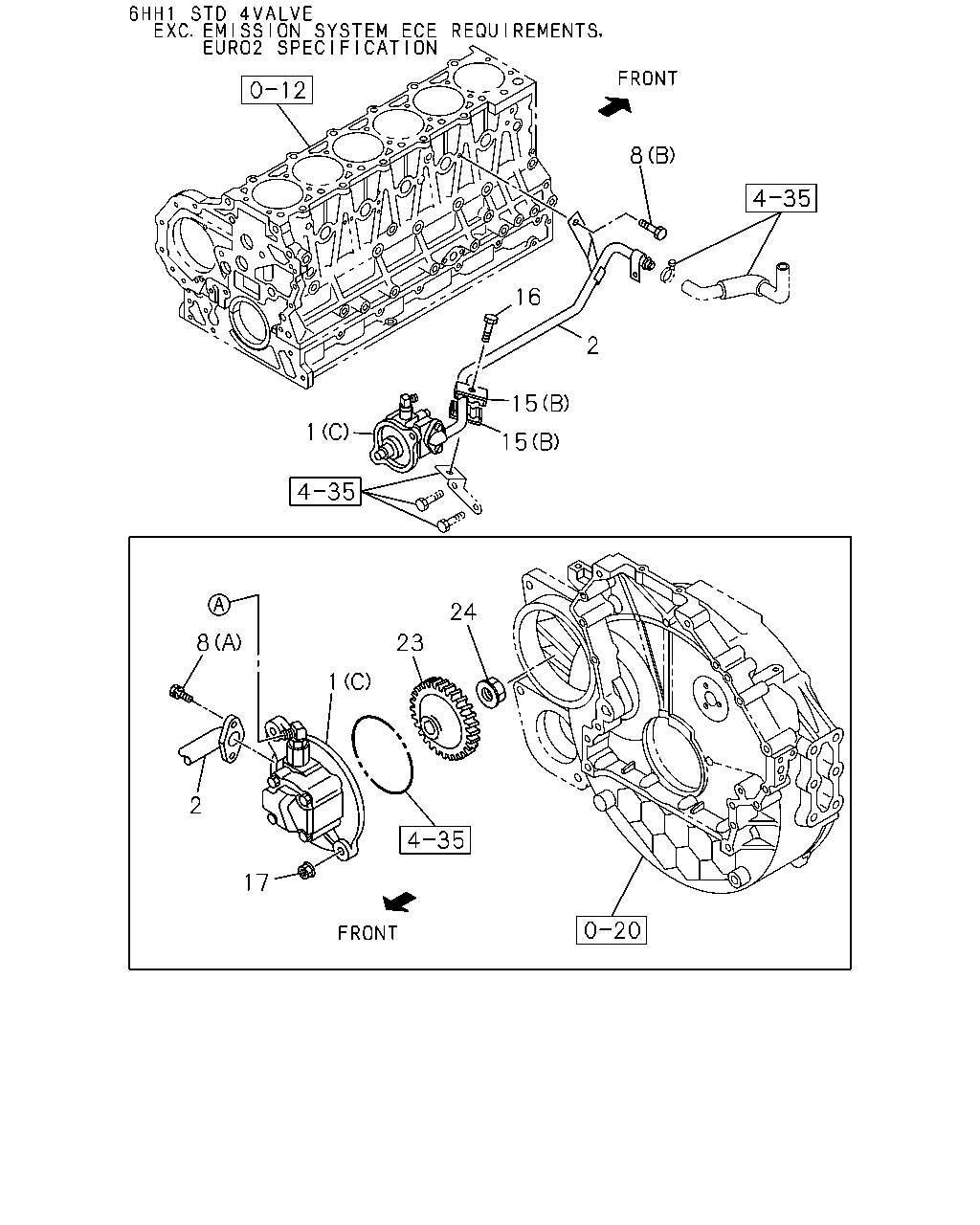

çizim 116247
8 16 2 15 1 15 24 8 23 1 2 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) 		1-19500-530-0 01 1 9803-0202 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) 		1-19500-595-1 01 1 0203-1112 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) 		8-98202-668-0 01 1 1201- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (A) 		1-19500-530-0 01 1 9510-9705 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-530-0 01 1 9706-9802 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. FRONT AXLE F063(FS7) (A) 		1-19500-530-0 01 1 9706-9802 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. FRONT AXLE F063(FS7) (A) 		1-19500-466-0 01 1 9706-9802 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-19500-548-0 01 1 9803-0010 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-19500-548-0 01 1 0011-0607 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-19500-548-0 01 1 0011-0607 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) 		1-19500-548-0 01 1 0011-0607 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-19500-548-1 01 1 0608- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) HEAVY DUTY P/S OIL PUMP<E1N> (B) 		1-19500-548-1 01 1 0608- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) 		1-19500-548-1 01 1 0608- ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) 		1-19500-580-2 01 1 0011- ●
2 PIPE ASM; OIL,SUCTION
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-97600-079-1 01 1 0011-0207 ●
2 PIPE ASM; OIL,SUCTION
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-97602-615-0 01 1 0208- ●
8 BOLT; OIL PIPE
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0512 ●
8 BOLT; OIL PIPE
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
8 BOLT; OIL PIPE
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X30 FLANGE 		0-28080-830-0 02 1 0011-0512 ●
8 BOLT; OIL PIPE
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
15 CLIP; OIL PIPE SUCTION
(A) ID=32 		1-09704-085-0 02 1 9510-0607 ●
15 CLIP; OIL PIPE SUCTION
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) ID=32 		1-09704-085-0 02 1 9510-0607 ●
15 CLIP; OIL PIPE SUCTION
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) ID=32 		1-09704-085-0 02 1 9510-0607 ●
15 CLIP; OIL PIPE SUCTION
(A) ID=32 		1-09704-085-0 02 1 0608- ●
15 CLIP; OIL PIPE SUCTION
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) ID=32 		1-09704-085-0 02 1 0608- ●
15 CLIP; OIL PIPE SUCTION
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (A) ID=32 		1-09704-085-0 02 1 0608- ●
15 CLIP; OIL PIPE SUCTION
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) 		1-09701-210-0 02 1 0011- ●
16 BOLT; STAY,P/S OIL PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M6X45 FLANGE 		0-28080-645-0 01 1 0011-0512 ●
16 BOLT; STAY,P/S OIL PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M6X45 FLANGE 		0-28050-645-0 01 1 0601- ●
17 NUT; POWER STRG PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91150-110-0 02 1 0011-0602 ●
17 NUT; POWER STRG PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91180-110-0 02 1 0603- ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 9510-0010 ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0011-0106 ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) HEAVY DUTY P/S OIL PUMP<E1N> EURO2 SPECIFICATION<THN> Z=30 		8-94396-957-3 01 1 0011-0106 ●
23 GEAR; OIL PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) Z=30 		8-94396-957-3 01 1 0011-0106 ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0107-0607 ●
23 GEAR; OIL PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) Z=30 		8-94396-957-3 01 1 0107-0607 ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> Z=30 		8-94396-957-3 01 1 0107-0607 ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0608- ●
23 GEAR; OIL PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) Z=30 		8-94396-957-3 01 1 0608- ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> Z=30 		8-94396-957-3 01 1 0608- ●
23 GEAR; OIL PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> Z=30 		8-94390-842-1 01 1 0011- ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 9510-0010 ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0011-0106 ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) HEAVY DUTY P/S OIL PUMP<E1N> EURO2 SPECIFICATION<THN> M14 FLANGE 		0-91150-114-0 01 1 0011-0106 ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) M14 FLANGE 		0-91150-114-0 01 1 0011-0106 ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0107-0607 ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) M14 FLANGE 		0-91150-114-0 01 1 0107-0607 ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M14 FLANGE 		0-91150-114-0 01 1 0107-0607 ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0608-0712 ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) M14 FLANGE 		0-91150-114-0 01 1 0608-0712 ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M14 FLANGE 		0-91150-114-0 01 1 0608-0712 ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0801- ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) M14 FLANGE 		0-91180-114-0 01 1 0801- ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M14 FLANGE 		0-91180-114-0 01 1 0801- ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M12 FLANGE 		0-91150-112-0 01 1 0011-0602 ●
24 NUT; GEAR,P/S PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M12 FLANGE 		0-91180-112-0 01 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
