Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-10B - CYLINDER HEAD COVER
▶
0-10B — CYLINDER HEAD COVER
(#401) — 47 parça
Tümü
A - 10PC1 STD ENG
B - 10PD1 STD ENG
◀
[010B] NO.2 (28 parça)
[010B] NO.1 (19 parça)
▶

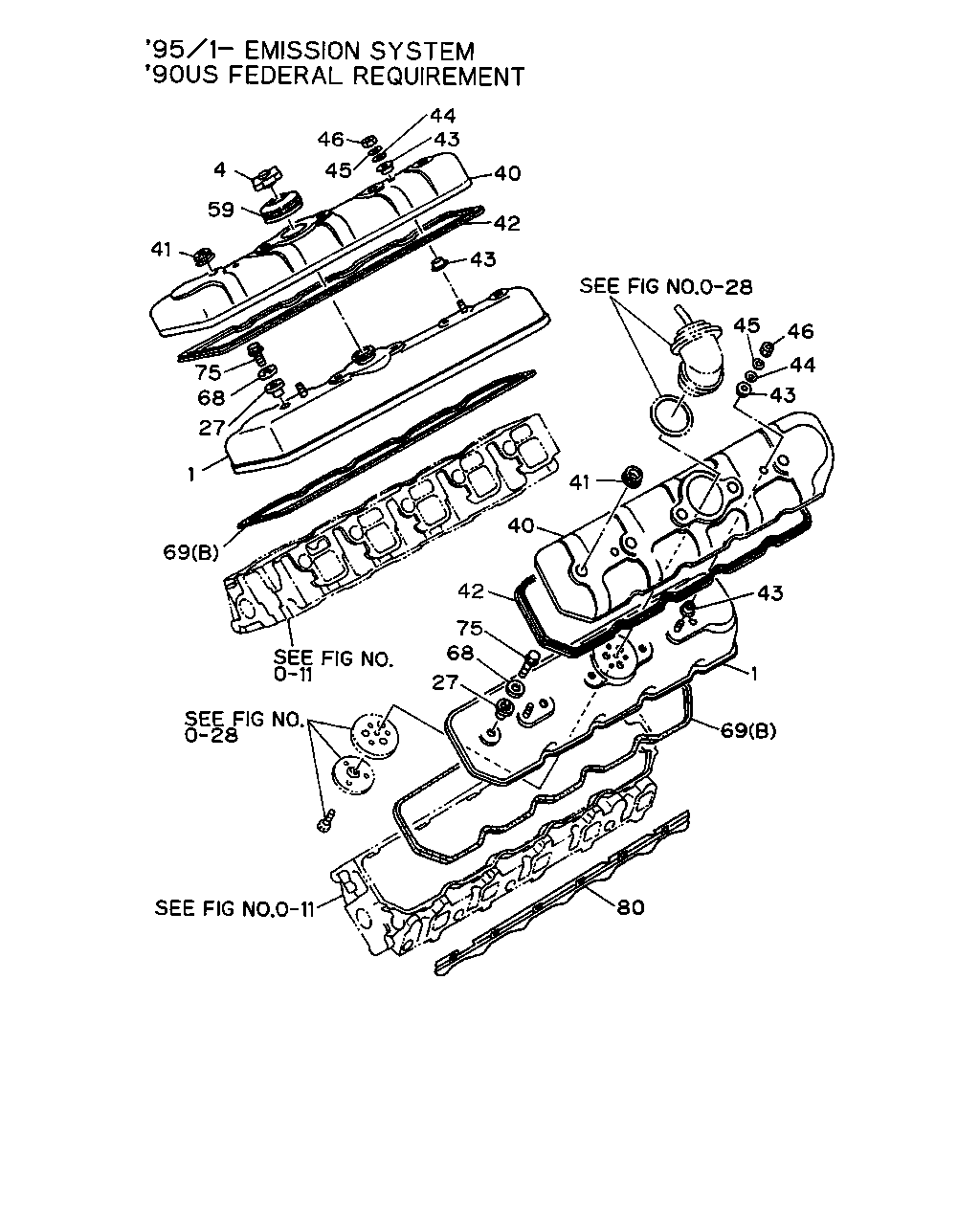

44
43
40
42
43
46
45
4
59
41
75
68
27
1
69
80
69
1
43
27
68
75
42
40
41
43
44
46
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
RH BANK
1-11171-302-3
01
1
8712-9001
●
1
COVER; CYL HD
LH BANK
1-11171-303-3
01
1
8712-9001
●
1
COVER; CYL HD
RH BANK
1-11171-344-1
01
1
9002-9412
●
1
COVER; CYL HD
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK
1-11171-344-1
01
1
9501-9504
●
1
COVER; CYL HD
LH BANK
1-11171-345-0
01
1
9002-9412
●
1
COVER; CYL HD
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK
1-11171-345-2
01
1
9501-
●
1
COVER; CYL HD
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK
1-11171-340-2
01
1
9501-9504
●
1
COVER; CYL HD
RH BANK
1-11171-340-2
01
1
9505-
●
1
COVER; CYL HD
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK
1-11171-341-2
01
1
9501-
●
4
CAP; OIL FILLER
1-11750-020-0
01
1
8712-
●
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>
1-09639-031-0
10
1
9501-
●
40
COVER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK
1-19381-202-1
01
1
9501-9504
●
40
COVER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK
1-19381-341-0
01
1
9505-
●
40
COVER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK
1-19381-203-2
01
1
9501-
●
41
GROMMET; HD COVER,OUTER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>
1-19389-004-0
10
1
9501-
●
42
SEAL; RUBBER,HD COVER,OUTER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> L=1820
1-19387-007-0
02
1
9501-
●
43
RUBBER; MTG,HD COVER,OUTER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>
1-09337-027-0
08
1
9501-
●
44
WASHER; PL,HD COVER,OUTER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=8.4 OD=18
9-09160-608-0
04
1
9501-
●
45
WASHER; LK,HD COVER,OUTER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=8.2
9-09150-508-0
04
1
9501-
●
46
NUT; HD COVER,OUTER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8
9-09110-408-0
04
1
9501-
●
59
GROMMET; OIL FILLER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>
1-09333-071-0
01
1
9501-
●
68
WASHER; CAP NUT,HD COVER
1-11179-048-0
10
1
8712-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
1-09639-031-0
10
1
8712-9412
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)
1-09639-031-0
10
1
9501-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-11173-065-0
02
1
8712-9405
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-11173-089-0
02
1
9406-
●
75
NUT; CAP,HD COVER
1-11175-008-0
10
1
8712-
●
●
80
PROTECTOR; HEAT,SEAL RUBBER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>
1-14181-183-1
02
1
9501-
●

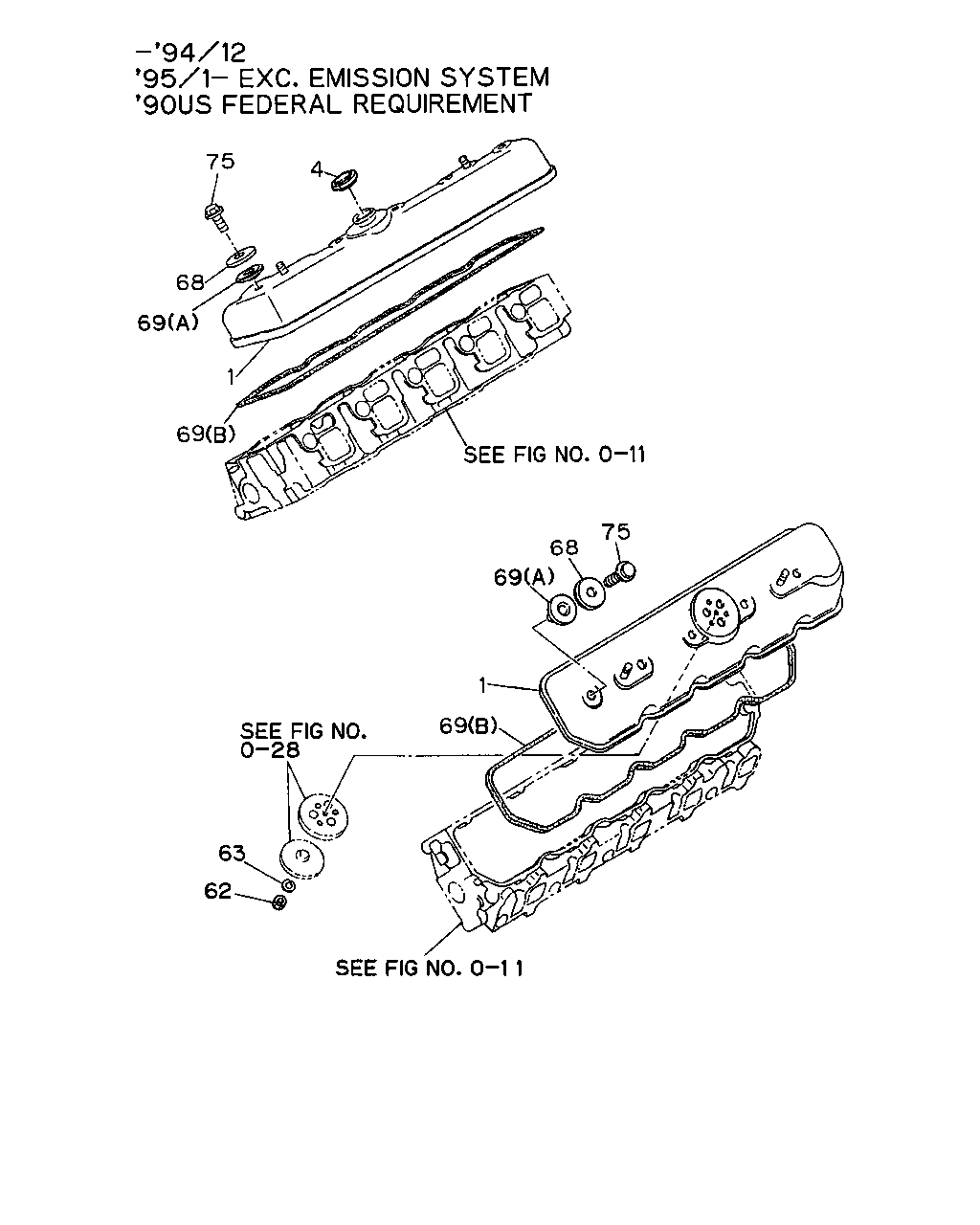

4
75
68
69
1
69
75
68
69
1
69
63
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
RH BANK
1-11171-302-3
01
1
8712-9001
●
1
COVER; CYL HD
LH BANK
1-11171-303-3
01
1
8712-9001
●
1
COVER; CYL HD
RH BANK
1-11171-344-1
01
1
9002-9412
●
1
COVER; CYL HD
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK
1-11171-344-1
01
1
9501-9504
●
1
COVER; CYL HD
LH BANK
1-11171-345-0
01
1
9002-9412
●
1
COVER; CYL HD
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK
1-11171-345-2
01
1
9501-
●
1
COVER; CYL HD
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> RH BANK
1-11171-340-2
01
1
9501-9504
●
1
COVER; CYL HD
RH BANK
1-11171-340-2
01
1
9505-
●
1
COVER; CYL HD
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK
1-11171-341-2
01
1
9501-
●
4
CAP; OIL FILLER
1-11750-020-0
01
1
8712-
●
●
62
NUT; BAFFLE PLATE
M6
9-09110-406-0
04
1
8712-9412
●
●
63
WASHER; LK,BAFFLE PLATE
ID=6.1
9-09150-506-0
04
1
8712-9412
●
●
63
WASHER; LK,BAFFLE PLATE
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=6.1
9-09150-506-0
04
1
9501-
●
68
WASHER; CAP NUT,HD COVER
1-11179-048-0
10
1
8712-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
1-09639-031-0
10
1
8712-9412
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)
1-09639-031-0
10
1
9501-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-11173-065-0
02
1
8712-9405
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-11173-089-0
02
1
9406-
●
75
NUT; CAP,HD COVER
1-11175-008-0
10
1
8712-
●
●
