1-56 — EXHAUST BRAKE SYSTEM (#40095) — 12 parça

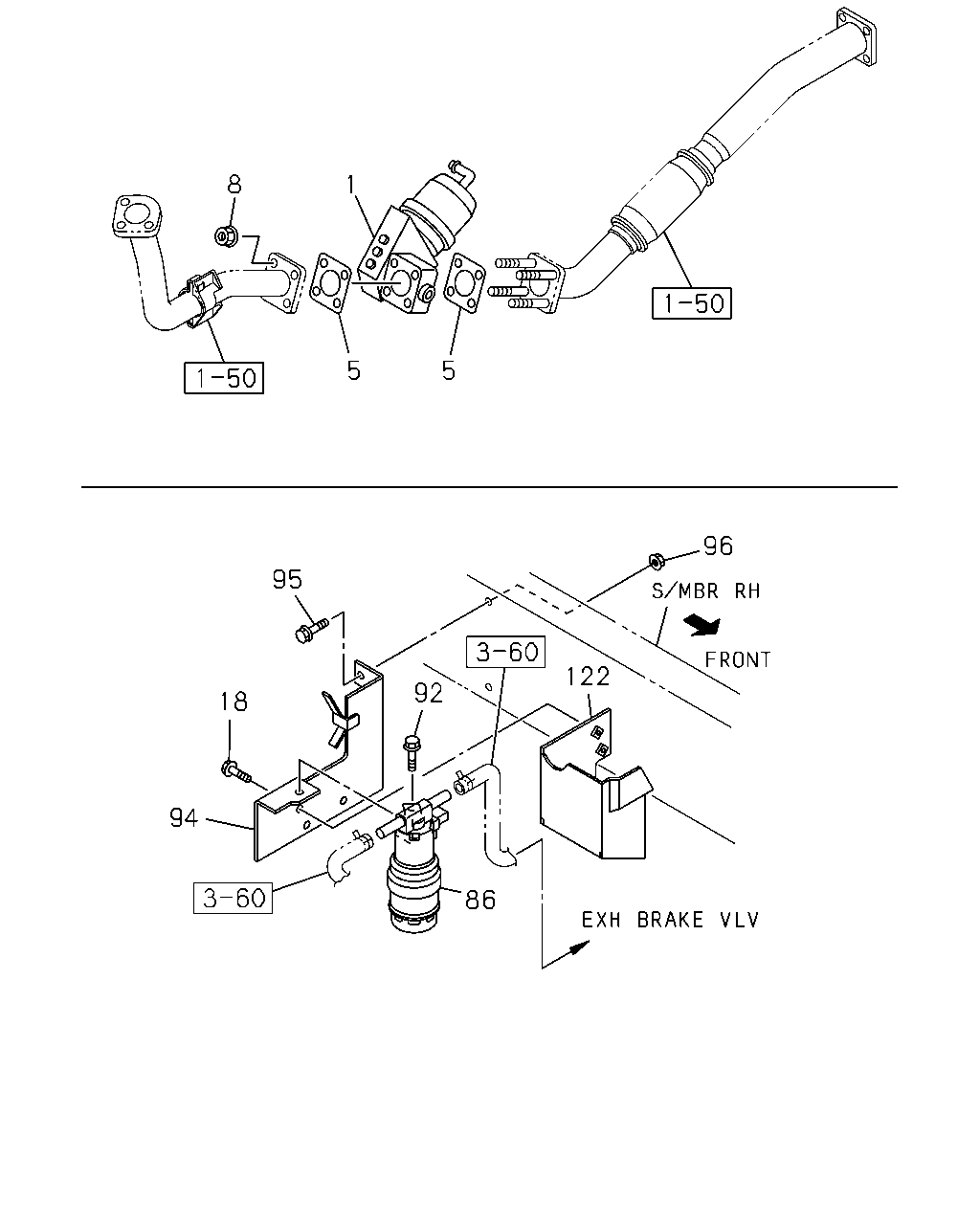

çizim 57777
8 1 5 5 96 95 122 92 18 94 86
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.632 BRAKE UNIT; EXH 8-98033-200-1 01 1 0609- ● ●
5 03.634 GASKET; EXH BRAKE UNIT
ID=54 		8-94328-354-0 02 1 0609- ● ●
8 03.632 NUT; EXH BRAKE UNIT FIX
07.833 M8 W/LK WASHER 		8-94327-073-0 04 1 0609-0805 ● ●
8 03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 0806- ● ●
18 03.636 BOLT; PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0609- ● ●
86 03.636 VALVE; MAG,EXH BRK 8-97328-576-0 01 1 0609-0609 ● ●
86 03.636 VALVE; MAG,EXH BRK 8-98043-344-0 01 1 0610- ● ●
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0609- ● ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE 8-98019-527-4 01 1 0609- ● ●
95 03.636 BOLT; BRKT,MAG VLV,EXH BRAKE
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0609- ● ●
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0609- ● ●
122 03.640 PROTECTOR; MAG VLV 8-98022-052-0 01 1 0609- ● ●
