1-50 — EXHAUST PIPE AND SILENCER (#40093) — 70 parça

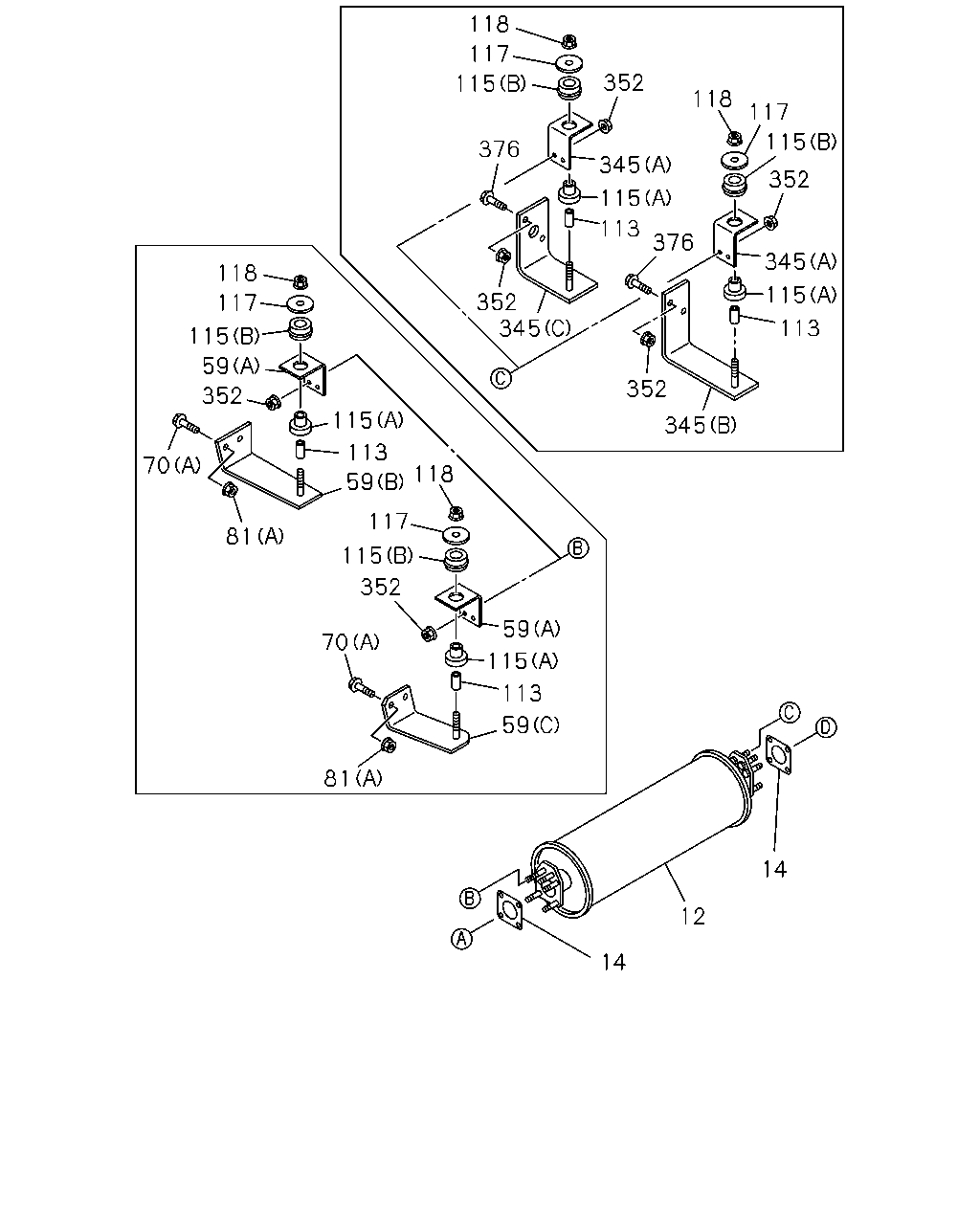

118 117 352 115 118 117 115 376 345 352 115 113 376 345 118 115 352 345 117 113 115 59 352 352 115 345 113 70 118 59 117 81 115 352 59 70 115 113 59 81 14 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH	8-98027-813-1	01	1	0609-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=64	8-97373-108-0	02	1	0609-	●	●
59	03.704 BRACKET; EXH SILENCER,FRT (B)	8-98027-820-0	01	1	0609-	●
59	03.704 BRACKET; EXH SILENCER,FRT (A)	8-98027-822-0	01	1	0609-	●	●
59	03.704 BRACKET; EXH SILENCER,FRT (C)	8-98032-798-0	01	1	0609-		●
70	03.706 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-	●	●
70	03.706 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-	●
70	03.706 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0609-		●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0609-	●	●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0609-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0609-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0609-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0609-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0609-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0609-	●	●
345	03.704 BRACKET; EXH SILENCER,RR (B)	8-98027-821-0	01	1	0609-	●
345	03.704 BRACKET; EXH SILENCER,RR (A)	8-98027-822-0	01	1	0609-	●	●
345	03.704 BRACKET; EXH SILENCER,RR (C)	8-98032-799-1	01	1	0609-		●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	06	1	0609-	●	●
376	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0708-		●
376	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0609-0707	●	●
376	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0708-	●

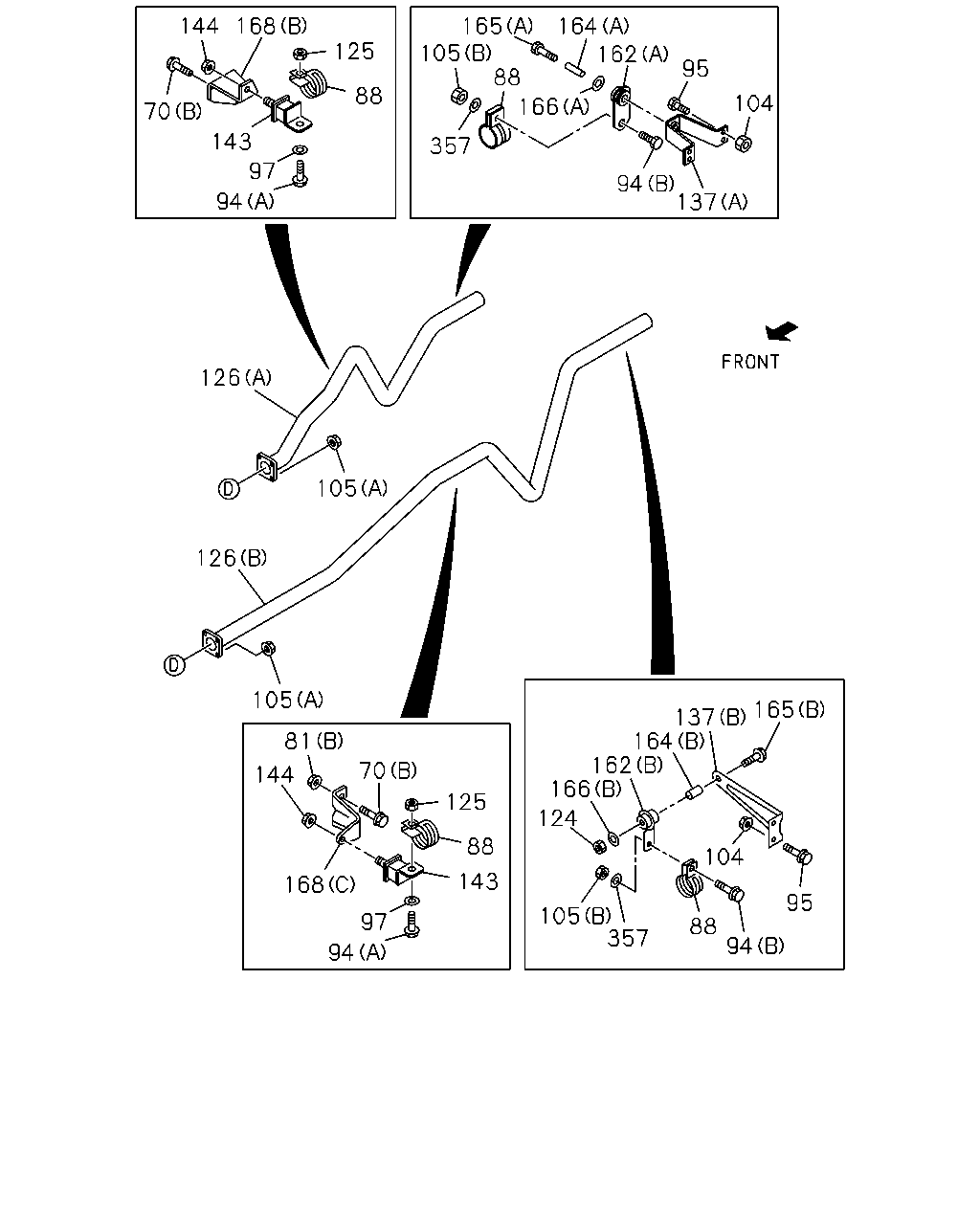

168 144 165 105 88 164 162 125 95 88 104 166 70 143 357 97 94 137 94 126 105 126 105 165 137 164 162 166 81 70 144 125 124 88 104 143 168 95 105 357 97 88 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
70	03.706 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-	●	●
70	03.706 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0609-	●
70	03.706 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0609-		●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0609-	●	●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0609-		●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0609-	●	●
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0609-	●	●
94	03.704 BOLT; CLAMP 02.277 (A) M8X40 FLANGE	0-28050-840-0	01	1	0609-	●	●
94	03.704 BOLT; CLAMP 09.173 (B) M8X45 FLANGE	0-28050-845-0	01	1	0609-	●	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●
97	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0609-	●	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0609-	●	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0609-	●	●
105	03.704 NUT; CLAMP 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0609-	●	●
124	03.704 NUT; SUPPORT RUBBER 00.833 M10	0-91110-510-0	01	1	0609-0705		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0706-		●
125	03.708 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	0609-	●	●
126	03.705 PIPE; EXH,RR (A)	8-98027-846-1	01	1	0609-	●
126	03.705 PIPE; EXH,RR (B)	8-98027-848-1	01	1	0609-		●
137	03.706 BRACKET; TAIL PIPE (A)	9-22121-146-1	01	1	0609-	●
137	03.706 BRACKET; TAIL PIPE (B)	8-94468-175-0	01	1	0609-0709		●
137	03.706 BRACKET; TAIL PIPE (B)	8-98096-331-0	01	1	0710-		●
143	03.704 RUBBER; SUPPORT	8-97371-655-1	01	1	0609-	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0609-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=180	8-97222-646-0	01	1	0609-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-94156-256-0	01	1	0609-		●
164	03.706 COLLAR; DIST,TAIL PIPE 03.616 (A) L=23	9-22151-175-0	01	1	0609-	●
164	03.706 COLLAR; DIST,TAIL PIPE (B) L=37.5	9-22151-217-0	01	1	0609-		●
165	03.706 BOLT; SUPPORT RUBBER 09.173 (A) M8X45 FLANGE	0-28050-845-0	01	1	0609-	●
165	03.706 BOLT; SUPPORT RUBBER (B) M10X70 FLANGE	0-28051-070-0	01	1	0609-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI (A) ID=8.4 OD=26	0-91614-808-0	01	1	0609-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 (B) ID=10.5 OD=32	0-91614-810-0	01	1	0609-		●
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97210-476-0	01	1	0609-	●
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-98026-063-0	01	1	0609-	●	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (C)	8-94468-174-1	01	1	0609-		●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0609-	●	●

2 38 25 36 1 44 168 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH	8-98027-804-0	01	1	0609-0805	●	●
1	03.609 PIPE; EXH	8-98075-966-0	01	1	0806-	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0609-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98027-805-1	01	1	0609-	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0609-	●	●
38	00.002 NUT; SILENCER 01.062 M8 FLANGE	0-91180-108-0	04	1	0609-	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0609-	●	●
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0609-	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0609-	●	●
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97210-476-0	01	1	0609-	●
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-98026-063-0	01	1	0609-	●	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (C)	8-94468-174-1	01	1	0609-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
