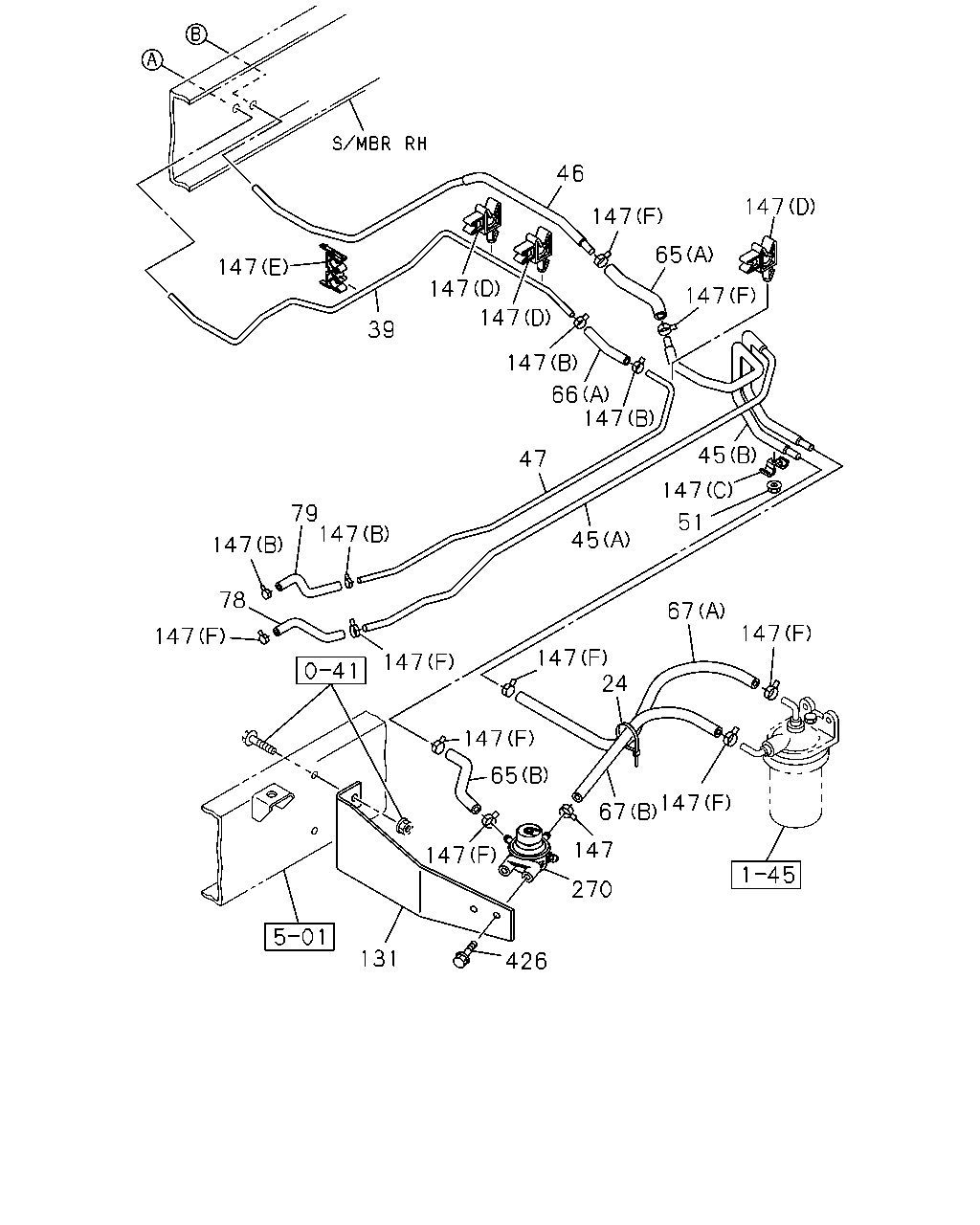

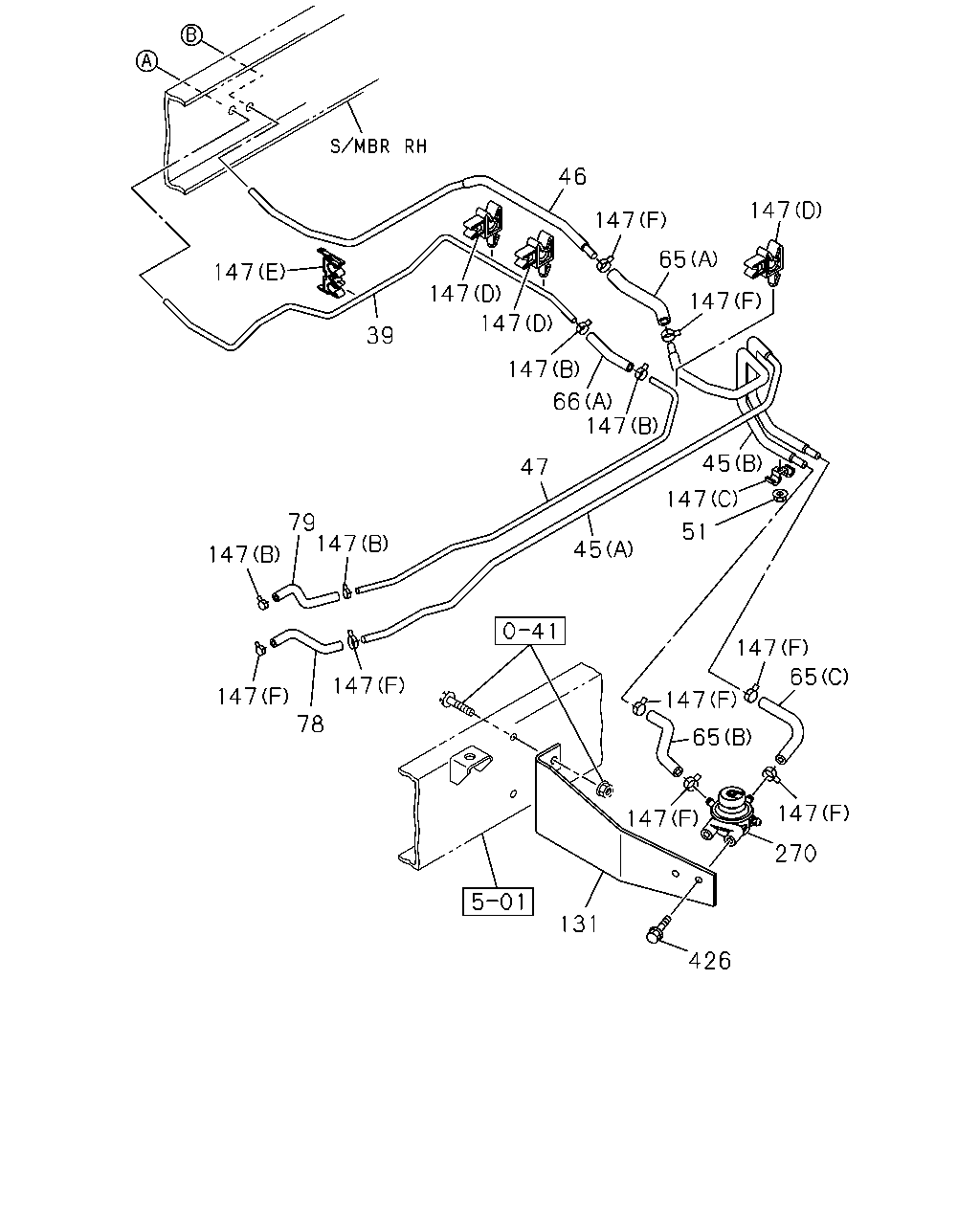

1-41 — FUEL PIPING; CHASSIS (#40091) — 115 parça

46 147 147 65 147 147 147 147 39 147 66 147 45 47 147 79 147 51 45 147 78 67 147 147 147 24 147 147 65 147 67 147 147 270 131 426

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE L=140	5-09707-031-1	01	1	0609-0609	●	●
24	03.162 CLIP; FUEL HOSE L=140	5-09707-031-1	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE L=140	5-09707-031-1	01	1	0610-	●	●
39	03.163 PIPE; FUEL	8-98025-784-0	01	1	0609-	●
39	03.163 PIPE; FUEL	8-98000-542-0	01	1	0609-		●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-98025-782-0	01	1	0609-	●
45	03.163 PIPE; FUEL,DELIVERY (B)	8-98025-788-0	01	1	0609-	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-98000-534-2	01	1	0609-		●
45	03.163 PIPE; FUEL,DELIVERY (B)	8-98023-729-0	01	1	0609-		●
46	03.163 PIPE; FUEL,TANK SIDE	8-98025-783-0	01	1	0609-	●
46	03.163 PIPE; FUEL,TANK SIDE	8-98000-535-1	01	1	0609-		●
47	03.163 PIPE; FUEL,RETURN	8-98025-785-0	01	1	0609-	●
47	03.163 PIPE; FUEL,RETURN	8-98000-541-0	01	1	0609-		●
51	03.162 NUT; CLIP,PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0609-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0609-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0609-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (C) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0609-0609	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0609-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0609-0701	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=350 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0609-0701	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0609-0701		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=440 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●
67	03.163 HOSE; FUEL,DELIVERY 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0610-	●
67	03.163 HOSE; FUEL,DELIVERY 03.003 (A) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0610-	●
67	03.163 HOSE; FUEL,DELIVERY 03.003 (B) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0610-		●
67	03.163 HOSE; FUEL,DELIVERY 03.003 (A) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0610-		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0609-	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98023-329-1	01	1	0609-0701	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98065-039-1	01	1	0702-	●	●
131	03.162 BRACKET; SUB PUMP	8-98032-701-0	01	1	0609-	●
131	03.162 BRACKET; SUB PUMP	8-98025-989-0	01	1	0609-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	02	1	0610-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (F) ID=16	8-98008-098-0	09	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.047 (C) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0609-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	09	1	0609-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (F) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (A) ID=19	8-94238-569-0	01	1	0609-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=19	8-98150-356-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0609-0701	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	06	1	0702-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	06	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	03	1	0609-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0609-		●
270	03.900 PUMP ASM; FUEL	8-98018-187-2	01	1	0609-	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0609-	●	●

231 61 147 66 231 61 147 65 147 65 24 147 147 147 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	03.162 CLIP; FUEL HOSE L=140	5-09707-031-1	01	1	0609-0609	●	●
24	03.162 CLIP; FUEL HOSE L=140	5-09707-031-1	01	1	0610-	●	●
24	03.162 CLIP; FUEL HOSE L=140	5-09707-031-1	01	1	0610-	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0609-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0609-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0609-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (C) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0609-0609	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0609-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0609-0701	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=350 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0609-0701	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0609-0701		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=440 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	02	1	0610-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (F) ID=16	8-98008-098-0	09	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.047 (C) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0609-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	09	1	0609-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (F) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (A) ID=19	8-94238-569-0	01	1	0609-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=19	8-98150-356-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0609-0701	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	06	1	0702-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	06	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	03	1	0609-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0609-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0609-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0609-	●	●

46 147 147 65 147 147 147 147 39 147 66 147 45 47 147 79 147 51 45 147 65 147 147 78 147 65 147 147 270 131 426 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	03.163 PIPE; FUEL	8-98025-784-0	01	1	0609-	●
39	03.163 PIPE; FUEL	8-98000-542-0	01	1	0609-		●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-98025-782-0	01	1	0609-	●
45	03.163 PIPE; FUEL,DELIVERY (B)	8-98025-788-0	01	1	0609-	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-98000-534-2	01	1	0609-		●
45	03.163 PIPE; FUEL,DELIVERY (B)	8-98023-729-0	01	1	0609-		●
46	03.163 PIPE; FUEL,TANK SIDE	8-98025-783-0	01	1	0609-	●
46	03.163 PIPE; FUEL,TANK SIDE	8-98000-535-1	01	1	0609-		●
47	03.163 PIPE; FUEL,RETURN	8-98025-785-0	01	1	0609-	●
47	03.163 PIPE; FUEL,RETURN	8-98000-541-0	01	1	0609-		●
51	03.162 NUT; CLIP,PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0609-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0609-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0609-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (C) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0609-0609	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0609-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0609-0701	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=350 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0609-0701	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0609-0701		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=440 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0609-	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98023-329-1	01	1	0609-0701	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98065-039-1	01	1	0702-	●	●
131	03.162 BRACKET; SUB PUMP	8-98032-701-0	01	1	0609-	●
131	03.162 BRACKET; SUB PUMP	8-98025-989-0	01	1	0609-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	02	1	0610-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (F) ID=16	8-98008-098-0	09	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.047 (C) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0609-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	09	1	0609-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (F) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (A) ID=19	8-94238-569-0	01	1	0609-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (A) ID=19	8-98150-356-0	01	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0609-0701	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	06	1	0702-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (B) ID=12	8-98150-358-0	06	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	03	1	0609-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0609-		●
270	03.900 PUMP ASM; FUEL	8-98018-187-2	01	1	0609-	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0609-	●	●
