4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#4009) — 227 parça

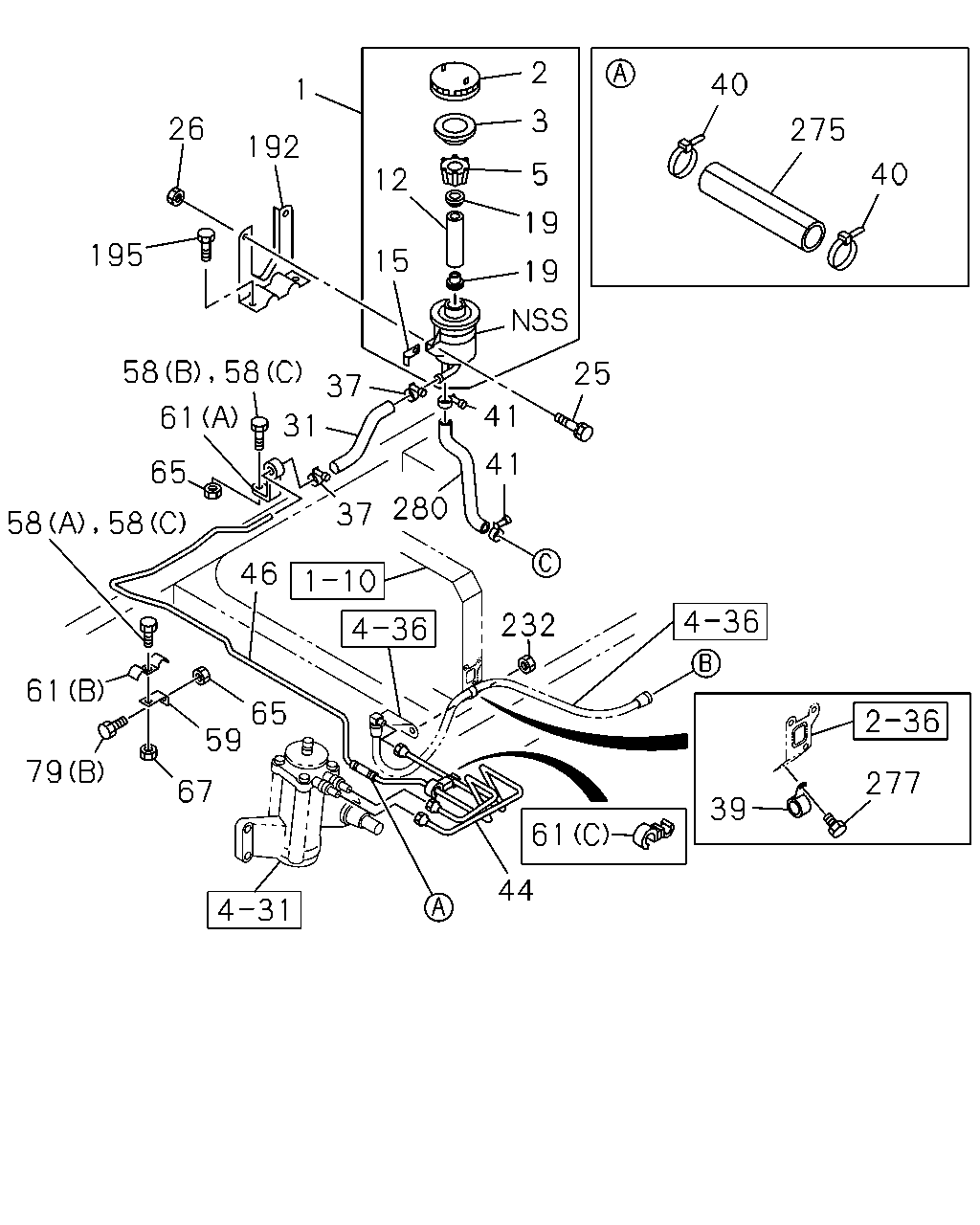

çizim 115781
2 40 1 3 26 275 192 5 40 12 19 195 15 19 25 37 41 61 31 41 65 37 280 58 58 46 232 61 65 59 79 277 67 39 61 44 58 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 9510-0508 ● ●
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006 ● ●
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007- ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 9510-1006 ● ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007- ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9510- ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9510- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 9510- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 9510-0508 ● ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509- ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 9510- ● ●
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512 ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
26 NUT; OIL TANK TO BRKT
M8 		9-09110-408-0 02 1 9510-9606 ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0602 ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
31 HOSE; P/S OIL TANK,INL
6HK1 TCC ENG(81L) 		1-21113-590-0 01 1 0608- ●
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 9510-0607 ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0608- ●
31 HOSE; P/S OIL TANK,INL
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) 		1-21113-591-1 01 1 0608- ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9510- ● ●
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 9510- ● ●
40 CLIP; BAND
L=140 		5-09707-031-1 02 1 9901- ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9510- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
6HK1 TCC ENG(81L) 		1-21115-359-0 01 1 0608- ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-366-0 01 1 9510-0607 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-366-0 01 1 0608- ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) 		1-21115-366-0 01 1 0608- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
6HK1 TCC ENG(81L) 		1-21117-688-0 01 1 0608- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21115-367-0 01 1 9510-9712 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-023-0 01 1 9801-9802 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-027-1 01 1 9803-9809 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-207-0 01 1 9810-0607 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-207-0 01 1 0608- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) 		1-21116-207-0 01 1 0608- ●
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606 ● ●
58 BOLT; CLIP
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9802 ● ●
58 BOLT; CLIP
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ● ●
58 BOLT; CLIP
(C) M8X25 FLANGE 		0-28680-825-0 03 1 9803-0512 ● ●
58 BOLT; CLIP
(C) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 9510- ● ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 02 1 9510- ● ●
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9510- ● ●
61 CLIP; OIL PIPE
(C) ID=12 & 15 		1-09709-281-1 01 1 9510- ● ●
65 NUT; BRKT
M8 		9-09110-408-0 03 1 9510-9606 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 9607-0602 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
67 NUT; BRKT
M8 		9-09110-408-0 01 1 9510-9606 ● ●
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9607-0602 ● ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512 ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512 ●
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512 ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0607 ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0607 ●
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0607 ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0608- ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE 		0-28050-812-0 02 1 0608- ●
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (A) M8X12 FLANGE 		0-28050-812-0 02 1 0608- ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606 ● ●
79 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9802-9802 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9803-0512 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M10X16 FLANGE 		0-28181-016-0 01 1 0011-0512 ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M14X20 FLANGE 		0-28881-420-0 01 1 0011-0512 ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M14X20 FLANGE 		0-28851-420-0 01 1 0601- ●
192 BRACKET; P/S OIL TANK
6HK1 TCC ENG(81L) 		1-21119-142-1 01 1 0608- ●
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 9510-0601 ● ●
192 BRACKET; P/S OIL TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-21119-129-0 01 1 0602- ●
192 BRACKET; P/S OIL TANK
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) 		1-21119-129-0 01 1 0602- ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 9510-9606 ● ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 9607-0512 ● ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
232 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9606 ● ●
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0602 ● ●
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
275 SLEEVE; RUBBER
L=1300 		1-09360-677-1 01 1 9901- ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0512 ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
280 HOSE; P/S OIL PUMP,INL
6HK1 TCC ENG(81L) 		1-21116-721-0 01 1 0608- ●
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 9510-0004 ● ●
280 HOSE; P/S OIL PUMP,INL 1-21116-695-0 01 1 0005-0607 ● ●
280 HOSE; P/S OIL PUMP,INL 1-21116-695-0 01 1 0608- ●
280 HOSE; P/S OIL PUMP,INL
6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) 		1-21116-695-0 01 1 0608- ●

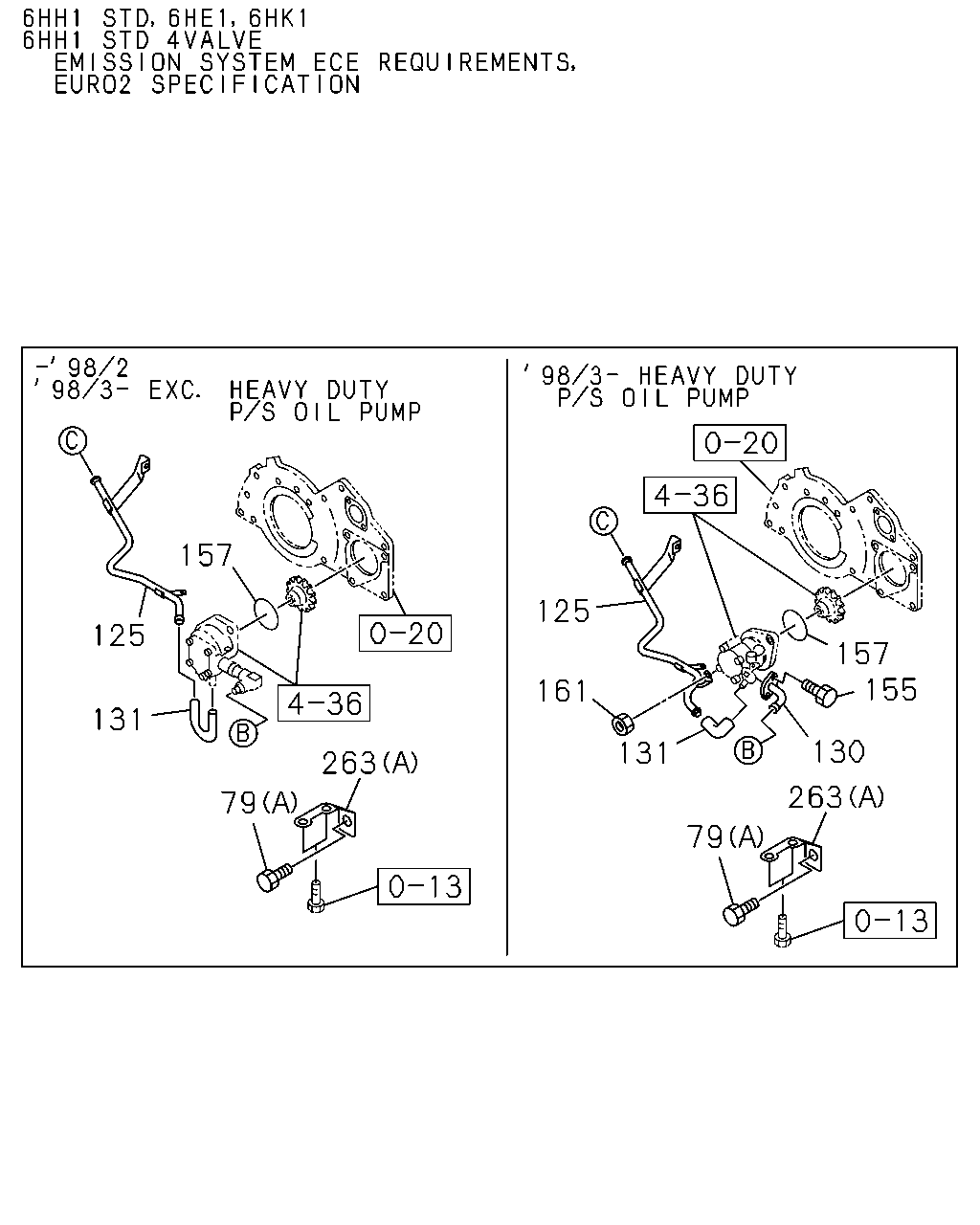

çizim 116185
157 125 125 157 155 161 131 131 130 263 263 79 79
BalonParca AdiParca NoAdetTipApplied Date A B
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512 ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512 ●
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512 ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0607 ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0607 ●
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0607 ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0608- ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE 		0-28050-812-0 02 1 0608- ●
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (A) M8X12 FLANGE 		0-28050-812-0 02 1 0608- ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606 ● ●
79 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9802-9802 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9803-0512 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M10X16 FLANGE 		0-28181-016-0 01 1 0011-0512 ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M14X20 FLANGE 		0-28881-420-0 01 1 0011-0512 ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M14X20 FLANGE 		0-28851-420-0 01 1 0601- ●
125 CONNECTOR; P/S PUMP 8-94394-319-0 01 1 9510-9605 ● ●
125 CONNECTOR; P/S PUMP 8-94390-310-0 01 1 9606-9802 ● ●
125 CONNECTOR; P/S PUMP
HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-584-1 01 1 9803-0004 ● ●
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) EXC. HEAVY DUTY P/S OIL PUMP<E1N> 		8-97600-115-0 01 1 0005- ●
125 CONNECTOR; P/S PUMP
HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-584-1 01 1 0005-0208 ● ●
125 CONNECTOR; P/S PUMP
HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-584-1 01 1 0209-0212 ●
125 CONNECTOR; P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-584-1 01 1 0209-0212 ●
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-94390-584-1 01 1 0209-0212 ●
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N> EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-94390-584-1 01 1 0301-0607 ● ●
125 CONNECTOR; P/S PUMP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-584-1 01 1 0301-0607 ● ●
125 CONNECTOR; P/S PUMP
6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N> EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-94390-584-1 01 1 0608-0608 ● ●
125 CONNECTOR; P/S PUMP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-584-1 01 1 0608-0608 ● ●
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94390-584-1 01 1 0608-0608 ●
125 CONNECTOR; P/S PUMP
6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N> EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		8-94390-584-1 01 1 0608- ● ●
125 CONNECTOR; P/S PUMP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-584-1 01 1 0608- ● ●
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94390-584-1 01 1 0608- ●
125 CONNECTOR; P/S PUMP
6HK1 TCC ENG(81L) 		8-94390-584-1 01 1 0608- ●
125 CONNECTOR; P/S PUMP
EXC. HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-310-0 01 1 9803-9901 ● ●
125 CONNECTOR; P/S PUMP
EXC. HEAVY DUTY P/S OIL PUMP<E1N> 		8-97600-113-0 01 1 9902-0004 ● ●
125 CONNECTOR; P/S PUMP
EXC. HEAVY DUTY P/S OIL PUMP<E1N> 		8-97600-113-0 01 1 0005- ●
125 CONNECTOR; P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) EXC. HEAVY DUTY P/S OIL PUMP<E1N> 		8-97600-113-0 01 1 0005- ●
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> ANTI NOISE EQUIPMENT ECE<SLK> 		8-94391-745-0 01 1 0209-0212 ●
125 CONNECTOR; P/S PUMP
6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) HEAVY DUTY P/S OIL PUMP<E1N> ANTI NOISE EQUIPMENT ECE<SLK> 		8-94391-745-0 01 1 0301- ● ●
130 ADAPTER; P/S PUMP
HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-583-0 01 1 9803-0010 ● ●
130 ADAPTER; P/S PUMP
HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-583-0 01 1 0011-0607 ●
130 ADAPTER; P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-583-0 01 1 0011-0607 ●
130 ADAPTER; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94390-583-0 01 1 0011-0607 ●
130 ADAPTER; P/S PUMP
HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-583-0 01 1 0608- ●
130 ADAPTER; P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-583-0 01 1 0608- ●
130 ADAPTER; P/S PUMP
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94390-583-0 01 1 0608- ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 9510-0106 ● ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0107-0607 ●
131 HOSE; RUBBER,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) 		8-94396-331-1 01 1 0107-0607 ●
131 HOSE; RUBBER,P/S
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94396-331-1 01 1 0107-0607 ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0608- ●
131 HOSE; RUBBER,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) 		8-94396-331-1 01 1 0608- ●
131 HOSE; RUBBER,P/S
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94396-331-1 01 1 0608- ●
155 BOLT; CONNECTOR
HEAVY DUTY P/S OIL PUMP<E1N> M8X16 FLANGE 		0-28080-816-0 02 1 9803-0512 ● ●
155 BOLT; CONNECTOR
HEAVY DUTY P/S OIL PUMP<E1N> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9510-0012 ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-178-0 01 1 0101-0106 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) HEAVY DUTY P/S OIL PUMP<E1N> EURO2 SPECIFICATION<THN> ID=96.4 		1-09623-178-0 01 1 0101-0106 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ID=96.4 		1-09623-178-0 01 1 0101-0106 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-178-0 01 1 0107-0607 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ID=96.4 		1-09623-178-0 01 1 0107-0607 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=96.4 		1-09623-178-0 01 1 0107-0607 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-178-0 01 1 0608- ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) ID=96.4 		1-09623-178-0 01 1 0608- ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=96.4 		1-09623-178-0 01 1 0608- ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=105.6 		1-09623-247-0 01 1 0011-0412 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=105.6 		8-97386-295-0 01 1 0501- ●
161 NUT; P/S PIPE
HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE 		0-91150-110-0 01 1 9803-0010 ● ●
161 NUT; P/S PIPE
HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE 		0-91150-110-0 01 1 0011-0602 ●
161 NUT; P/S PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE 		0-91150-110-0 01 1 0011-0602 ●
161 NUT; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91150-110-0 01 1 0011-0602 ●
161 NUT; P/S PIPE
HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE 		0-91180-110-0 01 1 0603-0607 ●
161 NUT; P/S PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE 		0-91180-110-0 01 1 0603-0607 ●
161 NUT; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91180-110-0 01 1 0603-0607 ●
161 NUT; P/S PIPE
HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE 		0-91180-110-0 01 1 0608- ●
161 NUT; P/S PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE 		0-91180-110-0 01 1 0608- ●
161 NUT; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91180-110-0 01 1 0608- ●
263 BRACKET; P/S PIPE
(A) 		8-94393-981-0 01 1 9510-9901 ● ●
263 BRACKET; P/S PIPE
(A) 		8-97600-117-0 01 1 9902-0009 ● ●
263 BRACKET; P/S PIPE
(A) 		8-97600-117-0 01 1 0010-0106 ●
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) 		8-97600-117-0 01 1 0010-0106 ●
263 BRACKET; P/S PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) 		8-97600-117-0 01 1 0010-0106 ●
263 BRACKET; P/S PIPE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A) 		8-97600-117-0 01 1 0107-0111 ● ●
263 BRACKET; P/S PIPE
6HH1 STD ENG(65L) (A) 		8-97600-117-0 01 1 0107-0111 ●
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) 		8-97600-117-0 01 1 0107-0111 ●
263 BRACKET; P/S PIPE
(A) 		8-97600-117-0 01 1 0112-0607 ●
263 BRACKET; P/S PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) 		8-97600-117-0 01 1 0112-0607 ●
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) 		8-97600-117-0 01 1 0112-0607 ●
263 BRACKET; P/S PIPE
(A) 		8-97600-117-0 01 1 0608- ●
263 BRACKET; P/S PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (A) 		8-97600-117-0 01 1 0608- ●
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) 		8-97600-117-0 01 1 0608- ●
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) 		8-97600-076-0 01 1 0011- ●

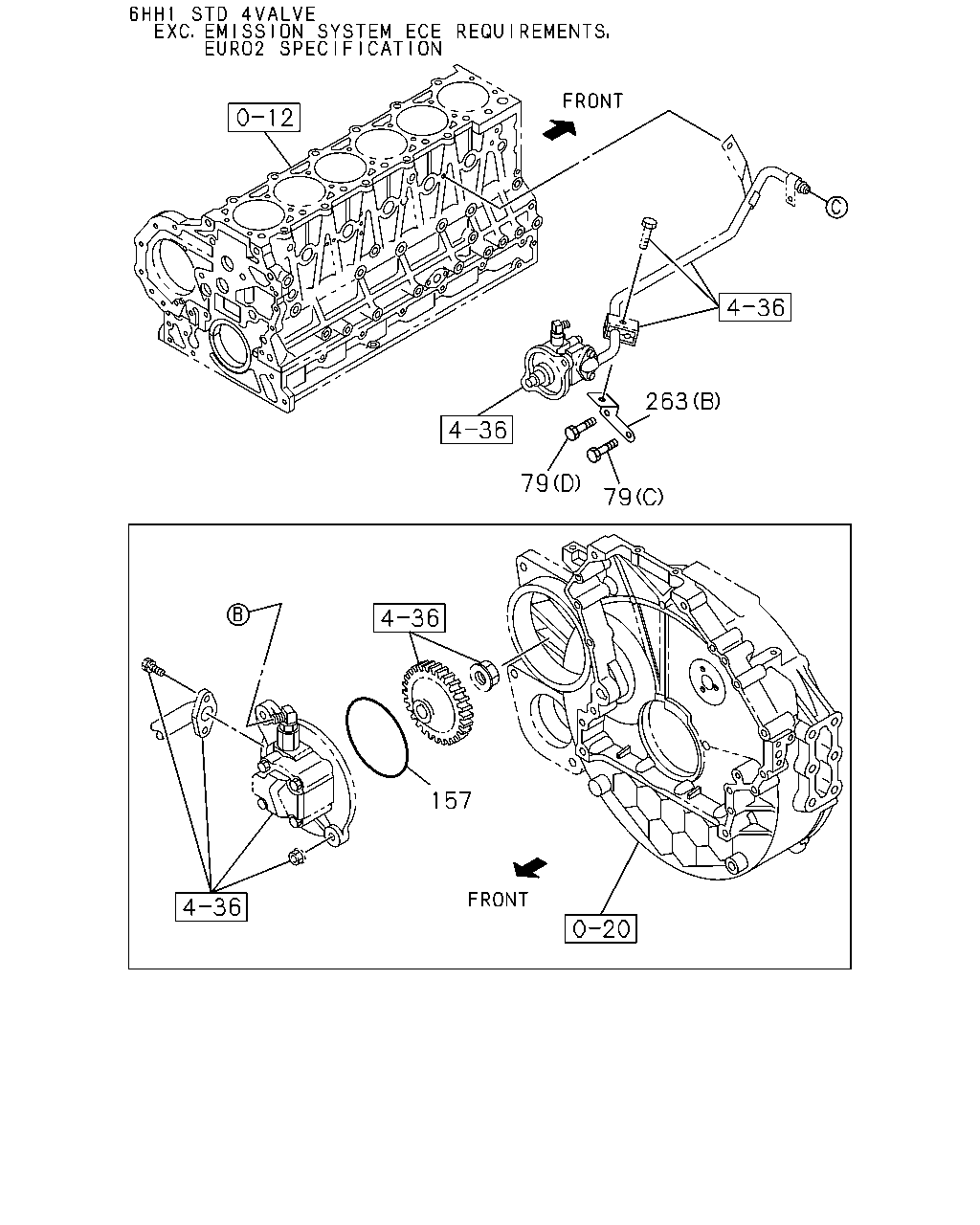

çizim 116236
263 79 79 157
BalonParca AdiParca NoAdetTipApplied Date A B
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512 ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512 ●
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0512 ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0607 ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0607 ●
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0607 ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0608- ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE 		0-28050-812-0 02 1 0608- ●
79 BOLT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (A) M8X12 FLANGE 		0-28050-812-0 02 1 0608- ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606 ● ●
79 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9802-9802 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9803-0512 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M10X16 FLANGE 		0-28181-016-0 01 1 0011-0512 ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M14X20 FLANGE 		0-28881-420-0 01 1 0011-0512 ●
79 BOLT; BRKT
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (D) M14X20 FLANGE 		0-28851-420-0 01 1 0601- ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9510-0012 ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-178-0 01 1 0101-0106 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41) HEAVY DUTY P/S OIL PUMP<E1N> EURO2 SPECIFICATION<THN> ID=96.4 		1-09623-178-0 01 1 0101-0106 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ID=96.4 		1-09623-178-0 01 1 0101-0106 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-178-0 01 1 0107-0607 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) ID=96.4 		1-09623-178-0 01 1 0107-0607 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=96.4 		1-09623-178-0 01 1 0107-0607 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-178-0 01 1 0608- ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) ID=96.4 		1-09623-178-0 01 1 0608- ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=96.4 		1-09623-178-0 01 1 0608- ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=105.6 		1-09623-247-0 01 1 0011-0412 ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> ID=105.6 		8-97386-295-0 01 1 0501- ●
263 BRACKET; P/S PIPE
(A) 		8-94393-981-0 01 1 9510-9901 ● ●
263 BRACKET; P/S PIPE
(A) 		8-97600-117-0 01 1 9902-0009 ● ●
263 BRACKET; P/S PIPE
(A) 		8-97600-117-0 01 1 0010-0106 ●
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) 		8-97600-117-0 01 1 0010-0106 ●
263 BRACKET; P/S PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) 		8-97600-117-0 01 1 0010-0106 ●
263 BRACKET; P/S PIPE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A) 		8-97600-117-0 01 1 0107-0111 ● ●
263 BRACKET; P/S PIPE
6HH1 STD ENG(65L) (A) 		8-97600-117-0 01 1 0107-0111 ●
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) 		8-97600-117-0 01 1 0107-0111 ●
263 BRACKET; P/S PIPE
(A) 		8-97600-117-0 01 1 0112-0607 ●
263 BRACKET; P/S PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) (A) 		8-97600-117-0 01 1 0112-0607 ●
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) 		8-97600-117-0 01 1 0112-0607 ●
263 BRACKET; P/S PIPE
(A) 		8-97600-117-0 01 1 0608- ●
263 BRACKET; P/S PIPE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (A) 		8-97600-117-0 01 1 0608- ●
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) 		8-97600-117-0 01 1 0608- ●
263 BRACKET; P/S PIPE
6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) 		8-97600-076-0 01 1 0011- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
