Isuzu WW
▶
TRUCKS
▶
NKR
▶
51127 - NKR85(LHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#40084) — 26 parça
Tümü
A - NKB6SC
B - NKC6SF
◀
[101A] BRKT;ENG HARNESS (1 parça)
[101A] IDLE ACCEL SWITCH (3 parça)
[101A] ACCEL PEDAL (22 parça)
▶

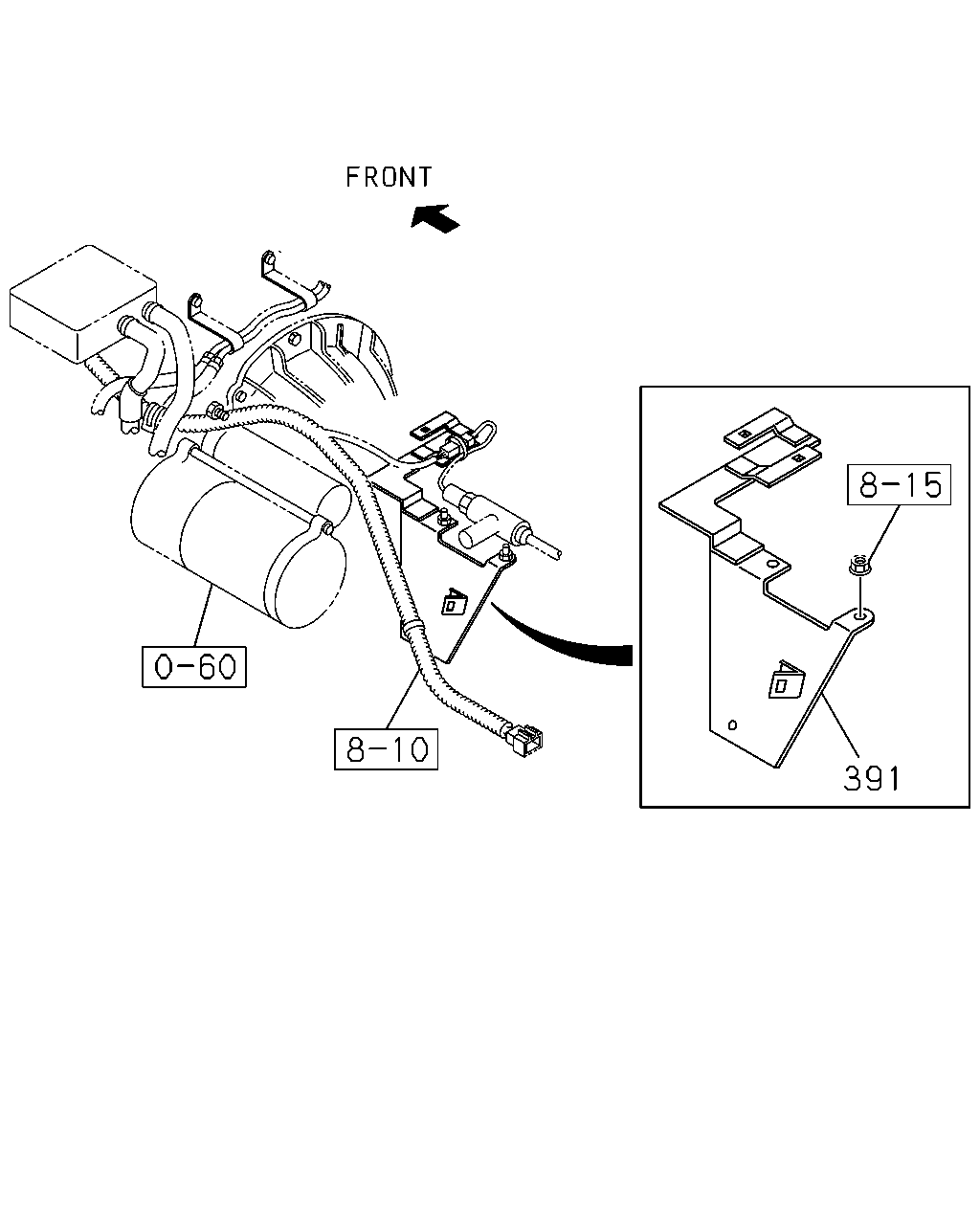

391
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
391
03.452 BRACKET; ENG CONT
8-97357-141-0
01
1
0609-
●
●

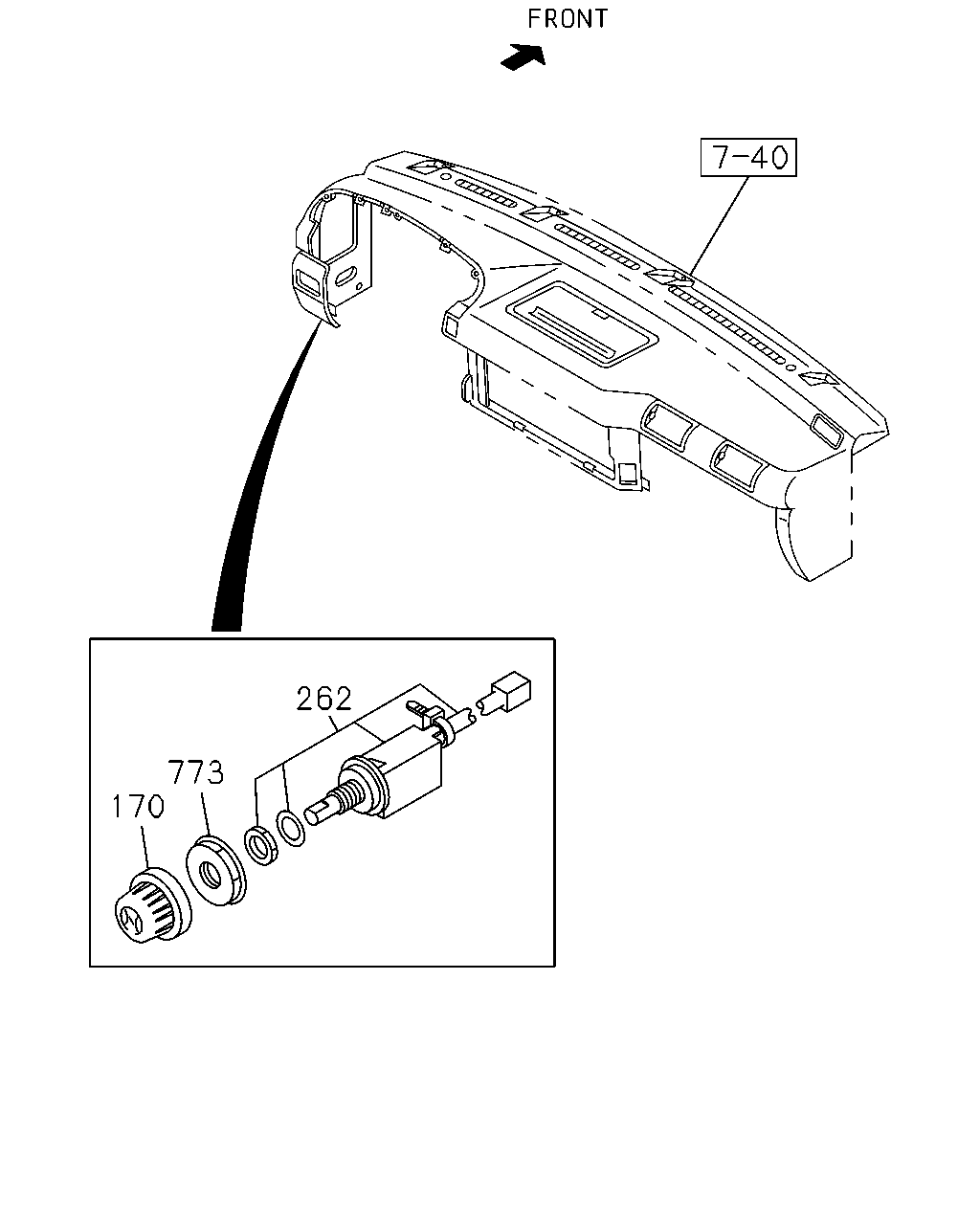

262
773
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
170
03.480 KNOB
8-97310-165-0
01
1
0609-
●
●
262
03.452 SWITCH; ACCEL,IDLE
8-97215-119-1
01
1
0609-
●
●
773
03.452 HOLDER; ACCEL PEDAL
8-97352-127-0
01
1
0609-
●
●

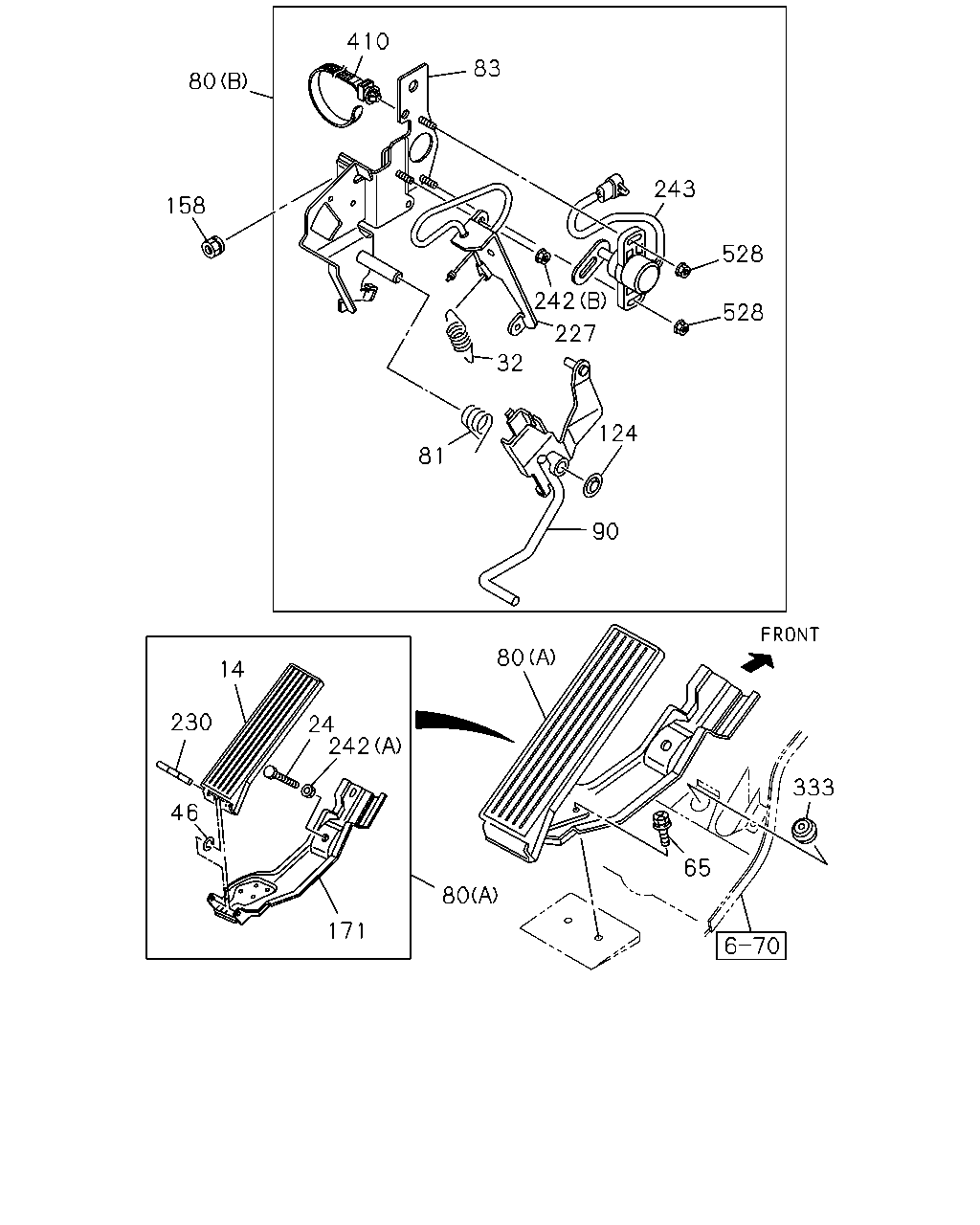

410
83
80
243
158
528
242
528
227
32
124
81
90
80
14
230
24
242
333
46
65
80
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
03.451 PAD; PEDAL,ACCEL
8-97859-101-0
01
1
0609-
●
●
24
03.483 BOLT; BRKT
03.459
0-20800-840-0
01
1
0609-
●
●
32
03.459 SPRING; RETURN,ACCEL PEDAL
8-97997-917-0
01
1
0609-
●
●
46
03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4
0-91805-504-0
01
1
0609-
●
●
65
03.483 BOLT
16.550 M8X16 W/LK&PL WASHER
8-94310-730-0
03
1
0609-
●
●
80
03.452 LINK ASM; ENG CONT
(A)
8-97859-100-0
01
1
0609-
●
●
80
03.452 LINK ASM; ENG CONT
(B)
8-98032-148-1
01
1
0609-
●
●
81
03.459 SPRING; RETURN,ENG CONT LEVER
8-97853-205-1
01
1
0609-
●
●
83
03.452 BRACKET; CONT LINK
8-98032-263-1
01
1
0609-
●
●
90
03.454 LEVER; RELAY,ENG CONT
8-97994-590-3
01
1
0609-
●
●
124
03.463 NUT; LEVER
09.011 ID=9.9 PUSH NUT
8-97012-098-0
01
1
0609-
●
●
158
03.452 NUT; BRKT
08.857 M8 FLANGE
8-94279-060-0
02
1
0609-
●
●
171
03.483 BRACKET ASM; ACCEL PEDAL
8-97857-482-1
01
1
0609-
●
●
227
03.430 CABLE ASM; RETURN,ACCEL PEDAL
8-97892-203-5
01
1
0609-
●
●
230
03.452 PIN; JOINT,ACCEL PEDAL TO BRKT
8-97853-064-0
01
1
0609-
●
●
242
03.483 NUT; ACCEL PEDAL
02.334 (A) M8
0-91110-508-0
01
1
0609-
●
●
242
03.483 NUT; ACCEL PEDAL
10.147 (B) M6 W/DISHED WASHER
8-94423-325-0
01
1
0609-0805
●
●
242
03.483 NUT; ACCEL PEDAL
04.115 (B) M6 W/DISHED WASHER
8-98029-921-0
01
1
0806-
●
●
243
03.425 SENSOR; ACCEL
8-97384-127-1
01
1
0609-
●
●
333
03.671 GROMMET; HOLE,CABLE
16.545 OD=24.5 T=7.5
8-97224-683-0
01
1
0609-
●
●
410
03.483 CLIP; BAND
02.559 L=155
8-97173-307-0
01
1
0609-
●
●
528
03.463 NUT; ACCEL SENSOR
12.183 M5
8-94169-022-0
02
1
0609-
●
●
