◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#4008) — 106 parça

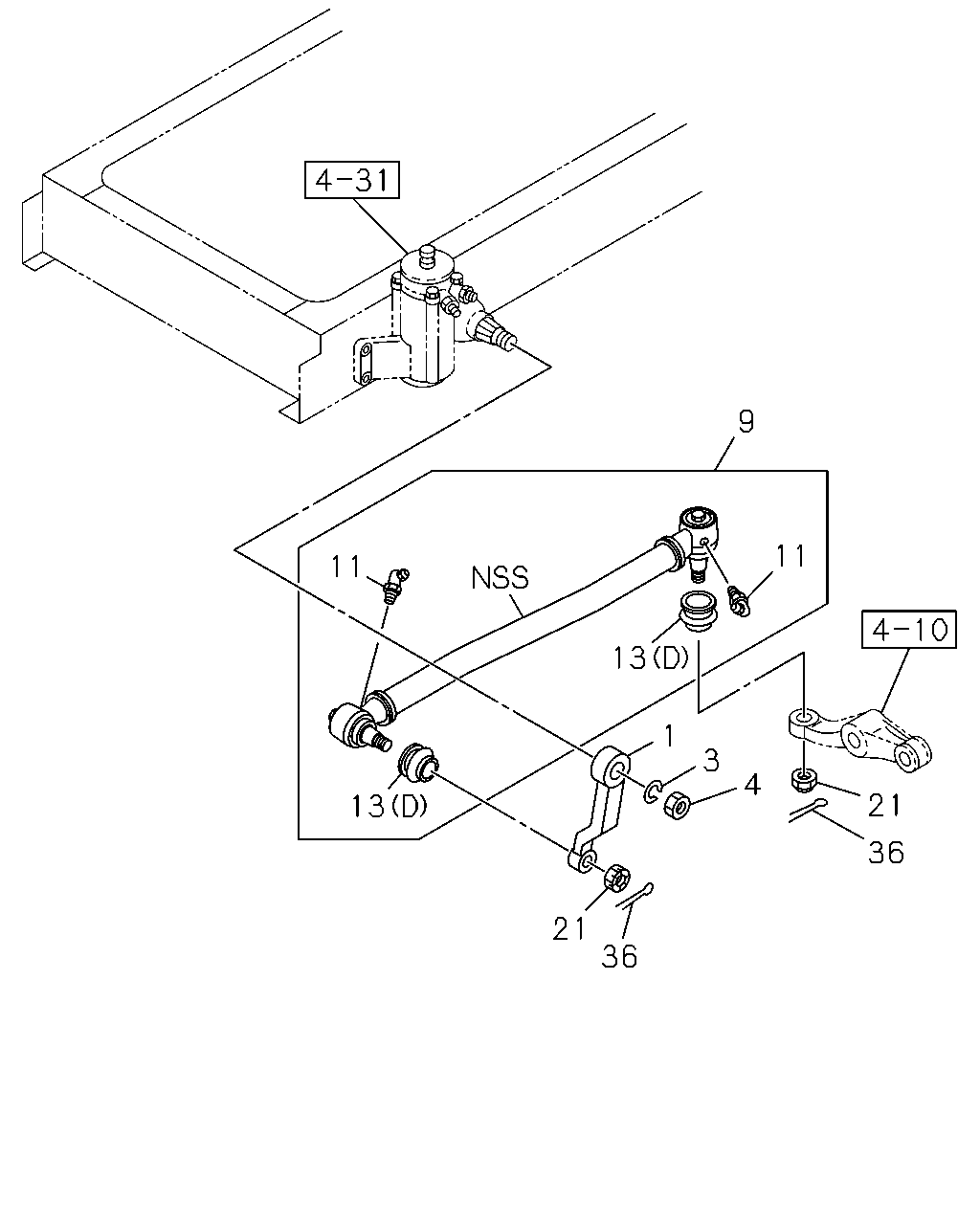

çizim 115921
9 11 11 13 1 3 13 4 21 36 21 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-388-0 01 1 9510-9705 ● ●
1 ARM; PITMAN,STRG
FRONT AXLE F049(FS4) 		1-44341-388-1 01 1 9706- ● ●
1 ARM; PITMAN,STRG
FRONT AXLE F063(FS7) 		1-44341-398-0 01 1 9706-9802 ●
1 ARM; PITMAN,STRG
FRONT AXLE F063(FS7) 		1-44341-398-1 01 1 9803- ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9510- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9510-0805 ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0806- ● ●
9 LINK; DRAG 1-44380-135-0 01 1 9510-9705 ● ●
9 LINK; DRAG
FRONT AXLE F049(FS4) 		1-44380-135-2 01 1 9706- ● ●
9 LINK; DRAG
FRONT AXLE F063(FS7) 		1-44380-085-0 01 1 9706-9802 ●
9 LINK; DRAG
FRONT AXLE F063(FS7) 		1-44380-085-2 01 1 9803-1103 ● ●
9 LINK; DRAG
FRONT AXLE F063(FS7) 		8-98181-402-0 01 1 1104- ● ●
11 NIPPLE; GREASE,DRAG LINK
FRONT AXLE F063(FS7) 		8-98160-122-0 02 1 1104- ● ●
13 BOOT; DRAG LINK
(A) 		1-43159-078-0 01 1 9510-9705 ● ●
13 BOOT; DRAG LINK
FRONT AXLE F049(FS4) (A) 		1-43159-078-0 01 1 9706- ● ●
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 01 1 9510-9705 ● ●
13 BOOT; DRAG LINK
FRONT AXLE F049(FS4) (B) 		1-43159-081-0 01 1 9706- ● ●
13 BOOT; DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-43159-078-0 02 1 9706-9802 ●
13 BOOT; DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-43159-078-0 02 1 9803-1103 ● ●
13 BOOT; DRAG LINK
FRONT AXLE F063(FS7) (D) 		1-43159-131-0 02 1 1104- ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9510-0805 ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0806- ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9510-0606 ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ●

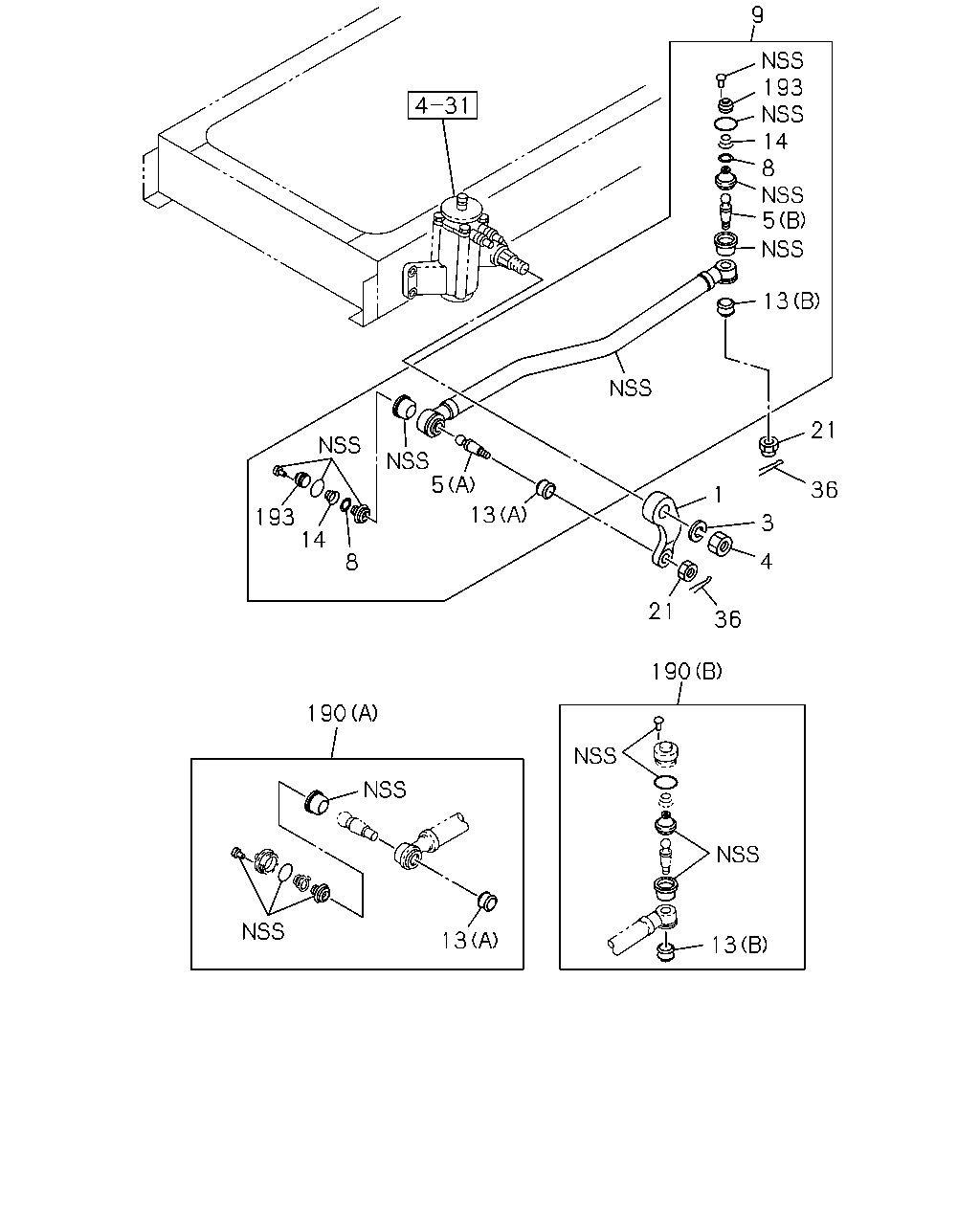

çizim 116108
9 193 14 8 5 13 21 5 36 1 13 193 14 3 4 8 21 36 190 190 13 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-388-0 01 1 9510-9705 ● ●
1 ARM; PITMAN,STRG
FRONT AXLE F049(FS4) 		1-44341-388-1 01 1 9706- ● ●
1 ARM; PITMAN,STRG
FRONT AXLE F063(FS7) 		1-44341-398-0 01 1 9706-9802 ●
1 ARM; PITMAN,STRG
FRONT AXLE F063(FS7) 		1-44341-398-1 01 1 9803- ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9510- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9510-0805 ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0806- ● ●
5 BALL; JOINT,DRAG LINK
(B) 		1-44361-098-0 01 1 9510-9705 ● ●
5 BALL; JOINT,DRAG LINK
FRONT AXLE F049(FS4) (B) 		1-44361-098-0 01 1 9706- ● ●
5 BALL; JOINT,DRAG LINK
(A) 		1-44361-105-1 01 1 9510-9705 ● ●
5 BALL; JOINT,DRAG LINK
FRONT AXLE F049(FS4) (A) 		1-44361-105-1 01 1 9706- ● ●
5 BALL; JOINT,DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-44361-105-1 02 1 9706-9802 ●
5 BALL; JOINT,DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-44361-105-1 02 1 9803-1103 ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9510-1103 ● ●
8 SEAT; SPR,ROD END
FRONT AXLE F049(FS4) 		1-43159-075-0 02 1 1104- ● ●
9 LINK; DRAG 1-44380-135-0 01 1 9510-9705 ● ●
9 LINK; DRAG
FRONT AXLE F049(FS4) 		1-44380-135-2 01 1 9706- ● ●
9 LINK; DRAG
FRONT AXLE F063(FS7) 		1-44380-085-0 01 1 9706-9802 ●
9 LINK; DRAG
FRONT AXLE F063(FS7) 		1-44380-085-2 01 1 9803-1103 ● ●
9 LINK; DRAG
FRONT AXLE F063(FS7) 		8-98181-402-0 01 1 1104- ● ●
13 BOOT; DRAG LINK
(A) 		1-43159-078-0 01 1 9510-9705 ● ●
13 BOOT; DRAG LINK
FRONT AXLE F049(FS4) (A) 		1-43159-078-0 01 1 9706- ● ●
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 01 1 9510-9705 ● ●
13 BOOT; DRAG LINK
FRONT AXLE F049(FS4) (B) 		1-43159-081-0 01 1 9706- ● ●
13 BOOT; DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-43159-078-0 02 1 9706-9802 ●
13 BOOT; DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-43159-078-0 02 1 9803-1103 ● ●
13 BOOT; DRAG LINK
FRONT AXLE F063(FS7) (D) 		1-43159-131-0 02 1 1104- ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9510-1103 ● ●
14 SPRING; COIL,DRAG LINK
FRONT AXLE F049(FS4) 		1-43159-074-0 02 1 1104- ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9510-0805 ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0806- ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9510-0606 ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ●
190 REPAIR KIT; DRAG LINK
(B) 		1-85574-040-0 01 1 9510-9705 ● ●
190 REPAIR KIT; DRAG LINK
FRONT AXLE F049(FS4) (B) 		1-85574-040-0 01 1 9706- ● ●
190 REPAIR KIT; DRAG LINK
(A) 		1-85574-041-0 01 1 9510-9705 ● ●
190 REPAIR KIT; DRAG LINK
FRONT AXLE F049(FS4) (A) 		1-85574-041-0 01 1 9706- ● ●
190 REPAIR KIT; DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-85574-041-0 02 1 9706-9802 ●
190 REPAIR KIT; DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-85574-041-0 02 1 9803-1103 ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 9510-1103 ● ●
193 PLUG; END,DRAG LINK
FRONT AXLE F049(FS4) 		1-43159-093-0 02 1 1104- ● ●

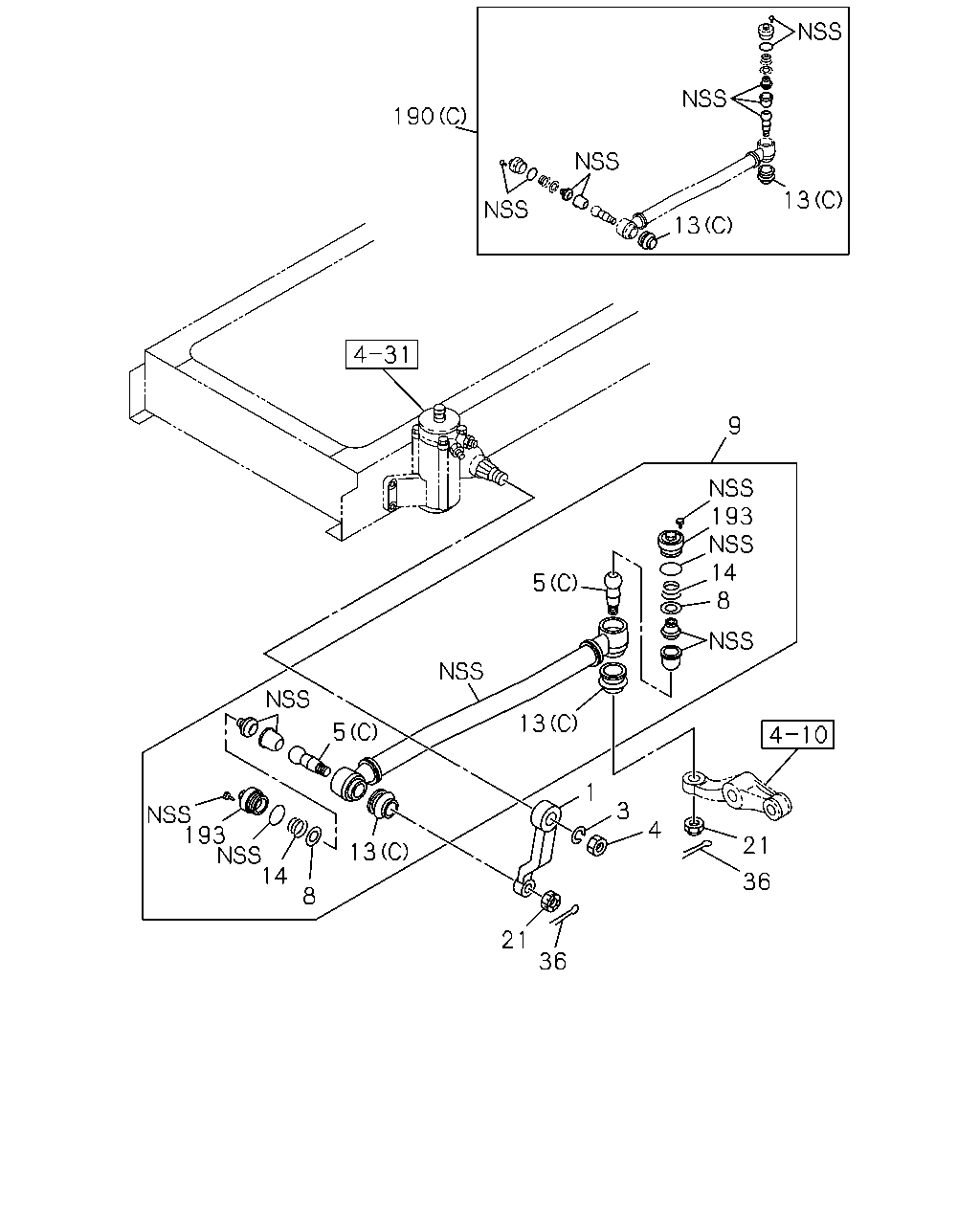

çizim 116115
190 13 13 9 193 14 8 5 13 5 1 3 193 14 4 21 13 36 8 21 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-388-0 01 1 9510-9705 ● ●
1 ARM; PITMAN,STRG
FRONT AXLE F049(FS4) 		1-44341-388-1 01 1 9706- ● ●
1 ARM; PITMAN,STRG
FRONT AXLE F063(FS7) 		1-44341-398-0 01 1 9706-9802 ●
1 ARM; PITMAN,STRG
FRONT AXLE F063(FS7) 		1-44341-398-1 01 1 9803- ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 9510- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 9510-0805 ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0806- ● ●
5 BALL; JOINT,DRAG LINK
(B) 		1-44361-098-0 01 1 9510-9705 ● ●
5 BALL; JOINT,DRAG LINK
FRONT AXLE F049(FS4) (B) 		1-44361-098-0 01 1 9706- ● ●
5 BALL; JOINT,DRAG LINK
(A) 		1-44361-105-1 01 1 9510-9705 ● ●
5 BALL; JOINT,DRAG LINK
FRONT AXLE F049(FS4) (A) 		1-44361-105-1 01 1 9706- ● ●
5 BALL; JOINT,DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-44361-105-1 02 1 9706-9802 ●
5 BALL; JOINT,DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-44361-105-1 02 1 9803-1103 ● ●
8 SEAT; SPR,ROD END 1-43159-075-0 02 1 9510-1103 ● ●
8 SEAT; SPR,ROD END
FRONT AXLE F049(FS4) 		1-43159-075-0 02 1 1104- ● ●
9 LINK; DRAG 1-44380-135-0 01 1 9510-9705 ● ●
9 LINK; DRAG
FRONT AXLE F049(FS4) 		1-44380-135-2 01 1 9706- ● ●
9 LINK; DRAG
FRONT AXLE F063(FS7) 		1-44380-085-0 01 1 9706-9802 ●
9 LINK; DRAG
FRONT AXLE F063(FS7) 		1-44380-085-2 01 1 9803-1103 ● ●
9 LINK; DRAG
FRONT AXLE F063(FS7) 		8-98181-402-0 01 1 1104- ● ●
13 BOOT; DRAG LINK
(A) 		1-43159-078-0 01 1 9510-9705 ● ●
13 BOOT; DRAG LINK
FRONT AXLE F049(FS4) (A) 		1-43159-078-0 01 1 9706- ● ●
13 BOOT; DRAG LINK
(B) 		1-43159-081-0 01 1 9510-9705 ● ●
13 BOOT; DRAG LINK
FRONT AXLE F049(FS4) (B) 		1-43159-081-0 01 1 9706- ● ●
13 BOOT; DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-43159-078-0 02 1 9706-9802 ●
13 BOOT; DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-43159-078-0 02 1 9803-1103 ● ●
13 BOOT; DRAG LINK
FRONT AXLE F063(FS7) (D) 		1-43159-131-0 02 1 1104- ● ●
14 SPRING; COIL,DRAG LINK 1-43159-074-0 02 1 9510-1103 ● ●
14 SPRING; COIL,DRAG LINK
FRONT AXLE F049(FS4) 		1-43159-074-0 02 1 1104- ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 9510-0805 ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0806- ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		9-08115-035-0 02 1 9510-0606 ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ●
190 REPAIR KIT; DRAG LINK
(B) 		1-85574-040-0 01 1 9510-9705 ● ●
190 REPAIR KIT; DRAG LINK
FRONT AXLE F049(FS4) (B) 		1-85574-040-0 01 1 9706- ● ●
190 REPAIR KIT; DRAG LINK
(A) 		1-85574-041-0 01 1 9510-9705 ● ●
190 REPAIR KIT; DRAG LINK
FRONT AXLE F049(FS4) (A) 		1-85574-041-0 01 1 9706- ● ●
190 REPAIR KIT; DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-85574-041-0 02 1 9706-9802 ●
190 REPAIR KIT; DRAG LINK
FRONT AXLE F063(FS7) (C) 		1-85574-041-0 02 1 9803-1103 ● ●
193 PLUG; END,DRAG LINK 1-43159-093-0 02 1 9510-1103 ● ●
193 PLUG; END,DRAG LINK
FRONT AXLE F049(FS4) 		1-43159-093-0 02 1 1104- ● ●
