Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#40053) — 33 parça
◀

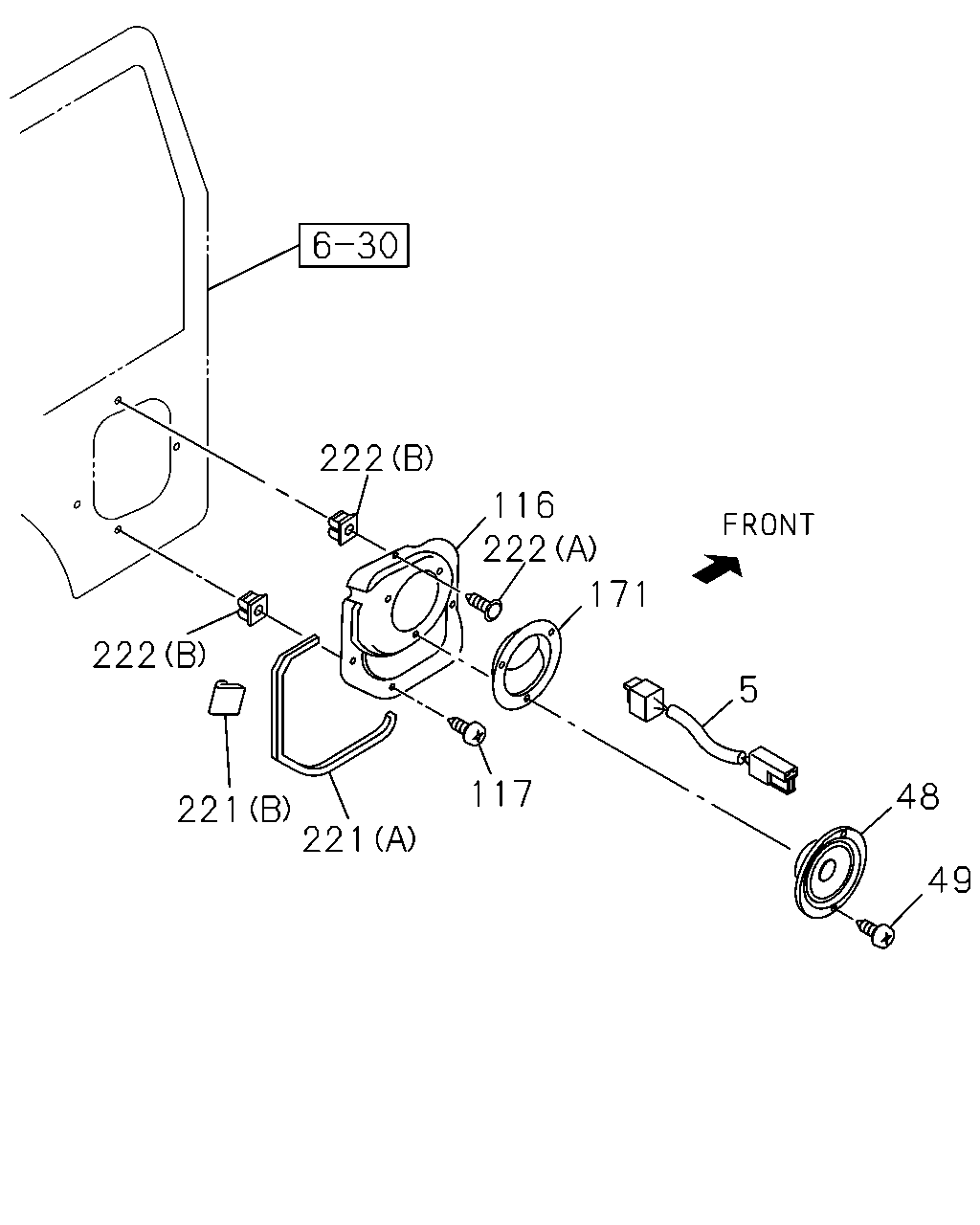

[890A] NO.3 (14 parça)
[890A] NO.1 (9 parça)
[890A] NO.2 (10 parça)
▶
222
116
222
171
222
5
117
48
221
221
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
HARNESS; EXT
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)
8-97131-327-0
02
1
0609-
48
SPEAKER; AUDIO
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)
8-97317-000-0
02
1
0609-0805
48
SPEAKER; AUDIO
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)
8-97317-001-1
02
1
0806-
49
SCREW; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X14
8-94279-325-0
06
1
0609-0612
49
SCREW; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
0701-
116
PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)
8-97852-325-3
01
1
0609-
116
PANEL; SPEAKER,FRT DOOR
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)
8-97852-324-3
01
1
0609-
117
SCREW; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X14
8-94279-325-0
06
1
0609-0612
117
SCREW; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) M5X16 TAPPING HEXALOBULAR
0-72380-516-0
06
1
0701-
171
COVER; SPEAKER
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)
8-97852-331-4
02
1
0609-
221
SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)
8-97852-327-5
02
1
0609-
221
SEAL; SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)
8-97852-601-2
02
1
0609-
222
GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)
1-09987-144-0
02
1
0609-
222
GROMMET; SCREW,SPEAKER PANEL
ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B) D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0609-
1
7
6
6
7
268
226
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> CLARION AM-RADIO W/SPEAKER
8-97316-996-0
01
1
0609-
6
BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2)
8-97853-615-2
01
1
0609-
6
BRACKET; RADIO TO PANEL
RADIO AM W/AMPLIFIER(RS2)
8-97853-614-2
01
1
0609-
7
SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0609-0612
7
SCREW; RADIO
RADIO AM W/AMPLIFIER(RS2) M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
0701-
34
COVER; RADIO HOLE
EXC. RADIO AM W/AMPLIFIER(RS2)
8-97856-203-3
01
1
0609-
226
BOLT; BRKT
RADIO AM W/AMPLIFIER(RS2) M6X16 W/LK&PL WASHER
8-94139-963-0
02
1
0609-1210
226
BOLT; BRKT
RADIO AM W/AMPLIFIER(RS2) M6X19.5 W/LK&PL WASHER
8-97360-226-0
02
1
1211-
268
KNOB; VOL
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> CLARION
8-97331-589-0
01
1
0609-
233
92
269
92
80
224
1
80
101
80
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIO
RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> CLARION AM-RADIO W/SPEAKER
8-97316-996-0
01
1
0609-
80
ANTENNA
ANTENNA<U73>
8-97211-565-0
01
1
0609-
92
COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (A) OD=12 L=14.8
8-94279-921-0
01
1
0609-
92
COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B)
8-97088-275-3
01
1
0609-
94
CLIP; ANTENNA FEEDER
ANTENNA<U73>
1-09987-155-3
01
1
0609-
101
CLIP; FEEDER TO BRKT
ANTENNA<U73> ID=7
5-09707-053-0
03
1
0609-
224
CABLE; EXT,FEEDER
ANTENNA<U73>
8-97213-766-0
01
1
0609-
233
SCREW
ANTENNA<U73> M6X20
8-97120-686-0
01
1
0609-
233
SCREW
ANTENNA<U73> M6X16
8-97123-696-0
01
1
0609-
269
SUPPORT KIT; ANTENNA
ANTENNA<U73>
8-97219-080-0
01
1
0609-
