Isuzu WW
▶
TRUCKS
▶
NKR
▶
51126 - NKR(IRAN)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

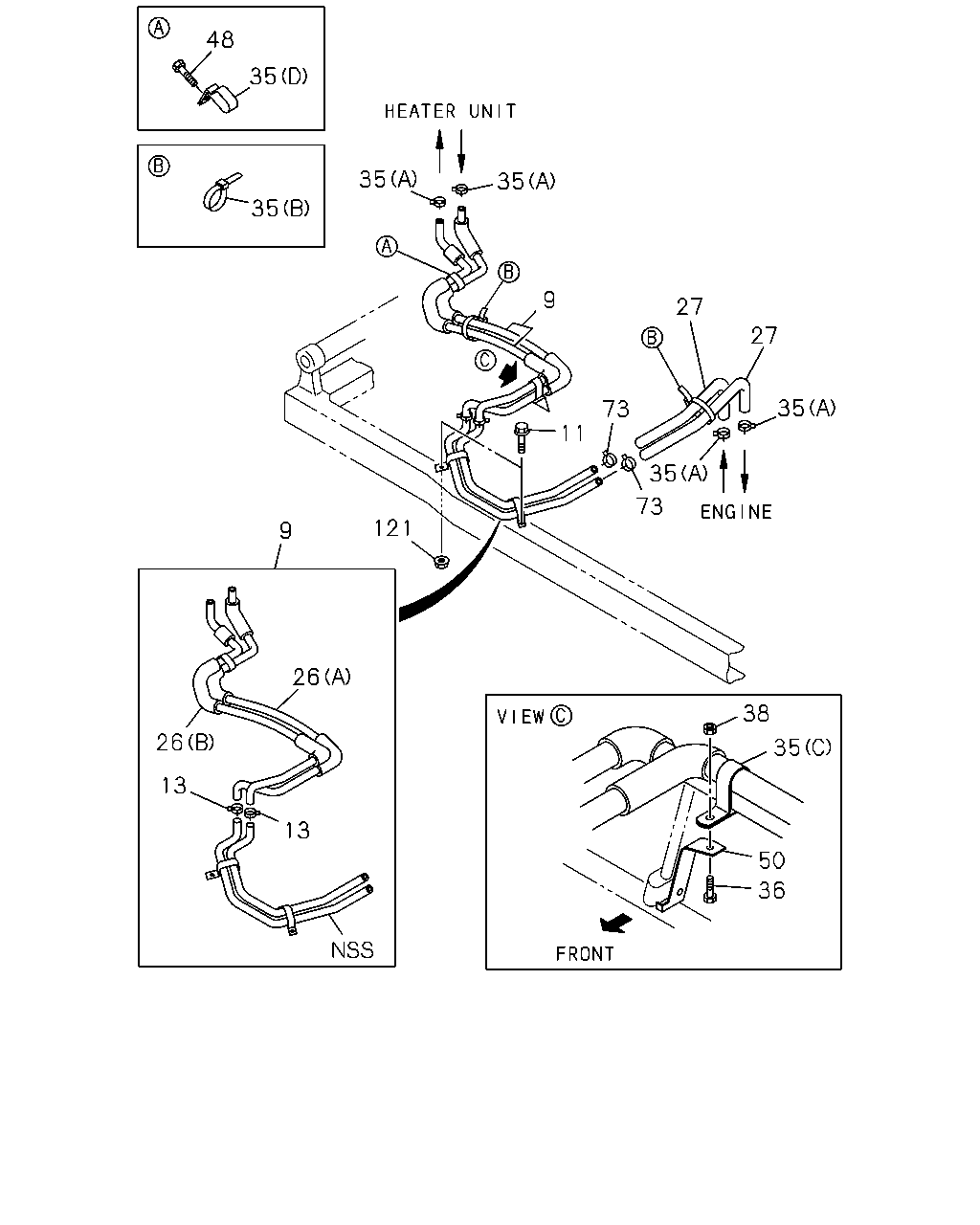

8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#40048) — 22 parça
48
35
35
35
35
9
27
27
35
73
11
35
73
121
9
26
38
26
35
13
13
50
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
PIPE; HTR
HEATER & DEFROSTER(C41)
8-97231-907-0
01
1
0609-
11
BOLT; HTR PIPE
HEATER & DEFROSTER(C41) M8X25 FLANGE
0-28650-825-0
02
1
0609-
13
CLIP; HTR HOSE
HEATER & DEFROSTER(C41) ID=22
8-94382-401-0
02
1
0609-
26
HOSE; HTR
HEATER & DEFROSTER(C41) (A)
8-97239-084-0
01
1
0609-
26
HOSE; HTR
HEATER & DEFROSTER(C41) (B)
8-97239-085-0
01
1
0609-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41)
8-97205-283-0
02
1
0609-
35
CLIP; WATER HOSE
HEATER & DEFROSTER(C41) (C)
5-83574-006-0
01
1
0609-0610
35
CLIP; WATER HOSE
HEATER & DEFROSTER(C41) (C)
8-98029-677-0
01
1
0611-
35
CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) L=250
5-09707-030-1
02
1
0609-
35
CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)
8-94124-169-1
01
1
0609-0610
35
CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)
8-98032-129-0
01
1
0611-
35
CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22
8-94382-401-0
04
1
0609-0610
35
CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22
8-97359-141-0
04
1
0611-
36
BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE
0-28650-825-0
01
1
0609-
38
NUT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE
0-91180-208-0
01
1
0609-1401
38
NUT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE
0-91180-108-0
01
1
1402-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE
0-28050-612-0
01
1
0609-
50
BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-97072-530-0
01
1
0609-
73
CLIP; HTR HOSE
HEATER & DEFROSTER(C41) ID=22
8-94382-401-0
02
1
0609-0610
73
CLIP; HTR HOSE
HEATER & DEFROSTER(C41) ID=22
8-97359-141-0
02
1
0611-
121
NUT; PIPE
HEATER & DEFROSTER(C41) M8 FLANGE
0-91180-208-0
01
1
0609-1401
121
NUT; PIPE
HEATER & DEFROSTER(C41) M8 FLANGE
0-91180-108-0
01
1
1402-
