8-21 — METER ASM (#40043) — 86 parça

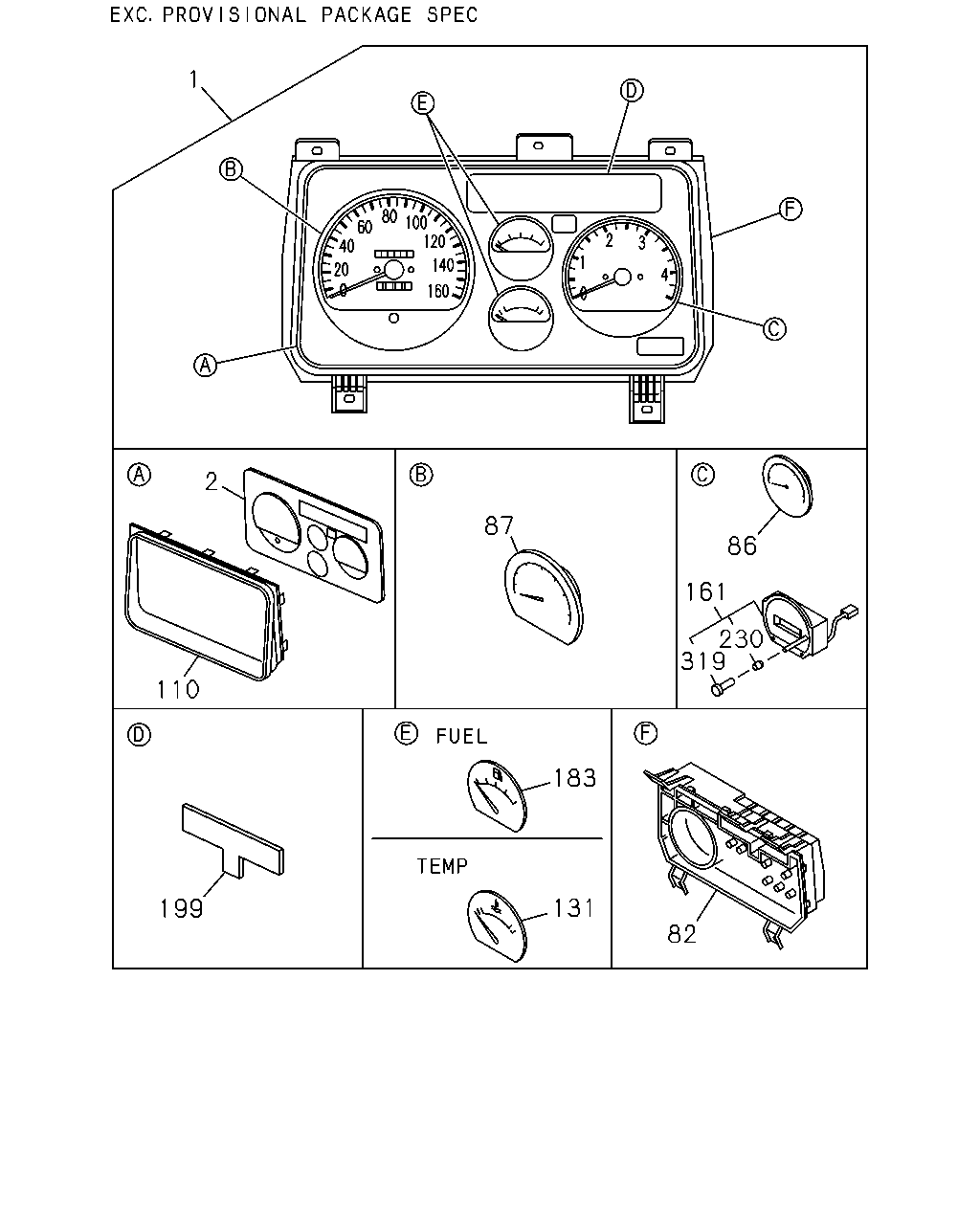

1 2 87 86 161 230 319 183 82 131 199 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16>	8-98179-891-1	01	1	1207-
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97381-294-1	01	1	0609-1206
1	METER COMPL; CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97381-294-1	01	1	1207-
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97381-293-0	01	1	0609-1206
1	METER COMPL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>,TACHOMETER<U16>	8-97381-293-0	01	1	1207-
2	PANEL; CLUSTER	8-97185-443-0	01	1	0609-1206
2	PANEL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-443-0	01	1	1207-
82	CASE ASM; CLUSTER METER	8-97185-448-0	01	1	0609-1206
82	CASE ASM; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-448-0	01	1	1207-
86	TACHOMETER; CLUSTER METER TACHOMETER<U16>	8-98002-111-0	01	1	0609-1206
86	TACHOMETER; CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-111-0	01	1	1207-
87	SPEEDOMETER	8-98002-108-0	01	1	0609-1206
87	SPEEDOMETER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-108-0	01	1	1207-
110	GLASS; CLUSTER METER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16>	8-98203-825-0	01	1	1207-
110	GLASS; CLUSTER METER TACHOMETER<U16>	8-97185-452-0	01	1	0609-1206
110	GLASS; CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-452-0	01	1	1207-
110	GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-97185-451-0	01	1	0609-1206
110	GLASS; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>,TACHOMETER<U16>	8-97185-451-0	01	1	1207-
131	GAUGE; TEMP,CLUSTER METER	8-98002-122-0	01	1	0609-1206
131	GAUGE; TEMP,CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-122-0	01	1	1207-
161	CLOCK; CLUSTER METER EXC. TACHOMETER<U16>	8-98002-110-0	01	1	0609-1206
161	CLOCK; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>,TACHOMETER<U16>	8-98002-110-0	01	1	1207-
183	GAUGE; FUEL	8-98002-118-0	01	1	0609-1206
183	GAUGE; FUEL EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-118-0	01	1	1207-
199	LENS; WARNING LAMP	8-98002-124-0	01	1	0609-1206
199	LENS; WARNING LAMP EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-98002-124-0	01	1	1207-
230	KNOB; DIGITAL CLOCK,SUB METER EXC. TACHOMETER<U16>	8-97185-644-0	01	1	0609-1206
230	KNOB; DIGITAL CLOCK,SUB METER EXC. PROVISIONAL PACKAGE SPEC<BCC>,TACHOMETER<U16>	8-97185-644-0	01	1	1207-
319	SCREW; KNOB,CLUSTER METER EXC. TACHOMETER<U16>	8-97185-522-0	01	1	0609-1206
319	SCREW; KNOB,CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>,TACHOMETER<U16>	8-97185-522-0	01	1	1207-

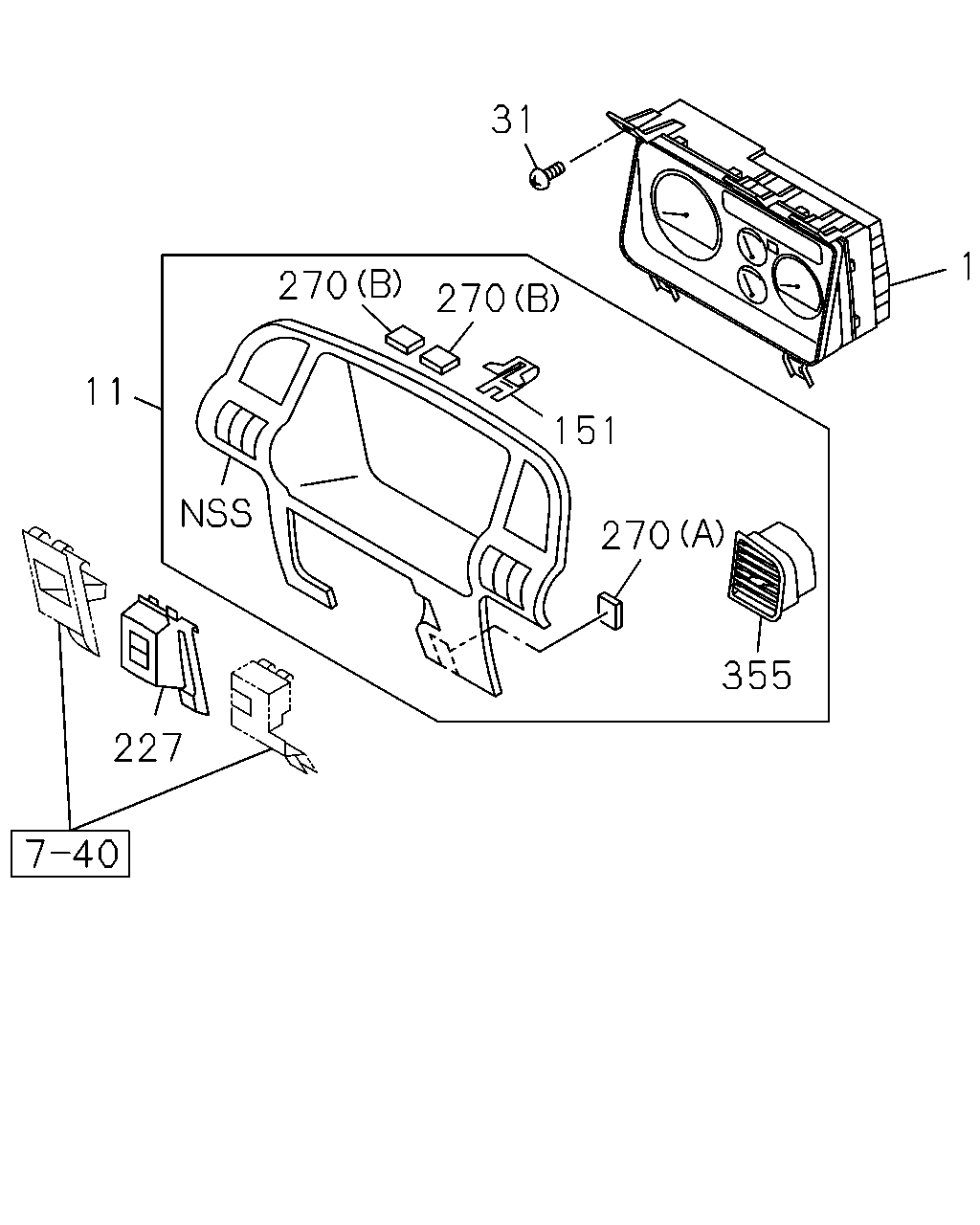

31 1 270 11 151 355 227 270 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16>	8-98179-891-1	01	1	1207-
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97381-294-1	01	1	0609-1206
1	METER COMPL; CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97381-294-1	01	1	1207-
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97381-293-0	01	1	0609-1206
1	METER COMPL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>,TACHOMETER<U16>	8-97381-293-0	01	1	1207-
11	CLUSTER ASM; METER BLACK	8-97195-965-2	01	1	0609-
31	SCREW; METER,INST PANEL M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0609-1210
31	SCREW; METER,INST PANEL M6X19.5 W/LK&PL WASHER	8-97360-226-0	05	1	1211-
151	CLIP; METER CLUSTER	8-97217-066-0	07	1	0609-
227	BEZEL; METER EXC. PTO TRANSMISSION SIDE(V66) BLACK	8-97307-066-0	01	1	0609-
270	CUSHION; METER CLUSTER (A) 15X30 T=5	8-94270-366-2	01	1	0609-
270	CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	0609-
355	GRILLE; VENT BLACK	8-97195-967-1	01	1	0609-
355	GRILLE; VENT BLACK	8-97195-966-1	01	1	0609-

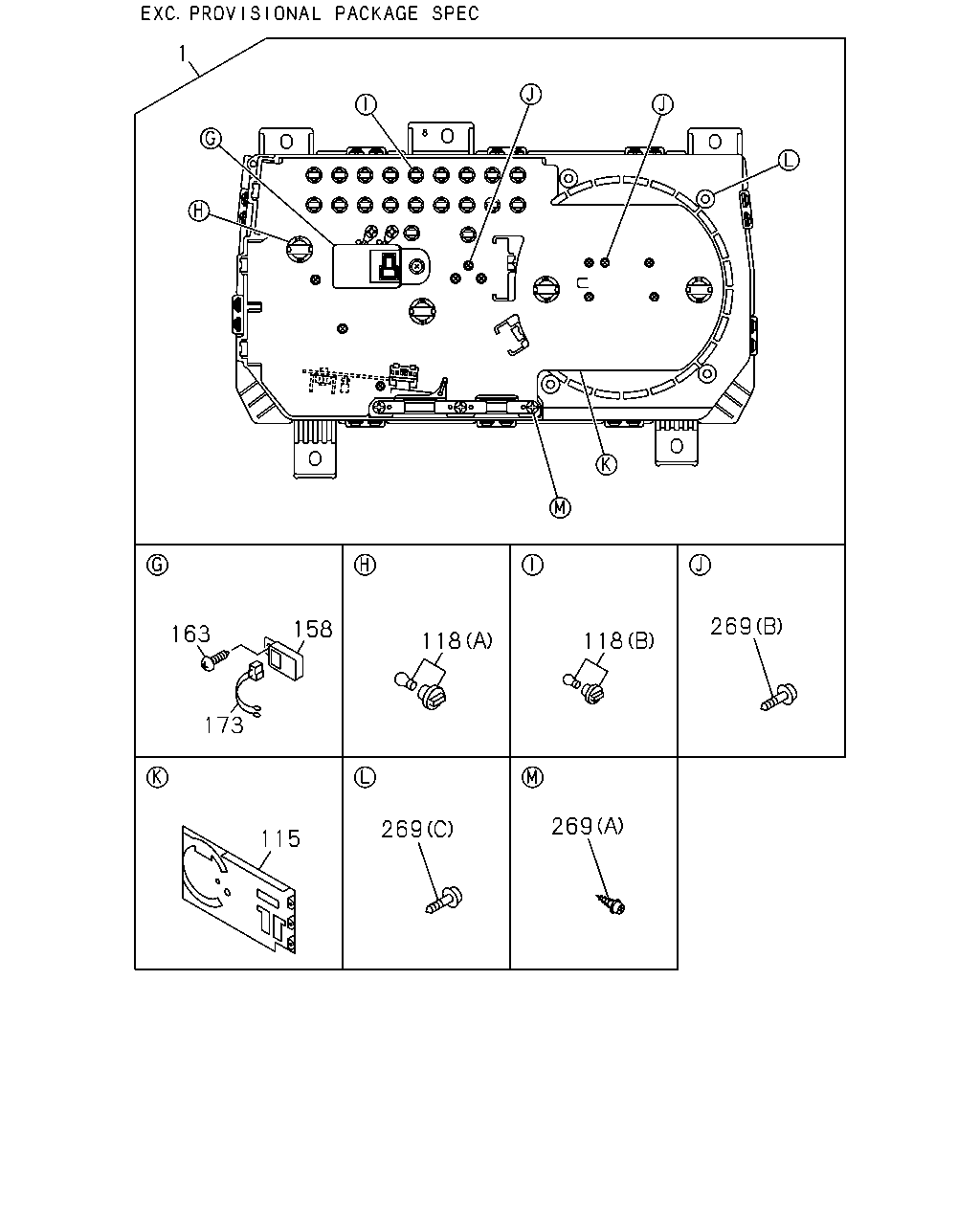

1 163 158 173 118 118 269 115 269 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16>	8-98179-891-1	01	1	1207-
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97381-294-1	01	1	0609-1206
1	METER COMPL; CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97381-294-1	01	1	1207-
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97381-293-0	01	1	0609-1206
1	METER COMPL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>,TACHOMETER<U16>	8-97381-293-0	01	1	1207-
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16>	8-97185-506-0	01	1	0609-1206
115	CIRCUIT; PRINTED,CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-506-0	01	1	1207-
115	CIRCUIT; PRINTED,CLUSTER METER EXC. TACHOMETER<U16>	8-97185-499-0	01	1	0609-1206
115	CIRCUIT; PRINTED,CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>,TACHOMETER<U16>	8-97185-499-0	01	1	1207-
118	BULB; CLUSTER METER EXC. TACHOMETER<U16> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	09	1	0912-1206
118	BULB; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>,TACHOMETER<U16> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	09	1	1207-
118	BULB; CLUSTER METER (A) 12V SOCKET COLOR BLACK	8-97185-535-0	04	1	0609-1206
118	BULB; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 12V SOCKET COLOR BLACK	8-97185-535-0	04	1	1207-
118	BULB; CLUSTER METER (B) 12V SOCKET COLOR BLACK	8-97185-536-0	09	1	0609-0911
118	BULB; CLUSTER METER TACHOMETER<U16> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	10	1	0912-1206
118	BULB; CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 12V SOCKET COLOR BLACK	8-97185-536-0	10	1	1207-
118	BULB; CLUSTER METER (B) 12V SOCKET COLOR BLUE	8-97185-537-0	02	1	0609-1206
118	BULB; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 12V SOCKET COLOR BLUE	8-97185-537-0	02	1	1207-
158	BUZZER; VAC WARNING 12V	8-97185-520-0	01	1	0609-1206
158	BUZZER; VAC WARNING EXC. PROVISIONAL PACKAGE SPEC<BCC> 12V	8-97185-520-0	01	1	1207-
163	SCREW; BUZZER	8-97185-527-0	01	1	0609-1206
163	SCREW; BUZZER EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-527-0	01	1	1207-
173	WIRE; LEAD	8-97185-643-0	01	1	0609-1206
173	WIRE; LEAD EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-643-0	01	1	1207-
269	SCREW; METER CLUSTER (C)	8-97185-525-0	06	1	0609-1206
269	SCREW; METER CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC> (C)	8-97185-525-0	06	1	1207-
269	SCREW; METER CLUSTER (A)	8-97185-528-0	02	1	0609-1206
269	SCREW; METER CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A)	8-97185-528-0	02	1	1207-
269	SCREW; METER CLUSTER TACHOMETER<U16> (B)	8-97185-524-0	08	1	0609-1206
269	SCREW; METER CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B)	8-97185-524-0	08	1	1207-
269	SCREW; METER CLUSTER EXC. TACHOMETER<U16> (B)	8-97185-524-0	07	1	0609-1206
269	SCREW; METER CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>,TACHOMETER<U16> (B)	8-97185-524-0	07	1	1207-

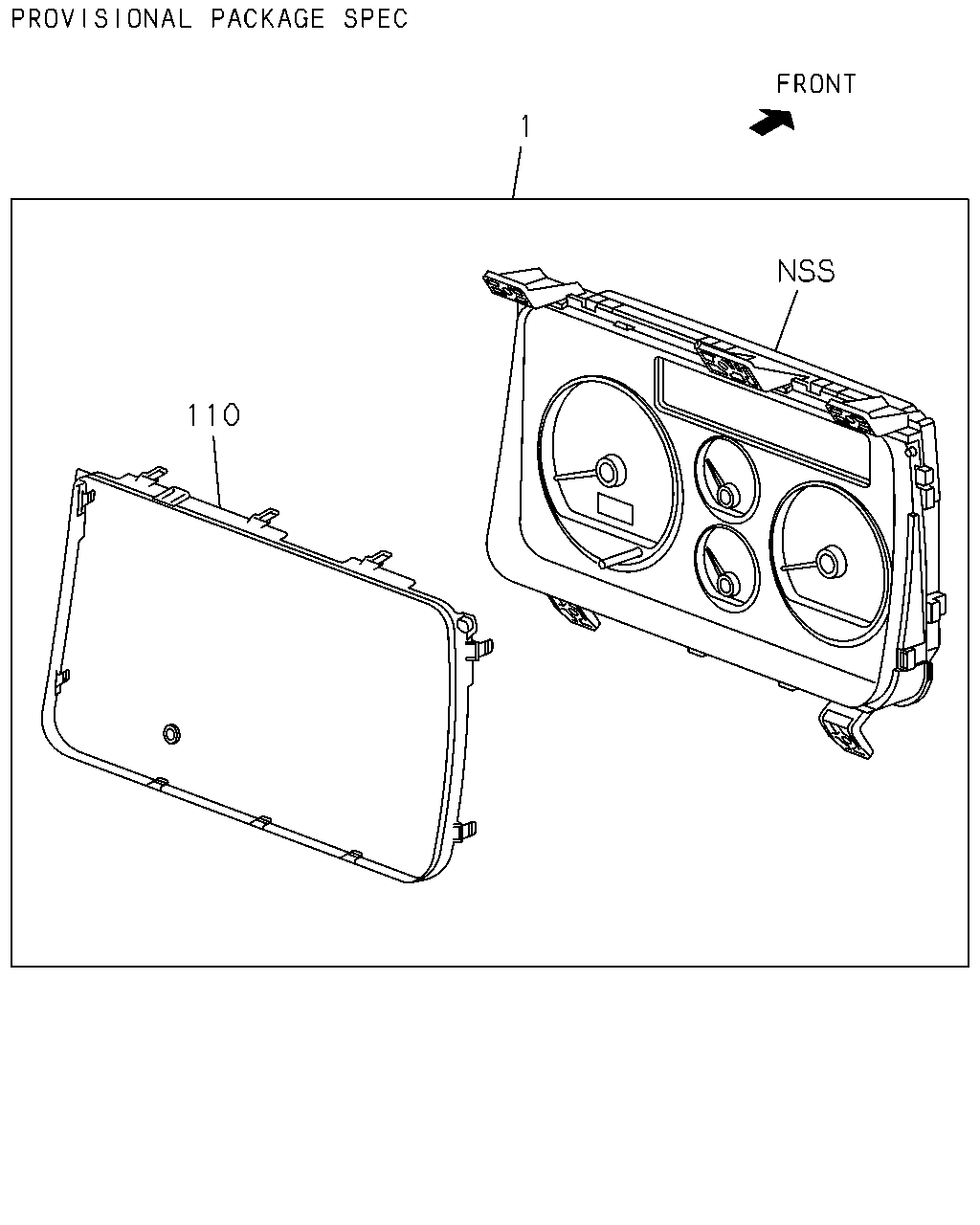

1 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16>	8-98179-891-1	01	1	1207-
1	METER COMPL; CLUSTER TACHOMETER<U16>	8-97381-294-1	01	1	0609-1206
1	METER COMPL; CLUSTER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97381-294-1	01	1	1207-
1	METER COMPL; CLUSTER EXC. TACHOMETER<U16>	8-97381-293-0	01	1	0609-1206
1	METER COMPL; CLUSTER EXC. PROVISIONAL PACKAGE SPEC<BCC>,TACHOMETER<U16>	8-97381-293-0	01	1	1207-
110	GLASS; CLUSTER METER PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16>	8-98203-825-0	01	1	1207-
110	GLASS; CLUSTER METER TACHOMETER<U16>	8-97185-452-0	01	1	0609-1206
110	GLASS; CLUSTER METER TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97185-452-0	01	1	1207-
110	GLASS; CLUSTER METER EXC. TACHOMETER<U16>	8-97185-451-0	01	1	0609-1206
110	GLASS; CLUSTER METER EXC. PROVISIONAL PACKAGE SPEC<BCC>,TACHOMETER<U16>	8-97185-451-0	01	1	1207-
