8-15 — FIXING PARTS; WIRING HARNESS (#40042) — 159 parça

38 139 139 38 150 377 481 38 150 139 386 377 386 386 159 159 511 219 219 515 219 294 515 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0609-
38	BOLT; CLIP,HARNESS (C) M6X20 FLANGE	0-28650-620-0	01	1	0609-
38	BOLT; CLIP,HARNESS (A) M6X25 FLANGE	0-28650-625-0	01	1	0609-
38	BOLT; CLIP,HARNESS (A) M6X25 FLANGE	0-28650-625-0	02	1	0609-
139	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> (C) M8X10 W/LK WASHER	8-98029-928-0	02	1	0911-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	03	1	0609-
139	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	0609-
150	BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M8X25 FLANGE	0-28650-825-0	01	1	0911-
150	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	01	1	0609-
159	BOLT; GRAND ENG ELEC (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0609-1004
159	BOLT; GRAND ENG ELEC (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
219	NUT (C) M8 FLANGE	0-91180-108-0	01	1	0609-
219	NUT (C) M8 FLANGE	0-91180-108-0	01	1	0609-
219	NUT (A) M6 FLANGE	0-91180-106-0	02	1	0609-
219	NUT (A) M6 FLANGE	0-91180-106-0	01	1	0609-
219	NUT (A) M6 FLANGE	0-91180-106-0	01	1	0609-
219	NUT (B)	8-97108-658-0	01	1	0609-
294	NUT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	01	1	0911-
377	BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0609-1004
377	BOLT; CAB EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	BOLT; GRAND HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (C) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	1112-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0609-1004
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
481	BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28650-820-0	01	1	0911-
511	SCREW; HARNESS COVER M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0609-0702
511	SCREW; HARNESS COVER T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-
515	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	01	1	0609-
515	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0609-
519	NUT; EARTH CABLE M12 FLANGE	0-91180-112-0	01	1	0609-

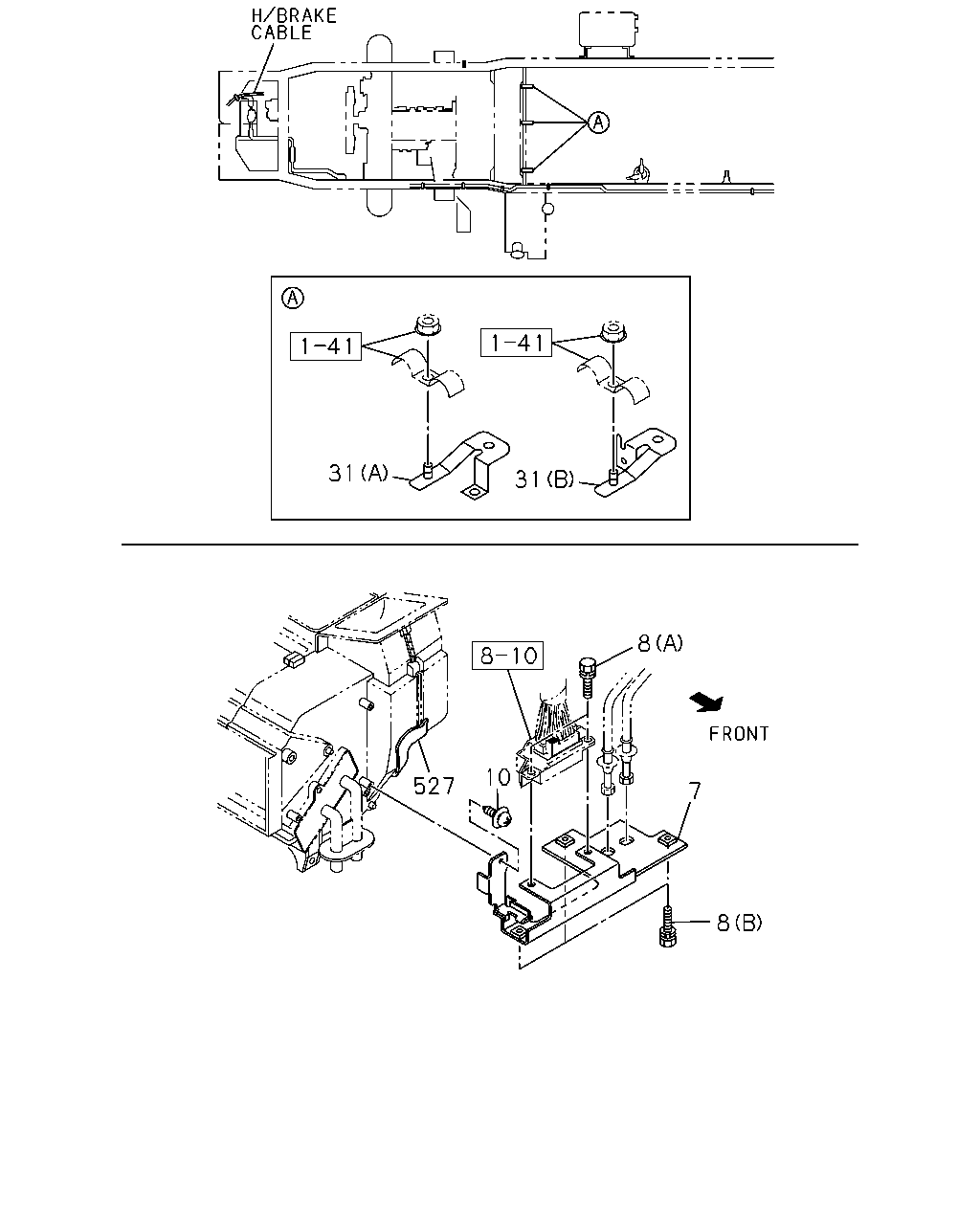

31 31 8 10 527 7 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-97102-247-2	01	1	0609-
8	BOLT; BRKT,CONNECTOR (B) M8X25 FLANGE	0-28650-825-0	03	1	0609-
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-1210
8	BOLT; BRKT,CONNECTOR (A) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-
10	SCREW; BRKT TO BODY M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0609-0612
10	SCREW; BRKT TO BODY M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-1101
10	SCREW; BRKT TO BODY M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
10	SCREW; BRKT TO BODY M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
31	BRACKET; HARNESS CLIP,PIPE (A) L=20	8-94165-263-1	01	1	0609-
31	BRACKET; HARNESS CLIP,PIPE (B)	8-97077-845-0	02	1	0609-
527	TAPE; SOFT,CONNECTOR 100X100	8-94232-622-0	01	1	0609-

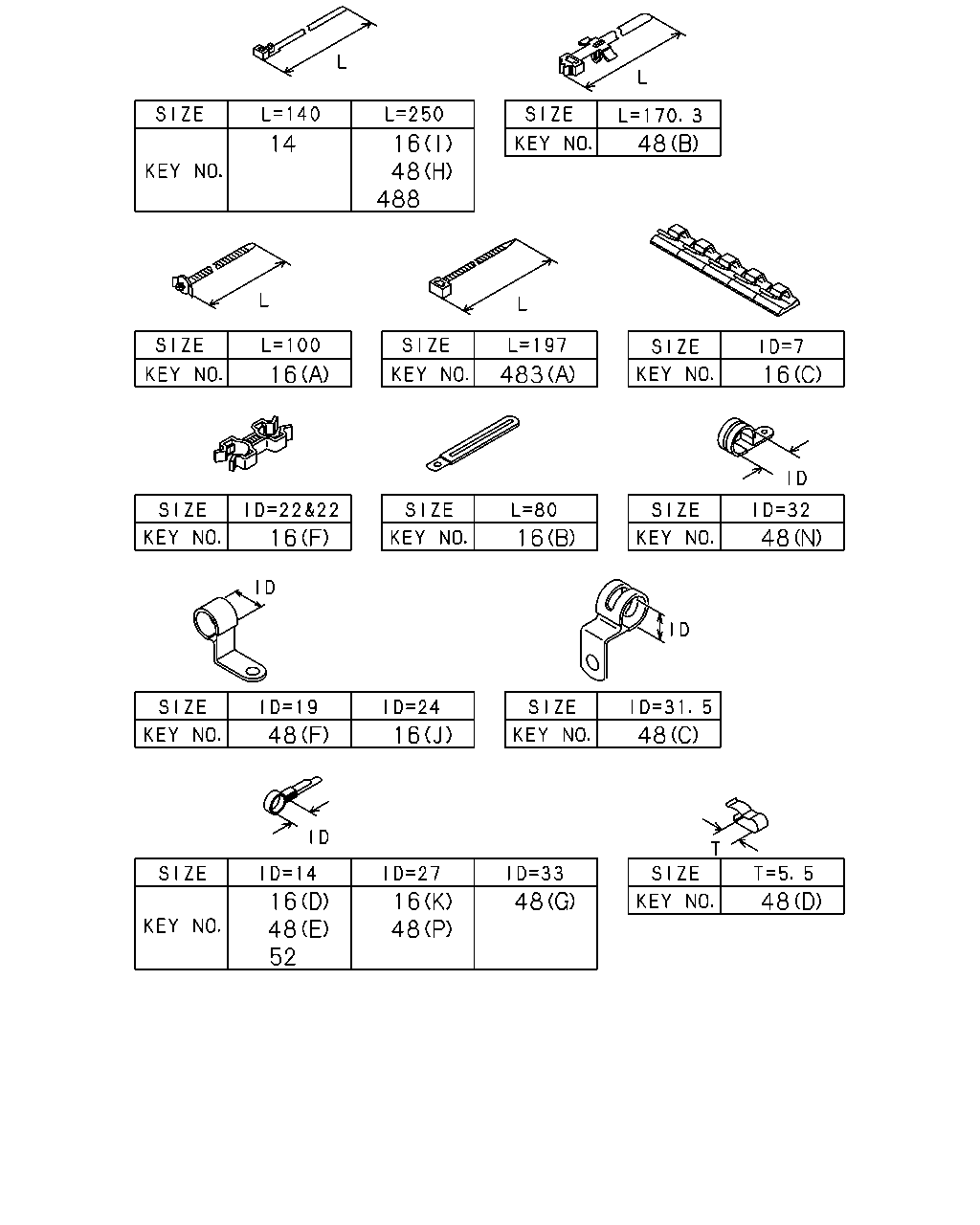

16 48 488 48 14 16 483 16 16 16 48 48 16 48 16 48 52 16 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS L=140	5-09707-031-1	01	1	0609-
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	1011-1405
16	CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=24 H=40 L=24	1-09701-243-1	01	1	0911-
16	CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=14 L=47	5-09700-319-0	05	1	0911-
16	CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=27	5-09700-323-0	01	1	0911-
16	CLIP; HARNESS (C) 1 SET=5 PIECE	1-09987-214-0	03	1	0609-
16	CLIP; HARNESS (D) ID=14 L=47	5-09700-319-0	06	1	0609-0910
16	CLIP; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=14 L=47	5-09700-319-0	06	1	0911-
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	02	1	0609-
16	CLIP; HARNESS (F) ID=22 & 22	8-94464-837-0	01	1	0609-
16	CLIP; HARNESS (G) ID=6 & 10-13	8-97069-515-0	02	1	0609-
16	CLIP; HARNESS (H) ID=15-32	8-97174-404-0	02	1	0609-
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (I) L=140	5-09707-031-1	01	1	0609-1403
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=100	8-94327-067-1	04	1	0609-
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2) (A) L=100	8-94327-067-1	04	1	0609-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	04	1	0609-1009
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	0609-1009
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1010-1010
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	05	1	1010-1010
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	06	1	1011-1405
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	04	1	1406-
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	1406-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	10	1	0609-1009
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	11	1	1010-1010
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-1405
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155	8-97173-307-0	05	1	1011-1405
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-1405
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1406-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1406-
48	CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (P) ID=27	5-09700-323-0	01	1	1002-
48	CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=14 L=47	5-09700-319-0	01	1	0911-
48	CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (O) T=4.5 & 9	5-09709-023-0	01	1	0911-
48	CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0609-
48	CLIP; FRAME HARNESS (E) ID=14 L=47	5-09700-319-0	02	1	0609-
48	CLIP; FRAME HARNESS (E) ID=14 L=47	5-09700-319-0	03	1	0609-
48	CLIP; FRAME HARNESS (I) ID=9.6	8-94147-870-0	01	1	0609-
48	CLIP; FRAME HARNESS (K) ID=9	8-97063-874-0	01	1	0609-
48	CLIP; FRAME HARNESS (F) ID=19 H=70 L=25	1-09700-773-0	01	1	0609-
48	CLIP; FRAME HARNESS (G) ID=33 L=63	1-09700-807-0	05	1	0609-
48	CLIP; FRAME HARNESS (M) ID=31 L=30	1-09700-969-0	01	1	0609-
48	CLIP; FRAME HARNESS (C) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0609-
48	CLIP; FRAME HARNESS (N) ID=32 L=35	1-09701-244-0	01	1	0609-
48	CLIP; FRAME HARNESS (D) T=5.5	5-09709-047-0	01	1	0609-0910
48	CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (D) T=5.5	5-09709-047-0	01	1	0911-
48	CLIP; FRAME HARNESS (D) T=5.5	5-09709-047-0	01	1	0911-
48	CLIP; FRAME HARNESS (A) T=4.5 & 13	5-09709-096-0	01	1	0609-
48	CLIP; FRAME HARNESS (J) ID=24	8-94149-610-0	01	1	0609-
48	CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0609-
48	CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) (H) L=140	5-09707-031-1	01	1	0609-
52	CLIP; HARNESS TO BRKT ID=14 L=47	5-09700-319-0	01	1	0609-
483	CLIP; ENG HARNESS (B) ID=11 L=20	0-95235-035-0	01	1	0609-
483	CLIP; ENG HARNESS (A) L=197	1-83574-032-0	01	1	0609-
488	CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0609-

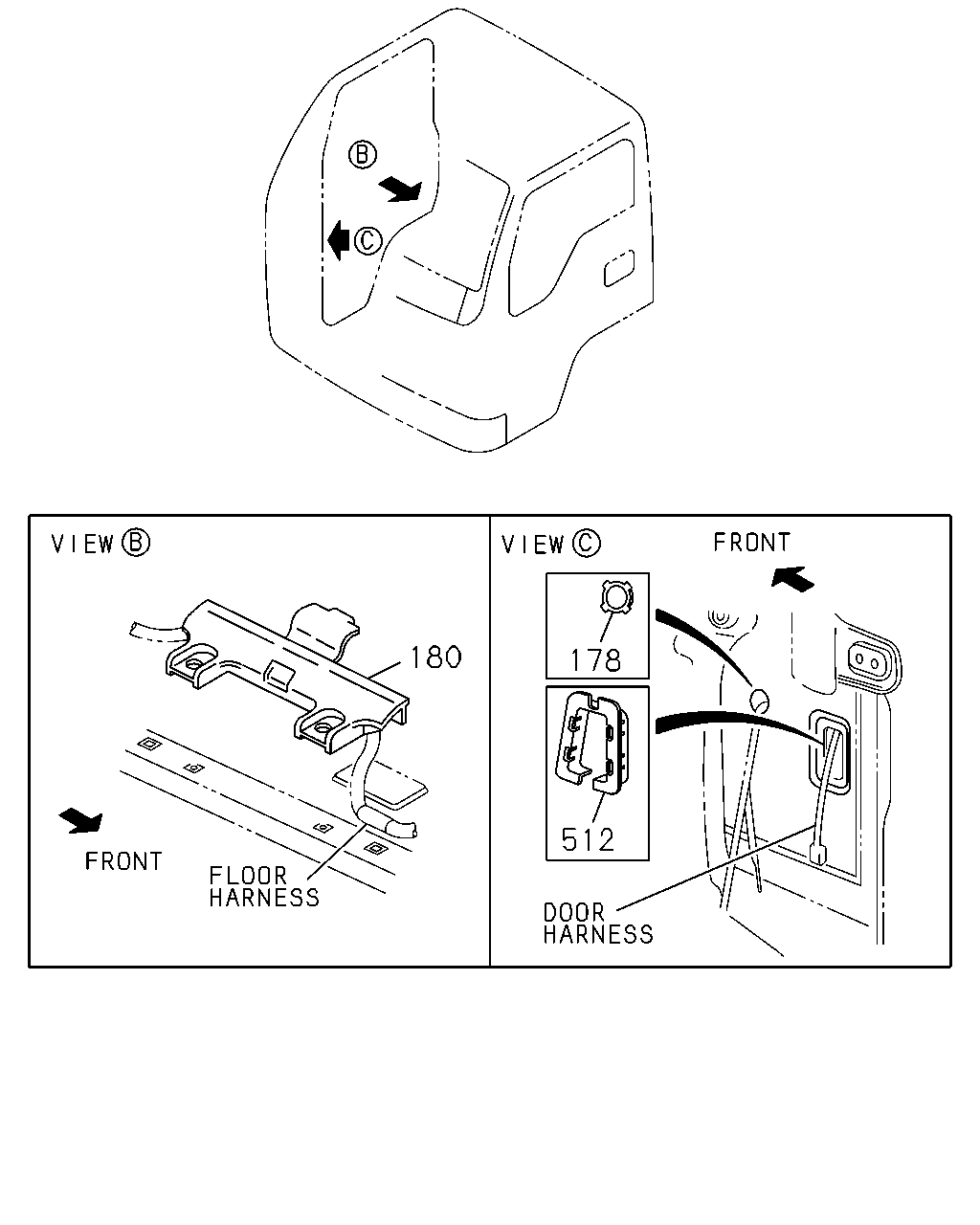

180 178 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0609-
180	COVER; HARNESS	8-97856-130-4	02	1	0609-
512	PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0609-
512	PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0609-
512	PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2)	8-97072-950-0	02	1	0609-

483 48 48 48 48 48 16 264 16 48 16 48 464 53 53 510 504 514 514 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	1011-1405
16	CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=24 H=40 L=24	1-09701-243-1	01	1	0911-
16	CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=14 L=47	5-09700-319-0	05	1	0911-
16	CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=27	5-09700-323-0	01	1	0911-
16	CLIP; HARNESS (C) 1 SET=5 PIECE	1-09987-214-0	03	1	0609-
16	CLIP; HARNESS (D) ID=14 L=47	5-09700-319-0	06	1	0609-0910
16	CLIP; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=14 L=47	5-09700-319-0	06	1	0911-
16	CLIP; HARNESS (E) ID=10 & 16	8-94413-325-0	02	1	0609-
16	CLIP; HARNESS (F) ID=22 & 22	8-94464-837-0	01	1	0609-
16	CLIP; HARNESS (G) ID=6 & 10-13	8-97069-515-0	02	1	0609-
16	CLIP; HARNESS (H) ID=15-32	8-97174-404-0	02	1	0609-
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (I) L=140	5-09707-031-1	01	1	0609-1403
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=100	8-94327-067-1	04	1	0609-
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2) (A) L=100	8-94327-067-1	04	1	0609-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	04	1	0609-1009
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	0609-1009
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1010-1010
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	05	1	1010-1010
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	06	1	1011-1405
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	04	1	1406-
16	CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	1406-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	10	1	0609-1009
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	11	1	1010-1010
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-1405
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155	8-97173-307-0	05	1	1011-1405
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-1405
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1406-
16	CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1406-
48	CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (P) ID=27	5-09700-323-0	01	1	1002-
48	CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=14 L=47	5-09700-319-0	01	1	0911-
48	CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (O) T=4.5 & 9	5-09709-023-0	01	1	0911-
48	CLIP; FRAME HARNESS (B) L=170.3	1-09987-182-0	01	1	0609-
48	CLIP; FRAME HARNESS (E) ID=14 L=47	5-09700-319-0	02	1	0609-
48	CLIP; FRAME HARNESS (E) ID=14 L=47	5-09700-319-0	03	1	0609-
48	CLIP; FRAME HARNESS (I) ID=9.6	8-94147-870-0	01	1	0609-
48	CLIP; FRAME HARNESS (K) ID=9	8-97063-874-0	01	1	0609-
48	CLIP; FRAME HARNESS (F) ID=19 H=70 L=25	1-09700-773-0	01	1	0609-
48	CLIP; FRAME HARNESS (G) ID=33 L=63	1-09700-807-0	05	1	0609-
48	CLIP; FRAME HARNESS (M) ID=31 L=30	1-09700-969-0	01	1	0609-
48	CLIP; FRAME HARNESS (C) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0609-
48	CLIP; FRAME HARNESS (N) ID=32 L=35	1-09701-244-0	01	1	0609-
48	CLIP; FRAME HARNESS (D) T=5.5	5-09709-047-0	01	1	0609-0910
48	CLIP; FRAME HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (D) T=5.5	5-09709-047-0	01	1	0911-
48	CLIP; FRAME HARNESS (D) T=5.5	5-09709-047-0	01	1	0911-
48	CLIP; FRAME HARNESS (A) T=4.5 & 13	5-09709-096-0	01	1	0609-
48	CLIP; FRAME HARNESS (J) ID=24	8-94149-610-0	01	1	0609-
48	CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0609-
48	CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) (H) L=140	5-09707-031-1	01	1	0609-
53	BRACKET; HARNESS (A)	8-97091-462-1	01	1	0609-
53	BRACKET; HARNESS (B)	8-98003-046-0	01	1	0609-
264	CLIP; HARNESS,HEADLAMP ID=6 & 10-13	8-97069-515-0	01	1	0609-
464	CLIP; SEDIMENTER HARNESS ID=6.5	8-94257-639-0	01	1	0609-
483	CLIP; ENG HARNESS (B) ID=11 L=20	0-95235-035-0	01	1	0609-
483	CLIP; ENG HARNESS (A) L=197	1-83574-032-0	01	1	0609-
504	PROTECTOR; HARNESS L=200	8-97096-423-0	01	1	0609-
510	GROMMET; SCREW H=15	8-94463-268-1	04	1	0609-
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	02	1	0609-
514	FINISHER; HARNESS (B) L=175 SERVICED BY L=500	1-79937-746-0	01	1	0609-
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0609-
514	FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0609-
514	FINISHER; HARNESS (C) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0609-
