8-01 — LAMP; FRONT AND FRONT SIDE (#40039) — 59 parça
çizim 119558
60 93 75 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date
60 LAMP ASM; FRT COMB 8-98010-890-0 01 1 0609-
60 LAMP ASM; FRT COMB 8-98010-889-0 01 1 0609-
67 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0609-
68 BULB; FRT COMB LAMP
(A) 12V 21/5W 		8-94125-959-0 02 1 0609-
68 BULB; FRT COMB LAMP
(B) 12V 21W 		8-97304-590-0 02 1 0609-
75 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING 		8-97374-995-0 02 1 0609-
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0609-
76 LENS; FRT COMB LAMP 8-97378-966-0 01 1 0609-
76 LENS; FRT COMB LAMP 8-97378-965-0 01 1 0609-
93 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0609-
93 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0609-
315 HARNESS; FRT COMB LAMP 8-98010-916-0 02 1 0609-
419 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0609-
419 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0609-

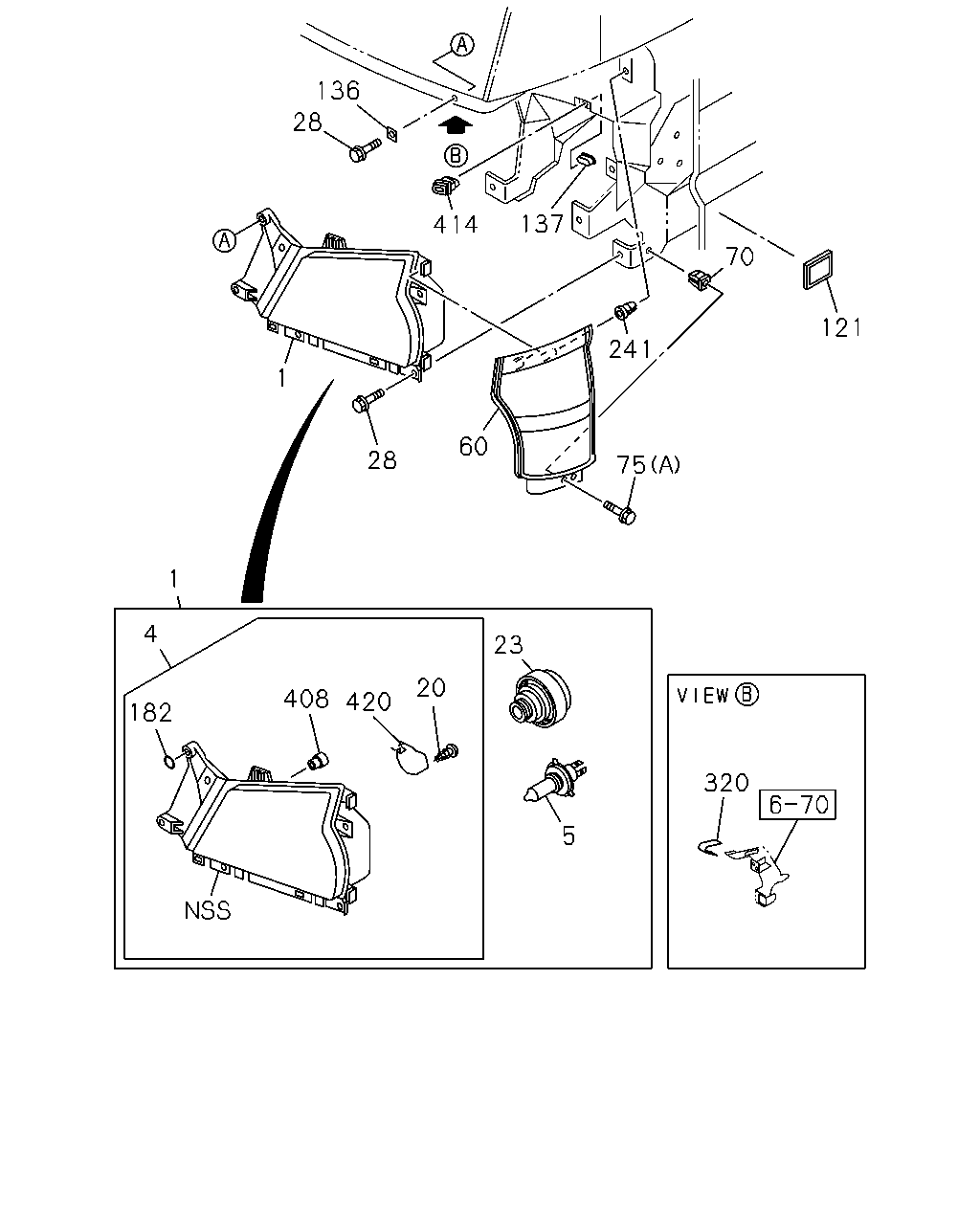

çizim 119560
136 28 414 137 70 121 241 75 60 28 1 1 4 182 408 420 20 23 320 5
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 8-97369-571-3 01 1 0609-0610
1 LAMP ASM; HEAD 8-98053-916-0 01 1 0611-
1 LAMP ASM; HEAD 8-97369-570-3 01 1 0609-0610
1 LAMP ASM; HEAD 8-98053-915-0 01 1 0611-
4 HEADLAMP UNIT 8-98009-825-0 01 1 0609-
4 HEADLAMP UNIT 8-98009-824-0 01 1 0609-
5 BULB; HEADLAMP
12V 60/55W 		8-97106-708-0 02 1 0609-
20 SCREW; HEADLAMP 8-97378-871-0 02 1 0609-
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0609-
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0609-1401
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1402-
60 LAMP ASM; FRT COMB 8-98010-890-0 01 1 0609-
60 LAMP ASM; FRT COMB 8-98010-889-0 01 1 0609-
70 GROMMET; SCREW,FRT COMB LAMP 1-09983-081-0 02 1 0609-
75 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING 		8-97374-995-0 02 1 0609-
75 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0609-
121 REFLECTOR; REFLEX 8-98013-990-1 02 1 0609-
136 SEAL; HEADLAMP
25X25 		8-94272-533-0 02 1 0609-
137 GROMMET; HEADLAMP 8-97581-666-0 02 1 0609-
182 GASKET; HEADLAMP 8-97378-869-0 02 1 0609-
241 GROMMET; FRT LAMP 8-97380-030-0 02 1 0609-
320 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0609-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0609-
414 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0609-
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0609-

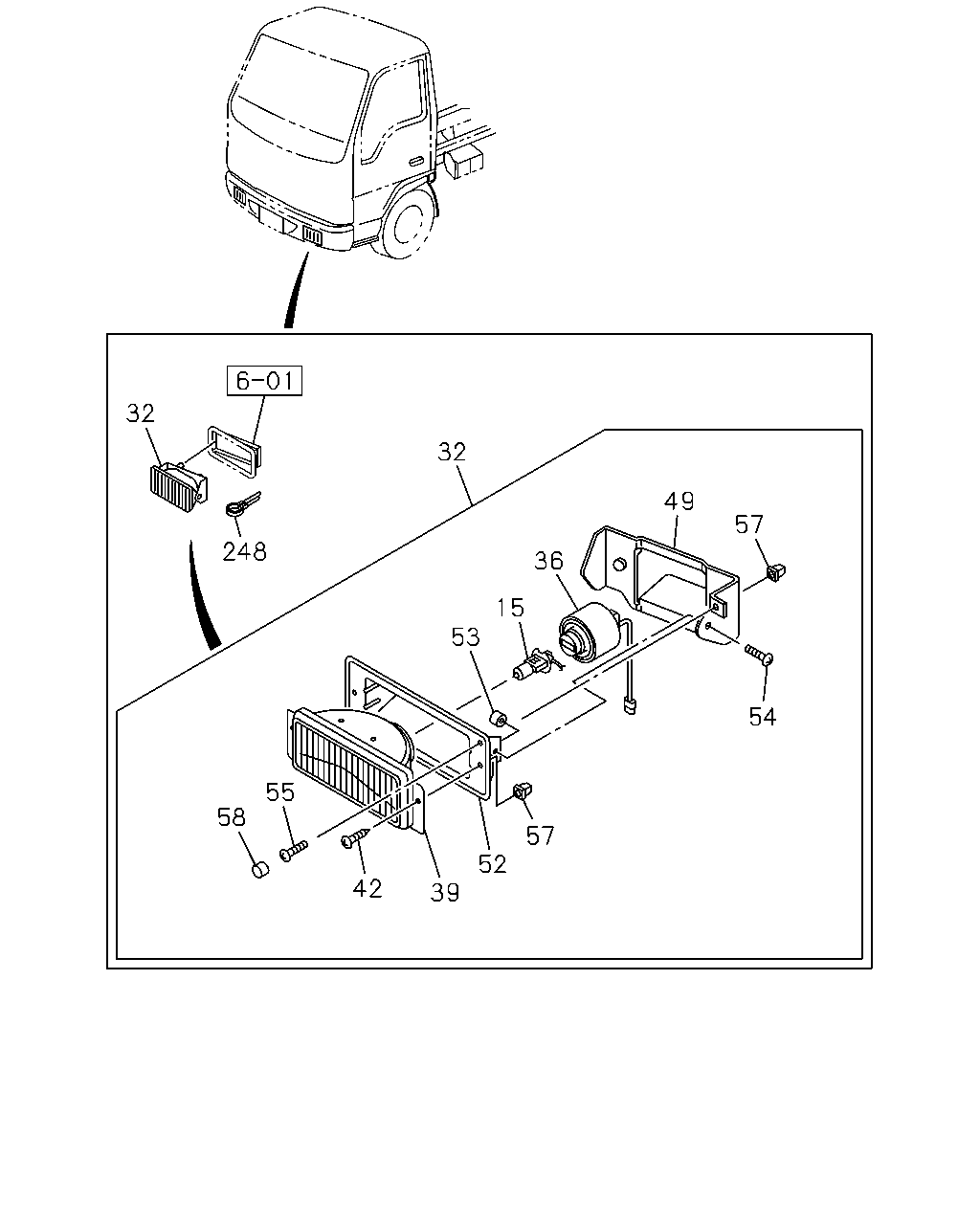

çizim 119562
32 32 49 57 248 36 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97093-859-0 02 1 0609-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-540-0 01 1 0609-0612
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-094-0 01 1 0701-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-539-0 01 1 0609-0612
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-093-0 01 1 0701-
36 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 0609-
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97119-300-0 01 1 0609-0612
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-679-0 01 1 0701-
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97104-060-0 01 1 0609-0612
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-678-0 01 1 0701-
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 0609-
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-091-0 01 1 0609-
49 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-090-0 01 1 0609-
52 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 0609-
53 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 0609-
54 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 0609-
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 0609-
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 0609-
58 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 0609-
248 CLIP; HARNESS
FOG LAMP<T96> ID=20 		5-09700-321-0 02 1 0609-
