Isuzu WW
▶
TRUCKS
▶
NPS
▶
51409 - NPS(AUSTRALIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

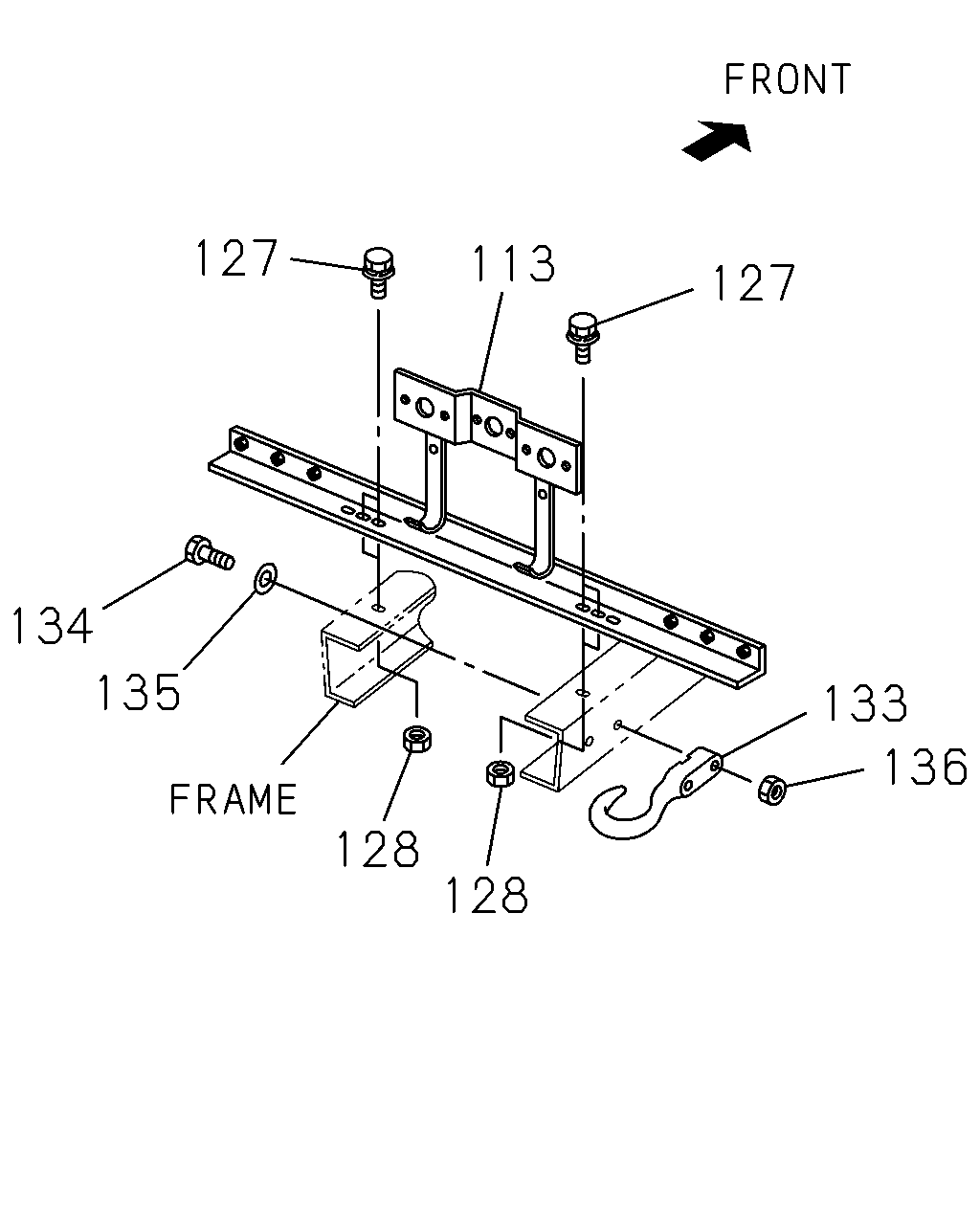

6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#40031) — 20 parça
127
113
127
134
135
133
136
128
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
113
07.800 BRACKET; LICENSE PLATE
02.662
8-97096-644-3
01
1
0301-0806
113
07.800 BRACKET; LICENSE PLATE
8-98029-390-3
01
1
0807-
127
02.662 BOLT; CROSS PLATE
03.483 M8X40 W/LK&PL WASHER
0-50140-840-0
02
1
0301-0403
127
02.662 BOLT; CROSS PLATE
03.704 M8X40 FLANGE
0-28680-840-0
02
1
0404-0408
127
02.662 BOLT; CROSS PLATE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.704 M8X40 FLANGE
0-28680-840-0
02
1
0409-0409
127
02.662 BOLT; CROSS PLATE
03.704 M8X40 FLANGE
0-28680-840-0
02
1
0409-0512
127
02.662 BOLT; CROSS PLATE
00.685 M8X40 FLANGE
0-28650-840-0
02
1
0601-
128
02.662 NUT; CROSS PLATE
02.559 M8
9-09110-408-0
02
1
0301-0408
128
02.662 NUT; CROSS PLATE
EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.559 M8
9-09110-408-0
02
1
0409-0409
128
02.662 NUT; CROSS PLATE
02.559 M8
9-09110-408-0
02
1
0409-0512
128
02.662 NUT; CROSS PLATE
02.334 M8
0-91110-508-0
02
1
0601-0709
128
02.662 NUT; CROSS PLATE
01.062 M8 FLANGE
0-91180-108-0
02
1
0710-
133
07.112 HOOK
07.068
8-94249-270-2
01
1
0301-
134
07.068 BOLT; HOOK
07.039 M14X50
0-10806-450-0
02
1
0301-0512
134
07.068 BOLT; HOOK
07.039 M14X50
0-10856-450-0
02
1
0601-
135
07.068 WASHER; LK,HOOK
05.422 ID=14.2
9-09150-814-0
02
1
0301-0603
135
07.068 WASHER; LK,HOOK
06.174 ID=14.2
0-91510-814-0
02
1
0604-0610
136
07.068 NUT; HOOK
07.529 M14
9-99110-514-0
02
1
0301-0512
136
07.068 NUT; HOOK
07.833 M14
0-91110-514-0
02
1
0601-0610
136
07.068 NUT; HOOK
00.429 M14 FLANGE
0-91180-214-0
02
1
0611-
