1 |

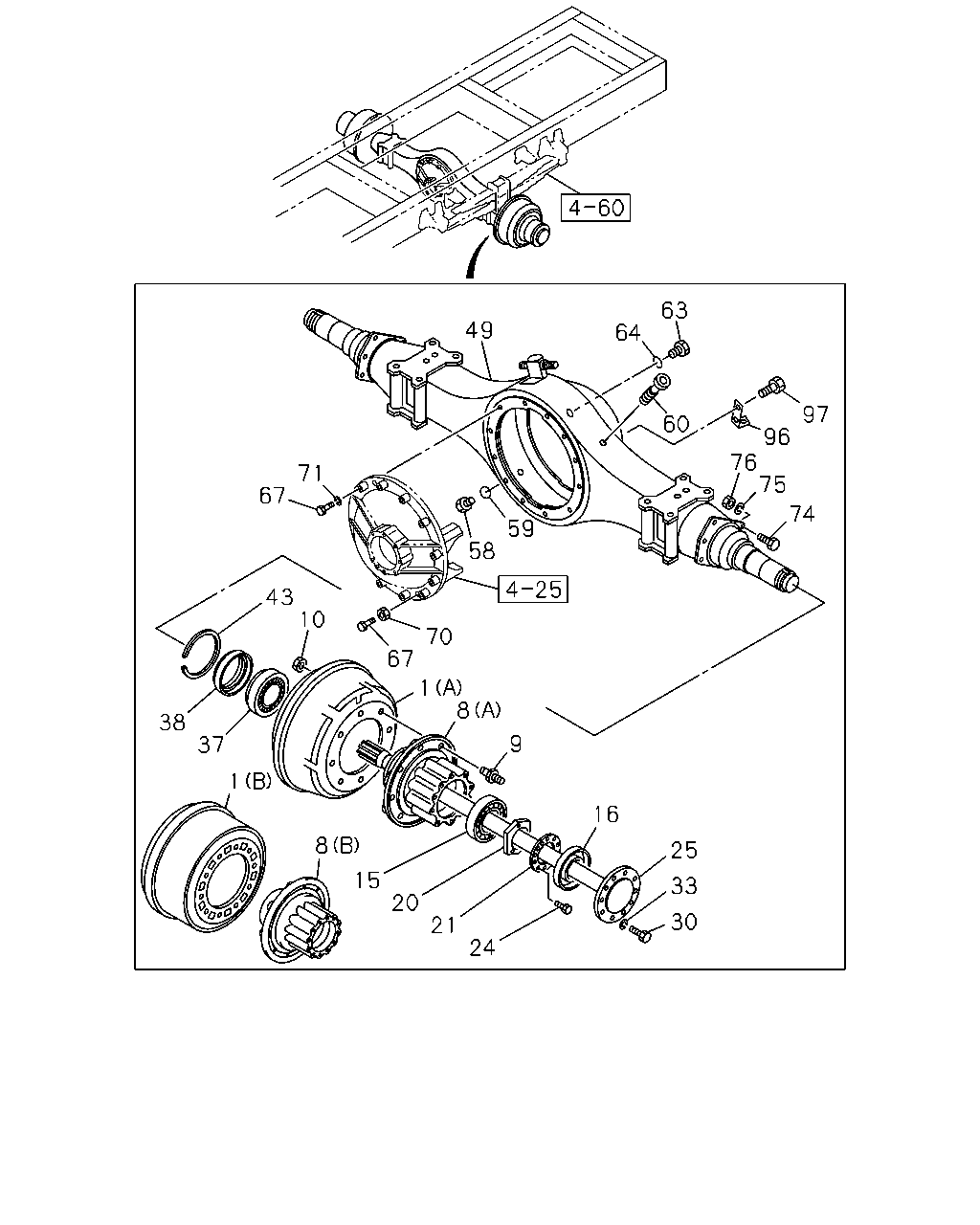

DRUM; BRK,RR
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
(B)
|
1-42315-218-4 |
02 |
1 |
9510-9802 |
● |
|
| |
1 |
DRUM; BRK,RR
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
(B)
|
1-42315-218-4 |
02 |
1 |
9510-9802 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
(B)
|
1-42315-218-4 |
02 |
1 |
9803-0004 |
● |
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-42315-218-4 |
02 |
1 |
0005- |
● |
● |
| |
1 |
DRUM; BRK,RR
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
(A)
H=195
|
1-42315-208-1 |
02 |
1 |
9510-9705 |
● |
|
| |
1 |
DRUM; BRK,RR
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
(A)
H=195
|
1-42315-208-1 |
02 |
1 |
9510-9705 |
|
● |
| |
1 |
DRUM; BRK,RR
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
(A)
H=195
|
1-42315-208-1 |
02 |
1 |
9706-9802 |
● |
|
| |
1 |
DRUM; BRK,RR
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
(A)
H=195
|
1-42315-208-1 |
02 |
1 |
9706-9802 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
(A)
H=195
|
1-42315-208-1 |
02 |
1 |
9706-9802 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
(A)
H=195
|
1-42315-208-2 |
02 |
1 |
9803-0004 |
● |
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
H=195
|
1-42315-208-2 |
02 |
1 |
0005- |
● |
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 10STUD 20X7.00T(Q58)
(B)
|
1-42315-220-4 |
02 |
1 |
9910-0004 |
● |
● |
| |
1 |
DRUM; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-42315-220-4 |
02 |
1 |
0005-0106 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL
10STUD 22.5X7.50 162-12(Q87)
(B)
|
1-42315-220-4 |
02 |
1 |
0107-0107 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 15.5"<B2X>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-42315-220-4 |
02 |
1 |
0107-0107 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
7.50VX20 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50
162-12(Q87)
(B)
|
1-42315-220-4 |
02 |
1 |
0108- |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 15.5"<B2X>
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-42315-220-4 |
02 |
1 |
0108- |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 16.5"<B2Y>
(A)
|
1-42315-194-3 |
02 |
1 |
9510-9705 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 16.5"<B2Y>
(A)
|
1-42315-194-3 |
02 |
1 |
9706-9802 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
(A)
|
1-42315-194-3 |
02 |
1 |
9706-9802 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
(A)
|
1-42315-194-4 |
02 |
1 |
9803-0107 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
(A)
|
1-42315-194-4 |
02 |
1 |
0108-0603 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
(A)
|
1-42315-194-4 |
02 |
1 |
0604- |
|
● |
| |
8 |
HUB; RR AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
(B)
|
1-42311-098-0 |
02 |
1 |
9510-9802 |
● |
|
| |
8 |
HUB; RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
(B)
|
1-42311-098-0 |
02 |
1 |
9510-9802 |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
(B)
|
1-42311-098-0 |
02 |
1 |
9803- |
● |
● |
| |
8 |
HUB; RR AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
(A)
|
1-42311-092-0 |
02 |
1 |
9510-9705 |
● |
|
| |
8 |
HUB; RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
(A)
|
1-42311-092-0 |
02 |
1 |
9510-9705 |
|
● |
| |
8 |
HUB; RR AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
(A)
|
1-42311-092-0 |
02 |
1 |
9706-9802 |
● |
|
| |
8 |
HUB; RR AXLE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
(A)
|
1-42311-092-0 |
02 |
1 |
9706-9802 |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
(A)
|
1-42311-092-0 |
02 |
1 |
9706-9802 |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
(A)
|
1-42311-092-0 |
02 |
1 |
9803-0307 |
● |
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-42311-092-0 |
02 |
1 |
0308- |
● |
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 10STUD 20X7.00T(Q58)
(B)
|
1-42311-085-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL
10STUD 22.5X7.50 162-12(Q87)
(B)
|
1-42311-085-0 |
02 |
1 |
0107-0107 |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
7.50VX20 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50
162-12(Q87)
(B)
|
1-42311-085-0 |
02 |
1 |
0108- |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 16.5"<B2Y>
(A)
|
1-42311-104-0 |
02 |
1 |
9510-9802 |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
(A)
|
1-42311-104-0 |
02 |
1 |
9803-0107 |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
(A)
|
1-42311-104-0 |
02 |
1 |
0108-0603 |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
(A)
|
1-42311-104-0 |
02 |
1 |
0604- |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-42311-100-0 |
02 |
1 |
9706-9802 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
M22X59.8,M22X51.5 RH THREAD
|
1-42337-010-0 |
20 |
1 |
9510-9802 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
M22X59.8,M22X51.5 RH THREAD
|
1-42337-010-0 |
20 |
1 |
9510-9802 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
M22X59.8,M22X51.5 RH THREAD
|
1-42337-010-1 |
20 |
1 |
9803- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-0 |
08 |
1 |
9510-0004 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-0 |
08 |
1 |
0005-0107 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 16.5"<B2Y>
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-0 |
08 |
1 |
0005-0107 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-0 |
08 |
1 |
0108-0204 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-0 |
08 |
1 |
0108-0204 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 15.5"<B2X>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-0 |
08 |
1 |
0205-0603 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54)
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-0 |
08 |
1 |
0205-0603 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-2 |
08 |
1 |
0604- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-0 |
08 |
1 |
9510-0004 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-0 |
08 |
1 |
0005-0107 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 16.5"<B2Y>
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-0 |
08 |
1 |
0005-0107 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-0 |
08 |
1 |
0108-0204 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-0 |
08 |
1 |
0108-0204 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 15.5"<B2X>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-0 |
08 |
1 |
0205-0603 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54)
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-0 |
08 |
1 |
0205-0603 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-2 |
08 |
1 |
0604- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 10STUD 20X7.00T(Q58)
M22X55.8,M22X53.5 RH THREAD
|
1-42337-035-0 |
20 |
1 |
9910-0004 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL
10STUD 22.5X7.50 162-12(Q87)
M22X55.8,M22X53.5 RH THREAD
|
1-42337-035-0 |
20 |
1 |
0107-0107 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
7.50VX20 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50
162-12(Q87)
M22X55.8,M22X53.5 RH THREAD
|
1-42337-035-1 |
20 |
1 |
0108- |
|
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
M22
|
1-09400-071-0 |
20 |
1 |
9510-9802 |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
M22
|
1-09400-071-0 |
20 |
1 |
9510-9802 |
|
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
M22
|
1-09400-071-0 |
20 |
1 |
9803-9909 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 10STUD 20X7.00T(Q58)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),LIMITED
SLIP DIFF(G86)
M22
|
1-09400-071-0 |
20 |
1 |
9910-0004 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
M22
|
1-09400-071-0 |
20 |
1 |
9910-0004 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
M22
|
1-09400-071-0 |
20 |
1 |
0005-0106 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
7.50VX20 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50
162-12(Q87)
M22
|
1-09400-071-0 |
20 |
1 |
0107-0107 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87)
M22
|
1-09400-071-0 |
20 |
1 |
0108- |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD
7.50VX20 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50
162-12(Q87)
M22
|
1-09400-071-0 |
20 |
1 |
0108- |
|
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M22
|
9-09110-522-0 |
16 |
1 |
9510-9609 |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M22
|
9-09110-522-0 |
16 |
1 |
9510-9609 |
|
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 16.5"<B2Y>
M22
|
9-09110-522-0 |
16 |
1 |
9510-9609 |
|
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M22 FLANGE
|
1-09440-055-0 |
16 |
1 |
9610-9802 |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M22 FLANGE
|
1-09440-055-0 |
16 |
1 |
9610-9802 |
|
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 16.5"<B2Y>
M22 FLANGE
|
1-09440-055-0 |
16 |
1 |
9610-9802 |
|
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M22 FLANGE
|
1-09440-055-0 |
16 |
1 |
9803-9904 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
9905-0004 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
0005-0107 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 16.5"<B2Y>
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
0005-0107 |
|
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 15.5"<B2X>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
0108-0204 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
0108-0204 |
|
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 15.5"<B2X>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
0205-0603 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54)
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
0205-0603 |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL
8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD
20X7.00T 162-12(Q54)
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
0604- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
SKF
|
1-09812-256-0 |
02 |
1 |
1209- |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
|
1-09812-153-0 |
02 |
1 |
9510-9705 |
● |
|
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 15.5"<B2X>
NSK
|
1-09812-153-0 |
02 |
1 |
9510-9705 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
|
1-09812-153-0 |
02 |
1 |
9706-9802 |
● |
|
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
NSK
|
1-09812-153-0 |
02 |
1 |
9706-9802 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
NSK
|
1-09812-153-0 |
02 |
1 |
9706-9802 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 15.5"<B2X>
NSK
|
1-09812-153-0 |
02 |
1 |
9803- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-154-0 |
02 |
1 |
9510-9705 |
● |
|
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 15.5"<B2X>
JTEKT
|
1-09812-154-0 |
02 |
1 |
9510-9705 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-154-0 |
02 |
1 |
9706-9802 |
● |
|
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
JTEKT
|
1-09812-154-0 |
02 |
1 |
9706-9802 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
JTEKT
|
1-09812-154-0 |
02 |
1 |
9706-9802 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 15.5"<B2X>
JTEKT
|
1-09812-154-0 |
02 |
1 |
9803- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 16.5"<B2Y>
NSK
|
1-09812-079-0 |
02 |
1 |
9510-9705 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 16.5"<B2Y>
NSK
|
1-09812-079-0 |
02 |
1 |
9706-9802 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
NSK
|
1-09812-079-0 |
02 |
1 |
9706-9802 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
NSK
|
1-09812-079-0 |
02 |
1 |
9803-9809 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
JTEKT
|
1-09812-232-0 |
02 |
1 |
9810-9909 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 16.5"<B2Y>
JTEKT
|
1-09812-232-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
JTEKT
|
1-09812-232-0 |
02 |
1 |
0005-0106 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
JTEKT
|
1-09812-232-0 |
02 |
1 |
0107-0107 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 16.5"<B2Y>
JTEKT
|
1-09812-232-0 |
02 |
1 |
0108-0603 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
JTEKT
|
1-09812-232-0 |
02 |
1 |
0604- |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 16.5"<B2Y>
NACHI
|
1-09812-166-0 |
02 |
1 |
9510-9705 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 16.5"<B2Y>
NACHI
|
1-09812-166-0 |
02 |
1 |
9706-9802 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
NACHI
|
1-09812-166-0 |
02 |
1 |
9706-9802 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
NACHI
|
1-09812-166-0 |
02 |
1 |
9803-9809 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BEST VALUE PARTS
|
1-87610-136-0 |
02 |
1 |
1209- |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
|
9-09924-468-0 |
02 |
1 |
9510-9705 |
● |
|
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 15.5"<B2X>
NOK
|
9-09924-468-0 |
02 |
1 |
9510-9705 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
|
9-09924-468-0 |
02 |
1 |
9706-9802 |
● |
|
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
NOK
|
9-09924-468-0 |
02 |
1 |
9706-9802 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
NOK
|
9-09924-468-0 |
02 |
1 |
9706-9802 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 15.5"<B2X>
NOK
|
9-09924-468-0 |
02 |
1 |
9803- |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
9-09924-470-0 |
02 |
1 |
9510-9705 |
● |
|
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 15.5"<B2X>
TKK
|
9-09924-470-0 |
02 |
1 |
9510-9705 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
9-09924-470-0 |
02 |
1 |
9706-9802 |
● |
|
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
TKK
|
9-09924-470-0 |
02 |
1 |
9706-9802 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
TKK
|
9-09924-470-0 |
02 |
1 |
9706-9802 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 15.5"<B2X>
TKK
|
9-09924-470-0 |
02 |
1 |
9803-0509 |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
JTEKT
|
9-09924-499-0 |
02 |
1 |
9510-9705 |
● |
|
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 15.5"<B2X>
JTEKT
|
9-09924-499-0 |
02 |
1 |
9510-9705 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
JTEKT
|
9-09924-499-0 |
02 |
1 |
9706-9802 |
● |
|
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
JTEKT
|
9-09924-499-0 |
02 |
1 |
9706-9802 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
JTEKT
|
9-09924-499-0 |
02 |
1 |
9706-9802 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 15.5"<B2X>
JTEKT
|
9-09924-499-0 |
02 |
1 |
9803-0509 |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 16.5"<B2Y>
NOK
|
1-09625-226-1 |
02 |
1 |
9510-9705 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 16.5"<B2Y>
NOK
|
1-09625-226-1 |
02 |
1 |
9706-9802 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
NOK
|
1-09625-226-1 |
02 |
1 |
9706-9802 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
NOK
|
1-09625-226-1 |
02 |
1 |
9803-9909 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 16.5"<B2Y>
NOK
|
1-09625-226-1 |
02 |
1 |
9910-0004 |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
NOK
|
1-09625-226-1 |
02 |
1 |
0005-0102 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 16.5"<B2Y>
TKK
|
1-09625-444-0 |
02 |
1 |
9510-9705 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 16.5"<B2Y>
TKK
|
1-09625-444-0 |
02 |
1 |
9706-9802 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
TKK
|
1-09625-444-0 |
02 |
1 |
9706-9802 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
TKK
|
1-09625-444-0 |
02 |
1 |
9803-9909 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 16.5"<B2Y>
TKK
|
1-09625-444-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
TKK
|
1-09625-444-0 |
02 |
1 |
0005-0106 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
TKK
|
1-09625-444-0 |
02 |
1 |
0107-0107 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 16.5"<B2Y>
TKK
|
1-09625-444-0 |
02 |
1 |
0108-0603 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TKK
|
1-09625-444-0 |
02 |
1 |
0604- |
|
● |
| |
20 |
NUT; BRG,RR HUB
M74.6
|
9-09843-064-2 |
02 |
1 |
9510-9705 |
● |
|
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 15.5"<B2X>
M74.6
|
9-09843-064-2 |
02 |
1 |
9510-9705 |
|
● |
| |
20 |
NUT; BRG,RR HUB
M74.6
|
9-09843-064-2 |
02 |
1 |
9706-9802 |
● |
|
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
M74.6
|
9-09843-064-2 |
02 |
1 |
9706-9802 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M74.6
|
9-09843-064-2 |
02 |
1 |
9706-9802 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 15.5"<B2X>
M74.6
|
9-09843-064-2 |
02 |
1 |
9803- |
● |
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 16.5"<B2Y>
M88
|
9-09843-062-2 |
02 |
1 |
9510-9705 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 16.5"<B2Y>
M88
|
9-09843-062-2 |
02 |
1 |
9706-9802 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
M88
|
9-09843-062-2 |
02 |
1 |
9706-9802 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
M88
|
9-09843-062-2 |
02 |
1 |
9803-9909 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 16.5"<B2Y>
M88
|
9-09843-062-2 |
02 |
1 |
9910-0004 |
● |
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
M88
|
9-09843-062-2 |
02 |
1 |
0005-0106 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M88
|
9-09843-062-2 |
02 |
1 |
0107-0107 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 16.5"<B2Y>
M88
|
9-09843-062-2 |
02 |
1 |
0108-0603 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M88
|
9-09843-062-2 |
02 |
1 |
0604- |
|
● |
| |
21 |
WASHER; LK,BRG NUT
ID=74.6
|
1-09533-008-0 |
02 |
1 |
9510-9705 |
● |
|
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 15.5"<B2X>
ID=74.6
|
1-09533-008-0 |
02 |
1 |
9510-9705 |
|
● |
| |
21 |
WASHER; LK,BRG NUT
ID=74.6
|
1-09533-008-0 |
02 |
1 |
9706-9802 |
● |
|
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
ID=74.6
|
1-09533-008-0 |
02 |
1 |
9706-9802 |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
ID=74.6
|
1-09533-008-0 |
02 |
1 |
9706-9802 |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 15.5"<B2X>
ID=74.6
|
1-09533-008-0 |
02 |
1 |
9803- |
● |
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 16.5"<B2Y>
ID=88
|
9-09854-112-0 |
02 |
1 |
9510-9705 |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 16.5"<B2Y>
ID=88
|
9-09854-112-0 |
02 |
1 |
9706-9802 |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
ID=88
|
9-09854-112-0 |
02 |
1 |
9706-9802 |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
ID=88
|
9-09854-112-0 |
02 |
1 |
9803-9909 |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 16.5"<B2Y>
ID=88
|
9-09854-112-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
ID=88
|
9-09854-112-0 |
02 |
1 |
0005-0106 |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
ID=88
|
9-09854-112-0 |
02 |
1 |
0107-0107 |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 16.5"<B2Y>
ID=88
|
9-09854-112-0 |
02 |
1 |
0108-0603 |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=88
|
9-09854-112-0 |
02 |
1 |
0604- |
|
● |
| |
24 |
BOLT; LK WASHER
M6X16 W/LK WASHER
|
0-50040-616-0 |
06 |
1 |
9510-9701 |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
06 |
1 |
9702-0512 |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28650-616-0 |
06 |
1 |
0601- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
L=986
|
1-42171-280-0 |
02 |
1 |
9510-9609 |
● |
|
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 15.5"<B2X>
L=986
|
1-42171-280-0 |
02 |
1 |
9510-9609 |
|
● |
| |
25 |
SHAFT; AXLE,RR
L=986
|
1-42171-499-0 |
02 |
1 |
9610-9705 |
● |
|
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 15.5"<B2X>
L=986
|
1-42171-499-0 |
02 |
1 |
9610-9705 |
|
● |
| |
25 |
SHAFT; AXLE,RR
L=986
|
1-42171-499-0 |
02 |
1 |
9706-9802 |
● |
|
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
L=986
|
1-42171-499-0 |
02 |
1 |
9706-9802 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
L=986
|
1-42171-499-0 |
02 |
1 |
9706-9802 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 15.5"<B2X>
L=986
|
1-42171-499-0 |
02 |
1 |
9803- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 16.5"<B2Y>
L=1039
|
1-42171-414-0 |
02 |
1 |
9510-9802 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
L=1039
|
1-42171-414-0 |
02 |
1 |
9803-9909 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 16.5"<B2Y>
L=1039
|
1-42171-414-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
L=1039
|
1-42171-414-0 |
02 |
1 |
0005-0106 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
L=1039
|
1-42171-414-0 |
02 |
1 |
0107-0107 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 16.5"<B2Y>
L=1039
|
1-42171-414-0 |
02 |
1 |
0108-0603 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=1039
|
1-42171-414-0 |
02 |
1 |
0604-0910 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=1050
|
8-98146-111-0 |
02 |
1 |
0911- |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-42171-420-0 |
02 |
1 |
9706-9802 |
|
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
20 |
1 |
9510-9705 |
● |
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
20 |
1 |
9706-9802 |
● |
|
| |
30 |
BOLT; HUB TO AXLE SHAFT
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
M14X58
|
1-09000-582-0 |
20 |
1 |
9706-9802 |
|
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M14X58
|
1-09000-582-0 |
20 |
1 |
9706-9802 |
|
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
20 |
1 |
9803- |
● |
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
M14X58
|
1-09020-095-1 |
20 |
1 |
9706-9802 |
|
● |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
9-09150-814-0 |
20 |
1 |
9510-0603 |
● |
● |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
0-91510-814-0 |
20 |
1 |
0604- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BEST VALUE PARTS
|
1-87610-138-0 |
02 |
1 |
1209- |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
SKF
|
1-09812-257-0 |
02 |
1 |
1209- |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
|
1-09812-150-0 |
02 |
1 |
9510-9705 |
● |
|
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 15.5"<B2X>
NSK
|
1-09812-150-0 |
02 |
1 |
9510-9705 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
|
1-09812-150-0 |
02 |
1 |
9706-9802 |
● |
|
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
NSK
|
1-09812-150-0 |
02 |
1 |
9706-9802 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
NSK
|
1-09812-150-0 |
02 |
1 |
9706-9802 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 15.5"<B2X>
NSK
|
1-09812-150-0 |
02 |
1 |
9803- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
NACHI
|
1-09812-151-0 |
02 |
1 |
9510-9705 |
● |
|
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 15.5"<B2X>
NACHI
|
1-09812-151-0 |
02 |
1 |
9510-9705 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
NACHI
|
1-09812-151-0 |
02 |
1 |
9706-9802 |
● |
|
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
NACHI
|
1-09812-151-0 |
02 |
1 |
9706-9802 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
NACHI
|
1-09812-151-0 |
02 |
1 |
9706-9802 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 15.5"<B2X>
NACHI
|
1-09812-151-0 |
02 |
1 |
9803- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 16.5"<B2Y>
NSK
|
1-09812-077-0 |
02 |
1 |
9510-9705 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 16.5"<B2Y>
NSK
|
1-09812-077-0 |
02 |
1 |
9706-9802 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
NSK
|
1-09812-077-0 |
02 |
1 |
9706-9802 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
NSK
|
1-09812-077-0 |
02 |
1 |
9803-9809 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
JTEKT
|
1-09812-233-0 |
02 |
1 |
9810-9909 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 16.5"<B2Y>
JTEKT
|
1-09812-233-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
JTEKT
|
1-09812-233-0 |
02 |
1 |
0005-0106 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
JTEKT
|
1-09812-233-0 |
02 |
1 |
0107-0107 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 16.5"<B2Y>
JTEKT
|
1-09812-233-0 |
02 |
1 |
0108-0603 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
JTEKT
|
1-09812-233-0 |
02 |
1 |
0604- |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 16.5"<B2Y>
NACHI
|
1-09812-165-0 |
02 |
1 |
9510-9705 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 16.5"<B2Y>
NACHI
|
1-09812-165-0 |
02 |
1 |
9706-9802 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
NACHI
|
1-09812-165-0 |
02 |
1 |
9706-9802 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
NACHI
|
1-09812-165-0 |
02 |
1 |
9803-9809 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
9-09924-415-0 |
02 |
1 |
9510-9705 |
● |
|
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 15.5"<B2X>
TKK
|
9-09924-415-0 |
02 |
1 |
9510-9705 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
9-09924-415-0 |
02 |
1 |
9706-9802 |
● |
|
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
TKK
|
9-09924-415-0 |
02 |
1 |
9706-9802 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
TKK
|
9-09924-415-0 |
02 |
1 |
9706-9802 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 15.5"<B2X>
TKK
|
9-09924-415-0 |
02 |
1 |
9803- |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
9-09924-416-0 |
02 |
1 |
9510-9705 |
● |
|
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 15.5"<B2X>
NOK
|
9-09924-416-0 |
02 |
1 |
9510-9705 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
9-09924-416-0 |
02 |
1 |
9706-9802 |
● |
|
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
NOK
|
9-09924-416-0 |
02 |
1 |
9706-9802 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
NOK
|
9-09924-416-0 |
02 |
1 |
9706-9802 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 15.5"<B2X>
NOK
|
9-09924-416-0 |
02 |
1 |
9803-0111 |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
JTEKT
|
9-09924-417-0 |
02 |
1 |
9510-9705 |
● |
|
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 15.5"<B2X>
JTEKT
|
9-09924-417-0 |
02 |
1 |
9510-9705 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
JTEKT
|
9-09924-417-0 |
02 |
1 |
9706-9802 |
● |
|
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
JTEKT
|
9-09924-417-0 |
02 |
1 |
9706-9802 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
JTEKT
|
9-09924-417-0 |
02 |
1 |
9706-9802 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 15.5"<B2X>
JTEKT
|
9-09924-417-0 |
02 |
1 |
9803-0111 |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
NOK
|
1-09625-265-0 |
02 |
1 |
9510-9705 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
NOK
|
1-09625-265-0 |
02 |
1 |
9706-9802 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
NOK
|
1-09625-265-0 |
02 |
1 |
9706-9802 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
NOK
|
1-09625-265-0 |
02 |
1 |
9803-9909 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
NOK
|
1-09625-265-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
NOK
|
1-09625-265-0 |
02 |
1 |
0005-0106 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
NOK
|
1-09625-265-0 |
02 |
1 |
0107-0107 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
NOK
|
1-09625-265-0 |
02 |
1 |
0108-0603 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
NOK
|
1-09625-265-0 |
02 |
1 |
0604- |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
TKK
|
1-09625-350-0 |
02 |
1 |
9510-9705 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
TKK
|
1-09625-350-0 |
02 |
1 |
9706-9802 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
TKK
|
1-09625-350-0 |
02 |
1 |
9706-9802 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
TKK
|
1-09625-350-0 |
02 |
1 |
9803-9909 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
TKK
|
1-09625-350-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
TKK
|
1-09625-350-0 |
02 |
1 |
0005-0106 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
TKK
|
1-09625-350-0 |
02 |
1 |
0107-0107 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 16.5"<B2Y>
TKK
|
1-09625-350-0 |
02 |
1 |
0108-0603 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TKK
|
1-09625-350-0 |
02 |
1 |
0604- |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=150
|
9-09950-147-0 |
02 |
1 |
9510-9705 |
● |
|
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 15.5"<B2X>
OD=150
|
9-09950-147-0 |
02 |
1 |
9510-9705 |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=150
|
9-09950-147-0 |
02 |
1 |
9706-9802 |
● |
|
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
OD=150
|
9-09950-147-0 |
02 |
1 |
9706-9802 |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
OD=150
|
9-09950-147-0 |
02 |
1 |
9706-9802 |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 15.5"<B2X>
OD=150
|
9-09950-147-0 |
02 |
1 |
9803- |
● |
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 16.5"<B2Y>
OD=179
|
1-09587-057-0 |
02 |
1 |
9510-9705 |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 16.5"<B2Y>
OD=179
|
1-09587-057-0 |
02 |
1 |
9706-9802 |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
OD=179
|
1-09587-057-0 |
02 |
1 |
9706-9802 |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
OD=179
|
1-09587-057-0 |
02 |
1 |
9803-9909 |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 16.5"<B2Y>
OD=179
|
1-09587-057-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
OD=179
|
1-09587-057-0 |
02 |
1 |
0005-0106 |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
OD=179
|
1-09587-057-0 |
02 |
1 |
0107-0107 |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 16.5"<B2Y>
OD=179
|
1-09587-057-0 |
02 |
1 |
0108-0603 |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
OD=179
|
1-09587-057-0 |
02 |
1 |
0604- |
|
● |
| |
49 |
CASE; RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42160-151-1 |
01 |
1 |
9510-9705 |
● |
|
| |
49 |
CASE; RR AXLE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42160-151-1 |
01 |
1 |
9510-9705 |
|
● |
| |
49 |
CASE; RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42160-151-1 |
01 |
1 |
9706-9802 |
● |
|
| |
49 |
CASE; RR AXLE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-42160-151-1 |
01 |
1 |
9706-9802 |
|
● |
| |
49 |
CASE; RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42160-151-1 |
01 |
1 |
9803-0004 |
● |
|
| |
49 |
CASE; RR AXLE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42160-151-1 |
01 |
1 |
9803-0004 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-42160-151-1 |
01 |
1 |
0005-0210 |
● |
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 15.5"<B2X>
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-42160-152-0 |
01 |
1 |
0211- |
● |
● |
| |
49 |
CASE; RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42160-153-0 |
01 |
1 |
9510-0004 |
● |
|
| |
49 |
CASE; RR AXLE
FINAL GEAR 15.5"<B2X>
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42160-153-0 |
01 |
1 |
9510-0004 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 15.5"<B2X>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42160-153-0 |
01 |
1 |
0005- |
● |
● |
| |
49 |
CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42160-892-1 |
01 |
1 |
0005-0106 |
|
● |
| |
49 |
CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42160-892-1 |
01 |
1 |
0107-0211 |
|
● |
| |
49 |
CASE; RR AXLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-42160-892-1 |
01 |
1 |
0212- |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 16.5"<B2Y>
|
1-42160-182-1 |
01 |
1 |
9510-9802 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
|
1-42160-182-1 |
01 |
1 |
9803-9810 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
EXC. BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>,
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-42160-182-1 |
01 |
1 |
9811-9901 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
|
1-42160-182-1 |
01 |
1 |
9902-9909 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 16.5"<B2Y>
|
1-42160-182-1 |
01 |
1 |
9910-0004 |
● |
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
|
1-42160-182-1 |
01 |
1 |
0005-0106 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
|
1-42160-182-1 |
01 |
1 |
0107-0107 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 16.5"<B2Y>
|
1-42160-182-1 |
01 |
1 |
0108-0603 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-42160-182-2 |
01 |
1 |
0604- |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-42130-943-4 |
01 |
1 |
9706-9802 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 39/7 16.5" HYPOID(W3B)
HEAVY DUTY PACKAGE TRUCK<RD2>
BRK LINING MATERIAL 3662F NON ASBESTOS<BDR>
|
1-42160-720-0 |
01 |
1 |
9811-9901 |
|
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
9510- |
● |
● |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9510- |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09893-016-0 |
01 |
1 |
9510-0004 |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09893-016-0 |
01 |
1 |
0005- |
● |
|
| |
60 |
BREATHER; RR AXLE CASE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09893-016-0 |
01 |
1 |
0005- |
|
● |
| |
60 |
BREATHER; RR AXLE CASE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09893-003-0 |
01 |
1 |
9510-0004 |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09893-003-0 |
01 |
1 |
0005- |
● |
|
| |
60 |
BREATHER; RR AXLE CASE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09893-003-0 |
01 |
1 |
0005- |
|
● |
| |
60 |
BREATHER; RR AXLE CASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
9-36122-015-1 |
01 |
1 |
0005- |
|
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
9510- |
● |
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9510- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M14X65
|
9-91066-465-0 |
04 |
1 |
9510-9705 |
● |
|
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 15.5"<B2X>
M14X65
|
9-91066-465-0 |
04 |
1 |
9510-9705 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M14X65
|
9-91066-465-0 |
04 |
1 |
9706-9802 |
● |
|
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
M14X65
|
9-91066-465-0 |
04 |
1 |
9706-9802 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M14X65
|
9-91066-465-0 |
04 |
1 |
9706-9802 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 15.5"<B2X>
M14X65
|
9-91066-465-0 |
04 |
1 |
9803-0108 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 15.5"<B2X>
M14X65
|
9-92061-465-0 |
04 |
1 |
0109- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M14X40
|
9-92061-440-0 |
08 |
1 |
9510-9705 |
● |
|
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 15.5"<B2X>
M14X40
|
9-92061-440-0 |
08 |
1 |
9510-9705 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M14X40
|
9-92061-440-0 |
08 |
1 |
9706-9802 |
● |
|
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
M14X40
|
9-92061-440-0 |
08 |
1 |
9706-9802 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M14X40
|
9-92061-440-0 |
08 |
1 |
9706-9802 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 15.5"<B2X>
M14X40
|
9-92061-440-0 |
08 |
1 |
9803-0512 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 15.5"<B2X>
M14X40
|
0-20951-440-0 |
08 |
1 |
0601- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
M16X70
|
9-91066-670-0 |
04 |
1 |
9510-9802 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
M16X70
|
9-91066-670-0 |
04 |
1 |
9803-9909 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
M16X70
|
9-91066-670-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
M16X70
|
9-91066-670-0 |
04 |
1 |
0005-0106 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M16X70
|
9-91066-670-0 |
04 |
1 |
0107-0107 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
M16X70
|
9-91066-670-0 |
04 |
1 |
0108-0512 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
M16X70
|
0-10956-670-0 |
04 |
1 |
0601-0603 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M16X70
|
0-10956-670-0 |
04 |
1 |
0604- |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
M16X40
|
9-92061-640-0 |
08 |
1 |
9510-9705 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
M16X40
|
9-92061-640-0 |
08 |
1 |
9706-9802 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
M16X40
|
9-92061-640-0 |
08 |
1 |
9706-9802 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
M16X40
|
9-92061-640-0 |
08 |
1 |
9803-9909 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
M16X40
|
9-92061-640-0 |
08 |
1 |
9910-0004 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
M16X40
|
9-92061-640-0 |
08 |
1 |
0005-0106 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M16X40
|
9-92061-640-0 |
08 |
1 |
0107-0107 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
M16X40
|
9-92061-640-0 |
08 |
1 |
0108-0512 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
M16X40
|
0-20951-640-0 |
08 |
1 |
0601-0603 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M16X40
|
0-20951-640-0 |
08 |
1 |
0604- |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
M16X45
|
0-20801-645-0 |
02 |
1 |
9709-9802 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
M16X45
|
0-20801-645-0 |
02 |
1 |
9803-9909 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
M16X45
|
0-20801-645-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
M16X45
|
0-20801-645-0 |
02 |
1 |
0005-0106 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M16X45
|
0-20801-645-0 |
02 |
1 |
0107-0107 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
M16X45
|
0-20801-645-0 |
02 |
1 |
0108-0211 |
|
● |
| |
70 |
NUT; CARRIER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
M16
|
9-99111-416-0 |
02 |
1 |
9811-9909 |
|
● |
| |
70 |
NUT; CARRIER
FINAL GEAR 16.5"<B2Y>
M16
|
9-99111-416-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
70 |
NUT; CARRIER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
M16
|
9-99111-416-0 |
02 |
1 |
0005-0106 |
|
● |
| |
70 |
NUT; CARRIER
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M16
|
9-99111-416-0 |
02 |
1 |
0107-0107 |
|
● |
| |
70 |
NUT; CARRIER
FINAL GEAR 16.5"<B2Y>
M16
|
9-99111-416-0 |
02 |
1 |
0108-0211 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9510-9705 |
● |
|
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 15.5"<B2X>
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9510-9705 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9706-9802 |
● |
|
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9706-9802 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9706-9802 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 15.5"<B2X>
ID=14.2
|
9-09150-814-0 |
12 |
1 |
9803-0603 |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 15.5"<B2X>
ID=14.2
|
0-91510-814-0 |
12 |
1 |
0604- |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
ID=16.2
|
9-09150-816-0 |
12 |
1 |
9510-9705 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
ID=16.2
|
9-09150-816-0 |
12 |
1 |
9706-9802 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
ID=16.2
|
9-09150-816-0 |
12 |
1 |
9706-9802 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
ID=16.2
|
9-09150-816-0 |
12 |
1 |
9803-9909 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
ID=16.2
|
9-09150-816-0 |
12 |
1 |
9910-0004 |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
ID=16.2
|
9-09150-816-0 |
12 |
1 |
0005-0106 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
ID=16.2
|
9-09150-816-0 |
12 |
1 |
0107-0107 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 16.5"<B2Y>
ID=16.2
|
9-09150-816-0 |
12 |
1 |
0108-0603 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=16.2
|
9-09150-816-0 |
12 |
1 |
0604-0604 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=16.2
|
0-91510-816-0 |
12 |
1 |
0604- |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
M14X50
|
1-09040-066-0 |
16 |
1 |
9510-9705 |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 15.5"<B2X>
M14X50
|
1-09040-066-0 |
16 |
1 |
9510-9705 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
M14X50
|
1-09040-066-0 |
16 |
1 |
9706-9802 |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
M14X50
|
1-09040-066-0 |
16 |
1 |
9706-9802 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M14X50
|
1-09040-066-0 |
16 |
1 |
9706-9802 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 15.5"<B2X>
M14X50
|
1-09040-066-0 |
16 |
1 |
9803-0004 |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 15.5"<B2X>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M14X50
|
1-09040-066-0 |
16 |
1 |
0005-1209 |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 15.5"<B2X>
M14X50
|
1-09040-066-0 |
16 |
1 |
1210- |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 16.5"<B2Y>
M14X50
|
1-09040-066-0 |
14 |
1 |
9510-9705 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 16.5"<B2Y>
M14X50
|
1-09040-066-0 |
14 |
1 |
9706-9802 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 39/7 15.5" HYPOID(W3K)
HEAVY DUTY PACKAGE TRUCK<RD2>
M14X50
|
1-09040-066-0 |
14 |
1 |
9706-9802 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
M14X50
|
1-09040-066-0 |
14 |
1 |
9803-9909 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 16.5"<B2Y>
M14X50
|
1-09040-066-0 |
14 |
1 |
9910-0004 |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
8STUD 20X7.00T 152-12(SDP)
M14X50
|
1-09040-066-0 |
14 |
1 |
0005-0106 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 16.5"<B2Y>
DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL
10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD
22.5X7.50 162-12(Q87),DISC WHEEL 8STUD 20X7.00T
152-12(SDP)
M14X50
|
1-09040-066-0 |
14 |
1 |
0107-0107 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 16.5"<B2Y>
M14X50
|
1-09040-066-0 |
14 |
1 |
0108-0301 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
M14X50
|
1-09040-066-0 |
14 |
1 |
0302-1209 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
M14X50
|
1-09040-066-0 |
14 |
1 |
0302-1209 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M14X50
|
1-09040-066-0 |
14 |
1 |
1210- |
|
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
16 |
1 |
9510-9510 |
● |
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
16 |
1 |
9511-9802 |
● |
|
| |
75 |
WASHER; LK,RR BRK ASM SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR
41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5"
HYPOID(W4P)
ID=14.2
|
9-09150-814-0 |
16 |
1 |
9511-9802 |
|
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
FINAL GEAR 39/7 15.5" HYPOID(W3K)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
ID=14.2
|
9-09150-814-0 |
16 |
1 |
9511-9802 |
|
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
16 |
1 |
9803-0603 |
● |
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
0-91510-814-0 |
16 |
1 |
0604- |
● |
● |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
9-99110-514-0 |
16 |
1 |
9510-0512 |
● |
● |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
0-91110-514-0 |
16 |
1 |
0601- |
● |
● |
| |
96 |
BRACKET; LSPV,AXLE CASE
LOAD SENSING PROPORTIONING VALVE(JR7)
|
1-47475-073-0 |
01 |
1 |
0308- |
|
● |
| |
97 |
BOLT; BRKT,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7)
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
0308-0512 |
|
● |
| |
97 |
BOLT; BRKT,LSPV
LOAD SENSING PROPORTIONING VALVE(JR7)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0601- |
|
● |
