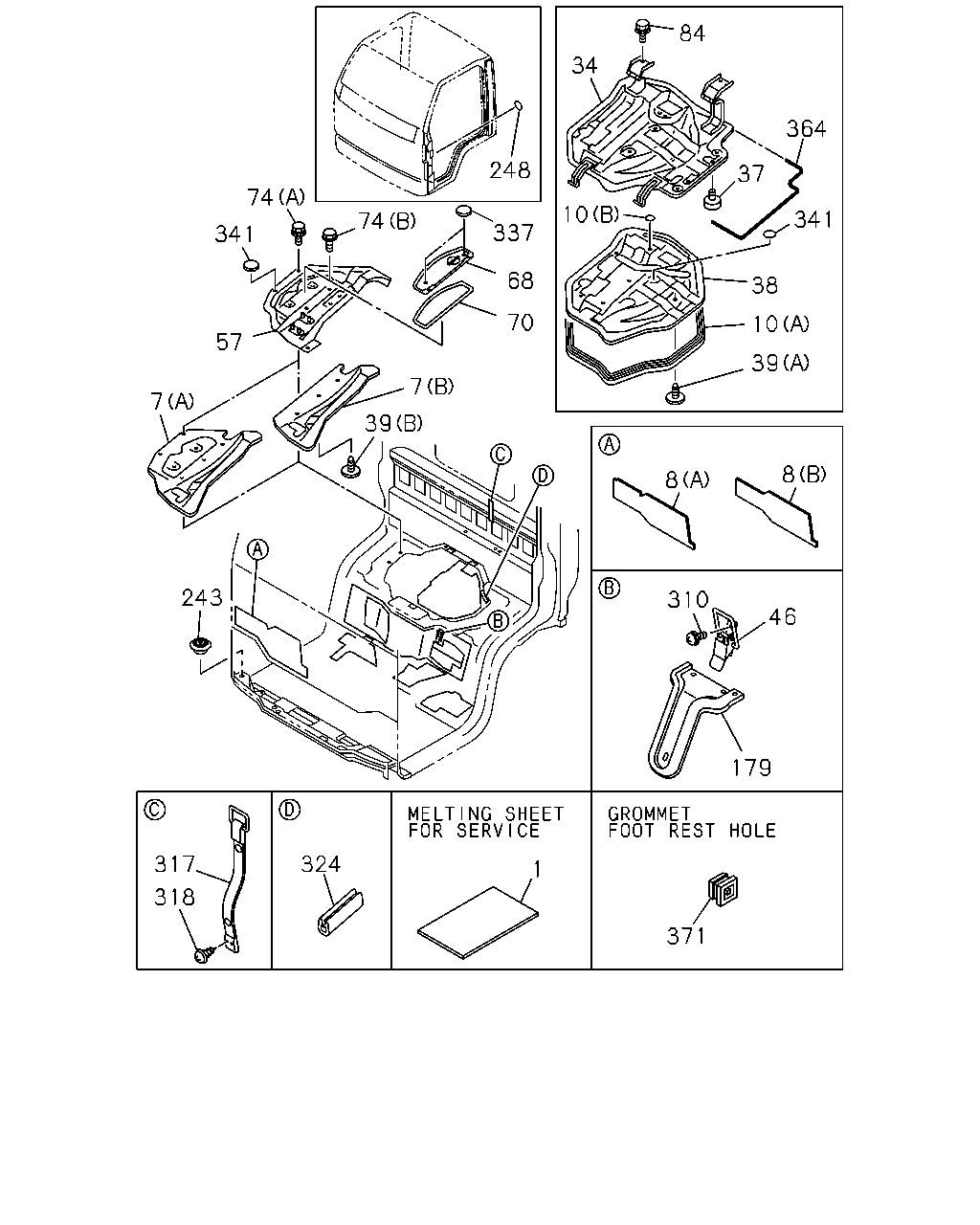

1 |
16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
|
8-94262-093-0 |
AR |
1 |
0301- |
| |
7 |
16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ>
(A)
|
8-97853-629-2 |
01 |
1 |
0301- |
| |
7 |
16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ>
(B)
|
8-97853-641-2 |
01 |
1 |
0301- |
| |
8 |
16.802 MAT; SILENCER,FRT PANEL
(A)
|
8-97853-605-2 |
01 |
1 |
0301-0501 |
| |
8 |
16.802 MAT; SILENCER,FRT PANEL
(B)
|
8-97581-660-3 |
01 |
1 |
0502- |
| |
8 |
16.802 MAT; SILENCER,FRT PANEL
(A)
|
8-97853-606-1 |
01 |
1 |
0301-0501 |
| |
8 |
16.802 MAT; SILENCER,FRT PANEL
(B)
|
8-97581-661-3 |
01 |
1 |
0502- |
| |
10 |
16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729)
16.592
(B)
OD=36 WHITE
|
1-76778-007-0 |
01 |
1 |
0301- |
| |
10 |
16.549 SEAL; ENG COVER
(A)
|
8-97853-267-5 |
01 |
1 |
0301-0305 |
| |
10 |
16.549 SEAL; ENG COVER
(A)
|
8-97581-109-1 |
01 |
1 |
0306- |
| |
10 |
16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR
POLARSILVER MET(845),BODY COLOR MARINE
BLUE(890),BODY COLOR GOLDEN YELLOW(904)
02.580
(B)
OD=36 T=0.05 BLACK
|
5-76777-035-0 |
01 |
1 |
0301-0710 |
| |
10 |
16.549 SEAL; ENG COVER
BODY COLOR FT ORANGE(609),BODY COLOR
POLARSILVER MET(845),BODY COLOR MARINE
BLUE(890),BODY COLOR GOLDEN YELLOW(904)
16.545
(B)
OD=32 BLACK
|
8-98031-126-0 |
01 |
1 |
0711- |
| |
34 |
16.549 COVER ASM; ENG,CAB FLOOR
|
8-97898-132-1 |
01 |
1 |
0301- |
| |
37 |
16.549 RUBBER; BUFFER,ENG COVER
16.155
OD=30 T=10
|
5-74917-001-2 |
02 |
1 |
0301- |
| |
38 |
16.549 INSULATOR; ENG COVER
|
8-97898-101-0 |
01 |
1 |
0301- |
| |
39 |
16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ>
(B)
OD=30
|
8-94279-952-0 |
08 |
1 |
0301- |
| |
39 |
16.549 CLIP; INSULATOR,COVER
(A)
OD=30
|
8-94279-952-0 |
05 |
1 |
0301- |
| |
39 |
16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ>
(A)
OD=30
|
8-94279-952-0 |
05 |
1 |
0301- |
| |
46 |
16.549 HOOK ASM; ENG COVER
|
8-97853-632-2 |
02 |
1 |
0301- |
| |
57 |
16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ>
|
8-97866-684-2 |
01 |
1 |
0301- |
| |
57 |
16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ>
|
8-97866-685-1 |
01 |
1 |
0301-0501 |
| |
68 |
16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ>
|
8-97853-712-3 |
01 |
1 |
0301-0312 |
| |
68 |
16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ>
|
8-97583-489-0 |
01 |
1 |
0401-0608 |
| |
68 |
16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ>
|
8-98040-141-0 |
01 |
1 |
0609- |
| |
70 |
16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ>
|
8-97853-050-1 |
01 |
1 |
0301- |
| |
74 |
16.549 BOLT; SUPPORT COVER TO FLOOR
02.664
(A)
M8X20 FLANGE
|
0-28680-820-0 |
05 |
1 |
0301-0512 |
| |
74 |
16.549 BOLT; SUPPORT COVER TO FLOOR
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
05 |
1 |
0601- |
| |
74 |
16.549 BOLT; SUPPORT COVER TO FLOOR
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0301-0512 |
| |
74 |
16.549 BOLT; SUPPORT COVER TO FLOOR
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
| |
84 |
16.549 BOLT; ENG COVER HINGE
02.664
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0301-0512 |
| |
84 |
16.549 BOLT; ENG COVER HINGE
01.531
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601- |
| |
179 |
16.549 REINFORCEMENT; COVER
|
8-97857-865-2 |
01 |
1 |
0301- |
| |
243 |
16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1
|
8-97898-423-0 |
01 |
1 |
0301- |
| |
248 |
16.850 SEAL; EXT,FRT & RR
02.580
OD=36 T=0.05 BLACK
|
5-76777-035-0 |
04 |
1 |
0307-0501 |
| |
310 |
16.549 SCREW; ENG COVER HOOK
16.320
M6X20 W/LK&PL WASHER
|
8-94279-403-0 |
04 |
1 |
0301-0612 |
| |
310 |
16.549 SCREW; ENG COVER HOOK
16.570
M6X16
|
0-38050-616-0 |
04 |
1 |
0701-0810 |
| |
310 |
16.549 SCREW; ENG COVER HOOK
02.343
M6X16 FLANGE
|
0-28650-616-0 |
04 |
1 |
0811- |
| |
317 |
16.549 BAND; ENGINE COVER
L=535 BLACK
|
8-97867-201-1 |
01 |
1 |
0301- |
| |
318 |
16.549 SCREW; BAND
16.802
M5X16 TAPPING W/PL WASHER
|
0-74310-516-0 |
02 |
1 |
0301-0604 |
| |
318 |
16.549 SCREW; BAND
03.885
M5X16 TAPPING W/PL WASHER
|
0-74360-516-0 |
02 |
1 |
0605-0612 |
| |
318 |
16.549 SCREW; BAND
16.570
T25 M5X16 TAPPING HEXALOBULAR
|
0-72380-516-0 |
02 |
1 |
0701- |
| |
324 |
16.545 FINISHER; FLOOR PANEL
L=140
|
8-97892-742-0 |
01 |
1 |
0301- |
| |
337 |
16.545 SEAL; CLIP HOLE
4HE1 ENG(RLY)
EXC. MANUAL TILT CAB<RWZ>
16.570
OD=20 T=0.05 WHITE
|
8-97856-832-1 |
02 |
1 |
0301-0501 |
| |
337 |
16.545 SEAL; CLIP HOLE
16.165
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
01 |
1 |
0502- |
| |
341 |
16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ>
16.570
OD=20 T=0.05 WHITE
|
8-97856-832-2 |
01 |
1 |
0301-0610 |
| |
341 |
16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ>
16.570
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
01 |
1 |
0611- |
| |
364 |
16.545 FINISHER; ENG COVER SIDE
L=1000
|
8-97892-743-0 |
01 |
1 |
0301- |
| |
371 |
16.549 GROMMET; LOCATION HOLE
16.547
14.5X14.5 BLACK
|
8-94279-714-0 |
02 |
1 |
0308- |
