◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51409 - NPS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#40014) — 72 parça

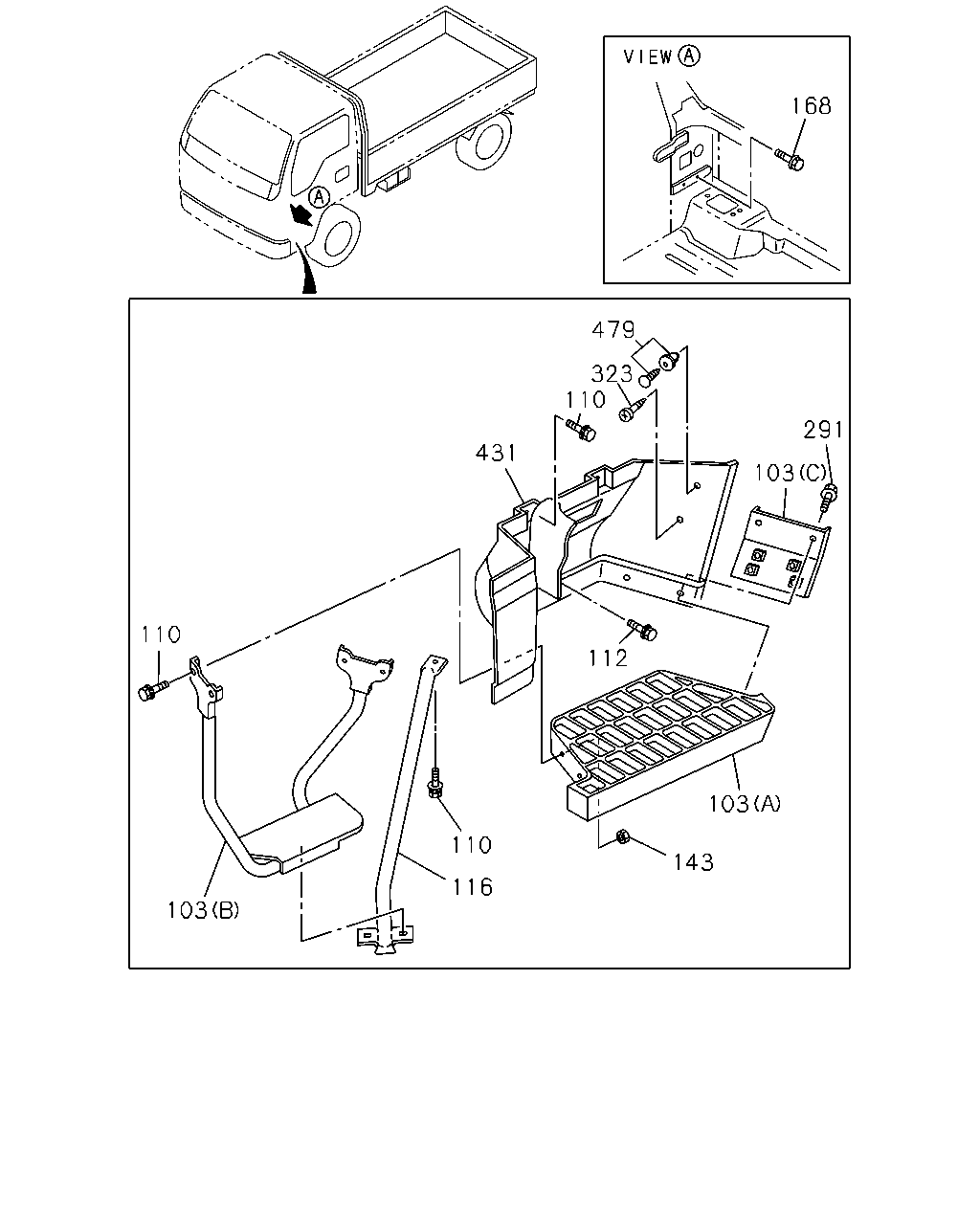

çizim 35149
168 479 323 110 291 431 103 110 112 103 110 143 116 103
BalonParca AdiParca NoAdetTipApplied Date
103 08.228 PLATE; STEP
(B) 		8-97856-567-1 01 1 0301-
103 08.228 PLATE; STEP
(B) 		8-97856-568-1 01 1 0301-
103 08.228 PLATE; STEP
08.155 (C) 		8-97856-571-2 02 1 0301-
103 08.228 PLATE; STEP
(A) 		8-97867-968-1 01 1 0301-
103 08.228 PLATE; STEP
(A) 		8-97867-969-1 01 1 0301-
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0301-0908
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909-
112 08.228 BOLT; 1ST STEP
02.664 M8X20 FLANGE 		0-28680-820-0 10 1 0301-0512
112 08.228 BOLT; 1ST STEP
01.531 M8X20 FLANGE 		0-28650-820-0 10 1 0601-
116 08.228 STAY; 1ST STEP,FRT 8-97856-569-2 01 1 0301-
116 08.228 STAY; 1ST STEP,FRT 8-97856-570-1 01 1 0301-0501
116 08.228 STAY; 1ST STEP,FRT 8-97410-684-0 01 1 0502-
143 08.309 NUT; STEP PLATE TO BRKT
03.417 M8 FLANGE 		8-94279-517-0 04 1 0301-
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0301-
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0301-0908
291 08.225 BOLT; STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0909-
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 02 1 0301-
431 08.228 SUPPORT ASM; STEP 8-97892-965-1 01 1 0301-
431 08.228 SUPPORT ASM; STEP 8-97892-966-1 01 1 0301-
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0301-

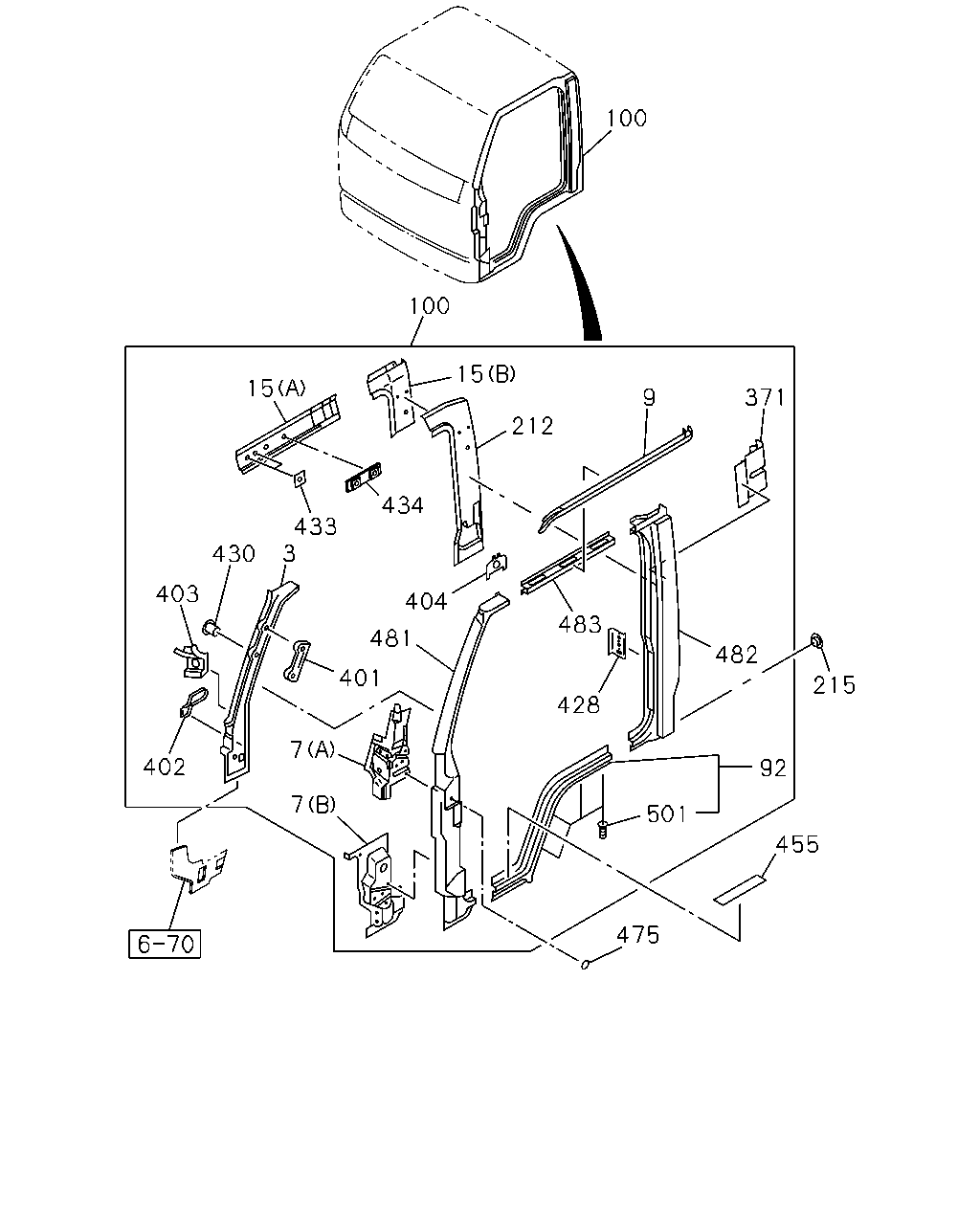

çizim 35380
100 100 15 15 371 9 212 434 433 3 430 403 404 483 481 482 401 215 428 7 402 92 7 501 455 475
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-023-8 01 1 0301-
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-024-8 01 1 0301-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-4 01 1 0301-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-4 01 1 0301-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0301-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0301-
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0301-1106
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107-
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0301-1106
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 0301-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 0301-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 0301-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 0301-
92 16.570 PANEL; SIDE SILL,CAB 8-97867-238-0 01 1 0301-
92 16.570 PANEL; SIDE SILL,CAB 8-97867-237-0 01 1 0301-
100 16.570 PANEL ASM; BODY SIDE 8-97890-418-1 01 1 0301-
100 16.570 PANEL ASM; BODY SIDE 8-97997-871-1 01 1 0301-
212 16.588 CLOSING; PILLAR 8-97890-453-4 01 1 0301-
212 16.588 CLOSING; PILLAR 8-97890-456-4 01 1 0301-
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0301-
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0301-
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0301-
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 02 1 0301-0309
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0310-
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0310-
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0301-
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0301-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0301-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0301-
404 16.570 BRACKET 8-97890-317-1 01 1 0301-
404 16.570 BRACKET 8-97890-318-1 01 1 0301-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 0301-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 0301-
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0301-0805
430 16.570 NUT; PANEL
09.786 M6 POP NUT 		8-98013-752-0 01 1 0806-
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 0301-0309
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0310-
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0310-
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0301-
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 0301-0511
455 08.228 PROTECTOR; STEP 8-98027-816-0 02 1 0512-
475 16.570 GROMMET; CTR PILLAR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0304-0501
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 0301-
481 16.570 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 0301-
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0301-
482 16.570 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0301-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0301-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0301-
501 16.570 PIN; STUD
M8X17 SPECIAL STUD 		8-94279-177-0 06 1 0301-0309
501 16.570 PIN; STUD
M8X17 SPECIAL STUD 		8-94279-177-0 03 1 0310-
501 16.570 PIN; STUD
M8X17 SPECIAL STUD 		8-94279-177-0 03 1 0310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
