◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51409 - NPS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#40012) — 106 parça

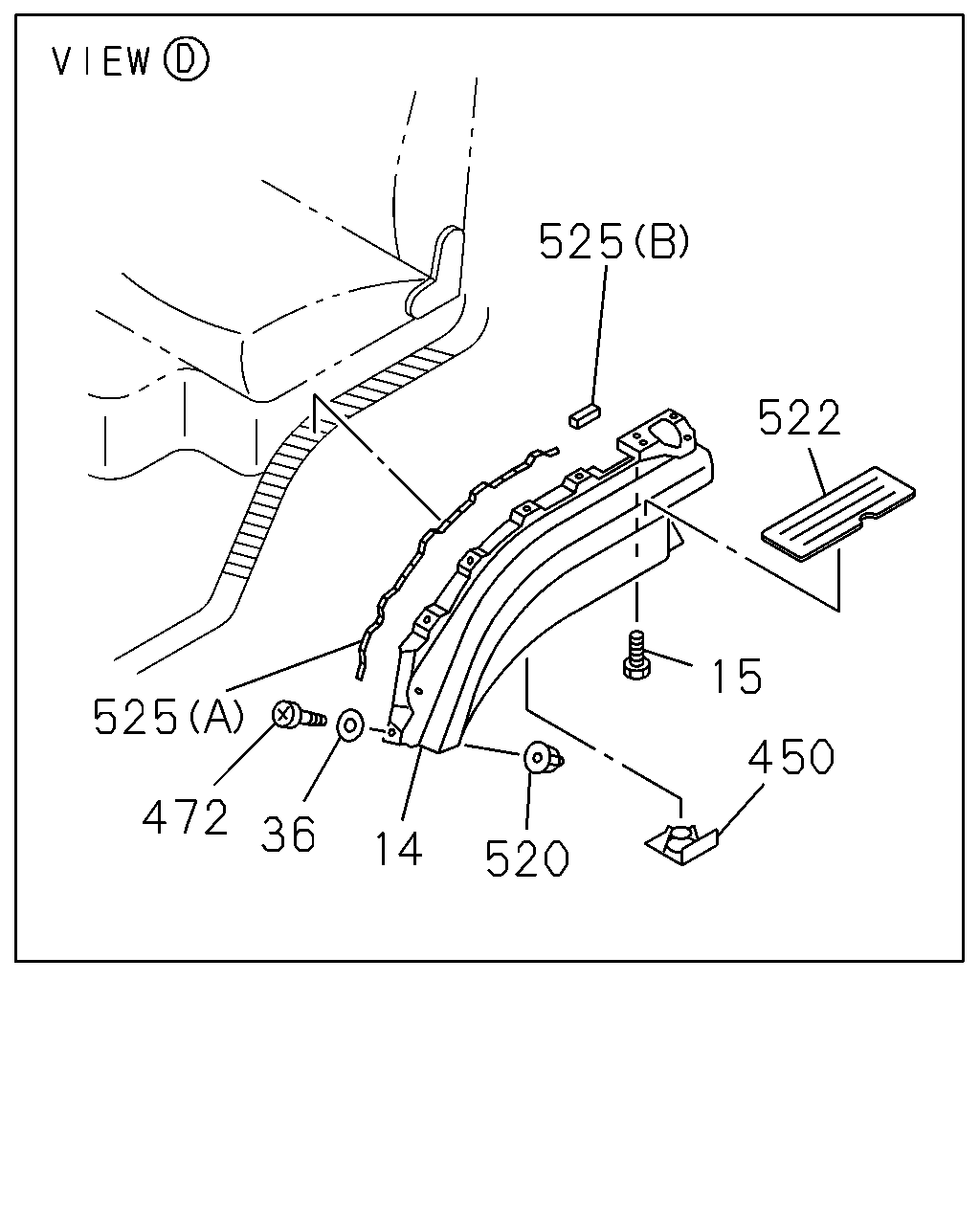

çizim 35243
525 522 15 525 450 472 36 14 520
BalonParca AdiParca NoAdetTipApplied Date
14 08.130 FENDER; FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-97867-562-1 01 1 0301-
14 08.130 FENDER; FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-97867-563-1 01 1 0301-
15 08.143 BOLT; FENDER
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0301-0611
15 08.143 BOLT; FENDER
06.514 M8X20 W/LK&PL WASHER 		0-52000-820-0 03 1 0612-
36 16.550 WASHER; PL
ID=8.4 OD=22 		1-09985-188-0 02 1 0301-0611
36 16.550 WASHER; PL
04.595 ID=8.4 OD=22 		0-91610-708-0 02 1 0612-
450 16.125 SPACER 8-97857-263-0 01 1 0301-
450 16.125 SPACER 8-97857-264-0 01 1 0301-
472 08.131 SCREW; FENDER TO CAB
M8X25 		8-94279-387-1 04 1 0301-0612
472 08.131 SCREW; FENDER TO CAB
M8X28 W/TORQUES 		8-98020-523-0 04 1 0701-0702
472 08.131 SCREW; FENDER TO CAB
M8X25 		8-94279-387-1 04 1 0703-
520 08.143 NUT; FENDER
M8 W/WASHER 		8-94279-184-1 10 1 0301-
522 08.228 PROTECTOR; SILL SIDE
DARK GRAY 		8-97857-840-3 01 1 0301-0501
522 08.228 PROTECTOR; SILL SIDE
GRAY 		8-97582-193-3 01 1 0502-
525 08.131 SEAL; FENDER
(A) 		1-71998-926-2 02 1 0301-
525 08.131 SEAL; FENDER
(B) 		8-97857-446-0 01 1 0301-

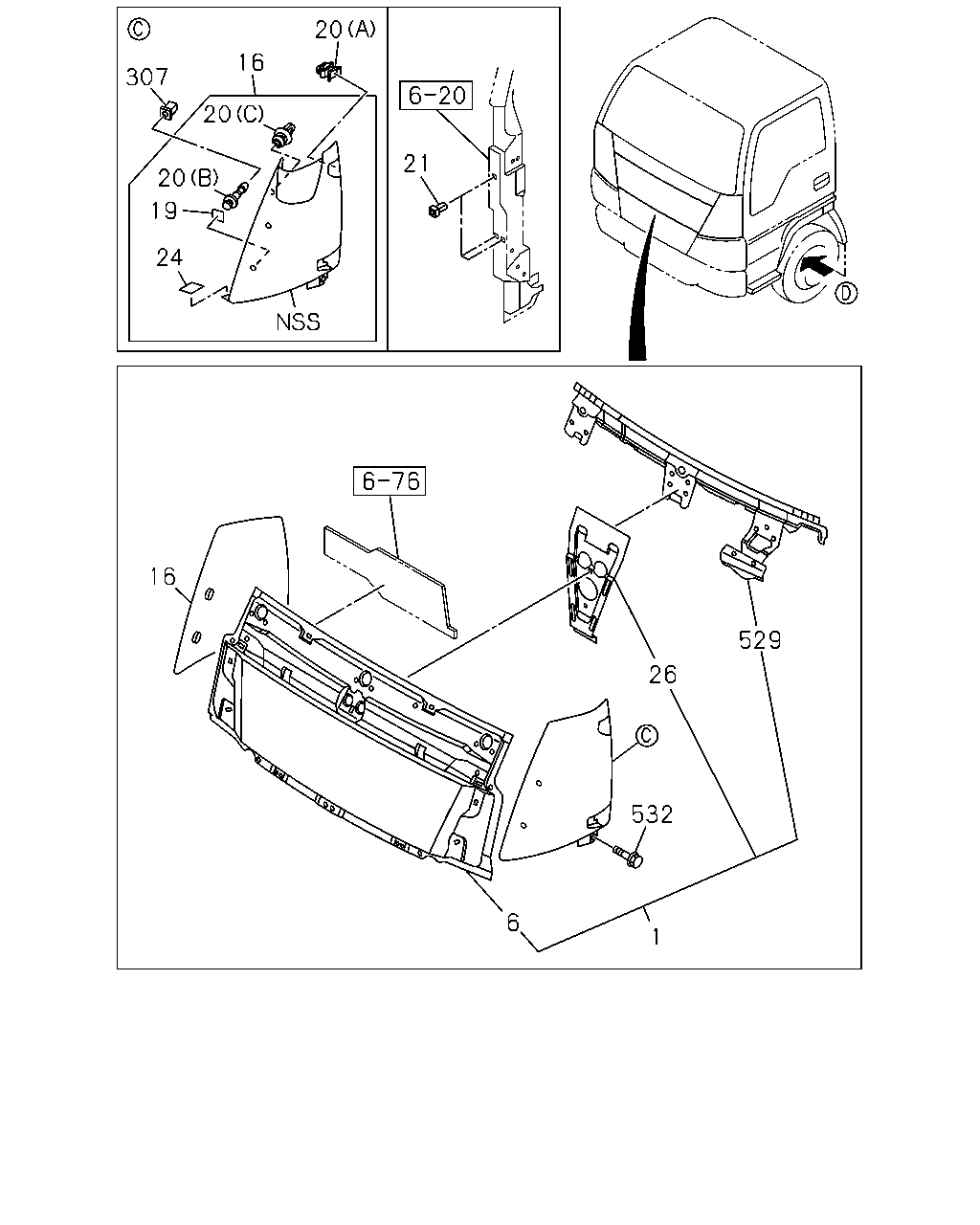

çizim 35273
20 16 307 20 21 20 19 24 16 529 26 532 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT 8-97859-459-0 01 1 0301-0501
1 16.550 PANEL ASM; FRT 8-97581-835-0 01 1 0502-
6 16.570 PANEL; FRONT 8-97859-457-3 01 1 0301-0501
6 16.570 PANEL; FRONT 8-97581-819-2 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) WINDSHIELD WEATHERSTRIP TYPE<7EL> BEIGE 		8-97402-791-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) WINDSHIELD WEATHERSTRIP TYPE<7EL> BEIGE 		8-97402-792-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-785-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-788-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-428-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-430-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-787-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-790-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-710-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-711-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-786-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-789-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-429-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-431-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) WINDSHIELD WEATHERSTRIP TYPE<7EL> YELLOW 		8-97402-793-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) WINDSHIELD WEATHERSTRIP TYPE<7EL> YELLOW 		8-97402-795-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> YELLOW 		8-97589-172-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> YELLOW 		8-97589-175-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0301-0501
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BEIGE 		8-97588-875-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0301-0501
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BEIGE 		8-97588-876-6 01 1 0502-
19 16.588 SEAL; FRT SIDE PANEL
08.131 		8-97581-676-0 04 1 0502-1008
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0502-
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-97581-632-1 04 1 0502-
20 16.588 CLIP; FRT PANEL SIDE
16.165 (C) H=11.2 		8-97807-381-0 02 1 0502-0503
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0504-
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0301-
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0502-
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-275-0 01 1 0301-
307 16.125 GROMMET; FRT PANEL 8-97583-397-0 04 1 0502-
529 16.578 REINFORCEMENT; PANEL 8-97859-246-0 01 1 0301-
532 08.143 BOLT; FRT PANEL
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 0502-

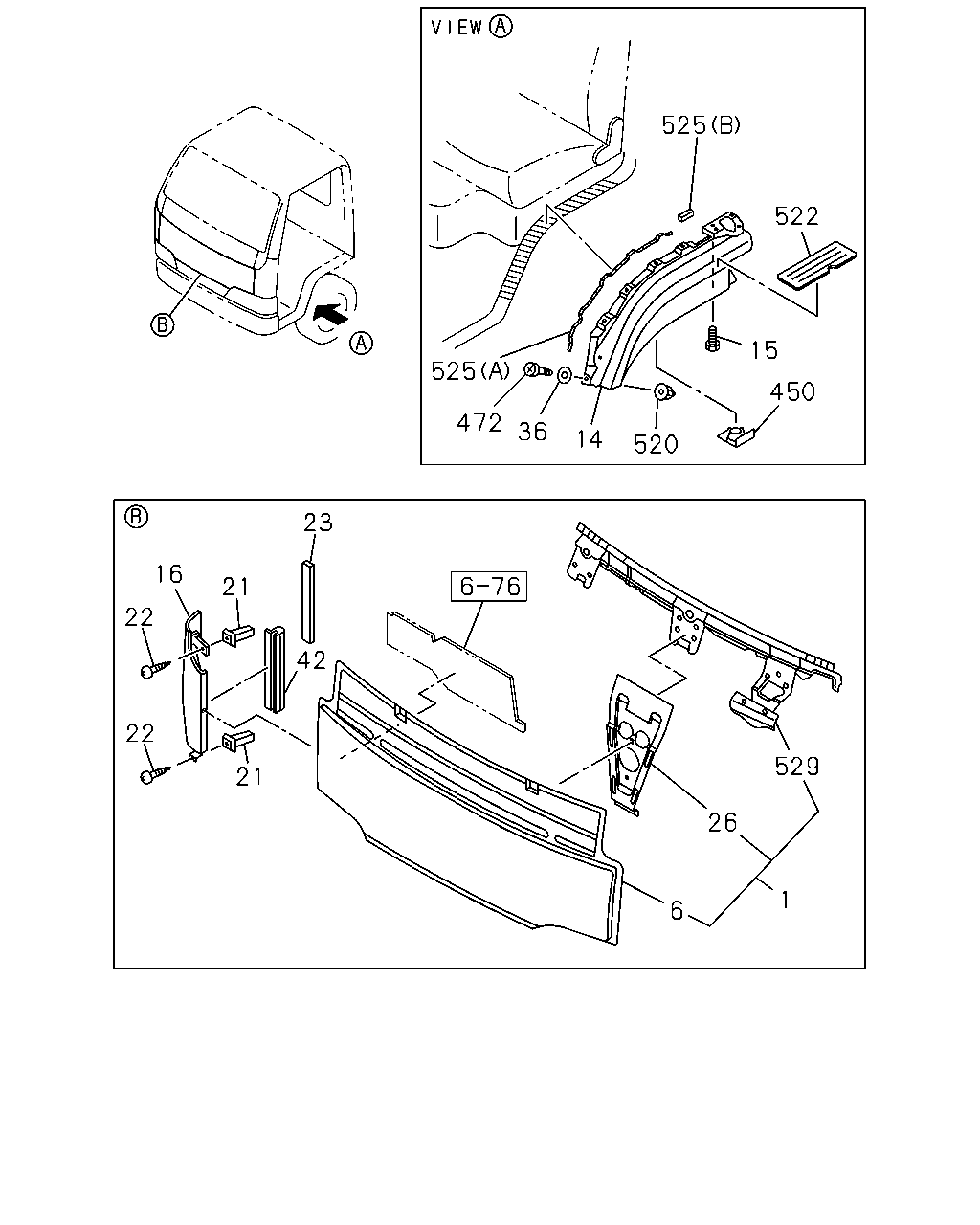

çizim 35274
525 522 15 525 450 472 36 14 520 23 16 21 22 42 22 529 21 26 1 6
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT 8-97859-459-0 01 1 0301-0501
1 16.550 PANEL ASM; FRT 8-97581-835-0 01 1 0502-
6 16.570 PANEL; FRONT 8-97859-457-3 01 1 0301-0501
6 16.570 PANEL; FRONT 8-97581-819-2 01 1 0502-
14 08.130 FENDER; FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-97867-562-1 01 1 0301-
14 08.130 FENDER; FRT
PLEASE PAINT TO MATCH BODY COLOR 		8-97867-563-1 01 1 0301-
15 08.143 BOLT; FENDER
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0301-0611
15 08.143 BOLT; FENDER
06.514 M8X20 W/LK&PL WASHER 		0-52000-820-0 03 1 0612-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) WINDSHIELD WEATHERSTRIP TYPE<7EL> BEIGE 		8-97402-791-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) WINDSHIELD WEATHERSTRIP TYPE<7EL> BEIGE 		8-97402-792-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-785-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97402-788-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-428-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE 		8-97585-430-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-787-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97402-790-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-710-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER 		8-97587-711-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-786-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97402-789-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-429-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE 		8-97585-431-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) WINDSHIELD WEATHERSTRIP TYPE<7EL> YELLOW 		8-97402-793-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) WINDSHIELD WEATHERSTRIP TYPE<7EL> YELLOW 		8-97402-795-3 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> YELLOW 		8-97589-172-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> YELLOW 		8-97589-175-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-653-0 01 1 0301-0501
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BEIGE 		8-97588-875-6 01 1 0502-
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97896-654-0 01 1 0301-0501
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BEIGE 		8-97588-876-6 01 1 0502-
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0301-
22 16.588 SCREW; FRT PANEL SIDE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0301-0501
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97857-444-0 02 1 0301-0410
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97410-832-0 02 1 0411-0501
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-275-0 01 1 0301-
36 16.550 WASHER; PL
ID=8.4 OD=22 		1-09985-188-0 02 1 0301-0611
36 16.550 WASHER; PL
04.595 ID=8.4 OD=22 		0-91610-708-0 02 1 0612-
42 01.303 FINISHER; FRT PANEL,SIDE
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-614-3 01 1 0502-
42 01.303 FINISHER; FRT PANEL,SIDE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-043-0 01 1 0502-
42 01.303 FINISHER; FRT PANEL,SIDE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97411-044-0 01 1 0502-
42 01.303 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 0301-0501
42 01.303 FINISHER; FRT PANEL,SIDE
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-613-3 01 1 0502-
450 16.125 SPACER 8-97857-263-0 01 1 0301-
450 16.125 SPACER 8-97857-264-0 01 1 0301-
472 08.131 SCREW; FENDER TO CAB
M8X25 		8-94279-387-1 04 1 0301-0612
472 08.131 SCREW; FENDER TO CAB
M8X28 W/TORQUES 		8-98020-523-0 04 1 0701-0702
472 08.131 SCREW; FENDER TO CAB
M8X25 		8-94279-387-1 04 1 0703-
520 08.143 NUT; FENDER
M8 W/WASHER 		8-94279-184-1 10 1 0301-
522 08.228 PROTECTOR; SILL SIDE
DARK GRAY 		8-97857-840-3 01 1 0301-0501
522 08.228 PROTECTOR; SILL SIDE
GRAY 		8-97582-193-3 01 1 0502-
525 08.131 SEAL; FENDER
(A) 		1-71998-926-2 02 1 0301-
525 08.131 SEAL; FENDER
(B) 		8-97857-446-0 01 1 0301-
529 16.578 REINFORCEMENT; PANEL 8-97859-246-0 01 1 0301-
