6-03 — RADIATOR GRILLE (#40010) — 70 parça

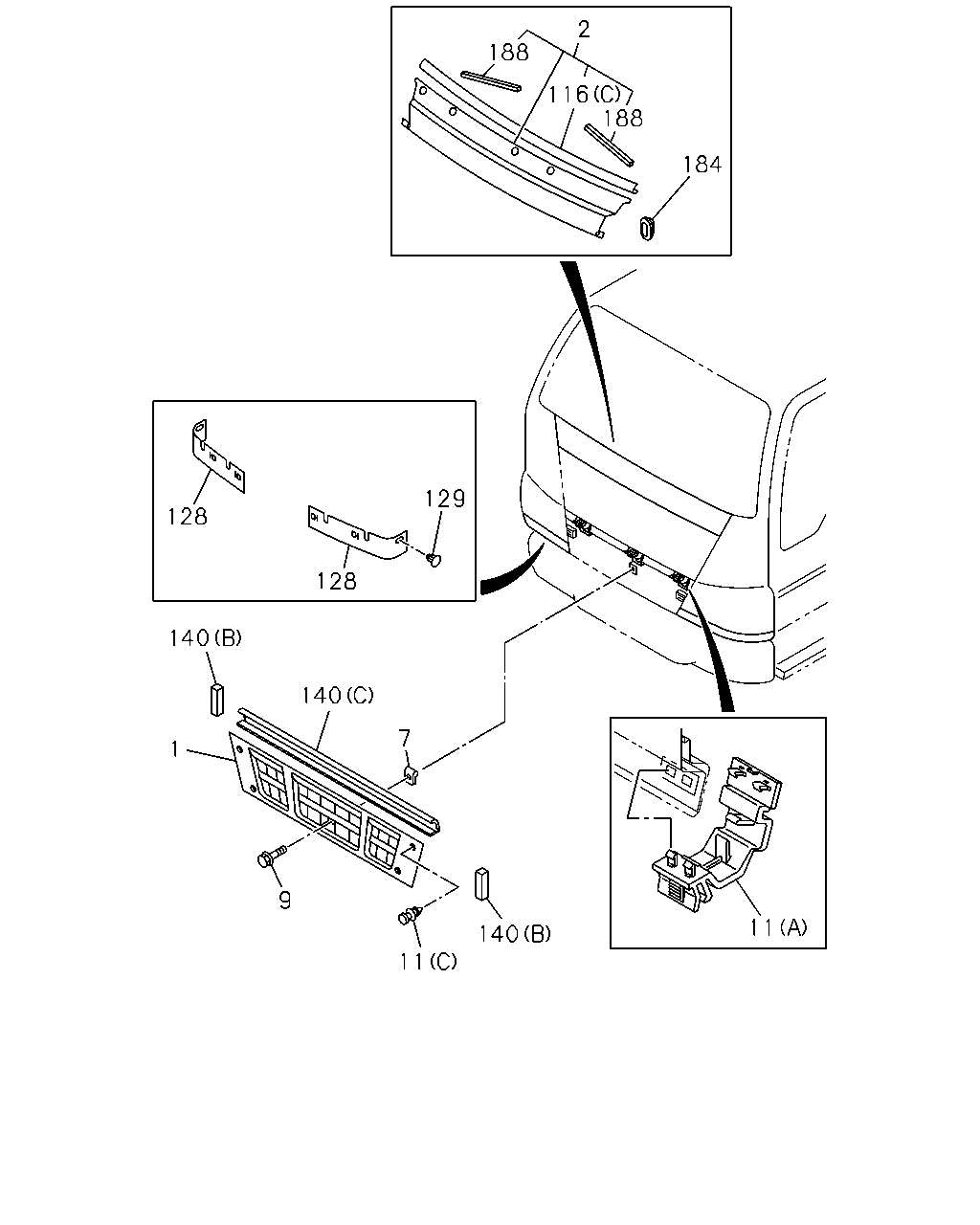

çizim 35304
2 188 116 188 184 129 128 128 140 140 7 1 9 11 140 11
BalonParca AdiParca NoAdetTipApplied Date
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97589-227-4 01 1 0502-
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97581-826-2 01 1 0502-
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97583-047-4 01 1 0502-
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97583-050-4 01 1 0502-
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97583-048-4 01 1 0502-
1 01.266 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97589-228-4 01 1 0502-
1 01.266 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR 		8-97891-681-1 01 1 0301-0501
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-329-3 01 1 0301-0501
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97583-952-2 01 1 0502-
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97859-465-3 01 1 0301-0501
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97581-821-5 01 1 0502-
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0301-0505
7 01.269 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506-
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0301-0805
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806-
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97102-415-0 04 1 0301-
11 01.269 CLIP; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE 		8-97892-730-0 02 1 0301-0501
11 01.269 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0502-
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-098-4 01 1 0301-0306
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-97853-098-4 01 1 0307-0501
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-096-2 01 1 0301-0501
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C) 		8-97581-656-1 01 1 0502-
128 01.267 COVER; HEADLAMP GRILLE 8-97581-653-3 02 1 0502-0504
128 01.267 COVER; HEADLAMP GRILLE 8-98015-934-0 02 1 0505-
129 01.269 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 0502-
140 01.266 SEAL; RAD GRILLE
(B) 		8-97583-411-1 02 1 0502-
140 01.266 SEAL; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) 		8-97088-561-3 01 1 0301-0501
140 01.266 SEAL; RAD GRILLE
(C) 		8-97581-665-0 01 1 0502-
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 03 1 0502-0602
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 02 1 0603-
188 08.010 SEAL; ORNAMENT 8-97584-800-0 02 1 0502-

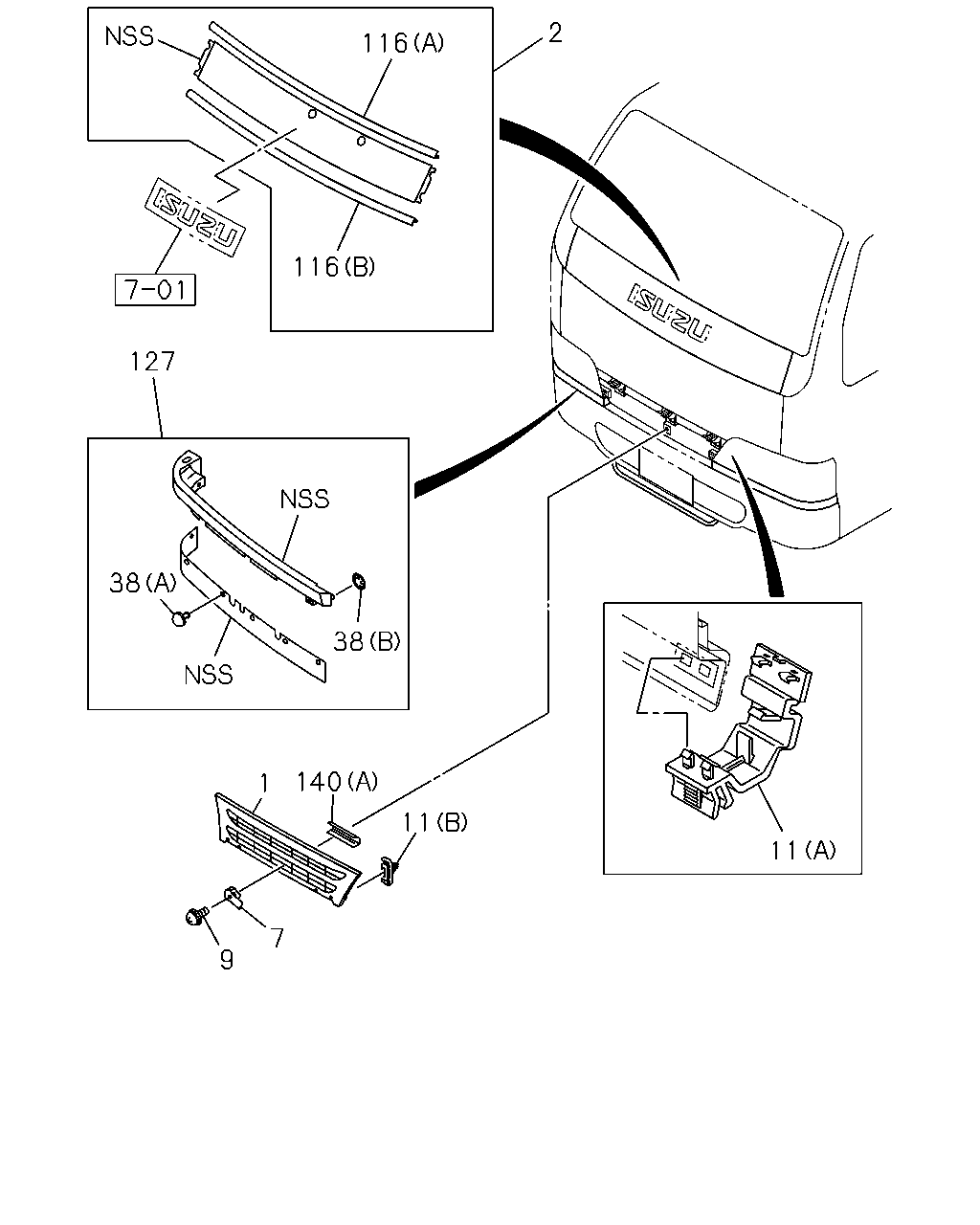

çizim 35385
2 116 116 127 38 38 140 1 11 11 7 9
BalonParca AdiParca NoAdetTipApplied Date
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97589-227-4 01 1 0502-
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97581-826-2 01 1 0502-
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97583-047-4 01 1 0502-
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97583-050-4 01 1 0502-
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97583-048-4 01 1 0502-
1 01.266 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97589-228-4 01 1 0502-
1 01.266 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR 		8-97891-681-1 01 1 0301-0501
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-329-3 01 1 0301-0501
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97583-952-2 01 1 0502-
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97859-465-3 01 1 0301-0501
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97581-821-5 01 1 0502-
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0301-0505
7 01.269 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506-
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0301-0805
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806-
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97102-415-0 04 1 0301-
11 01.269 CLIP; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE 		8-97892-730-0 02 1 0301-0501
11 01.269 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0502-
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		1-09987-180-0 01 1 0301-0501
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5 		8-97855-279-0 09 1 0301-0501
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-098-4 01 1 0301-0306
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-97853-098-4 01 1 0307-0501
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-096-2 01 1 0301-0501
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C) 		8-97581-656-1 01 1 0502-
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97898-525-1 01 1 0301-0501
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97898-526-1 01 1 0301-0501
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-454-0 01 1 0301-0501
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-455-0 01 1 0301-0501
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-366-1 01 1 0301-0501
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-387-1 01 1 0301-0501
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-362-1 01 1 0301-0501
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-383-1 01 1 0301-0501
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-370-1 01 1 0301-0501
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-391-1 01 1 0301-0501
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR GOLDEN YELLOW(904) EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97580-967-1 01 1 0301-0501
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR GOLDEN YELLOW(904) EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97580-968-1 01 1 0301-0501
140 01.266 SEAL; RAD GRILLE
(B) 		8-97583-411-1 02 1 0502-
140 01.266 SEAL; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) 		8-97088-561-3 01 1 0301-0501
140 01.266 SEAL; RAD GRILLE
(C) 		8-97581-665-0 01 1 0502-
