Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#4001) — 682 parça

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 127 128 110 111 110 296 237 91 111 128 127 91 93 105 234 87 93 304 303 237 87 93 234 103 93 87 87 82 1

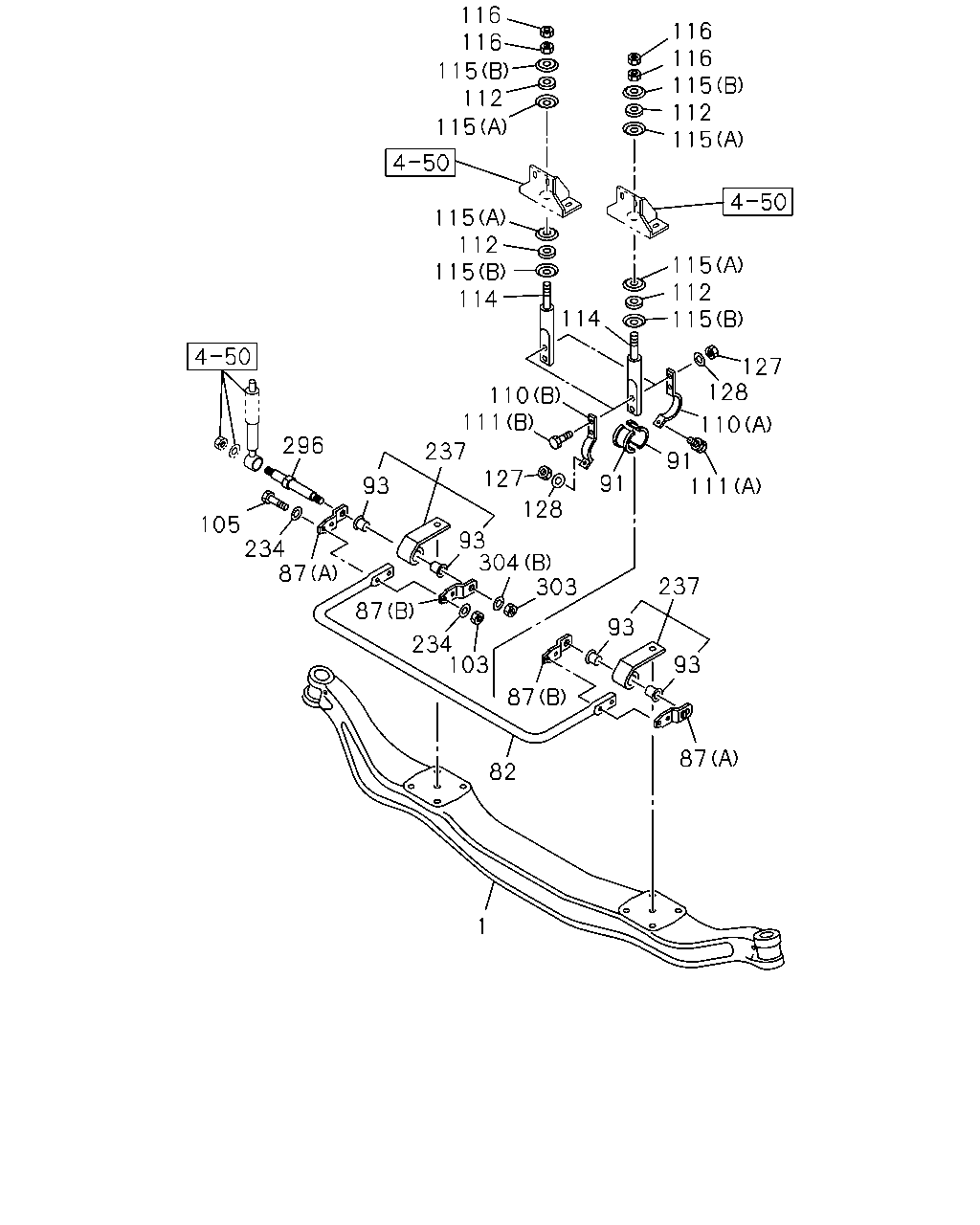

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-133-0	01	1	9510-9705	●	●
1	AXLE; FRT FRONT AXLE F049(FS4)	1-43111-133-0	01	1	9706-	●	●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-113-1	01	1	9706-9802		●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-113-6	01	1	9803-	●	●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-113-0	01	1	9510-0201	●	●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-200-0	01	1	0202-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	9510-0912	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1001-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	9510-0912	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1001-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-084-0	04	1	9510-0201	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-121-1	04	1	0202-	●	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	9510-	●	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	9510-0512	●	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0601-	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91061-470-0	04	1	9510-0206	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0207-0910	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0911-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	9510-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	9510-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	9510-0910	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0911-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	9510-0910	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0911-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	9510-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-084-0	02	1	9510-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.8	1-51631-022-0	04	1	9510-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=14.5	9-51631-051-0	04	1	9510-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9510-0512	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0601-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	9510-0512	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0601-	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9510-0603	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-512-0	06	1	0604-0912	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1001-	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	9510-0910	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0911-	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-724-0	02	1	9510-0209	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0210-	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-150-0	02	1	9510-0907	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98013-020-1	02	1	0908-	●	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	9510-0512	●	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0601-	●	●
304	WASHER; PL FRONT AXLE F063(FS7) (A) ID=12.5	0-91614-512-0	04	1	0705-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9510-0704	●	●
304	WASHER; PL FRONT AXLE F049(FS4) (A) ID=12.5	9-09164-512-0	04	1	0705-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	9510-0907	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●	●

3 33 34 6 60 2 8 25 32 80 8 6 66 58 8 11 305 275 61 21 51 52 51 52 48 59 74 68 21 80 304 58 44 66 59 61 45 50 81 275 74 304 17 18 30 68 6 34 1 8 40 33 21 2 32 5 60 25 8 8 6 11 36 37 305

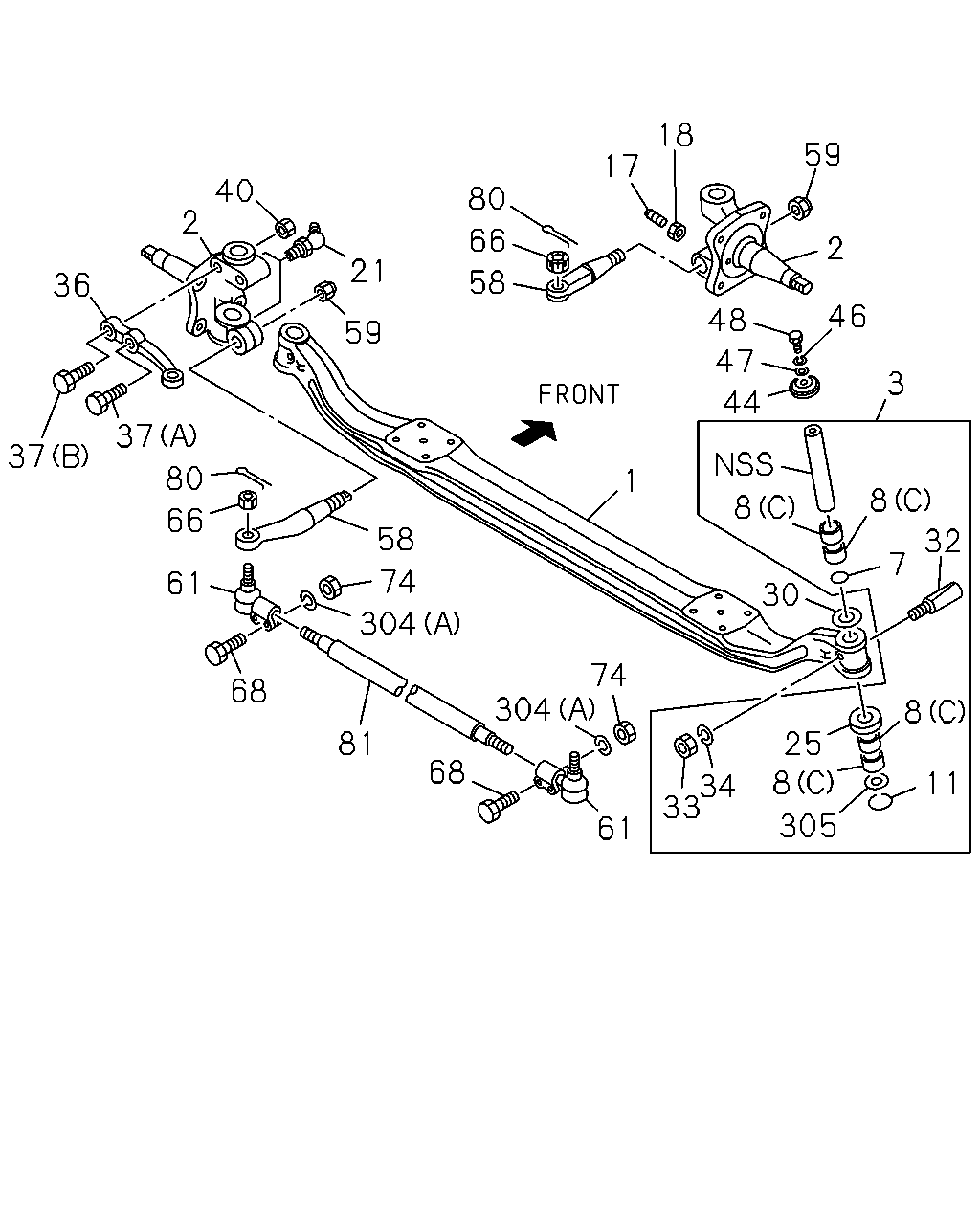

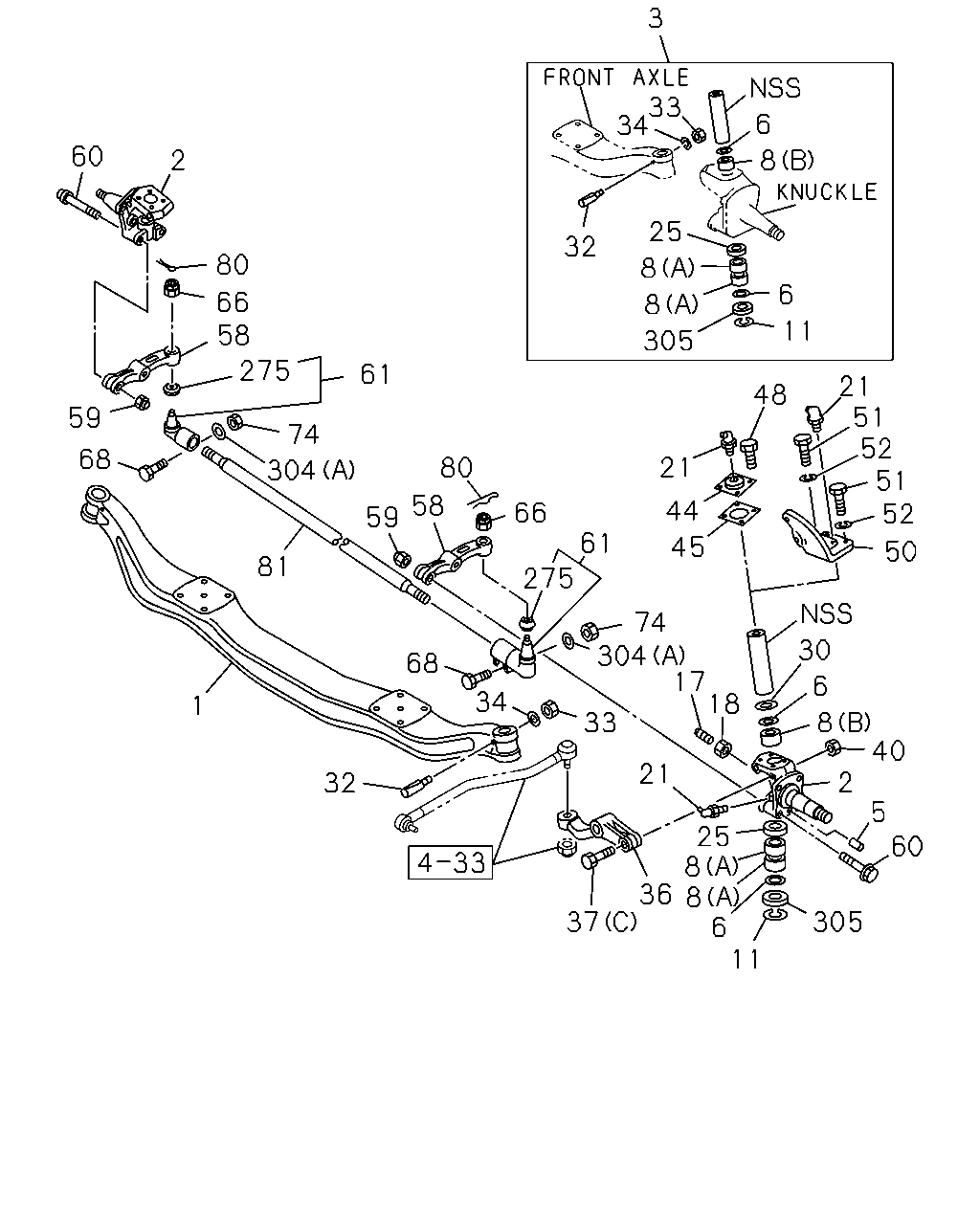

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-133-0	01	1	9510-9705	●	●
1	AXLE; FRT FRONT AXLE F049(FS4)	1-43111-133-0	01	1	9706-	●	●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-113-1	01	1	9706-9802		●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-113-6	01	1	9803-	●	●
2	KNUCKLE; FRT AXLE	1-43132-089-0	01	1	9510-9705	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43132-089-0	01	1	9706-	●	●
2	KNUCKLE; FRT AXLE	1-43131-089-0	01	1	9510-9705	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43131-089-0	01	1	9706-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-079-0	01	1	9706-9802		●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-079-1	01	1	9803-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-079-0	01	1	9706-9802		●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-079-1	01	1	9803-	●	●
3	KING PIN SET	1-87830-837-0	01	1	9510-9705	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-837-2	01	1	9706-0704	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87831-390-1	01	1	0705-	●	●
3	KING PIN SET	1-87830-804-0	01	1	9510-9705	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-804-2	01	1	9706-0704	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87831-389-1	01	1	0705-	●	●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-738-0	02	1	9706-9802		●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-738-6	02	1	9803-	●	●
5	PIN; KNUCKLE TO DRUM COVER FRONT AXLE F063(FS7)	1-09740-072-0	02	1	9706-9802		●
5	PIN; KNUCKLE TO DRUM COVER FRONT AXLE F063(FS7)	1-09740-072-0	02	1	9803-	●	●
6	SEAL; KING PIN FRONT AXLE F063(FS7)	9-09926-024-0	04	1	9706-9802		●
6	SEAL; KING PIN FRONT AXLE F063(FS7)	9-09926-024-0	04	1	9803-	●	●
8	BEARING; NEEDLE,KING PIN (C) NTN	1-09811-071-0	08	1	9510-9705	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) (C) NTN	1-09811-071-0	08	1	9706-	●	●
8	BEARING; NEEDLE,KING PIN (C) NSK	1-09811-072-0	08	1	9510-9705	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) (C) NSK	1-09811-072-0	08	1	9706-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (A) NTN	9-00096-242-0	04	1	9706-9802		●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (A) NTN	9-00096-242-0	04	1	9803-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (B) NTN	9-00096-243-0	02	1	9706-9802		●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (B) NTN	9-00096-243-0	02	1	9803-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9510-	●	●
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-058-0	02	1	9510-9705	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049(FS4) M14X47	1-09009-058-0	02	1	9706-0805	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049(FS4) M14X47	1-09009-191-0	02	1	0806-	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X43	1-09009-065-0	02	1	9706-9802		●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X43	1-09009-065-0	02	1	9803-0705	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X43	1-09009-190-0	02	1	0706-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M14	9-99112-814-0	02	1	9510-9705	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049(FS4) M14	9-99112-814-0	02	1	9706-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049(FS4) M14	0-91112-814-0	02	1	0601-	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	9-99110-518-0	02	1	9706-9802		●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	9-99110-518-0	02	1	9803-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	0-91110-518-0	02	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 STRAIGHT	9-09031-010-0	04	1	9510-9705	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049(FS4) PT1/8 STRAIGHT	9-09031-010-0	04	1	9706-9709	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063(FS7) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9706-9709		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9710-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-040-0	01	1	9510-9705	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NSK	1-09829-040-0	01	1	9706-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-028-0	01	1	9510-9705	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NSK	1-09829-028-0	01	1	9706-	●	●
25	BEARING; THRUST,KING PIN NTN	1-09829-026-0	01	1	9601-9705	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NTN	1-09829-026-0	01	1	9706-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NSK	1-09829-043-2	02	1	9706-9802		●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NSK	1-09829-043-2	02	1	9803-	●	●
30	WASHER; THRUST,KING PIN T=2.800	1-43171-229-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.800	1-43171-229-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=2.850	1-43171-230-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.850	1-43171-230-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=2.900	1-43171-231-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.900	1-43171-231-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=2.950	1-43171-232-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.950	1-43171-232-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.000	1-43171-233-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.000	1-43171-233-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.050	1-43171-234-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.050	1-43171-234-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.100	1-43171-235-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.100	1-43171-235-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.150	1-43171-236-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.150	1-43171-236-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.200	1-43171-237-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.200	1-43171-237-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.250	1-43171-238-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.250	1-43171-238-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.300	1-43171-239-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.300	1-43171-239-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.875 -4.900	1-43171-185-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.875 -4.900	1-43171-185-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.900 -4.925	1-43171-186-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.900 -4.925	1-43171-186-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.925 -4.950	1-43171-187-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.925 -4.950	1-43171-187-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.950 -4.975	1-43171-188-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.950 -4.975	1-43171-188-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.975 -5.000	1-43171-189-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.975 -5.000	1-43171-189-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.000 -5.025	1-43171-190-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.000 -5.025	1-43171-190-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.025 -5.050	1-43171-191-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.025 -5.050	1-43171-191-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.050 -5.075	1-43171-192-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.050 -5.075	1-43171-192-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.075 -5.100	1-43171-193-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.075 -5.100	1-43171-193-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.100 -5.125	1-43171-194-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.100 -5.125	1-43171-194-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.125 -5.150	1-43171-195-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.125 -5.150	1-43171-195-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.150 -5.175	1-43171-196-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.150 -5.175	1-43171-196-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.175 -5.200	1-43171-197-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.175 -5.200	1-43171-197-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.200 -5.225	1-43171-198-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.200 -5.225	1-43171-198-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.225 -5.250	1-43171-199-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.225 -5.250	1-43171-199-0	AR	1	9803-	●	●
32	BOLT; KEY,KING PIN	1-43116-005-1	02	1	9510-9705	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F049(FS4)	1-43116-005-2	02	1	9706-	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F063(FS7)	1-43116-002-1	02	1	9706-9802		●
32	BOLT; KEY,KING PIN FRONT AXLE F063(FS7)	1-43116-002-2	02	1	9803-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9510-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9510-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE	1-43133-069-0	01	1	9510-9705	●	●
36	ARM; KNUCKLE FRONT AXLE F049(FS4)	1-43133-069-2	01	1	9706-	●	●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-063-1	01	1	9706-9802		●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-063-3	01	1	9803-	●	●
37	BOLT; KNUCKLE ARM (A) M22X162	1-09000-107-1	01	1	9510-9705	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) (A) M22X162	1-09000-107-1	01	1	9706-	●	●
37	BOLT; KNUCKLE ARM (B) M22X147	1-09000-108-1	01	1	9510-9705	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) (B) M22X147	1-09000-108-1	01	1	9706-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X179	1-09000-578-1	01	1	9706-9802		●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X179	1-09000-578-1	01	1	9803-0704	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X179	8-98052-380-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X167	9-09806-847-3	01	1	9706-9802		●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X167	9-09806-847-3	01	1	9803-0704	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X167	8-98052-381-1	01	1	0705-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9510-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
44	COVER; KING PIN	1-43175-016-0	02	1	9510-9705	●	●
44	COVER; KING PIN FRONT AXLE F049(FS4)	1-43175-016-0	02	1	9706-	●	●
44	COVER; KING PIN FRONT AXLE F063(FS7)	1-43175-014-1	02	1	9706-9802		●
44	COVER; KING PIN FRONT AXLE F063(FS7)	1-43175-014-1	02	1	9803-0004	●	●
44	COVER; KING PIN FRONT AXLE F063(FS7) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	0005-	●	●
45	GASKET; KING PIN COVER FRONT AXLE F063(FS7)	1-42319-044-0	02	1	9706-9802		●
45	GASKET; KING PIN COVER FRONT AXLE F063(FS7)	1-42319-044-0	02	1	9803-0004	●	●
45	GASKET; KING PIN COVER FRONT AXLE F063(FS7) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	0005-	●	●
48	BOLT; COVER M12X25	1-09009-081-0	02	1	9510-9705	●	●
48	BOLT; COVER FRONT AXLE F049(FS4) M12X25	1-09009-081-0	02	1	9706-	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X16 FLANGE	0-28081-216-0	08	1	9706-9802		●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X16 FLANGE	0-28081-216-0	08	1	9803-0004	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	0005-0512	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28051-216-0	08	1	0601-	●	●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-3	01	1	0005-		●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-3	01	1	0005-		●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60 FLANGE	0-28081-260-0	02	1	0005-0512		●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60 FLANGE	0-28051-260-0	02	1	0601-		●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X25 FLANGE	0-28681-225-0	06	1	0005-0512		●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X25 FLANGE	0-28651-225-0	06	1	0601-		●
52	WASHER; LK,POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	08	1	0005-0005		●
58	ARM; TIE ROD	1-43135-015-1	01	1	9510-9705	●	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43135-015-1	01	1	9706-	●	●
58	ARM; TIE ROD	1-43134-015-1	01	1	9510-9705	●	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43134-015-1	01	1	9706-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-042-0	01	1	9706-9802		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-042-3	01	1	9803-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-042-0	01	1	9706-9802		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-042-3	01	1	9803-	●	●
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	9510-9705	●	●
59	NUT; TIE ROD ARM FRONT AXLE F049(FS4) M27	1-09449-016-0	02	1	9706-0704	●	●
59	NUT; TIE ROD ARM FRONT AXLE F049(FS4) M27 FLANGE	1-09449-082-0	02	1	0705-	●	●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	9-09844-670-1	04	1	9706-9802		●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	9-09844-670-1	04	1	9803-0704	●	●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	1-09449-084-0	04	1	0705-	●	●
60	BOLT; TIE ROD ARM FRONT AXLE F063(FS7) M22X193	1-09000-154-2	04	1	9706-9802		●
60	BOLT; TIE ROD ARM FRONT AXLE F063(FS7) M22X193	1-09000-154-2	04	1	9803-0704	●	●
60	BOLT; TIE ROD ARM FRONT AXLE F063(FS7) M22X193	8-98052-379-1	04	1	0705-	●	●
61	ROD END; TIE ROD	1-43150-678-2	01	1	9510-9705	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-678-3	01	1	9706-	●	●
61	ROD END; TIE ROD	1-43150-677-2	01	1	9510-9705	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-677-3	01	1	9706-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-737-1	01	1	9706-9802		●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-737-1	01	1	9803-9812	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-802-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	8-98171-445-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	8-98236-801-0	01	1	1307-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-736-1	01	1	9706-9802		●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-736-1	01	1	9803-9812	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-801-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	8-98171-444-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	8-98236-800-0	01	1	1307-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9510-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9510-9705	●	●
68	BOLT; TIE ROD END FRONT AXLE F049(FS4) M12X55	9-91061-255-0	04	1	9706-	●	●
68	BOLT; TIE ROD END FRONT AXLE F063(FS7) M12X65	9-91061-265-0	04	1	9706-9802		●
68	BOLT; TIE ROD END FRONT AXLE F063(FS7) M12X65	9-91061-265-0	04	1	9803-0704	●	●
68	BOLT; TIE ROD END FRONT AXLE F063(FS7) M12X65	8-98053-922-0	04	1	0705-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9510-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9510-0606	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
81	ROD; TIE	1-43151-129-0	01	1	9510-9705	●	●
81	ROD; TIE FRONT AXLE F049(FS4)	1-43151-129-0	01	1	9706-	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	1-43151-119-0	01	1	9706-9802		●
81	ROD; TIE FRONT AXLE F063(FS7)	1-43151-119-0	01	1	9803-1009	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	8-98172-133-0	01	1	1010-1109	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	8-98193-965-0	01	1	1110-	●	●
275	BOOT; ROD END,TIE FRONT AXLE F063(FS7)	1-43159-078-0	02	1	9706-9802		●
275	BOOT; ROD END,TIE FRONT AXLE F063(FS7)	1-43159-078-0	02	1	9803-9812	●	●
275	BOOT; ROD END,TIE FRONT AXLE F063(FS7)	1-43159-107-0	02	1	9901-1009	●	●
275	BOOT; ROD END,TIE FRONT AXLE F063(FS7)	1-43159-131-0	02	1	1010-1306	●	●
275	BOOT; ROD END,TIE FRONT AXLE F063(FS7)	8-98229-116-0	02	1	1307-	●	●
304	WASHER; PL FRONT AXLE F063(FS7) (A) ID=12.5	0-91614-512-0	04	1	0705-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9510-0704	●	●
304	WASHER; PL FRONT AXLE F049(FS4) (A) ID=12.5	9-09164-512-0	04	1	0705-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	9510-0907	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9510-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●

18 59 17 40 80 2 66 2 21 58 36 46 48 59 47 3 44 37 37 80 1 8 8 66 58 32 7 74 61 30 304 74 68 304 8 81 25 8 68 11 34 33 305 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-133-0	01	1	9510-9705	●	●
1	AXLE; FRT FRONT AXLE F049(FS4)	1-43111-133-0	01	1	9706-	●	●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-113-1	01	1	9706-9802		●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-113-6	01	1	9803-	●	●
2	KNUCKLE; FRT AXLE	1-43132-089-0	01	1	9510-9705	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43132-089-0	01	1	9706-	●	●
2	KNUCKLE; FRT AXLE	1-43131-089-0	01	1	9510-9705	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43131-089-0	01	1	9706-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-079-0	01	1	9706-9802		●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-079-1	01	1	9803-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-079-0	01	1	9706-9802		●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-079-1	01	1	9803-	●	●
3	KING PIN SET	1-87830-837-0	01	1	9510-9705	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-837-2	01	1	9706-0704	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87831-390-1	01	1	0705-	●	●
3	KING PIN SET	1-87830-804-0	01	1	9510-9705	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-804-2	01	1	9706-0704	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87831-389-1	01	1	0705-	●	●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-738-0	02	1	9706-9802		●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-738-6	02	1	9803-	●	●
7	SEAL; OIL,KING PIN NSK	1-09625-087-0	02	1	9510-9705	●	●
7	SEAL; OIL,KING PIN FRONT AXLE F049(FS4) NSK	1-09625-087-0	02	1	9706-	●	●
7	SEAL; OIL,KING PIN NTN	1-09625-089-0	02	1	9510-9705	●	●
7	SEAL; OIL,KING PIN FRONT AXLE F049(FS4) NTN	1-09625-089-0	02	1	9706-	●	●
8	BEARING; NEEDLE,KING PIN (C) NTN	1-09811-071-0	08	1	9510-9705	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) (C) NTN	1-09811-071-0	08	1	9706-	●	●
8	BEARING; NEEDLE,KING PIN (C) NSK	1-09811-072-0	08	1	9510-9705	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) (C) NSK	1-09811-072-0	08	1	9706-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (A) NTN	9-00096-242-0	04	1	9706-9802		●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (A) NTN	9-00096-242-0	04	1	9803-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (B) NTN	9-00096-243-0	02	1	9706-9802		●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (B) NTN	9-00096-243-0	02	1	9803-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9510-	●	●
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-058-0	02	1	9510-9705	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049(FS4) M14X47	1-09009-058-0	02	1	9706-0805	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049(FS4) M14X47	1-09009-191-0	02	1	0806-	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X43	1-09009-065-0	02	1	9706-9802		●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X43	1-09009-065-0	02	1	9803-0705	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X43	1-09009-190-0	02	1	0706-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M14	9-99112-814-0	02	1	9510-9705	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049(FS4) M14	9-99112-814-0	02	1	9706-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049(FS4) M14	0-91112-814-0	02	1	0601-	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	9-99110-518-0	02	1	9706-9802		●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	9-99110-518-0	02	1	9803-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	0-91110-518-0	02	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 STRAIGHT	9-09031-010-0	04	1	9510-9705	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049(FS4) PT1/8 STRAIGHT	9-09031-010-0	04	1	9706-9709	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063(FS7) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9706-9709		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9710-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-040-0	01	1	9510-9705	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NSK	1-09829-040-0	01	1	9706-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-028-0	01	1	9510-9705	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NSK	1-09829-028-0	01	1	9706-	●	●
25	BEARING; THRUST,KING PIN NTN	1-09829-026-0	01	1	9601-9705	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NTN	1-09829-026-0	01	1	9706-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NSK	1-09829-043-2	02	1	9706-9802		●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NSK	1-09829-043-2	02	1	9803-	●	●
30	WASHER; THRUST,KING PIN T=2.800	1-43171-229-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.800	1-43171-229-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=2.850	1-43171-230-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.850	1-43171-230-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=2.900	1-43171-231-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.900	1-43171-231-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=2.950	1-43171-232-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.950	1-43171-232-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.000	1-43171-233-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.000	1-43171-233-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.050	1-43171-234-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.050	1-43171-234-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.100	1-43171-235-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.100	1-43171-235-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.150	1-43171-236-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.150	1-43171-236-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.200	1-43171-237-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.200	1-43171-237-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.250	1-43171-238-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.250	1-43171-238-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.300	1-43171-239-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.300	1-43171-239-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.875 -4.900	1-43171-185-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.875 -4.900	1-43171-185-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.900 -4.925	1-43171-186-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.900 -4.925	1-43171-186-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.925 -4.950	1-43171-187-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.925 -4.950	1-43171-187-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.950 -4.975	1-43171-188-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.950 -4.975	1-43171-188-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.975 -5.000	1-43171-189-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.975 -5.000	1-43171-189-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.000 -5.025	1-43171-190-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.000 -5.025	1-43171-190-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.025 -5.050	1-43171-191-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.025 -5.050	1-43171-191-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.050 -5.075	1-43171-192-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.050 -5.075	1-43171-192-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.075 -5.100	1-43171-193-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.075 -5.100	1-43171-193-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.100 -5.125	1-43171-194-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.100 -5.125	1-43171-194-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.125 -5.150	1-43171-195-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.125 -5.150	1-43171-195-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.150 -5.175	1-43171-196-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.150 -5.175	1-43171-196-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.175 -5.200	1-43171-197-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.175 -5.200	1-43171-197-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.200 -5.225	1-43171-198-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.200 -5.225	1-43171-198-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.225 -5.250	1-43171-199-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.225 -5.250	1-43171-199-0	AR	1	9803-	●	●
32	BOLT; KEY,KING PIN	1-43116-005-1	02	1	9510-9705	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F049(FS4)	1-43116-005-2	02	1	9706-	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F063(FS7)	1-43116-002-1	02	1	9706-9802		●
32	BOLT; KEY,KING PIN FRONT AXLE F063(FS7)	1-43116-002-2	02	1	9803-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9510-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9510-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE	1-43133-069-0	01	1	9510-9705	●	●
36	ARM; KNUCKLE FRONT AXLE F049(FS4)	1-43133-069-2	01	1	9706-	●	●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-063-1	01	1	9706-9802		●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-063-3	01	1	9803-	●	●
37	BOLT; KNUCKLE ARM (A) M22X162	1-09000-107-1	01	1	9510-9705	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) (A) M22X162	1-09000-107-1	01	1	9706-	●	●
37	BOLT; KNUCKLE ARM (B) M22X147	1-09000-108-1	01	1	9510-9705	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) (B) M22X147	1-09000-108-1	01	1	9706-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X179	1-09000-578-1	01	1	9706-9802		●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X179	1-09000-578-1	01	1	9803-0704	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X179	8-98052-380-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X167	9-09806-847-3	01	1	9706-9802		●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X167	9-09806-847-3	01	1	9803-0704	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X167	8-98052-381-1	01	1	0705-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9510-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
44	COVER; KING PIN	1-43175-016-0	02	1	9510-9705	●	●
44	COVER; KING PIN FRONT AXLE F049(FS4)	1-43175-016-0	02	1	9706-	●	●
44	COVER; KING PIN FRONT AXLE F063(FS7)	1-43175-014-1	02	1	9706-9802		●
44	COVER; KING PIN FRONT AXLE F063(FS7)	1-43175-014-1	02	1	9803-0004	●	●
44	COVER; KING PIN FRONT AXLE F063(FS7) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	0005-	●	●
46	WASHER; LK,COVER ID=12.2	9-09150-512-0	02	1	9510-9705	●	●
46	WASHER; LK,COVER FRONT AXLE F049(FS4) ID=12.2	9-09150-512-0	02	1	9706-0603	●	●
46	WASHER; LK,COVER FRONT AXLE F049(FS4) ID=12.2	0-91510-512-0	02	1	0604-	●	●
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	9-09164-712-0	02	1	9510-9705	●	●
47	WASHER; PL,COVER,KING PIN FRONT AXLE F049(FS4) ID=12.5 OD=32	9-09164-712-0	02	1	9706-0605	●	●
47	WASHER; PL,COVER,KING PIN FRONT AXLE F049(FS4) ID=12.5 OD=32	0-91614-712-0	02	1	0606-	●	●
48	BOLT; COVER M12X25	1-09009-081-0	02	1	9510-9705	●	●
48	BOLT; COVER FRONT AXLE F049(FS4) M12X25	1-09009-081-0	02	1	9706-	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X16 FLANGE	0-28081-216-0	08	1	9706-9802		●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X16 FLANGE	0-28081-216-0	08	1	9803-0004	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	0005-0512	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28051-216-0	08	1	0601-	●	●
58	ARM; TIE ROD	1-43135-015-1	01	1	9510-9705	●	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43135-015-1	01	1	9706-	●	●
58	ARM; TIE ROD	1-43134-015-1	01	1	9510-9705	●	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43134-015-1	01	1	9706-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-042-0	01	1	9706-9802		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-042-3	01	1	9803-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-042-0	01	1	9706-9802		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-042-3	01	1	9803-	●	●
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	9510-9705	●	●
59	NUT; TIE ROD ARM FRONT AXLE F049(FS4) M27	1-09449-016-0	02	1	9706-0704	●	●
59	NUT; TIE ROD ARM FRONT AXLE F049(FS4) M27 FLANGE	1-09449-082-0	02	1	0705-	●	●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	9-09844-670-1	04	1	9706-9802		●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	9-09844-670-1	04	1	9803-0704	●	●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	1-09449-084-0	04	1	0705-	●	●
61	ROD END; TIE ROD	1-43150-678-2	01	1	9510-9705	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-678-3	01	1	9706-	●	●
61	ROD END; TIE ROD	1-43150-677-2	01	1	9510-9705	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-677-3	01	1	9706-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-737-1	01	1	9706-9802		●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-737-1	01	1	9803-9812	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-802-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	8-98171-445-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	8-98236-801-0	01	1	1307-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-736-1	01	1	9706-9802		●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-736-1	01	1	9803-9812	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-801-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	8-98171-444-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	8-98236-800-0	01	1	1307-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9510-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9510-9705	●	●
68	BOLT; TIE ROD END FRONT AXLE F049(FS4) M12X55	9-91061-255-0	04	1	9706-	●	●
68	BOLT; TIE ROD END FRONT AXLE F063(FS7) M12X65	9-91061-265-0	04	1	9706-9802		●
68	BOLT; TIE ROD END FRONT AXLE F063(FS7) M12X65	9-91061-265-0	04	1	9803-0704	●	●
68	BOLT; TIE ROD END FRONT AXLE F063(FS7) M12X65	8-98053-922-0	04	1	0705-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9510-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9510-0606	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
81	ROD; TIE	1-43151-129-0	01	1	9510-9705	●	●
81	ROD; TIE FRONT AXLE F049(FS4)	1-43151-129-0	01	1	9706-	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	1-43151-119-0	01	1	9706-9802		●
81	ROD; TIE FRONT AXLE F063(FS7)	1-43151-119-0	01	1	9803-1009	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	8-98172-133-0	01	1	1010-1109	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	8-98193-965-0	01	1	1110-	●	●
304	WASHER; PL FRONT AXLE F063(FS7) (A) ID=12.5	0-91614-512-0	04	1	0705-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9510-0704	●	●
304	WASHER; PL FRONT AXLE F049(FS4) (A) ID=12.5	9-09164-512-0	04	1	0705-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	9510-0907	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9510-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●

3 33 34 60 6 2 8 80 25 66 58 32 8 6 8 11 305 59 275 21 51 52 51 52 48 304 74 21 80 61 73 58 44 66 59 68 45 50 61 81 74 30 68 304 17 18 6 34 8 40 1 33 21 2 32 5 60 25 8 8 6 11 36 37 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-133-0	01	1	9510-9705	●	●
1	AXLE; FRT FRONT AXLE F049(FS4)	1-43111-133-0	01	1	9706-	●	●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-113-1	01	1	9706-9802		●
1	AXLE; FRT FRONT AXLE F063(FS7)	1-43111-113-6	01	1	9803-	●	●
2	KNUCKLE; FRT AXLE	1-43132-089-0	01	1	9510-9705	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43132-089-0	01	1	9706-	●	●
2	KNUCKLE; FRT AXLE	1-43131-089-0	01	1	9510-9705	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F049(FS4)	1-43131-089-0	01	1	9706-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-079-0	01	1	9706-9802		●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43131-079-1	01	1	9803-	●	●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-079-0	01	1	9706-9802		●
2	KNUCKLE; FRT AXLE FRONT AXLE F063(FS7)	1-43132-079-1	01	1	9803-	●	●
3	KING PIN SET	1-87830-837-0	01	1	9510-9705	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-837-2	01	1	9706-0704	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87831-390-1	01	1	0705-	●	●
3	KING PIN SET	1-87830-804-0	01	1	9510-9705	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87830-804-2	01	1	9706-0704	●	●
3	KING PIN SET FRONT AXLE F049(FS4)	1-87831-389-1	01	1	0705-	●	●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-738-0	02	1	9706-9802		●
3	KING PIN SET FRONT AXLE F063(FS7)	1-87830-738-6	02	1	9803-	●	●
5	PIN; KNUCKLE TO DRUM COVER FRONT AXLE F063(FS7)	1-09740-072-0	02	1	9706-9802		●
5	PIN; KNUCKLE TO DRUM COVER FRONT AXLE F063(FS7)	1-09740-072-0	02	1	9803-	●	●
6	SEAL; KING PIN FRONT AXLE F063(FS7)	9-09926-024-0	04	1	9706-9802		●
6	SEAL; KING PIN FRONT AXLE F063(FS7)	9-09926-024-0	04	1	9803-	●	●
8	BEARING; NEEDLE,KING PIN (C) NTN	1-09811-071-0	08	1	9510-9705	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) (C) NTN	1-09811-071-0	08	1	9706-	●	●
8	BEARING; NEEDLE,KING PIN (C) NSK	1-09811-072-0	08	1	9510-9705	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F049(FS4) (C) NSK	1-09811-072-0	08	1	9706-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (A) NTN	9-00096-242-0	04	1	9706-9802		●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (A) NTN	9-00096-242-0	04	1	9803-	●	●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (B) NTN	9-00096-243-0	02	1	9706-9802		●
8	BEARING; NEEDLE,KING PIN FRONT AXLE F063(FS7) (B) NTN	9-00096-243-0	02	1	9803-	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9510-	●	●
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-058-0	02	1	9510-9705	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049(FS4) M14X47	1-09009-058-0	02	1	9706-0805	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F049(FS4) M14X47	1-09009-191-0	02	1	0806-	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X43	1-09009-065-0	02	1	9706-9802		●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X43	1-09009-065-0	02	1	9803-0705	●	●
17	BOLT; STOPPER KNUCKLE FRONT AXLE F063(FS7) M18X43	1-09009-190-0	02	1	0706-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M14	9-99112-814-0	02	1	9510-9705	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049(FS4) M14	9-99112-814-0	02	1	9706-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F049(FS4) M14	0-91112-814-0	02	1	0601-	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	9-99110-518-0	02	1	9706-9802		●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	9-99110-518-0	02	1	9803-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE FRONT AXLE F063(FS7) M18	0-91110-518-0	02	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 STRAIGHT	9-09031-010-0	04	1	9510-9705	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F049(FS4) PT1/8 STRAIGHT	9-09031-010-0	04	1	9706-9709	●	●
21	NIPPLE; GREASE,KING PIN FRONT AXLE F063(FS7) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9706-9709		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9710-0512	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-040-0	01	1	9510-9705	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NSK	1-09829-040-0	01	1	9706-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-028-0	01	1	9510-9705	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NSK	1-09829-028-0	01	1	9706-	●	●
25	BEARING; THRUST,KING PIN NTN	1-09829-026-0	01	1	9601-9705	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F049(FS4) NTN	1-09829-026-0	01	1	9706-	●	●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NSK	1-09829-043-2	02	1	9706-9802		●
25	BEARING; THRUST,KING PIN FRONT AXLE F063(FS7) NSK	1-09829-043-2	02	1	9803-	●	●
30	WASHER; THRUST,KING PIN T=2.800	1-43171-229-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.800	1-43171-229-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=2.850	1-43171-230-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.850	1-43171-230-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=2.900	1-43171-231-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.900	1-43171-231-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=2.950	1-43171-232-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=2.950	1-43171-232-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.000	1-43171-233-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.000	1-43171-233-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.050	1-43171-234-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.050	1-43171-234-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.100	1-43171-235-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.100	1-43171-235-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.150	1-43171-236-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.150	1-43171-236-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.200	1-43171-237-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.200	1-43171-237-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.250	1-43171-238-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.250	1-43171-238-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN T=3.300	1-43171-239-0	AR	1	9510-9705	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F049(FS4) T=3.300	1-43171-239-0	AR	1	9706-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.875 -4.900	1-43171-185-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.875 -4.900	1-43171-185-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.900 -4.925	1-43171-186-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.900 -4.925	1-43171-186-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.925 -4.950	1-43171-187-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.925 -4.950	1-43171-187-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.950 -4.975	1-43171-188-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.950 -4.975	1-43171-188-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.975 -5.000	1-43171-189-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=4.975 -5.000	1-43171-189-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.000 -5.025	1-43171-190-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.000 -5.025	1-43171-190-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.025 -5.050	1-43171-191-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.025 -5.050	1-43171-191-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.050 -5.075	1-43171-192-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.050 -5.075	1-43171-192-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.075 -5.100	1-43171-193-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.075 -5.100	1-43171-193-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.100 -5.125	1-43171-194-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.100 -5.125	1-43171-194-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.125 -5.150	1-43171-195-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.125 -5.150	1-43171-195-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.150 -5.175	1-43171-196-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.150 -5.175	1-43171-196-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.175 -5.200	1-43171-197-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.175 -5.200	1-43171-197-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.200 -5.225	1-43171-198-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.200 -5.225	1-43171-198-0	AR	1	9803-	●	●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.225 -5.250	1-43171-199-0	AR	1	9706-9802		●
30	WASHER; THRUST,KING PIN FRONT AXLE F063(FS7) T=5.225 -5.250	1-43171-199-0	AR	1	9803-	●	●
32	BOLT; KEY,KING PIN	1-43116-005-1	02	1	9510-9705	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F049(FS4)	1-43116-005-2	02	1	9706-	●	●
32	BOLT; KEY,KING PIN FRONT AXLE F063(FS7)	1-43116-002-1	02	1	9706-9802		●
32	BOLT; KEY,KING PIN FRONT AXLE F063(FS7)	1-43116-002-2	02	1	9803-	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9510-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9510-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	ARM; KNUCKLE	1-43133-069-0	01	1	9510-9705	●	●
36	ARM; KNUCKLE FRONT AXLE F049(FS4)	1-43133-069-2	01	1	9706-	●	●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-063-1	01	1	9706-9802		●
36	ARM; KNUCKLE FRONT AXLE F063(FS7)	1-43133-063-3	01	1	9803-	●	●
37	BOLT; KNUCKLE ARM (A) M22X162	1-09000-107-1	01	1	9510-9705	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) (A) M22X162	1-09000-107-1	01	1	9706-	●	●
37	BOLT; KNUCKLE ARM (B) M22X147	1-09000-108-1	01	1	9510-9705	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F049(FS4) (B) M22X147	1-09000-108-1	01	1	9706-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X179	1-09000-578-1	01	1	9706-9802		●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X179	1-09000-578-1	01	1	9803-0704	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X179	8-98052-380-1	01	1	0705-	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X167	9-09806-847-3	01	1	9706-9802		●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X167	9-09806-847-3	01	1	9803-0704	●	●
37	BOLT; KNUCKLE ARM FRONT AXLE F063(FS7) (C) M22X167	8-98052-381-1	01	1	0705-	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9510-0704	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●	●
44	COVER; KING PIN	1-43175-016-0	02	1	9510-9705	●	●
44	COVER; KING PIN FRONT AXLE F049(FS4)	1-43175-016-0	02	1	9706-	●	●
44	COVER; KING PIN FRONT AXLE F063(FS7)	1-43175-014-1	02	1	9706-9802		●
44	COVER; KING PIN FRONT AXLE F063(FS7)	1-43175-014-1	02	1	9803-0004	●	●
44	COVER; KING PIN FRONT AXLE F063(FS7) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	0005-	●	●
45	GASKET; KING PIN COVER FRONT AXLE F063(FS7)	1-42319-044-0	02	1	9706-9802		●
45	GASKET; KING PIN COVER FRONT AXLE F063(FS7)	1-42319-044-0	02	1	9803-0004	●	●
45	GASKET; KING PIN COVER FRONT AXLE F063(FS7) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	0005-	●	●
48	BOLT; COVER M12X25	1-09009-081-0	02	1	9510-9705	●	●
48	BOLT; COVER FRONT AXLE F049(FS4) M12X25	1-09009-081-0	02	1	9706-	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X16 FLANGE	0-28081-216-0	08	1	9706-9802		●
48	BOLT; COVER FRONT AXLE F063(FS7) M12X16 FLANGE	0-28081-216-0	08	1	9803-0004	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	0005-0512	●	●
48	BOLT; COVER FRONT AXLE F063(FS7) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28051-216-0	08	1	0601-	●	●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-3	01	1	0005-		●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-3	01	1	0005-		●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60 FLANGE	0-28081-260-0	02	1	0005-0512		●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60 FLANGE	0-28051-260-0	02	1	0601-		●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X25 FLANGE	0-28681-225-0	06	1	0005-0512		●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X25 FLANGE	0-28651-225-0	06	1	0601-		●
52	WASHER; LK,POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	08	1	0005-0005		●
58	ARM; TIE ROD	1-43135-015-1	01	1	9510-9705	●	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43135-015-1	01	1	9706-	●	●
58	ARM; TIE ROD	1-43134-015-1	01	1	9510-9705	●	●
58	ARM; TIE ROD FRONT AXLE F049(FS4)	1-43134-015-1	01	1	9706-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-042-0	01	1	9706-9802		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43135-042-3	01	1	9803-	●	●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-042-0	01	1	9706-9802		●
58	ARM; TIE ROD FRONT AXLE F063(FS7)	1-43134-042-3	01	1	9803-	●	●
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	9510-9705	●	●
59	NUT; TIE ROD ARM FRONT AXLE F049(FS4) M27	1-09449-016-0	02	1	9706-0704	●	●
59	NUT; TIE ROD ARM FRONT AXLE F049(FS4) M27 FLANGE	1-09449-082-0	02	1	0705-	●	●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	9-09844-670-1	04	1	9706-9802		●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	9-09844-670-1	04	1	9803-0704	●	●
59	NUT; TIE ROD ARM FRONT AXLE F063(FS7) M22	1-09449-084-0	04	1	0705-	●	●
60	BOLT; TIE ROD ARM FRONT AXLE F063(FS7) M22X193	1-09000-154-2	04	1	9706-9802		●
60	BOLT; TIE ROD ARM FRONT AXLE F063(FS7) M22X193	1-09000-154-2	04	1	9803-0704	●	●
60	BOLT; TIE ROD ARM FRONT AXLE F063(FS7) M22X193	8-98052-379-1	04	1	0705-	●	●
61	ROD END; TIE ROD	1-43150-678-2	01	1	9510-9705	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-678-3	01	1	9706-	●	●
61	ROD END; TIE ROD	1-43150-677-2	01	1	9510-9705	●	●
61	ROD END; TIE ROD FRONT AXLE F049(FS4)	1-43150-677-3	01	1	9706-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-737-1	01	1	9706-9802		●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-737-1	01	1	9803-9812	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-802-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	8-98171-445-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	8-98236-801-0	01	1	1307-	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-736-1	01	1	9706-9802		●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-736-1	01	1	9803-9812	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	1-43150-801-0	01	1	9901-1009	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	8-98171-444-0	01	1	1010-1306	●	●
61	ROD END; TIE ROD FRONT AXLE F063(FS7)	8-98236-800-0	01	1	1307-	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9510-0805	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9510-9705	●	●
68	BOLT; TIE ROD END FRONT AXLE F049(FS4) M12X55	9-91061-255-0	04	1	9706-	●	●
68	BOLT; TIE ROD END FRONT AXLE F063(FS7) M12X65	9-91061-265-0	04	1	9706-9802		●
68	BOLT; TIE ROD END FRONT AXLE F063(FS7) M12X65	9-91061-265-0	04	1	9803-0704	●	●
68	BOLT; TIE ROD END FRONT AXLE F063(FS7) M12X65	8-98053-922-0	04	1	0705-	●	●
73	NIPPLE; GREASE,TIE ROD END FRONT AXLE F063(FS7)	1-43159-133-0	02	1	1010-	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9510-0512	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9510-0606	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●	●
81	ROD; TIE	1-43151-129-0	01	1	9510-9705	●	●
81	ROD; TIE FRONT AXLE F049(FS4)	1-43151-129-0	01	1	9706-	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	1-43151-119-0	01	1	9706-9802		●
81	ROD; TIE FRONT AXLE F063(FS7)	1-43151-119-0	01	1	9803-1009	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	8-98172-133-0	01	1	1010-1109	●	●
81	ROD; TIE FRONT AXLE F063(FS7)	8-98193-965-0	01	1	1110-	●	●
275	BOOT; ROD END,TIE FRONT AXLE F063(FS7)	1-43159-078-0	02	1	9706-9802		●
275	BOOT; ROD END,TIE FRONT AXLE F063(FS7)	1-43159-078-0	02	1	9803-9812	●	●
275	BOOT; ROD END,TIE FRONT AXLE F063(FS7)	1-43159-107-0	02	1	9901-1009	●	●
275	BOOT; ROD END,TIE FRONT AXLE F063(FS7)	1-43159-131-0	02	1	1010-1306	●	●
275	BOOT; ROD END,TIE FRONT AXLE F063(FS7)	8-98229-116-0	02	1	1307-	●	●
304	WASHER; PL FRONT AXLE F063(FS7) (A) ID=12.5	0-91614-512-0	04	1	0705-	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9510-0704	●	●
304	WASHER; PL FRONT AXLE F049(FS4) (A) ID=12.5	9-09164-512-0	04	1	0705-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	9510-0907	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9510-0704	●	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
