Sayfa 3-77 - Isuzu EPC

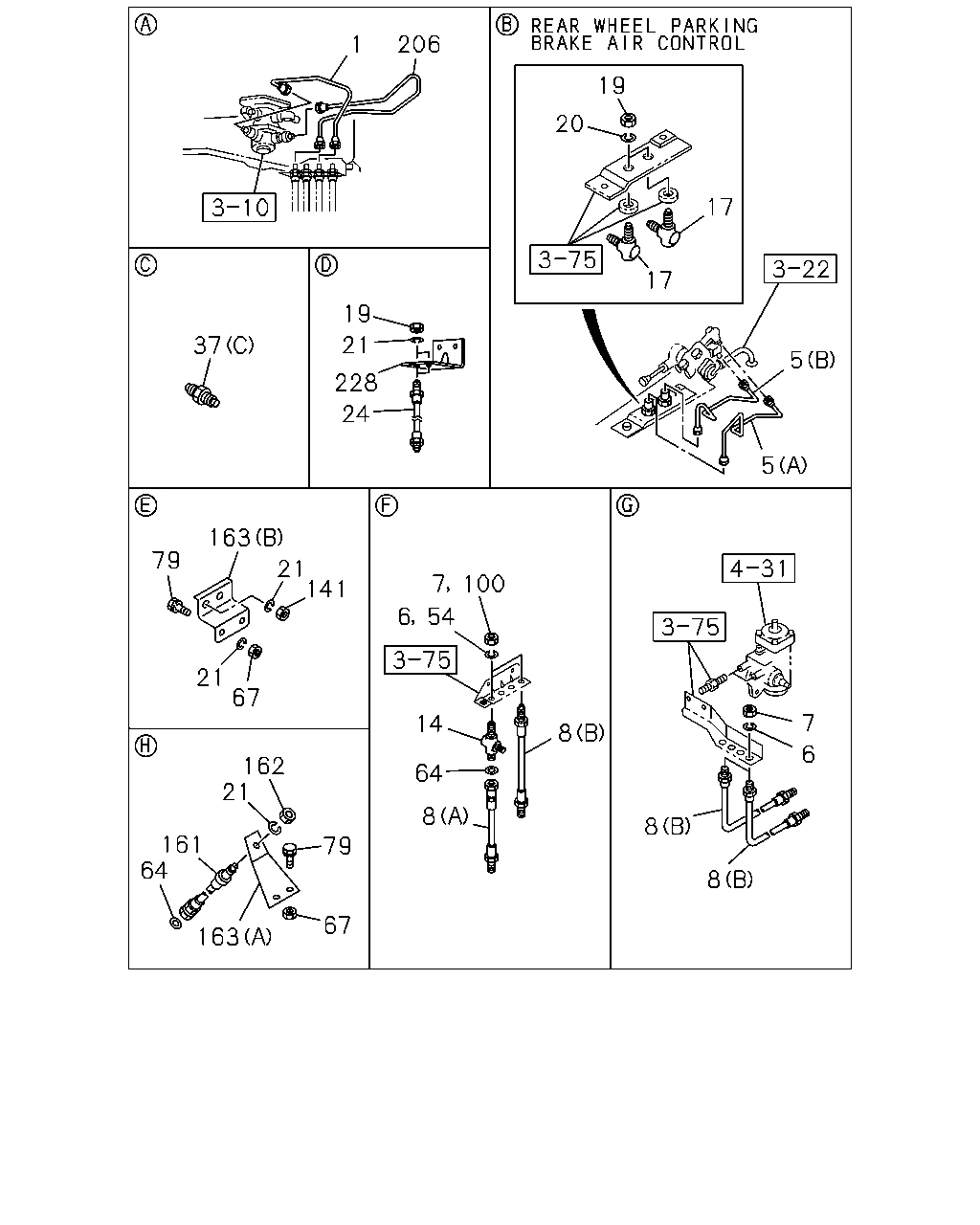

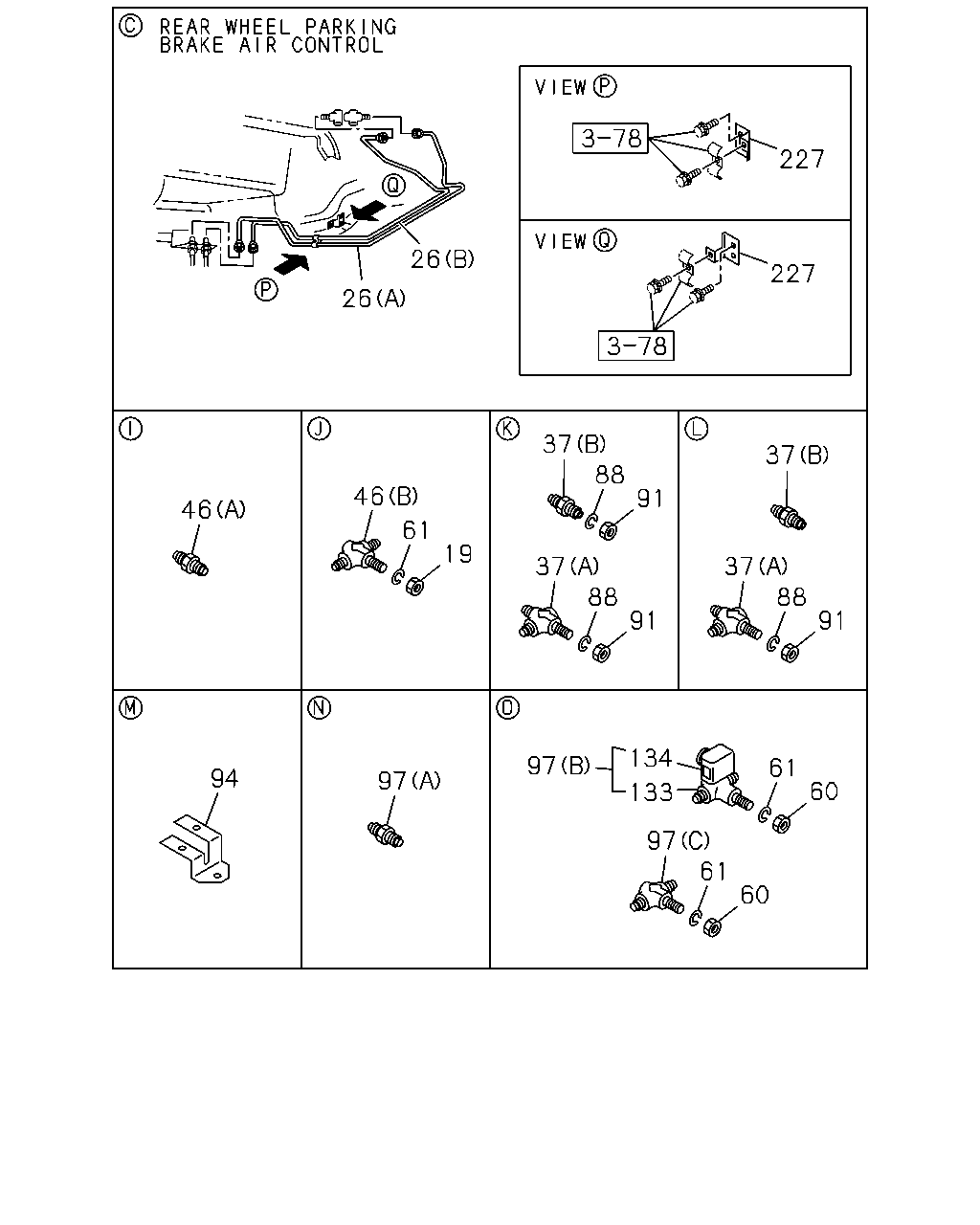

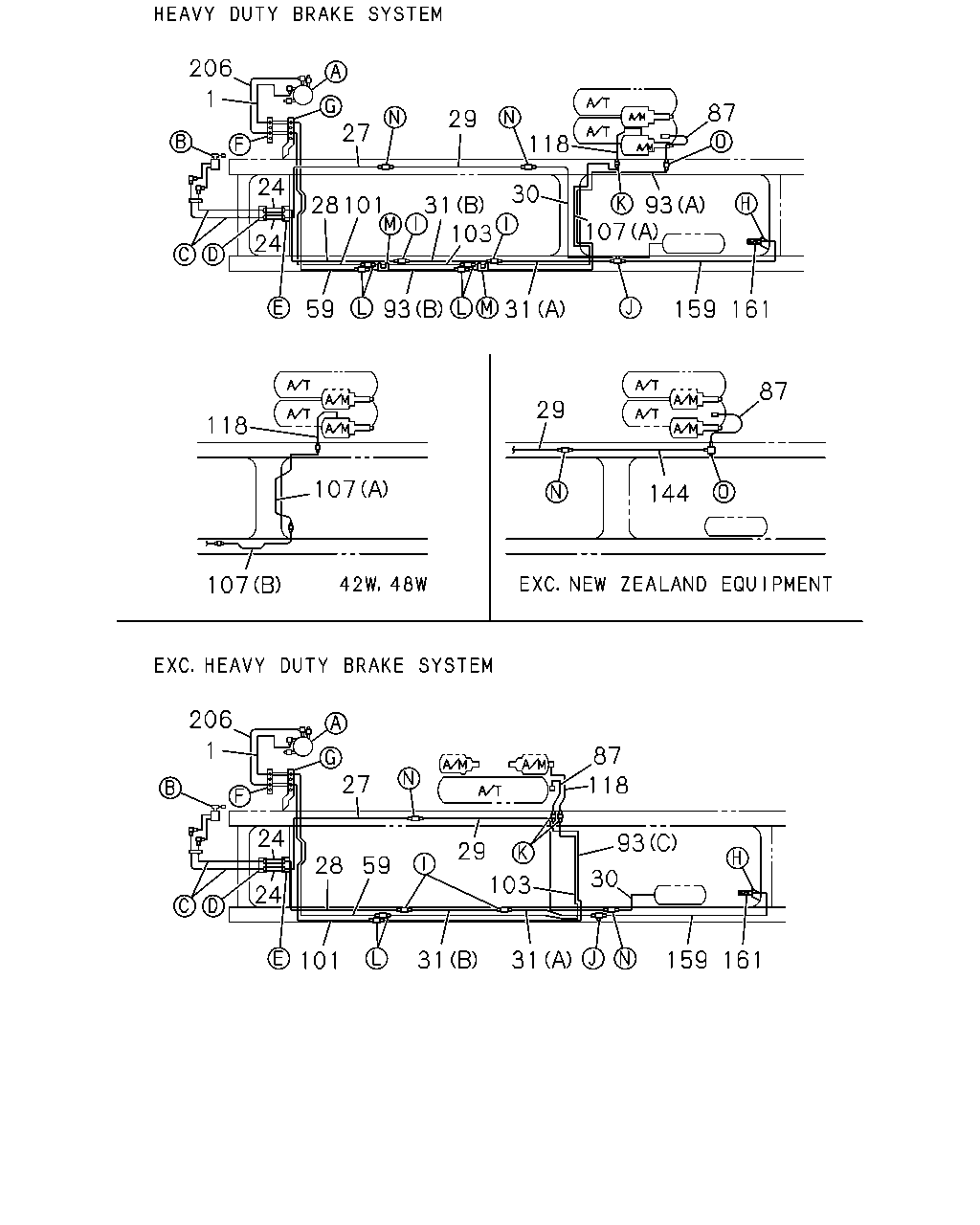

3-77 — BRAKE PIPING; AIR,REAR (#40) — 469 parça

206 1 27 87 29 118 24 30 31 103 93 107 24 59 93 31 159 161 87 29 118 107 144 107 206 1 87 27 118 93 24 29 28 59 30 103 24 31 31 159 161 101 28 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,FLEX HOSE TO BRK VLV HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=615	1-47497-150-0	01	1	9308-	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV	1-47482-335-0	01	1	9202-9212	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47497-110-0	01	1	9301-9307	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=578	1-47497-110-0	01	1	9308-	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47497-110-0	01	1	9308-		●
24	HOSE; FLEX,PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=380	0-07402-380-0	02	1	9202-	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1799 SERVICED BY L=1950	1-47434-414-0	01	1	9208-9212	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1799 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1799 SERVICED BY L=1950	1-47426-393-0	01	1	9301-		●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1852 SERVICED BY L=2150	1-47437-958-0	01	1	9202-9207	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1852 SERVICED BY L=2150	1-47437-958-0	01	1	9208-9212	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1852 SERVICED BY L=2150	1-47426-394-0	01	1	9301-	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1799 SERVICED BY L=1950	1-47434-414-0	01	1	9208-9209	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1556 SERVICED BY L=2150	1-47426-394-0	01	1	9210-	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1758 SERVICED BY L=1950	1-47434-414-0	01	1	9202-9207	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1758 SERVICED BY L=1950	1-47434-414-0	01	1	9208-9210	●	●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1758 SERVICED BY L=1950	1-47434-414-0	01	1	9211-9212		●
27	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1758 SERVICED BY L=1950	1-47426-393-0	01	1	9301-		●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1728 SERVICED BY L=1950	1-47434-414-0	01	1	9202-9212	●	●
28	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1728 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2236 SERVICED BY L=2700	1-47434-415-0	01	1	9202-9207	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) A/T<X9D> EXC. PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2236 SERVICED BY L=2700	1-47434-415-0	01	1	9208-9210	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2376 SERVICED BY L=2700	1-47434-415-0	01	1	9211-9212	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>,AUSTRALIA EQUIPMENT(RR3), PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2376 SERVICED BY L=2700	1-47434-415-0	01	1	9211-9212		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2376 SERVICED BY L=2700	1-47426-396-0	01	1	9301-	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>,AUSTRALIA EQUIPMENT(RR3), PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2376 SERVICED BY L=2700	1-47426-396-0	01	1	9301-		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2230 SERVICED BY L=2700	1-47434-415-0	01	1	9202-9207	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2230 SERVICED BY L=2700	1-47434-415-0	01	1	9208-9210	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2371 SERVICED BY L=2700	1-47434-415-0	01	1	9211-9212	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2371 SERVICED BY L=2700	1-47426-396-0	01	1	9301-	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2171 SERVICED BY L=2400	1-47437-959-0	01	1	9202-9207	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> ISUZU M/T<X9A> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2171 SERVICED BY L=2400	1-47437-959-0	01	1	9202-9207	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2171 SERVICED BY L=2400	1-47437-959-0	01	1	9208-9210	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> ISUZU M/T<X9A> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2171 SERVICED BY L=2400	1-47437-959-0	01	1	9208-9210	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2451 SERVICED BY L=2700	1-47434-415-0	01	1	9202-9207	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2451 SERVICED BY L=2700	1-47434-415-0	01	1	9208-9210	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2476 SERVICED BY L=2700	1-47434-415-0	01	1	9211-9212	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2476 SERVICED BY L=2700	1-47426-396-0	01	1	9301-	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2515 SERVICED BY L=2700	1-47434-415-0	01	1	9202-9207	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) A/T<X9D> EXC. PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2515 SERVICED BY L=2700	1-47434-415-0	01	1	9208-9210	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5) L=1035 SERVICED BY L=1250	1-47434-410-0	01	1	9202-9207	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1035 SERVICED BY L=1250	1-47434-410-0	01	1	9208-9212	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1035 SERVICED BY L=1250	1-47426-388-0	01	1	9301-9408	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1047 SERVICED BY L=1100	1-47426-387-0	01	1	9409-	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1979 SERVICED BY L=2150	1-47437-958-0	01	1	9202-9207	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1262 SERVICED BY L=1400	1-47434-411-0	01	1	9208-9212	●	●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1262 SERVICED BY L=1400	1-47426-389-0	01	1	9301-	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2510 SERVICED BY L=2700	1-47434-415-0	01	1	9202-9207	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2510 SERVICED BY L=2700	1-47434-415-0	01	1	9208-9210	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2510 SERVICED BY L=2700	1-47434-415-0	01	1	9211-9212		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2510 SERVICED BY L=2700	1-47426-396-0	01	1	9301-		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2542 SERVICED BY L=2700	1-47434-415-0	01	1	9202-9207	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> ISUZU M/T<X9A> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2542 SERVICED BY L=2700	1-47434-415-0	01	1	9202-9207	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2542 SERVICED BY L=2700	1-47434-415-0	01	1	9208-9210	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> ISUZU M/T<X9A> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2542 SERVICED BY L=2700	1-47434-415-0	01	1	9208-9210	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2542 SERVICED BY L=2700	1-47434-415-0	01	1	9211-9212		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2542 SERVICED BY L=2700	1-47434-415-0	01	1	9211-9212		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2457 SERVICED BY L=2700	1-47426-396-0	01	1	9301-		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2457 SERVICED BY L=2700	1-47426-396-0	01	1	9301-		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2253 SERVICED BY L=2400	1-47437-959-0	01	1	9208-9210	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2253 SERVICED BY L=2400	1-47437-959-0	01	1	9211-9212	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> ISUZU M/T<X9A> EXC. EXHAUST BRAKE<NF8>,AUSTRALIA EQUIPMENT(RR3), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2253 SERVICED BY L=2400	1-47437-959-0	01	1	9211-9212	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2258 SERVICED BY L=2400	1-47426-395-0	01	1	9301-	●	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> ISUZU M/T<X9A> EXC. EXHAUST BRAKE<NF8>,AUSTRALIA EQUIPMENT(RR3), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2258 SERVICED BY L=2400	1-47426-395-0	01	1	9301-	●	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=646	1-47493-030-0	01	1	9202-9207	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=646	1-47493-030-0	01	1	9208-9210	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2887 SERVICED BY L=3000	1-47437-960-0	01	1	9208-9210	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2887 SERVICED BY L=3000	1-47437-960-0	01	1	9211-9212	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2893 SERVICED BY L=3000	1-47426-397-0	01	1	9301-	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=820 SERVICED BY L=900	1-47434-407-0	01	1	9202-9207	●	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=820 SERVICED BY L=900	1-47434-407-0	01	1	9208-9210	●	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=820 SERVICED BY L=900	1-47434-407-0	01	1	9211-9212		●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=820 SERVICED BY L=900	1-47426-384-0	01	1	9301-		●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1421 SERVICED BY L=1700	1-47434-412-0	01	1	9202-9207	●	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2458 SERVICED BY L=2700	1-47434-415-0	01	1	9208-9210	●	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2458 SERVICED BY L=2700	1-47434-415-0	01	1	9211-9212	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2458 SERVICED BY L=2700	1-47426-396-0	01	1	9301-	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1029 SERVICED BY L=1100	1-47434-409-0	01	1	9208-9212	●	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1029 SERVICED BY L=1100	1-47426-387-0	01	1	9301-	●	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1421 SERVICED BY L=1550	1-47437-957-0	01	1	9202-9207	●	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1421 SERVICED BY L=1550	1-47437-957-0	01	1	9208-9210	●	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1421 SERVICED BY L=1550	1-47437-957-0	01	1	9211-9212		●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1421 SERVICED BY L=1550	1-47426-390-0	01	1	9301-		●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1629 SERVICED BY L=1800	1-47434-413-0	01	1	9208-9210	●	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1629 SERVICED BY L=1800	1-47434-413-0	01	1	9211-9212	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1629 SERVICED BY L=1800	1-47434-413-0	01	1	9211-9212		●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1629 SERVICED BY L=1800	1-47426-392-0	01	1	9301-	●
30	PIPE; AIR,AIR TANK TO JOINT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1629 SERVICED BY L=1800	1-47426-392-0	01	1	9301-		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2344 SERVICED BY L=2700	1-47434-415-0	01	1	9202-9207	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) L=2344 SERVICED BY L=2700	1-47434-415-0	01	1	9208-9210	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=2344 SERVICED BY L=2700	1-47434-415-0	01	1	9211-9212	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=2344 SERVICED BY L=2700	1-47426-396-0	01	1	9301-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=2470 SERVICED BY L=2700	1-47434-415-0	01	1	9208-9210	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=2470 SERVICED BY L=2700	1-47434-415-0	01	1	9211-9212	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=2470 SERVICED BY L=2700	1-47426-396-0	01	1	9301-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=2457 SERVICED BY L=2700	1-47434-415-0	01	1	9208-9212	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=2457 SERVICED BY L=2700	1-47426-396-0	01	1	9301-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1691 SERVICED BY L=1700	1-47426-391-0	01	1	9304-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1691 SERVICED BY L=1700	1-47426-391-0	01	1	9304-		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1072 SERVICED BY L=1250	1-47434-410-0	01	1	9202-9207	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1072 SERVICED BY L=1250	1-47434-410-0	01	1	9208-9208	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1072 SERVICED BY L=1250	1-47434-410-0	01	1	9208-9208	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) L=1072 SERVICED BY L=1250	1-47434-410-0	01	1	9208-9210	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1072 SERVICED BY L=1250	1-47434-410-0	01	1	9211-9212	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) L=1072 SERVICED BY L=1250	1-47434-410-0	01	1	9211-9212		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1072 SERVICED BY L=1250	1-47426-388-0	01	1	9301-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) L=1072 SERVICED BY L=1250	1-47426-388-0	01	1	9301-		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1203 SERVICED BY L=1250	1-47434-410-0	01	1	9208-9212	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1203 SERVICED BY L=1250	1-47426-388-0	01	1	9301-	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1704 SERVICED BY L=1950	1-47434-414-0	01	1	9202-9207	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (B) L=1704 SERVICED BY L=1950	1-47434-414-0	01	1	9208-9210	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1704 SERVICED BY L=1950	1-47434-414-0	01	1	9211-9212	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (B) L=1704 SERVICED BY L=1950	1-47434-414-0	01	1	9211-9212		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1704 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (B) L=1704 SERVICED BY L=1950	1-47426-393-0	01	1	9301-		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1106 SERVICED BY L=1250	1-47434-410-0	01	1	9208-9212	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	9301-9303	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	9304-	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1566 SERVICED BY L=1700	1-47434-412-0	01	1	9208-9212	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1566 SERVICED BY L=1700	1-47426-391-0	01	1	9301-	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1670 SERVICED BY L=1800	1-47434-413-0	01	1	9208-9212	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1700 SERVICED BY L=1800	1-47426-392-0	01	1	9301-	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1672 SERVICED BY L=1800	1-47434-413-0	01	1	9202-9207	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1672 SERVICED BY L=1800	1-47434-413-0	01	1	9208-9208	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1672 SERVICED BY L=1800	1-47434-413-0	01	1	9208-9208	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) L=1672 SERVICED BY L=1800	1-47434-413-0	01	1	9209-9210	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1672 SERVICED BY L=1800	1-47434-413-0	01	1	9211-9212	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) L=1672 SERVICED BY L=1800	1-47434-413-0	01	1	9211-9212		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1672 SERVICED BY L=1800	1-47426-392-0	01	1	9301-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) L=1672 SERVICED BY L=1800	1-47426-392-0	01	1	9301-		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1803 SERVICED BY L=1950	1-47434-414-0	01	1	9208-9212	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1803 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●	●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2586 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9210	●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2586 SERVICED BY L=2900	1-47437-974-0	01	1	9211-9212	●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2586 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2586 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9212	●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2586 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●
59	PIPE; AIR,UNION TO FLEX HOSE L=2655 SERVICED BY L=2900	1-47437-974-0	01	1	9202-9207	●	●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2655 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9208	●	●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2655 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9208	●	●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) L=2655 SERVICED BY L=2900	1-47437-974-0	01	1	9209-9210	●	●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2655 SERVICED BY L=2900	1-47437-974-0	01	1	9211-9212	●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) L=2655 SERVICED BY L=2900	1-47437-974-0	01	1	9211-9212		●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2655 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●
59	PIPE; AIR,UNION TO FLEX HOSE AUSTRALIA EQUIPMENT(RR3) L=2655 SERVICED BY L=2900	1-47426-425-0	01	1	9301-		●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2650 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9212		●
59	PIPE; AIR,UNION TO FLEX HOSE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2651 SERVICED BY L=2900	1-47426-425-0	01	1	9301-		●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2656 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9212		●
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2657 SERVICED BY L=2900	1-47426-425-0	01	1	9301-		●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=553 SERVICED BY L=600	1-47426-408-0	01	1	9211-	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=473 SERVICED BY L=500	1-47426-406-0	01	1	9202-9207	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=473 SERVICED BY L=500	1-47426-406-0	01	1	9208-	●
87	PIPE; AIR,AIR TANK TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=573	1-47487-676-0	01	1	9208-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=574	1-47497-135-0	01	1	9301-	●	●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1142	1-47496-345-0	01	1	9208-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1142 SERVICED BY L=1250	1-47426-416-0	01	1	9301-	●	●
87	PIPE; AIR,AIR TANK TO UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=433 SERVICED BY L=450	1-47426-405-0	01	1	9202-9207	●	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=433 SERVICED BY L=450	1-47426-405-0	01	1	9208-9210	●	●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=433 SERVICED BY L=450	1-47426-405-0	01	1	9211-9212		●
87	PIPE; AIR,AIR TANK TO UNION AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=433 SERVICED BY L=450	1-47426-405-0	01	1	9301-		●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=521 SERVICED BY L=2200	1-47434-396-0	01	1	9202-9207	●	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=521 SERVICED BY L=2200	1-47434-396-0	01	1	9208-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=521 SERVICED BY L=550	1-47426-407-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2708 SERVICED BY L=2900	1-47437-974-0	01	1	9202-9207	●
93	PIPE; AIR,UNION TO UNION AUSTRALIA EQUIPMENT(RR3) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2708 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9210	●
93	PIPE; AIR,UNION TO UNION A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2861 SERVICED BY L=3300	1-47437-975-0	01	1	9211-9212	●
93	PIPE; AIR,UNION TO UNION A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2861 SERVICED BY L=3300	1-47426-426-0	01	1	9301-	●
93	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2573 SERVICED BY L=2900	1-47437-974-0	01	1	9212-9212	●
93	PIPE; AIR,UNION TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2573 SERVICED BY L=2900	1-47437-974-0	01	1	9212-9212		●
93	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2573 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●
93	PIPE; AIR,UNION TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2573 SERVICED BY L=2900	1-47426-425-0	01	1	9301-		●
93	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2573 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●
93	PIPE; AIR,UNION TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2573 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> (A) L=2485 SERVICED BY L=2900	1-47437-974-0	01	1	9202-9207	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> (A) L=2485 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9212	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> (A) L=2485 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=2422 SERVICED BY L=2900	1-47437-974-0	01	1	9202-9207	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> (A) L=2422 SERVICED BY L=2900	1-47437-974-0	01	1	9202-9207	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) HEAVY DUTY PACKAGE TRUCK<RD2> A/T<X9D> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=2422 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9212	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) HEAVY DUTY PACKAGE TRUCK<RD2> A/T<X9D> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=2422 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●
93	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) (A) L=2466 SERVICED BY L=2600	1-47437-973-0	01	1	9208-9211	●	●
93	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) (A) L=2466 SERVICED BY L=2900	1-47437-974-0	01	1	9212-9212	●	●
93	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) (A) L=2466 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=2478 SERVICED BY L=2600	1-47437-973-0	01	1	9208-9212	●	●
93	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) (A) L=2478 SERVICED BY L=2600	1-47437-973-0	01	1	9208-9212	●
93	PIPE; AIR,UNION TO UNION HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=2477 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) (A) L=2477 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●
93	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2572 SERVICED BY L=2600	1-47437-973-0	01	1	9208-9210	●	●
93	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=848 SERVICED BY L=1000	1-47434-476-0	01	1	9202-9207	●	●
93	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=848 SERVICED BY L=1000	1-47434-476-0	01	1	9208-9212	●	●
93	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=848 SERVICED BY L=900	1-47426-413-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2606 SERVICED BY L=2900	1-47437-974-0	01	1	9202-9207	●	●
93	PIPE; AIR,UNION TO UNION AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2606 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9210	●	●
93	PIPE; AIR,UNION TO UNION AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2606 SERVICED BY L=2900	1-47437-974-0	01	1	9211-9212		●
93	PIPE; AIR,UNION TO UNION AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=2606 SERVICED BY L=2900	1-47426-425-0	01	1	9301-		●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2365 SERVICED BY L=2600	1-47437-973-0	01	1	9202-9207	●	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2365 SERVICED BY L=2600	1-47437-973-0	01	1	9208-9212	●	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2365 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1604 SERVICED BY L=1900	1-47437-971-0	01	1	9202-9207	●	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=1604 SERVICED BY L=1900	1-47437-971-0	01	1	9202-9207	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1604 SERVICED BY L=1900	1-47437-971-0	01	1	9208-9212	●	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=1604 SERVICED BY L=1900	1-47437-971-0	01	1	9208-9212	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1604 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=1604 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1709 SERVICED BY L=1900	1-47437-971-0	01	1	9202-9207	●	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=1709 SERVICED BY L=1900	1-47437-971-0	01	1	9202-9207	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1709 SERVICED BY L=1900	1-47437-971-0	01	1	9208-9212	●	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=1709 SERVICED BY L=1900	1-47437-971-0	01	1	9208-9212	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1709 SERVICED BY L=1900	1-47426-421-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=1709 SERVICED BY L=1900	1-47426-421-0	01	1	9301-	●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2504 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9210	●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2504 SERVICED BY L=2900	1-47437-974-0	01	1	9211-9212	●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2504 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2504 SERVICED BY L=2600	1-47437-973-0	01	1	9208-9212	●
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2504 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●
101	PIPE; AIR,FLEX HOSE TO UNION L=2482 SERVICED BY L=3300	1-47437-975-0	01	1	9202-9207	●	●
101	PIPE; AIR,FLEX HOSE TO UNION AUSTRALIA EQUIPMENT(RR3) L=2482 SERVICED BY L=3300	1-47437-975-0	01	1	9208-9210	●	●
101	PIPE; AIR,FLEX HOSE TO UNION AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2482 SERVICED BY L=3300	1-47437-975-0	01	1	9211-9212	●
101	PIPE; AIR,FLEX HOSE TO UNION AUSTRALIA EQUIPMENT(RR3) L=2482 SERVICED BY L=3300	1-47437-975-0	01	1	9211-9212		●
101	PIPE; AIR,FLEX HOSE TO UNION AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2482 SERVICED BY L=3300	1-47426-426-0	01	1	9301-	●
101	PIPE; AIR,FLEX HOSE TO UNION AUSTRALIA EQUIPMENT(RR3) L=2482 SERVICED BY L=3300	1-47426-426-0	01	1	9301-		●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2496 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9212		●
101	PIPE; AIR,FLEX HOSE TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2496 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2496 SERVICED BY L=2600	1-47437-973-0	01	1	9208-9212		●
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2496 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
103	PIPE; AIR,UNION TO UNION A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2632 SERVICED BY L=2900	1-47437-974-0	01	1	9202-9207	●
103	PIPE; AIR,UNION TO UNION AUSTRALIA EQUIPMENT(RR3) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2632 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9210	●
103	PIPE; AIR,UNION TO UNION A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2686 SERVICED BY L=2900	1-47437-974-0	01	1	9211-9212	●
103	PIPE; AIR,UNION TO UNION A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2686 SERVICED BY L=2900	1-47426-425-0	01	1	9301-	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2416	1-47497-939-0	01	1	9301-	●
103	PIPE; AIR,UNION TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2416	1-47497-939-0	01	1	9301-		●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) L=2501 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9212	●	●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) L=2501 SERVICED BY L=2900	1-47426-425-0	01	1	9301-9307	●	●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) L=2509 SERVICED BY L=2600	1-47426-424-0	01	1	9308-	●	●
103	PIPE; AIR,UNION TO UNION HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2433 SERVICED BY L=2600	1-47437-973-0	01	1	9208-9212	●	●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) L=2433 SERVICED BY L=2600	1-47437-973-0	01	1	9208-9212	●
103	PIPE; AIR,UNION TO UNION HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=2433 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●	●
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) L=2433 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2415 SERVICED BY L=2600	1-47437-973-0	01	1	9208-9210	●	●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2416 SERVICED BY L=2600	1-47437-973-0	01	1	9211-9212	●
103	PIPE; AIR,UNION TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2416 SERVICED BY L=2600	1-47437-973-0	01	1	9211-9212		●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2416 SERVICED BY L=2600	1-47426-424-0	01	1	9301-	●
103	PIPE; AIR,UNION TO UNION EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2416 SERVICED BY L=2600	1-47426-424-0	01	1	9301-		●
103	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2485 SERVICED BY L=2900	1-47437-974-0	01	1	9202-9207	●	●
103	PIPE; AIR,UNION TO UNION AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2485 SERVICED BY L=2900	1-47437-974-0	01	1	9208-9210	●	●
103	PIPE; AIR,UNION TO UNION AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2485 SERVICED BY L=2900	1-47437-974-0	01	1	9211-9212		●
103	PIPE; AIR,UNION TO UNION AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=2485 SERVICED BY L=2900	1-47426-425-0	01	1	9301-		●
103	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=813 SERVICED BY L=1000	1-47434-476-0	01	1	9202-9207	●	●
103	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=813 SERVICED BY L=1000	1-47434-476-0	01	1	9202-9207	●
103	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=813 SERVICED BY L=1000	1-47434-476-0	01	1	9208-9212	●	●
103	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=813 SERVICED BY L=1000	1-47434-476-0	01	1	9208-9212	●
103	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=813 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●	●
103	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=813 SERVICED BY L=1000	1-47426-414-0	01	1	9301-	●
103	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1520 SERVICED BY L=1700	1-47434-478-0	01	1	9202-9207	●	●
103	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1520 SERVICED BY L=1700	1-47434-478-0	01	1	9202-9207	●
103	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1520 SERVICED BY L=1700	1-47434-478-0	01	1	9208-9212	●	●
103	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1520 SERVICED BY L=1700	1-47434-478-0	01	1	9208-9212	●
103	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1520 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●	●
103	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1520 SERVICED BY L=1700	1-47426-420-0	01	1	9301-	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> (A) L=1758 SERVICED BY L=2100	1-47437-972-0	01	1	9202-9207	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> (A) L=1758 SERVICED BY L=2100	1-47437-972-0	01	1	9208-9212	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> (A) L=1758 SERVICED BY L=2100	1-47426-422-0	01	1	9301-	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1758 SERVICED BY L=2100	1-47437-972-0	01	1	9202-9207	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> (A) L=1758 SERVICED BY L=2100	1-47437-972-0	01	1	9202-9207	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1758 SERVICED BY L=2100	1-47437-972-0	01	1	9208-9212	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> (A) L=1758 SERVICED BY L=2100	1-47437-972-0	01	1	9208-9212	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1758 SERVICED BY L=2100	1-47426-422-0	01	1	9301-	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> (A) L=1758 SERVICED BY L=2100	1-47426-422-0	01	1	9301-	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) A/T<X9D> (B) L=1183 SERVICED BY L=1250	1-47437-968-0	01	1	9202-9204	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2067 SERVICED BY L=2500	1-47434-479-0	01	1	9202-9207	●	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2067 SERVICED BY L=2500	1-47434-479-0	01	1	9208-9212	●	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=2067 SERVICED BY L=2500	1-47426-423-0	01	1	9301-	●	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1365 SERVICED BY L=1550	1-47437-970-0	01	1	9202-9207	●	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=1365 SERVICED BY L=1550	1-47437-970-0	01	1	9202-9207	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1365 SERVICED BY L=1550	1-47437-970-0	01	1	9208-9212	●	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=1365 SERVICED BY L=1550	1-47437-970-0	01	1	9208-9212	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1365 SERVICED BY L=1550	1-47426-419-0	01	1	9301-	●	●
107	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=1365 SERVICED BY L=1550	1-47426-419-0	01	1	9301-	●
118	PIPE; AIR,UNION TO AIR MASTER WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=772 SERVICED BY L=800	1-47434-475-0	01	1	9202-9207	●
118	PIPE; AIR,UNION TO AIR MASTER WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=772 SERVICED BY L=800	1-47434-475-0	01	1	9208-9212	●
118	PIPE; AIR,UNION TO AIR MASTER WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=772 SERVICED BY L=900	1-47426-413-0	01	1	9301-	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47487-684-0	01	1	9208-9212	●	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47497-144-0	01	1	9301-	●	●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=465 SERVICED BY L=500	1-47426-406-0	01	1	9208-9212	●	●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=465 SERVICED BY L=600	1-47426-408-0	01	1	9301-	●	●
118	PIPE; AIR,UNION TO AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=472 SERVICED BY L=500	1-47426-406-0	01	1	9202-9207	●	●
118	PIPE; AIR,UNION TO AIR MASTER AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=472 SERVICED BY L=500	1-47426-406-0	01	1	9208-9210	●	●
118	PIPE; AIR,UNION TO AIR MASTER AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=472 SERVICED BY L=500	1-47426-406-0	01	1	9211-9212		●
118	PIPE; AIR,UNION TO AIR MASTER AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=472 SERVICED BY L=500	1-47426-406-0	01	1	9301-		●
118	PIPE; AIR,UNION TO AIR MASTER WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=769 SERVICED BY L=800	1-47426-412-0	01	1	9202-9207	●	●
118	PIPE; AIR,UNION TO AIR MASTER WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=769 SERVICED BY L=800	1-47426-412-0	01	1	9208-9212	●	●
118	PIPE; AIR,UNION TO AIR MASTER WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=769 SERVICED BY L=900	1-47426-413-0	01	1	9301-	●	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1183 SERVICED BY L=1250	1-47437-968-0	01	1	9202-9207	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1183 SERVICED BY L=1250	1-47437-968-0	01	1	9208-9212	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1183 SERVICED BY L=1250	1-47426-416-0	01	1	9301-	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=1430 SERVICED BY L=1550	1-47437-957-0	01	1	9208-9212	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=1430 SERVICED BY L=1550	1-47426-390-0	01	1	9301-	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1430 SERVICED BY L=1550	1-47426-390-0	01	1	9301-		●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5) L=1349 SERVICED BY L=1550	1-47437-957-0	01	1	9202-9202	●	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5) L=1156 SERVICED BY L=1400	1-47434-411-0	01	1	9203-9207	●	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1156 SERVICED BY L=1400	1-47434-411-0	01	1	9208-9212	●	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1156 SERVICED BY L=1400	1-47426-389-0	01	1	9301-9305	●	●
144	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1166 SERVICED BY L=1250	1-47426-388-0	01	1	9306-	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1862 SERVICED BY L=2150	1-47437-958-0	01	1	9202-9212	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1862 SERVICED BY L=2150	1-47426-394-0	01	1	9301-	●	●
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1861 SERVICED BY L=1950	1-47434-414-0	01	1	9202-9212	●	●
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1861 SERVICED BY L=1950	1-47434-414-0	01	1	9202-9212	●	●
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1861 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●	●
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1861 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●	●
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1790 SERVICED BY L=1950	1-47434-414-0	01	1	9202-9212	●	●
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1790 SERVICED BY L=1950	1-47434-414-0	01	1	9202-9212	●	●
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1790 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●	●
159	PIPE; AIR,UNION TO FLEX HOSE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1790 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9202-9206	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=580	0-07462-580-1	01	1	9207-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=580	0-07462-580-1	01	1	9207-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=670	0-07462-670-1	01	1	9202-	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=668	1-47497-152-0	01	1	9308-	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE	1-47482-333-0	01	1	9202-9212	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=691	1-47497-062-0	01	1	9301-9307	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=691	1-47497-062-0	01	1	9308-	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=691	1-47497-062-0	01	1	9308-		●

206 1 19 20 17 17 19 21 37 5 228 24 5 163 79 21 141 7 100 6 54 21 67 7 14 8 6 162 21 64 8 8 161 64 79 8 67 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,FLEX HOSE TO BRK VLV HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=615	1-47497-150-0	01	1	9308-	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV	1-47482-335-0	01	1	9202-9212	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47497-110-0	01	1	9301-9307	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=578	1-47497-110-0	01	1	9308-	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47497-110-0	01	1	9308-		●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47482-412-0	01	1	9202-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=524	1-47497-873-0	01	1	9301-	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47482-413-0	01	1	9202-9212	●	●
5	PIPE; AIR,UNION TO PARKING VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=657	1-47497-874-0	01	1	9301-	●	●
6	WASHER; LK,FLEX HOSE DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	01	1	9202-	●	●
6	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	02	1	9202-	●	●
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9202-	●	●
7	NUT; FLEX HOSE DUAL AIR GAUGE<UG2> M16	9-99111-416-0	01	1	9202-	●	●
7	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M16	9-99111-416-0	02	1	9202-	●	●
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9202-	●	●
8	HOSE; FLEX,AIR,CAB SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=590	0-07424-590-0	01	1	9308-	●
8	HOSE; FLEX,AIR,CAB SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> DUAL AIR GAUGE<UG2> (A) L=480	0-07474-480-1	01	1	9308-9408	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> (A) L=520	0-07474-520-1	01	1	9202-9307	●	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) L=520	0-07474-520-1	01	1	9308-9408	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> (A) L=520	0-07474-520-1	01	1	9308-9408		●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> (A) L=520	0-07474-520-1	01	1	9409-	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> (B) L=630	0-07424-630-0	01	1	9202-9307	●	●
8	HOSE; FLEX,AIR,CAB SIDE (B) L=630	0-07424-630-0	01	1	9202-9307	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> (B) L=630	0-07424-630-0	01	1	9308-	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=630	0-07424-630-0	01	1	9308-	●
8	HOSE; FLEX,AIR,CAB SIDE (B) L=630	0-07424-630-0	01	1	9308-		●
14	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-09656-451-1	01	1	9202-	●	●
17	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-09225-208-1	02	1	9202-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99111-412-0	01	1	9202-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9202-9203	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-414-0	01	1	9204-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	04	1	9202-	●	●
20	WASHER; LK,PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	02	1	9202-	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	02	1	9202-	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	03	1	9202-9312	●	●
24	HOSE; FLEX,PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=380	0-07402-380-0	02	1	9202-	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-0	01	1	9202-9208	●	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> (B) M16 L=42	9-09233-010-0	01	1	9202-9208	●	●
37	UNION; AIR PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=42	9-09233-010-0	01	1	9202-9208	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> (B) M16 L=42	9-09233-010-0	02	1	9209-	●	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> (B) M16 L=42	9-09233-010-0	02	1	9209-	●	●
37	UNION; AIR PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=42	9-09233-010-0	02	1	9209-	●
37	UNION; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=74	9-09233-310-0	02	1	9208-9208	●	●
37	UNION; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=74	9-09233-310-1	02	1	9209-9210	●	●
37	UNION; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=74	9-09233-310-1	02	1	9209-9210	●	●
37	UNION; AIR PIPE (B) M16 L=74	9-09233-310-1	02	1	9211-	●
37	UNION; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=74	9-09233-310-1	02	1	9211-		●
37	UNION; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=74	9-09233-310-1	02	1	9211-		●
37	UNION; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	9-09223-310-0	02	1	9202-9208	●	●
37	UNION; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW	9-09235-210-0	02	1	9202-9207	●	●
37	UNION; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW	9-09235-210-1	02	1	9208-9210	●	●
37	UNION; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW	9-09235-210-1	01	1	9211-	●	●
37	UNION; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW	9-09235-210-1	01	1	9211-		●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M16 2WAY	1-09650-051-0	02	1	9202-9208	●	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16 2WAY	1-09650-051-0	02	1	9202-9208	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M16 2WAY	1-09650-051-1	02	1	9209-9305	●	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16 2WAY	1-09650-051-1	02	1	9209-9305	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M16 2WAY	1-09650-182-1	02	1	9306-	●	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16 2WAY	1-09650-182-1	02	1	9306-	●
54	WASHER; LK,UNION DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	01	1	9202-	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9202-	●	●
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9202-	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	04	1	9202-	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28010-820-0	04	1	9202-9204	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	04	1	9205-	●	●
100	NUT; UNION DUAL AIR GAUGE<UG2> M16	9-99111-416-0	01	1	9202-	●	●
141	NUT; PIPE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9202-9203	●	●
141	NUT; PIPE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-414-0	01	1	9204-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9202-9206	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=580	0-07462-580-1	01	1	9207-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=580	0-07462-580-1	01	1	9207-	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=670	0-07462-670-1	01	1	9202-	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9202-	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47475-464-0	01	1	9202-	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47475-725-0	01	1	9202-	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=668	1-47497-152-0	01	1	9308-	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE	1-47482-333-0	01	1	9202-9212	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=691	1-47497-062-0	01	1	9301-9307	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=691	1-47497-062-0	01	1	9308-	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=691	1-47497-062-0	01	1	9308-		●
228	BRACKET; FLEX HOSE JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-098-3	01	1	9202-	●	●

227 26 227 26 37 88 37 46 91 46 61 19 37 37 88 88 91 91 134 97 61 94 97 60 133 97 61 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99111-412-0	01	1	9202-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9202-9203	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99110-414-0	01	1	9204-	●	●
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	04	1	9202-	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47487-288-1	01	1	9202-9212	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1506	1-47497-872-0	01	1	9301-	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-47487-289-0	01	1	9202-9212	●	●
26	PIPE; AIR,FLEX HOSE TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1551	1-47497-875-0	01	1	9301-	●	●
37	UNION; AIR PIPE (B) M16 L=42	9-09233-010-0	01	1	9202-9208	●	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> (B) M16 L=42	9-09233-010-0	01	1	9202-9208	●	●
37	UNION; AIR PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=42	9-09233-010-0	01	1	9202-9208	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> (B) M16 L=42	9-09233-010-0	02	1	9209-	●	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> (B) M16 L=42	9-09233-010-0	02	1	9209-	●	●
37	UNION; AIR PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=42	9-09233-010-0	02	1	9209-	●
37	UNION; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=74	9-09233-310-0	02	1	9208-9208	●	●
37	UNION; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=74	9-09233-310-1	02	1	9209-9210	●	●
37	UNION; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=74	9-09233-310-1	02	1	9209-9210	●	●
37	UNION; AIR PIPE (B) M16 L=74	9-09233-310-1	02	1	9211-	●
37	UNION; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=74	9-09233-310-1	02	1	9211-		●
37	UNION; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=74	9-09233-310-1	02	1	9211-		●
37	UNION; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	9-09223-310-0	02	1	9202-9208	●	●
37	UNION; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW	9-09235-210-0	02	1	9202-9207	●	●
37	UNION; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW	9-09235-210-1	02	1	9208-9210	●	●
37	UNION; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW	9-09235-210-1	01	1	9211-	●	●
37	UNION; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW	9-09235-210-1	01	1	9211-		●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M16 2WAY	1-09650-051-0	02	1	9202-9208	●	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16 2WAY	1-09650-051-0	02	1	9202-9208	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M16 2WAY	1-09650-051-1	02	1	9209-9305	●	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16 2WAY	1-09650-051-1	02	1	9209-9305	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M16 2WAY	1-09650-182-1	02	1	9306-	●	●
37	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) M16 2WAY	1-09650-182-1	02	1	9306-	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9202-	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 STRAIGHT	9-09223-008-1	01	1	9202-	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5) M12	9-99111-412-0	01	1	9202-9207	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12	9-99111-412-0	01	1	9208-	●	●
61	WASHER; LK,NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-512-0	01	1	9202-9207	●	●
61	WASHER; LK,NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5) ID=12.2	9-09150-512-0	01	1	9202-9207	●	●
61	WASHER; LK,NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	9-09150-512-0	01	1	9208-9312	●	●
61	WASHER; LK,NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.2	9-09150-512-0	01	1	9208-9312	●	●
88	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	02	1	9202-9312	●	●
88	WASHER; LK,PIPE UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.2	9-09150-512-0	02	1	9202-9207	●	●
88	WASHER; LK,PIPE UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=12.2	9-09150-512-0	02	1	9202-9207	●
88	WASHER; LK,PIPE UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.2	9-09150-512-0	02	1	9208-9312	●	●
88	WASHER; LK,PIPE UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=12.2	9-09150-512-0	02	1	9208-9312	●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9202-	●	●
91	NUT; PIPE UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12	9-99111-412-0	02	1	9202-9207	●	●
91	NUT; PIPE UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12	9-99111-412-0	02	1	9202-9207	●
91	NUT; PIPE UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12	9-99111-412-0	02	1	9208-	●	●
91	NUT; PIPE UNION WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12	9-99111-412-0	02	1	9208-	●
94	BRACKET; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 W/NUT	1-47475-439-2	02	1	9202-9207	●	●
94	BRACKET; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 W/NUT	1-47475-439-2	02	1	9208-	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 STRAIGHT	9-09223-008-0	01	1	9202-9208	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M14 STRAIGHT	9-09223-008-0	01	1	9202-9208	●	●
97	UNION; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M14 STRAIGHT	9-09223-008-0	01	1	9202-9208	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 STRAIGHT	9-09223-008-1	01	1	9209-	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M14 STRAIGHT	9-09223-008-1	01	1	9209-	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5),ASSISTER SHIFT CONTROL<WX8> (C) M14 2WAY	1-09654-176-0	01	1	9202-9208	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. ASSISTER SHIFT CONTROL<WX8> (C) M14 2WAY	1-09654-176-2	01	1	9209-	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ASSISTER SHIFT CONTROL<WX8> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47470-300-0	01	1	9202-9207	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ASSISTER SHIFT CONTROL<WX8> (B)	1-47470-300-2	01	1	9208-	●	●
133	UNION; NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ASSISTER SHIFT CONTROL<WX8> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09656-356-0	01	1	9202-9207	●	●
133	UNION; NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ASSISTER SHIFT CONTROL<WX8>	1-09656-356-1	01	1	9208-	●	●
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ASSISTER SHIFT CONTROL<WX8> EXC. NEW ZEALAND EQUIPMENT(PK5) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9202-9207	●	●
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9208-9302	●	●
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-	●	●
227	BRACKET ASM; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-421-0	02	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
