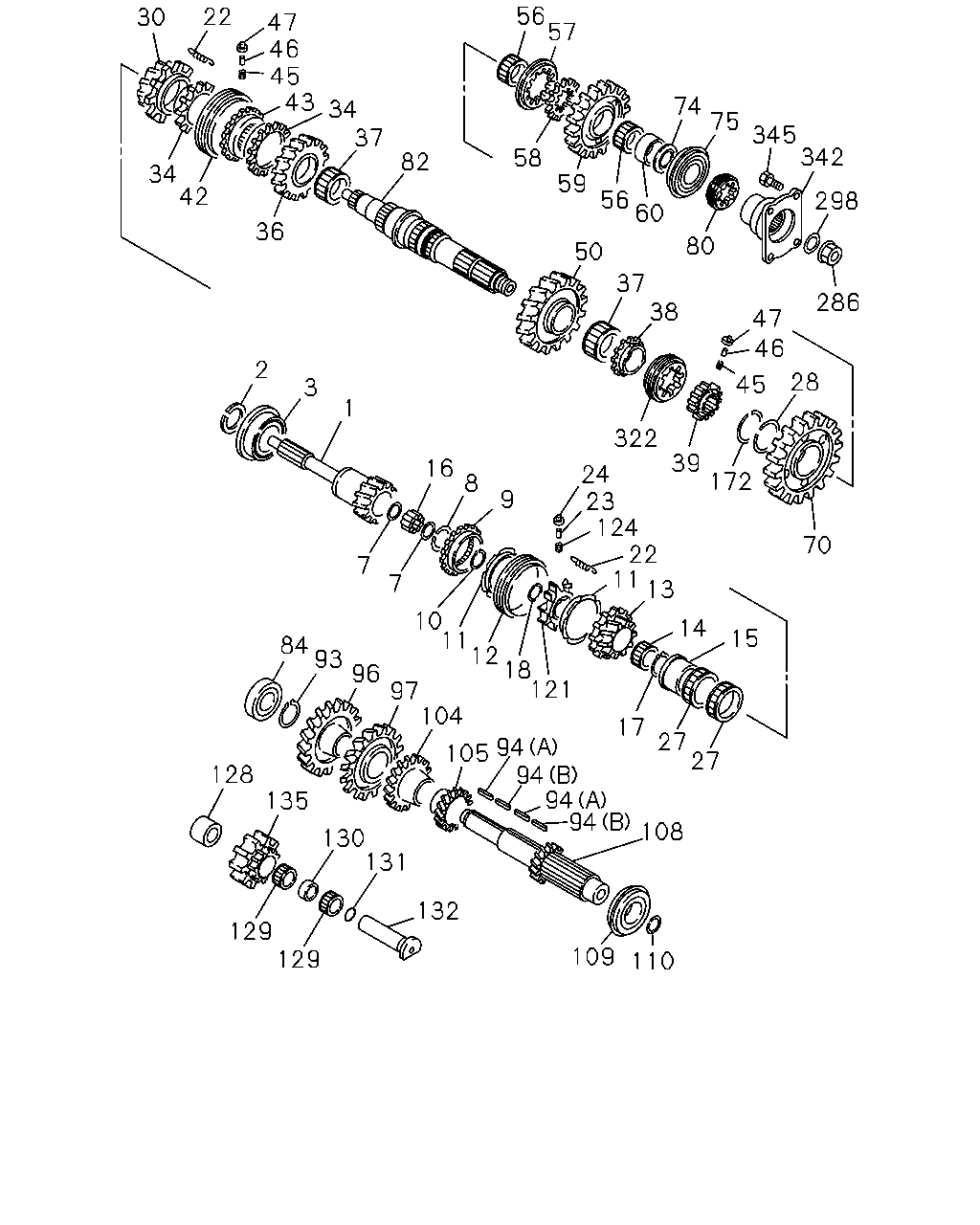

2-26 — MANUAL TRANSMISSION GEAR (#4) — 570 parça

56 57 22 30 47 46 45 43 74 75 34 37 345 342 58 82 34 42 59 56 60 298 36 80 50 37 38 286 47 46 2 28 45 3 1 322 39 16 24 23 124 22 11 172 8 9 70 7 7 13 10 11 12 18 121 14 15 84 93 96 97 104 17 27 27 94 105 94 94 94 128 135 108 130 131 132 129 129 109 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS 6HE1 N ENG(47L) 13" CLUTCH(WD4) Z=20	1-33211-719-0	01	1	9202-9309	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 N ENG(47L) 13" CLUTCH(WD4) Z=20	1-33211-773-0	01	1	9310-	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 STD ENG(46L) Z=20	1-33211-725-0	01	1	9202-9309	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 N ENG(47L) EXC. 13" CLUTCH(WD4) Z=20	1-33211-725-0	01	1	9202-9309	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 STD ENG(46L) Z=20	1-33211-776-0	01	1	9310-	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 N ENG(47L) EXC. 13" CLUTCH(WD4) Z=20	1-33211-776-0	01	1	9310-	●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-723-0	01	1	9202-9309			●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	9310-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-502-1	01	1	9202-				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9202-9501	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-				●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9202-	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-				●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9202-				●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9202-				●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9202-	●	●	●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9202-				●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9202-				●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9202-				●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-400-3	01	1	9202-9308				●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9309-				●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-413-2	01	1	9202-9308					●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9309-					●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9202-				●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9202-				●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9202-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9202-	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9202-	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9202-				●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9202-				●	●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9202-	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-				●	●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9202-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9202-				●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9202-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9202-	●	●	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	9202-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9202-				●	●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9202-	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9202-				●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-454-0	01	1	9202-9309	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9310-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9202-9308				●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-				●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308					●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-					●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9202-				●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9202-9301	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308				●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-				●	●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	9202-				●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9202-				●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9202-				●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-197-0	01	1	9202-9412				●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9501-				●	●
42	SLEEVE Z=45	1-33262-140-1	01	1	9202-9209	●	●	●
42	SLEEVE Z=45	1-33262-164-0	01	1	9210-9503	●	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9504-	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-				●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-198-1	01	1	9202-9412				●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9501-				●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	03	1	9202-9209	●	●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9210-	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9202-9209				●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9210-				●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9202-				●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9202-				●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9202-9301	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308				●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-				●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9202-	●	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	9202-	●	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9202-				●	●
57	SLEEVE; REV	1-33262-110-0	01	1	9202-				●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9202-				●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9202-9309	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308				●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-				●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9202-				●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9202-9309	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308				●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-				●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9202-	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-				●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-				●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9405-				●	●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	9202-	●	●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R) Z=5	1-33371-041-2	01	1	9405-				●
80	GEAR; SPD DRIVE Z=7	1-33371-040-1	01	1	9202-9404				●	●
80	GEAR; SPD DRIVE FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) Z=7	1-33371-040-2	01	1	9405-				●
80	GEAR; SPD DRIVE Z=7	1-33371-040-2	01	1	9405-					●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9202-9309	●		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-	●		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-202-1	01	1	9202-9309		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-247-0	01	1	9310-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308				●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-				●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9202-				●	●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9202-	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-				●	●
94	KEY; FEATHER,COUNTER SHAFT (C) L=47	1-09735-022-1	03	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9202-				●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9202-				●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-198-0	01	1	9202-9309	●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9310-	●	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-218-0	01	1	9202-9309			●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9310-			●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308				●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-				●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9202-9308					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-					●
97	GEAR; 5TH,COUNTER Z=40	1-33332-074-1	01	1	9202-9308				●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9309-				●
97	GEAR; 5TH,COUNTER Z=41	1-33332-081-0	01	1	9202-9308					●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9309-					●
104	GEAR; 4TH,COUNTER Z=34	1-33332-084-0	01	1	9202-9309	●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9310-	●	●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-080-0	01	1	9202-9308					●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9309-					●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9202-9309	●	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203				●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-				●	●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9202-9309	●		●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-	●		●
108	SHAFT; COUNTER Z=14	1-33311-176-2	01	1	9202-9309		●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	9310-		●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308				●	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-				●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-				●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-				●	●
110	RING; SNAP,COUNTER BRG	1-09588-075-1	01	1	9202-		●
110	RING; SNAP,COUNTER BRG	1-09588-047-0	01	1	9202-				●	●
121	HUB; CLU,6TH	1-33261-143-1	01	1	9202-		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9202-				●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	9202-				●	●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT T=42	1-33239-079-1	01	1	9202-				●	●
128	WASHER; THRUST,REV SHAFT T=2	1-33363-024-1	01	1	9202-				●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9202-				●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-				●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9202-				●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9202-	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9202-				●	●
132	SHAFT; REV	1-33351-013-0	01	1	9202-	●		●
132	SHAFT; REV	1-33351-018-1	01	1	9202-		●
132	SHAFT; REV	1-33351-017-0	01	1	9202-				●	●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9202-9309	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-	●	●	●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308				●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-				●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9202-				●	●
286	NUT; LK,MAINSHAFT M30 FLANGE	1-09449-066-1	01	1	9202-	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9202-				●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9202-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9202-				●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9202-				●	●
342	FLANGE; OUTPUT P46 PROP SHAFT(C4Z)	1-37243-242-0	01	1	9202-	●	●	●
342	FLANGE; OUTPUT P30 PROP SHAFT(B2F)	1-37243-243-0	01	1	9202-	●	●
342	FLANGE; OUTPUT	1-37243-176-3	01	1	9202-				●	●
345	BOLT; FLANGE TO YOKE P30 PROP SHAFT(B2F) M12X40	9-09801-095-0	04	1	9202-	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9202-9412				●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-				●	●

345 83 342 82 73 298 59 56 19 28 29 30 27 36 33 48 74 75 77 78 79 286 47 42 46 48 49 54 55 54 70 45 2 3 80 44 1 56 50 7 16 7 10 19 21 24 23 18 20 22 84 93 96 104 105 106 123 122 26 94 94 94 121 107 108 109 110 115 118 119 120 128 135 126 126 132 127 140 129 129 128 138 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS 6HE1 N ENG(47L) 13" CLUTCH(WD4) Z=20	1-33211-719-0	01	1	9202-9309	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 N ENG(47L) 13" CLUTCH(WD4) Z=20	1-33211-773-0	01	1	9310-	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 STD ENG(46L) Z=20	1-33211-725-0	01	1	9202-9309	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 N ENG(47L) EXC. 13" CLUTCH(WD4) Z=20	1-33211-725-0	01	1	9202-9309	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 STD ENG(46L) Z=20	1-33211-776-0	01	1	9310-	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 N ENG(47L) EXC. 13" CLUTCH(WD4) Z=20	1-33211-776-0	01	1	9310-	●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-723-0	01	1	9202-9309			●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	9310-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-502-1	01	1	9202-				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9202-9501	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-				●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9202-	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-				●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9202-	●	●	●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9202-				●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9202-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9202-	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9202-	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9202-				●	●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9202-	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-				●	●
19	RING; BLOCK,4TH & 5TH	1-33265-283-0	02	1	9202-9212	●	●	●
19	RING; BLOCK,4TH & 5TH Z=39	1-33265-408-0	02	1	9301-	●	●	●
20	SLEEVE	1-33262-094-1	01	1	9202-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	9202-	●	●	●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9202-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9202-				●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-373-0	03	1	9202-		●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9202-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9202-	●	●	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	9202-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9202-				●	●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9202-	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9202-				●	●
29	COLLAR; 3RD GEAR	1-33234-042-2	01	1	9202-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-454-0	01	1	9202-9309	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9310-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9202-9308				●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-				●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308					●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-					●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-198-0	01	1	9202-	●	●	●
33	BEARING; NEEDLE,3RD GEAR KOYO	1-09811-199-0	01	1	9202-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9202-9301	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308				●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-				●	●
42	SLEEVE Z=45	1-33262-140-1	01	1	9202-9209	●	●	●
42	SLEEVE Z=45	1-33262-164-0	01	1	9210-9503	●	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9504-	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-				●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-196-0	01	1	9202-9405	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	9406-	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	03	1	9202-9209	●	●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9210-	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9202-9209				●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9210-				●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9202-				●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9202-				●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-352-0	02	1	9202-9205	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-402-0	02	1	9206-9301	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9302-	●	●	●
49	BEARING; NEEDLE,2ND GEAR	1-09811-141-1	01	1	9202-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9202-9301	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308				●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-				●	●
54	RING; SNAP,THRUST WASHER	1-09588-080-0	02	1	9202-	●	●	●
55	WASHER; THRUST,MAINSHAFT	1-33239-016-0	01	1	9202-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9202-	●	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	9202-	●	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9202-				●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9202-9309	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308				●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-				●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9202-9309	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308				●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-				●	●
73	CLUTCH; SYN 1ST	1-33261-133-0	01	1	9202-	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9202-	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-				●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-				●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9405-				●	●
77	GEAR; 6TH,MAINSHAFT Z=17	1-33253-374-0	01	1	9202-9309		●
77	GEAR; 6TH,MAINSHAFT Z=17	1-33253-516-0	01	1	9310-		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-020-0	01	1	9202-9305		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-095-0	01	1	9306-		●
79	BEARING; BALL,MAINSHAFT NSK	1-09800-019-0	01	1	9202-		●
79	BEARING; BALL,MAINSHAFT KOYO	1-09800-120-1	01	1	9202-		●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	9202-	●	●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R) Z=5	1-33371-041-2	01	1	9405-				●
80	GEAR; SPD DRIVE Z=7	1-33371-040-1	01	1	9202-9404				●	●
80	GEAR; SPD DRIVE FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) Z=7	1-33371-040-2	01	1	9405-				●
80	GEAR; SPD DRIVE Z=7	1-33371-040-2	01	1	9405-					●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9202-9309	●		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-	●		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-202-1	01	1	9202-9309		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-247-0	01	1	9310-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308				●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-				●	●
83	PIN; THRUST WASHER	1-09740-032-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9202-				●	●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9202-	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-				●	●
94	KEY; FEATHER,COUNTER SHAFT (C) L=47	1-09735-022-1	03	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9202-				●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9202-				●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-198-0	01	1	9202-9309	●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9310-	●	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-218-0	01	1	9202-9309			●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9310-			●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308				●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-				●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9202-9308					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-					●
104	GEAR; 4TH,COUNTER Z=34	1-33332-084-0	01	1	9202-9309	●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9310-	●	●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-080-0	01	1	9202-9308					●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9309-					●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9202-9309	●	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203				●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-				●	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-017-0	01	1	9202-9309	●	●	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-019-0	01	1	9310-	●	●	●
107	KEY; FEATHER,2ND COUNTER L=41	1-09735-021-0	01	1	9202-	●	●	●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9202-9309	●		●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-	●		●
108	SHAFT; COUNTER Z=14	1-33311-176-2	01	1	9202-9309		●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	9310-		●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308				●	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-				●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-				●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-				●	●
110	RING; SNAP,COUNTER BRG	1-09588-075-1	01	1	9202-		●
110	RING; SNAP,COUNTER BRG	1-09588-047-0	01	1	9202-				●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	9202-		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	9202-		●
115	BEARING; NEEDLE,6TH,COUNTER KOYO	1-09811-269-0	01	1	9202-		●
118	GEAR; 6TH,COUNTER Z=41	1-33338-278-0	01	1	9202-9309		●
118	GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	9310-		●
119	RING; BLOCK,6TH SYN	1-33265-283-0	01	1	9202-9212		●
119	RING; BLOCK,6TH SYN Z=39	1-33265-408-0	01	1	9301-		●
120	SLEEVE	1-33262-095-0	01	1	9202-		●
121	HUB; CLU,6TH	1-33261-143-1	01	1	9202-		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9202-				●	●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-		●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-		●
126	RING; SNAP,CLU HUB (A) OD=100 T=2	1-09587-032-0	01	1	9202-		●
126	RING; SNAP,CLU HUB (B) ID=46.3 T=1.75	1-09588-121-1	01	1	9202-		●
127	COLLAR; THRUST,REV SHAFT	1-33363-005-0	01	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT T=42	1-33239-079-1	01	1	9202-				●	●
128	WASHER; THRUST,REV SHAFT T=2	1-33363-024-1	01	1	9202-				●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9202-				●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-				●	●
132	SHAFT; REV	1-33351-013-0	01	1	9202-	●		●
132	SHAFT; REV	1-33351-018-1	01	1	9202-		●
132	SHAFT; REV	1-33351-017-0	01	1	9202-				●	●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9202-9309	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-	●	●	●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308				●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-				●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9202-	●	●	●
139	WASHER; LK,PIECE ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9202-9205	●	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9202-9205	●	●	●
140	BOLT; LK PIECE M10X15	1-09049-019-0	01	1	9206-	●	●	●
286	NUT; LK,MAINSHAFT M30 FLANGE	1-09449-066-1	01	1	9202-	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9202-				●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9202-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9202-				●	●
342	FLANGE; OUTPUT P46 PROP SHAFT(C4Z)	1-37243-242-0	01	1	9202-	●	●	●
342	FLANGE; OUTPUT P30 PROP SHAFT(B2F)	1-37243-243-0	01	1	9202-	●	●
342	FLANGE; OUTPUT	1-37243-176-3	01	1	9202-				●	●
345	BOLT; FLANGE TO YOKE P30 PROP SHAFT(B2F) M12X40	9-09801-095-0	04	1	9202-	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9202-9412				●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-				●	●

47 46 45 48 44 345 54 342 49 54 55 70 56 50 2 3 298 286 83 82 1 73 7 16 59 7 18 10 56 19 74 24 23 22 20 30 84 93 96 75 27 28 29 36 33 48 104 94 105 94 107 21 80 19 108 109 127 42 128 135 132 131 129 129 140 128 138 139 94 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS 6HE1 N ENG(47L) 13" CLUTCH(WD4) Z=20	1-33211-719-0	01	1	9202-9309	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 N ENG(47L) 13" CLUTCH(WD4) Z=20	1-33211-773-0	01	1	9310-	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 STD ENG(46L) Z=20	1-33211-725-0	01	1	9202-9309	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 N ENG(47L) EXC. 13" CLUTCH(WD4) Z=20	1-33211-725-0	01	1	9202-9309	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 STD ENG(46L) Z=20	1-33211-776-0	01	1	9310-	●	●
1	SHAFT; TOP GEAR,TRANS 6HE1 N ENG(47L) EXC. 13" CLUTCH(WD4) Z=20	1-33211-776-0	01	1	9310-	●	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-723-0	01	1	9202-9309			●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-777-0	01	1	9310-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-502-1	01	1	9202-				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9202-					●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9202-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9202-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9202-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9202-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-138-1	01	1	9202-9501	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9502-	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9202-				●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9202-	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9202-				●	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9202-	●	●	●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9202-				●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-006-1	14	1	9202-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-007-1	14	1	9202-	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-008-2	14	1	9202-	●	●	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9202-				●	●
18	RING; SNAP,CLU HUB ID=46.3 T=1.75	1-09588-121-1	01	1	9202-	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9202-				●	●
19	RING; BLOCK,4TH & 5TH	1-33265-283-0	02	1	9202-9212	●	●	●
19	RING; BLOCK,4TH & 5TH Z=39	1-33265-408-0	02	1	9301-	●	●	●
20	SLEEVE	1-33262-094-1	01	1	9202-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-148-0	01	1	9202-	●	●	●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9202-	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9202-				●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-263-0	01	1	9202-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-265-0	01	1	9202-	●	●	●
27	BEARING; 4TH GEAR KOYO	1-09811-266-0	01	1	9202-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9202-				●	●
28	RING; SNAP,3RD GEAR	1-09588-120-0	01	1	9202-	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9202-				●	●
29	COLLAR; 3RD GEAR	1-33234-042-2	01	1	9202-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-454-0	01	1	9202-9309	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-495-0	01	1	9310-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-525-1	01	1	9202-9308				●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9309-				●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-524-1	01	1	9202-9308					●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9309-					●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-198-0	01	1	9202-	●	●	●
33	BEARING; NEEDLE,3RD GEAR KOYO	1-09811-199-0	01	1	9202-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-322-1	01	1	9202-9301	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-406-0	01	1	9302-9309	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=33	1-33252-358-1	01	1	9310-	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-378-2	01	1	9202-9308				●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-0	01	1	9309-				●	●
42	SLEEVE Z=45	1-33262-140-1	01	1	9202-9209	●	●	●
42	SLEEVE Z=45	1-33262-164-0	01	1	9210-9503	●	●	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9504-	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9202-				●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-196-0	01	1	9202-9405	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-216-0	01	1	9406-	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	03	1	9202-9209	●	●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9210-	●	●	●
45	SPRING; BLOCK INSERT	1-09580-373-0	06	1	9202-9209				●	●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9210-				●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9202-	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9202-				●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9202-	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9202-				●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-352-0	02	1	9202-9205	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-402-0	02	1	9206-9301	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9302-	●	●	●
49	BEARING; NEEDLE,2ND GEAR	1-09811-141-1	01	1	9202-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-259-1	01	1	9202-9301	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-325-0	01	1	9302-9309	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-290-1	01	1	9310-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-298-2	01	1	9202-9308				●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9309-				●	●
54	RING; SNAP,THRUST WASHER	1-09588-080-0	02	1	9202-	●	●	●
55	WASHER; THRUST,MAINSHAFT	1-33239-016-0	01	1	9202-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-019-0	02	1	9202-	●	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-020-0	02	1	9202-	●	●	●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9202-				●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-052-0	01	1	9202-9309	●	●	●
59	GEAR; REV MAINSHAFT Z=43	1-33257-059-0	01	1	9310-	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-042-1	01	1	9202-9308				●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9309-				●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-021-1	01	1	9202-9309	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-054-1	01	1	9310-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33251-300-1	01	1	9202-9308				●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9309-				●	●
73	CLUTCH; SYN 1ST	1-33261-133-0	01	1	9202-	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-018-1	01	1	9202-	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9202-				●	●
75	BEARING; MAINSHAFT NSK	1-09810-082-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT KOYO	1-09810-155-0	01	1	9202-	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9202-				●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9405-				●	●
80	GEAR; SPD DRIVE Z=6	1-33371-042-2	01	1	9202-	●	●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 15.5" HYPOID(W1R) Z=5	1-33371-041-2	01	1	9405-				●
80	GEAR; SPD DRIVE Z=7	1-33371-040-1	01	1	9202-9404				●	●
80	GEAR; SPD DRIVE FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) Z=7	1-33371-040-2	01	1	9405-				●
80	GEAR; SPD DRIVE Z=7	1-33371-040-2	01	1	9405-					●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-201-1	01	1	9202-9309	●		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-266-0	01	1	9310-	●		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-202-1	01	1	9202-9309		●
82	SHAFT; MAIN,TRANS Z=26-24-21	1-33231-247-0	01	1	9310-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-205-2	01	1	9202-9308				●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9309-				●	●
83	PIN; THRUST WASHER	1-09740-032-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-127-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-128-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-129-0	01	1	9202-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9202-				●	●
93	RING; SNAP,COUNTER FRT BRG ID=53.3 T=2.5	1-09588-102-0	01	1	9202-	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9202-				●	●
94	KEY; FEATHER,COUNTER SHAFT (C) L=47	1-09735-022-1	03	1	9202-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9202-				●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9202-				●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-198-0	01	1	9202-9309	●	●
96	GEAR; COUNTER DRIVE Z=38	1-33331-209-0	01	1	9310-	●	●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-218-0	01	1	9202-9309			●
96	GEAR; COUNTER DRIVE Z=39-38	1-33331-210-0	01	1	9310-			●
96	GEAR; COUNTER DRIVE Z=46	1-33331-161-2	01	1	9202-9308				●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9309-				●
96	GEAR; COUNTER DRIVE Z=45	1-33331-162-2	01	1	9202-9308					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9309-					●
104	GEAR; 4TH,COUNTER Z=34	1-33332-084-0	01	1	9202-9309	●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-093-0	01	1	9310-	●	●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-072-1	01	1	9202-9308				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9309-				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-080-0	01	1	9202-9308					●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9309-					●
105	GEAR; 3RD,COUNTER Z=28	1-33333-098-2	01	1	9202-9309	●	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-151-0	01	1	9310-	●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-140-0	01	1	9202-9203				●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9204-				●	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-017-0	01	1	9202-9309	●	●	●
106	GEAR; 2ND,COUNTER Z=22	1-33334-019-0	01	1	9310-	●	●	●
107	KEY; FEATHER,2ND COUNTER L=41	1-09735-021-0	01	1	9202-	●	●	●
108	SHAFT; COUNTER Z=14	1-33311-170-2	01	1	9202-9309	●		●
108	SHAFT; COUNTER Z=14	1-33311-268-1	01	1	9310-	●		●
108	SHAFT; COUNTER Z=14	1-33311-176-2	01	1	9202-9309		●
108	SHAFT; COUNTER Z=14	1-33311-233-1	01	1	9310-		●
108	SHAFT; COUNTER Z=19	1-33311-181-0	01	1	9202-9308				●	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9309-				●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-080-0	01	1	9202-	●	●	●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9202-				●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9202-				●	●
127	COLLAR; THRUST,REV SHAFT	1-33363-005-0	01	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT T=2.9	9-33271-033-0	02	1	9202-	●	●	●
128	WASHER; THRUST,REV SHAFT T=42	1-33239-079-1	01	1	9202-				●	●
128	WASHER; THRUST,REV SHAFT T=2	1-33363-024-1	01	1	9202-				●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9202-	●	●	●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9202-				●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9202-				●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-183-0	01	1	9202-	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9202-				●	●
132	SHAFT; REV	1-33351-013-0	01	1	9202-	●		●
132	SHAFT; REV	1-33351-018-1	01	1	9202-		●
132	SHAFT; REV	1-33351-017-0	01	1	9202-				●	●
135	GEAR; REV IDLER Z=27	1-33361-017-0	01	1	9202-9309	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-062-0	01	1	9310-	●	●	●
135	GEAR; REV IDLER Z=30	1-33361-044-2	01	1	9202-9308				●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9309-				●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9202-	●	●	●
139	WASHER; LK,PIECE ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9202-9205	●	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9202-9205	●	●	●
140	BOLT; LK PIECE M10X15	1-09049-019-0	01	1	9206-	●	●	●
286	NUT; LK,MAINSHAFT M30 FLANGE	1-09449-066-1	01	1	9202-	●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9202-				●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9202-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9202-				●	●
342	FLANGE; OUTPUT P46 PROP SHAFT(C4Z)	1-37243-242-0	01	1	9202-	●	●	●
342	FLANGE; OUTPUT P30 PROP SHAFT(B2F)	1-37243-243-0	01	1	9202-	●	●
342	FLANGE; OUTPUT	1-37243-176-3	01	1	9202-				●	●
345	BOLT; FLANGE TO YOKE P30 PROP SHAFT(B2F) M12X40	9-09801-095-0	04	1	9202-	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9202-9412				●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
