4-31 — STEERING COLUMN AND SHAFT (#39992) — 108 parça

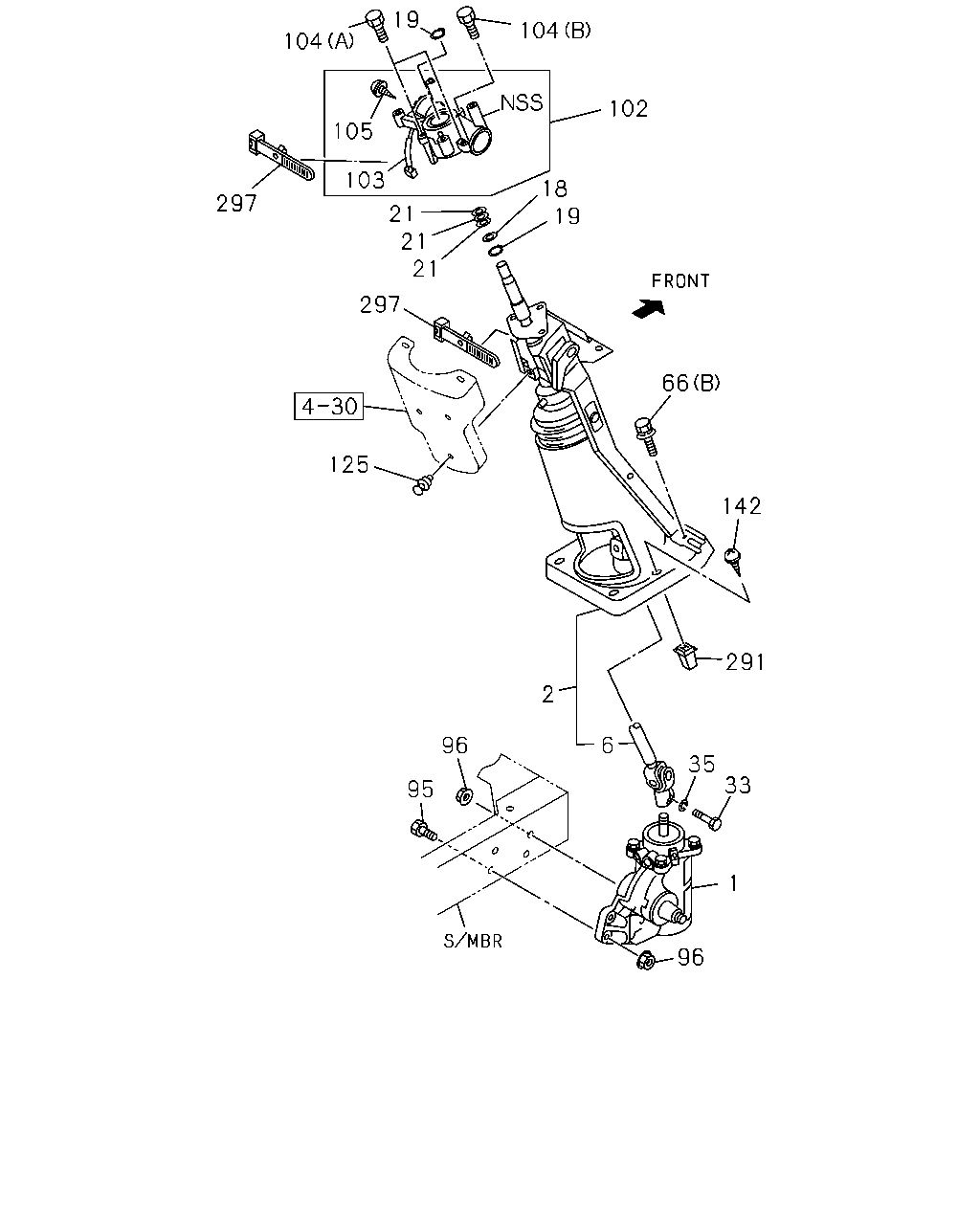

çizim 35082
19 104 104 102 105 103 18 19 297 21 21 21 297 66 125 142 291 2 96 6 35 33 95 1 96
BalonParca AdiParca NoAdetTipApplied Date
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97287-197-8 01 1 0301-
2 06.518 SHAFT ASM; STRG
BLACK 		8-97291-631-0 01 1 0301-0404
2 06.518 SHAFT ASM; STRG
BLACK 		8-97400-057-1 01 1 0405-
6 06.524 SHAFT; STRG LWR 8-97201-107-0 01 1 0301-0404
6 06.524 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
18 06.525 WASHER; STEERING SHAFT
06.500 ID=19 		8-94146-919-0 01 1 0301-
19 06.515 RING; SNAP,STRG SHAFT
00.349 ID=17.5 		9-09180-019-0 02 1 0301-
21 06.500 WASHER; WAVE,STRG LOCK TO SHAFT 8-94174-865-0 03 1 0301-
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X30 		8-94247-692-0 01 1 0301-0610
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 0611-
35 06.525 WASHER; LK,STRG SHAFT
00.002 ID=8.2 		9-09150-508-0 01 1 0301-0603
35 06.525 WASHER; LK,STRG SHAFT
04.439 ID=8.2 		0-91510-508-0 01 1 0604-0610
35 06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2 		0-91510-808-0 01 1 0611-
66 06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1201-
66 06.514 BOLT; STRG COLUMN
(A) 		8-97076-831-0 01 1 0301-
66 06.514 BOLT; STRG COLUMN
04.634 (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0301-0611
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1112
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201-
95 06.509 BOLT; STRG UNIT
M12X45 		8-97212-810-1 03 1 0301-
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-94436-194-0 04 1 0301-0610
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 04 1 0611-
102 06.500 LOCK ASM; STRG 8-97170-364-0 01 1 0301-
103 02.188 SWITCH; IGNITION 8-97088-268-0 01 1 0301-
104 06.500 BOLT; STRG LOCK TO COLUMN
(B) M6X30 W/LK&PL WASHER 		8-97189-885-0 01 1 0301-
104 06.500 BOLT; STRG LOCK TO COLUMN
(A) M6X30 W/LK&PL WASHER 		8-97189-885-0 02 1 0301-
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 0301-
125 06.521 CLIP; STRG SHAFT
06.525 BLACK 		8-97868-409-0 01 1 0301-0501
125 06.521 CLIP; STRG SHAFT
DARK GRAY 		8-97582-246-0 01 1 0502-
142 06.518 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74305-520-0 06 1 0301-0604
142 06.518 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74365-520-0 06 1 0605-0612
142 06.518 SCREW; BRKT COWL
06.514 M5X18 TAPPING 		0-72180-518-0 06 1 0701-
291 06.518 GROMMET; STRG SHAFT COVER
04.931 H=15 		8-94463-268-1 06 1 0301-
297 06.525 CLIP; BAND
02.559 L=145 		8-94257-575-1 03 1 0301-

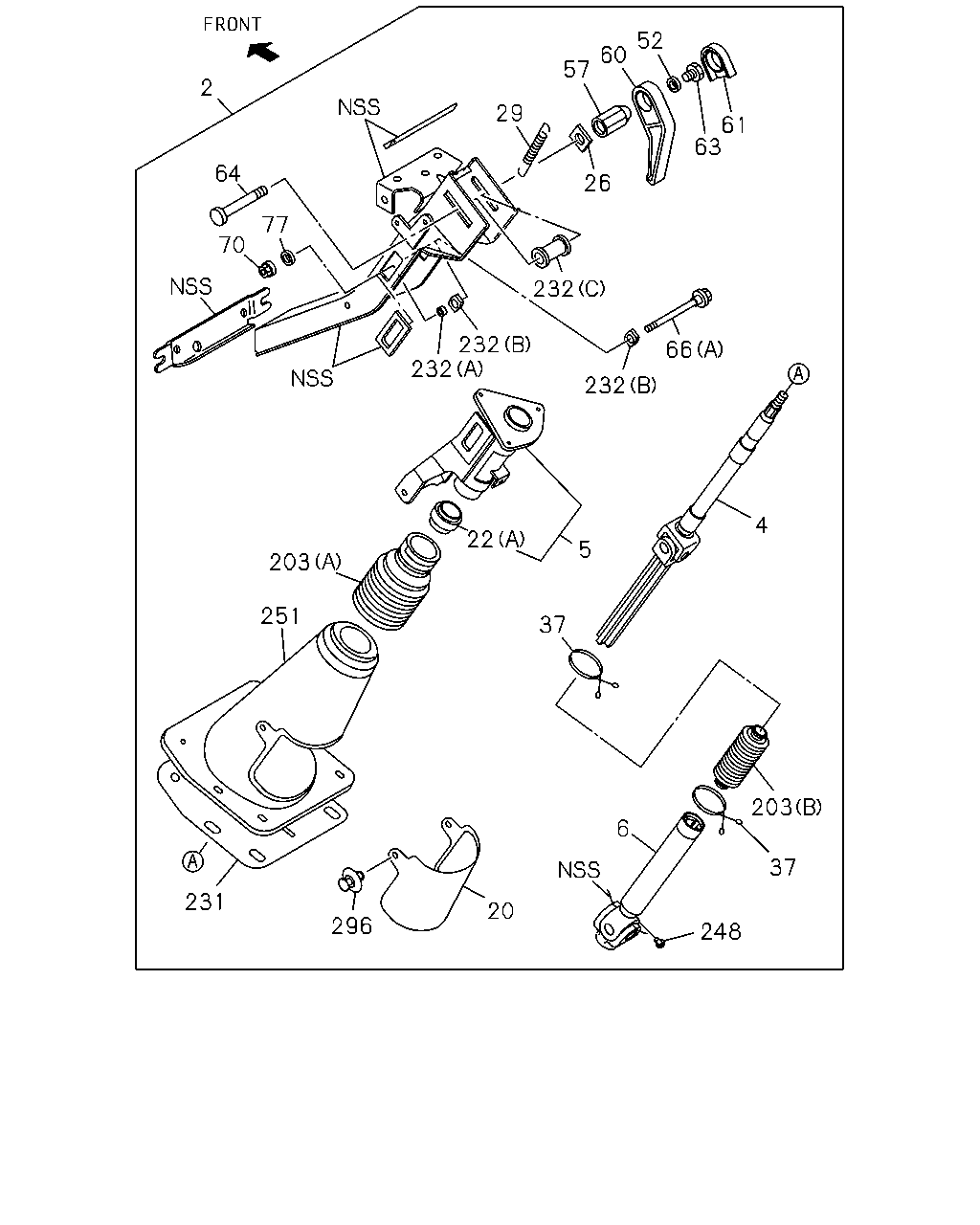

çizim 35208
52 60 57 2 29 61 63 64 26 77 70 232 232 232 66 232 4 22 5 203 251 37 203 6 37 231 20 296 248
BalonParca AdiParca NoAdetTipApplied Date
2 06.518 SHAFT ASM; STRG
BLACK 		8-97291-631-0 01 1 0301-0404
2 06.518 SHAFT ASM; STRG
BLACK 		8-97400-057-1 01 1 0405-
4 06.524 SHAFT; STRG 8-97201-111-1 01 1 0301-0404
4 06.524 SHAFT; STRG 8-97378-638-0 01 1 0405-
5 06.518 COLUMN; STRG 8-97093-792-2 01 1 0301-
6 06.524 SHAFT; STRG LWR 8-97201-107-0 01 1 0301-0404
6 06.524 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
20 06.525 COVER; STRG SHAFT
06.518 BLACK 		8-97291-634-1 01 1 0301-0311
20 06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> 06.518 BLACK 		8-97291-634-1 01 1 0312-0402
20 06.525 COVER; STRG SHAFT
06.518 BLACK 		8-97291-634-1 01 1 0403-
22 06.525 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0301-
22 06.525 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0405-
26 06.514 PLATE; ADJ 8-97222-989-0 01 1 0301-
29 06.514 SPRING; COLUMN 8-97076-811-0 01 1 0301-
37 06.525 CLAMP; BOOT TO SHAFT 8-97173-630-0 02 1 0301-0404
52 06.514 WASHER; PL,ADJ LEVER 8-97076-813-0 01 1 0301-
57 06.518 NUT; ADJ BOLT 8-97222-988-0 01 1 0301-
60 06.518 LEVER; ADJ,STRG COLUMN 8-97076-830-0 01 1 0301-
61 06.514 CAP; ADJ LEVER,TILT STRG 8-97076-814-0 01 1 0301-
63 06.514 BOLT; ADJ LEVER,TILT STRG 8-97222-986-0 01 1 0301-
64 06.518 BOLT; ADJ,PROTECTOR 8-97222-987-0 01 1 0301-
66 06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1201-
66 06.514 BOLT; STRG COLUMN
(A) 		8-97076-831-0 01 1 0301-
66 06.514 BOLT; STRG COLUMN
04.634 (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0301-0611
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1112
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201-
70 06.514 NUT; STRG COLUMN 8-97076-807-0 01 1 0301-
77 06.760 WASHER; PL,COLUMN 8-97076-804-0 01 1 0301-
203 06.525 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0301-0404
203 06.525 BOOT; STRG COLUMN LWR
06.518 (A) 		8-97076-822-0 01 1 0301-
231 06.525 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0301-
232 06.514 SPACER; STRG SHAFT
(B) 		8-97076-805-0 02 1 0301-
232 06.514 SPACER; STRG SHAFT
(A) 		8-97076-806-0 01 1 0301-
232 06.514 SPACER; STRG SHAFT
(C) 		8-97148-277-0 01 1 0301-
248 06.518 SCREW; YOKE 8-97222-984-0 01 1 0301-
251 06.518 COVER; LWR
06.578 BLACK 		8-97159-168-2 01 1 0301-
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0502-
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0502-

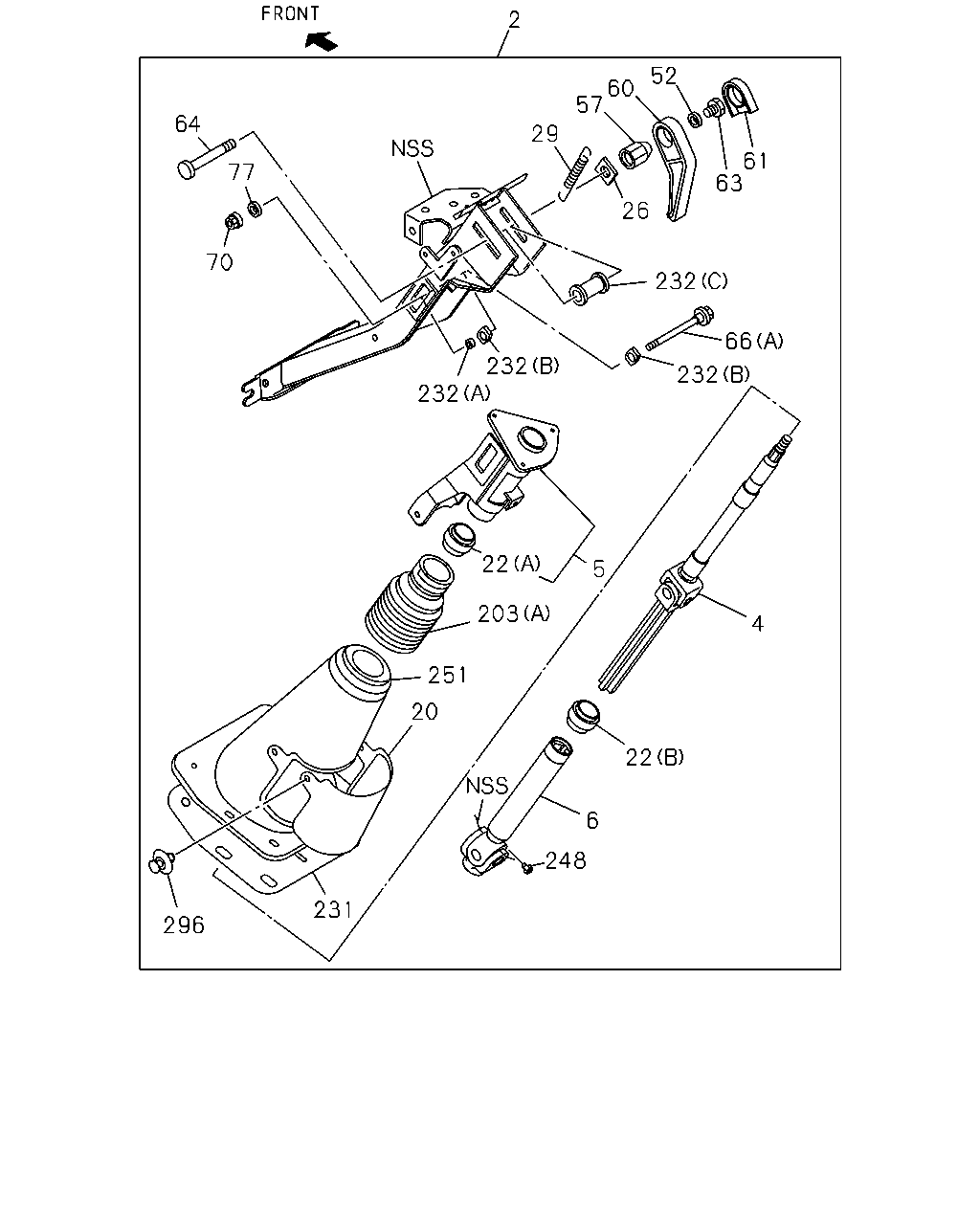

çizim 35209
2 52 60 57 64 29 61 63 77 26 70 232 66 232 232 232 22 5 203 4 251 20 22 6 248 231 296
BalonParca AdiParca NoAdetTipApplied Date
2 06.518 SHAFT ASM; STRG
BLACK 		8-97291-631-0 01 1 0301-0404
2 06.518 SHAFT ASM; STRG
BLACK 		8-97400-057-1 01 1 0405-
4 06.524 SHAFT; STRG 8-97201-111-1 01 1 0301-0404
4 06.524 SHAFT; STRG 8-97378-638-0 01 1 0405-
5 06.518 COLUMN; STRG 8-97093-792-2 01 1 0301-
6 06.524 SHAFT; STRG LWR 8-97201-107-0 01 1 0301-0404
6 06.524 SHAFT; STRG LWR 8-97378-632-0 01 1 0405-
20 06.525 COVER; STRG SHAFT
06.518 BLACK 		8-97291-634-1 01 1 0301-0311
20 06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> 06.518 BLACK 		8-97291-634-1 01 1 0312-0402
20 06.525 COVER; STRG SHAFT
06.518 BLACK 		8-97291-634-1 01 1 0403-
22 06.525 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0301-
22 06.525 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0405-
26 06.514 PLATE; ADJ 8-97222-989-0 01 1 0301-
29 06.514 SPRING; COLUMN 8-97076-811-0 01 1 0301-
52 06.514 WASHER; PL,ADJ LEVER 8-97076-813-0 01 1 0301-
57 06.518 NUT; ADJ BOLT 8-97222-988-0 01 1 0301-
60 06.518 LEVER; ADJ,STRG COLUMN 8-97076-830-0 01 1 0301-
61 06.514 CAP; ADJ LEVER,TILT STRG 8-97076-814-0 01 1 0301-
63 06.514 BOLT; ADJ LEVER,TILT STRG 8-97222-986-0 01 1 0301-
64 06.518 BOLT; ADJ,PROTECTOR 8-97222-987-0 01 1 0301-
66 06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1201-
66 06.514 BOLT; STRG COLUMN
(A) 		8-97076-831-0 01 1 0301-
66 06.514 BOLT; STRG COLUMN
04.634 (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0301-0611
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1112
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201-
70 06.514 NUT; STRG COLUMN 8-97076-807-0 01 1 0301-
77 06.760 WASHER; PL,COLUMN 8-97076-804-0 01 1 0301-
203 06.525 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0301-0404
203 06.525 BOOT; STRG COLUMN LWR
06.518 (A) 		8-97076-822-0 01 1 0301-
231 06.525 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0301-
232 06.514 SPACER; STRG SHAFT
(B) 		8-97076-805-0 02 1 0301-
232 06.514 SPACER; STRG SHAFT
(A) 		8-97076-806-0 01 1 0301-
232 06.514 SPACER; STRG SHAFT
(C) 		8-97148-277-0 01 1 0301-
248 06.518 SCREW; YOKE 8-97222-984-0 01 1 0301-
251 06.518 COVER; LWR
06.578 BLACK 		8-97159-168-2 01 1 0301-
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0502-
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0502-
