Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#39990) — 489 parça

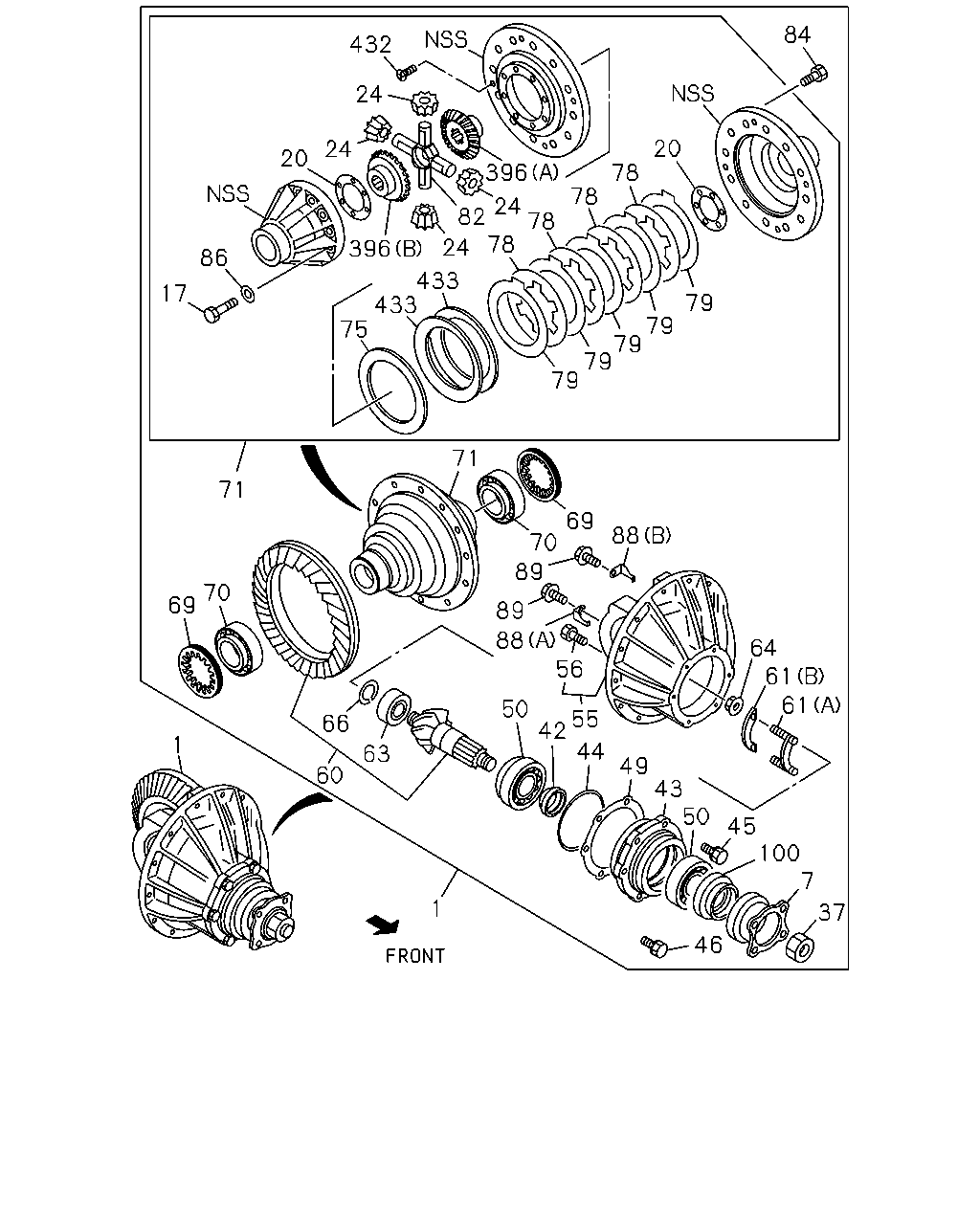

85 86 85 86 71 83 69 70 20 24 86 17 84 24 21 24 82 21 20 24 70 69 86 17 88 89 60 89 64 88 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97319-270-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97356-452-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0304-0501
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0502-
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-244-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97356-426-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97363-099-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0305-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0502-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0301-0501
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0502-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0502-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0301-0501
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0301-0501
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0502-
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0502-1004
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-266-0	02	1	0301-0303
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0304-0501
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0502-1004
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0301-0303
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0501
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0502-1004
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0301-0501
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0502-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0301-0501
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0502-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0301-0501
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0502-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0301-0501
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0502-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0301-0501
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0502-0909
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0301-0501
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0301-0501
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0301-0501
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0502-
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0301-0501
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0502-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0301-0501
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0502-
60	05.529 GEAR SET; FINAL DRIVE,RR 39/7	8-97319-160-0	01	1	0301-0501
60	05.529 GEAR SET; FINAL DRIVE,RR 41/8	8-97174-099-0	01	1	0502-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0301-0501
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0502-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0301-0501
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0502-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0301-0501
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0502-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0301-0501
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0502-
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0301-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0301-0501
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0502-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0301-0501
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0502-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0301-0501
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0502-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97319-047-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97356-488-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0304-0501
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0502-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97356-483-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0304-0501
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0502-
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0301-0501
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0301-0501
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0502-1004
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0301-0501
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0502-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0301-0501
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0502-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0301-0501
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0301-0501
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0502-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0801-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0301-0501
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0502-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0301-0501
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0502-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0301-0501
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0502-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0301-0501
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0502-0512
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0301-0501
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0502-

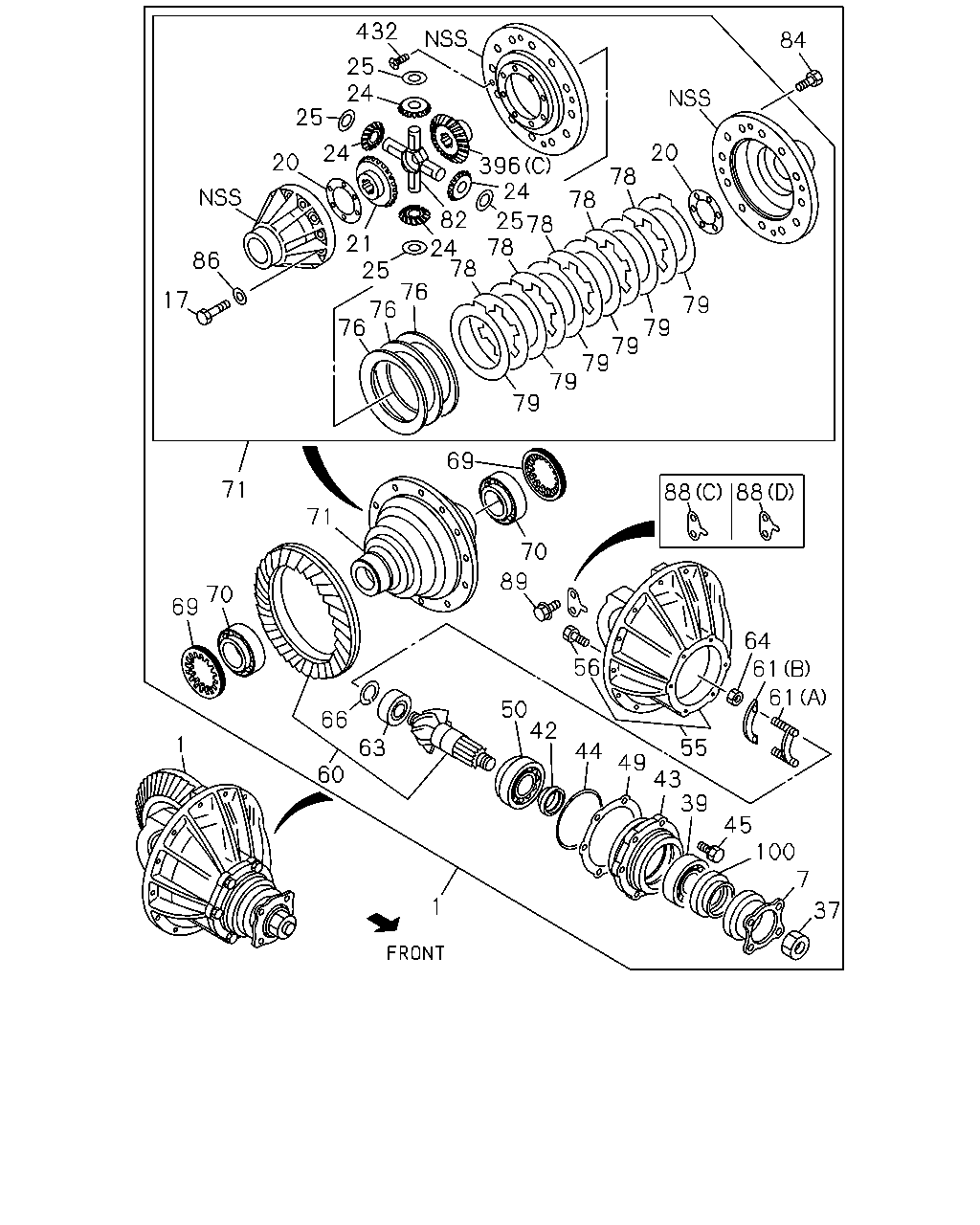

432 84 25 24 396 24 25 20 24 20 78 78 25 78 78 82 24 78 21 25 86 76 76 76 17 79 79 79 79 79 79 69 71 88 88 71 70 89 70 69 64 61 56 61 50 42 66 1 55 63 44 49 43 39 60 45 100 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97319-270-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97356-452-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0304-0501
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0502-
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-244-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97356-426-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97363-099-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0305-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0502-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0301-0501
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0502-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0502-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0301-0501
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0301-0501
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0502-
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0502-1004
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-266-0	02	1	0301-0303
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0304-0501
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0502-1004
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0301-0303
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0501
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0502-1004
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	0502-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0301-0501
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0502-
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	0502-
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	0502-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0301-0501
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0502-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0301-0501
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0502-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0301-0501
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0502-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0301-0501
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0502-0909
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0301-0501
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0301-0501
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0301-0501
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0502-
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0301-0501
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0502-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0301-0501
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0502-
60	05.529 GEAR SET; FINAL DRIVE,RR 39/7	8-97319-160-0	01	1	0301-0501
60	05.529 GEAR SET; FINAL DRIVE,RR 41/8	8-97174-099-0	01	1	0502-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0301-0501
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0502-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0301-0501
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0502-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0301-0501
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0502-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0301-0501
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0502-
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0301-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0301-0501
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0502-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0301-0501
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0502-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0301-0501
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0502-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97319-047-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97356-488-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0304-0501
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0502-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97356-483-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0304-0501
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0502-
76	05.511 DISC; BEVEL LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	0502-
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0301-0501
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0502-
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0301-0501
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0502-
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0301-0501
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0301-0501
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0502-1004
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0301-0501
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0502-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0301-0501
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0801-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0301-0501
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0502-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0301-0501
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0502-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0301-0501
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0502-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0301-0501
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0502-0512
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0301-0501
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0502-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97300-266-0	01	1	0301-0303
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0304-0501
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0502-1004
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (C)	8-98169-195-0	01	1	1005-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97300-267-0	01	1	0301-0303
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0304-0501
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0301-0501

84 432 24 20 24 20 396 78 78 24 82 78 78 24 396 86 433 433 75 17 79 79 79 79 79 71 71 69 70 88 89 70 69 89 88 64 61 56 61 50 55 42 66 1 44 63 49 43 50 60 45 100 7 1 37 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97319-270-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97356-452-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0304-0501
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0502-
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-244-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97356-426-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97363-099-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0305-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0502-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0301-0501
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0502-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0502-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0301-0501
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0301-0501
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0502-
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0301-0303
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0501
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0502-1004
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0301-0501
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0502-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0301-0501
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0502-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0301-0501
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0502-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0301-0501
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0502-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0301-0501
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0502-0909
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0301-0501
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0301-0501
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0301-0501
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0502-
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0301-0501
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0502-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0301-0501
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0502-
60	05.529 GEAR SET; FINAL DRIVE,RR 39/7	8-97319-160-0	01	1	0301-0501
60	05.529 GEAR SET; FINAL DRIVE,RR 41/8	8-97174-099-0	01	1	0502-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0301-0501
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0502-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0301-0501
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0502-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0301-0501
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0502-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0301-0501
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0502-
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0301-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0301-0501
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0502-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0301-0501
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0502-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0301-0501
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0502-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97319-047-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97356-488-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0304-0501
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0502-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97356-483-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0304-0501
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0502-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0301-0501
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0301-0501
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0301-0501
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0301-0501
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0301-0501
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0301-0501
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0301-0501
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0301-0501
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0502-
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0301-0501
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0502-
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0301-0501
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0301-0501
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0502-1004
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0301-0501
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0502-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0301-0501
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0801-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0301-0501
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0502-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0301-0501
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0502-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0301-0501
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0502-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0301-0501
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0502-0512
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0301-0501
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0502-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97300-266-0	01	1	0301-0303
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0304-0501
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0502-1004
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (C)	8-98169-195-0	01	1	1005-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97300-267-0	01	1	0301-0303
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0304-0501
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0301-0501
433	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0301-0501

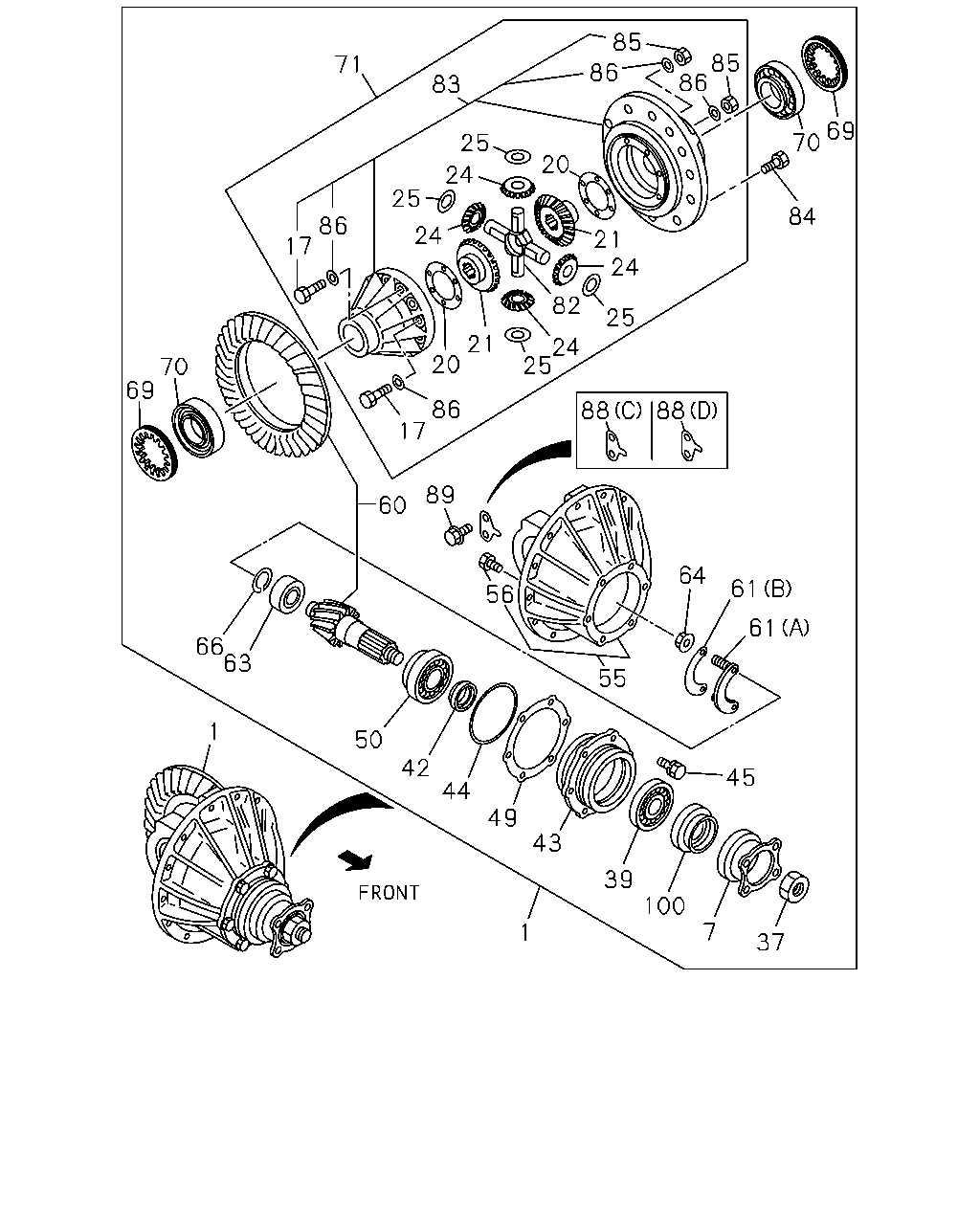

85 85 86 71 86 83 69 70 25 20 24 25 84 86 17 24 21 24 82 25 21 20 24 25 70 69 86 17 88 88 89 60 64 61 56 61 66 63 55 1 50 42 45 44 49 43 39 100 7 1 37

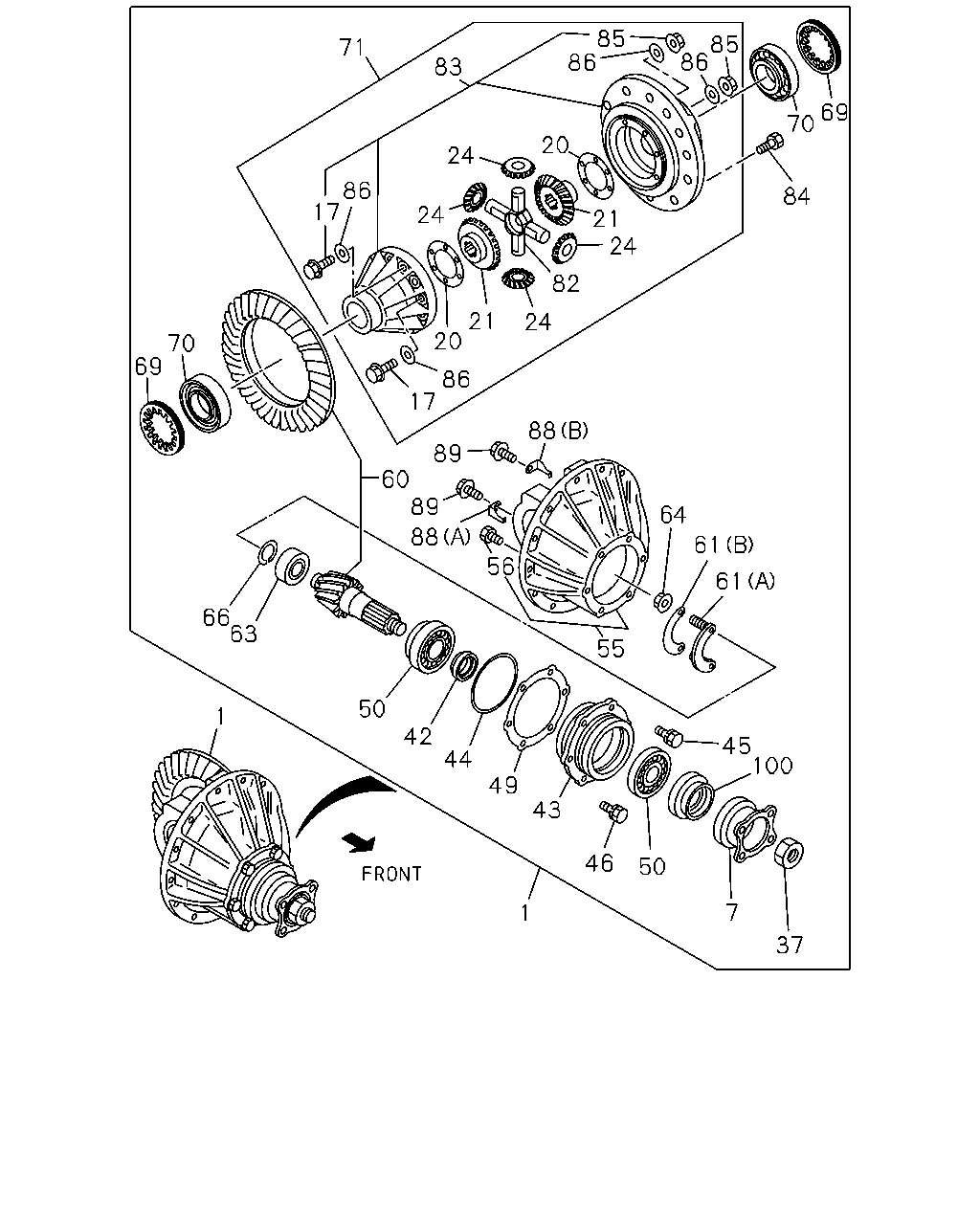

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97319-270-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97356-452-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 39/7	8-97363-134-0	01	1	0304-0501
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0502-
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-244-0	01	1	0301-0303
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97356-426-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97363-099-0	01	1	0304-0304
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97367-503-0	01	1	0305-0501
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0502-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0301-0501
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0502-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0502-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0301-0501
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0301-0501
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0502-
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0301-0501
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0502-
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0502-1004
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-266-0	02	1	0301-0303
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0304-0501
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0502-1004
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0301-0303
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0304-0501
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0502-1004
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	0502-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0301-0501
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0502-
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	0502-
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	0502-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0301-0501
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0502-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0301-0501
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0502-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0301-0501
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0502-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0301-0501
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0502-0909
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0301-0501
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0502-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0301-0501
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0301-0501
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0301-0501
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0502-
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0301-0501
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0502-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0301-0501
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0502-
60	05.529 GEAR SET; FINAL DRIVE,RR 39/7	8-97319-160-0	01	1	0301-0501
60	05.529 GEAR SET; FINAL DRIVE,RR 41/8	8-97174-099-0	01	1	0502-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0301-0501
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0502-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0301-0501
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0502-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0301-0501
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0502-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0301-0501
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0502-
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0301-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0301-0501
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0502-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0301-0501
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0502-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0301-0501
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0502-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97319-047-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97356-488-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0304-0501
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0502-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-0	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97319-039-0	01	1	0301-0303
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97356-483-0	01	1	0304-0304
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0304-0501
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0502-
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0301-0501
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0301-0501
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0502-1004
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0301-0501
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0502-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0301-0501
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0502-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0301-0501
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0301-0501
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0502-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0801-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0301-0501
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0502-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0301-0501
88	05.506 PLATE; LK,ADJ NUT (D)	8-97087-821-0	AR	1	0502-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0301-0501
88	05.506 PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	0502-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0301-0501
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0502-0512
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0301-0501
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0502-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
