Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#3999) — 683 parça

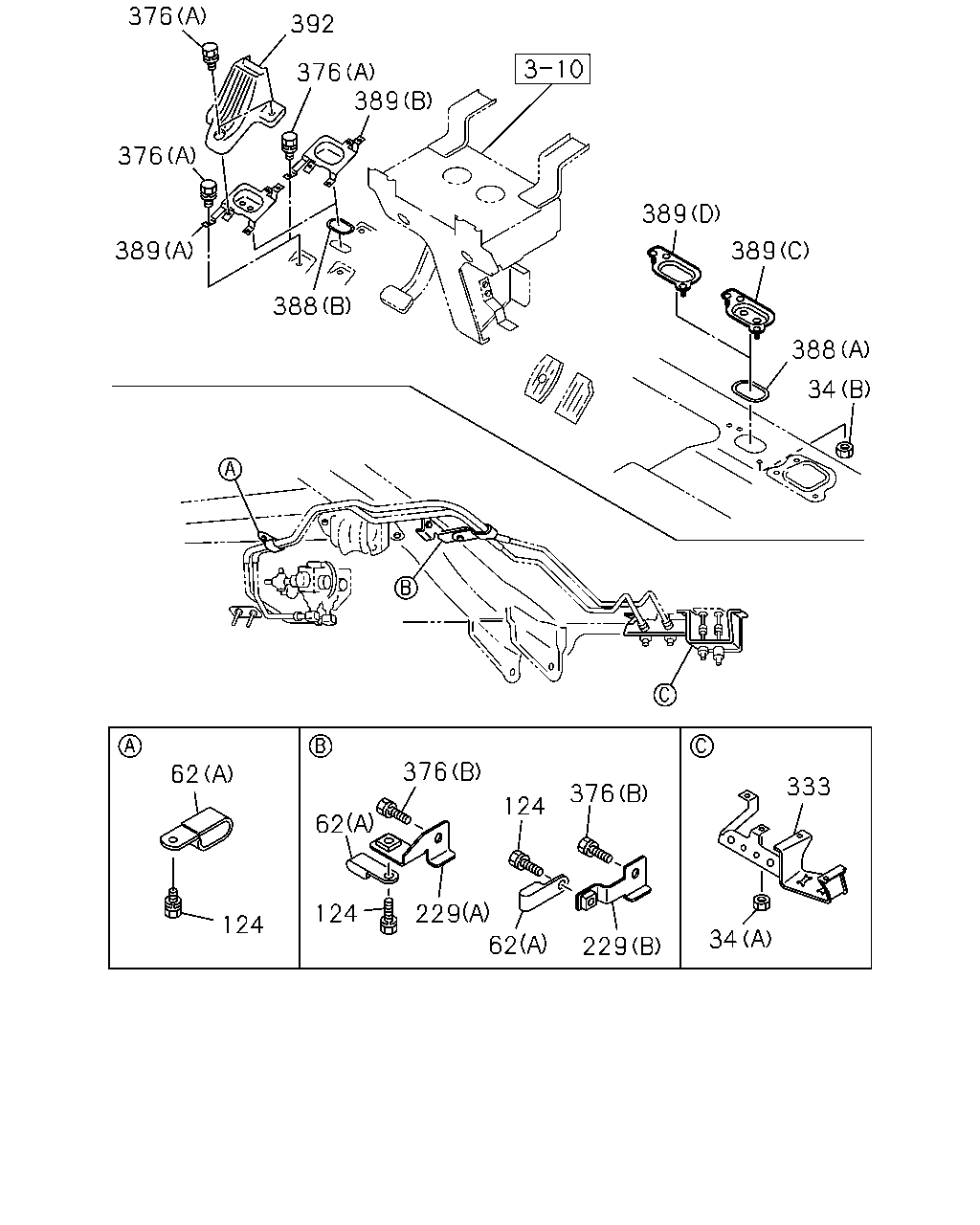

376 392 376 389 376 389 389 389 388 388 34 376 62 333 376 124 62 124 229 124 34 62 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT (A) M8 FLANGE	8-94279-517-0	01	1	9510-9611	●	●
34	NUT; BRKT (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-0605	●	●
34	NUT; BRKT (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0606-	●	●
34	NUT; BRKT (B) M8 FLANGE	8-94279-517-0	03	1	9510-9611	●	●
34	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0605	●	●
34	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8 FLANGE	0-91150-108-0	01	1	0005-0602		●
34	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8 FLANGE	0-91180-108-0	01	1	0603-		●
62	CLIP; AIR PIPE (A) ID=13X2 L=20	9-09535-236-0	02	1	9510-0606	●	●
62	CLIP; AIR PIPE (A) ID=13X2 L=20	0-95325-236-0	02	1	0607-	●	●
62	CLIP; AIR PIPE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) ID=10 & 12	1-09709-278-1	01	1	9510-9802		●
62	CLIP; AIR PIPE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) ID=12 & 12	1-09709-280-1	01	1	9510-9802		●
124	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0904	●	●
124	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
229	BRACKET; PIPE CLIP (A)	1-79738-819-0	01	1	9510-0004	●	●
229	BRACKET; PIPE CLIP (B)	1-79738-858-0	01	1	0005-	●	●
333	BRACKET; BRK AIR PIPE	1-79738-804-4	01	1	9510-	●	●
376	BOLT; BRKT (C) M8X40 FLANGE	0-28080-840-0	01	1	9510-9606	●	●
376	BOLT; BRKT (C) M8X45 FLANGE	0-28080-845-0	01	1	9607-9810	●	●
376	BOLT; BRKT (C) M8X45 FLANGE	0-28080-845-0	01	1	9811-0004	●
376	BOLT; BRKT EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28080-845-0	01	1	9811-0004		●
376	BOLT; BRKT (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0109	●
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0109		●
376	BOLT; BRKT EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28080-845-0	01	1	0110-0512	●
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28080-845-0	01	1	0110-0512		●
376	BOLT; BRKT EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9510-	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0904	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-	●	●
376	BOLT; BRKT (D) M8X30 FLANGE	0-28680-830-0	01	1	0010-0010		●
376	BOLT; BRKT (D) M8X30 FLANGE	0-28680-830-0	01	1	0011-0512	●	●
376	BOLT; BRKT (D) M8X30 FLANGE	0-28650-830-0	01	1	0601-0607	●	●
376	BOLT; BRKT (D) M8X30 FLANGE	0-28650-830-0	01	1	0608-	●	●
376	BOLT; BRKT 6HK1 TCC ENG(81L) (D) M8X30 FLANGE	0-28650-830-0	01	1	0608-		●
376	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0512		●
376	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●
388	SEAL (A) L=280	1-79738-793-1	01	1	9510-	●	●
388	SEAL (B) L=215	1-79738-794-1	01	1	9510-	●	●
389	BRACKET; UNION DUAL AIR GAUGE<UG2> (A)	1-79738-790-1	01	1	9510-	●	●
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (B)	1-79738-795-1	01	1	9510-	●	●
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-79738-806-1	01	1	9510-9802	●	●
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-79738-839-0	01	1	9803-	●	●
389	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-79738-811-1	01	1	9510-	●	●
392	COVER; BRKT DUAL AIR GAUGE<UG2>	1-73996-264-1	01	1	9510-	●	●

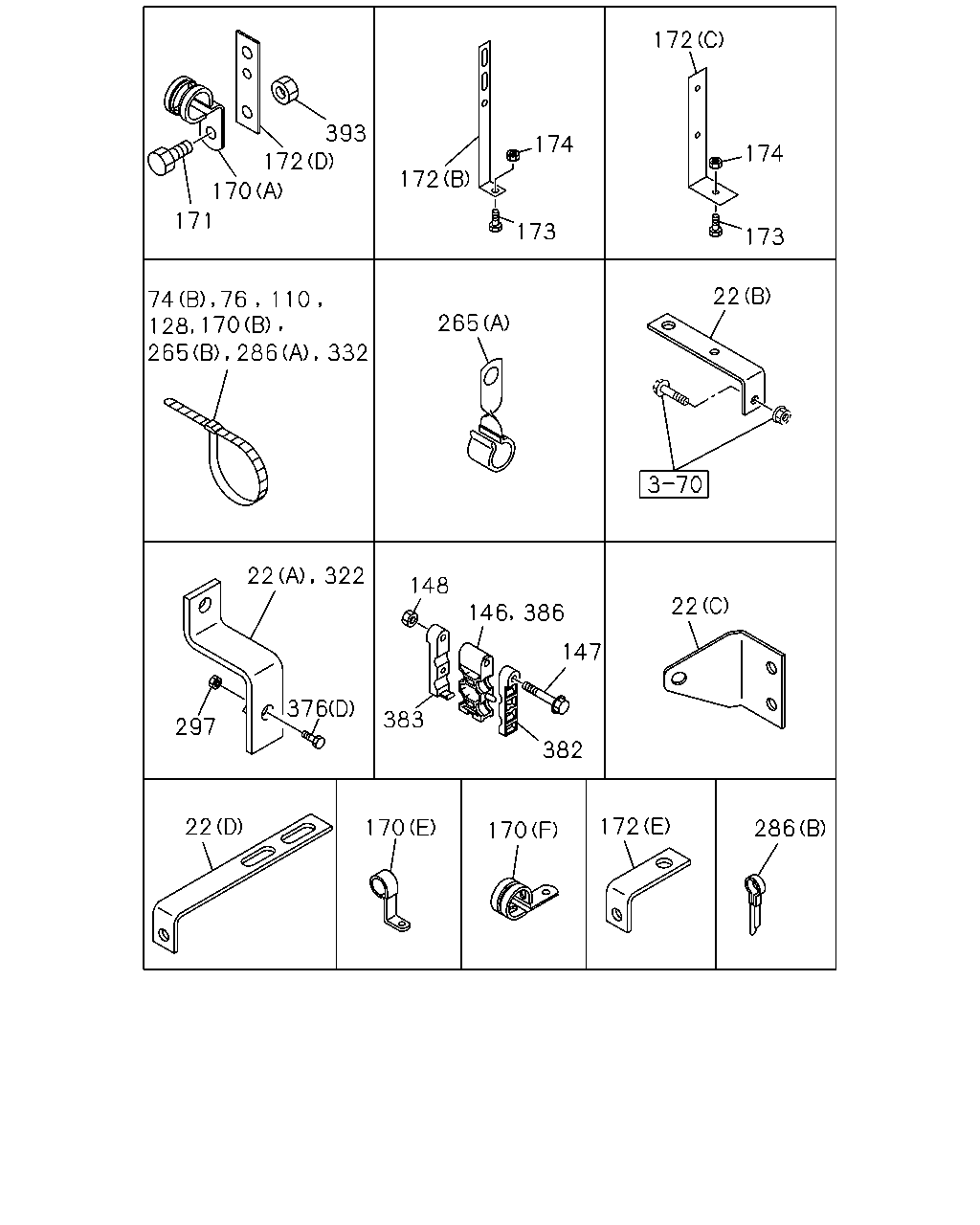

172 393 174 174 172 172 170 171 173 173 22 110 265 332 22 322 148 22 147 376 383 297 382 172 22 170 286 170 74 76 170 286 146 386 265 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-881-0	01	1	0005-0611		●
22	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-881-0	01	1	0612-		●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47476-699-2	01	1	0005-0611		●
22	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47476-699-2	01	1	0612-		●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=150 H=30	1-47477-629-2	01	1	0005-0106		●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (D) L=150 H=30	1-47477-629-2	01	1	0107-0611		●
22	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (D) L=150 H=30	1-47477-629-2	01	1	0612-		●
22	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=60 H=30	1-47477-716-1	01	1	0005-0611		●
22	BRACKET; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=60 H=30	1-47477-716-1	01	1	0612-		●
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=28	1-09700-872-0	01	1	0005-0611		●
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=28	1-09700-872-0	01	1	0612-		●
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	05	1	0005-0611		●
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	05	1	0612-		●
76	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	04	1	0005-		●
110	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	0005-		●
128	CLIP; NYLON TUBE WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	13	1	0005-		●
128	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	18	1	0005-		●
146	CLIP; AIR PIPE ID=10	1-09709-242-0	01	1	9510-9802	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28080-870-0	03	1	9510-9802	●	●
148	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9510-9606	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9802	●	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> (E) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0608-		●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> (F) ID=29 L=35	1-09701-301-0	01	1	0608-		●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9510-9802	●	●
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9803-0004	●	●
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0005-	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0005-		●
170	CLIP; NYLON TUBE (C) ID=26 L=27	1-09701-006-0	01	1	9510-9802	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9803-9804	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9805-0004	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0005-0607	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0005-0607		●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0608-	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +50MM<W60> (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0608-		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9803-0001	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	17	1	0002-0004	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0005-0607	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	15	1	0005-0607		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0608-	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	01	1	0608-		●
170	CLIP; NYLON TUBE (D) ID=12 & 15	1-09709-281-1	01	1	0001-0004	●	●
170	CLIP; NYLON TUBE (D) ID=12 & 15	1-09709-281-1	01	1	0005-0607	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=12 & 15	1-09709-281-1	01	1	0005-0607		●
170	CLIP; NYLON TUBE (D) ID=12 & 15	1-09709-281-1	01	1	0608-	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +50MM<W60> (D) ID=12 & 15	1-09709-281-1	01	1	0608-		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	9904-0004		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0108		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0109-0211	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0212-0607	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	01	1	0212-0607		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0608-1303	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	15	1	0608-1303		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	1304-	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	16	1	1304-		●
170	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=250	1-09707-126-0	01	1	9804-9812		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9901-9903		●
170	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=250	1-09707-126-0	01	1	9901-9903		●
170	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=250	1-09707-126-0	01	1	9904-9912		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0001-0004		●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	03	1	0005-0108		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	0109-	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	03	1	0109-		●
171	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9510-9802	●	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9803-9903	●	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	03	1	9904-0004	●	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	03	1	0005-0512	●
171	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	0005-0512		●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
171	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	03	1	0601-		●
172	BRACKET; TUBE CLIP (E) L=60 H=30	1-47477-716-1	01	1	0005-	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=60 H=30	1-47477-716-1	01	1	0005-		●
172	BRACKET; TUBE CLIP (C) L=59 B=20	1-47479-048-0	01	1	0007-	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=59 B=20	1-47479-048-0	01	1	0007-		●
172	BRACKET; TUBE CLIP (A)	1-47477-650-0	01	1	9510-0004	●	●
172	BRACKET; TUBE CLIP (A)	1-47477-650-0	01	1	0005-	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47477-650-0	01	1	0005-		●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9803-0004	●	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	0005-0006	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=100 H=30	1-47477-645-2	03	1	0005-0006		●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	0007-	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=100 H=30	1-47477-645-2	02	1	0007-		●
172	BRACKET; TUBE CLIP (C) L=90	1-47477-755-1	01	1	9803-0004	●	●
172	BRACKET; TUBE CLIP (C) L=90	1-47477-755-1	01	1	0005-	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90	1-47477-755-1	01	1	0005-		●
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-0	02	1	9803-0004	●	●
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-1	02	1	0005-	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=125	1-47477-975-1	02	1	0005-		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0005-0512	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	01	1	0005-0512		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9510-9802	●	●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28081-016-0	02	1	9803-9806	●	●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9807-0004	●	●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	0005-0512	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 FLANGE	0-28181-016-0	02	1	0005-0512		●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 FLANGE	0-28151-016-0	02	1	0601-		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	9803-0001	●	●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	04	1	0002-0004	●	●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	04	1	0005-0106	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	04	1	0005-0106		●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	04	1	0107-0410		●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	04	1	0411-0512	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	04	1	0411-0512		●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	9803-0001	●	●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	01	1	0002-0004	●	●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	01	1	0005-0106	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0106	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	0005-0106		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0211	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0211	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	0107-0211		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	01	1	0107-0211		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0212-0410	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	01	1	0212-0410		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	01	1	0411-0512	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	01	1	0411-0512		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0002-0004	●	●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0005-0106	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0005-0106		●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0107-0410		●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0411-0512	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0411-0512		●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	05	1	0002-0004	●	●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	05	1	0005-0106	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	0005-0106	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	05	1	0005-0106		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	0107-0410	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	0107-0410	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	05	1	0107-0410		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	05	1	0107-0410		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	05	1	0411-0512	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	0411-0512	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	05	1	0411-0512		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	05	1	0601-		●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0602	●
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0005-0602		●
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0603-		●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	05	1	9803-0004	●	●
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	05	1	0005-0602	●
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	05	1	0005-0602		●
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	0603-	●
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	05	1	0603-		●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	08	1	9803-0607	●
265	CLIP; NYLON TUBE WHEEL BASE 3600MM(36W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	08	1	0608-	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=25 L=54	1-09700-392-0	01	1	9803-0004	●	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=25 L=54	1-09700-392-0	01	1	0005-0010	●
265	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=25 L=54	1-09700-392-0	01	1	0005-0010		●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	01	1	0002-0004	●	●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	01	1	0005-0306	●
265	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	01	1	0005-0306		●
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	02	1	0307-	●
265	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	02	1	0307-		●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	09	1	9803-0004		●
265	CLIP; NYLON TUBE FRONT STABILIZER SHAFT<F59> (B) L=250	1-09707-126-0	11	1	0005-	●	●
265	CLIP; NYLON TUBE WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	10	1	9803-0004		●
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	09	1	0005-		●
265	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	11	1	9803-0004		●
265	CLIP; NYLON TUBE WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=250	1-09707-126-0	10	1	0005-		●
286	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14 L=44	9-09917-427-0	01	1	0105-0106		●
286	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (B) ID=14 L=44	9-09917-427-0	01	1	0107-0611		●
286	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (B) ID=14 L=44	9-09917-427-0	01	1	0612-		●
286	CLIP; NYLON TUBE WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	10	1	0005-		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0602-0602	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0608-	●	●
297	NUT; BRKT 6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	02	1	0608-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0010-0010		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0011-0602	●	●
322	BRACKET; CLIP	1-47479-071-0	01	1	0010-0010		●
322	BRACKET; CLIP	1-47479-071-0	01	1	0011-0607	●	●
322	BRACKET; CLIP	1-47479-071-0	01	1	0608-	●	●
322	BRACKET; CLIP 6HK1 TCC ENG(81L)	1-47479-071-0	01	1	0608-		●
332	CLIP; BAND BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	03	1	0005-		●
376	BOLT; BRKT (C) M8X40 FLANGE	0-28080-840-0	01	1	9510-9606	●	●
376	BOLT; BRKT (C) M8X45 FLANGE	0-28080-845-0	01	1	9607-9810	●	●
376	BOLT; BRKT (C) M8X45 FLANGE	0-28080-845-0	01	1	9811-0004	●
376	BOLT; BRKT EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28080-845-0	01	1	9811-0004		●
376	BOLT; BRKT (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0109	●
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0109		●
376	BOLT; BRKT EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28080-845-0	01	1	0110-0512	●
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28080-845-0	01	1	0110-0512		●
376	BOLT; BRKT EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9510-	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0904	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-	●	●
376	BOLT; BRKT (D) M8X30 FLANGE	0-28680-830-0	01	1	0010-0010		●
376	BOLT; BRKT (D) M8X30 FLANGE	0-28680-830-0	01	1	0011-0512	●	●
376	BOLT; BRKT (D) M8X30 FLANGE	0-28650-830-0	01	1	0601-0607	●	●
376	BOLT; BRKT (D) M8X30 FLANGE	0-28650-830-0	01	1	0608-	●	●
376	BOLT; BRKT 6HK1 TCC ENG(81L) (D) M8X30 FLANGE	0-28650-830-0	01	1	0608-		●
376	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0512		●
376	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	9510-9802	●	●
383	CLIP; LWR ID=10 & 10	1-09709-241-0	03	1	9510-9802	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	9510-9802	●	●
393	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> M8 FLANGE	0-91180-108-0	02	1	0608-		●
393	NUT; UNION M8	9-09110-408-0	02	1	9510-9606	●	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	02	1	9607-9903	●	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	03	1	9904-0004	●	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	03	1	0005-0602	●
393	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	0005-0602		●
393	NUT; UNION M8 FLANGE	0-91180-108-0	03	1	0603-0607	●
393	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	03	1	0603-0607		●
393	NUT; UNION M8 FLANGE	0-91180-108-0	03	1	0608-	●
393	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +50MM<W60> M8 FLANGE	0-91180-108-0	03	1	0608-		●

170 1 39 129 177 318 171 170 173 172 311 271 91 107 375 13 20 108 63 115 92 4 41 62 78 170 164 274 287 292 74 13 33 235 280 242 367 170 235 311 253 107 361 55 14 75 89 298 288 254 316 376 21 34 61 236 109 103 250 258 278 393 290 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	9510-9802	●	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 12	1-09709-278-1	01	1	9510-9802	●	●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L) (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0608-		●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9510-0004	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-	●
13	CLIP; AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-		●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	9510-0004	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=7 L=40	9-09524-675-0	01	1	0005-0606	●
13	CLIP; AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) (B) ID=7 L=40	9-09524-675-0	01	1	0005-0606		●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=7 L=40	0-95234-675-0	01	1	0607-	●
13	CLIP; AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) (B) ID=7 L=40	0-95234-675-0	01	1	0607-		●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) ID=7 L=20	9-09524-635-0	01	1	9511-9802		●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (B) ID=7 L=20	9-09524-635-0	01	1	9803-0606	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) ID=7 L=20	9-09524-635-0	01	1	9803-0606		●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (B) ID=7 L=20	0-95234-635-0	01	1	0607-0607	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (B) ID=7 L=20	0-95234-635-0	01	1	0607-0607		●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (B) ID=7 L=20	0-95234-635-0	01	1	0608-	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) (B) ID=7 L=20	0-95234-635-0	01	1	0608-		●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9702	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	01	1	9703-9802	●	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●	●
20	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0005-0009		●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0009		●
33	CLIP; BOLT ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9510-9810	●	●
33	CLIP; BOLT ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9811-0004	●
33	CLIP; BOLT EXC. AIR DRYER<PS7> ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9811-0004		●
33	CLIP; BOLT ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0005-0109	●
33	CLIP; BOLT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0005-0109		●
33	CLIP; BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0005-0109		●
33	CLIP; BOLT EXC. AIR DRYER<PS7> ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0110-	●
33	CLIP; BOLT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0110-		●
33	CLIP; BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0110-		●
33	CLIP; BOLT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0005-		●
34	NUT; BRKT (A) M8 FLANGE	8-94279-517-0	01	1	9510-9611	●	●
34	NUT; BRKT (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-0605	●	●
34	NUT; BRKT (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0606-	●	●
34	NUT; BRKT (B) M8 FLANGE	8-94279-517-0	03	1	9510-9611	●	●
34	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0605	●	●
34	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8 FLANGE	0-91150-108-0	01	1	0005-0602		●
34	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8 FLANGE	0-91180-108-0	01	1	0603-		●
39	CLIP; AIR PIPE WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=15 & 15	1-09709-282-1	01	1	0005-		●
41	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.35 & 15	1-09709-276-1	03	1	0005-		●
41	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=15 & 15	1-09709-282-1	01	1	0005-		●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	04	1	0005-0512		●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
61	NUT; CLIP FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9510-9606	●	●
61	NUT; CLIP FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	03	1	9607-9802	●	●
61	NUT; CLIP FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	04	1	9510-9606	●	●
61	NUT; CLIP FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	04	1	9607-9802	●	●
62	CLIP; AIR PIPE (A) ID=13X2 L=20	9-09535-236-0	02	1	9510-0606	●	●
62	CLIP; AIR PIPE (A) ID=13X2 L=20	0-95325-236-0	02	1	0607-	●	●
62	CLIP; AIR PIPE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) ID=10 & 12	1-09709-278-1	01	1	9510-9802		●
62	CLIP; AIR PIPE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) ID=12 & 12	1-09709-280-1	01	1	9510-9802		●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	01	1	9510-9702	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X45 FLANGE	0-28080-845-0	01	1	9703-9802	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9510-9606	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9802	●	●
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=28	1-09700-872-0	01	1	0005-0611		●
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=28	1-09700-872-0	01	1	0612-		●
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	05	1	0005-0611		●
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	05	1	0612-		●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X16 FLANGE	0-28080-816-0	01	1	9510-9802	●	●
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28080-816-0	01	1	9510-9802	●	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28680-825-0	01	1	9607-9802	●	●
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28680-825-0	01	1	9607-9802	●	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28080-825-0	03	1	9510-9606	●	●
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28080-825-0	03	1	9510-9606	●	●
75	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X30 FLANGE	0-28680-830-0	03	1	9607-9802	●	●
75	BOLT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8X30 FLANGE	0-28680-830-0	03	1	9607-9802	●	●
75	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	01	1	0005-0512		●
75	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	01	1	0601-0611		●
75	BOLT; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	01	1	0612-		●
78	CLIP; AIR PIPE WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.35 & 15	1-09709-276-1	01	1	0005-		●
78	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.35 & 15	1-09709-276-1	03	1	0005-		●
89	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9510-9802	●	●
91	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 H=20 L=20	5-09700-351-0	04	1	0005-0707		●
91	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-		●
92	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
92	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-		●
103	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
103	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0005-		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0005-		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0005-		●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	01	1	0010-0208		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	01	1	0209-		●
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	01	1	0209-		●
108	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28680-820-0	04	1	0005-0512		●
108	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
109	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	0005-0602		●
109	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	04	1	0603-		●
115	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
115	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●
115	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	02	1	9802-9802	●	●
129	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	9510-9802	●	●
164	CLIP; AIR PIPE ID=10 & 15	1-09709-279-1	01	1	9510-9802	●	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> (E) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0608-		●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> (F) ID=29 L=35	1-09701-301-0	01	1	0608-		●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9510-9802	●	●
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9803-0004	●	●
170	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0005-	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0005-		●
170	CLIP; NYLON TUBE (C) ID=26 L=27	1-09701-006-0	01	1	9510-9802	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9803-9804	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	9805-0004	●	●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0005-0607	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0005-0607		●
170	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0608-	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +50MM<W60> (A) ID=24.5 H=35 L=25	1-09700-990-0	02	1	0608-		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9803-0001	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	17	1	0002-0004	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0005-0607	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	15	1	0005-0607		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0608-	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	01	1	0608-		●
170	CLIP; NYLON TUBE (D) ID=12 & 15	1-09709-281-1	01	1	0001-0004	●	●
170	CLIP; NYLON TUBE (D) ID=12 & 15	1-09709-281-1	01	1	0005-0607	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=12 & 15	1-09709-281-1	01	1	0005-0607		●
170	CLIP; NYLON TUBE (D) ID=12 & 15	1-09709-281-1	01	1	0608-	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +50MM<W60> (D) ID=12 & 15	1-09709-281-1	01	1	0608-		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	9904-0004		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0005-0108		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0109-0211	●	●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0212-0607	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	01	1	0212-0607		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0608-1303	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	15	1	0608-1303		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	1304-	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	16	1	1304-		●
170	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=250	1-09707-126-0	01	1	9804-9812		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	9901-9903		●
170	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=250	1-09707-126-0	01	1	9901-9903		●
170	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=250	1-09707-126-0	01	1	9904-9912		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0001-0004		●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	03	1	0005-0108		●
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	0109-	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	03	1	0109-		●
171	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9510-9802	●	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9803-9903	●	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	03	1	9904-0004	●	●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	03	1	0005-0512	●
171	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	03	1	0005-0512		●
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
171	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	03	1	0601-		●
172	BRACKET; TUBE CLIP (E) L=60 H=30	1-47477-716-1	01	1	0005-	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=60 H=30	1-47477-716-1	01	1	0005-		●
172	BRACKET; TUBE CLIP (C) L=59 B=20	1-47479-048-0	01	1	0007-	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=59 B=20	1-47479-048-0	01	1	0007-		●
172	BRACKET; TUBE CLIP (A)	1-47477-650-0	01	1	9510-0004	●	●
172	BRACKET; TUBE CLIP (A)	1-47477-650-0	01	1	0005-	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47477-650-0	01	1	0005-		●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	9803-0004	●	●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	0005-0006	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=100 H=30	1-47477-645-2	03	1	0005-0006		●
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	0007-	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=100 H=30	1-47477-645-2	02	1	0007-		●
172	BRACKET; TUBE CLIP (C) L=90	1-47477-755-1	01	1	9803-0004	●	●
172	BRACKET; TUBE CLIP (C) L=90	1-47477-755-1	01	1	0005-	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90	1-47477-755-1	01	1	0005-		●
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-0	02	1	9803-0004	●	●
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-1	02	1	0005-	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=125	1-47477-975-1	02	1	0005-		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0005-0512	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	01	1	0005-0512		●
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9510-9802	●	●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28081-016-0	02	1	9803-9806	●	●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	9807-0004	●	●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	02	1	0005-0512	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 FLANGE	0-28181-016-0	02	1	0005-0512		●
173	BOLT; CLIP BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 FLANGE	0-28151-016-0	02	1	0601-		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	9803-0001	●	●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	04	1	0002-0004	●	●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	04	1	0005-0106	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	04	1	0005-0106		●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	04	1	0107-0410		●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	04	1	0411-0512	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	04	1	0411-0512		●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	9803-0001	●	●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	01	1	0002-0004	●	●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	01	1	0005-0106	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-0106	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	0005-0106		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0211	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0211	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	0107-0211		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	01	1	0107-0211		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0212-0410	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	01	1	0212-0410		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	01	1	0411-0512	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	01	1	0411-0512		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0002-0004	●	●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0005-0106	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0005-0106		●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0107-0410		●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0411-0512	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0411-0512		●
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	05	1	0002-0004	●	●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	05	1	0005-0106	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	0005-0106	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	05	1	0005-0106		●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	0107-0410	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	0107-0410	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	05	1	0107-0410		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	05	1	0107-0410		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	05	1	0411-0512	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	05	1	0411-0512	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	05	1	0411-0512		●
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	05	1	0601-	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	05	1	0601-		●
177	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	01	1	9510-9802	●	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9510-9802	●	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=9 & 9 L=17 & 17	1-09700-651-0	01	1	9510-9802	●	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR SUSP DRIVER SEAT<A56> (B) ID=9 & 9 L=17 & 17	1-09700-651-0	01	1	9510-9802	●	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=9 & 9 L=17 & 17	1-09700-651-0	04	1	9510-9802	●	●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9606	●	●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9702	●	●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9703-9802	●	●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	03	1	9510-9802	●	●
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9606	●
250	NUT; PIPE CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9606		●
250	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9802	●
250	NUT; PIPE CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9607-9802		●
250	NUT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606		●
250	NUT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-9705		●
250	NUT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9706-9802		●
250	NUT; PIPE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9510-9606		●
250	NUT; PIPE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	03	1	9607-9705		●
250	NUT; PIPE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	03	1	9706-9802		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	9510-9802	●
253	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	9510-9802		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	03	1	9510-9705	●	●
253	CLIP; AIR PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	03	1	9510-9705		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	03	1	9706-9802	●	●
253	CLIP; AIR PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	03	1	9706-9802		●
253	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9510-9705		●
253	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9706-9802		●
254	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9510-9606	●
254	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9510-9606		●
254	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9802	●
254	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9802		●
254	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606		●
254	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9705		●
254	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9706-9802		●
254	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9510-9606		●
254	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9705		●
254	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	03	1	9706-9802		●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9510-9606	●	●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	03	1	9607-9802	●	●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 L=40	9-09524-872-0	01	1	9510-0004	●
271	CLIP; AIR PIPE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 L=40	9-09524-872-0	01	1	9510-0004		●
271	CLIP; AIR PIPE FIX FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 L=40	9-09524-872-0	01	1	0005-	●	●
274	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	02	1	9510-9802	●
274	CLIP; AIR PIPE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.35 & 10.0	1-09709-274-1	02	1	9510-9802		●
274	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	9510-9802	●	●
278	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9510-9606	●	●
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9802	●	●
280	CLIP; AIR PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9510-9802	●	●
283	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8	9-09110-408-0	04	1	9510-9606	●	●
283	NUT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8	9-09110-408-0	04	1	9510-9606	●	●
283	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	04	1	9607-9802	●	●
283	NUT; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> M8 FLANGE	0-91150-108-0	04	1	9607-9802	●	●
287	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	9904-0004	●	●
287	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0005-	●
287	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 15	1-09709-276-1	01	1	0005-		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	02	1	9510-9510	●	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	02	1	9511-9606	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X20 FLANGE	0-28080-820-0	02	1	9511-9606		●
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9712	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9712		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	9801-9802	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X20 FLANGE	0-28680-820-0	02	1	9801-9802		●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X20 FLANGE	0-28680-820-0	02	1	9803-0004	●	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512		●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE	0-28080-820-0	03	1	9511-9606		●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X25 FLANGE	0-28680-825-0	03	1	9607-9712		●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE	0-28680-820-0	03	1	9801-9802		●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	03	1	9803-0512	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE	0-28680-820-0	03	1	9803-0512		●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8X20 FLANGE	0-28650-820-0	03	1	0601-0607	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8X20 FLANGE	0-28650-820-0	03	1	0601-0607		●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8X20 FLANGE	0-28650-820-0	03	1	0608-	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	03	1	0608-		●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91180-108-0	03	1	0602-0602	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8 FLANGE	0-91180-108-0	03	1	0602-0602		●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91180-108-0	06	1	0603-0607	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8 FLANGE	0-91180-108-0	06	1	0603-0607		●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91180-108-0	06	1	0608-	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	06	1	0608-		●
290	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9510-9510	●	●
290	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9511-9606	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8	9-09110-408-0	02	1	9511-9606		●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9802	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9607-9802		●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9803-0004	●	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
290	NUT; CLIP,AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
290	NUT; CLIP,AIR PIPE 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0603-		●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8	9-09110-408-0	03	1	9511-9606		●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8 FLANGE	0-91150-108-0	03	1	9607-9802		●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9803-0602	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) M8 FLANGE	0-91150-108-0	03	1	9803-0602		●
292	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	9811-9903		●
292	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	9904-0004		●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 15	1-09709-276-1	01	1	0005-0109		●
292	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	0110-	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	0110-		●
292	CLIP; AIR PIPE WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.35 & 15	1-09709-276-1	02	1	0005-		●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	01	1	9510-9802	●	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR SUSP DRIVER SEAT<A56> M8X16 FLANGE	0-28080-816-0	01	1	9510-9802	●	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X40 FLANGE	0-28080-840-0	03	1	9510-9606	●	●
298	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X45 FLANGE	0-28080-845-0	03	1	9607-9802	●	●
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> (A) ID=6 H=20 L=20	1-09700-603-0	04	1	9510-9802	●	●
311	CLIP; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (A) ID=6 H=20 L=20	1-09700-603-0	04	1	9510-9802	●	●
311	CLIP; AIR PIPE AIR SUSP DRIVER SEAT<A56> (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9510-9802	●	●
311	CLIP; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9510-9802	●	●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9510-0004	●
316	BOLT; CLIP FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9510-0004		●
316	BOLT; CLIP FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X12 W/LK WASHER	0-50040-612-0	01	1	0005-0512	●	●
316	BOLT; CLIP FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M6X12 W/LK WASHER	0-50540-612-0	01	1	0601-	●	●
318	CLIP; AIR PIPE ID=6.35 & 10.0	1-09709-274-1	01	1	9510-9903	●	●
318	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	9904-0004	●	●
318	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0005-	●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 6.35	1-09709-273-1	01	1	0005-		●
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	03	1	9510-9810	●	●
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	03	1	9811-9903	●
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	03	1	9811-9903		●
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	9904-0004	●
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	9904-0004		●
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	0005-0109	●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	0005-0109		●
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	0110-	●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	0110-		●
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 6.35	1-09709-273-1	01	1	9811-9903		●
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	9811-9903		●
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	9904-0004		●
318	CLIP; AIR PIPE WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.35 & 15	1-09709-276-1	01	1	0005-0109		●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	0005-0109		●
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	0110-	●
318	CLIP; AIR PIPE WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.35 & 15	1-09709-276-1	01	1	0110-		●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	0110-		●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=140	5-09707-031-1	01	1	9510-	●	●
367	BRACKET ASM	1-47475-427-1	01	1	9510-9702	●	●
367	BRACKET ASM	1-47475-427-1	01	1	9703-9802	●	●
367	BRACKET ASM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-427-1	01	1	9703-9802	●	●
367	BRACKET ASM	1-47475-427-1	01	1	9803-9810	●	●
367	BRACKET ASM	1-47475-427-1	01	1	9811-0004	●
367	BRACKET ASM EXC. AIR DRYER<PS7>	1-47475-427-1	01	1	9811-0004		●
367	BRACKET ASM	1-47475-427-1	01	1	0005-0109	●
367	BRACKET ASM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	1-47475-427-1	01	1	0005-0109		●
367	BRACKET ASM EXC. AIR DRYER<PS7>	1-47475-427-1	01	1	0110-	●
367	BRACKET ASM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	1-47475-427-1	01	1	0110-		●
367	BRACKET ASM WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	02	1	0005-		●
375	CLIP; AIR PIPE ID=13 H=75 L=25	1-09700-601-0	01	1	0005-0009		●
375	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> L=250	1-09707-126-0	01	1	0010-0010	●
375	CLIP; AIR PIPE L=250	1-09707-126-0	01	1	0010-0010		●
375	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6> L=250	1-09707-126-0	01	1	0010-0010		●
375	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> L=250	1-09707-126-0	01	1	0010-0010		●
375	CLIP; AIR PIPE L=250	1-09707-126-0	01	1	0011-0607	●	●
375	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> L=250	1-09707-126-0	01	1	0011-0607	●
375	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6> L=250	1-09707-126-0	01	1	0011-0607		●
375	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> L=250	1-09707-126-0	01	1	0011-0607		●
375	CLIP; AIR PIPE L=250	1-09707-126-0	01	1	0608-	●	●
375	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> L=250	1-09707-126-0	01	1	0608-	●
375	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6> L=250	1-09707-126-0	01	1	0608-		●
375	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> L=250	1-09707-126-0	01	1	0608-		●
375	CLIP; AIR PIPE 6HK1 TCC ENG(81L) L=250	1-09707-126-0	01	1	0608-		●
376	BOLT; BRKT (C) M8X40 FLANGE	0-28080-840-0	01	1	9510-9606	●	●
376	BOLT; BRKT (C) M8X45 FLANGE	0-28080-845-0	01	1	9607-9810	●	●
376	BOLT; BRKT (C) M8X45 FLANGE	0-28080-845-0	01	1	9811-0004	●
376	BOLT; BRKT EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28080-845-0	01	1	9811-0004		●
376	BOLT; BRKT (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0109	●
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28080-845-0	01	1	0005-0109		●
376	BOLT; BRKT EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28080-845-0	01	1	0110-0512	●
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28080-845-0	01	1	0110-0512		●
376	BOLT; BRKT EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
376	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9510-	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9510-0904	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-	●	●
376	BOLT; BRKT (D) M8X30 FLANGE	0-28680-830-0	01	1	0010-0010		●
376	BOLT; BRKT (D) M8X30 FLANGE	0-28680-830-0	01	1	0011-0512	●	●
376	BOLT; BRKT (D) M8X30 FLANGE	0-28650-830-0	01	1	0601-0607	●	●
376	BOLT; BRKT (D) M8X30 FLANGE	0-28650-830-0	01	1	0608-	●	●
376	BOLT; BRKT 6HK1 TCC ENG(81L) (D) M8X30 FLANGE	0-28650-830-0	01	1	0608-		●
376	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0512		●
376	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●
393	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +50MM<W60> M8 FLANGE	0-91180-108-0	02	1	0608-		●
393	NUT; UNION M8	9-09110-408-0	02	1	9510-9606	●	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	02	1	9607-9903	●	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	03	1	9904-0004	●	●
393	NUT; UNION M8 FLANGE	0-91150-108-0	03	1	0005-0602	●
393	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	0005-0602		●
393	NUT; UNION M8 FLANGE	0-91180-108-0	03	1	0603-0607	●
393	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	03	1	0603-0607		●
393	NUT; UNION M8 FLANGE	0-91180-108-0	03	1	0608-	●
393	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CAB UP +50MM<W60> M8 FLANGE	0-91180-108-0	03	1	0608-		●

126 16 16 16 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
16	BRACKET; PIPE CLIP WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47476-699-2	01	1	0612-	●
16	BRACKET; PIPE CLIP WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=100 H=30	1-47477-645-2	01	1	0612-	●
16	BRACKET; PIPE CLIP WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=55 B=25	1-47478-439-0	01	1	0612-	●
126	BOLT; CLIP BRKT WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	04	1	0612-	●
127	NUT; CLIP BRKT WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	04	1	0612-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
