0-51 — OIL PUMP AND OIL STRAINER (#39981) — 47 parça

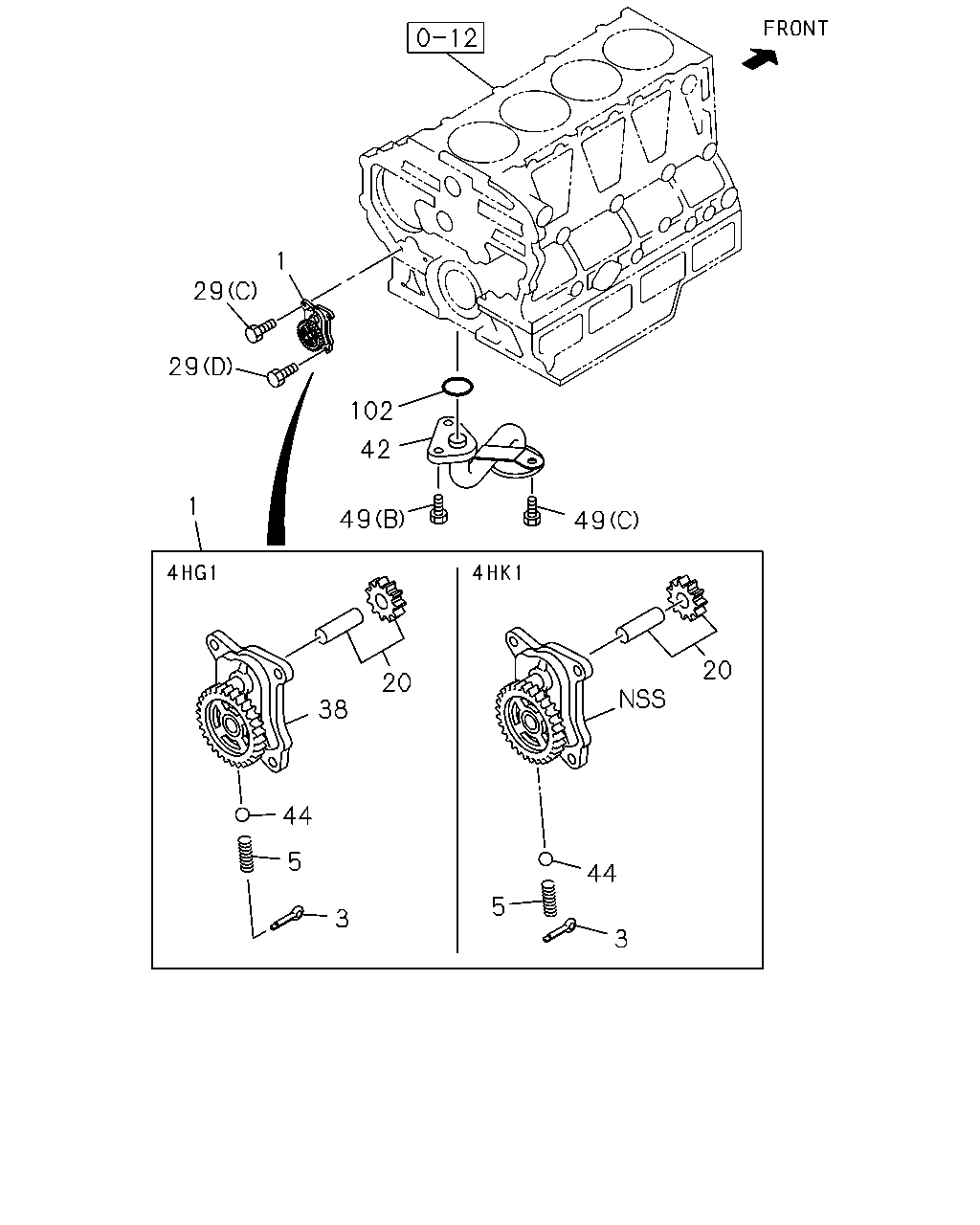

çizim 75905
1 29 29 102 42 1 49 49 20 20 38 44 5 44 5 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.652 PUMP ASM; OIL 8-97147-338-4 01 1 1012-1203 ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1012-1303 ● ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ● ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 1012-1203 ● ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 1204- ● ● ● ●
3 01.639 PIN; SPLIT
06.022 L=30 		9-08104-030-0 01 1 1012- ● ● ● ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 1012- ● ● ● ●
20 01.639 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 1012-1203 ● ●
20 01.639 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 1012-1203 ● ●
20 01.639 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 1204- ● ● ● ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 1012- ● ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 1012- ● ●
29 01.652 BOLT; OIL PUMP
06.174 (C) M8X25 FLANGE 		0-28060-825-0 02 1 1012- ● ● ● ●
29 01.652 BOLT; OIL PUMP
(D) M8X30 FLANGE 		0-28060-830-0 02 1 1012- ● ● ● ●
38 01.657 CASE; OIL STRAINER 8-97147-505-3 01 1 1012-1203 ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 1012-1012 ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 1101-1203 ● ●
42 01.656 STRAINER; OIL,OIL PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97230-894-0 01 1 1101-1203 ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-98213-867-0 01 1 1204- ● ●
42 01.656 STRAINER; OIL,OIL PUMP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-98213-867-0 01 1 1204- ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97373-119-0 01 1 1012-1012 ● ●
42 01.656 STRAINER; OIL,OIL PUMP
EURO4 SPECIFICATION(NT4) 		8-97373-119-0 01 1 1101-1203 ● ●
42 01.656 STRAINER; OIL,OIL PUMP
EURO4 SPECIFICATION(NT4) 		8-98213-868-0 01 1 1204- ● ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 1012- ● ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1012-1403 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1404- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28060-816-0 02 1 1012- ● ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(C) M10X80 		8-97071-956-0 01 1 1012- ● ● ● ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5 		8-94399-398-0 01 1 1012- ● ● ● ●

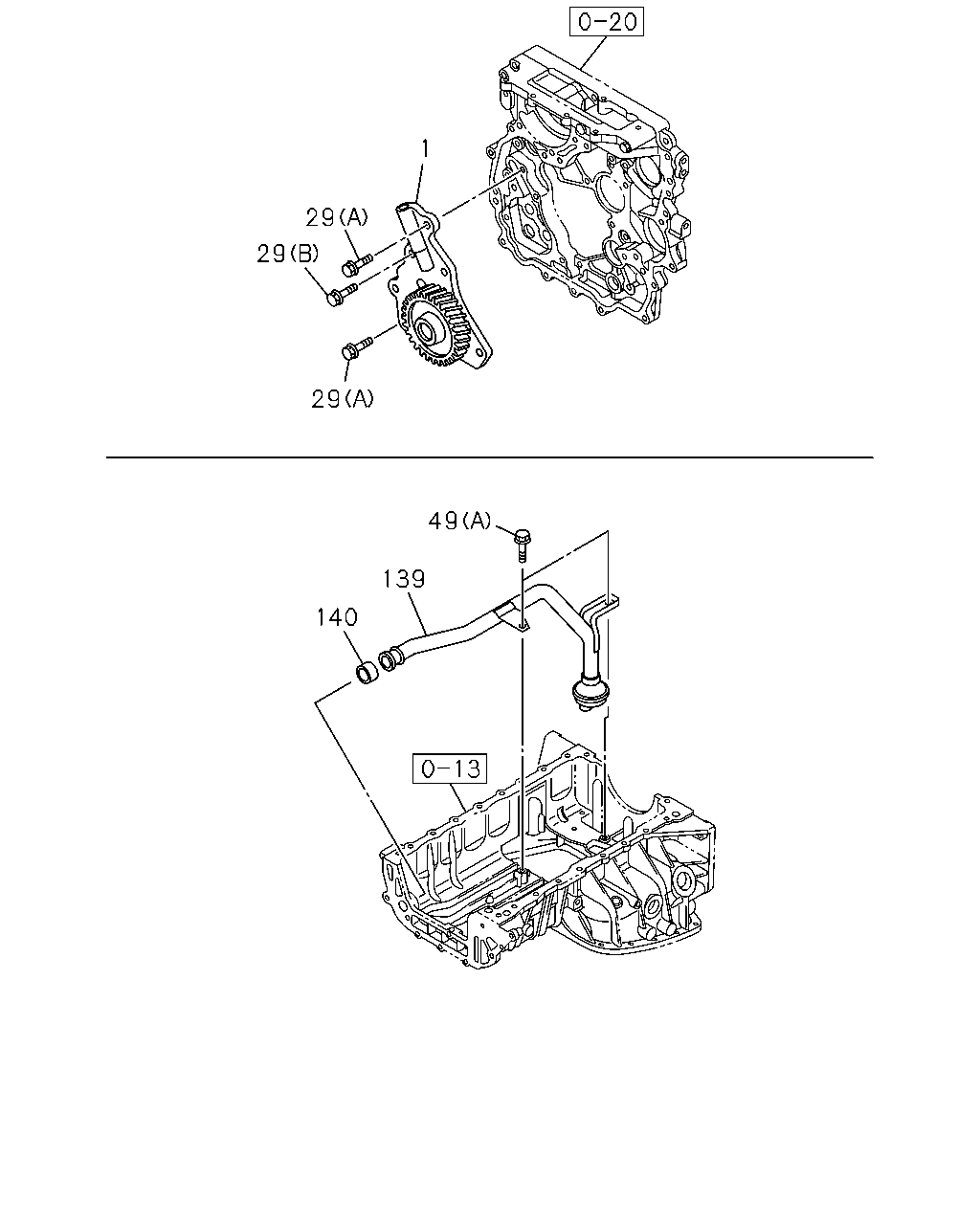

çizim 76733
1 29 29 29 49 139 140
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.652 PUMP ASM; OIL 8-97147-338-4 01 1 1012-1203 ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1012-1303 ● ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ● ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 1012-1203 ● ●
1 01.652 PUMP ASM; OIL 8-98017-585-1 01 1 1204- ● ● ● ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 1012- ● ●
29 01.652 BOLT; OIL PUMP
09.173 (A) M8X45 FLANGE 		0-28050-845-0 02 1 1012- ● ●
29 01.652 BOLT; OIL PUMP
06.174 (C) M8X25 FLANGE 		0-28060-825-0 02 1 1012- ● ● ● ●
29 01.652 BOLT; OIL PUMP
(D) M8X30 FLANGE 		0-28060-830-0 02 1 1012- ● ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1012-1403 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1404- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X16 FLANGE 		0-28060-816-0 02 1 1012- ● ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(C) M10X80 		8-97071-956-0 01 1 1012- ● ● ● ●
139 01.639 PIPE; OIL STRAINER
VIETNAM EQUIPMENT<CL0> 		8-98127-247-0 01 1 1503- ●
139 01.639 PIPE; OIL STRAINER 8-98149-035-0 01 1 1012-1502 ● ●
139 01.639 PIPE; OIL STRAINER 8-98149-035-0 01 1 1503- ●
139 01.639 PIPE; OIL STRAINER
EXC. VIETNAM EQUIPMENT<CL0> 		8-98149-035-0 01 1 1503- ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 1012- ● ●
