0-42 — FUEL PUMP AND PIPE (#39979) — 53 parça

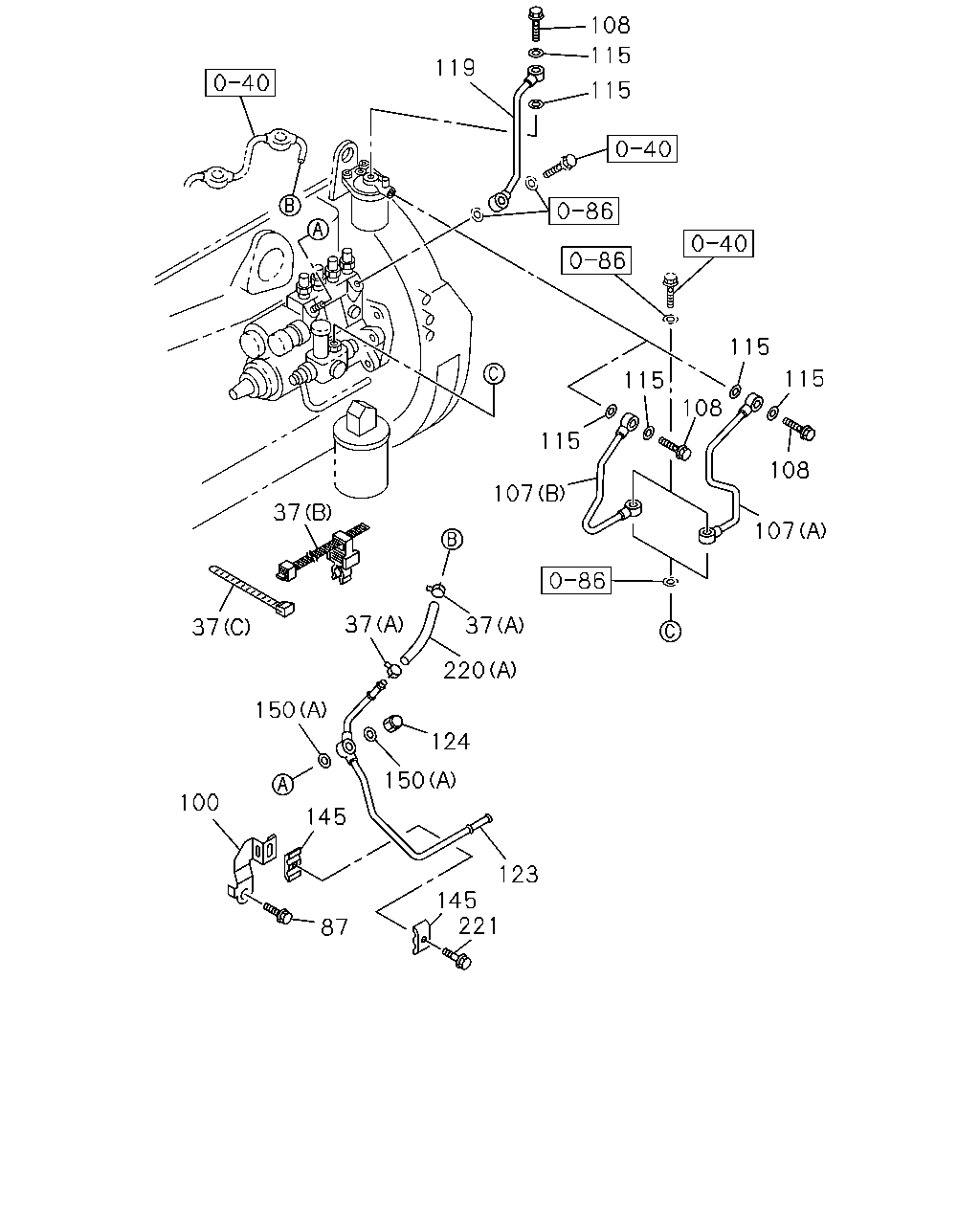

108 115 119 115 115 115 115 108 115 108 107 37 107 37 37 37 220 150 124 150 100 145 123 145 221 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
37	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1012-	●
37	03.162 CLIP; FUEL HOSE 03.680 (B) L=350	8-97373-487-0	01	1	1012-1101	●	●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	1102-	●	●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	1012-1101		●
37	03.162 CLIP; FUEL HOSE 03.680 (B) L=350	8-97373-487-0	01	1	1102-		●
87	03.162 BOLT; STAY,FUEL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
100	03.162 CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	1012-	●	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (B)	8-97210-721-1	01	1	1012-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (A)	8-97088-046-3	01	1	1012-		●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	1012-	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	1012-	●	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97211-323-1	01	1	1012-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	1012-		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97223-179-0	01	1	1012-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	1012-		●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	1012-	●	●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-1	02	1	1012-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	02	1	1012-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.531 (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	1012-			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1012-			●	●
220	03.163 HOSE; FUEL (A)	8-97208-874-0	01	1	1012-	●
220	03.163 HOSE; FUEL (A) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	1012-1412		●
220	03.163 HOSE; FUEL (A) L=270 SERVICED BY L=3000	0-01856-300-0	01	1	1501-		●
220	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (B)	8-98029-245-1	01	1	1012-			●	●
220	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (E)	8-98126-627-1	01	1	1012-			●	●
220	03.163 HOSE; FUEL (C)	8-98036-180-3	01	1	1012-			●	●
220	03.163 HOSE; FUEL (D)	8-98036-181-2	01	1	1012-			●	●
220	03.163 HOSE; FUEL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (E)	8-98076-056-1	01	1	1012-			●	●
220	03.163 HOSE; FUEL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98076-057-1	01	1	1012-			●	●
221	03.163 BOLT; FUEL PIPE 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1012-	●	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	1012-			●	●

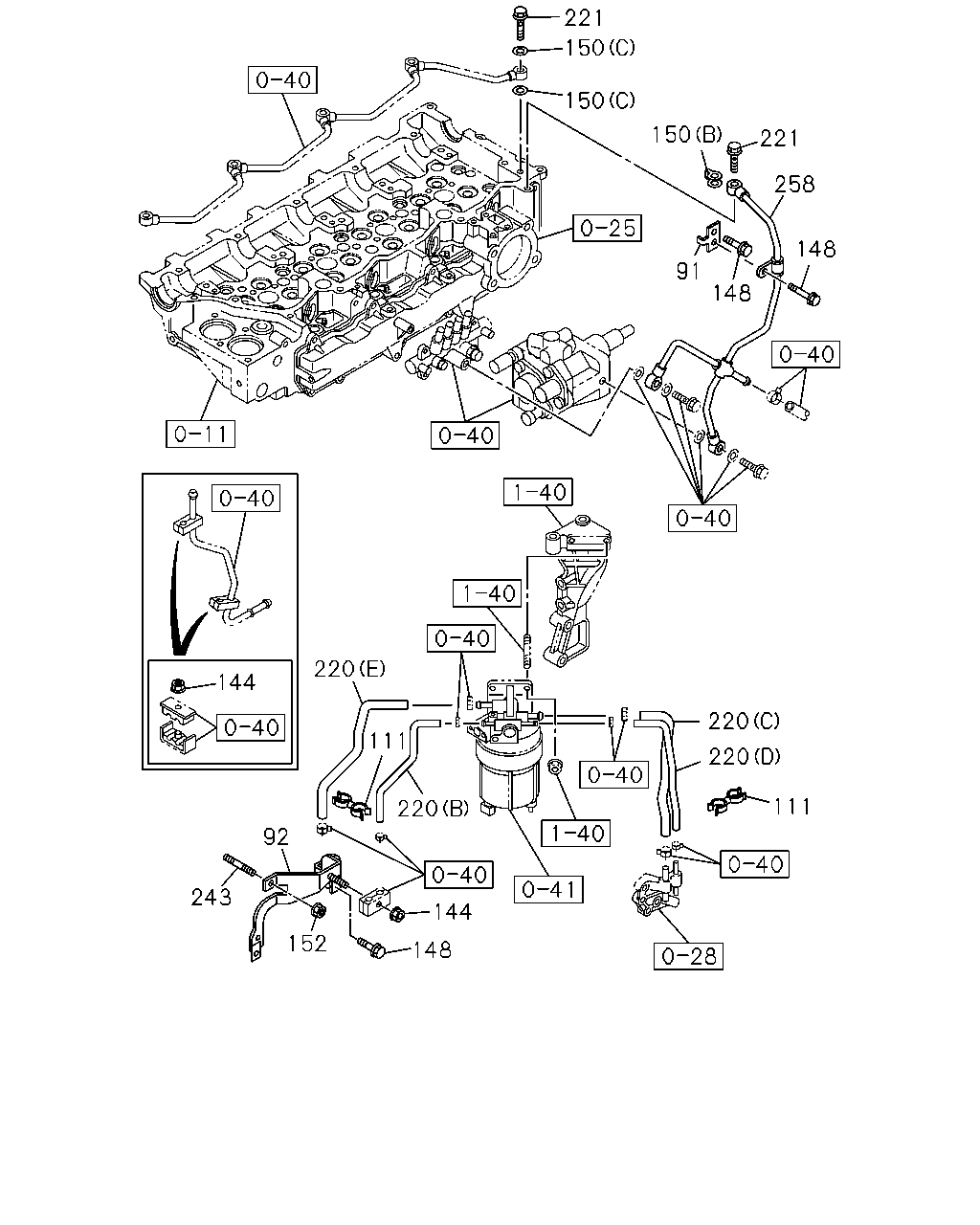

221 150 150 150 221 258 148 148 91 220 144 220 111 220 111 220 92 243 144 152 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
91	03.162 BRACKET; FUEL PIPE TO INL MANIF	8-98033-979-0	01	1	1012-			●	●
92	03.162 BRACKET; FUEL PIPE	8-98051-532-1	01	1	1012-			●	●
111	03.162 CLIP; FUEL PIPE 02.589 ID=13 & 16.5	8-94169-028-0	03	1	1012-			●	●
144	03.162 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	03	1	1012-			●	●
148	03.162 BOLT; BRKT M6X12 FLANGE	0-28050-612-0	03	1	1012-			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	02	1	1012-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.531 (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	1012-			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1012-			●	●
152	03.890 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-			●	●
220	03.163 HOSE; FUEL (A)	8-97208-874-0	01	1	1012-	●
220	03.163 HOSE; FUEL (A) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	1012-1412		●
220	03.163 HOSE; FUEL (A) L=270 SERVICED BY L=3000	0-01856-300-0	01	1	1501-		●
220	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (B)	8-98029-245-1	01	1	1012-			●	●
220	03.163 HOSE; FUEL EURO4 SPECIFICATION(NT4) (E)	8-98126-627-1	01	1	1012-			●	●
220	03.163 HOSE; FUEL (C)	8-98036-180-3	01	1	1012-			●	●
220	03.163 HOSE; FUEL (D)	8-98036-181-2	01	1	1012-			●	●
220	03.163 HOSE; FUEL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (E)	8-98076-056-1	01	1	1012-			●	●
220	03.163 HOSE; FUEL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98076-057-1	01	1	1012-			●	●
221	03.163 BOLT; FUEL PIPE 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1012-	●	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	1012-			●	●
243	03.278 STUD; BRKT 00.413 M8X15,M8X17 L=40	8-98009-913-0	01	1	1012-			●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF	8-98033-718-0	01	1	1012-			●	●
