◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#39978) — 160 parça

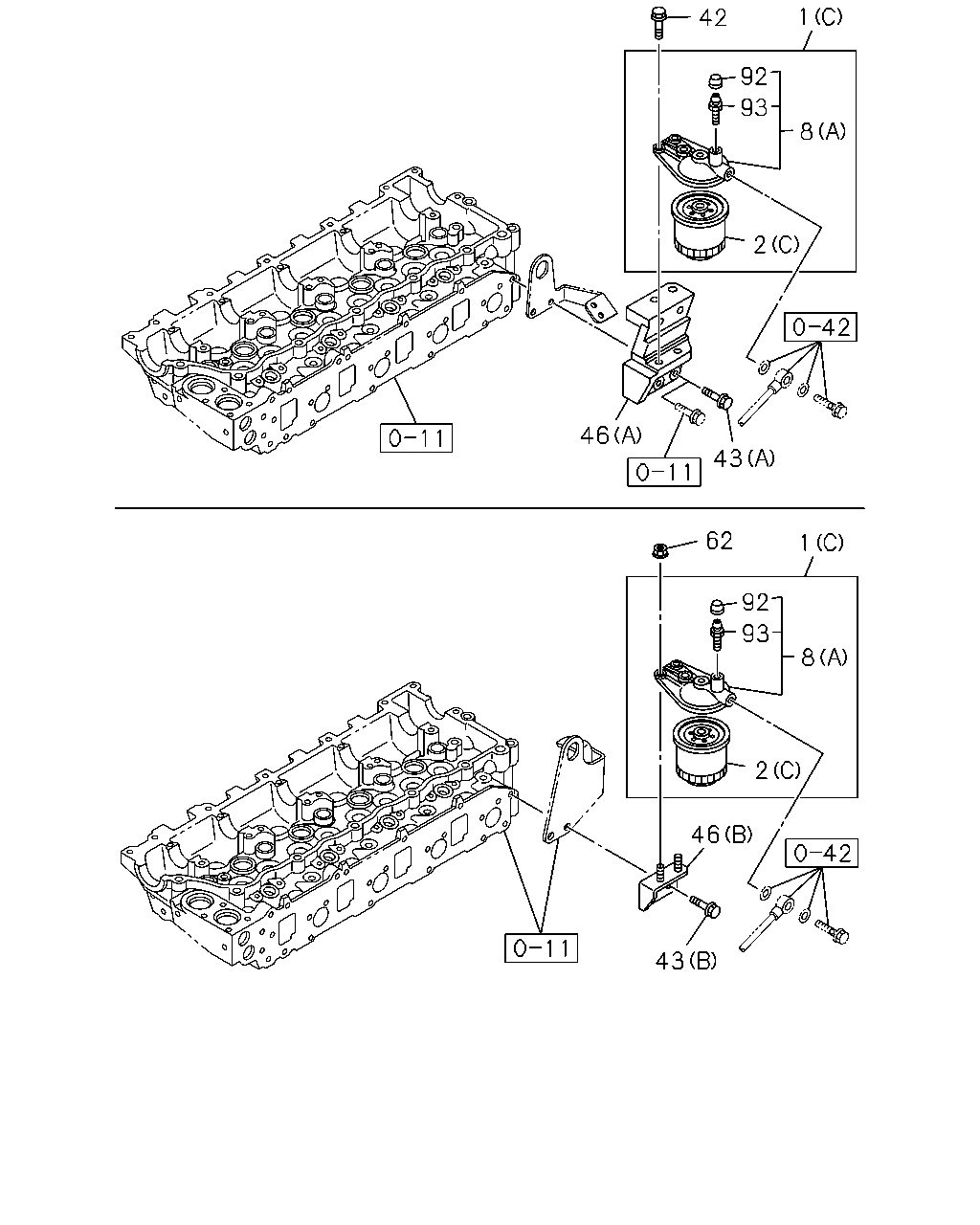

çizim 76300
42 1 92 93 2 8 43 46 62 1 92 93 8 2 46 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1012-1301 ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1302- ● ●
1 03.890 FILTER ASM; FUEL
(C) 		8-97171-451-2 01 1 1012- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1012- ● ● ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1012- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) (D) 		8-97916-993-2 01 1 1012-1301 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) (D) 		8-97916-993-2 01 1 1302- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) 		8-97172-549-1 01 1 1012- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1012- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1012-1112 ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) BEST VALUE PARTS 		5-87610-041-0 01 1 1012- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ● ● ● ●
8 03.890 COVER; FUEL FILTER
FUEL FILTER DUAL(S6B) (B) 		8-97917-558-0 01 1 1012-1301 ●
8 03.890 COVER; FUEL FILTER
FUEL FILTER DUAL(S6B) (B) 		8-97917-558-0 01 1 1302- ● ●
8 03.890 COVER; FUEL FILTER
(A) 		8-97172-543-1 01 1 1012- ● ●
42 03.890 BOLT; FUEL FILTER
00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1012-1405 ● ●
42 03.890 BOLT; FUEL FILTER
SAUDI ARABIA EQUIPMENT(GH3) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1406- ● ●
43 03.890 BOLT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(GH3) 00.029 (B) M12X25 FLANGE 		0-28151-225-0 02 1 1406- ● ●
43 03.890 BOLT; BRKT
00.029 (A) M12X28 FLANGE 		0-28181-228-0 02 1 1012-1405 ● ●
43 03.890 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(GH3) 00.029 (A) M12X28 FLANGE 		0-28181-228-0 02 1 1406- ● ●
46 03.890 BRACKET
EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) 		8-94313-323-2 01 1 1406- ● ●
46 03.890 BRACKET
(A) 		8-97061-452-0 01 1 1012-1405 ● ●
46 03.890 BRACKET
SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-97061-452-0 01 1 1406- ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012-1405 ● ● ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012-1405 ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012-1405 ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ● ● ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ● ●
62 03.895 NUT; FUEL FILTER
EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ●
92 03.417 CAP; FUEL FILTER 8-97172-548-0 01 1 1012- ● ●
92 03.417 CAP; FUEL FILTER 8-98034-314-0 01 1 1012- ● ● ● ●
93 03.890 CONNECTOR; FUEL FILTER 8-97172-546-1 01 1 1012- ● ●
93 03.890 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1012- ● ● ● ●

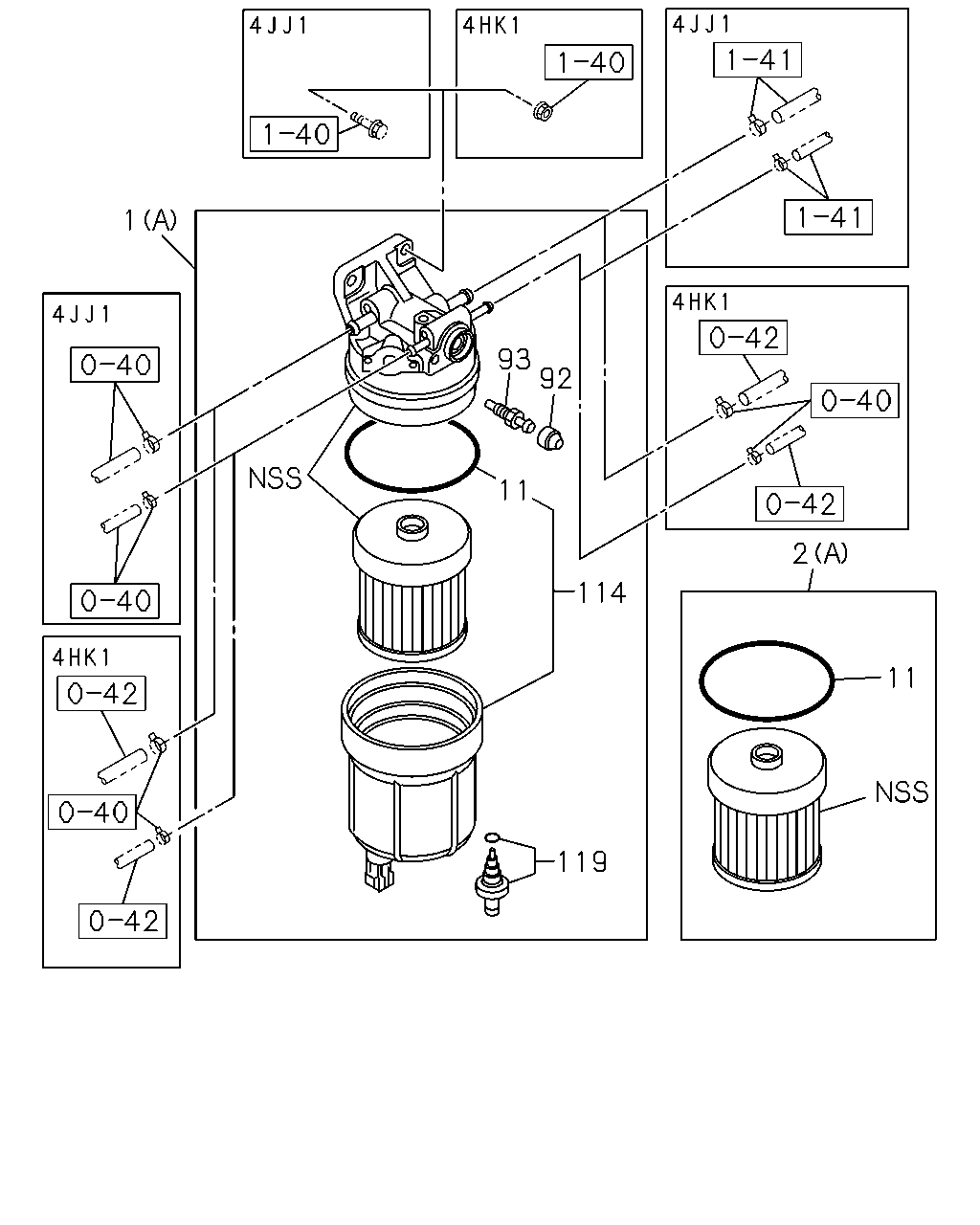

çizim 76331
1 93 92 11 2 114 11 119
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1012-1301 ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1302- ● ●
1 03.890 FILTER ASM; FUEL
(C) 		8-97171-451-2 01 1 1012- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1012- ● ● ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1012- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) (D) 		8-97916-993-2 01 1 1012-1301 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) (D) 		8-97916-993-2 01 1 1302- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) 		8-97172-549-1 01 1 1012- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1012- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1012-1112 ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) BEST VALUE PARTS 		5-87610-041-0 01 1 1012- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ● ● ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201-1201 ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201- ● ● ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 1012-1112 ● ● ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 1201-1201 ● ●
92 03.417 CAP; FUEL FILTER 8-97172-548-0 01 1 1012- ● ●
92 03.417 CAP; FUEL FILTER 8-98034-314-0 01 1 1012- ● ● ● ●
93 03.890 CONNECTOR; FUEL FILTER 8-97172-546-1 01 1 1012- ● ●
93 03.890 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1012- ● ● ● ●
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1012- ● ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 1012- ● ● ● ●

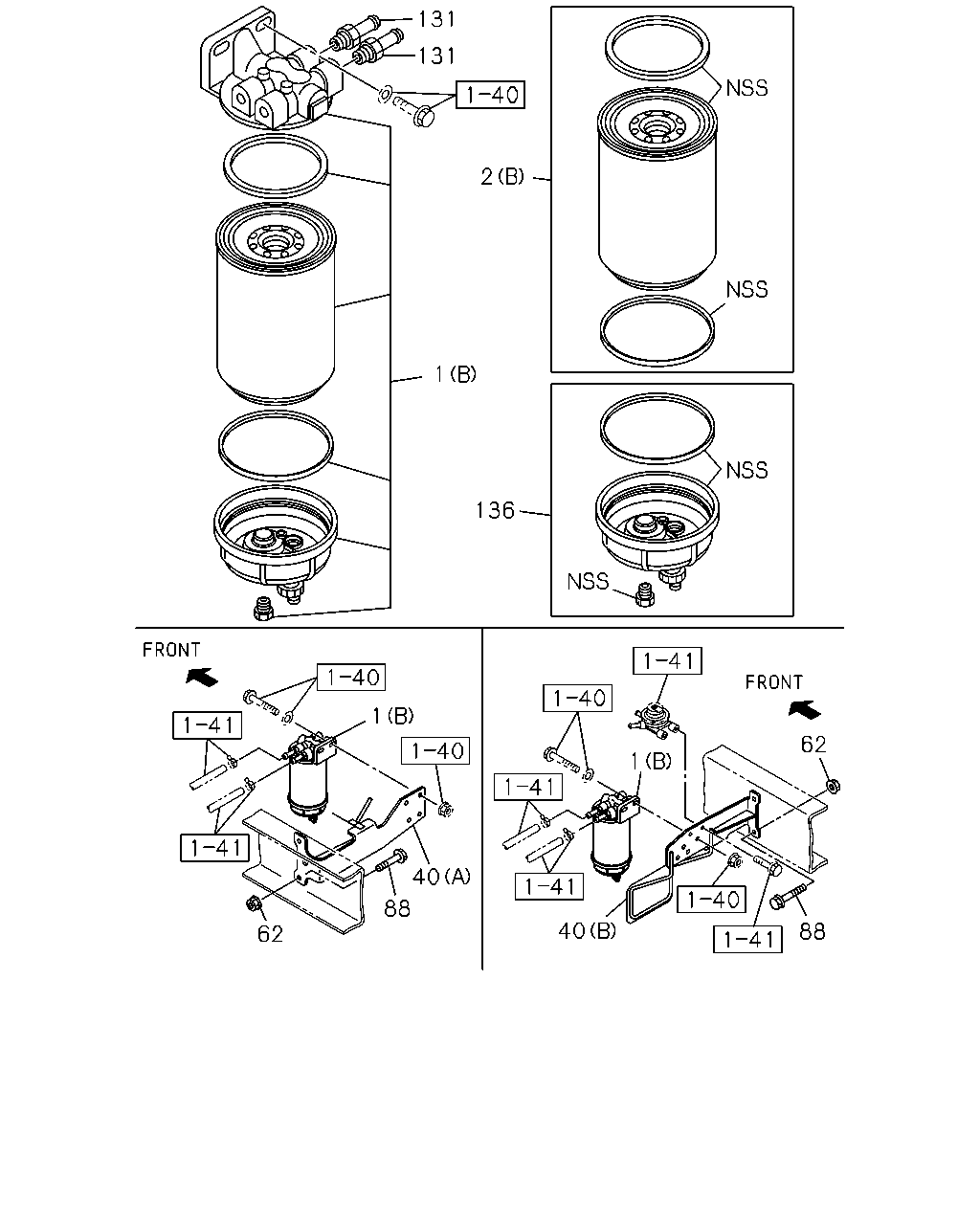

çizim 76333
131 131 2 1 136 1 62 1 40 88 40 88 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1012-1301 ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1302- ● ●
1 03.890 FILTER ASM; FUEL
(C) 		8-97171-451-2 01 1 1012- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1012- ● ● ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1012- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) (D) 		8-97916-993-2 01 1 1012-1301 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) (D) 		8-97916-993-2 01 1 1302- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) 		8-97172-549-1 01 1 1012- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1012- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1012-1112 ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) BEST VALUE PARTS 		5-87610-041-0 01 1 1012- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98121-708-0 01 1 1012- ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98121-708-0 01 1 1012- ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98121-708-0 01 1 1012- ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98107-354-3 01 1 1012-1307 ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (B) 		8-98107-354-3 01 1 1012-1307 ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98107-354-3 01 1 1308- ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> (B) 		8-98107-354-3 01 1 1308- ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEELBASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), DUMP CHASSIS(V4D) (C) 		8-98121-710-0 01 1 1012- ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012-1405 ● ● ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012-1405 ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012-1405 ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ● ● ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ● ●
62 03.895 NUT; FUEL FILTER
EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1307 ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1307 ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1307 ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1307 ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1307 ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1308- ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1308- ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1308- ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEELBASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1308- ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1308- ● ●
131 03.890 PIPE; FILTER
03.163 		5-15411-223-1 02 1 1012- ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1012- ● ● ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98096-004-0 01 1 1012-1408 ● ● ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98279-324-0 01 1 1409- ● ● ● ●

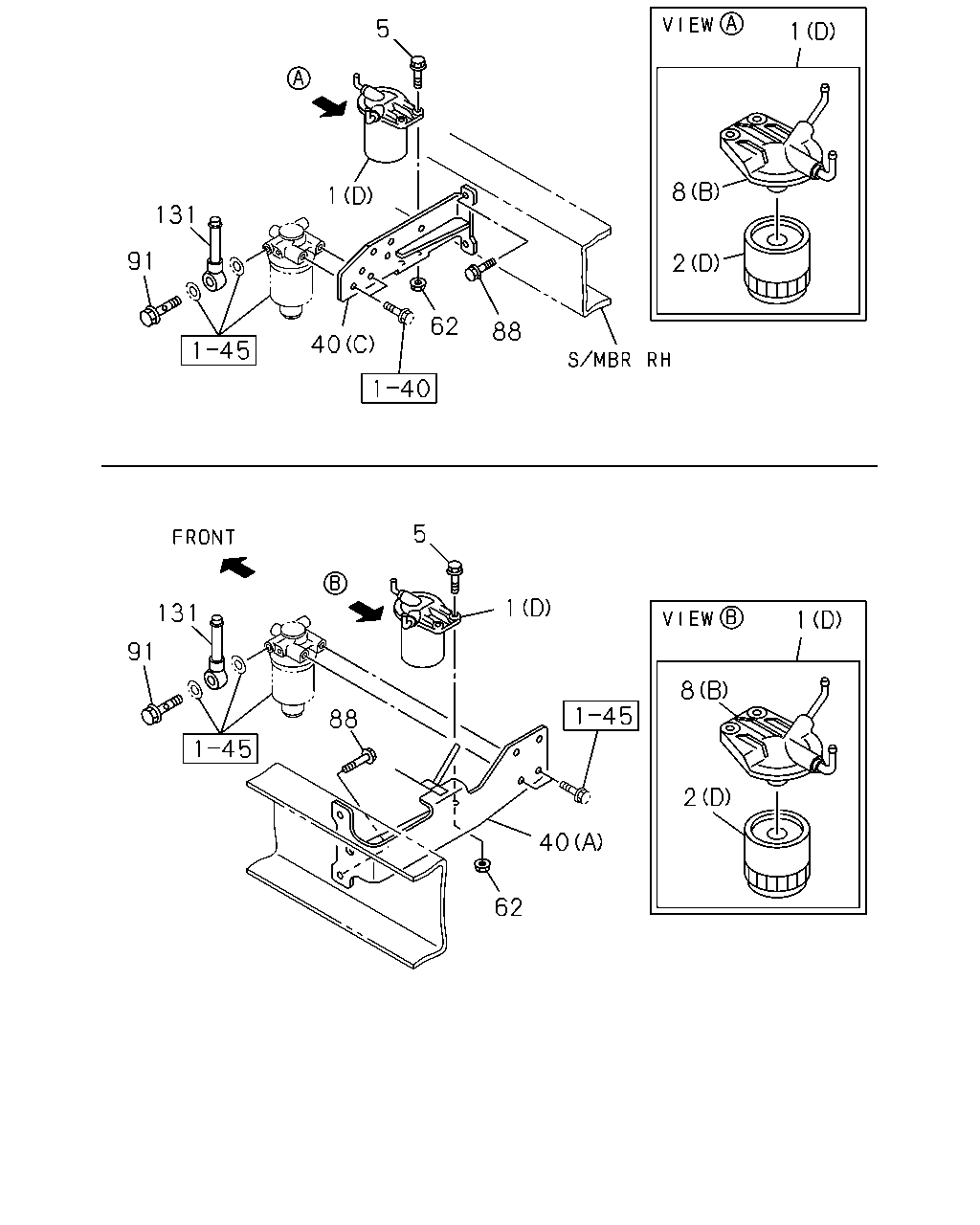

çizim 76356
1 8 2 88 62 40 131 91 5 1 1 5 88 131 91 1 8 2 62 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1012-1301 ●
1 03.890 FILTER ASM; FUEL
FUEL FILTER DUAL(S6B) (D) 		8-98006-454-0 01 1 1302- ● ●
1 03.890 FILTER ASM; FUEL
(C) 		8-97171-451-2 01 1 1012- ● ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1012- ● ● ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1012- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) (D) 		8-97916-993-2 01 1 1012-1301 ●
2 03.890 ELEMENT KIT; FUEL FILTER
FUEL FILTER DUAL(S6B) (D) 		8-97916-993-2 01 1 1302- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) 		8-97172-549-1 01 1 1012- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1012- ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1012-1112 ● ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(C) BEST VALUE PARTS 		5-87610-041-0 01 1 1012- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1201- ● ● ● ●
5 03.890 BOLT; FUEL FILTER
FUEL FILTER DUAL(S6B) 03.613 M10X40 FLANGE 		0-28651-040-0 02 1 1012- ● ●
8 03.890 COVER; FUEL FILTER
FUEL FILTER DUAL(S6B) (B) 		8-97917-558-0 01 1 1012-1301 ●
8 03.890 COVER; FUEL FILTER
FUEL FILTER DUAL(S6B) (B) 		8-97917-558-0 01 1 1302- ● ●
8 03.890 COVER; FUEL FILTER
(A) 		8-97172-543-1 01 1 1012- ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98121-708-0 01 1 1012- ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98121-708-0 01 1 1012- ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98121-708-0 01 1 1012- ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98107-354-3 01 1 1012-1307 ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) (B) 		8-98107-354-3 01 1 1012-1307 ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98107-354-3 01 1 1308- ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> (B) 		8-98107-354-3 01 1 1308- ● ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEELBASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), DUMP CHASSIS(V4D) (C) 		8-98121-710-0 01 1 1012- ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012-1405 ● ● ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012-1405 ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012-1405 ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ● ● ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ● ● ● ●
62 03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ● ●
62 03.895 NUT; FUEL FILTER
EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ●
62 03.895 NUT; FUEL FILTER
03.162 M10 FLANGE 		0-91180-110-0 02 1 1406- ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1307 ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1307 ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1307 ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1307 ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1307 ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1308- ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1308- ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1308- ● ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W), WHEELBASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), DUMP CHASSIS(V4D) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1308- ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1308- ● ●
91 03.890 BOLT; FUEL FILTER
03.162 M14X29 EYE-BOLT 		9-09906-325-1 02 1 1012- ●
131 03.890 PIPE; FILTER
03.163 		5-15411-223-1 02 1 1012- ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1012- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
