◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#39977) — 676 parça

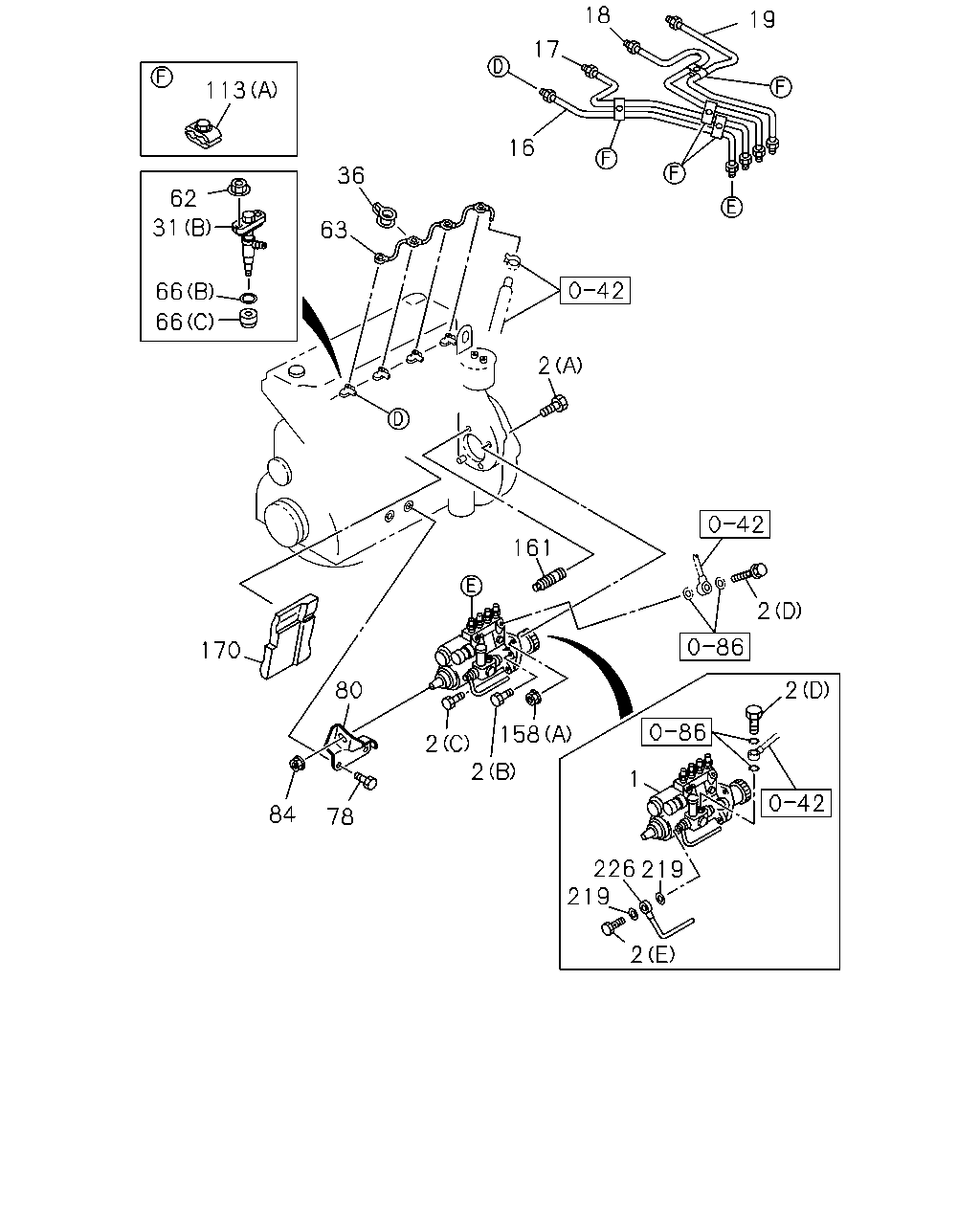

çizim 75754
18 19 17 113 16 36 62 31 63 66 66 2 161 2 170 80 2 158 2 2 1 84 78 219 2 226 219
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1406- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1406- ●
1 03.306 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97385-476-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97385-476-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ
EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28151-290-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
00.685 (F) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
02.277 (A) M10X70 FLANGE 		0-28151-070-0 01 1 1012- ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 1012- ● ● ● ●
2 03.330 BOLT; INJ PUMP
(G) M12X95 FLANGE 		8-94396-485-1 01 1 1012- ● ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1012-1201 ● ●
16 03.330 PIPE; INJ NO.1
VIETNAM EQUIPMENT<CL0> 		8-98011-606-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ● ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ● ●
16 03.330 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ● ●
16 03.330 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ● ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1012-1201 ● ●
17 03.330 PIPE; INJ NO.2
VIETNAM EQUIPMENT<CL0> 		8-98043-684-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ● ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ● ●
17 03.330 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ● ●
17 03.330 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ● ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1012-1201 ● ●
18 03.330 PIPE; INJ NO.3
VIETNAM EQUIPMENT<CL0> 		8-98011-608-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ● ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ● ●
18 03.330 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ● ●
18 03.330 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ● ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1012-1201 ● ●
19 03.330 PIPE; INJ NO.4
VIETNAM EQUIPMENT<CL0> 		8-98011-609-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ● ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ● ●
19 03.330 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ● ●
19 03.330 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ● ●
31 03.332 NOZZLE ASM; INJ
(C) 		8-97200-570-3 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-98011-604-5 04 1 1012- ● ●
31 03.332 NOZZLE ASM; INJ
(D) 		8-97609-788-6 04 1 1012- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=8.6 		8-94395-214-0 04 1 1012-1312 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=8.6 		8-98246-930-0 04 1 1401- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1012- ● ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 1012- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 07.003 (C) 		8-97171-332-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (B) 		8-94326-439-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-98077-165-0 04 1 1012-1103 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-98181-540-0 04 1 1104- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (E) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 01 1 1012- ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1012- ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1012- ● ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1012- ● ●
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 1012- ● ●
113 03.162 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 1012- ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 1012- ● ●
158 03.330 NUT; INJ PUMP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1012- ● ● ● ●
158 03.330 NUT; INJ PUMP
07.529 (B) M14 FLANGE 		0-91180-114-0 01 1 1012- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1012- ● ● ● ●
170 03.332 INSULATOR; INJ PUMP
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) 		8-97130-296-2 01 1 1012-1405 ●
170 03.332 INSULATOR; INJ PUMP
SAUDI ARABIA EQUIPMENT(GH3) 		8-97130-296-2 01 1 1406- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1012- ● ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 1012- ● ●

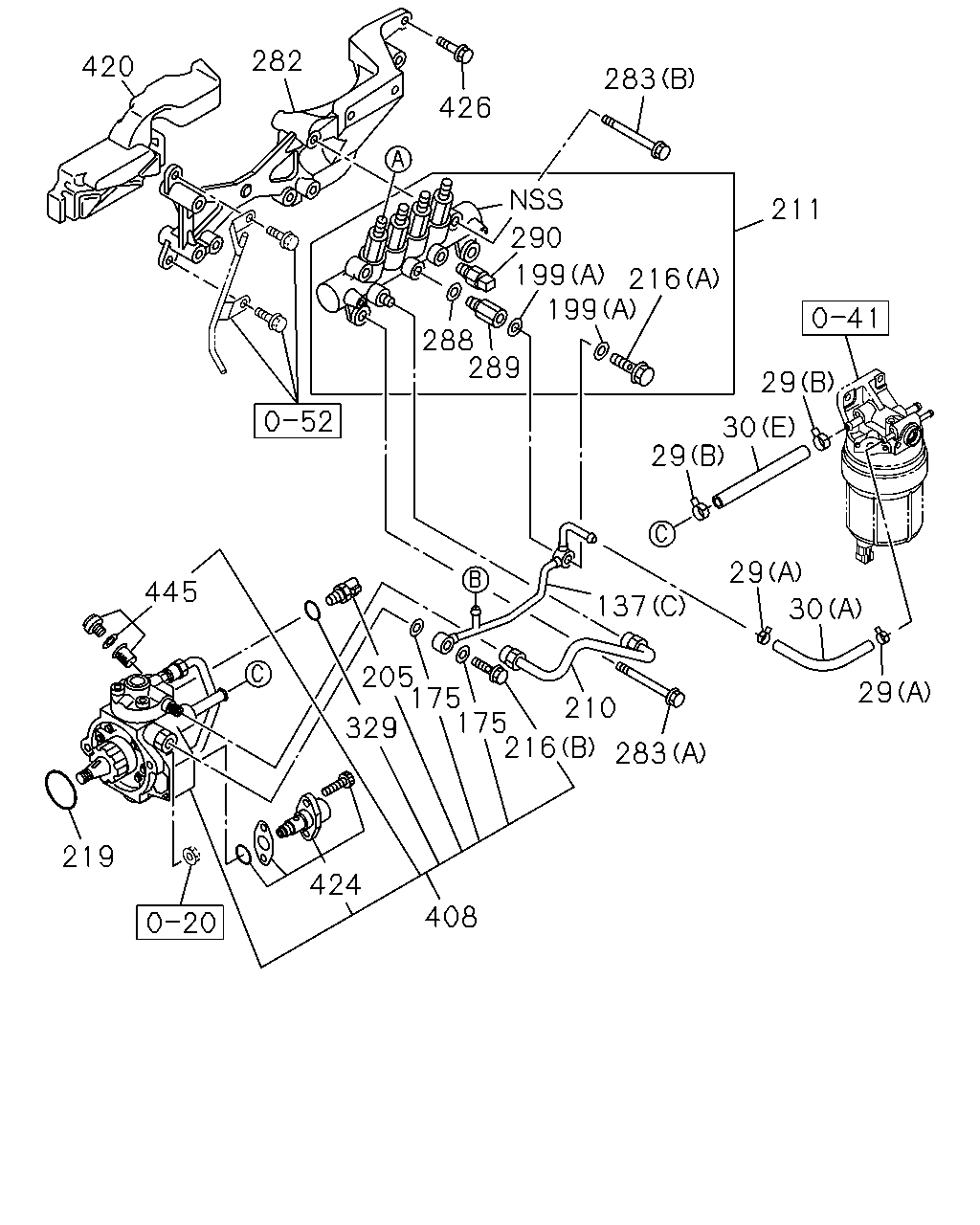

çizim 76177
408 219 445 329 424 205 175 175 216 283 29 210 137 30 29 29 30 29 211 289 288 199 216 199 290 283 426 282 420
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 03.162 CLIP; HOSE
VIETNAM EQUIPMENT<CL0> (C) ID=10.5 		8-97944-126-0 10 1 1105- ●
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1012- ● ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 1012- ● ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 1012-1104 ● ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 1105- ●
29 03.162 CLIP; HOSE
EXC. VIETNAM EQUIPMENT<CL0> 03.374 (C) ID=10.5 		8-97019-473-0 10 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
VIETNAM EQUIPMENT<CL0> (D) L=130 		8-98053-692-0 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
VIETNAM EQUIPMENT<CL0> (B) L=96 		8-98053-693-0 03 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
VIETNAM EQUIPMENT<CL0> (C) 		8-98112-034-0 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1012-1104 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. VIETNAM EQUIPMENT<CL0> (D) L=130 		0-01804-130-0 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1012-1104 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. VIETNAM EQUIPMENT<CL0> (B) L=98 		8-97354-652-0 03 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1012-1104 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. VIETNAM EQUIPMENT<CL0> (C) L=150 		8-97362-306-2 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=110 		8-97377-894-0 01 1 1012- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 1012-1101 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) 		8-98036-320-2 01 1 1012- ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1012-1101 ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102- ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1012-1101 ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102- ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1012- ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1012- ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1012-1104 ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1105-1105 ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
EXC. VIETNAM EQUIPMENT<CL0> 01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1105-1105 ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1105- ● ●
199 03.332 GASKET; EYE BOLT
(A) 		8-97602-218-0 02 1 1012- ● ●
199 03.332 GASKET; EYE BOLT
(B) 		1-15619-507-0 02 1 1012- ● ●
199 03.332 GASKET; EYE BOLT
(A) 		8-97602-218-0 04 1 1012- ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1012- ● ● ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1012- ● ●
210 03.330 PIPE; INJ,C/R 8-98036-176-1 01 1 1012- ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ● ● ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1012-1104 ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1105-1105 ●
216 03.162 BOLT; EYE
EXC. VIETNAM EQUIPMENT<CL0> 03.280 (B) 		9-88130-088-0 01 1 1105-1105 ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1105- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012- ● ● ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1012- ● ●
216 03.162 BOLT; EYE
(D) 		8-97351-388-0 01 1 1012- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1012- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98147-694-0 01 1 1012- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1012- ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1012- ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1012- ● ●
283 03.330 BOLT; COMMON RAIL
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1012- ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1012- ● ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1012- ● ● ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1012- ● ● ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1012-1104 ● ● ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1105-1201 ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97381-555-4 01 1 1012-1104 ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97381-555-4 01 1 1105-1105 ●
408 03.306 PUMP ASM; FUEL,SUPPLY
EXC. VIETNAM EQUIPMENT<CL0> 		8-97381-555-4 01 1 1105-1105 ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 1105- ● ●
420 03.340 RUBBER; SPACE,COMMON RAIL 8-98037-444-1 01 1 1012- ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1012- ● ● ● ●
426 03.330 BOLT; BRACKET
04.686 M8X60 FLANGE 		0-28050-860-0 01 1 1012- ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1012- ● ● ● ●

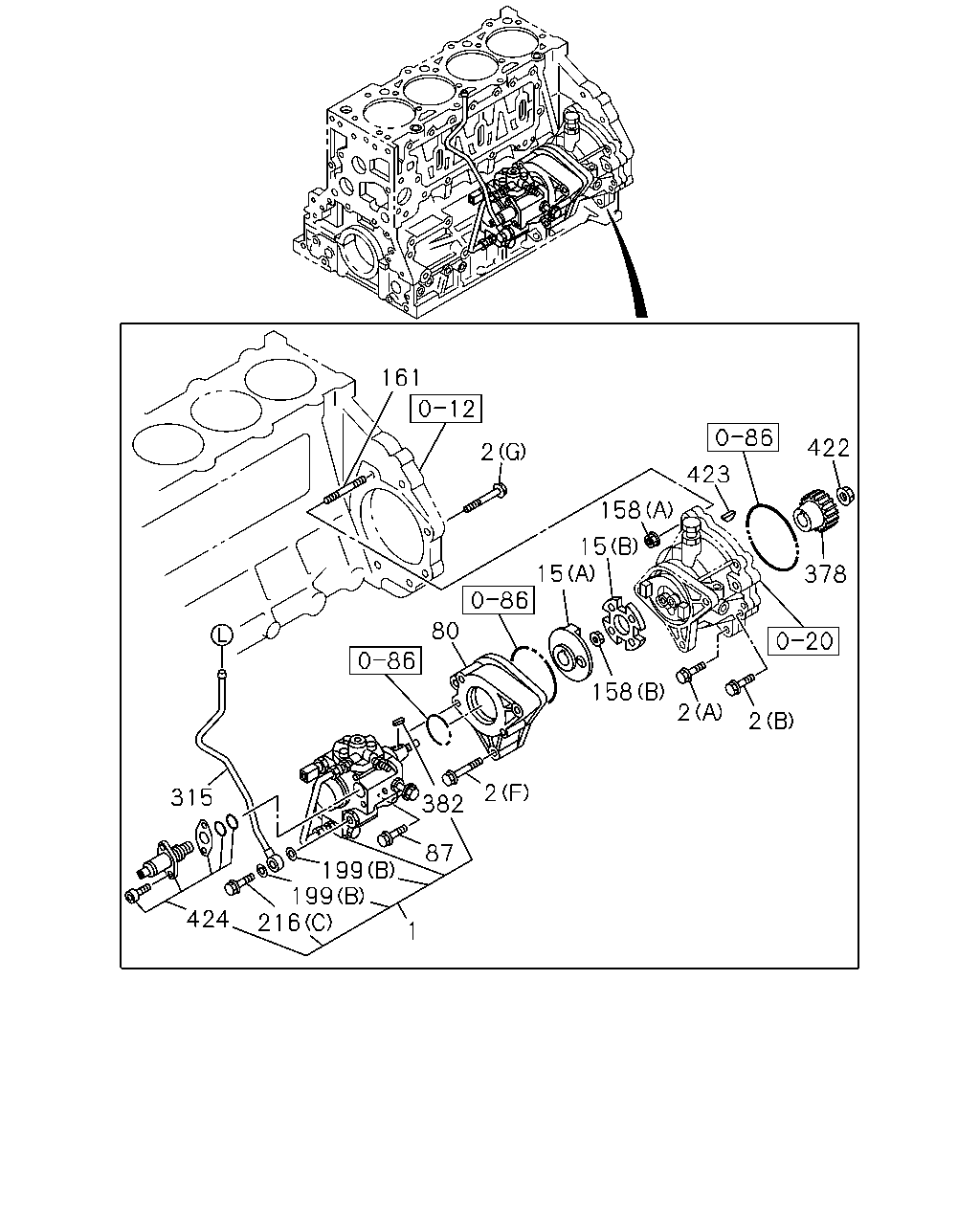

çizim 76299
161 422 2 423 158 15 15 378 80 158 2 2 2 315 382 87 199 199 216 424 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1406- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1406- ●
1 03.306 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97385-476-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97385-476-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ
EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28151-290-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
00.685 (F) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
02.277 (A) M10X70 FLANGE 		0-28151-070-0 01 1 1012- ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 1012- ● ● ● ●
2 03.330 BOLT; INJ PUMP
(G) M12X95 FLANGE 		8-94396-485-1 01 1 1012- ● ●
15 03.340 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1012- ● ●
15 03.340 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1012- ● ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1012- ● ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1012- ● ●
87 03.330 BOLT; PUMP
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1012- ● ●
158 03.330 NUT; INJ PUMP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1012- ● ● ● ●
158 03.330 NUT; INJ PUMP
07.529 (B) M14 FLANGE 		0-91180-114-0 01 1 1012- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1012- ● ● ● ●
199 03.332 GASKET; EYE BOLT
(A) 		8-97602-218-0 02 1 1012- ● ●
199 03.332 GASKET; EYE BOLT
(B) 		1-15619-507-0 02 1 1012- ● ●
199 03.332 GASKET; EYE BOLT
(A) 		8-97602-218-0 04 1 1012- ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1012-1104 ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1105-1105 ●
216 03.162 BOLT; EYE
EXC. VIETNAM EQUIPMENT<CL0> 03.280 (B) 		9-88130-088-0 01 1 1105-1105 ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1105- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012- ● ● ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1012- ● ●
216 03.162 BOLT; EYE
(D) 		8-97351-388-0 01 1 1012- ● ●
315 03.163 PIPE; FUEL,SUCTION 8-98126-333-0 01 1 1012- ● ●
378 03.330 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 1012- ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1105-1201 ● ●
382 03.162 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1202- ● ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1012-1104 ● ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1105-1201 ● ●
422 03.330 NUT; GEAR
06.172 M18 		8-97141-154-0 01 1 1012- ● ●
423 03.162 KEY; GEAR
08.960 		9-08055-519-0 01 1 1012- ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1012- ● ● ● ●

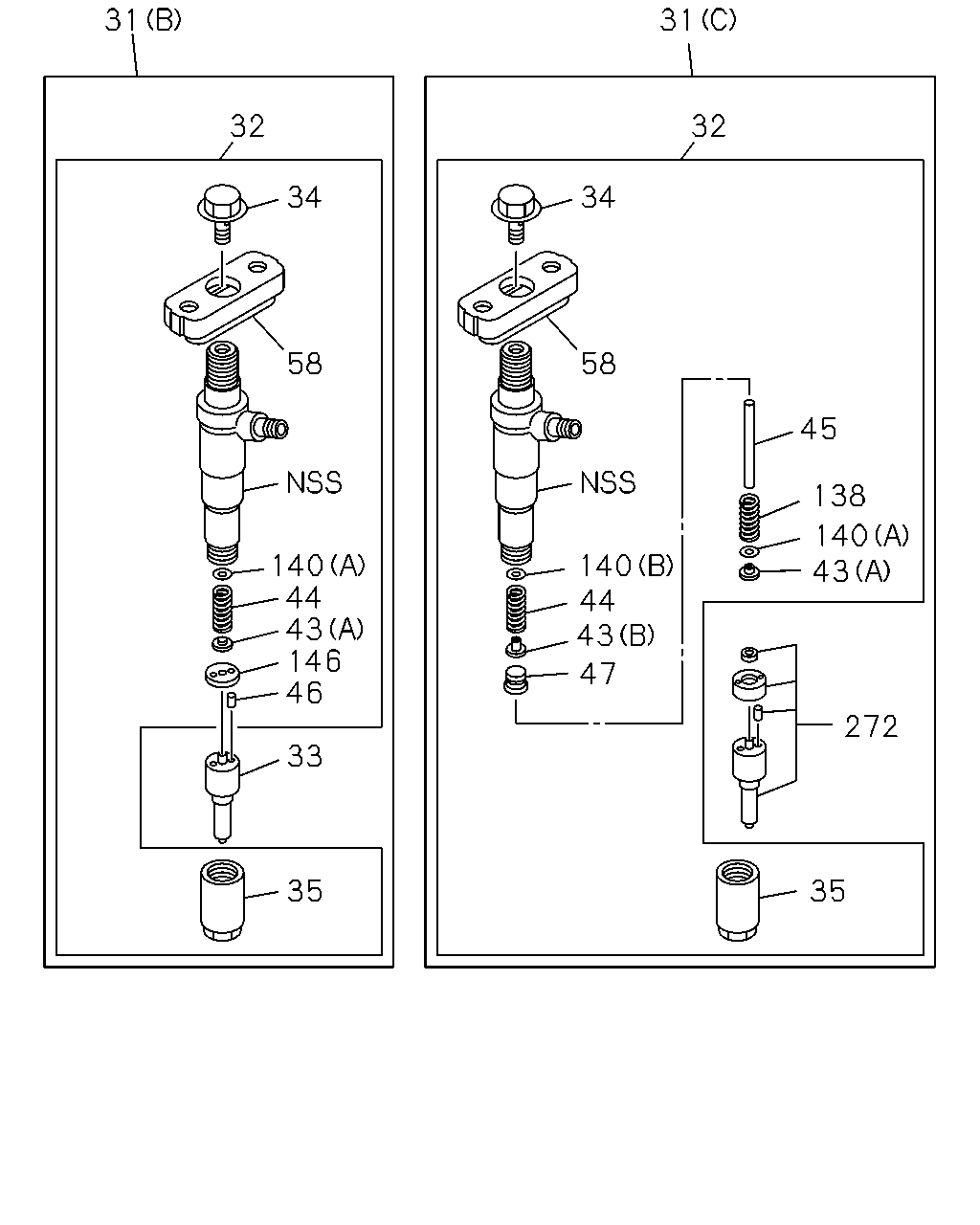

çizim 76327
31 31 32 32 34 34 58 58 45 138 140 43 140 44 43 146 46 140 44 43 47 272 33 35 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
31 03.332 NOZZLE ASM; INJ
(C) 		8-97200-570-3 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-98011-604-5 04 1 1012- ● ●
31 03.332 NOZZLE ASM; INJ
(D) 		8-97609-788-6 04 1 1012- ● ●
32 03.332 HOLDER ASM; NOZZLE 8-97078-783-1 04 1 1012- ●
32 03.332 HOLDER ASM; NOZZLE 8-94311-966-2 04 1 1012- ●
33 03.332 NOZZLE; INJ 8-97119-809-0 04 1 1012- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.162 M8X18 EYE-BOLT 		1-09675-037-1 04 1 1012- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 1012- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 1012- ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 1012- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) 		8-97223-339-0 04 1 1012- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) 		8-97349-452-0 04 1 1012- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) 		8-94329-555-0 04 1 1012- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 1012- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 1012- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 1012- ●
46 03.330 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 1012- ●
47 03.332 SPACER; NOZZLE SPRING,NOZZLE HOL 8-97223-340-0 04 1 1012- ●
58 03.332 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 1012- ● ●
138 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=1.20 		1-15349-004-0 04 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.40 		1-15349-042-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.50 		1-15349-043-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.52 		1-15349-044-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.54 		1-15349-045-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.56 		1-15349-046-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.58 		1-15349-047-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.60 		1-15349-048-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.70 		1-15349-049-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.10 		8-97116-029-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.20 		8-97116-032-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.30 		8-97116-033-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.40 		8-97116-034-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.50 		8-97116-035-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.51 		8-97116-036-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.52 		8-97116-037-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.53 		8-97116-038-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.54 		8-97116-039-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.55 		8-97116-040-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.56 		8-97116-041-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.57 		8-97116-042-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.58 		8-97116-043-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.59 		8-97116-044-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.10 		8-97027-432-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.20 		8-97027-433-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.30 		8-97027-434-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.40 		8-97027-435-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.50 		8-97027-436-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.52 		8-97027-437-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.54 		8-97027-438-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.56 		8-97027-439-0 AR 1 1012- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 (A) T=0.58 		8-97027-440-0 AR 1 1012- ●
146 03.332 SPACER; NOZZLE 8-94344-439-0 04 1 1012- ●
272 03.332 NOZZLE KIT; INJ 8-97352-267-0 04 1 1012- ●

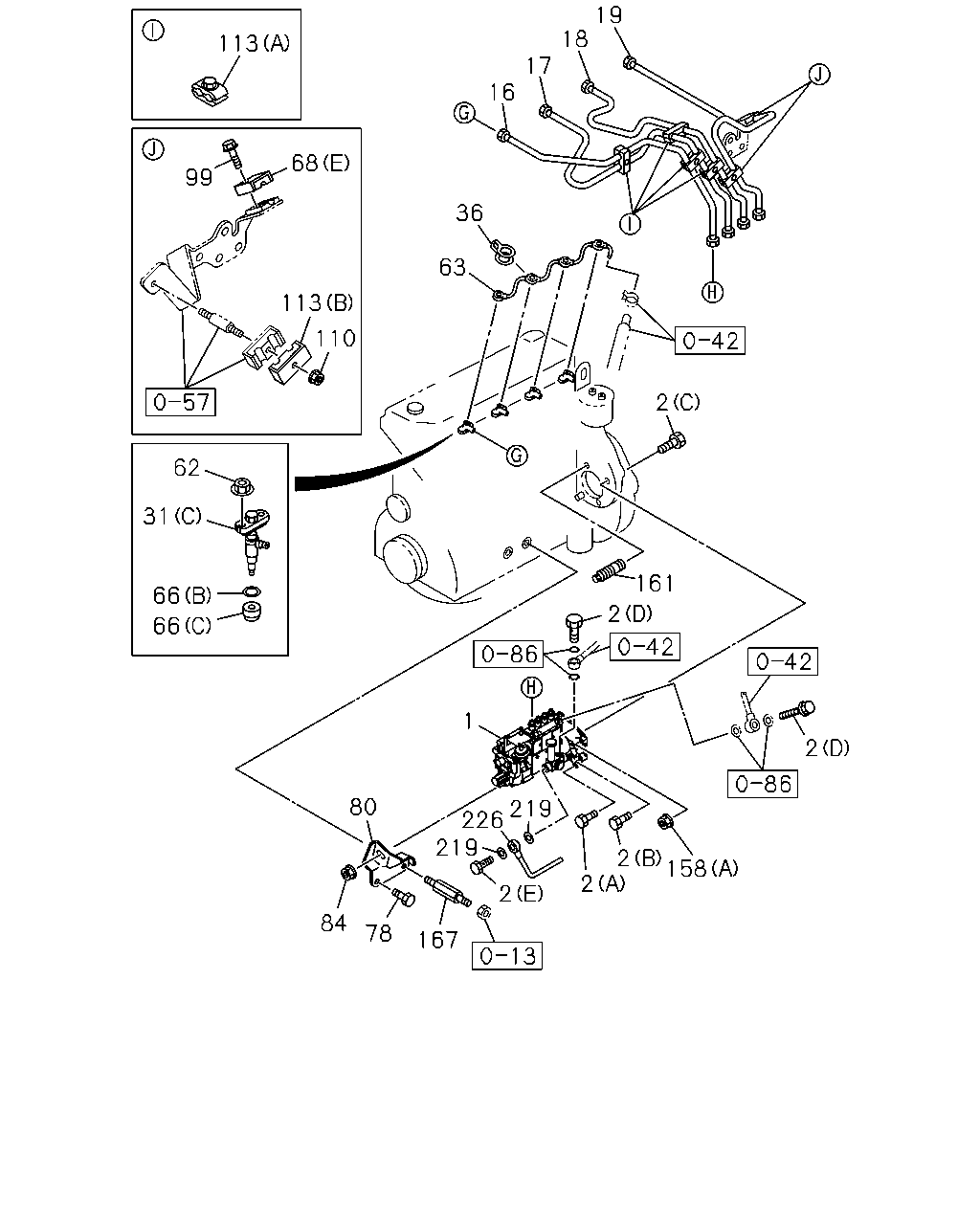

çizim 76332
113 99 68 113 110 62 31 66 66 19 18 17 16 36 63 2 161 2 2 158 2 2 167 78 84 80 219 226 2 219 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1406- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1406- ●
1 03.306 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97385-476-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97385-476-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ
EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28151-290-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
00.685 (F) M10X60 FLANGE 		0-28051-060-0 03 1 1012- ● ●
2 03.330 BOLT; INJ PUMP
02.277 (A) M10X70 FLANGE 		0-28151-070-0 01 1 1012- ● ● ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 1012- ● ● ● ●
2 03.330 BOLT; INJ PUMP
(G) M12X95 FLANGE 		8-94396-485-1 01 1 1012- ● ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1012-1201 ● ●
16 03.330 PIPE; INJ NO.1
VIETNAM EQUIPMENT<CL0> 		8-98011-606-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ● ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ● ●
16 03.330 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ● ●
16 03.330 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ● ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1012-1201 ● ●
17 03.330 PIPE; INJ NO.2
VIETNAM EQUIPMENT<CL0> 		8-98043-684-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ● ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ● ●
17 03.330 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ● ●
17 03.330 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ● ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1012-1201 ● ●
18 03.330 PIPE; INJ NO.3
VIETNAM EQUIPMENT<CL0> 		8-98011-608-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ● ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ● ●
18 03.330 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ● ●
18 03.330 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ● ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1012-1201 ● ●
19 03.330 PIPE; INJ NO.4
VIETNAM EQUIPMENT<CL0> 		8-98011-609-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ● ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ● ●
19 03.330 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ● ●
19 03.330 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ● ●
31 03.332 NOZZLE ASM; INJ
(C) 		8-97200-570-3 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-98011-604-5 04 1 1012- ● ●
31 03.332 NOZZLE ASM; INJ
(D) 		8-97609-788-6 04 1 1012- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=8.6 		8-94395-214-0 04 1 1012-1312 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=8.6 		8-98246-930-0 04 1 1401- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1012- ● ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 1012- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 07.003 (C) 		8-97171-332-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (B) 		8-94326-439-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-98077-165-0 04 1 1012-1103 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-98181-540-0 04 1 1104- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (E) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ● ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
EXC. VIETNAM EQUIPMENT<CL0> (A) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
EXC. VIETNAM EQUIPMENT<CL0> (A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(E) 		1-09701-091-0 01 1 1102- ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97213-481-0 04 1 1012-1201 ● ●
68 03.162 CLIP; INJ PIPE
VIETNAM EQUIPMENT<CL0> (A) 		8-97213-481-0 04 1 1202- ●
68 03.162 CLIP; INJ PIPE
(D) 		1-09701-195-3 01 1 1012- ● ●
68 03.162 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1012- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1012-1405 ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 01 1 1012- ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 1012- ●
80 03.306 BRACKET; PUMP 8-97136-677-0 01 1 1012- ● ●
80 03.306 BRACKET; PUMP 8-98061-699-0 01 1 1012- ● ●
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 1012- ● ●
99 03.330 BOLT; CLIP,INJ,PIPE
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 1012- ● ●
113 03.162 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 1012- ●
113 03.162 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 1012- ● ●
158 03.330 NUT; INJ PUMP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1012- ● ● ● ●
158 03.330 NUT; INJ PUMP
07.529 (B) M14 FLANGE 		0-91180-114-0 01 1 1012- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 1012- ● ● ● ●
167 03.330 SPACER; GUIDE TUBE 8-97065-515-2 01 1 1012- ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1012- ● ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 1012- ● ●

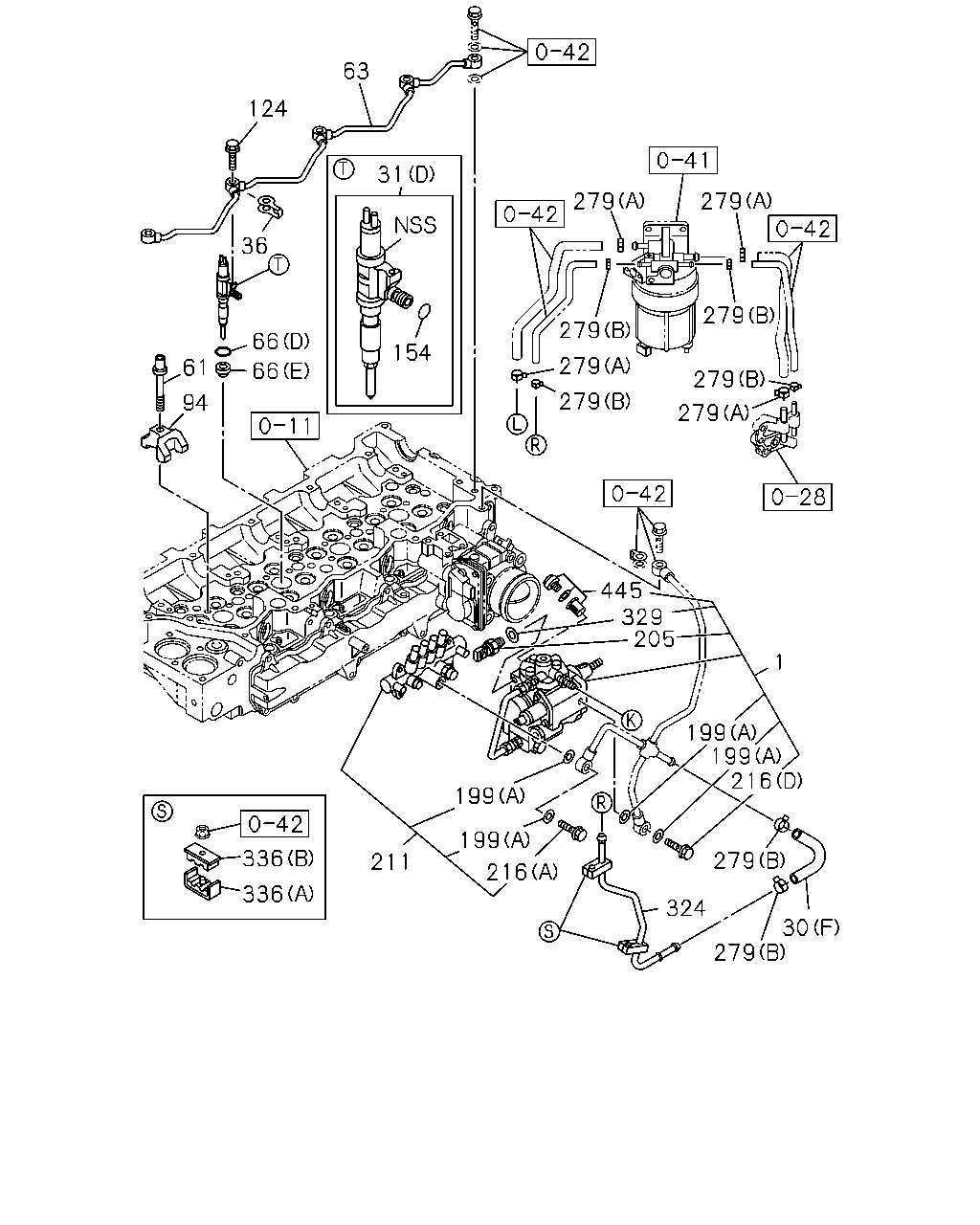

çizim 77415
63 124 31 154 66 66 36 61 94 279 279 279 279 279 279 279 279 445 329 205 1 199 199 216 279 324 30 279 216 199 199 211 336 336
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97215-704-2 01 1 1406- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97178-485-5 01 1 1406- ●
1 03.306 PUMP ASM; INJ
AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97385-476-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97385-476-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
HIGH ALTITUDE COMPENSATOR(EE2) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-101-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ
EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1012-1405 ●
1 03.306 PUMP ASM; INJ
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97212-102-0 01 1 1406- ●
1 03.306 PUMP ASM; INJ 8-97386-557-5 01 1 1012- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
VIETNAM EQUIPMENT<CL0> (D) L=130 		8-98053-692-0 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
VIETNAM EQUIPMENT<CL0> (B) L=96 		8-98053-693-0 03 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
VIETNAM EQUIPMENT<CL0> (C) 		8-98112-034-0 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1012-1104 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. VIETNAM EQUIPMENT<CL0> (D) L=130 		0-01804-130-0 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1012-1104 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. VIETNAM EQUIPMENT<CL0> (B) L=98 		8-97354-652-0 03 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1012-1104 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. VIETNAM EQUIPMENT<CL0> (C) L=150 		8-97362-306-2 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=110 		8-97377-894-0 01 1 1012- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 1012-1101 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) 		8-98036-320-2 01 1 1012- ● ●
31 03.332 NOZZLE ASM; INJ
(C) 		8-97200-570-3 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-98011-604-5 04 1 1012- ● ●
31 03.332 NOZZLE ASM; INJ
(D) 		8-97609-788-6 04 1 1012- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=8.6 		8-94395-214-0 04 1 1012-1312 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=8.6 		8-98246-930-0 04 1 1401- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1012- ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1012- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 1012- ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 07.003 (C) 		8-97171-332-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (B) 		8-94326-439-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-98077-165-0 04 1 1012-1103 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-98181-540-0 04 1 1104- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (E) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ● ●
94 03.330 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1012- ● ●
124 03.162 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1012- ● ●
154 03.332 GASKET; CONNECTOR
06.609 ID=11.0 		9-09561-111-0 04 1 1012-1106 ● ●
154 03.332 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1107- ● ●
199 03.332 GASKET; EYE BOLT
(A) 		8-97602-218-0 02 1 1012- ● ●
199 03.332 GASKET; EYE BOLT
(B) 		1-15619-507-0 02 1 1012- ● ●
199 03.332 GASKET; EYE BOLT
(A) 		8-97602-218-0 04 1 1012- ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1012- ● ● ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ● ● ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1012-1104 ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1105-1105 ●
216 03.162 BOLT; EYE
EXC. VIETNAM EQUIPMENT<CL0> 03.280 (B) 		9-88130-088-0 01 1 1105-1105 ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1105- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012- ● ● ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1012- ● ●
216 03.162 BOLT; EYE
(D) 		8-97351-388-0 01 1 1012- ● ●
279 03.162 CLIP; FUEL HOSE
01.097 (A) ID=16 		8-97329-628-0 04 1 1012- ● ●
279 03.162 CLIP; FUEL HOSE
01.153 (B) ID=11.5 		8-97375-638-0 06 1 1012- ● ●
324 03.330 PIPE; FUEL RETURN 8-98036-173-0 01 1 1012- ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1012-1104 ● ● ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1105-1201 ● ●
336 03.163 CLIP; FUEL PIPE
01.531 (A) ID=8 & 9 L=25 		8-97603-522-0 02 1 1012- ● ●
336 03.163 CLIP; FUEL PIPE
01.531 (B) ID=8 & 9 L=25 		8-97603-523-0 02 1 1012- ● ●
445 03.330 SCREW; FILTER,INLET 8-98204-986-0 01 1 1012- ● ● ● ●

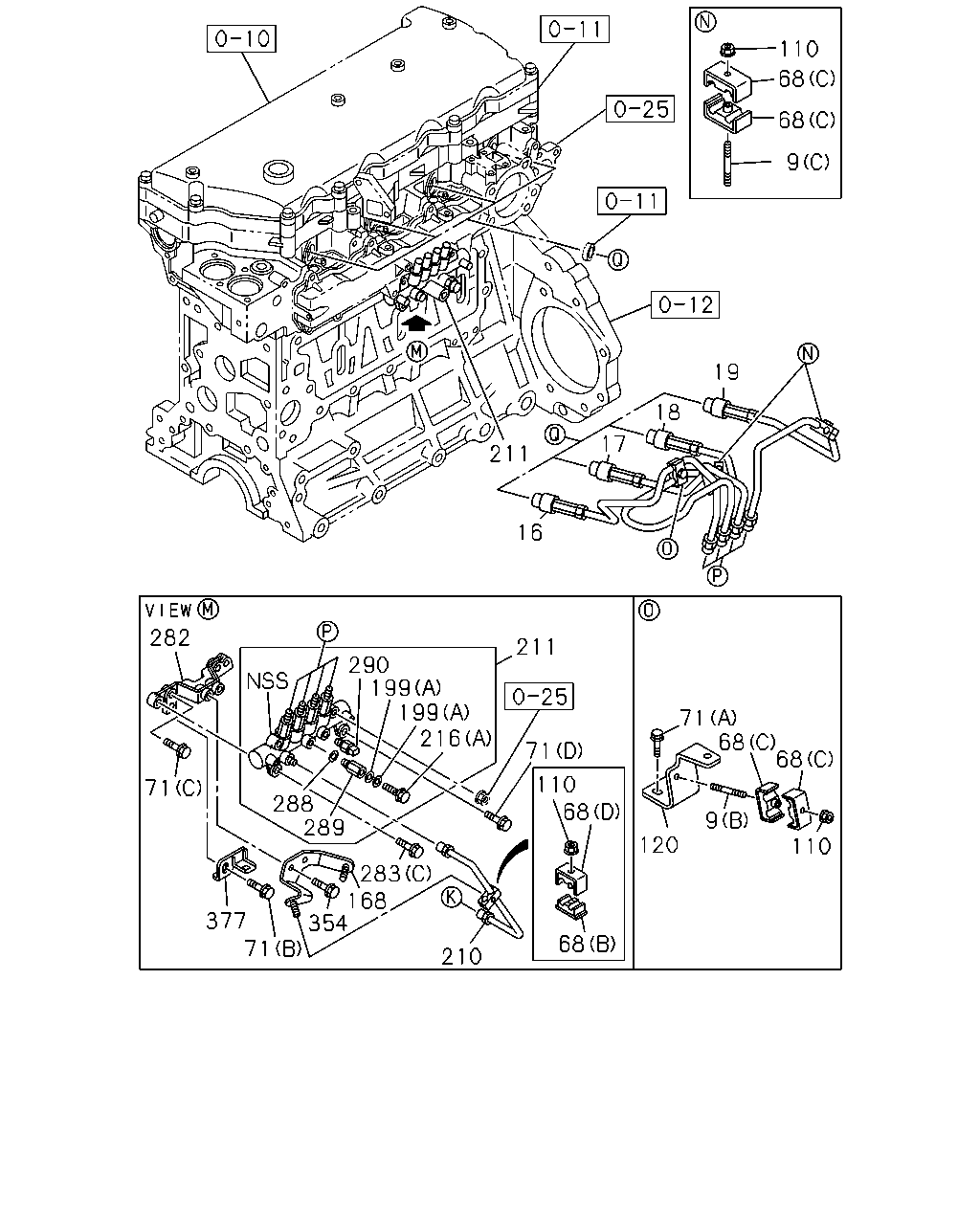

çizim 103391
110 68 68 9 19 211 18 17 16 282 211 290 199 199 216 71 68 68 71 110 68 71 288 289 9 120 110 283 168 354 71 377 68 210
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 03.340 STUD; CLIP
03.162 (A) M6X25 L=36 		8-97214-234-1 02 1 1012-1201 ● ●
9 03.340 STUD; CLIP
VIETNAM EQUIPMENT<CL0> 03.162 (A) M6X25 L=36 		8-97214-234-1 02 1 1202- ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1012-1201 ● ●
9 03.340 STUD; CLIP
NNR(NP***E) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NNR/NPR/NQR DBL CAB(NP**W*) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NNR/NPR/NQR DBL CAB(NP**W*) EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3),TRANSMISSION CONTROL-SMOOTHER(8GF) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NQR(NP***S) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO4 SPECIFICATION(NT4) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NQR(NP***S) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO4 SPECIFICATION(NT4) KD PREPARATORY PACK<6HF> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NQR(NP***S) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NQR(NP***S) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NQR(NP***S) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO4 SPECIFICATION(NT4) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NQR(NP***S) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. KD PREPARATORY PACK<6HF> 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),UZBEKISTAN EQUIPMENT(JCW) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1303- ● ● ●
9 03.340 STUD; CLIP
EXC. VIETNAM EQUIPMENT<CL0> 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1303- ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1012- ● ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1012-1201 ● ●
16 03.330 PIPE; INJ NO.1
VIETNAM EQUIPMENT<CL0> 		8-98011-606-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ● ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ● ●
16 03.330 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ● ●
16 03.330 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ● ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1012-1201 ● ●
17 03.330 PIPE; INJ NO.2
VIETNAM EQUIPMENT<CL0> 		8-98043-684-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ● ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ● ●
17 03.330 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ● ●
17 03.330 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ● ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1012-1201 ● ●
18 03.330 PIPE; INJ NO.3
VIETNAM EQUIPMENT<CL0> 		8-98011-608-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ● ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ● ●
18 03.330 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ● ●
18 03.330 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ● ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1012-1201 ● ●
19 03.330 PIPE; INJ NO.4
VIETNAM EQUIPMENT<CL0> 		8-98011-609-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ● ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ● ●
19 03.330 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ● ●
19 03.330 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ● ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
EXC. VIETNAM EQUIPMENT<CL0> (A) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
EXC. VIETNAM EQUIPMENT<CL0> (A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(E) 		1-09701-091-0 01 1 1102- ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97213-481-0 04 1 1012-1201 ● ●
68 03.162 CLIP; INJ PIPE
VIETNAM EQUIPMENT<CL0> (A) 		8-97213-481-0 04 1 1202- ●
68 03.162 CLIP; INJ PIPE
(D) 		1-09701-195-3 01 1 1012- ● ●
68 03.162 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1012- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1012-1405 ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
71 03.162 BOLT; BRKT
EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1012- ● ●
71 03.162 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ●
71 03.162 BOLT; BRKT
02.277 (C) M8X40 FLANGE 		0-28050-840-0 01 1 1012- ● ●
71 03.162 BOLT; BRKT
00.386 (D) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ● ●
71 03.162 BOLT; BRKT
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1012- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 1012- ● ●
120 03.330 BRACKET; INJ PIPE 8-98041-601-0 01 1 1012- ● ●
168 03.890 BRACKET; FUEL PIPE 8-98036-175-1 01 1 1012- ● ●
199 03.332 GASKET; EYE BOLT
(A) 		8-97602-218-0 02 1 1012- ● ●
199 03.332 GASKET; EYE BOLT
(B) 		1-15619-507-0 02 1 1012- ● ●
199 03.332 GASKET; EYE BOLT
(A) 		8-97602-218-0 04 1 1012- ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1012- ● ●
210 03.330 PIPE; INJ,C/R 8-98036-176-1 01 1 1012- ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 1012- ● ● ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1012-1104 ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1105-1105 ●
216 03.162 BOLT; EYE
EXC. VIETNAM EQUIPMENT<CL0> 03.280 (B) 		9-88130-088-0 01 1 1105-1105 ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1105- ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012- ● ● ● ●
216 03.162 BOLT; EYE
(C) 		5-15759-003-0 01 1 1012- ● ●
216 03.162 BOLT; EYE
(D) 		8-97351-388-0 01 1 1012- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98147-694-0 01 1 1012- ● ●
282 03.163 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1012- ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1012- ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1012- ● ●
283 03.330 BOLT; COMMON RAIL
03.275 (C) M8X25 FLANGE 		0-28050-825-0 01 1 1012- ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1012- ● ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1012- ● ● ● ●
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 1012- ● ● ● ●
354 03.163 BOLT; FUEL PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012- ● ●
377 03.332 BRACKET; HARNESS
EURO2 SPECIFICATION(NT2) 		8-97310-438-1 01 1 1012- ● ●
377 03.332 BRACKET; HARNESS
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 		8-97310-438-1 02 1 1012- ● ●

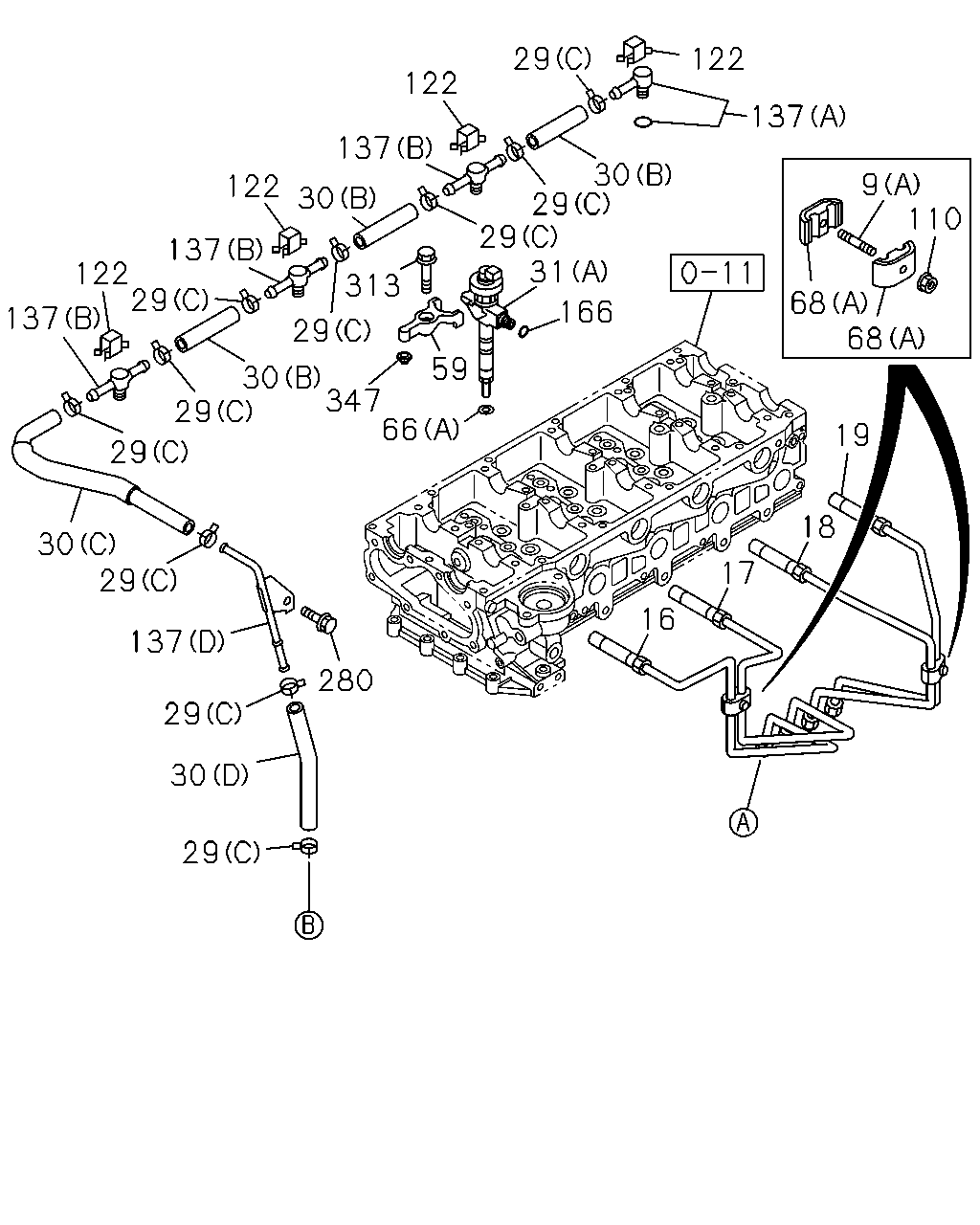

çizim 103474
29 30 29 137 29 30 29 137 122 29 137 122 30 137 122 29 122 137 30 29 29 31 166 313 59 29 66 347 30 29 280 16 17 18 19 68 68 110 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 03.340 STUD; CLIP
03.162 (A) M6X25 L=36 		8-97214-234-1 02 1 1012-1201 ● ●
9 03.340 STUD; CLIP
VIETNAM EQUIPMENT<CL0> 03.162 (A) M6X25 L=36 		8-97214-234-1 02 1 1202- ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1012-1201 ● ●
9 03.340 STUD; CLIP
NNR(NP***E) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NNR/NPR/NQR DBL CAB(NP**W*) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NNR/NPR/NQR DBL CAB(NP**W*) EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT<CL0>,SAUDI ARABIA EQUIPMENT(GH3),TRANSMISSION CONTROL-SMOOTHER(8GF) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NQR(NP***S) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO4 SPECIFICATION(NT4) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NQR(NP***S) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO4 SPECIFICATION(NT4) KD PREPARATORY PACK<6HF> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NQR(NP***S) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NQR(NP***S) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NQR(NP***S) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO4 SPECIFICATION(NT4) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NQR(NP***S) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. KD PREPARATORY PACK<6HF> 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUD I ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),UZBEKISTAN EQUIPMENT(JCW) 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK<6HF> 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1202-1302 ●
9 03.340 STUD; CLIP
00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1303- ● ● ●
9 03.340 STUD; CLIP
EXC. VIETNAM EQUIPMENT<CL0> 00.413 (C) M6X30 L=38 		0-41010-630-0 02 1 1303- ●
9 03.340 STUD; CLIP
00.413 (B) M6X35 L=43 		8-97203-278-0 01 1 1012- ● ●
16 03.330 PIPE; INJ NO.1 8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-97209-493-1 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 1012- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1012-1201 ● ●
16 03.330 PIPE; INJ NO.1
VIETNAM EQUIPMENT<CL0> 		8-98011-606-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-98039-934-0 01 1 1012-1102 ● ●
16 03.330 PIPE; INJ NO.1 8-98185-344-0 01 1 1103-1404 ● ●
16 03.330 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ● ●
16 03.330 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ● ●
17 03.330 PIPE; INJ NO.2 8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97209-494-1 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 1012- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1012-1201 ● ●
17 03.330 PIPE; INJ NO.2
VIETNAM EQUIPMENT<CL0> 		8-98043-684-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-98039-935-0 01 1 1012-1102 ● ●
17 03.330 PIPE; INJ NO.2 8-98185-345-0 01 1 1103-1404 ● ●
17 03.330 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ● ●
17 03.330 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ● ●
18 03.330 PIPE; INJ NO.3 8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97209-495-1 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 1012- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1012-1201 ● ●
18 03.330 PIPE; INJ NO.3
VIETNAM EQUIPMENT<CL0> 		8-98011-608-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-98039-936-0 01 1 1012-1102 ● ●
18 03.330 PIPE; INJ NO.3 8-98185-346-0 01 1 1103-1404 ● ●
18 03.330 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ● ●
18 03.330 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ● ●
19 03.330 PIPE; INJ NO.4 8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4
EXC. VIETNAM EQUIPMENT<CL0> 		8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97209-496-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 1012- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1012-1201 ● ●
19 03.330 PIPE; INJ NO.4
VIETNAM EQUIPMENT<CL0> 		8-98011-609-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-98039-937-0 01 1 1012-1102 ● ●
19 03.330 PIPE; INJ NO.4 8-98185-347-0 01 1 1103-1404 ● ●
19 03.330 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ● ●
19 03.330 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ● ●
29 03.162 CLIP; HOSE
VIETNAM EQUIPMENT<CL0> (C) ID=10.5 		8-97944-126-0 10 1 1105- ●
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1012- ● ●
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 1012- ● ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 1012-1104 ● ●
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 1105- ●
29 03.162 CLIP; HOSE
EXC. VIETNAM EQUIPMENT<CL0> 03.374 (C) ID=10.5 		8-97019-473-0 10 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
VIETNAM EQUIPMENT<CL0> (D) L=130 		8-98053-692-0 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
VIETNAM EQUIPMENT<CL0> (B) L=96 		8-98053-693-0 03 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
VIETNAM EQUIPMENT<CL0> (C) 		8-98112-034-0 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1012-1104 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. VIETNAM EQUIPMENT<CL0> (D) L=130 		0-01804-130-0 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1012-1104 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. VIETNAM EQUIPMENT<CL0> (B) L=98 		8-97354-652-0 03 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1012-1104 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. VIETNAM EQUIPMENT<CL0> (C) L=150 		8-97362-306-2 01 1 1105- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=110 		8-97377-894-0 01 1 1012- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 1012-1101 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) 		8-98036-320-2 01 1 1012- ● ●
31 03.332 NOZZLE ASM; INJ
(C) 		8-97200-570-3 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(B) 		8-97119-811-0 04 1 1012- ●
31 03.332 NOZZLE ASM; INJ
(A) 		8-98011-604-5 04 1 1012- ● ●
31 03.332 NOZZLE ASM; INJ
(D) 		8-97609-788-6 04 1 1012- ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 07.003 (C) 		8-97171-332-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (B) 		8-94326-439-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (C) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 1012- ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-98077-165-0 04 1 1012-1103 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-98181-540-0 04 1 1104- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.609 (D) ID=23.3 		8-94173-412-0 04 1 1012- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (E) ID=9.2 T=8.1 		8-98079-248-0 04 1 1012- ● ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
EXC. VIETNAM EQUIPMENT<CL0> (A) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
(A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
EXC. VIETNAM EQUIPMENT<CL0> (A) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(E) 		1-09701-091-0 01 1 1102- ●
68 03.162 CLIP; INJ PIPE
(A) 		8-97213-481-0 04 1 1012-1201 ● ●
68 03.162 CLIP; INJ PIPE
VIETNAM EQUIPMENT<CL0> (A) 		8-97213-481-0 04 1 1202- ●
68 03.162 CLIP; INJ PIPE
(D) 		1-09701-195-3 01 1 1012- ● ●
68 03.162 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1012- ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1012-1405 ● ●
68 03.162 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 04 1 1012- ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1012- ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1012-1101 ● ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102- ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1012-1101 ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102- ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1012- ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1012- ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1012- ● ●
280 03.330 BOLT; CLIP,FUEL HOSE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
VIETNAM EQUIPMENT<CL0> M8X50 W/WASHER 		8-98095-575-0 04 1 1105- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 1012-1104 ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 1105- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
EXC. VIETNAM EQUIPMENT<CL0> M8X50 W/WASHER 		8-97372-144-0 04 1 1105- ●
347 03.332 PIN 8-97383-286-0 04 1 1012-1012 ● ●
347 03.332 PIN 8-98165-035-0 04 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
